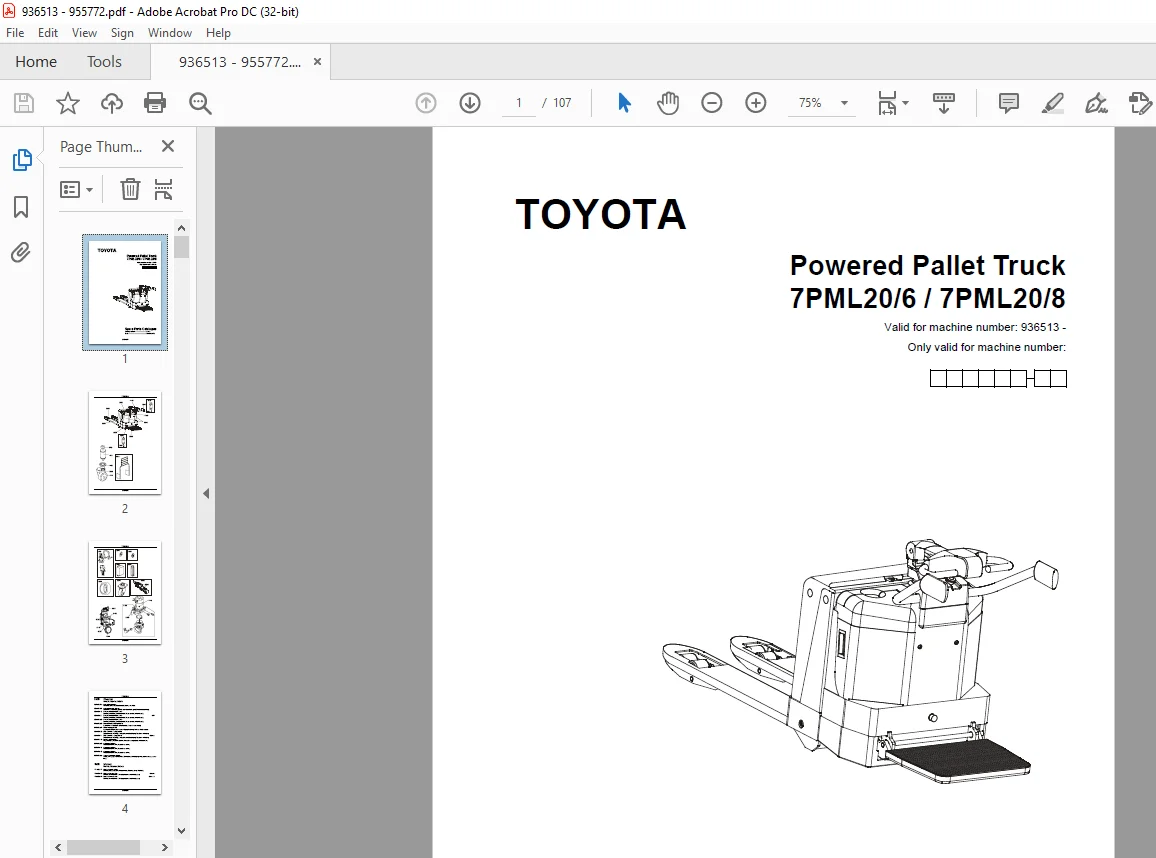

Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 936513 PDF

Description

Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 936513 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 936513 – PDF DOWNLOAD

Language : English
Pages : 107
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 936513 – PDF DOWNLOAD

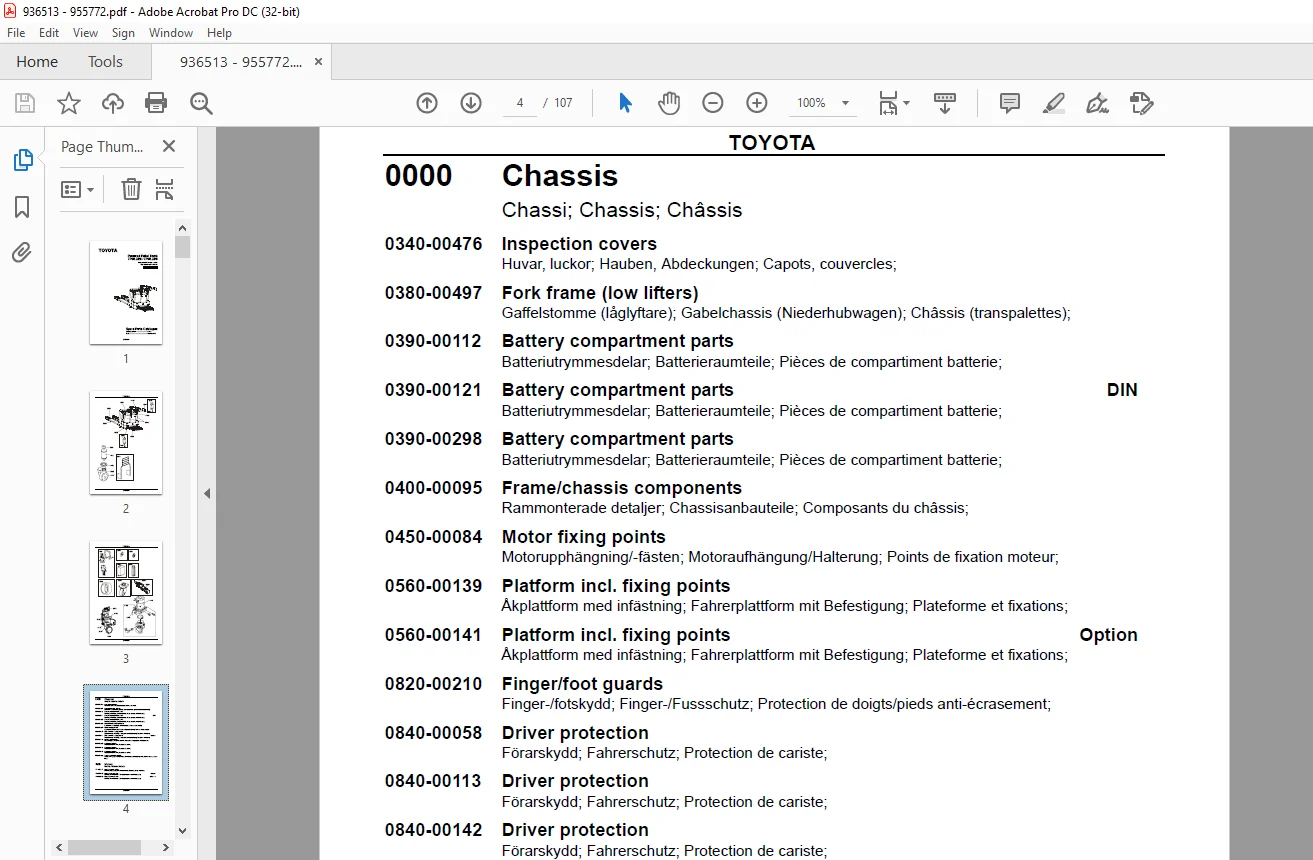

0000 Chassis.....................................................................................  4
	Chassi; Chassis; Châssis.....................................................................  4
1000 Motors......................................................................................  4
	Motorer; Motoren; Moteurs....................................................................  4
2000 Transmission/Drive gear.....................................................................  5
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction....  5
3000 Brake/Wheel/Caterpillar system..............................................................  5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles.....................  5
4000 Steering system.............................................................................  5
	Styrsystem; Steuer-/Lenksystem; Système de direction.........................................  5
5000 Electrical system...........................................................................  6
	Elektriskt system; Elektroanlage; Système électrique.........................................  6
6000 Hydraulic/pneumatic system..................................................................  6
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique..............  6
9000 Options/attachments.........................................................................  7
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.......  7
0340-00476 P0024035..............................................................................  8

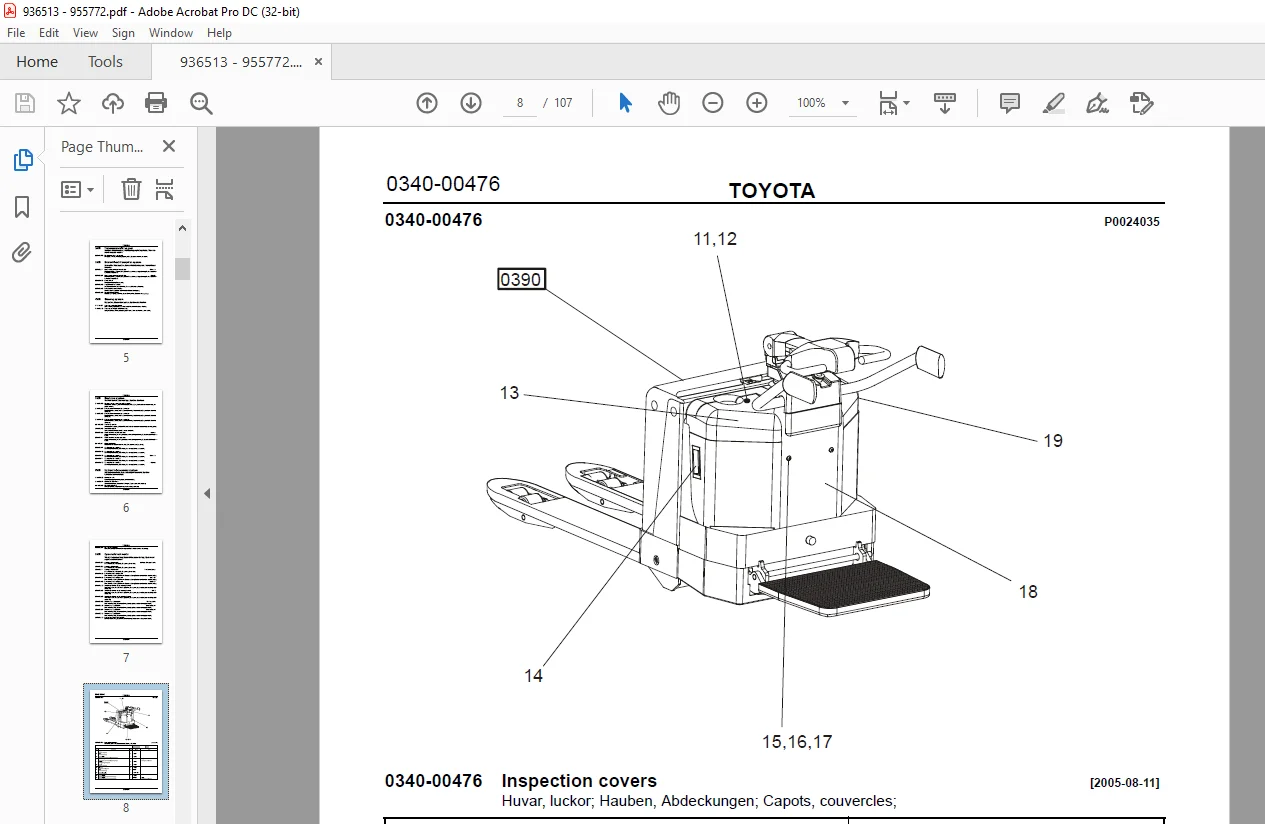

0340-00476 Inspection covers [2005-08-11]........................................................  8
0380-00497 P0024103.............................................................................. 10
0380-00497 Fork frame (low lifters) [2005-08-11]................................................. 11
0390-00112 P0013834.............................................................................. 14
0390-00112 Battery compartment parts [2002-05-15]................................................ 15
0390-00121 P0014196.............................................................................. 16
0390-00121 Battery compartment parts [2004-05-13]................................................ 17
0390-00298 P0024046.............................................................................. 18
0390-00298 Battery compartment parts [2005-08-11]................................................ 18
0400-00095 P0024323.............................................................................. 20
0400-00095 Frame/chassis components [2005-08-11]................................................. 21
0450-00084 P0024338.............................................................................. 22
0450-00084 Motor fixing points [2005-08-11]...................................................... 22
0560-00139 P0024305.............................................................................. 24
0560-00139 Platform incl. fixing points [2005-08-11]............................................. 25
0560-00141 P0024307.............................................................................. 26
0560-00141 Platform incl. fixing points [2005-08-11]............................................. 27
0820-00210 P0024023.............................................................................. 28
0820-00210 Finger/foot guards [2005-08-11]....................................................... 28
0840-00058 P0013150.............................................................................. 29
0840-00058 Driver protection [2001-08-24]........................................................ 29
0840-00113 P0021125.............................................................................. 30
0840-00113 Driver protection [2004-08-23]........................................................ 30
0840-00142 P0024031.............................................................................. 32
0840-00142 Driver protection [2005-08-11]........................................................ 33
0850-00226 P0016905.............................................................................. 34
0850-00226 Signs, warnings, decals [2002-09-30].................................................. 35
1710-00017 P0011299.............................................................................. 36
1710-00017 Electric pump motor [2004-08-26]...................................................... 36
1760-00103 P0020439.............................................................................. 38
1760-00103 Electric drive motor [2004-08-24]..................................................... 39
1760-00104 P0020440.............................................................................. 40
1760-00104 Electric drive motor [2004-08-24]..................................................... 40
2550-00070 P0024003.............................................................................. 42
2550-00070 Mechanical drive gear unit [2005-11-30]............................................... 43
3370-00011 P0011271.............................................................................. 46
3370-00011 Electromagnetic parking brake [2004-08-24]............................................ 47
3370-00027 P0017736.............................................................................. 48
3370-00027 Electromagnetic parking brake [2004-08-24]............................................ 48
3530-00102 P0021057.............................................................................. 49
3530-00102 Drive wheel [2004-08-24].............................................................. 49
3540-00040 P0012388.............................................................................. 50
3540-00040 Support/castor wheels [2004-08-24].................................................... 51
3550-00363 P0024106.............................................................................. 52
3550-00363 Fork/support arm wheels [2005-09-28].................................................. 53
3580-00039 P0021072.............................................................................. 54
3580-00039 Guide rollers/wheels [2004-09-23]..................................................... 55
4110-00397 P0024195.............................................................................. 56
4110-00397 Steering arm/wheel/lever [2005-08-11]................................................. 57
4180-00019 P0013829.............................................................................. 60
4180-00019 Steering bearings, radial bearing [2005-04-06]........................................ 61
5160-00079 P0017661.............................................................................. 62
5160-00079 General alarm signals (audible/visual) [2004-08-26]................................... 62
5190-00029 P0012438.............................................................................. 63
5190-00029 Battery cut out connector/contactor [2005-04-06]...................................... 63
5190-00039 P0012722.............................................................................. 64
5190-00039 Battery cut out connector/contactor [2004-08-26]...................................... 65
5190-00100 P0024053.............................................................................. 66
5190-00100 Battery cut out connector/contactor [2005-08-11]...................................... 67
5310-00060 P0017055.............................................................................. 68
5310-00060 Start/stop switch [2004-08-24]........................................................ 68
5460-00040 P0013153.............................................................................. 69
5460-00040 Transistor panel [2004-09-09]......................................................... 69
5590-00236 P0024123.............................................................................. 70
5590-00236 Work function harnesses/fuse [2005-08-11]............................................. 70
5590-00241 P0024301.............................................................................. 72
5590-00241 Work function harnesses/fuse [2005-08-11]............................................. 73
5610-00021 P0016866.............................................................................. 74
5610-00021 Pump contactor [2005-04-11]........................................................... 74
5830-00067 P0012445.............................................................................. 75
5830-00067 Safety probes/sensors [2005-04-06].................................................... 75
5830-00148 P0022182.............................................................................. 76
5830-00148 Safety probes/sensors [2005-08-12].................................................... 76
5830-00170 P0024300.............................................................................. 77
5830-00170 Safety probes/sensors [2005-08-11].................................................... 77
5830-00171 P0024309.............................................................................. 78
5830-00171 Safety probes/sensors [2005-08-11].................................................... 79
5830-00172 P0024310.............................................................................. 80
5830-00172 Safety probes/sensors [2005-08-11].................................................... 80
6100-00190 P0022214.............................................................................. 82
6100-00190 Hydraulic unit [2004-10-01]........................................................... 83
6120-00194 P0016859.............................................................................. 84
6120-00194 Hydraulic tank lines [2004-08-24]..................................................... 84
6610-00053 P0012390.............................................................................. 85
6610-00053 Main lift cylinders [2004-08-24]...................................................... 85
6680-00034 P0018043.............................................................................. 86
6680-00034 Powertrak cylinder [2004-08-24]....................................................... 87
9380-00004 P0017729.............................................................................. 88
9380-00004 Charger attachment [2005-12-14]....................................................... 88
9380-00005 P0017731.............................................................................. 89
9380-00005 Charger attachment [2005-12-14]....................................................... 89
9380-00011 P0020457.............................................................................. 89
9380-00011 Charger attachment [2005-12-14]....................................................... 89
9400-00198 P0026371.............................................................................. 90
9400-00198 Extra electrical equipment [2006-03-02]............................................... 91
9400-00199 P0026372.............................................................................. 92
9400-00199 Extra electrical equipment [2006-03-02]............................................... 93
9400-00200 P0026373.............................................................................. 94
9400-00200 Extra electrical equipment [2006-03-02]............................................... 95
9420-00015 P0012396.............................................................................. 96
9420-00015 Truck log device, code locking device [2006-02-23].................................... 96
9420-00092 P0024042.............................................................................. 98
9420-00092 Truck log device, code locking device [2005-08-11].................................... 99
9420-00098 P0026077..............................................................................100
9420-00098 Truck log device, code locking device [2006-03-02]....................................100
9500-00208 P0012488..............................................................................101
9500-00208 Other extra equipment [2005-12-14]....................................................101
9500-00219 P0012481..............................................................................102
9500-00219 Other extra equipment [2004-08-26]....................................................102
9500-00524 P0018662..............................................................................103
9500-00524 Other extra equipment [2004-08-26]....................................................103
9500-00712 P0024329..............................................................................104
9500-00712 Other extra equipment [2005-08-12]....................................................104
9550-00013 P0012468..............................................................................106
9550-00013 Battery changing equipment [2005-03-03]...............................................106
