Toyota Forklift 7SLL13.5S Powered Pallet Stacker Parts Catalogue Manual 955047 – PDF DOWNLOAD

Description

Toyota Forklift 7SLL13.5S Powered Pallet Stacker Parts Catalogue Manual 955047 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7SLL13.5S Powered Pallet Stacker Parts Catalogue Manual 955047 – PDF DOWNLOAD

Language : English
Pages : 165
Downloadable : Yes
File Type : PDF

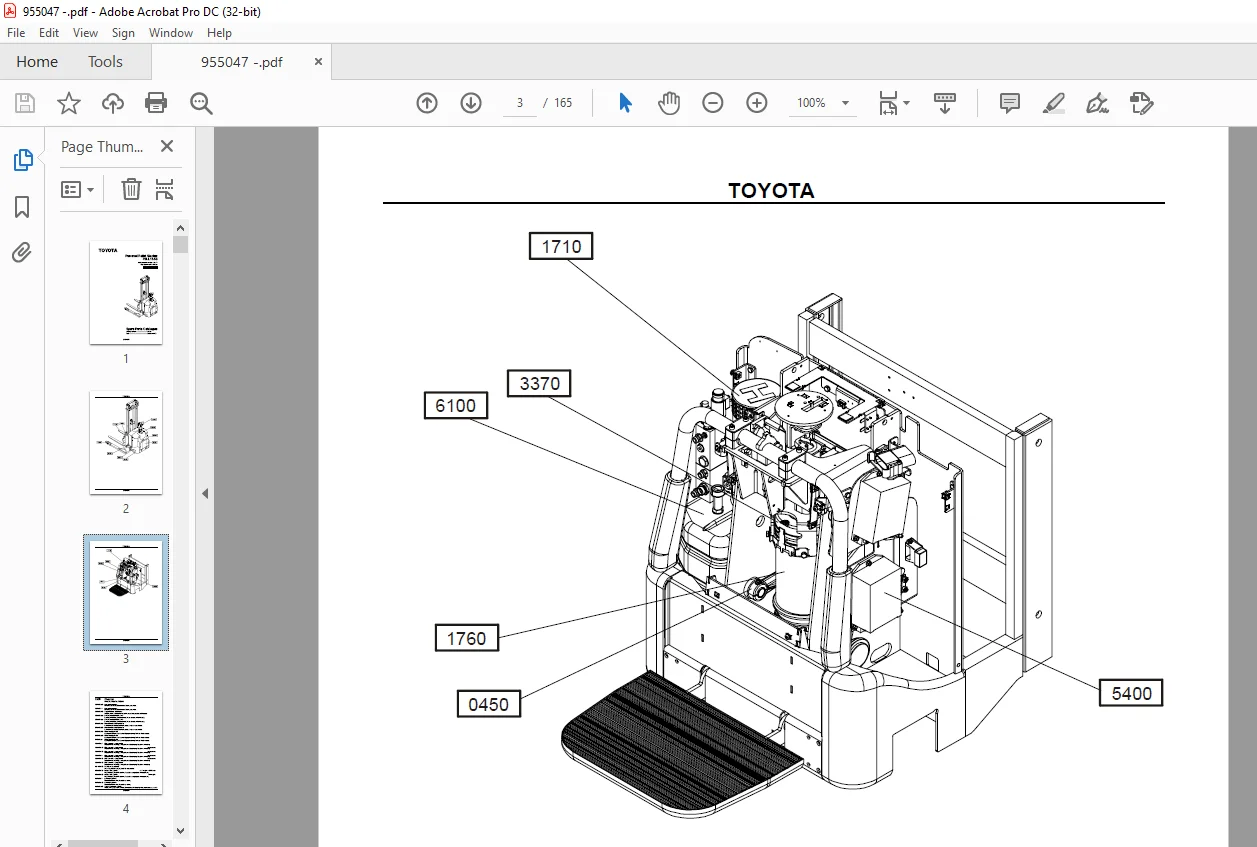

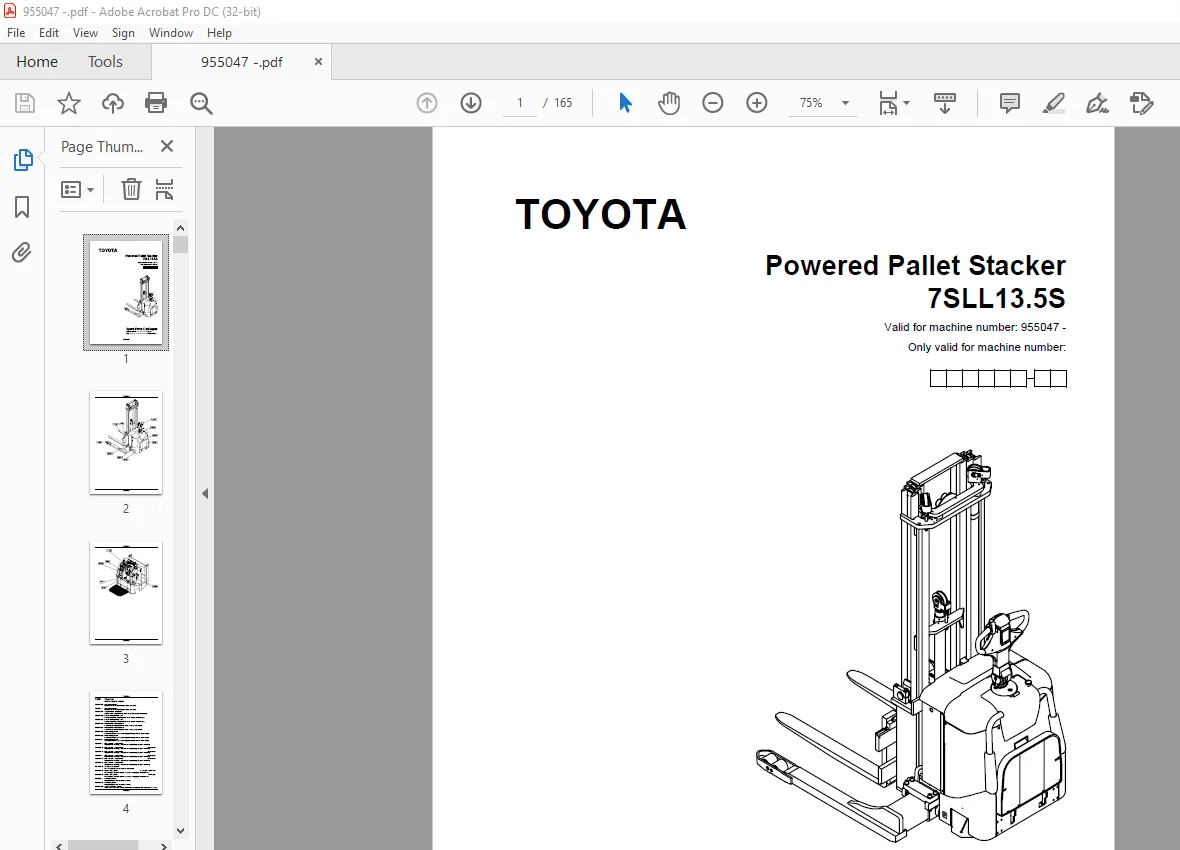

IMAGES PREVIEW OF THE MANUAL:

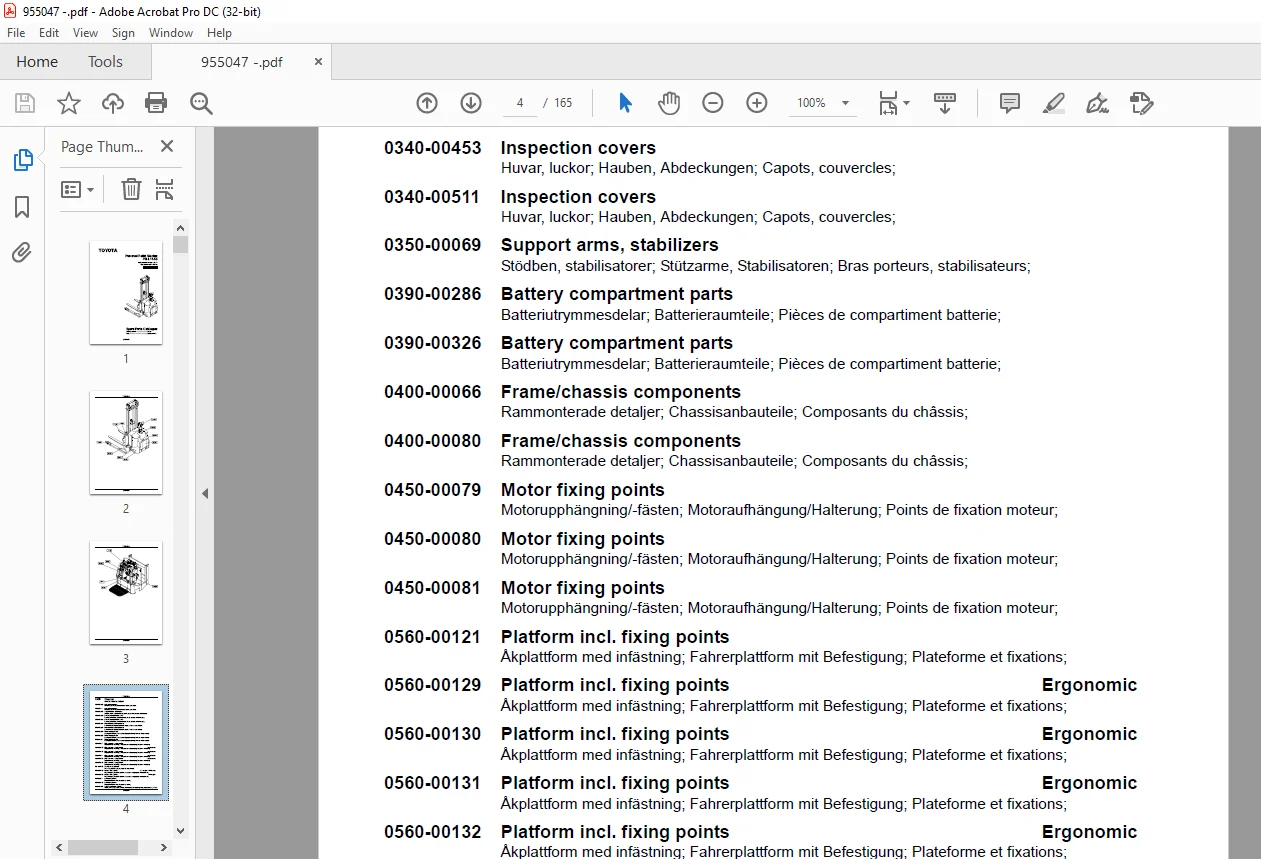

TABLE OF CONTENTS:

Toyota Forklift 7SLL13.5S Powered Pallet Stacker Parts Catalogue Manual 955047 – PDF DOWNLOAD

0000 Chassis...........................................................................................  4
	Chassi; Chassis; Châssis...........................................................................  4
1000 Motors............................................................................................  5
	Motorer; Motoren; Moteurs..........................................................................  5
2000 Transmission/Drive gear...........................................................................  5
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  5
3000 Brake/Wheel/Caterpillar system....................................................................  5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  5
4000 Steering system...................................................................................  6
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  6
5000 Electrical system.................................................................................  6
	Elektriskt system; Elektroanlage; Système électrique...............................................  6
6000 Hydraulic/pneumatic system........................................................................  7
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  7
7000 Work function - lifting masts.....................................................................  7
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage....  7
9000 Options/attachments...............................................................................  8
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.............  8
0340-00453 P0023137.................................................................................... 10
0340-00453 Inspection covers [2005-10-07].............................................................. 11
0340-00511 P0026237.................................................................................... 12
0340-00511 Inspection covers [2006-02-22].............................................................. 12
0350-00069 P0023185.................................................................................... 14
0350-00069 Support arms, stabilizers [2005-11-28]...................................................... 15
0390-00286 P0023235.................................................................................... 16
0390-00286 Battery compartment parts [2005-03-11]...................................................... 17
0390-00326 P0026185.................................................................................... 18
0390-00326 Battery compartment parts [2006-02-23]...................................................... 18
0400-00066 P0021382.................................................................................... 20
0400-00066 Frame/chassis components [2006-08-28]....................................................... 21
0400-00080 P0022821.................................................................................... 22
0400-00080 Frame/chassis components [2006-02-23]....................................................... 22
0450-00079 P0021126.................................................................................... 24
0450-00079 Motor fixing points [2006-02-23]............................................................ 25
0450-00080 P0021127.................................................................................... 28
0450-00080 Motor fixing points [2006-02-23]............................................................ 28
0450-00081 P0021139.................................................................................... 30
0450-00081 Motor fixing points [2006-02-23]............................................................ 31
0560-00121 P0021075.................................................................................... 32
0560-00121 Platform incl. fixing points [2006-02-23]................................................... 32
0560-00129 P0022853.................................................................................... 34
0560-00129 Platform incl. fixing points [2006-02-23]................................................... 35
0560-00130 P0022860.................................................................................... 36
0560-00130 Platform incl. fixing points [2006-02-23]................................................... 36
0560-00131 P0022862.................................................................................... 38
0560-00131 Platform incl. fixing points [2006-02-23]................................................... 39
0560-00132 P0022863.................................................................................... 40
0560-00132 Platform incl. fixing points [2006-02-23]................................................... 40
0560-00148 P0026231.................................................................................... 42
0560-00148 Platform incl. fixing points [2006-02-22]................................................... 43
0810-00108 P0021103.................................................................................... 46
0810-00108 Overhead guard/roof [2006-04-12]............................................................ 46
0820-00179 P0021371.................................................................................... 47
0820-00179 Finger/foot guards [2005-11-22]............................................................. 47
0820-00180 P0021372.................................................................................... 48
0820-00180 Finger/foot guards [2005-11-14]............................................................. 48
0840-00111 P0021094.................................................................................... 50
0840-00111 Driver protection [2006-06-27].............................................................. 51
0840-00163 P0025458.................................................................................... 52
0840-00163 Driver protection [2005-12-02].............................................................. 52
0850-00382 P0023134.................................................................................... 54
0850-00382 Signs, warnings, decals [2005-03-11]........................................................ 55
1710-00112 P0021381.................................................................................... 56
1710-00112 Electric pump motor [2006-03-13]............................................................ 56
1730-00035 P0022155.................................................................................... 57
1730-00035 Electric steering motor [2006-02-23]........................................................ 57
1760-00110 P0021138.................................................................................... 58
1760-00110 Electric drive motor [2005-03-11]........................................................... 59
2550-00082 P0027375.................................................................................... 60
2550-00082 Mechanical drive gear unit [2006-09-18]..................................................... 61
3370-00032 P0021460.................................................................................... 64
3370-00032 Electromagnetic parking brake [2006-02-23].................................................. 64
3530-00103 P0021137.................................................................................... 65
3530-00103 Drive wheel [2006-02-23].................................................................... 65
3540-00086 P0021264.................................................................................... 66
3540-00086 Support/castor wheels [2005-03-11].......................................................... 67
3540-00087 P0021269.................................................................................... 68
3540-00087 Support/castor wheels [2005-03-11].......................................................... 69
3550-00368 P0024592.................................................................................... 70
3550-00368 Fork/support arm wheels [2005-08-26]........................................................ 71
4110-00335 P0021202.................................................................................... 72
4110-00335 Steering arm/wheel/lever [2006-09-19]....................................................... 73
4110-00375 P0023320.................................................................................... 74
4110-00375 Steering arm/wheel/lever [2006-08-29]....................................................... 75
4110-00376 P0023321.................................................................................... 78
4110-00376 Steering arm/wheel/lever [2006-08-29]....................................................... 79
4110-00414 P0024531.................................................................................... 82
4110-00414 Steering arm/wheel/lever [2006-02-23]....................................................... 83
4120-00018 P0021134.................................................................................... 84
4120-00018 Steering column/gear [2005-03-11]........................................................... 84
4120-00019 P0023184.................................................................................... 86
4120-00019 Steering column/gear [2006-02-23]........................................................... 87
4120-00020 P0022157.................................................................................... 88
4120-00020 Steering column/gear [2006-02-23]........................................................... 89
4350-00010 P0022151.................................................................................... 90
4350-00010 Steering angle sensor [2006-02-23].......................................................... 90
5100-00054 P0025969.................................................................................... 92
5100-00054 General electrical components [2006-02-22].................................................. 93
5390-00263 P0024534.................................................................................... 94
5390-00263 Driving function harnesses/fuse [2006-02-23]................................................ 94
5400-00014 P0025965.................................................................................... 96
5400-00014 Electrical drive motor system [2006-08-29].................................................. 97
5820-00134 P0021353....................................................................................100
5820-00134 Lift/lowering/reach movement probes/sensors [2005-03-11]....................................101
5820-00136 P0021359....................................................................................102
5820-00136 Lift/lowering/reach movement probes/sensors [2005-03-11]....................................103
5820-00137 P0021361....................................................................................104
5820-00137 Lift/lowering/reach movement probes/sensors [2005-03-11]....................................105
5820-00140 P0021367....................................................................................106
5820-00140 Lift/lowering/reach movement probes/sensors [2005-03-11]....................................107
5820-00141 P0021368....................................................................................108
5820-00141 Lift/lowering/reach movement probes/sensors [2005-03-11]....................................109
6100-00229 P0027360....................................................................................110
6100-00229 Hydraulic unit [2006-08-31].................................................................111
6130-00030 P0022824....................................................................................112
6130-00030 Filters and housing [2006-02-23]............................................................113
6230-00141 P0025454....................................................................................114
6230-00141 Hydraulic lines chassis [2005-12-02]........................................................114
6320-00333 P0025452....................................................................................116
6320-00333 Mast hydraulic lines [2005-12-02]...........................................................117
6320-00334 P0025453....................................................................................118
6320-00334 Mast hydraulic lines [2005-12-02]...........................................................118
6610-00002 P0008081....................................................................................120
6610-00002 Main lift cylinders [2005-03-11]............................................................120
6610-00004 P0008281....................................................................................122
6610-00004 Main lift cylinders [2005-03-11]............................................................123
6610-00005 P0008297....................................................................................124
6610-00005 Main lift cylinders [2005-03-11]............................................................125
6620-00001 P0008290....................................................................................128
6620-00001 Free lift cylinders [2005-03-11]............................................................129
6620-00002 P0008664....................................................................................132
6620-00002 Free lift cylinders [2005-03-11]............................................................133
6620-00003 P0008410....................................................................................136
6620-00003 Free lift cylinders [2005-03-11]............................................................137
7100-00099 P0023063....................................................................................138
7100-00099 Main mast [2006-06-12]......................................................................139
7100-00102 P0023071....................................................................................142
7100-00102 Main mast [2005-03-11]......................................................................143
7100-00103 P0023075....................................................................................146
7100-00103 Main mast [2005-03-11]......................................................................147
7130-00023 P0008665....................................................................................150
7130-00023 Main mast fork carriage [2005-03-11]........................................................150
7190-00062 P0021340....................................................................................152
7190-00062 Main mast suspension [2006-02-23]...........................................................153
7410-00004 P0002535....................................................................................154
7410-00004 Fork, carpet boom, lift hook [2005-03-11]...................................................154
7420-00489 P0026060....................................................................................156
7420-00489 Fork carriage unit, integrated sideshift, fork spread [2006-02-23]..........................157
9420-00098 P0026077....................................................................................158
9420-00098 Truck log device, code locking device [2006-04-10]..........................................158
9500-00606 P0021174....................................................................................160
9500-00606 Other extra equipment [2006-02-23]..........................................................161
9500-00731 P0025029....................................................................................162
9500-00731 Other extra equipment [2006-02-23]..........................................................162
9500-00748 P0025311....................................................................................163
9500-00748 Other extra equipment [2005-11-14]..........................................................163
9550-00028 P0021152....................................................................................164
9550-00028 Battery changing equipment [2006-02-23].....................................................165

Contact us: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
