Toyota Forklift 7SM16D Powered Pallet Stacker Parts Catalogue Manual 970566 – PDF DOWNLOAD

Description

Toyota Forklift 7SM16D Powered Pallet Stacker Parts Catalogue Manual 970566 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7SM16D Powered Pallet Stacker Parts Catalogue Manual 970566 – PDF DOWNLOAD

Language : English
Pages : 95
Downloadable : Yes
File Type : PDF

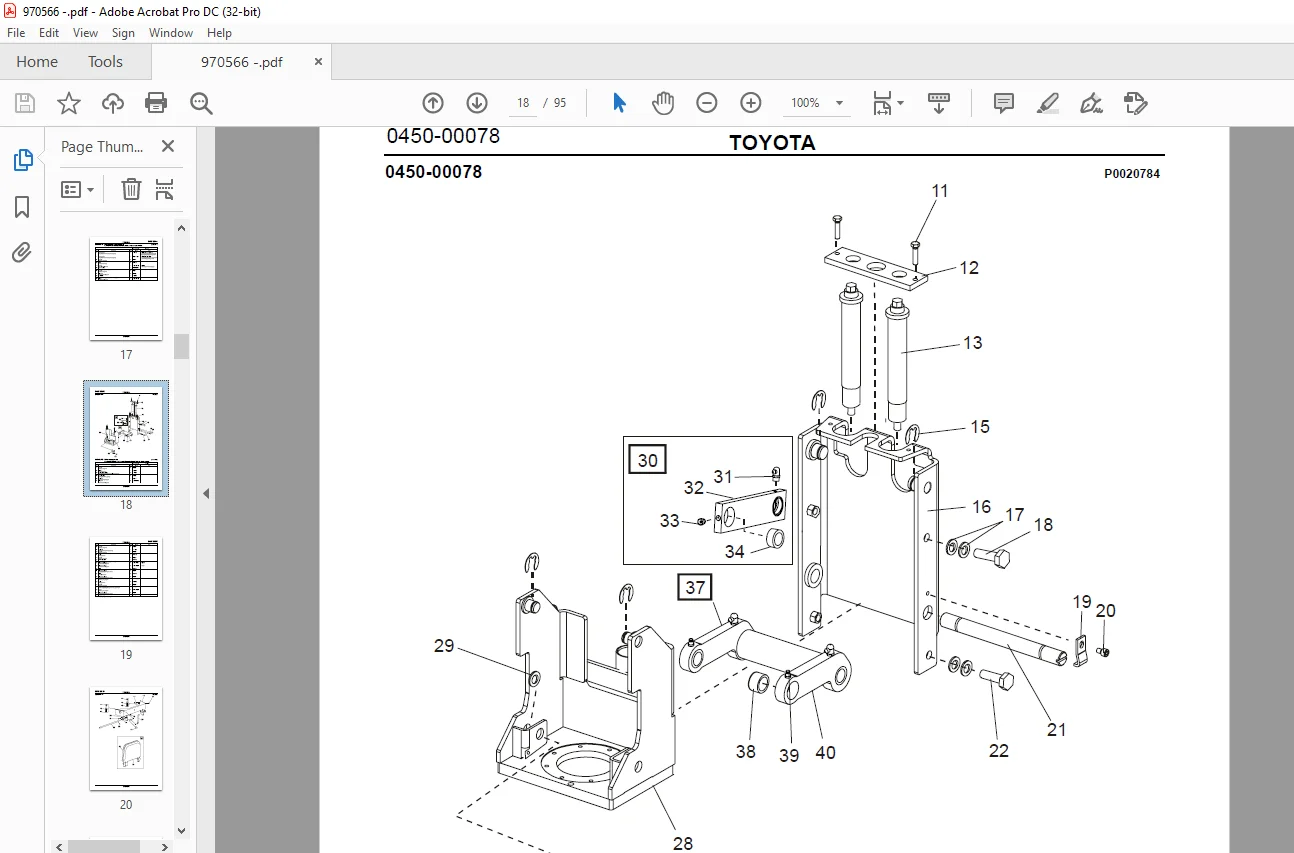

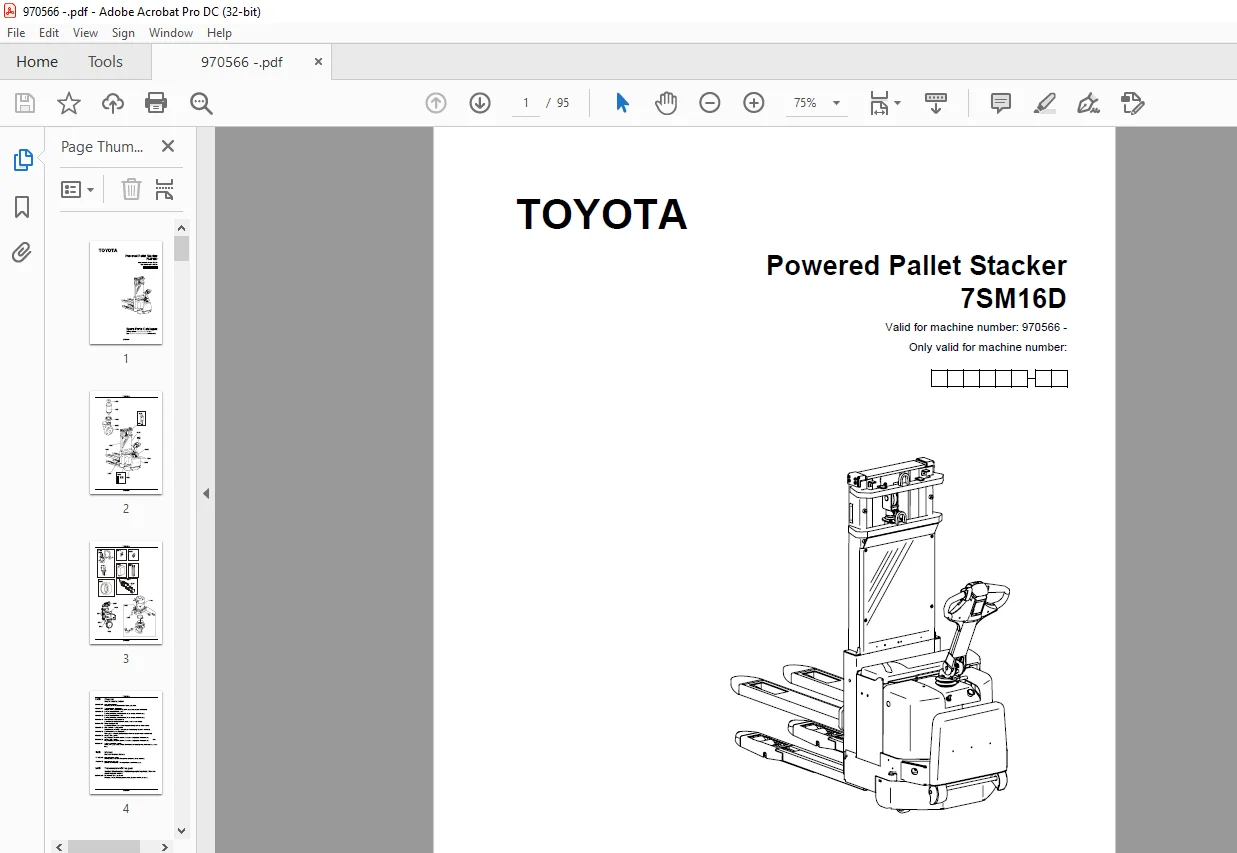

IMAGES PREVIEW OF THE MANUAL:

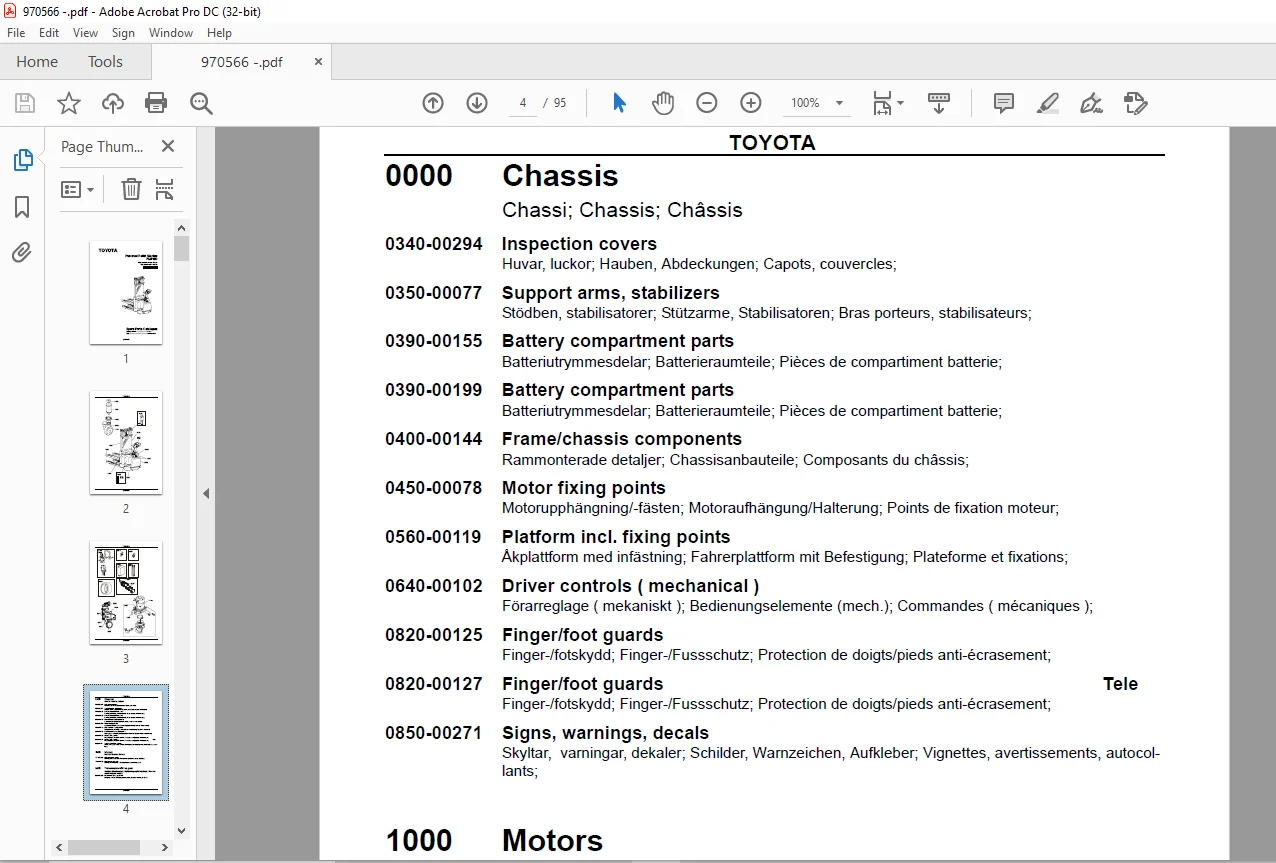

TABLE OF CONTENTS:

Toyota Forklift 7SM16D Powered Pallet Stacker Parts Catalogue Manual 970566 – PDF DOWNLOAD

0000 Chassis........................................................................................... 4
	Chassi; Chassis; Châssis........................................................................... 4
1000 Motors............................................................................................ 4
	Motorer; Motoren; Moteurs.......................................................................... 4
2000 Transmission/Drive gear........................................................................... 4
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction.......... 4
3000 Brake/Wheel/Caterpillar system.................................................................... 5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles........................... 5
4000 Steering system................................................................................... 5
	Styrsystem; Steuer-/Lenksystem; Système de direction............................................... 5
5000 Electrical system................................................................................. 6
	Elektriskt system; Elektroanlage; Système électrique............................................... 6
6000 Hydraulic/pneumatic system........................................................................ 6
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique.................... 6
7000 Work function - lifting masts..................................................................... 7
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage.... 7
9000 Options/attachments............................................................................... 7
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options............. 7
0340-00294 P0015810.................................................................................... 8
0340-00294 Inspection covers [2002-03-08].............................................................. 9
0350-00077 P0024120....................................................................................10
0350-00077 Support arms, stabilizers [2005-11-10]......................................................10
0390-00155 P0015903....................................................................................12
0390-00155 Battery compartment parts [2002-03-08]......................................................13
0390-00199 P0017725....................................................................................14
0390-00199 Battery compartment parts [2003-01-29]......................................................15
0400-00144 P0028521....................................................................................16
0400-00144 Frame/chassis components [2007-01-04].......................................................17
0450-00078 P0020784....................................................................................18
0450-00078 Motor fixing points [2005-04-06]............................................................18
0560-00119 P0020456....................................................................................20
0560-00119 Platform incl. fixing points [2006-04-10]...................................................21
0640-00102 P0015760....................................................................................22
0640-00102 Driver controls ( mechanical ) [2006-04-10].................................................23
0820-00125 P0015758....................................................................................24
0820-00125 Finger/foot guards [2005-04-06].............................................................24
0820-00127 P0015877....................................................................................25
0820-00127 Finger/foot guards [2005-04-06].............................................................25
0850-00271 P0017821....................................................................................26
0850-00271 Signs, warnings, decals [2003-02-03]........................................................27
1710-00049 P0015822....................................................................................28
1710-00049 Electric pump motor [2006-10-27]............................................................28
1760-00105 P0020441....................................................................................30
1760-00105 Electric drive motor [2007-01-03]...........................................................31
2550-00080 P0027237....................................................................................32
2550-00080 Mechanical drive gear unit [2006-09-21].....................................................33
3370-00026 P0017735....................................................................................36
3370-00026 Electromagnetic parking brake [2006-04-10]..................................................36
3530-00100 P0020790....................................................................................37
3530-00100 Drive wheel [2006-04-10]....................................................................37
3540-00065 P0015651....................................................................................38
3540-00065 Support/castor wheels [2006-04-10]..........................................................39
3550-00366 P0024122....................................................................................40
3550-00366 Fork/support arm wheels [2005-11-10]........................................................41
4110-00411 P0024267....................................................................................42
4110-00411 Steering arm/wheel/lever [2007-01-02].......................................................43
4110-00413 P0024269....................................................................................46
4110-00413 Steering arm/wheel/lever [2007-01-02].......................................................47
4180-00019 P0013829....................................................................................50
4180-00019 Steering bearings, radial bearing [2006-04-10]..............................................51
5160-00078 P0017660....................................................................................52
5160-00078 General alarm signals (audible/visual) [2006-04-10].........................................52
5190-00029 P0012438....................................................................................53
5190-00029 Battery cut out connector/contactor [2006-04-10]............................................53
5190-00059 P0015846....................................................................................54
5190-00059 Battery cut out connector/contactor [2006-04-10]............................................55
5190-00070 P0017732....................................................................................56
5190-00070 Battery cut out connector/contactor [2006-04-10]............................................57
5310-00096 P0015763....................................................................................58
5310-00096 Start/stop switch [2006-04-10]..............................................................58
5460-00046 P0015764....................................................................................59
5460-00046 Transistor panel [2006-12-18]...............................................................59
5590-00185 P0021573....................................................................................60
5590-00185 Work function harnesses/fuse [2006-11-02]...................................................61
5610-00021 P0016866....................................................................................62
5610-00021 Pump contactor [2006-05-17].................................................................62
5830-00067 P0012445....................................................................................63
5830-00067 Safety probes/sensors [2006-04-10]..........................................................63
5830-00168 P0024285....................................................................................63
5830-00168 Safety probes/sensors [2005-08-12]..........................................................63
6100-00246 P0028071....................................................................................64
6100-00246 Hydraulic unit [2006-11-08].................................................................65
6230-00065 P0015856....................................................................................66
6230-00065 Hydraulic lines chassis [2006-04-10]........................................................66
6610-00091 P0015868....................................................................................67
6610-00091 Main lift cylinders [2005-04-06]............................................................67
6630-00009 P0015833....................................................................................68
6630-00009 Support arm/initial lift cylinders [2006-04-10].............................................68
7120-00466 P0028098....................................................................................70
7120-00466 Main lift chain system [2006-11-08].........................................................71
7150-00022 P0015870....................................................................................73
7150-00022 Main mast guidance/dampers [2006-05-18].....................................................73
7420-00334 P0021438....................................................................................74
7420-00334 Fork carriage unit, integrated sideshift, fork spread [2006-05-18]..........................74
9380-00004 P0017729....................................................................................76
9380-00004 Charger attachment [2006-04-10].............................................................76
9380-00005 P0017731....................................................................................77
9380-00005 Charger attachment [2006-04-10].............................................................77
9380-00011 P0020457....................................................................................77
9380-00011 Charger attachment [2006-04-10].............................................................77
9400-00078 P0015420....................................................................................78
9400-00078 Extra electrical equipment [2006-04-10].....................................................79
9400-00245 P0028556....................................................................................80
9400-00245 Extra electrical equipment [2007-01-04].....................................................81
9400-00246 P0028557....................................................................................82
9400-00246 Extra electrical equipment [2007-01-04].....................................................83
9400-00247 P0028559....................................................................................84
9400-00247 Extra electrical equipment [2007-01-04].....................................................85
9420-00015 P0012396....................................................................................86
9420-00015 Truck log device, code locking device [2006-09-29]..........................................86
9420-00064 P0022173....................................................................................88
9420-00064 Truck log device, code locking device [2006-04-10]..........................................89
9420-00098 P0026077....................................................................................90
9420-00098 Truck log device, code locking device [2006-09-29]..........................................90
9500-00382 P0015897....................................................................................91
9500-00382 Other extra equipment [2006-04-10]..........................................................91
9500-00711 P0024328....................................................................................92
9500-00711 Other extra equipment [2006-06-30]..........................................................92
9500-00712 P0024329....................................................................................94
9500-00712 Other extra equipment [2006-04-10]..........................................................94
