Toyota Forklift 8FBMHT60 8FBMHT70 8FBMHT85 Repair Manual – PDF DOWNLOAD

Description

Toyota Forklift 8FBMHT60 8FBMHT70 8FBMHT85 Repair Manual – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 8FBMHT60 8FBMHT70 8FBMHT85 Repair Manual – PDF DOWNLOAD

Language : English
Pages : 388
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Toyota Forklift 8FBMHT60 8FBMHT70 8FBMHT85 Repair Manual – PDF DOWNLOAD

OPERATING TIPS:
GENERAL INSTRUCTIONS:
1. Safe operation
(1) After jacking up the vehicle, always support it with wooden blocks or sturdy rigid stands
(2) When hoisting the vehicle or a heavy component, use wire rope(s), chains or slings with a
sufficient reserve in load capacity to the load to lift
(3) Always disconnect the battery plug before electrical parts inspection or servicing
2. Technical operation to perform
(1) Before starting any kind of operation, prepare the tools, necessary measuring instruments
(multimeter, megohmmeter, oil pressure gauge, etc.) and SST (Special Service Tools).
(2) Before disconnecting wiring, always check the cable color and wiring state
(3) When overhauling functional parts, complicated portions or related mechanisms, arrange the
parts neatly to prevent confusion
(4) When disassembling and inspecting parts such as the control valve, use clean tools and operate
in a clean location
(5) When disassembling, inspecting and reassembling, follow the specified procedures
(6) Always replace gaskets, packing, O-rings, self-locking nuts and cotter pins with new ones each
time they are disassembled
(7) Always use genuine parts for replacement.
(8) Reassembling, use specified bolts and nuts as shown in the specifications. Observe the
specified tightening torque at the time of reassembly (tighten to the average value of the specified
tightening torque range.). If no tightening torque is specified, tighten the bolt or the nut according
to the value at the “standard tightening torque table”
3. Determining the trouble status
When a trouble occurs, do not attempt an immediate disassembling and/or replacing of any
components but first determine if disassembly and/or replacement are actually required in order to
resolve the defect.
4. Waste fluids and solid refuses disposal
Always use a proper container when draining waste fluids from the vehicle. Careless discharge of oil,
fuel, coolant, oil filter, battery, solid refuses or other harmful substance may adversely affect human
health and destroy the environment. Always collect and sort well this kind of materials, and treat
them properly by requesting disposal by specialized companies and however according to the
current laws
5. Greasing up each part
In addition to periodic grease-up according to the lubrication chart, apply MP grease (or molybdenum
disulfide grease) to each sliding contact face when repairing a portion (like pedal link) involving
sliding contact.
6. Functional parts protection (battery operated vehicles)
(1) After vehicle inspection or maintenance, before connecting the battery plug, check thoroughly
each connector for connection failure or imperfect connection. Connectors failure or imperfect
connection, especially related to the logic units, may damage elements inside them
7. Disconnect the battery plug
When unplugging the battery plug, use the grip. Do not pull up the cable.

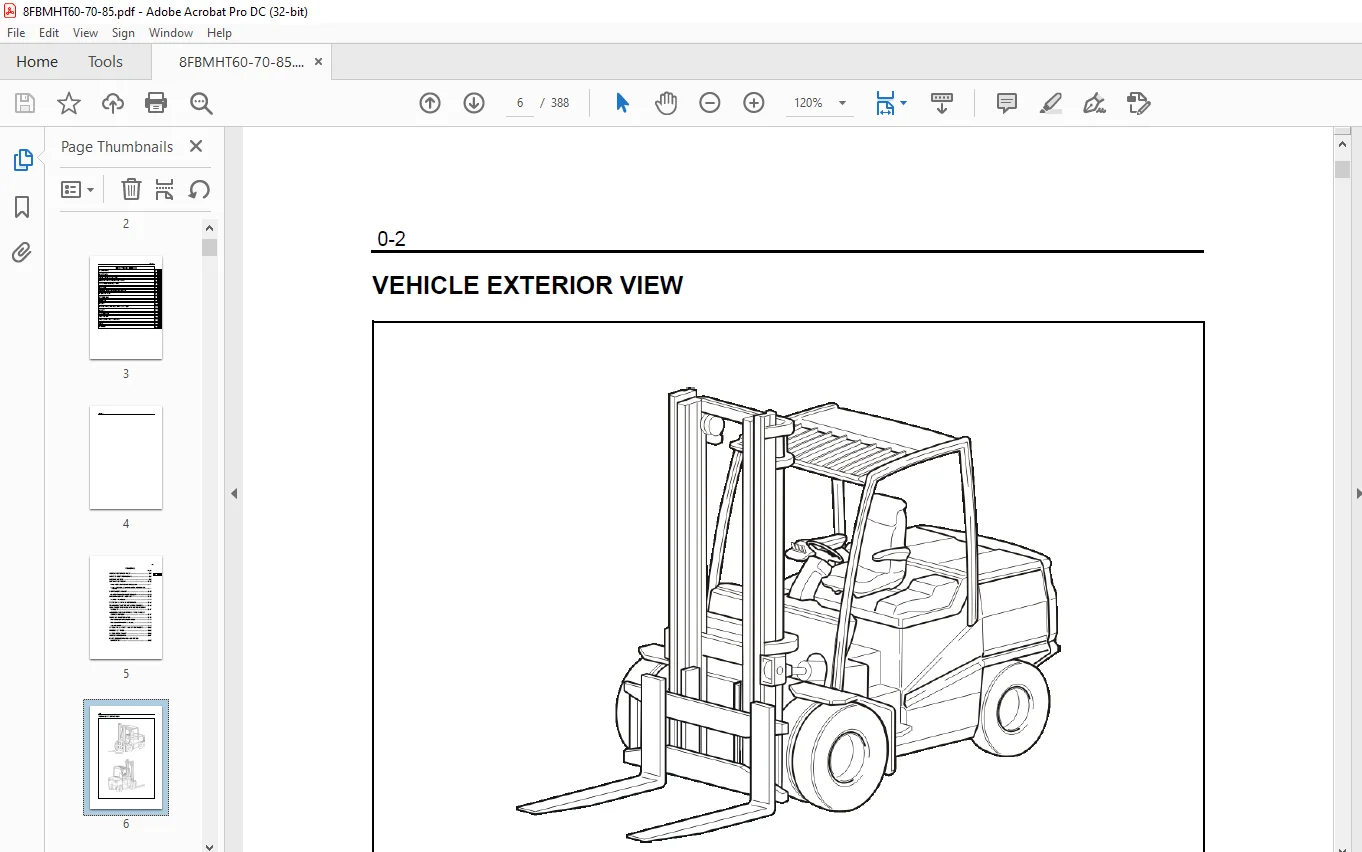

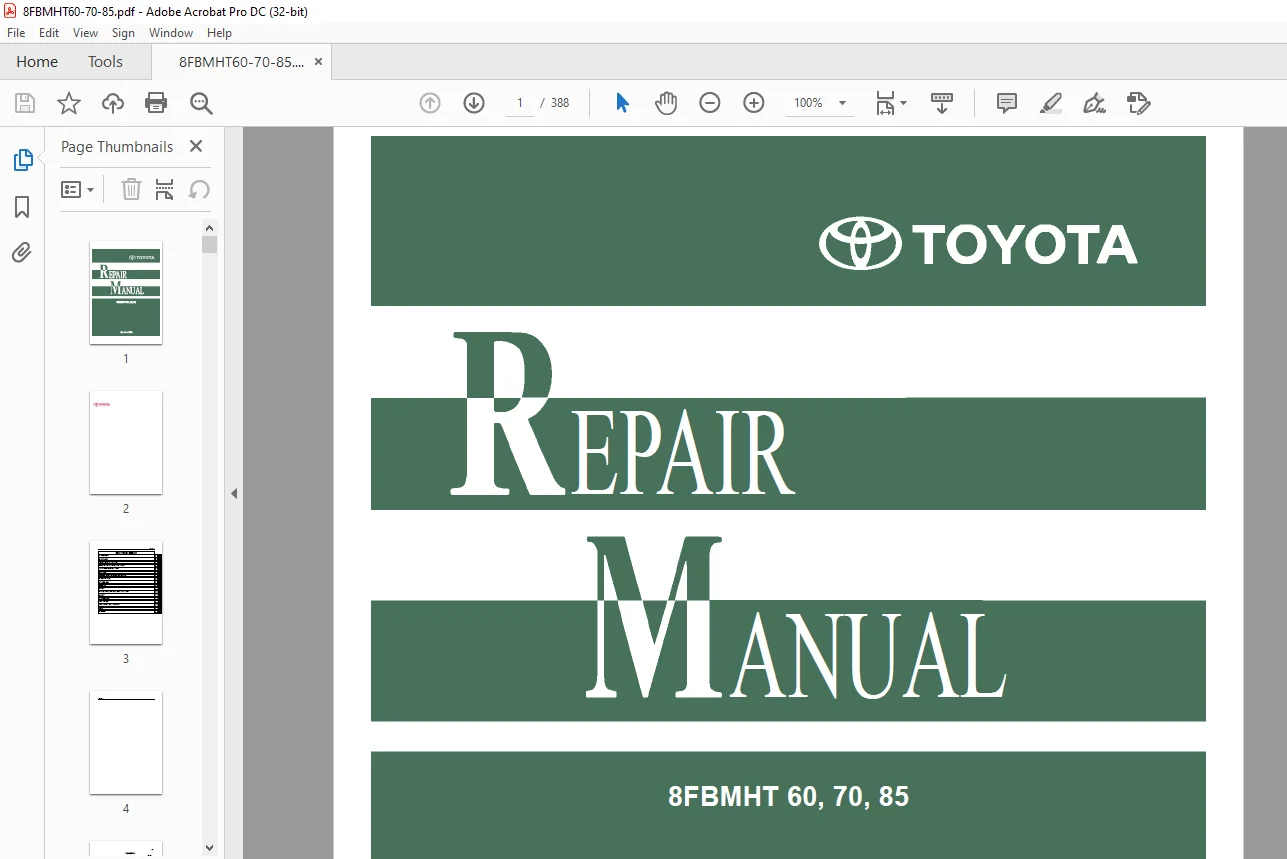

IMAGES PREVIEW OF THE MANUAL:

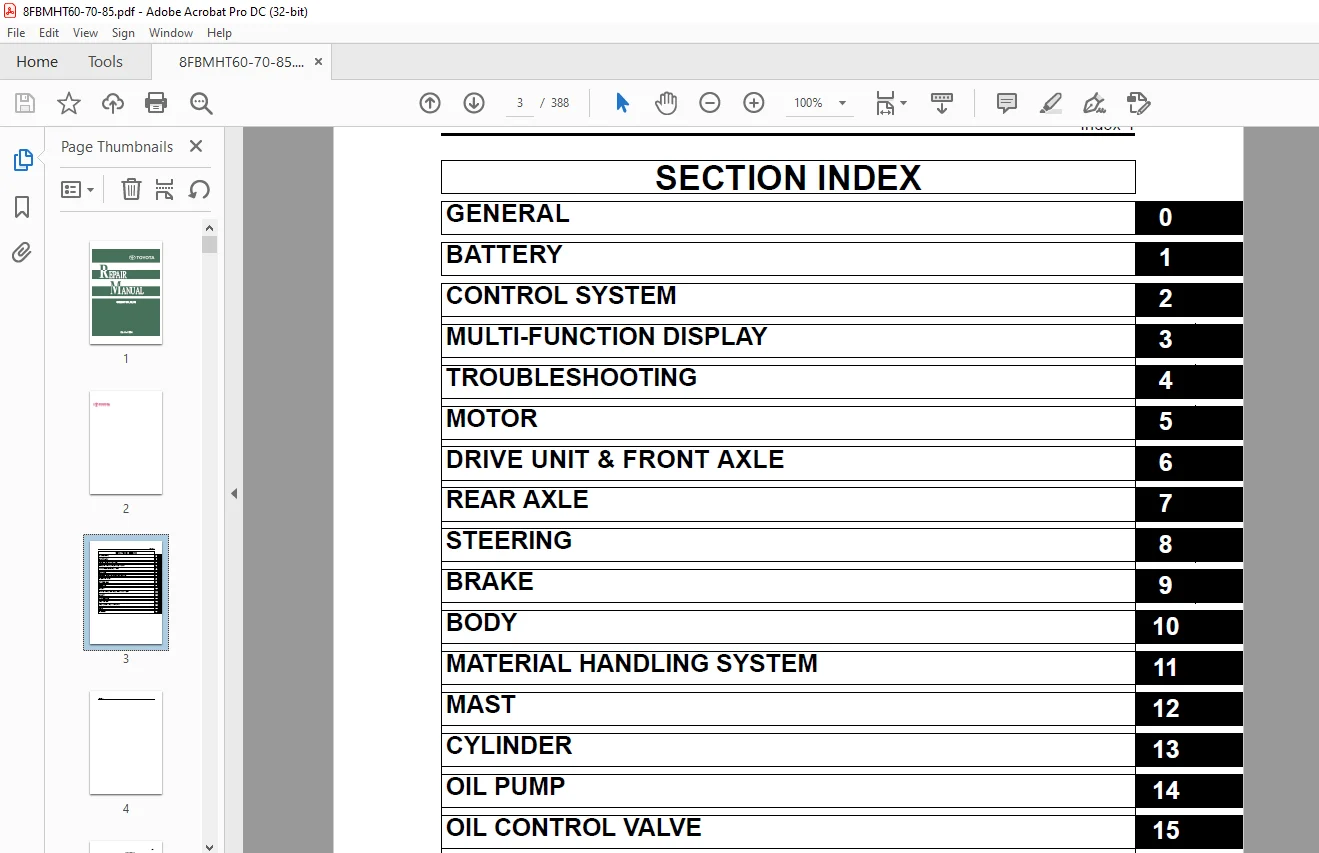

TABLE OF CONTENTS:

Toyota Forklift 8FBMHT60 8FBMHT70 8FBMHT85 Repair Manual – PDF DOWNLOAD

GENERAL 0
BATTERY 1
CONTROL SYSTEM 2
MULTI-FUNCTION DISPLAY 3
TROUBLESHOOTING 4
MOTOR 5
DRIVE UNIT & FRONT AXLE 6
REAR AXLE 7
STEERING 8
BRAKE 9
BODY 10
MATERIAL HANDLING SYSTEM 11
MAST 12
CYLINDER 13
OIL PUMP 14
OIL CONTROL VALVE 15
SAS 16
ANNEX

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
