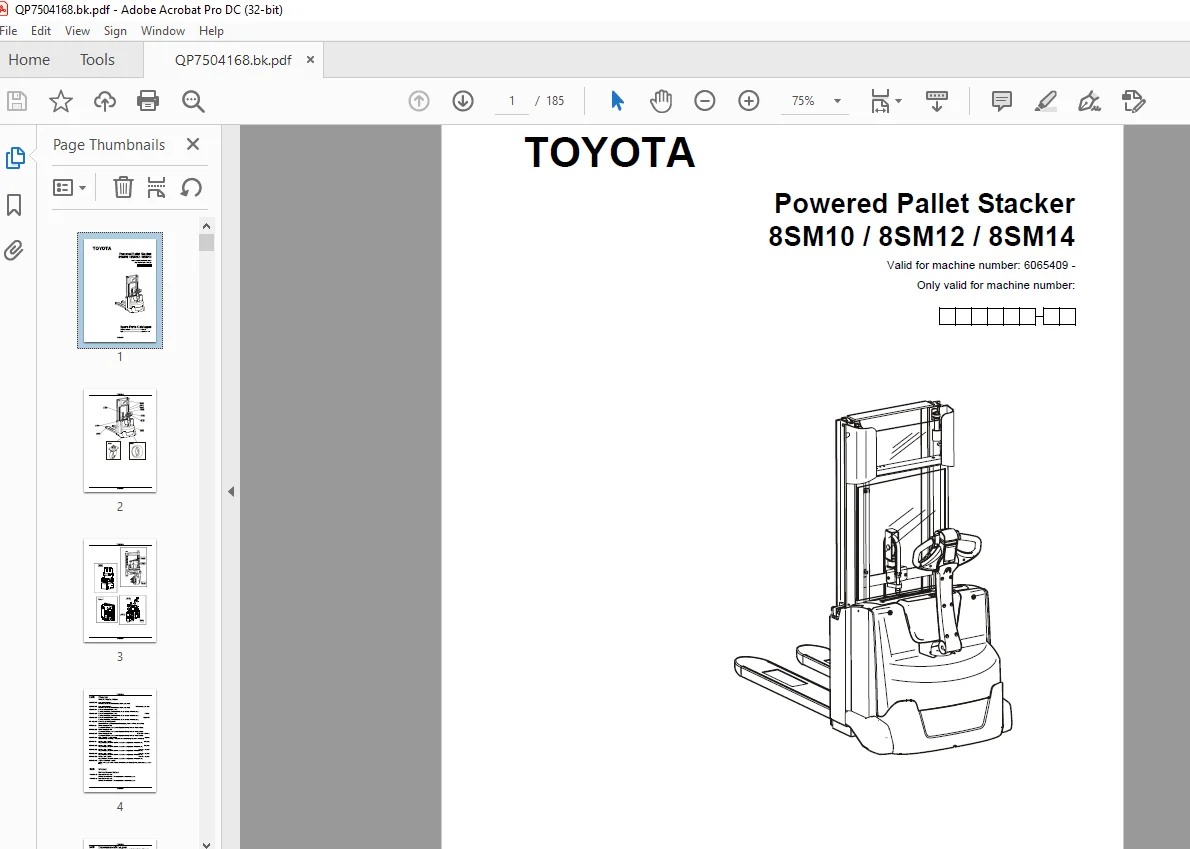

Toyota Forklift 8SM10 8SM12 8SM14 Powered Pallet Stacker Parts Catalogue Manual 6065409 – PDF DOWNLOAD

Description

Toyota Forklift 8SM10 8SM12 8SM14 Powered Pallet Stacker Parts Catalogue Manual 6065409 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 8SM10 8SM12 8SM14 Powered Pallet Stacker Parts Catalogue Manual 6065409 – PDF DOWNLOAD

Language : English
Pages : 185
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Toyota Forklift 8SM10 8SM12 8SM14 Powered Pallet Stacker Parts Catalogue Manual 6065409 – PDF DOWNLOAD

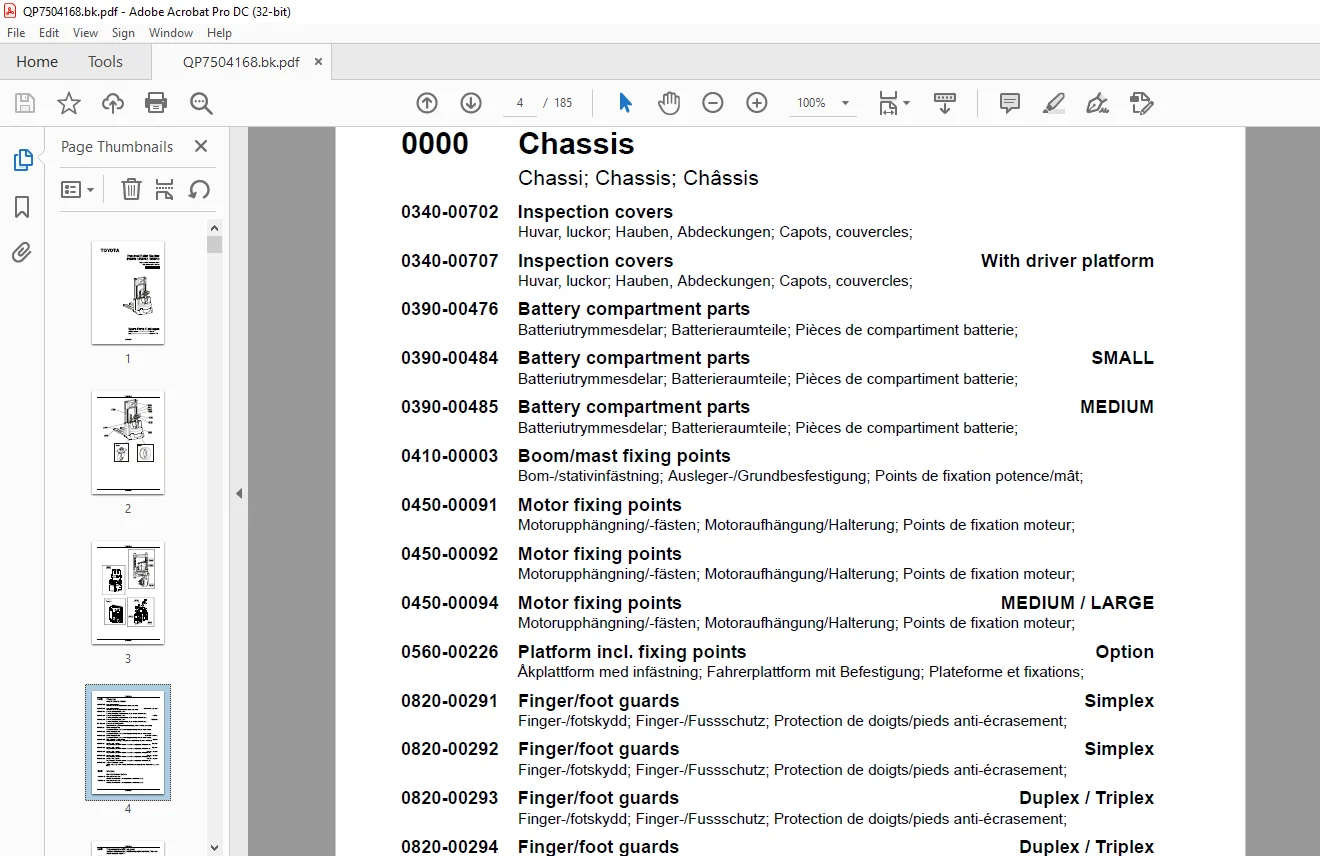

O Objekt0a - 0000 Chassis...........................................................................................  4
	O Objekt0b - Chassi; Chassis; Châssis...........................................................................  4
O Objekt0a - 1000 Motors............................................................................................  4
	O Objekt0b - Motorer; Motoren; Moteurs..........................................................................  4
O Objekt0a - 2000 Transmission/Drive gear...........................................................................  5
	O Objekt0b - Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  5
O Objekt0a - 3000 Brake/Wheel/Caterpillar system....................................................................  5
	O Objekt0b - Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  5
O Objekt0a - 4000 Steering system...................................................................................  5
	O Objekt0b - Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  5
O Objekt0a - 5000 Electrical system.................................................................................  6
	O Objekt0b - Elektriskt system; Elektroanlage; Système électrique...............................................  6
O Objekt0a - 6000 Hydraulic/pneumatic system........................................................................  7
	O Objekt0b - Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  7
O Objekt0a - 7000 Work function - lifting masts.....................................................................  8
	O Objekt0b - Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage....  8
O Objekt0a - 9000 Options/attachments...............................................................................  9
	O Objekt0b - Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.............  9
O Objekt1 - 0340-00702 P0033014..................................................................................... 10

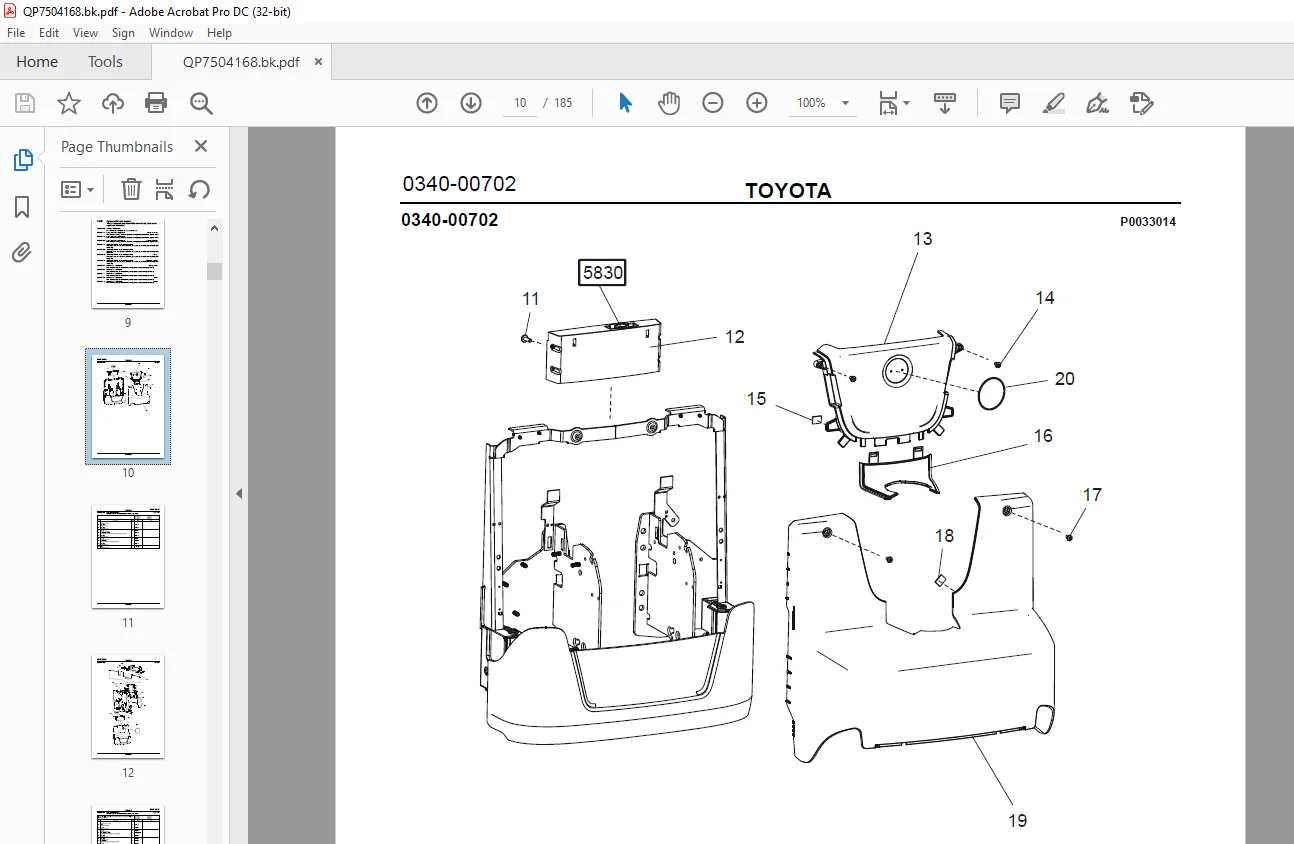

O Objekt1 - 0340-00702 Inspection covers [2008-11-10]............................................................... 11
O Objekt1 - 0340-00707 P0033116..................................................................................... 12
O Objekt1 - 0340-00707 Inspection covers [2008-11-10]............................................................... 13
O Objekt1 - 0390-00476 P0032100..................................................................................... 14
O Objekt1 - 0390-00476 Battery compartment parts [2008-10-21]....................................................... 15
O Objekt1 - 0390-00484 P0032352..................................................................................... 16
O Objekt1 - 0390-00484 Battery compartment parts [2008-10-21]....................................................... 17
O Objekt1 - 0390-00485 P0032354..................................................................................... 18
O Objekt1 - 0390-00485 Battery compartment parts [2008-11-10]....................................................... 19
O Objekt1 - 0410-00003 P0031523..................................................................................... 20
O Objekt1 - 0410-00003 Boom/mast fixing points [2008-11-10]......................................................... 21
O Objekt1 - 0450-00091 P0031384..................................................................................... 22
O Objekt1 - 0450-00091 Motor fixing points [2008-10-21]............................................................. 23
O Objekt1 - 0450-00092 P0031385..................................................................................... 24
O Objekt1 - 0450-00092 Motor fixing points [2008-10-21]............................................................. 25
O Objekt1 - 0450-00094 P0031387..................................................................................... 26
O Objekt1 - 0450-00094 Motor fixing points [2008-10-21]............................................................. 26
O Objekt1 - 0560-00226 P0033442..................................................................................... 28
O Objekt1 - 0560-00226 Platform incl. fixing points [2008-11-17].................................................... 29
O Objekt1 - 0820-00291 P0031510..................................................................................... 30
O Objekt1 - 0820-00291 Finger/foot guards [2008-11-10].............................................................. 31
O Objekt1 - 0820-00292 P0031511..................................................................................... 32
O Objekt1 - 0820-00292 Finger/foot guards [2008-11-10].............................................................. 33
O Objekt1 - 0820-00293 P0031513..................................................................................... 34
O Objekt1 - 0820-00293 Finger/foot guards [2008-11-10].............................................................. 34
O Objekt1 - 0820-00294 P0031514..................................................................................... 36
O Objekt1 - 0820-00294 Finger/foot guards [2008-11-10].............................................................. 37
O Objekt1 - 0820-00295 P0031515..................................................................................... 38
O Objekt1 - 0820-00295 Finger/foot guards [2008-11-10].............................................................. 39
O Objekt1 - 0850-00509 P0033012..................................................................................... 40
O Objekt1 - 0850-00509 Signs, warnings, decals [2008-11-05]......................................................... 41
O Objekt1 - 1760-00165 P0031392..................................................................................... 42
O Objekt1 - 1760-00165 Electric drive motor [2008-11-14]............................................................ 43
O Objekt1 - 1760-00166 P0031393..................................................................................... 44
O Objekt1 - 1760-00166 Electric drive motor [2008-11-14]............................................................ 45
O Objekt1 - 2550-00100 P0031391..................................................................................... 46
O Objekt1 - 2550-00100 Mechanical drive gear unit [2008-11-10]...................................................... 47
O Objekt1 - 3180-00024 P0030567..................................................................................... 48
O Objekt1 - 3180-00024 Electrically controlled travel brake [2008-11-10]............................................ 48
O Objekt1 - 3530-00140 P0030540..................................................................................... 49
O Objekt1 - 3530-00140 Drive wheel [2008-10-21]..................................................................... 49
O Objekt1 - 3540-00113 P0031390..................................................................................... 50
O Objekt1 - 3540-00113 Support/castor wheels [2008-10-21]........................................................... 51
O Objekt1 - 3550-00461 P0031383..................................................................................... 52
O Objekt1 - 3550-00461 Fork/support arm wheels [2008-10-21]......................................................... 52
O Objekt1 - 3550-00471 P0032080..................................................................................... 53
O Objekt1 - 3550-00471 Fork/support arm wheels [2008-10-21]......................................................... 53
O Objekt1 - 4110-00543 P0031394..................................................................................... 54
O Objekt1 - 4110-00543 Steering arm/wheel/lever [2008-10-21]........................................................ 55
O Objekt1 - 4110-00544 P0031395..................................................................................... 58
O Objekt1 - 4110-00544 Steering arm/wheel/lever [2008-10-21]........................................................ 59
O Objekt1 - 4110-00545 P0031396..................................................................................... 62
O Objekt1 - 4110-00545 Steering arm/wheel/lever [2008-11-10]........................................................ 63
O Objekt1 - 4110-00546 P0031397..................................................................................... 66
O Objekt1 - 4110-00546 Steering arm/wheel/lever [2008-11-10]........................................................ 67
O Objekt1 - 4110-00549 P0031406..................................................................................... 70
O Objekt1 - 4110-00549 Steering arm/wheel/lever [2008-11-10]........................................................ 71
O Objekt1 - 4110-00550 P0031407..................................................................................... 74
O Objekt1 - 4110-00550 Steering arm/wheel/lever [2008-11-10]........................................................ 75
O Objekt1 - 4110-00570 P0032117..................................................................................... 78
O Objekt1 - 4110-00570 Steering arm/wheel/lever [2008-11-10]........................................................ 79
O Objekt1 - 4110-00591 P0032963..................................................................................... 80
O Objekt1 - 4110-00591 Steering arm/wheel/lever [2008-11-10]........................................................ 81
O Objekt1 - 5160-00154 P0032411..................................................................................... 82
O Objekt1 - 5160-00154 General alarm signals (audible/visual) [2008-11-10].......................................... 82
O Objekt1 - 5190-00137 P0030586..................................................................................... 83
O Objekt1 - 5190-00137 Battery cut out connector/contactor [2008-11-17]............................................. 83
O Objekt1 - 5390-00300 P0030580..................................................................................... 84
O Objekt1 - 5390-00300 Driving function harnesses/fuse [2008-11-10]................................................. 84
O Objekt1 - 5390-00312 P0032964..................................................................................... 85
O Objekt1 - 5390-00312 Driving function harnesses/fuse [2008-11-10]................................................. 85
O Objekt1 - 5460-00091 P0032391..................................................................................... 86
O Objekt1 - 5460-00091 Transistor panel [2008-10-21]................................................................ 86
O Objekt1 - 5460-00093 P0032393..................................................................................... 87
O Objekt1 - 5460-00093 Transistor panel [2008-11-10]................................................................ 87
O Objekt1 - 5590-00388 P0031612..................................................................................... 88
O Objekt1 - 5590-00388 Work function harnesses/fuse [2008-10-21].................................................... 89
O Objekt1 - 5590-00389 P0031613..................................................................................... 90
O Objekt1 - 5590-00389 Work function harnesses/fuse [2008-10-21].................................................... 91
O Objekt1 - 5610-00033 P0030587..................................................................................... 92
O Objekt1 - 5610-00033 Pump contactor [2008-10-21].................................................................. 92
O Objekt1 - 5680-00172 P0032105..................................................................................... 94
O Objekt1 - 5680-00172 Battery/motor cables, fuse [2008-10-21]...................................................... 95
O Objekt1 - 5680-00173 P0032107..................................................................................... 96
O Objekt1 - 5680-00173 Battery/motor cables, fuse [2008-11-10]...................................................... 97
O Objekt1 - 5710-00134 P0030669..................................................................................... 98
O Objekt1 - 5710-00134 Drive/multi-function PCBs [2008-11-10]....................................................... 98
O Objekt1 - 5820-00301 P0033124.....................................................................................100
O Objekt1 - 5820-00301 Lift/lowering/reach movement probes/sensors [2008-11-10].....................................101
O Objekt1 - 5820-00302 P0033127.....................................................................................102
O Objekt1 - 5820-00302 Lift/lowering/reach movement probes/sensors [2008-11-10].....................................103
O Objekt1 - 5820-00303 P0033129.....................................................................................104
O Objekt1 - 5820-00303 Lift/lowering/reach movement probes/sensors [2008-11-10].....................................105
O Objekt1 - 5820-00304 P0033130.....................................................................................106
O Objekt1 - 5820-00304 Lift/lowering/reach movement probes/sensors [2008-11-10].....................................107
O Objekt1 - 5820-00305 P0033132.....................................................................................108
O Objekt1 - 5820-00305 Lift/lowering/reach movement probes/sensors [2008-11-10].....................................109
O Objekt1 - 5830-00200 P0030581.....................................................................................110
O Objekt1 - 5830-00200 Safety probes/sensors [2008-11-10]...........................................................110
O Objekt1 - 5830-00211 P0032079.....................................................................................111
O Objekt1 - 5830-00211 Safety probes/sensors [2008-11-10]...........................................................111
O Objekt1 - 6100-00279 P0031618.....................................................................................112
O Objekt1 - 6100-00279 Hydraulic unit [2008-11-10]..................................................................112
O Objekt1 - 6230-00222 P0031677.....................................................................................113
O Objekt1 - 6230-00222 Hydraulic lines chassis [2008-11-10].........................................................113
O Objekt1 - 6320-00427 P0031462.....................................................................................114
O Objekt1 - 6320-00427 Mast hydraulic lines [2008-11-10]............................................................114
O Objekt1 - 6320-00428 P0031466.....................................................................................116
O Objekt1 - 6320-00428 Mast hydraulic lines [2008-11-10]............................................................117
O Objekt1 - 6320-00429 P0031470.....................................................................................120
O Objekt1 - 6320-00429 Mast hydraulic lines [2008-11-10]............................................................121
O Objekt1 - 6320-00430 P0031479.....................................................................................122
O Objekt1 - 6320-00430 Mast hydraulic lines [2008-11-10]............................................................122
O Objekt1 - 6610-00260 P0031454.....................................................................................123
O Objekt1 - 6610-00260 Main lift cylinders [2008-11-10].............................................................123
O Objekt1 - 6610-00261 P0031455.....................................................................................124
O Objekt1 - 6610-00261 Main lift cylinders [2008-11-10].............................................................125
O Objekt1 - 6610-00262 P0031471.....................................................................................126
O Objekt1 - 6610-00262 Main lift cylinders [2008-11-10].............................................................127
O Objekt1 - 6610-00263 P0031472.....................................................................................128
O Objekt1 - 6610-00263 Main lift cylinders [2008-11-10].............................................................129
O Objekt1 - 6610-00264 P0031473.....................................................................................130
O Objekt1 - 6610-00264 Main lift cylinders [2008-11-10].............................................................131
O Objekt1 - 6610-00265 P0031475.....................................................................................132
O Objekt1 - 6610-00265 Main lift cylinders [2008-11-10].............................................................133
O Objekt1 - 6610-00266 P0031476.....................................................................................134
O Objekt1 - 6610-00266 Main lift cylinders [2008-11-10].............................................................135
O Objekt1 - 6610-00267 P0031477.....................................................................................136
O Objekt1 - 6610-00267 Main lift cylinders [2008-11-10].............................................................137
O Objekt1 - 7120-00555 P0031463.....................................................................................138
O Objekt1 - 7120-00555 Main lift chain system [2008-11-10]..........................................................139
O Objekt1 - 7120-00556 P0031464.....................................................................................140
O Objekt1 - 7120-00556 Main lift chain system [2008-10-21]..........................................................141
O Objekt1 - 7120-00557 P0031465.....................................................................................142
O Objekt1 - 7120-00557 Main lift chain system [2008-11-10]..........................................................143
O Objekt1 - 7120-00560 P0031485.....................................................................................144
O Objekt1 - 7120-00560 Main lift chain system [2008-11-10]..........................................................145
O Objekt1 - 7130-00313 P0032780.....................................................................................146
O Objekt1 - 7130-00313 Main mast fork carriage [2008-11-17].........................................................147
O Objekt1 - 7150-00034 P0031460.....................................................................................148
O Objekt1 - 7150-00034 Main mast guidance/dampers [2008-10-21]......................................................149
O Objekt1 - 7150-00035 P0031461.....................................................................................150
O Objekt1 - 7150-00035 Main mast guidance/dampers [2008-10-21]......................................................150
O Objekt1 - 7150-00036 P0031467.....................................................................................152
O Objekt1 - 7150-00036 Main mast guidance/dampers [2008-11-10]......................................................153
O Objekt1 - 7150-00037 P0031468.....................................................................................154
O Objekt1 - 7150-00037 Main mast guidance/dampers [2008-11-10]......................................................155
O Objekt1 - 7150-00038 P0031469.....................................................................................156
O Objekt1 - 7150-00038 Main mast guidance/dampers [2008-11-10]......................................................156
O Objekt1 - 7150-00039 P0031488.....................................................................................158
O Objekt1 - 7150-00039 Main mast guidance/dampers [2008-11-10]......................................................159
O Objekt1 - 7410-00120 P0015872.....................................................................................160
O Objekt1 - 7410-00120 Fork, carpet boom, lift hook [2008-11-17]....................................................160
O Objekt1 - 7420-00724 P0031564.....................................................................................161
O Objekt1 - 7420-00724 Fork carriage unit, integrated sideshift, fork spread [2008-10-21]...........................161
O Objekt1 - 7420-00725 P0031565.....................................................................................162
O Objekt1 - 7420-00725 Fork carriage unit, integrated sideshift, fork spread [2008-10-21]...........................162
O Objekt1 - 7420-00726 P0031567.....................................................................................163
O Objekt1 - 7420-00726 Fork carriage unit, integrated sideshift, fork spread [2008-10-21]...........................163
O Objekt1 - 7420-00727 P0031569.....................................................................................164
O Objekt1 - 7420-00727 Fork carriage unit, integrated sideshift, fork spread [2008-10-21]...........................164
O Objekt1 - 7420-00728 P0031571.....................................................................................165
O Objekt1 - 7420-00728 Fork carriage unit, integrated sideshift, fork spread [2008-10-21]...........................165
O Objekt1 - 7420-00729 P0031572.....................................................................................166
O Objekt1 - 7420-00729 Fork carriage unit, integrated sideshift, fork spread [2008-10-21]...........................166
O Objekt1 - 9380-00005 P0017731.....................................................................................168
O Objekt1 - 9380-00005 Charger attachment [2008-11-17]..............................................................168
O Objekt1 - 9400-00317 P0031234.....................................................................................170
O Objekt1 - 9400-00317 Extra electrical equipment [2008-11-10]......................................................171
O Objekt1 - 9400-00318 P0031243.....................................................................................172
O Objekt1 - 9400-00318 Extra electrical equipment [2008-11-10]......................................................172
O Objekt1 - 9400-00350 P0032288.....................................................................................174
O Objekt1 - 9400-00350 Extra electrical equipment [2008-11-10]......................................................175
O Objekt1 - 9420-00015 P0012396.....................................................................................176
O Objekt1 - 9420-00015 Truck log device, code locking device [2008-11-10]...........................................176
O Objekt1 - 9420-00098 P0026077.....................................................................................177
O Objekt1 - 9420-00098 Truck log device, code locking device [2008-11-10]...........................................177
O Objekt1 - 9420-00138 P0033140.....................................................................................178
O Objekt1 - 9420-00138 Truck log device, code locking device [2008-11-17]...........................................179
O Objekt1 - 9420-00139 P0033141.....................................................................................180
O Objekt1 - 9420-00139 Truck log device, code locking device [2008-11-17]...........................................180
O Objekt1 - 9500-01074 P0031110.....................................................................................181
O Objekt1 - 9500-01074 Other extra equipment [2008-11-10]...........................................................181
O Objekt1 - 9500-01075 P0031111.....................................................................................182
O Objekt1 - 9500-01075 Other extra equipment [2008-11-10]...........................................................182
O Objekt1 - 9500-01111 P0031631.....................................................................................183
O Objekt1 - 9500-01111 Other extra equipment [2008-11-10]...........................................................183
O Objekt1 - 9500-01179 P0032686.....................................................................................184
O Objekt1 - 9500-01179 Other extra equipment [2008-11-17]...........................................................184
O Objekt1 - 9500-01215 P0033429.....................................................................................185
O Objekt1 - 9500-01215 Other extra equipment [2008-11-17]...........................................................185

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
