Toyota Forklift PP 13 Powered Pallet Truck Parts Catalogue Manual 939413 – PDF DOWNLOAD

Description

Toyota Forklift PP 13 Powered Pallet Truck Parts Catalogue Manual 939413 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift PP 13 Powered Pallet Truck Parts Catalogue Manual 939413 – PDF DOWNLOAD

Language : English
Pages : 71
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Toyota Forklift PP 13 Powered Pallet Truck Parts Catalogue Manual 939413 – PDF DOWNLOAD

0000 Chassis..................................................................................... 4
	Chassi; Chassis; Châssis..................................................................... 4
1000 Motors...................................................................................... 4
	Motorer; Motoren; Moteurs.................................................................... 4
2000 Transmission/Drive gear..................................................................... 4
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction.... 4
3000 Brake/Wheel/Caterpillar system.............................................................. 5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles..................... 5
4000 Steering system............................................................................. 5
	Styrsystem; Steuer-/Lenksystem; Système de direction......................................... 5
5000 Electrical system........................................................................... 6
	Elektriskt system; Elektroanlage; Système électrique......................................... 6
6000 Hydraulic/pneumatic system.................................................................. 7
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique.............. 7
9000 Options/attachments......................................................................... 7
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options....... 7
0340-00481 P0024343.............................................................................. 8
0340-00481 Inspection covers [2005-09-09]........................................................ 9
0380-00441 P0022012..............................................................................10
0380-00441 Fork frame (low lifters) [2005-09-12].................................................11
0380-00442 P0022011..............................................................................14
0380-00442 Fork frame (low lifters) [2005-09-12].................................................15
0390-00301 P0024355..............................................................................17
0390-00301 Battery compartment parts [2005-09-09]................................................17
0400-00097 P0024354..............................................................................18
0400-00097 Frame/chassis components [2005-09-09].................................................19
0850-00425 P0026429..............................................................................20
0850-00425 Signs, warnings, decals [2006-03-30]..................................................21
1710-00037 P0013069..............................................................................22
1710-00037 Electric pump motor [2005-09-09]......................................................22
1760-00043 P0016212..............................................................................24
1760-00043 Electric drive motor [2006-01-12].....................................................25
2550-00071 P0024334..............................................................................26
2550-00071 Mechanical drive gear unit [2006-01-12]...............................................27
3370-00037 P0024337..............................................................................30
3370-00037 Electromagnetic parking brake [2006-01-12]............................................30
3530-00059 P0016209..............................................................................31
3530-00059 Drive wheel [2006-01-12]..............................................................31
3540-00094 P0026660..............................................................................32
3540-00094 Support/castor wheels [2006-03-29]....................................................33
3550-00222 P0016422..............................................................................34
3550-00222 Fork/support arm wheels [2005-09-09]..................................................35
3570-00068 P0015279..............................................................................36
3570-00068 Wheel locating points [2005-09-09]....................................................37
4110-00323 P0019789..............................................................................38
4110-00323 Steering arm/wheel/lever [2005-09-09].................................................39
4180-00018 P0013246..............................................................................41
4180-00018 Steering bearings, radial bearing [2006-01-12]........................................41
5160-00104 P0019604..............................................................................42
5160-00104 General alarm signals (audible/visual) [2006-01-12]...................................42
5170-00013 P0022020..............................................................................44
5170-00013 Battery charger (on board) [2006-01-12]...............................................45
5170-00014 P0022025..............................................................................46
5170-00014 Battery charger (on board) [2006-01-12]...............................................47
5190-00064 P0016530..............................................................................48
5190-00064 Battery cut out connector/contactor [2006-01-12]......................................48
5310-00065 P0013163..............................................................................49
5310-00065 Start/stop switch [2006-01-12]........................................................49
5310-00099 P0016607..............................................................................50
5310-00099 Start/stop switch [2006-01-12]........................................................50
5330-00050 P0013300..............................................................................51
5330-00050 Speed control [2006-01-12]............................................................51
5460-00050 P0016587..............................................................................52
5460-00050 Transistor panel [2006-01-12].........................................................52
5510-00066 P0013249..............................................................................53
5510-00066 Work function micro switches, potentiometers [2006-01-12].............................53
5590-00194 P0022055..............................................................................54
5590-00194 Work function harnesses/fuse [2006-01-21].............................................55
5610-00020 P0016531..............................................................................57
5610-00020 Pump contactor [2006-01-12]...........................................................57
5820-00070 P0016421..............................................................................58
5820-00070 Lift/lowering/reach movement probes/sensors [2005-09-12]..............................58
5830-00076 P0013247..............................................................................59
5830-00076 Safety probes/sensors [2006-01-12]....................................................59
5830-00077 P0013267..............................................................................59
5830-00077 Safety probes/sensors [2006-01-12]....................................................59
6100-00084 P0013070..............................................................................60
6100-00084 Hydraulic unit [2005-09-12]...........................................................61
6120-00206 P0019606..............................................................................62
6120-00206 Hydraulic tank lines [2005-09-12].....................................................62
6610-00199 P0024331..............................................................................64
6610-00199 Main lift cylinders [2005-09-12]......................................................65
9400-00088 P0016423..............................................................................66
9400-00088 Extra electrical equipment [2005-09-12]...............................................66
9400-00145 P0022037..............................................................................68
9400-00145 Extra electrical equipment [2006-03-01]...............................................69
9400-00172 P0024353..............................................................................70
9400-00172 Extra electrical equipment [2006-01-12]...............................................70
9500-00565 P0019608..............................................................................71
9500-00565 Other extra equipment [2005-09-12]....................................................71

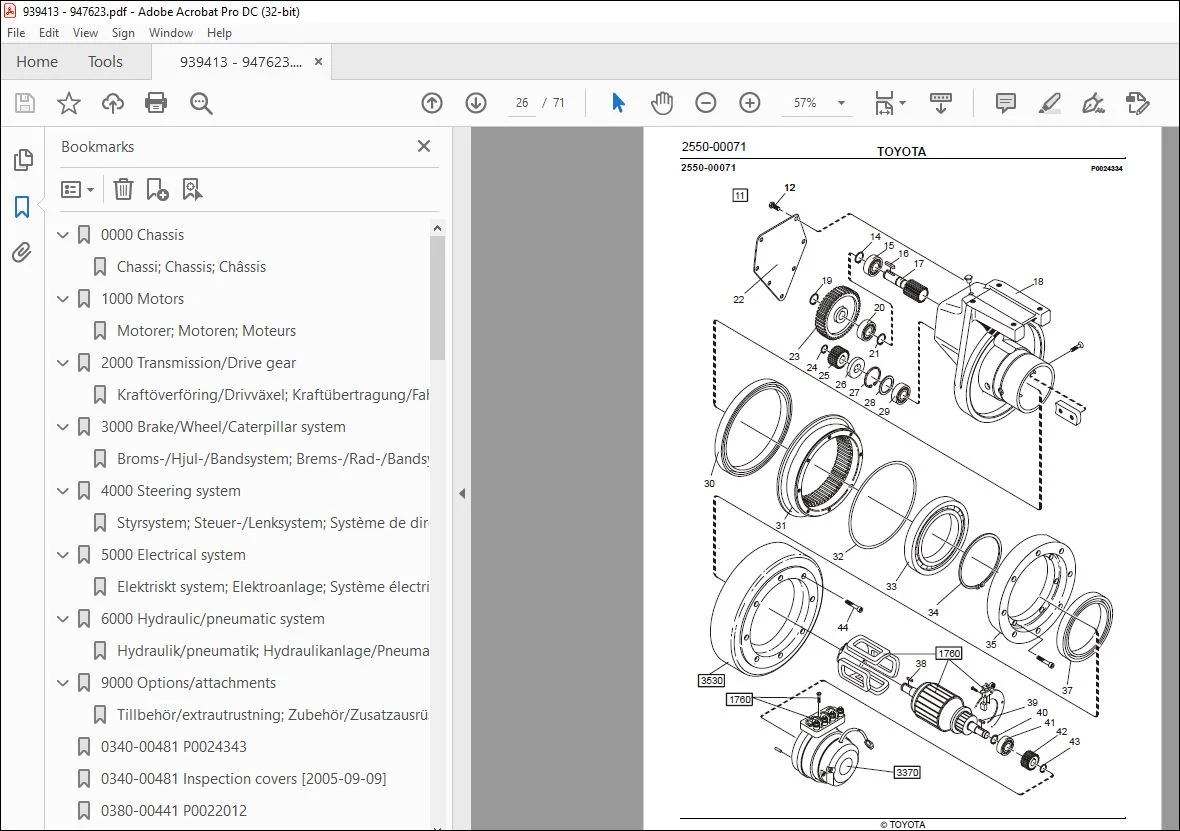

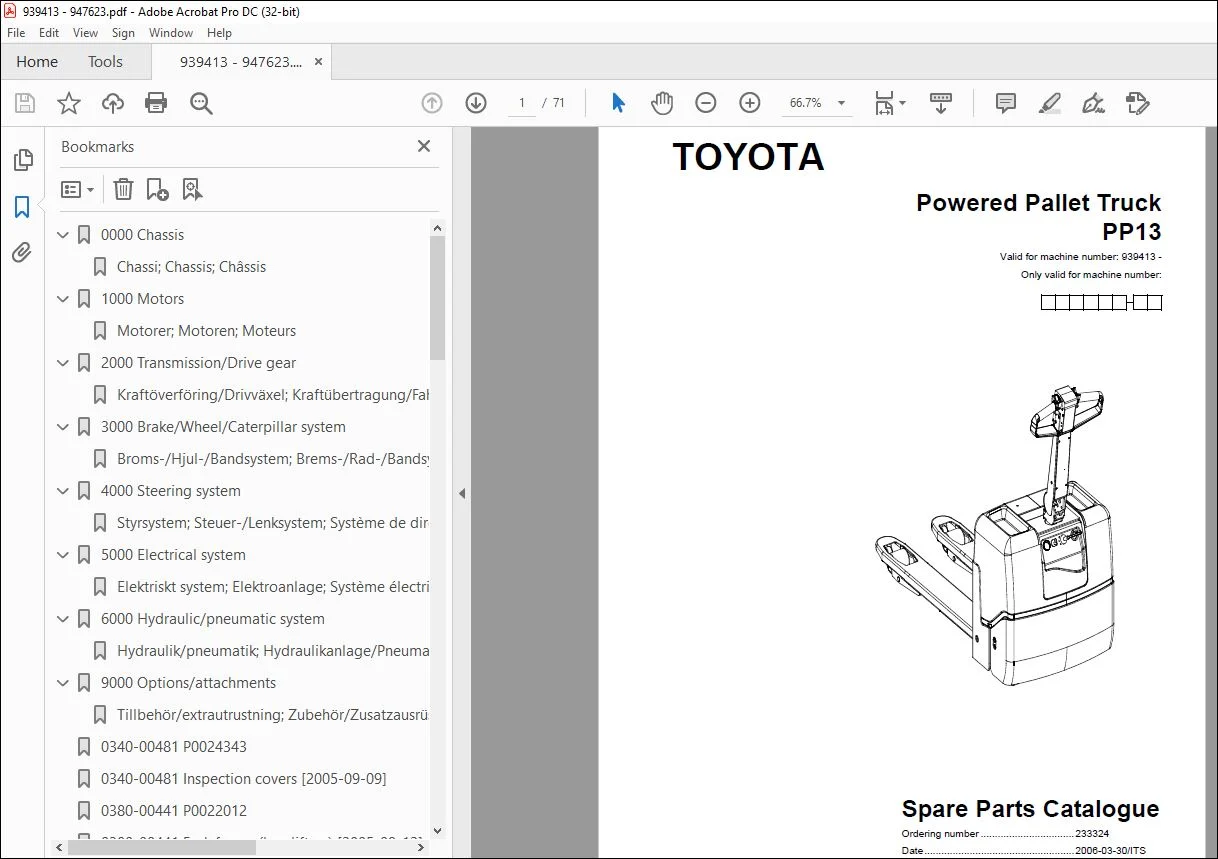

IMAGES PREVIEW OF THE MANUAL:
