Toyota Forklift PP13 Powered Pallet Truck Parts Catalogue Manual 947624 – PDF DOWNLOAD

Description

Toyota Forklift PP13 Powered Pallet Truck Parts Catalogue Manual 947624 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift PP13 Powered Pallet Truck Parts Catalogue Manual 947624 – PDF DOWNLOAD

Language : English
Pages : 73
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Toyota Forklift PP13 Powered Pallet Truck Parts Catalogue Manual 947624 – PDF DOWNLOAD

0000 Chassis..................................................................................... 4
	Chassi; Chassis; Châssis..................................................................... 4
1000 Motors...................................................................................... 4
	Motorer; Motoren; Moteurs.................................................................... 4
2000 Transmission/Drive gear..................................................................... 4
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction.... 4
3000 Brake/Wheel/Caterpillar system.............................................................. 5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles..................... 5
4000 Steering system............................................................................. 5
	Styrsystem; Steuer-/Lenksystem; Système de direction......................................... 5
5000 Electrical system........................................................................... 6
	Elektriskt system; Elektroanlage; Système électrique......................................... 6
6000 Hydraulic/pneumatic system.................................................................. 7
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique.............. 7
9000 Options/attachments......................................................................... 7
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options....... 7
0340-00547 P0026929.............................................................................. 8
0340-00547 Inspection covers [2006-06-15]........................................................ 9
0380-00441 P0022012..............................................................................10
0380-00441 Fork frame (low lifters) [2005-09-12].................................................11
0380-00442 P0022011..............................................................................14
0380-00442 Fork frame (low lifters) [2005-09-12].................................................15
0390-00345 P0026940..............................................................................17
0390-00345 Battery compartment parts [2006-06-15]................................................17
0400-00097 P0024354..............................................................................18
0400-00097 Frame/chassis components [2005-09-09].................................................19
0850-00425 P0026429..............................................................................20
0850-00425 Signs, warnings, decals [2006-03-30]..................................................21
1710-00037 P0013069..............................................................................22
1710-00037 Electric pump motor [2005-09-09]......................................................22
1760-00043 P0016212..............................................................................24
1760-00043 Electric drive motor [2006-01-12].....................................................25
2550-00071 P0024334..............................................................................26
2550-00071 Mechanical drive gear unit [2006-01-12]...............................................27
3370-00037 P0024337..............................................................................30
3370-00037 Electromagnetic parking brake [2006-01-12]............................................30
3530-00059 P0016209..............................................................................31
3530-00059 Drive wheel [2006-01-12]..............................................................31
3540-00094 P0026660..............................................................................32
3540-00094 Support/castor wheels [2006-03-29]....................................................33
3550-00222 P0016422..............................................................................34
3550-00222 Fork/support arm wheels [2005-09-09]..................................................35
3570-00068 P0015279..............................................................................36
3570-00068 Wheel locating points [2005-09-09]....................................................37
4110-00323 P0019789..............................................................................38
4110-00323 Steering arm/wheel/lever [2005-09-09].................................................39
4180-00018 P0013246..............................................................................41
4180-00018 Steering bearings, radial bearing [2006-01-12]........................................41
5160-00104 P0019604..............................................................................42
5160-00104 General alarm signals (audible/visual) [2006-01-12]...................................42
5170-00016 P0027169..............................................................................44
5170-00016 Battery charger (on board) [2006-06-16]...............................................45
5170-00017 P0027175..............................................................................46
5170-00017 Battery charger (on board) [2006-06-16]...............................................47
5170-00018 P0027176..............................................................................48
5170-00018 Battery charger (on board) [2006-06-16]...............................................49
5190-00119 P0026942..............................................................................50
5190-00119 Battery cut out connector/contactor [2006-06-15]......................................50
5310-00065 P0013163..............................................................................51
5310-00065 Start/stop switch [2006-01-12]........................................................51
5310-00099 P0016607..............................................................................52
5310-00099 Start/stop switch [2006-01-12]........................................................52
5330-00050 P0013300..............................................................................53
5330-00050 Speed control [2006-01-12]............................................................53
5460-00050 P0016587..............................................................................54
5460-00050 Transistor panel [2006-01-12].........................................................54
5510-00066 P0013249..............................................................................55
5510-00066 Work function micro switches, potentiometers [2006-01-12].............................55
5590-00297 P0027185..............................................................................56
5590-00297 Work function harnesses/fuse [2006-06-16].............................................57
5610-00030 P0026943..............................................................................59
5610-00030 Pump contactor [2006-06-16]...........................................................59
5820-00070 P0016421..............................................................................60
5820-00070 Lift/lowering/reach movement probes/sensors [2005-09-12]..............................60
5830-00076 P0013247..............................................................................61
5830-00076 Safety probes/sensors [2006-01-12]....................................................61
5830-00077 P0013267..............................................................................61
5830-00077 Safety probes/sensors [2006-01-12]....................................................61
6100-00084 P0013070..............................................................................62
6100-00084 Hydraulic unit [2006-05-04]...........................................................63
6120-00206 P0019606..............................................................................64
6120-00206 Hydraulic tank lines [2005-09-12].....................................................64
6610-00199 P0024331..............................................................................66
6610-00199 Main lift cylinders [2005-09-12]......................................................67
9400-00088 P0016423..............................................................................68
9400-00088 Extra electrical equipment [2005-09-12]...............................................68
9400-00145 P0022037..............................................................................70
9400-00145 Extra electrical equipment [2006-03-01]...............................................71
9400-00172 P0024353..............................................................................72
9400-00172 Extra electrical equipment [2006-01-12]...............................................72
9500-00565 P0019608..............................................................................73
9500-00565 Other extra equipment [2005-09-12]....................................................73

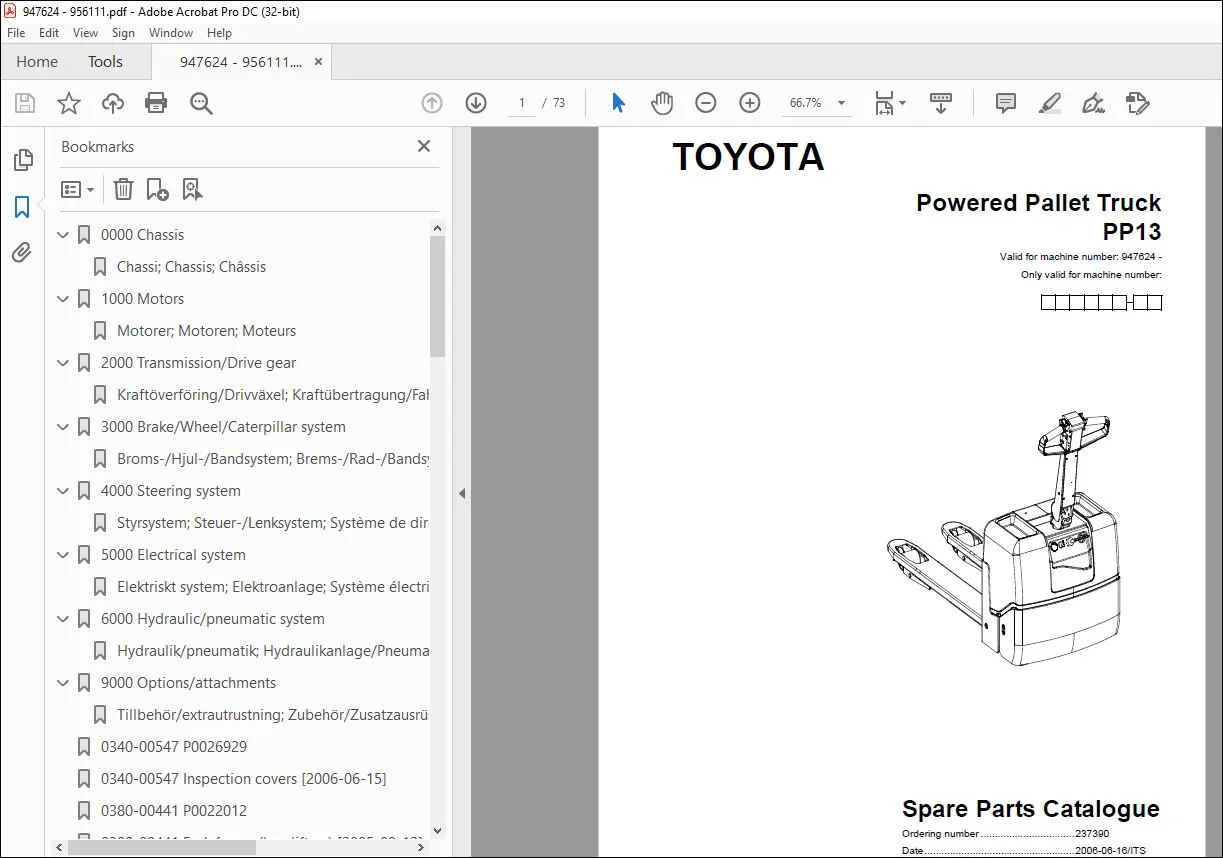

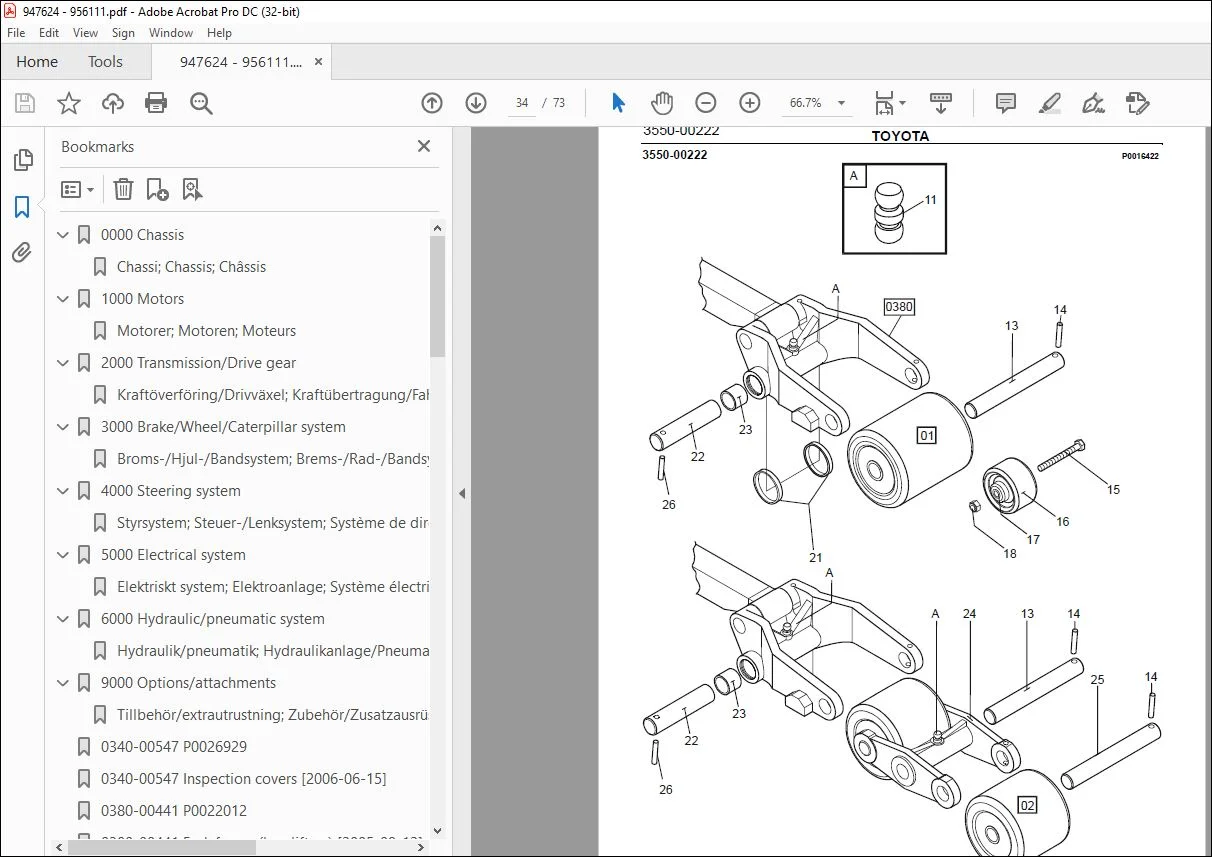

IMAGES PREVIEW OF THE MANUAL:
