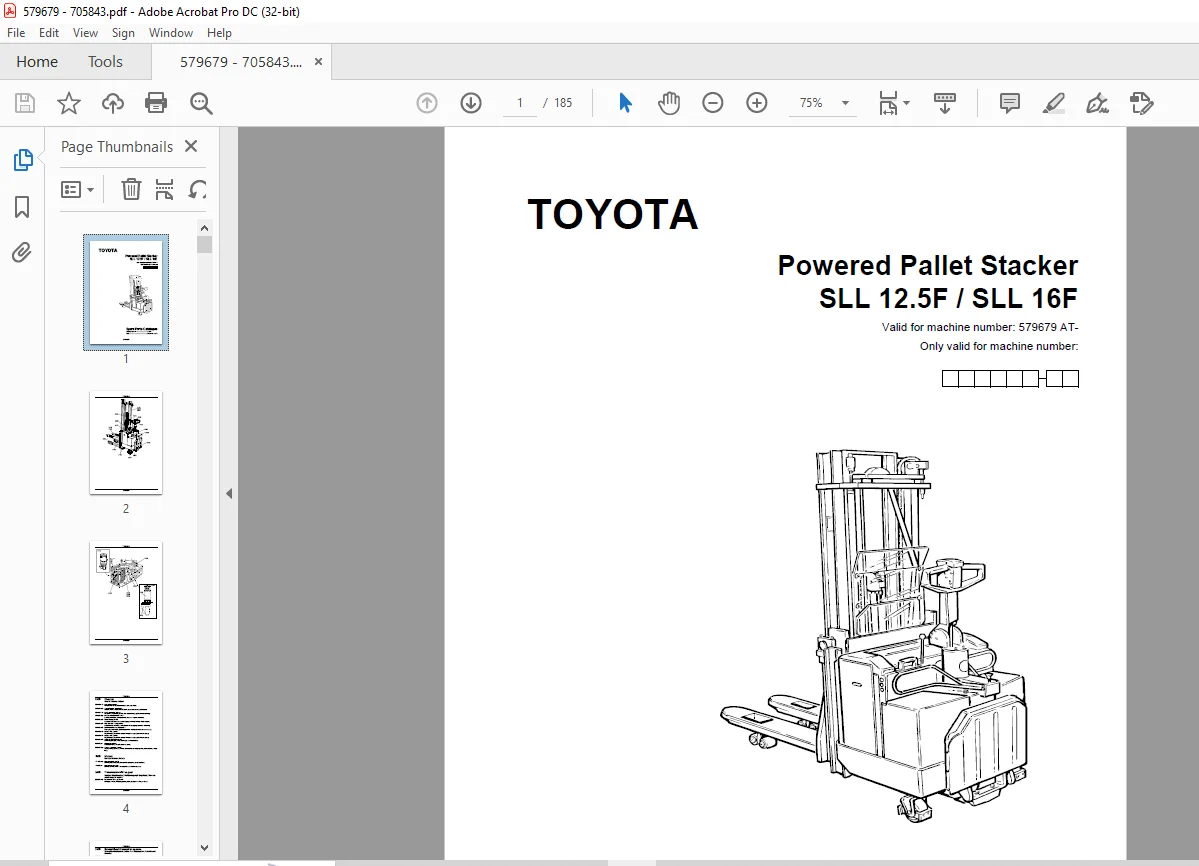

Toyota Forklift SLL 12.5F SLL 16F Powered Pallet Stacker Parts Catalogue Manual 579679 AT – PDF DOWNLOAD

Description

Toyota Forklift SLL 12.5F SLL 16F Powered Pallet Stacker Parts Catalogue Manual 579679 AT – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift SLL 12.5F SLL 16F Powered Pallet Stacker Parts Catalogue Manual 579679 AT – PDF DOWNLOAD

Language : English
Pages : 185
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift SLL 12.5F SLL 16F Powered Pallet Stacker Parts Catalogue Manual 579679 AT – PDF DOWNLOAD

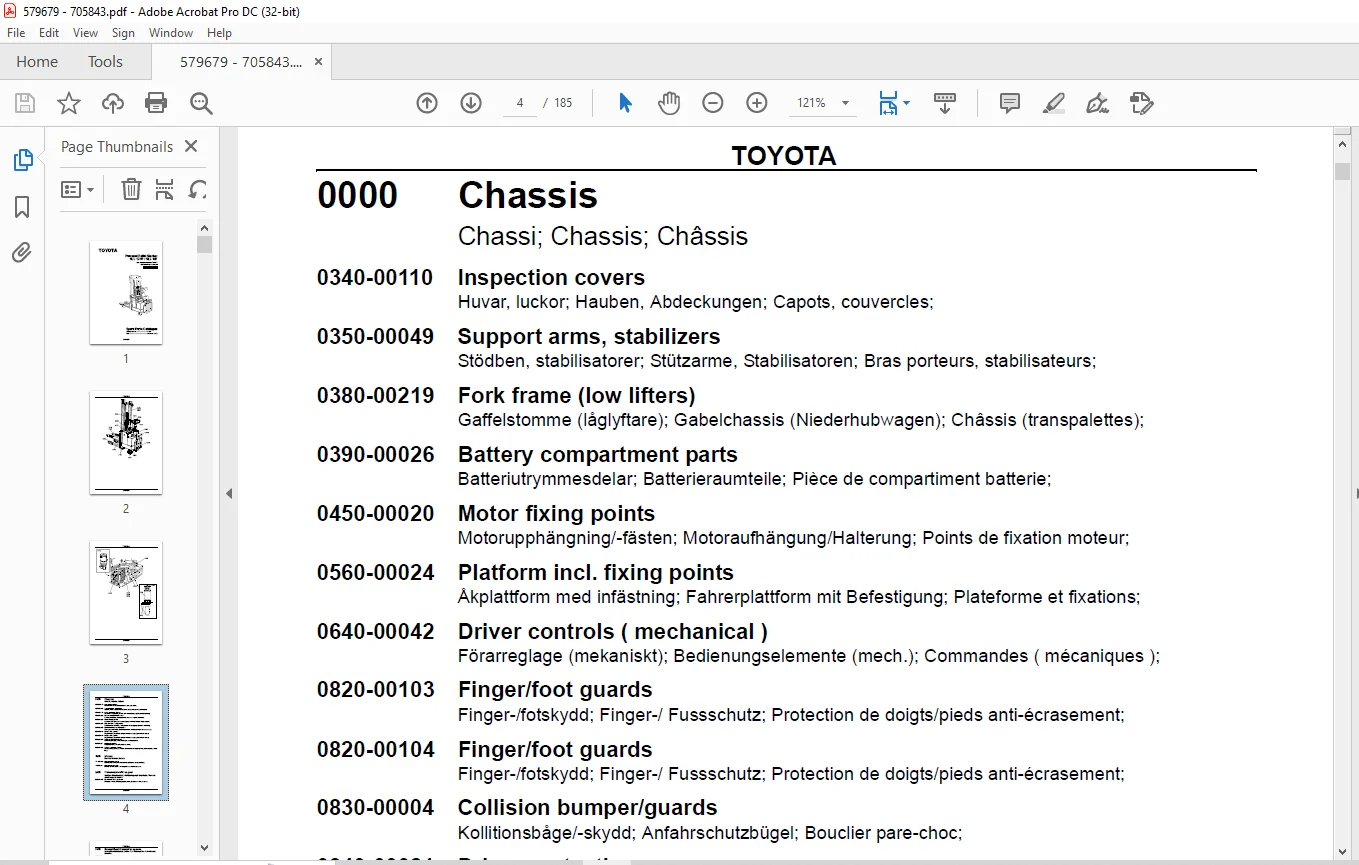

0000 Chassis...........................................................................................  4
	Chassi; Chassis; Châssis...........................................................................  4
1000 Motors............................................................................................  4
	Motorer; Motoren; Moteurs..........................................................................  4
2000 Transmission/Drive gear...........................................................................  4
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  4
3000 Brake/Wheel/Caterpillar system....................................................................  5
	Broms-/Hjul/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles............................  5
4000 Steering system...................................................................................  5
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  5
5000 Electrical system.................................................................................  5
	Elektriskt system; Elektroanlage; Système électrique...............................................  5
6000 Hydraulic/pneumatic system........................................................................  6
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  6
7000 Work function - lifting masts.....................................................................  7
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage....  7
9000 Options/attachments...............................................................................  8
	Tillbehör/extrautrustning; Zubehör /Zusatzausrüstung; Equipement supplémentaire/Options............  8
0340-00110 P0009807.................................................................................... 10
0340-00110 Inspection covers [2001-05-07].............................................................. 11

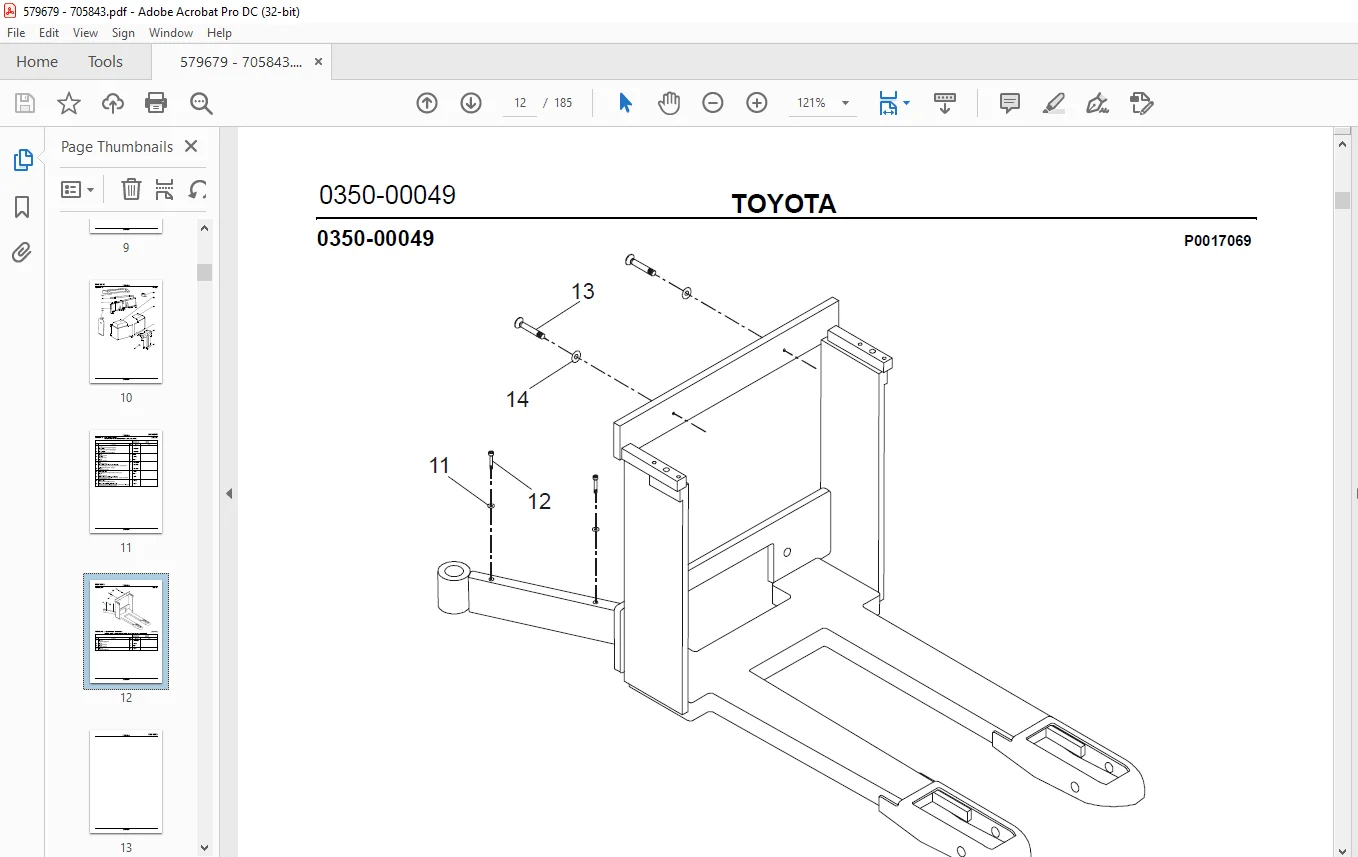

0350-00049 P0017069.................................................................................... 12
0350-00049 Support arms, stabilizers [2003-04-30]...................................................... 12
0380-00219 P0013622.................................................................................... 14
0380-00219 Fork frame (low lifters) [2003-04-30]....................................................... 15
0390-00026 P0008076.................................................................................... 18
0390-00026 Battery compartment parts [2003-04-30]...................................................... 18
0450-00020 P0007761.................................................................................... 20
0450-00020 Motor fixing points [2003-04-30]............................................................ 21
0560-00024 P0009202.................................................................................... 22
0560-00024 Platform incl. fixing points [2001-05-07]................................................... 23
0640-00042 P0008650.................................................................................... 24
0640-00042 Driver controls ( mechanical ) [2003-04-30]................................................. 25
0820-00103 P0013706.................................................................................... 26
0820-00103 Finger/foot guards [2003-04-30]............................................................. 27
0820-00104 P0013707.................................................................................... 28
0820-00104 Finger/foot guards [2003-04-30]............................................................. 29
0830-00004 P0008634.................................................................................... 30
0830-00004 Collision bumper/guards [2003-04-30]........................................................ 30
0840-00021 P0008636.................................................................................... 31
0840-00021 Driver protection [2003-04-30].............................................................. 31
0850-00296 P0018777.................................................................................... 32
0850-00296 Signs, warnings, decals [2003-05-21]........................................................ 33
1710-00006 P0008051.................................................................................... 34
1710-00006 Electric pump motor [2003-04-30]............................................................ 34
1760-00001 P0012069.................................................................................... 36
1760-00001 Electric drive motor [2003-04-30]........................................................... 37
2550-00042 P0013629.................................................................................... 40
2550-00042 Mechanical drive gear unit [2003-04-30]..................................................... 41
3370-00014 P0011711.................................................................................... 44
3370-00014 Electromagnetic parking brake [2003-04-30].................................................. 44
3500-00018 P0008451.................................................................................... 45
3500-00018 Wheels [2003-04-30]......................................................................... 45
3500-00019 P0008452.................................................................................... 46
3500-00019 Wheels [2003-04-30]......................................................................... 46
3530-00019 P0008089.................................................................................... 47
3530-00019 Drive wheel [2003-04-30].................................................................... 47
3540-00021 P0007779.................................................................................... 48
3540-00021 Support/castor wheels [2003-04-30].......................................................... 49
4110-00083 P0008474.................................................................................... 50
4110-00083 Steering arm / wheel / lever [2003-04-30]................................................... 51
4110-00084 P0008476.................................................................................... 54
4110-00084 Steering arm / wheel / lever [2003-04-30]................................................... 55
5160-00052 P0013736.................................................................................... 58
5160-00052 General alarm signals (audible/visual) [2003-04-30]......................................... 58
5190-00047 P0013777.................................................................................... 59
5190-00047 Battery cut out connector/contactor [2003-04-30]............................................ 59
5200-00007 P0007830.................................................................................... 60
5200-00007 Instrument panel, display [2003-04-30]...................................................... 60
5310-00025 P0007800.................................................................................... 62
5310-00025 Start/stop switch [2003-04-30].............................................................. 63
5330-00029 P0009078.................................................................................... 64
5330-00029 Speed control [2003-04-30].................................................................. 64
5390-00076 P0008629.................................................................................... 66
5390-00076 Driving function harnesses/ fuse [2003-04-30]............................................... 67
5430-00078 P0013774.................................................................................... 68
5430-00078 Drive motor cables/resistors/fuses [2003-04-30]............................................. 69
5440-00010 P0008943.................................................................................... 70
5440-00010 Direction contactors [2003-04-30]........................................................... 70
5510-00031 P0007810.................................................................................... 71
5510-00031 Work function micro switches, potentiometers [2003-04-30]................................... 71
5510-00032 P0007811.................................................................................... 72
5510-00032 Work function micro switches, potentiometers [2003-04-30]................................... 72
5510-00037 P0008641.................................................................................... 73
5510-00037 Work function micro switches, potentiometers [2003-04-30]................................... 73
5610-00008 P0008945.................................................................................... 74
5610-00008 Pump contactor [2003-04-30]................................................................. 74
5710-00026 P0008480.................................................................................... 76
5710-00026 Drive/multi-function PCBs [2003-04-30]...................................................... 76
5850-00001 P0007825.................................................................................... 80
5850-00001 Positioning probes/ sensors [2003-04-30].................................................... 80
6100-00036 P0008030.................................................................................... 82
6100-00036 Hydraulic unit [2003-04-30]................................................................. 83
6200-00002 P0013646.................................................................................... 86
6200-00002 Hydraulic system chassi mounted [2003-05-21]................................................ 87
6200-00034 P0013865.................................................................................... 90
6200-00034 Hydraulic system chassi mounted [2003-04-30]................................................ 90
6300-00010 P0013644.................................................................................... 92
6300-00010 Hydraulic system mast mounted [2003-04-30].................................................. 93
6320-00001 P0008319.................................................................................... 94
6320-00001 Mast hydraulic lines [2003-04-30]........................................................... 95
6320-00002 P0008320.................................................................................... 96
6320-00002 Mast hydraulic lines [2003-04-30]........................................................... 97
6320-00003 P0008669.................................................................................... 98
6320-00003 Mast hydraulic lines [2003-04-30]........................................................... 99
6320-00004 P0008404....................................................................................100
6320-00004 Mast hydraulic lines [2003-04-30]...........................................................101
6320-00005 P0008426....................................................................................104
6320-00005 Mast hydraulic lines [2003-04-30]...........................................................105
6320-00006 P0008430....................................................................................106
6320-00006 Mast hydraulic lines [2003-04-30]...........................................................107
6320-00056 P0008434....................................................................................108
6320-00056 Mast hydraulic lines [2003-04-30]...........................................................109
6610-00002 P0008081....................................................................................112
6610-00002 Main lift cylinders [2003-04-30]............................................................112
6610-00003 P0008239....................................................................................114
6610-00003 Main lift cylinders [2003-04-30]............................................................115
6610-00004 P0008281....................................................................................116
6610-00004 Main lift cylinders [2003-04-30]............................................................117
6610-00005 P0008297....................................................................................118
6610-00005 Main lift cylinders [2003-04-30]............................................................119
6610-00006 P0008406....................................................................................122
6610-00006 Main lift cylinders [2003-04-30]............................................................123
6610-00007 P0008676....................................................................................126
6610-00007 Main lift cylinders [2003-04-30]............................................................126
6610-00044 P0011051....................................................................................128
6610-00044 Main lift cylinders [2003-04-30]............................................................129
6620-00001 P0008290....................................................................................132
6620-00001 Free lift cylinder [2003-04-30].............................................................133
6620-00002 P0008664....................................................................................136
6620-00002 Free lift cylinder [2003-04-30].............................................................137
6620-00003 P0008410....................................................................................140
6620-00003 Free lift cylinder [2003-04-30].............................................................141
6620-00027 P0011052....................................................................................142
6620-00027 Free lift cylinder [2003-04-30].............................................................143
6630-00002 P0010597....................................................................................144
6630-00002 Support arm/ initial lift cylinders [2003-04-30]............................................144
6630-00003 P0010597....................................................................................145
6630-00003 Support arm/ initial lift cylinders [2003-04-30]............................................145
6680-00005 P0007827....................................................................................146
6680-00005 Powertrak cylinder [2003-04-30].............................................................146
7100-00001 P0011730....................................................................................148
7100-00001 Main mast [2003-04-30]......................................................................149
7100-00029 P0011680....................................................................................150
7100-00029 Main mast [2003-04-30]......................................................................151
7100-00066 P0015982....................................................................................154
7100-00066 Main mast [2003-04-30]......................................................................155
7100-00067 P0015984....................................................................................156
7100-00067 Main mast [2003-04-30]......................................................................157
7100-00068 P0015985....................................................................................158
7100-00068 Main mast [2003-04-30]......................................................................159
7100-00069 P0015986....................................................................................162
7100-00069 Main mast [2003-04-30]......................................................................163
7100-00070 P0015988....................................................................................166
7100-00070 Main mast [2003-04-30]......................................................................167
7190-00013 P0008455....................................................................................168
7190-00013 Main mast suspension [2003-04-30]...........................................................168
7420-00042 P0008458....................................................................................170
7420-00042 Forkcarriage unit,integ.sideshift,fork spread [2003-04-30]..................................171
7420-00088 P0008458....................................................................................172
7420-00088 Forkcarriage unit,integ.sideshift,fork spread [2003-04-30]..................................173
9300-00052 P0013773....................................................................................174
9300-00052 Extra electrical equipment [2003-04-30].....................................................175
9500-00055 P0008642....................................................................................176
9500-00055 Other extra equipment [2003-04-30]..........................................................176
9500-00056 P0008643....................................................................................177
9500-00056 Other extra equipment [2003-04-30]..........................................................177
9500-00107 P0008643....................................................................................178
9500-00107 Other extra equipment [2003-04-30]..........................................................178
9500-00260 P0013729....................................................................................180
9500-00260 Other extra equipment [2003-04-30]..........................................................181
9500-00261 P0013731....................................................................................182
9500-00261 Other extra equipment [2003-04-30]..........................................................183
9550-00005 P0007837....................................................................................184
9550-00005 Battery changing equipment [2003-04-30].....................................................185

Customer Support: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
