This comprehensive Triumph Tiger 900 Rally Pro service manual is a vital guide for owners and technicians performing maintenance, repairs, and overhauls on the Triumph Tiger 900 Rally Pro motorcycle repair guide. It includes detailed specifications, torque wrench settings, and step-by-step instructions for the 888cc transverse in-line 3-cylinder engine, ensuring safe and accurate work. The manual emphasizes using genuine Triumph parts, proper tools, and adherence to safety warnings to prevent accidents or damage during Triumph Tiger 900 Rally Pro engine disassembly and reassembly procedures.

Although no single main table of contents is present, each major section begins with a contents page. Key areas extracted and categorized from the document include:

• Introduction and General Information: Covers how to use the manual, warnings, cautions, tampering prohibitions, references, dimensions, repairs, tightening procedures, torque tolerances, and safety precautions for ignition, dangerous substances, oils, health, and environmental protection. Includes torque adjustments for crow foot spanner adapters and special service tools.

• Scheduled Maintenance: Detailed chart for periodic checks and services. Use tables for clarity:

  Scheduled Maintenance Table (Odometer in Miles/km or Time, whichever first):

  • Introduction
    • Target audience: Trained technicians and informed owners
    • Required tools, workshop conditions, and basic mechanical knowledge
    • Dealer warranty requirements
    • Maximizing motorcycle life: Follow maintenance chart, use genuine parts, keep records
  • How to Use This Manual
    • Section titles at top of page
    • Contents page at start of each major section
    • Step-by-step repair sequences
    • Reference to special service tools (with illustrations)
    • Wear limits, torque values, specialist info included
  • Warnings, Cautions and Notes
    • WARNING: Risk of death or serious injury
    • CAUTION: Risk of equipment damage
    • Note: Efficiency or convenience tip
  • Tampering with Noise Control System Prohibited
    • Legal warning per regulations
  • References
    • Left/right defined from rider’s rear view
  • Dimensions
    • Design specs with service limits
    • Running-in adjustments at 500 mi/800 km
  • Repairs and Replacements
    • Clean motorcycle before disassembly
    • Clear dust/filings from new parts
  • Force
    • Use common sense; avoid levering damage
    • Use hide/plastic mallet for tapping
  • Edges
    • Wear industrial gloves to avoid cuts
  • Tightening Procedure
    • Snug fit → cross-pattern → final torque
    • Follow specified sequences
    • Replace disturbed locking devices (esp. micro-encapsulated)
  • Torque Tolerance Table
    Torque Range	Tolerance
    0 Nm to 25 Nm	+/- 10%
    26 Nm to 100 Nm	+10% / -0%
    101 Nm to 200 Nm	+10% / -0%
  • Use of Crow Foot Spanner Adapters with Torque Wrenches
    • Formula: M1 = M2 × L1 / L2
    • Example calculation provided (90 Nm → 83 Nm setting)
  • General Information
    • Ignition System Safety Precautions
      • High voltage warning
      • Pacemaker interference risk
    • Dangerous Substances
      • Poisonous fluids: acid, brake fluid, fuel, etc.
    • Third Party Products
      • Damage risk from non-approved chemicals
    • Fluoroelastomers
      • Toxic decomposition above 315°C
    • Oils
      • Hot oil burn risk
      • Skin irritation/cancer risk from used oil
    • Health Protection Precautions
      • Barrier creams, gloves, no oily rags in pockets
      • Skin cleansing protocol
    • Environmental Protection Precautions
      • Proper oil disposal
      • No dumping in drains or soil

  Operation Description	Day	500 (800) / 1 Month	6,000 & 18,000 (10,000 & 30,000) / 1 Year	12,000 (20,000) / 2 Years	24,000 (40,000) / 4 Years
  Engine oil – renew	–	•	•	•	•
  Engine oil filter – renew	–	•	•	•	•
  Engine and oil cooler – check for leaks	Day	•	•	•	•
  Fuel system – check for leaks	Day	•	•	•	•
  Throttle bodies – balance	–	–	•	•	•
  Air cleaner – renew	–	–	•	•	•
  Spark plugs – check	–	–	•	–	–
  Spark plugs – renew	–	–	–	•	•
  Valve clearances – check/adjust	–	–	–	•	•
  Camshaft chain – tensioner and rubbing blade – check	–	–	–	•	•
  Cooling system – check for leaks	Day	•	•	•	•
  Coolant – renew	–	–	–	•	•
  Clutch cable – check/adjust	Day	•	•	•	•
  Wheels – inspect for damage	Day	•	•	•	•
  Wheel bearings – check for wear/smooth operation	–	•	•	•	•
  Tyre wear/tyre damage – check	Day	•	•	•	•
  Tyre pressures – check/adjust	Day	•	•	•	•
  Brake pads – check wear levels	Day	•	•	•	•
  Brake master cylinders – check for fluid leaks	Day	•	•	•	•
  Brake calipers – check for fluid leaks and seized pistons	Day	•	•	•	•
  Brake fluid levels – check	Day	•	•	•	•
  Brake fluid – renew	–	–	Every 2 years, regardless of mileage
  Drive chain – lubricate	Every 200 miles (300 km)
  Drive chain – wear check	Day	•	•	•	•
  Drive chain slack – check/adjust	Day	•	•	•	•
  Fasteners – inspect visually for security	Day	•	•	•	•
  Headstock bearings – check/adjust	–	•	•	•	•
  Headstock bearings – lubricate	–	–	•	•	•
  Forks – check for leaks/smooth operation	Day	•	•	•	•
  Fork oil – renew	–	–	–	•	•
  Brake light – check operation	Day	•	•	•	•
  Instruments lights and warning lights – check	Day	•	•	•	•
  Carry out all outstanding Service Bulletin and warranty work	–	•	•	•	•
  Carry out road test	–	•	•	•	•
  Complete the service record book and reset the service indicator (if fitted)	–	•	•	•	•

• Engine: Covers crankshaft, connecting rods, pistons, cylinders, camshafts, valves, balancer, transmission, clutch, and lubrication. Includes exploded views and procedures for Triumph Tiger 900 Rally Pro engine disassembly and reassembly procedures.

• Fuel System and Engine Management: Details sensors, actuators, diagnostics, fault codes, and adaptions like throttle balancing and neutral position.

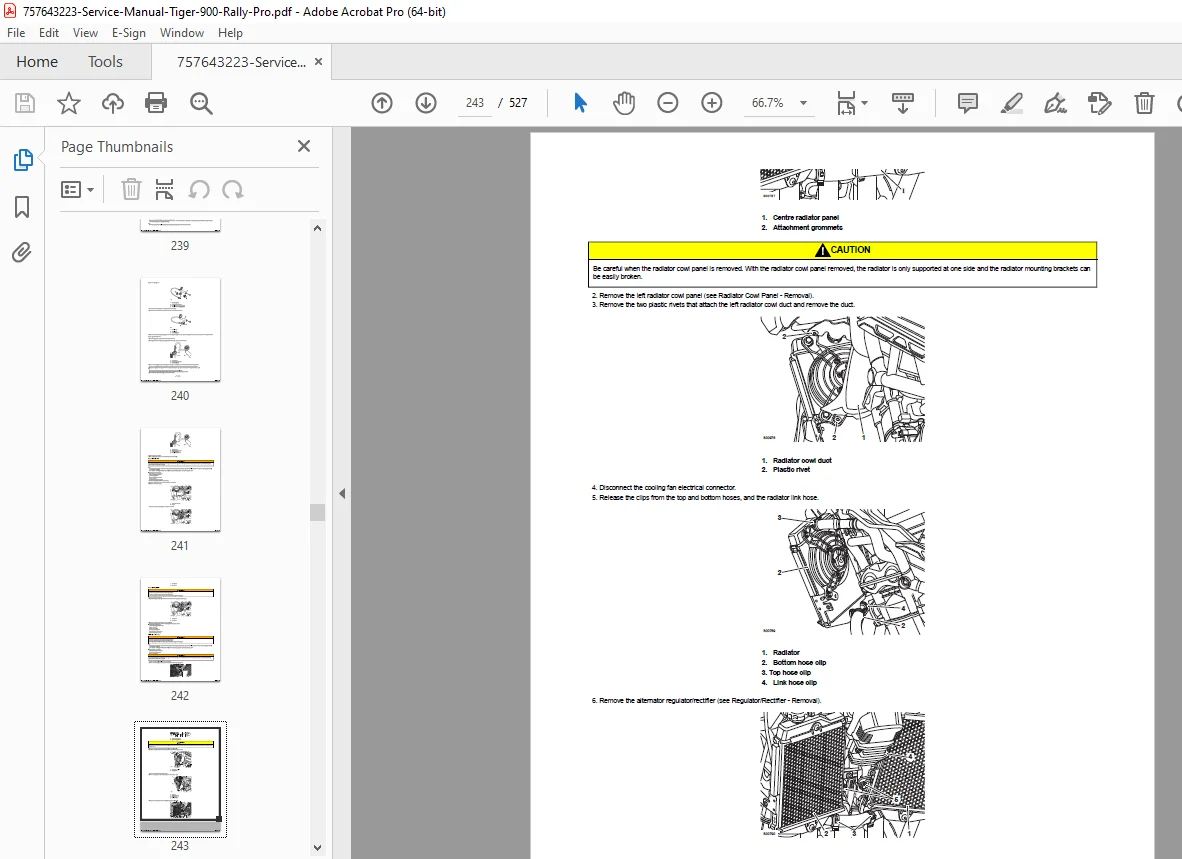

• Cooling System: Thermostat, radiator, coolant replacement, and checks.

• Transmission and Drive Chain: Gear shafts, selectors, chain maintenance.

• Brakes, Wheels, and Tyres: ABS, pads, discs, wear checks, tyre specs.

• Suspension and Steering: Forks, shock absorbers, headstock bearings.

• Frame and Bodywork: Seats, guards, bars, panels.

• Electrical System: Battery, charging, lighting, instruments, wiring diagrams, and circuit descriptions.

• Torque Wrench Settings: Tables for various components, e.g.:

  Engine Covers Torque Settings:

  Application	Torque (Nm)
  Front sprocket cover	9
  Alternator cover (25 mm bolts)	12
  Clutch cover	12
  Camshaft cover	10

The manual integrates exploded views, diagnostic charts, and pinpoint tests for Triumph Tiger 900 Rally Pro motorcycle troubleshooting and diagnostics, with emphasis on safety and using approved lubricants. Ideal for maintaining optimal performance in the Triumph Tiger 900 Rally Pro service and repair handbook.

File Details:

• Manual Name: Service Manual – Tiger 900 Rally Pro
• Models Covered: Tiger 900 Rally Pro
• Year: Applicable to 2020 onwards models (no specific year listed; knowledge up to 2025)
• Manual PDF Quality: High-quality digital with clear text, diagrams, exploded views, and searchable content
• No. of Pages: 527
