TRUMPF TC L 3050 & TC L 4050 Laser Cutting Machine Service Manual PDF
Original price was: $95.00.$28.95Current price is: $28.95.
Official Service Manual for TRUMPF TRUMATIC L 3050 and TC L 4050 $CO_2$ laser cutting machines. This comprehensive guide covers machine installation, optical beam path alignment, TLF 5000 laser resonator maintenance, and mechanical axis calibration. It includes detailed procedures for setting up the DIAS distance control system, adjusting the AutoLas Plus focus mechanism, and performing complex TRUMPF laser nozzle centering tasks.
Description
TRUMPF TC L 3050 & TC L 4050 Laser Cutting Machine Service Manual – PDF DOWNLOAD
Description:
Product Overview:
The TRUMPF TC L 3050 & TC L 4050 Service Manual is the definitive technical resource for service engineers maintaining these high-dynamic “flying optics” laser cutting centers. Covering the Edition 06/2003, this manual provides factory-standard protocols for installation, commissioning, and deep-level repair. Whether you are performing a TC L 4050 laser alignment procedure after a mirror replacement or troubleshooting the DIAS distance control system, this document offers step-by-step instructions and tolerance values.
Key Technical Coverage:
The manual is divided into modular chapters addressing the mechanical, optical, and control subsystems. It includes specific sections on TLF 5000 laser resonator maintenance, ensuring optimal beam mode quality (TEM01*) and power stability.
Detailed Categorization of Contents:
Sub-Assemblies & Theory:
Motion Unit: Design of the machine frame, Gantry drives, and lightweight cross-members.
Beam Guideway: Path of the laser from the TLF 5000 generator to the cutting head, including phase shifters and telescope mirrors.
Pallet Changer: Hydraulic unit functions and support slat configurations.
Installation & Commissioning:
Alignment: Rough and Fine alignment of the machine frame using jack pads (K1-K12).
Anchoring: Drilling templates and chemical anchor bolt specifications.
Peripheral Setup: Installation of the Chiller Unit, Dust Extractor, and Loading Unit.
Laser-Specific Adjustments:
Beam Alignment: Step-by-step adjustment of deflection mirrors and the $175^{\circ}$ deflector.
Focus Setup: Using AutoLas Plus focus adjustment to adapt to material thickness.
Nozzle Centering: TRUMPF laser nozzle centering via the “Tape Shot” procedure.
Power Measurement: Calorimetric tests at the cutting head and resonator output.
Mode Shots: Performing Plexiglas burn-ins to verify beam profile.
Mechanical Settings & Repairs:
Axis Setup: Procedures for X, Y, and Z-axis calibration, including backlash compensation.
Drive Replacement: Removing and timing the linear direct drives and gantry motors.
Geometry: Checking squareness and leveling the motion unit.
Control Systems:
DIAS: Configuration and diagnostics for the DIAS distance control system (capacitive height regulation).
AS-Interface: Documentation for Siemens Link 20 and Murr Elektronik gateways.
Technical Specifications:
| Feature | TC L 3050 | TC L 4050 |
| Working Range | $3000 \times 1500$ mm | $4000 \times 2000$ mm |
| Max. Axis Speed | 200 m/min (Simultaneous 300 m/min) | 200 m/min (Simultaneous 300 m/min) |
| Laser Source | TRUMPF TLF 5000 | TRUMPF TLF 5000 |
| Max. Power | 5000 W | 5000 W |
| Control System | Siemens SINUMERIK 840D | Siemens SINUMERIK 840D |
File Details:

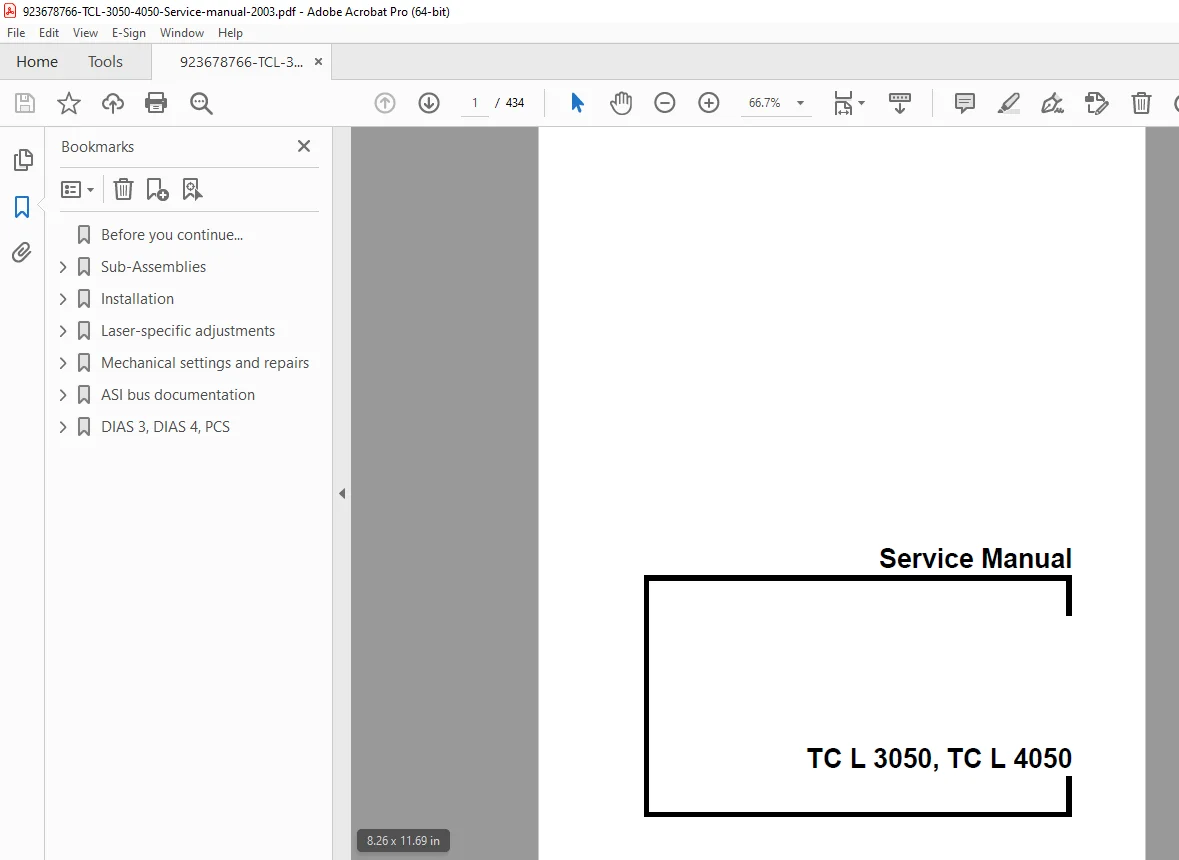

Manual Name: Service Manual TC L 3050, TC L 4050
Models Covered: TRUMPF TRUMATIC L 3050, TC L 4050
Year: 2003 (Edition 06/2003)

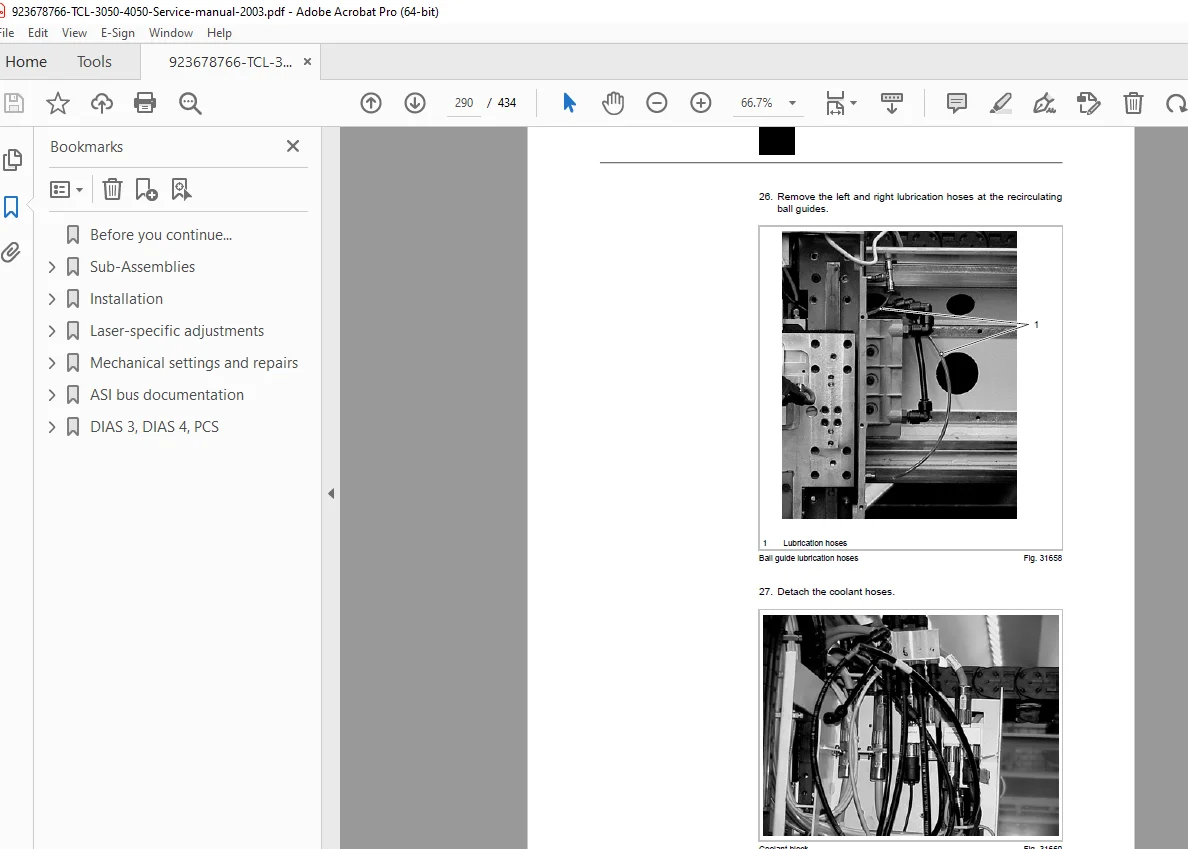

Manual PDF Quality: High Quality, Searchable Text, Detailed Diagrams & Schematics
No. of Pages: ~434
