TSG-415 Service Manual – Ford 1.5L Industrial Engine Repair Guide PDF

Description

TSG-415 Service Manual – Ford 1.5L Industrial Engine Repair Guide PDF DOWNLOAD

DESCRIPTION

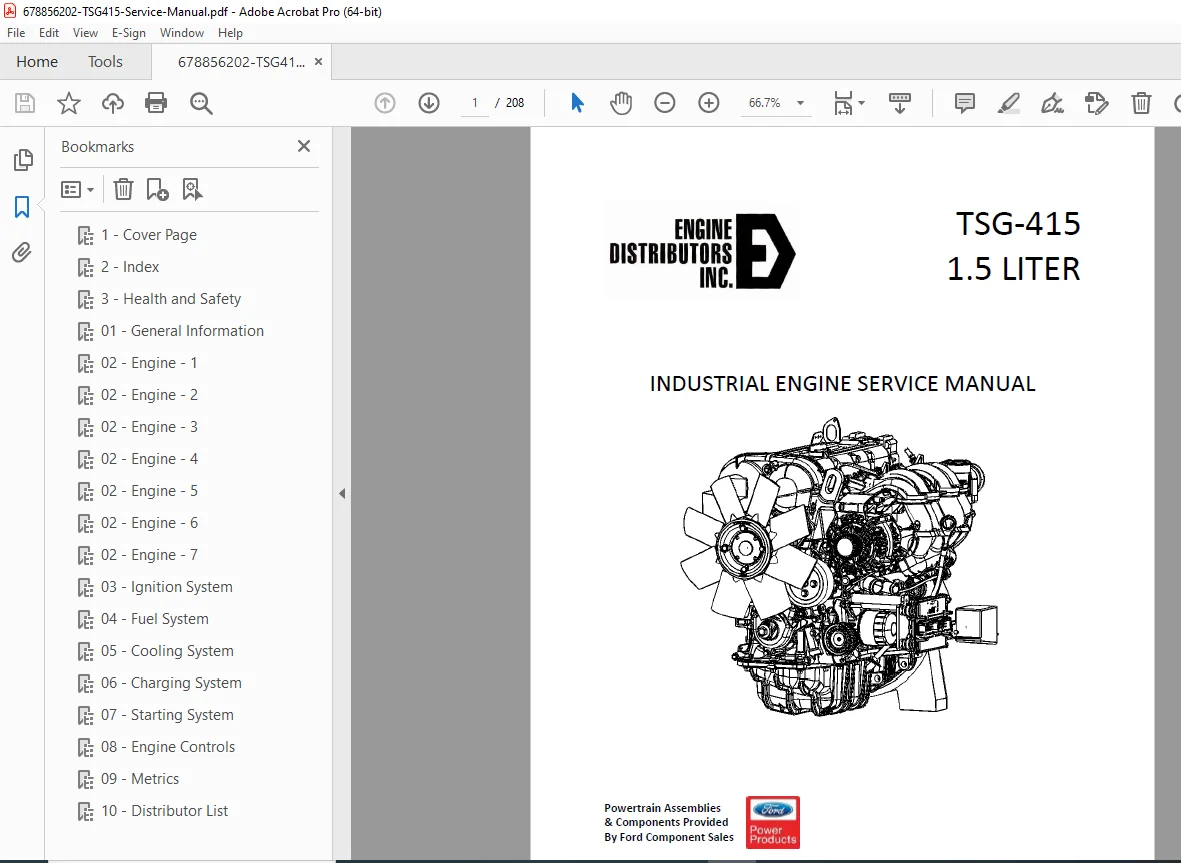

Ford TSG-415 Industrial Engine Service Manual – Complete Factory Documentation

This official TSG-415 service manual provides comprehensive technical information for servicing and repairing the Ford 1.5 liter industrial engine. Published by Engine Distributors Inc (EDI) in collaboration with Ford Component Sales, this manual is the authoritative reference for professional mechanics, equipment technicians, and industrial maintenance personnel working with TSG415 engine maintenance requirements.

Engine Specifications – TSG-415

Engine Model: TSG-415
Displacement: 1.5 Liter (91.5 cubic inches)
Engine Type: Four-cylinder, inline, gasoline
Application: Industrial power equipment
Manufacturer: Ford Motor Company
Distributor: Engine Distributors Inc (EDI)
Document Number: EDI 1050130, Revision 1
Publication Date: October 2017

Applications

The TSG-415 industrial engine powers a wide range of equipment:

• Industrial generators and gen-sets
• Hydraulic power units
• Air compressors
• Water pumps and pressure washers
• Construction equipment
• Agricultural machinery
• Material handling equipment
• Welding equipment
• Light industrial machinery

Complete Manual Sections

This Ford industrial gasoline engine manual is organized into 10 comprehensive sections:

SECTION 01 – GENERAL INFORMATION

Introduction & Safety:

• Health and safety recommendations
• Safety notices and warnings
• Battery handling and charging procedures
• Notes, cautions, and warning definitions
• General safety warnings for engine service

Engine Identification:

• Forward and service information
• Parts and service resources
• Engine description and operation
• Identification procedures
• EDI distributor network information

Diagnosis and Testing:

• Special tools required
• Inspection and verification procedures
• Comprehensive symptom charts
• PCV system malfunction diagnosis
• Engine oil leak detection
• Compression testing procedures
• Cylinder leakage detection
• Intake manifold vacuum testing
• Excessive oil consumption diagnosis
• Oil pressure testing
• Valve train analysis (static and dynamic)
• Camshaft lobe lift measurement
• Hydraulic valve lash adjuster testing

General Service Procedures:

• Camshaft Service:
  • Journal diameter measurement
  • Journal clearance checking
  • Lobe surface inspection
  • Lobe lift measurement
  • Runout checking
  • End play measurement
• Crankshaft Service:
  • Main bearing journal diameter
  • Main bearing journal taper
  • Main bearing journal clearance
  • Bearing inspection procedures
  • End play measurement
  • Runout checking
• Cylinder Bore Service:
  • Bore taper measurement
  • Bore out-of-round checking
  • Cylinder bore honing
  • Cylinder bore cleaning
  • Core plug replacement
  • Cast iron porosity defect repair
  • Cylinder block distortion checking
• Piston and Ring Service:
  • Piston inspection
  • Piston diameter measurement
  • Piston-to-cylinder bore clearance
  • Piston selection procedures
  • Piston ring end gap
  • Piston ring-to-groove clearance
• Connecting Rod Service:
  • Crankshaft connecting rod journal diameter
  • Connection rod journal taper
  • Connecting rod cleaning
  • Larger end bore measurement
  • Piston pin diameter
  • Connecting rod bushing diameter
  • Connecting rod bend checking
  • Connecting rod twist checking
  • Piston pin side clearance
  • Connecting rod journal clearance
  • Bearing inspection
• Valve Train Service:
  • Roller follower inspection
  • Hydraulic lash adjuster inspection
  • Valve stem diameter measurement
  • Valve stem-to-valve guide clearance
  • Valve inspection procedures
  • Valve guide inner diameter
  • Valve guide reaming
  • Valve spring installed length
  • Valve spring free length
  • Valve spring out-of-square
  • Valve spring compression pressure
  • Valve and seat refacing measurements
  • Valve seat width
  • Valve seat runout
• Additional Components:
  • Flywheel inspection
  • Oil pump gear radial clearance
  • Oil pump rotor inspection
  • Oil pump side clearance
  • Spark plug thread repair
  • Exhaust manifold straightness

Specifications:

• Complete engine specifications
• Torque specifications
• Clearance specifications
• Engine component views

SECTION 02 – ENGINE

• Complete engine disassembly procedures
• Engine assembly procedures
• Installation procedures
• Adjustment specifications
• Component replacement procedures
• Engine timing procedures
• Gasket replacement
• Seal replacement

SECTION 03 – IGNITION SYSTEM

• Ignition system components
• Spark plug service
• Ignition coil testing
• Distributor service (if applicable)
• Ignition timing procedures
• Ignition system troubleshooting
• Wiring diagrams

SECTION 04 – FUEL SYSTEM

• Fuel system overview
• Fuel pump service
• Carburetor service and adjustment
• Fuel injection service (if applicable)
• Fuel filter replacement
• Fuel line service
• Fuel system troubleshooting
• Fuel pressure testing

SECTION 05 – COOLING SYSTEM

• Cooling system components
• Radiator service
• Water pump replacement
• Thermostat testing and replacement
• Coolant specification (Ford approved)
• Cooling fan service
• Hose replacement
• Coolant system bleeding
• Overheating diagnosis

SECTION 06 – CHARGING SYSTEM

• Alternator service
• Voltage regulator testing
• Battery testing and service
• Charging system troubleshooting
• Wiring diagrams
• Output testing procedures

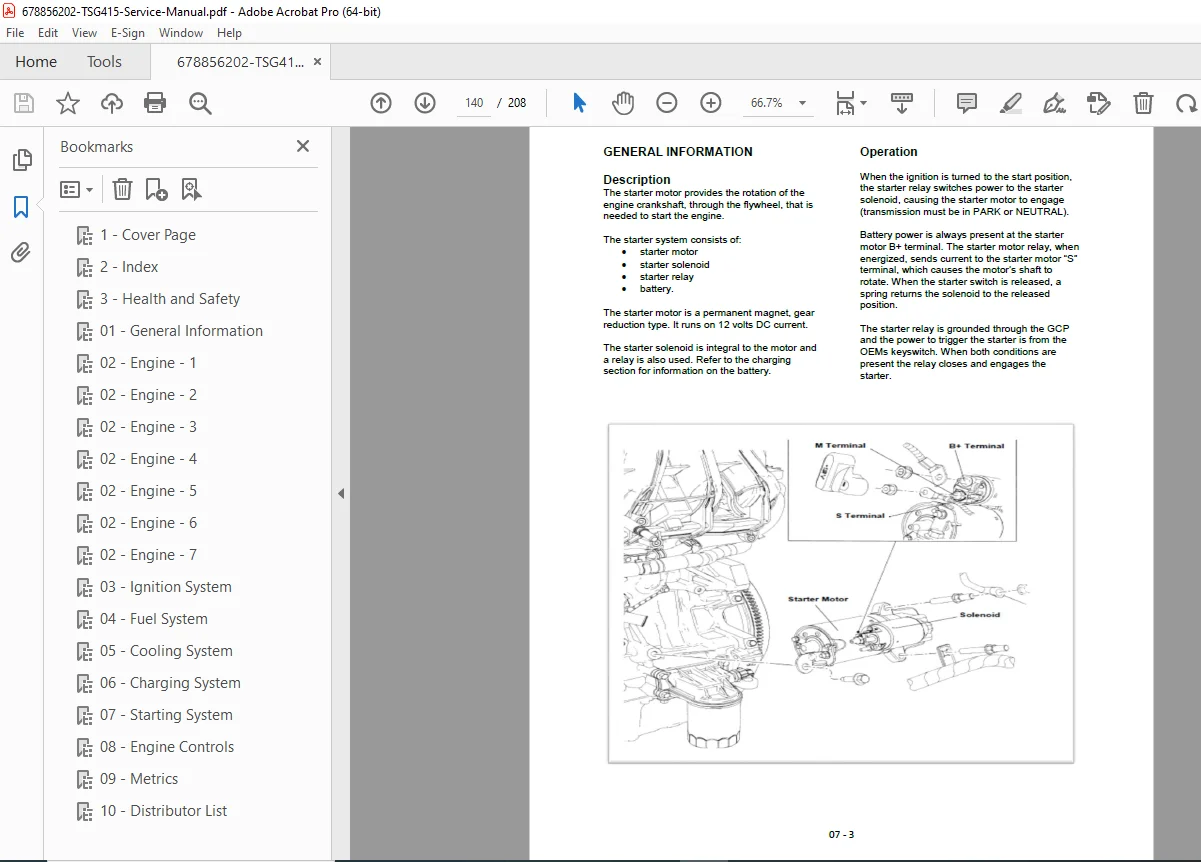

SECTION 07 – STARTER SYSTEM

• Starter motor service
• Starter motor testing
• Solenoid service
• Starting system troubleshooting
• Wiring diagrams
• Starter removal and installation

SECTION 08 – ENGINE CONTROLS

• Throttle control systems
• Governor systems
• Engine control linkage
• Control cable adjustment
• Electronic control systems
• Sensor testing and replacement

SECTION 09 – METRICS

• Metric conversion charts
• Torque conversion tables
• Measurement conversions
• Technical reference data

SECTION 10 – DISTRIBUTORS

• Complete EDI distributor network
• Parts and service locations
• Contact information for North America
• Canadian distributor listings
• Service support resources

Key Features of This Service Manual

Comprehensive Coverage:

• All major engine systems covered in detail
• Step-by-step repair procedures
• Clear diagnostic flowcharts
• Detailed troubleshooting guides

Technical Specifications:

• Complete measurement specifications
• Torque values for all fasteners
• Clearance specifications
• Service limits and tolerances

Safety Information:

• Comprehensive safety warnings
• Proper handling procedures
• Personal protective equipment requirements
• Environmental considerations

Professional Quality:

• Factory-approved procedures
• OEM specifications
• Proper service sequences
• Special tool identification

Emissions and Environmental Systems

The TSG-415 incorporates:

• Closed positive crankcase ventilation (PCV) system
• Exhaust emission control system
• Environmental compliance features
• Ford-approved oil specifications (ESE-M2C153-E)

Why This Manual is Essential

This EDI engine service documentation provides:

✓ Factory-authorized procedures – Direct from Ford engineering through EDI ✓ Complete diagnostic charts – Systematic troubleshooting guides ✓ Detailed specifications – All measurements, clearances, and torques ✓ Service procedures – Proper disassembly and assembly sequences ✓ Safety protocols – Comprehensive warnings and cautions ✓ Parts identification – Component views and part relationships

Perfect For

• Industrial equipment technicians servicing generator sets and power equipment
• Fleet maintenance departments with TSG-415 powered equipment
• Independent repair shops specializing in industrial engines
• Equipment rental companies maintaining their equipment fleet
• OEM equipment manufacturers using Ford industrial engines
• Technical training institutions teaching small engine repair
• Parts departments identifying correct replacement components
• Equipment operators performing preventive maintenance

Original Equipment Documentation

This manual represents the official service documentation published by Engine Distributors Inc (EDI) with authorization from Ford Component Sales. It ensures all service work is performed to manufacturer specifications and warranty requirements.

Revision Information

• Document: EDI 1050130
• Revision: Revision 1
• Date: October 2017
• Publisher: Engine Distributors Inc
• Source: Ford Component Sales authorized publication

Distributor Network Support

The manual includes complete listings of EDI authorized distributors throughout:

• United States (all 50 states)
• Canada (all provinces)
• Contact information for parts and service
• Technical support resources
