Turbo 400 Transmission Hydramatic Turbine 400 Service Manual – PDF Download

Description

Turbo 400 Transmission Hydramatic Turbine 400 Service Manual

FILE DETAILS:

Turbo 400 Transmission Hydramatic Turbine 400 Service Manual

LANGUAGE:ENGLISH
PAGES:154
DOWNLOADABLE:YES
FILE TYPE:PDF

TURBO 400 TRANSMISSION HYDRAMATIC TURBINE 400 SERVICE MANUAL – PDF DOWNLOAD:

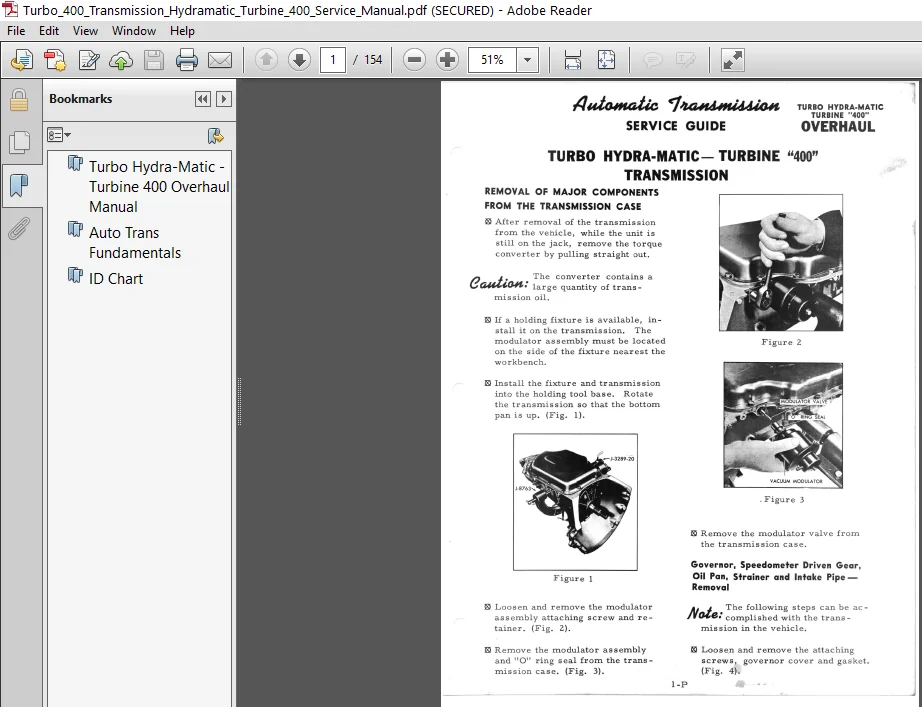

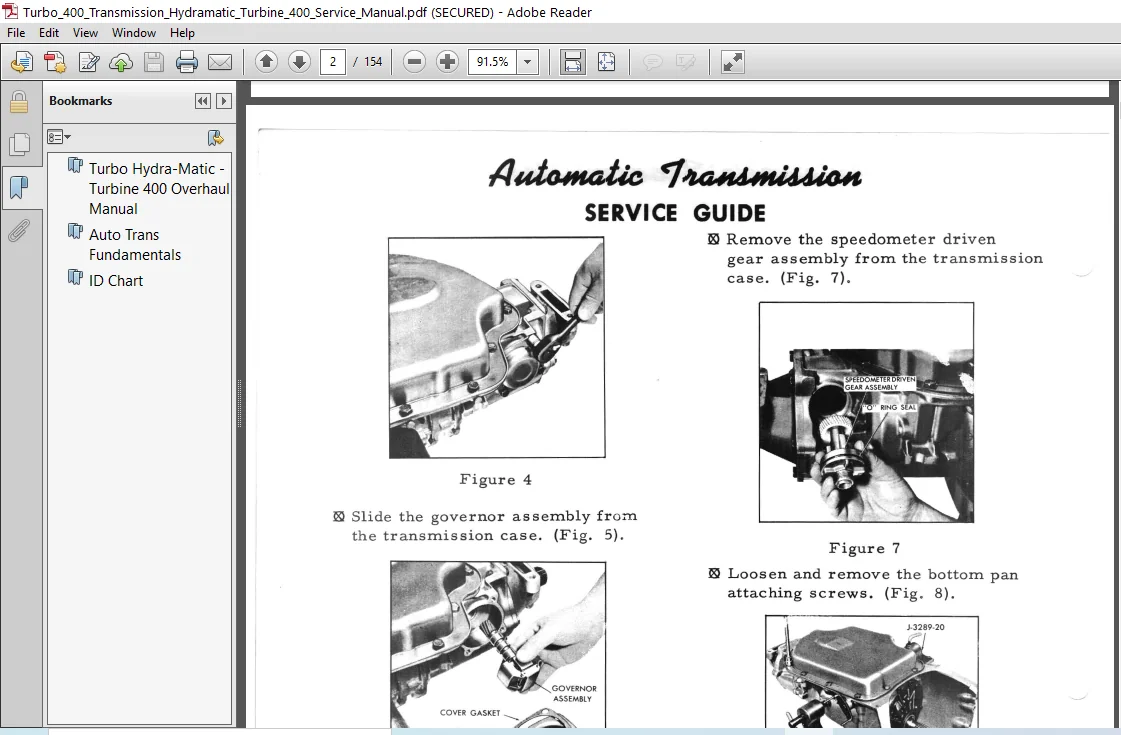

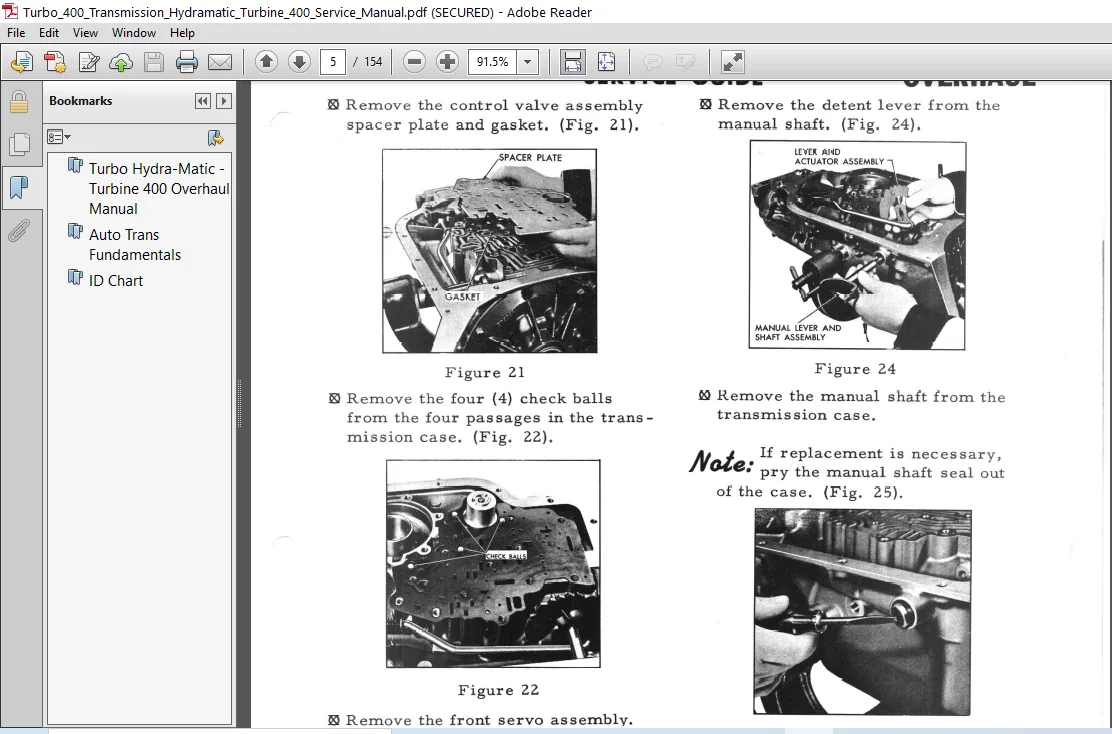

IMAGES PREVIEW OF THE  MANUAL:

DESCRIPTION:

• Turbo 400 Transmission Hydramatic Turbine 400 Service Manual
• In second speed the intermediate clutch is engaged allowing the inter- mediate Sprag to hold the sun gear against counterclockwise rotation. Turbine turning effort through the forward clutch is now directed through the main shaft to the rear internal gear in a clockwise direction.
• Clockwise rotation of the rear internal gear rotates the rear pinions clockwise against the stationary sun gear. This causes the output carrier and output shaft to rotate clockwise at a reduction ratio of l. 4815 to 1. E In second speed, overrun braking is provided by the front band as it holds the sun gear stationary. Without the band engaged, the sun gear would overrun the intermediate sprag.

TABLE OF CONTENTS:

Turbo 400 Transmission Hydramatic Turbine 400 Service Manual

1. FLUID LEVEL
2. OIL PRESSURE
3. MANUAL LINKAGE
4. ENGINE IDLE AND DASHPOT ADJUSTMENT
5. VACUUM LINE
6. VACUUM MODULATOR ASSEMBLY
7. DETENT SWITCH AND SOLENOID
8. GOVERINOR ASSEMBLY
9. CONTROL VALVE ASSEMBLY
10. REAR SERVO ASSEMBLY
11. FRONT SERVO ASSEMBLY
12. FORWARD CLUTCH
13. INTERMEDIATE CLUTCH
14. DIRECT CLUTCH
15. FRONT AND REAR BANDS

PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
