Unicarriers FHDT5 WITH ADVANCED TURBO ZD30 ENGINE CHASSIS SERVICE MANUAL SM5UC-FHDAZD PDF DOWNLOAD

Description

Unicarriers FHDT5 WITH ADVANCED TURBO ZD30 ENGINE CHASSIS SERVICE MANUAL SM5UC-FHDAZD PDF DOWNLOAD

FILE DETAILS:

Unicarriers FHDT5 WITH ADVANCED TURBO ZD30 ENGINE CHASSIS SERVICE MANUAL SM5UC-FHDAZD PDF DOWNLOAD

Language :English
Pages :493
Downloadable : Yes
File Type : PDF

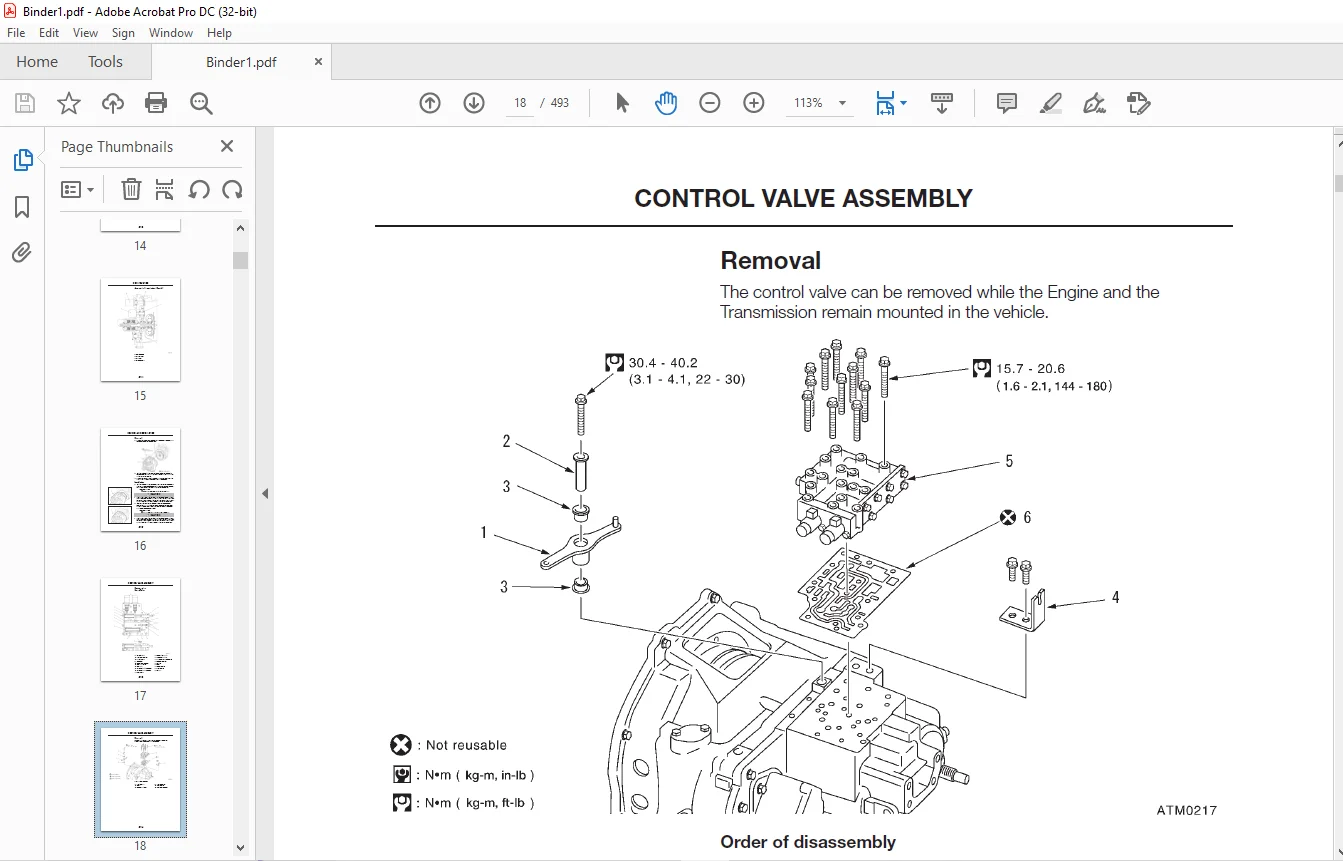

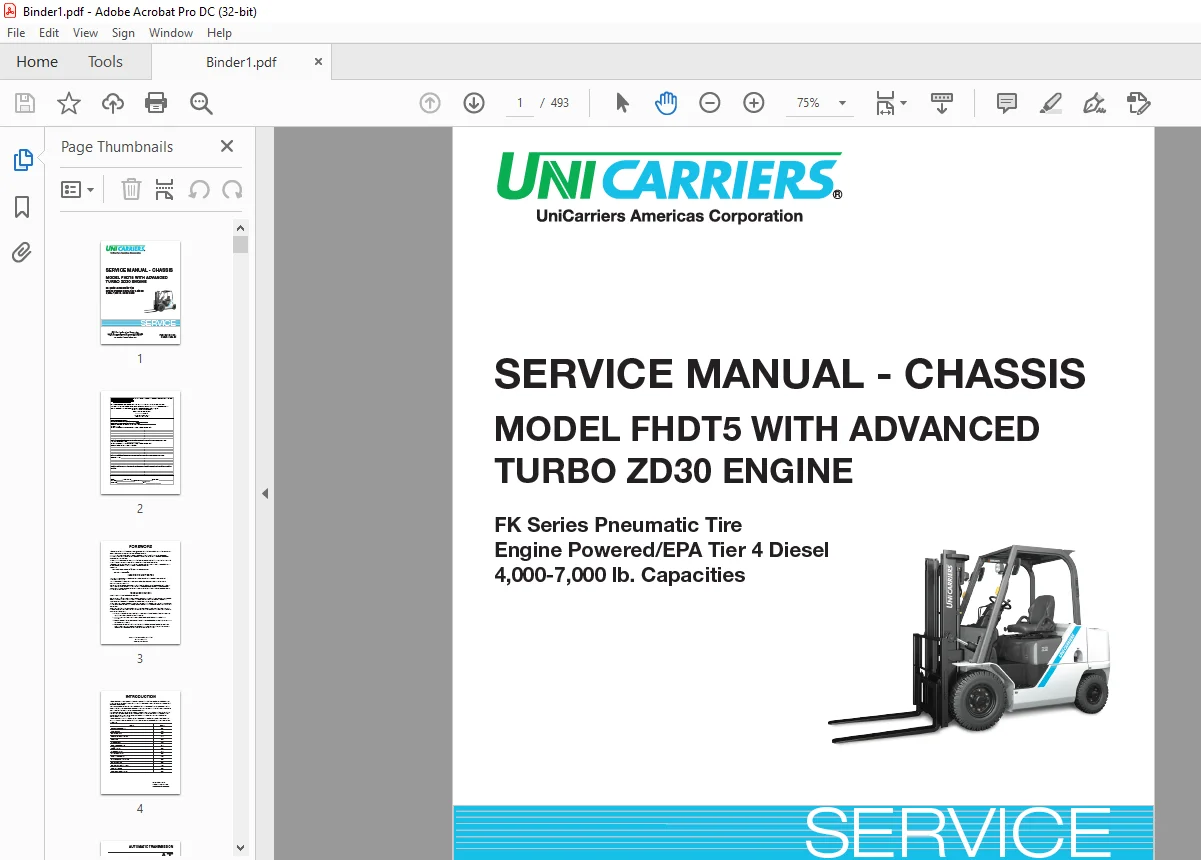

IMAGES PREVIEW OF THE MANUAL:

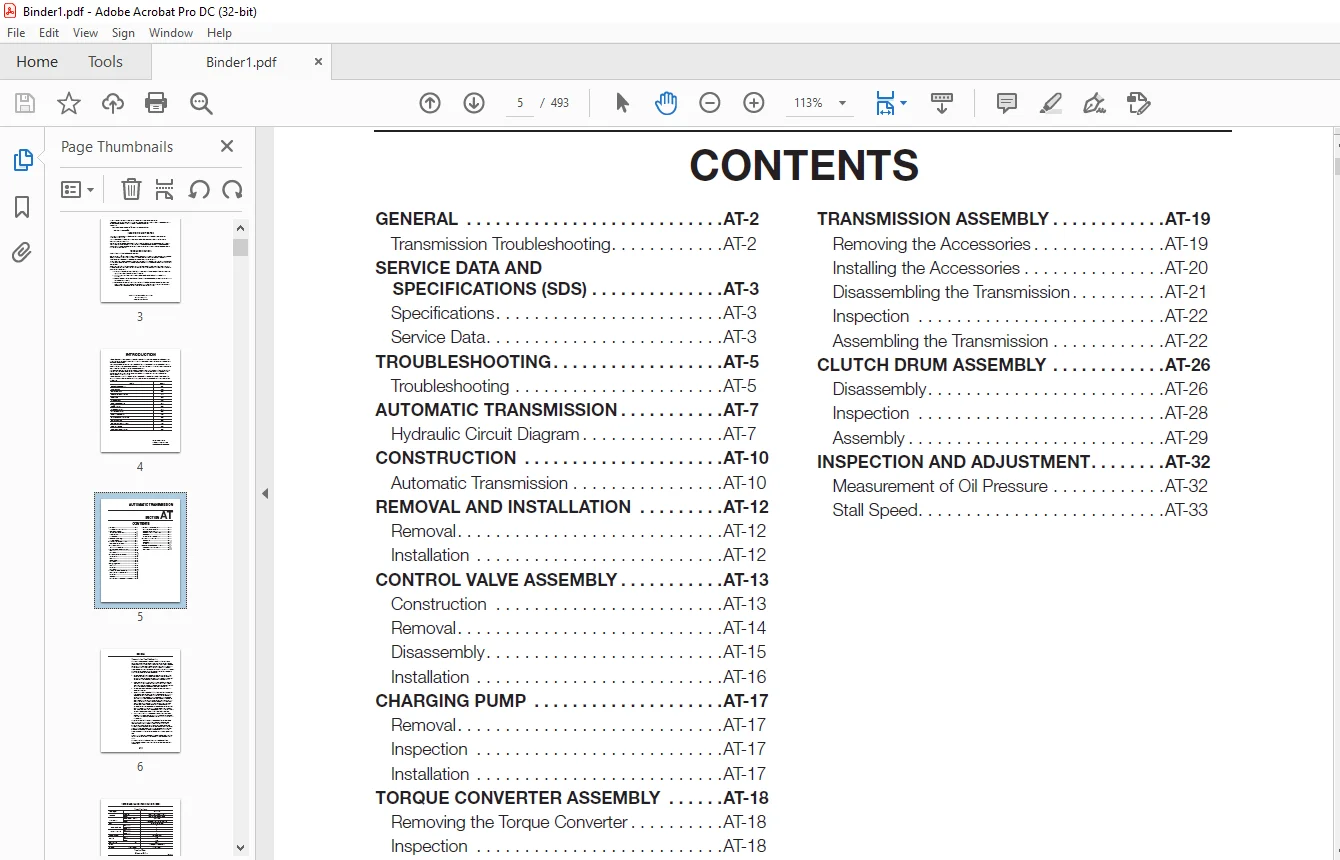

TABLE OF CONTENTS:

Unicarriers FHDT5 WITH ADVANCED TURBO ZD30 ENGINE CHASSIS SERVICE MANUAL SM5UC-FHDAZD PDF DOWNLOAD

FHD_AZD_Chassis_Cover_Comment Page_EN..............  1
FHD_AZD30_Chassis_FORE_INTRO_EN....................  3
FHD_AZD30_Chassis_AT_EN............................  5
FHD_AZD30_Chassis_BE_EN............................ 39
FHD_AZD30_Chassis_BF_EN............................103
FHD_AZD30_Chassis_BR_EN............................113
FHD_AZD30_Chassis_DA_EN............................141
FHD_AZD30_Chassis_ER_EN............................173
FHD_AZD30_Chassis_FE_EN............................183
FHD_AZD30_Chassis_GI_EN............................195
FHD_AZD30_Chassis_HD_EN............................213
FHD_AZD30_Chassis_LM_EN............................269
FHD_AZD30_Chassis_MA_EN............................309
FHD_AZD30_Chassis_RT_EN (1)........................373
FHD_AZD30_Chassis_SA_EN............................379
FHD_AZD30_Chassis_ST_EN............................399
FHD_AZD30_Chassis_VC_EN............................431
Service Bulletin Index_FHDT5 AT ZD30 Chassis_EN....487
Advanced Turbo ZD30 Schematics.....................488
	Advanced Turbo ZD30 Engine Schematics..........488
		ELM0527_ECM Power Supply...................488
		ELM0494_Lighting System Power Supply.......489
		ELM0496_Meter System Power Supply..........490
		ELM0492_Starting System Power Supply.......491
		ELM0498_VCM Driving & PS System............492
		ELM0500_VCM Loading System.................493

VIDEO PRVIEW:

https://vimeo.com/859307127?share=copy

DESCRIPTION:

Unicarriers FHDT5 WITH ADVANCED TURBO ZD30 ENGINE CHASSIS SERVICE MANUAL SM5UC-FHDAZD PDF DOWNLOAD

FOREWORD

This manual contains maintenance and repair procedures for UniCarriers Americas Corporation (UCA) model FHDT5 with Advanced Turbo (without DPF) ZD30 Engine Series. In order to assure your safety and the efficient functioning of the lift truck, this manual should be read thoroughly. It is especially important that the PRECAUTIONS in the GI section be completely understood before starting any repair task. All information in this manual is based on the latest product information at the time of publication. The right is reserved to make changes in specifications and methods at any time without notice.

INTRODUCTION

This service manual has been prepared to provide necessary information concerning the maintenance and repair procedures for UniCarriers Americas Corporation (UCA) models FHDT5 with Advanced Turbo (without DPF) ZD30 Engine Series. Any changes effected in the series after publication of this service manual will be announced in a technical bulletin. It is, therefore, recommended that each relevant technical bulletin be inserted in front of each section and be used together with the service manual as a reference. If a new model requires a different service method or has undergone a major change, revised sections will be issued to replace the applicable sections. Each revised section will include the new servicing information as well as servicing the parts for the former specifications. The publication of a revised section will be announced in the technical bulletin. This service manual consists of sixteen sections as shown in the following table, which gives the updated symbols. When a revised service manual is issued, this ‘‘INTRODUCTION” sheet should be replaced with a revised one.
