Unicarriers Nissan Forklift 2W1 Parts Manual – PDF DOWNLOAD

Description

Unicarriers Nissan Forklift 2W1 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Unicarriers Nissan Forklift 2W1 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 151
Downloadable : Yes
File Type : PDF

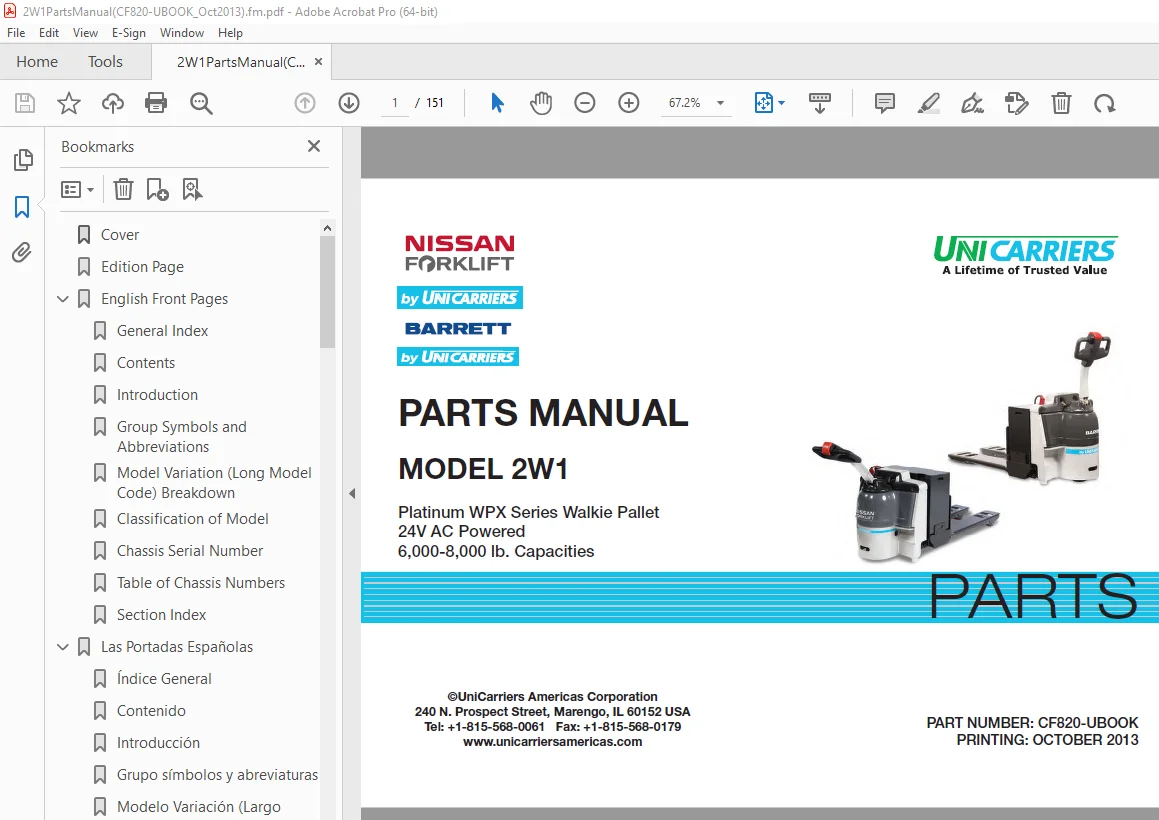

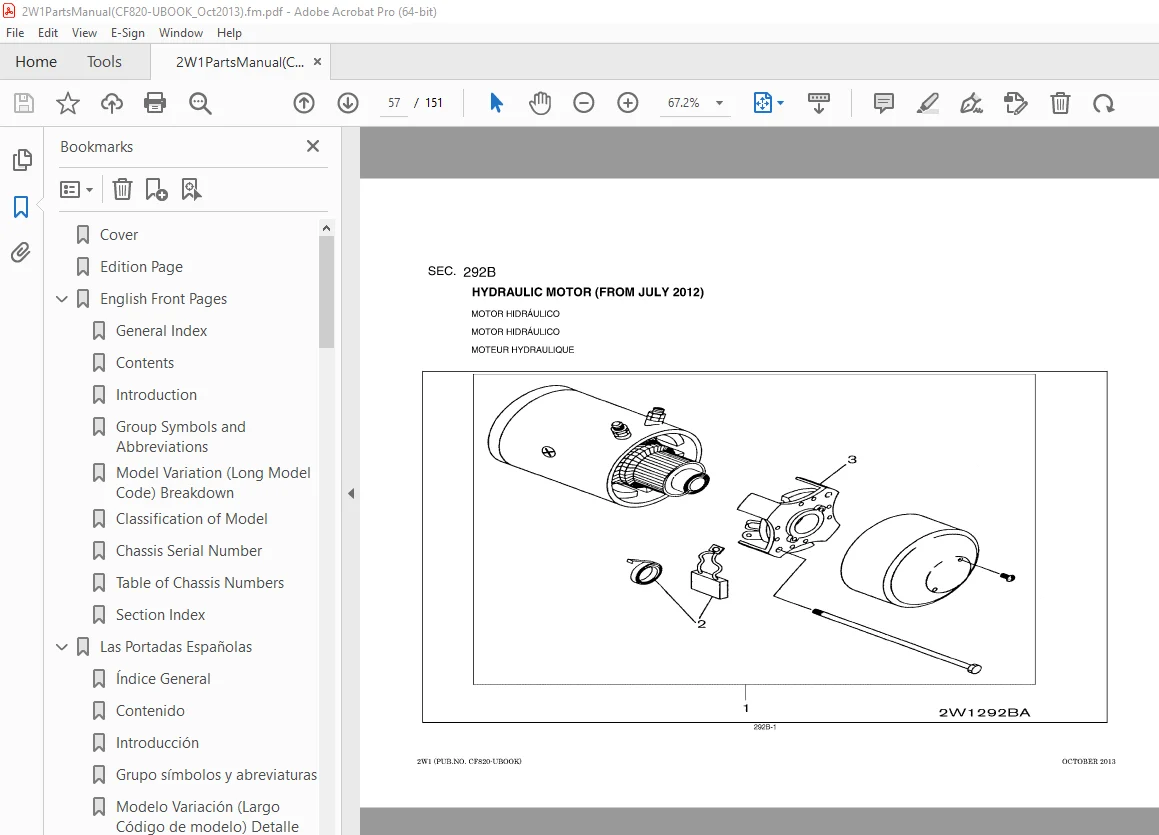

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Unicarriers Nissan Forklift 2W1 Parts Manual – PDF DOWNLOAD

Cover 1
Edition Page 3
English Front Pages 4
General Index 4
Contents 5
Introduction 6
Group Symbols and Abbreviations 7
Model Variation (Long Model Code) Breakdown 8
Classification of Model 9
Chassis Serial Number 11
Table of Chassis Numbers 12
Section Index 14
Las Portadas Españolas 15
Índice General 15
Contenido 16
Introducción 17
Grupo símbolos y abreviaturas 18
Modelo Variación (Largo Código de modelo) Detalle 19
Modelo de Clasificación 20
Número de Serie du Chasis 22
Tabla de números de chasis 23
Índice Sección 25
Português páginas Dianteiras 26
Índice Geral 26
Conteúdo 27
Introdução 28
Grupo símbolos e abreviaturas 29
Modelo Variação (Long código de modelo) A repartição 30
Classificação do Modelo 31
Número de Série do Chassi 33
Tabela de números de chassi 34
Índice da Seção 36
Français Pages Avant 37
Index général 37
Contenu 38
Introduction 39
Groupe Symboles et abréviations 40
Modèle Variation (Long Code de modèle) Ventilation 41
Classification de modèle 42
Numéro de série du châssis 44
Tableau des numéros de châssis 45
Index de section 47
Motor Sec 290-292 48
Sec 290 Drive Motor 49
Sec 291A Hydraulic Pump & Motor (June 2010 upto July 2012) 51
Sec 291B Hydraulic Pump & Motor (From July 2012) 53
Sec 292A Hydraulic Motor (June 2010 upto July 2012) 55
Sec 292B Hydraulic Motor (From July 2012) 57
Body Electrical Sec 240-270 60
Sec 240A Legend (Standard) 61
Sec 240B Legend (Optional) 62
Sec 241A Electrical Schematic (Standard) 63
Sec 241B Electrical Schematic (Optional) 64
Sec 242 Power Wiring 65
Sec 243A Control Wiring (Standard) 67
Sec 243B Control Wiring (Optional) 69
Sec 244 Steerhead Wiring 73
Sec 250 Truck Electronics 75
Sec 260A Battery Gate 77
Sec 260B Battery Gate & Roller 79
Sec 260C Battery Gate & Roller W/Switch 81
Sec 270 Controller Programmer 83
Power Train Sec 310-320 86
Sec 310 Transmission Assembly 87
Sec 320 Transmission & Motor Mounting 91
Axle & Suspension Sec 410-420 94
Sec 410 Drive Wheel 95
Sec 420 Load Wheel 97
Brake Sec 440 100
Sec 440 Brake Assembly 101
Steering Sec 480-483 104
Sec 480 Steering Mechanism 105
Sec 481 Brake Handle Assembly 107
Sec 482 Steerhead & Tiller Mounting 109
Sec 483 Steer Handle Assembly 111
Body (Front, Roof & Floor) Sec 510-640 114
Sec 510 Hydraulic Diagram 115
Sec 520 Lift Cylinder 117
Sec 530A Lift Linkage -Upper 119
Sec 530B Lift Linkage -Lower 121
Sec 540 Final Assembly 123
Sec 610A Backrest -Slip On 125
Sec 610B Backrest -Tilt 127
Sec 620 Wash Down Package 129
Sec 630 Convenience Tray 133
Sec 640 Autolift 135
Miscellaneous Sec 991-992 138
Sec 991A Decals -Barrett 139
Sec 991B Decals -Nissan Forklift 141
Sec 992 Paint 143
Part No Index 146
Dealer Suggested Stocking List 149
