UTILEV UT80-100P DSL 8T-10T IC Forklift Repair Manual PDF
$20.95
UTILEV UT80-100P DSL 8T-10T Internal Combustion Counterbalanced Forklift Truck Service Manual – PDF DOWNLOAD
P/N 76501365(R1)
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
UTILEV UT80-100P DSL 8T-10T Internal Combustion Counterbalanced Forklift Truck Service Manual – PDF DOWNLOAD
FILE DETAILS:
UTILEV UT80-100P DSL 8T-10T Internal Combustion Counterbalanced Forklift Truck Service Manual – PDF DOWNLOAD
Language : English
Pages : 98
Downloadable : Yes
File Type : PDF
P/N 76501365(R1)

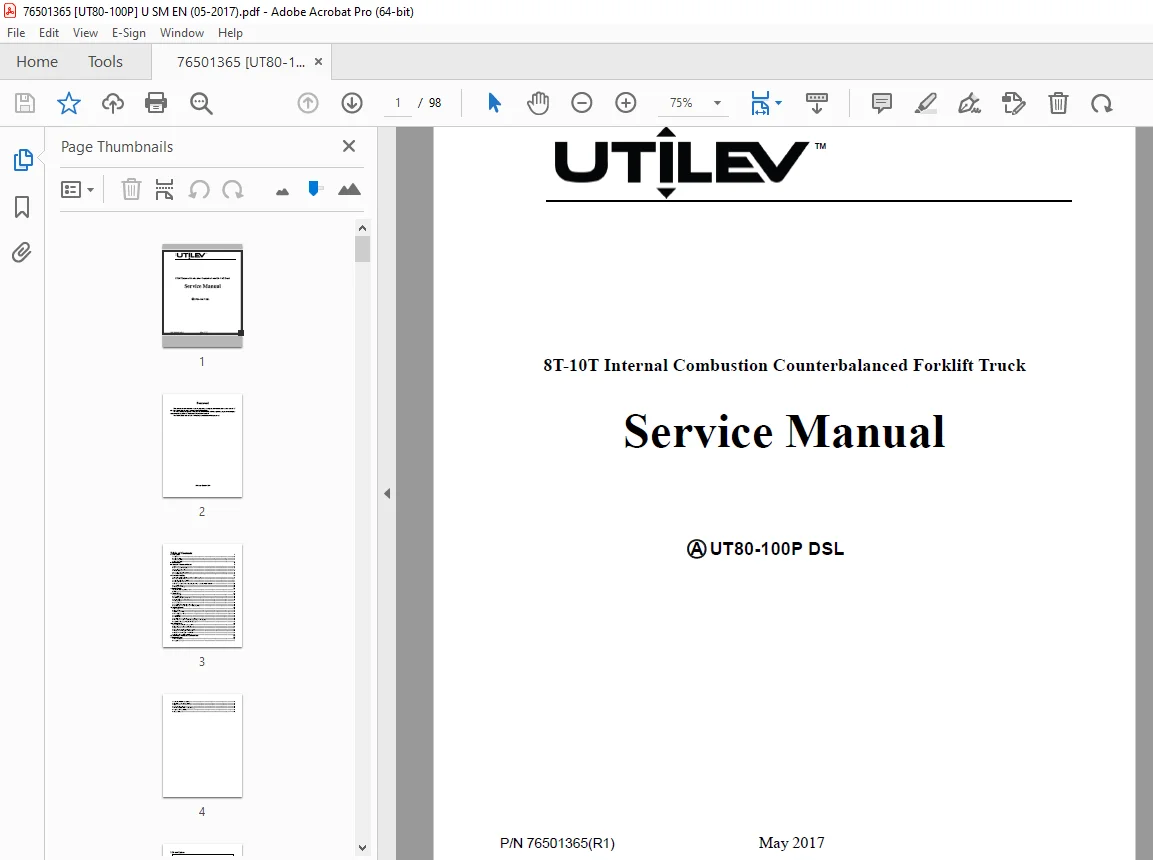

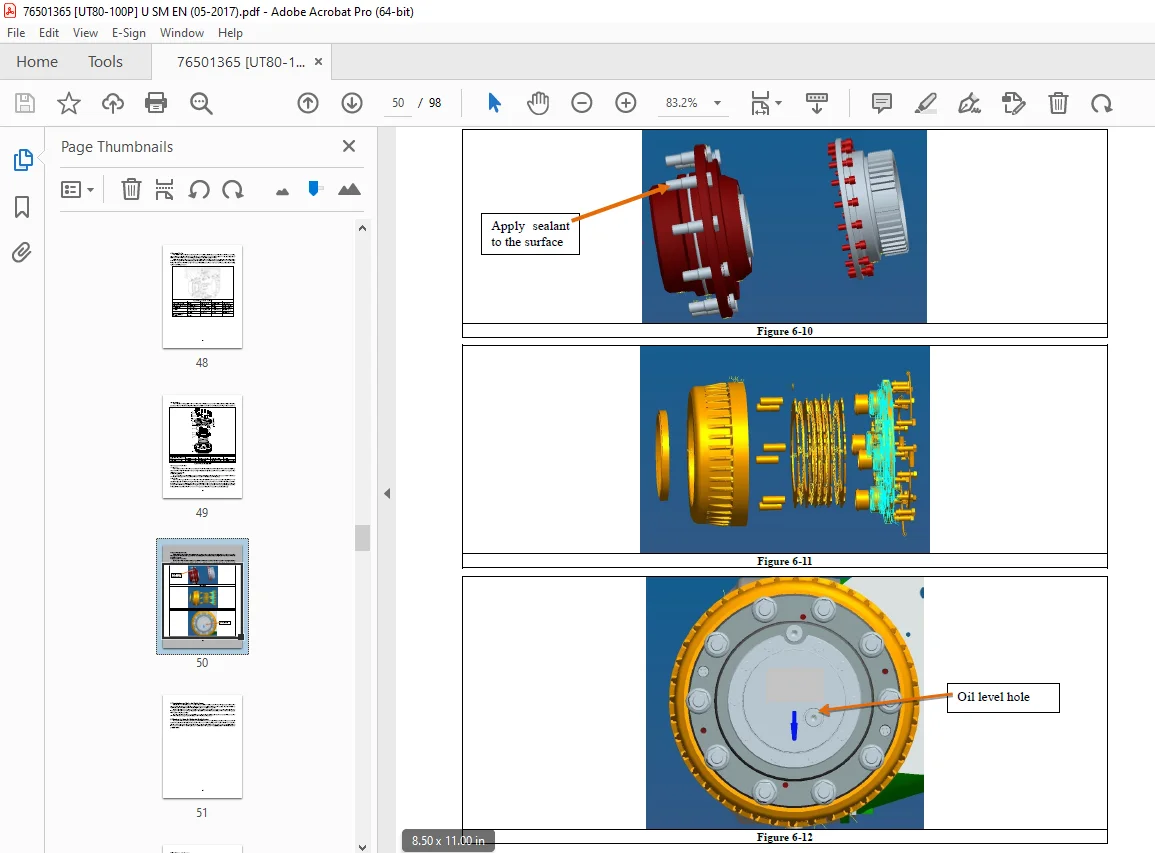

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
UTILEV UT80-100P DSL 8T-10T Internal Combustion Counterbalanced Forklift Truck Service Manual – PDF DOWNLOAD
I. Power System – ััั. 1
- Engine – ััั. 2
- Intake System – ััั. 5
- Exhaust System – ััั. 7
- Cooling System – ััั. 7
II. Universal Joint – ััั. 8
III. Hydraulic Transmission Gearbox – ััั. 9
- Overview – ััั. 9
- Main Technical Parameters – ััั. 10
- Principles of Operation – ััั. 11
- Structural Overview – ััั. 13
- Precautions for Fitting and Use – ััั. 18
- Troubleshooting – ััั. 18
IV. Drive Axle Assembly – ััั. 19
- Drive Shaft Basic Structure and Working Principles – ััั. 19
- Periodic Technical Services – ััั. 21
- Lubricating the Drive Shaft – ััั. 21
- Lifting the Drive Axle – ััั. 21
- Driven Spiral Bevel Gear Meshing Condition and Adjustment Method – ััั. 22
- Troubleshooting – ััั. 23
- Removal and Fitting – ััั. 24
V. Steering System – ััั. 31
- Hydraulic Steering Mechanism – ััั. 31
- Steering Axle – ััั. 33
VI. Brake System – ััั. 36
- Specifications – ััั. 36
- Troubleshooting – ััั. 37
- Pedal Height and Free Travel – ััั. 38
- Master Cylinder and Accumulator – ััั. 39
- Parking Brake – ััั. 41
- Service Brake – ััั. 44
- Troubleshooting Hydraulic Brake Issues – ััั. 47
- Bleeding Air from the Hydraulic Brake System – ััั. 47
VII. Hydraulic System – ััั. 48
- Oil Pump – ััั. 48
- Control Valve – ััั. 50
- Rotating Pipe Filter – ััั. 53
- Flow Regulator Valve – ััั. 54
- Lift Cylinder – ััั. 55
- Tilt Cylinder – ััั. 55
- Bleeding Air from the Hydraulic System – ััั. 56
- Fault Diagnosis and Troubleshooting the Hydraulic System – ััั. 56
- Schematic Diagram of Hydraulic System – ััั. 57
VIII. Lifting System – ััั. 58
- Assembly and Commissioning Data – ััั. 59
- Fault Diagnosis and Troubleshooting – ััั. 60
- Overview – ััั. 61
- Mast Removal, Fitting and Adjustment – ััั. 62
- Removal and Fitting of Lift Cylinders – ััั. 64
- Removal and Fitting of Tilt Cylinder – ััั. 65
- Commissioning After Installation – ััั. 65
IX. Removal and Fitting of the Overhead Guard – ััั. 66
X. Electrical System – ััั. 68
- Control Module – ััั. 68
- Key (start) Switch – ััั. 71
- Instrument Cluster Assembly – ััั. 72
- Combination Switch Assembly – ััั. 74
- Gear Lever – ััั. 74
- Lamp Combination Switch – ััั. 75
- Starter and Alternator Troubleshooting – ััั. 77
- Engine Fault Inspection – ััั. 78
- Circuit Diagram – ััั. 93
