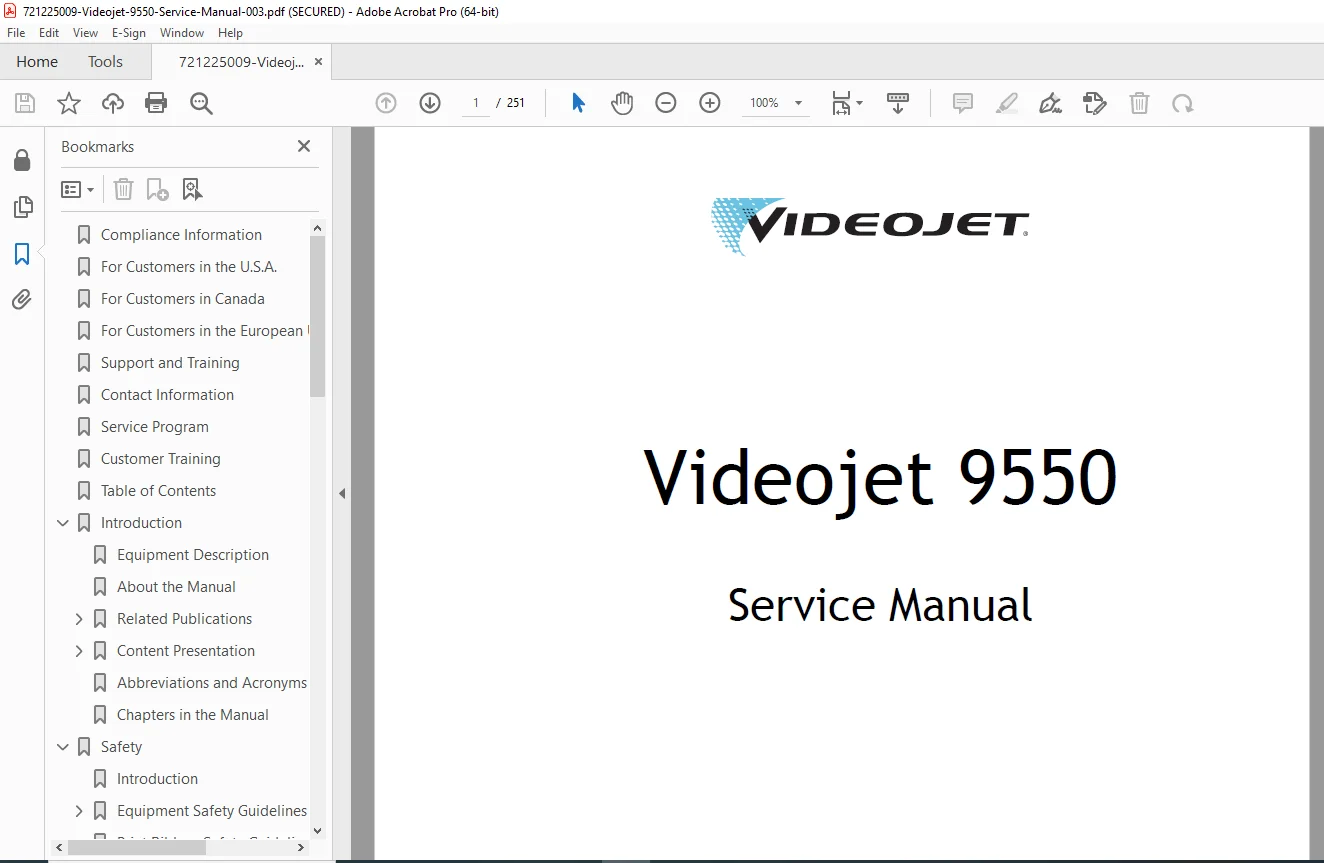

Videojet 9550 Print & Apply Labeler Service Manual – Full Factory Edition (PDF)

Description

Videojet 9550 Print & Apply Labeler Service Manual – Full Factory Edition (PDF)

Description

The Videojet 9550 Service Manual is the definitive technical reference for servicing and repairing the Videojet 9550 Print & Apply Label Printer Applicator (LPA).
It provides in-depth procedures for configuration, installation, calibration, diagnostics, maintenance, and system restoration for CLARiTY® OS-based LPAs.

Developed by Videojet Technologies Inc., this factory-authorized guide ensures correct servicing practices to maintain compliance, safety, and uptime in high-speed production environments.

📚 Table of Contents

1️⃣ Introduction

• Equipment description and manual scope

• Related publications and language codes

• Measurement standards and terminology

2️⃣ Safety

• General and electrical safety guidelines

• Grounding and bonding requirements

• Printhead and ribbon handling precautions

• Cleaning and equipment handling rules

3️⃣ Main Parts

• CLARiTY display layout

• Main controller board, sensor PCBs, motors

• Ribbon web and label web routing

• Printhead and E-Stop assembly overview

4️⃣ Installation

• Tools & supplies list

• Labeler unpacking and inspection

• Production-line mounting and cabling

• CLARiTY display setup and product detector connection

5️⃣ CLARiTY Operating System

• Getting started with CLARiTY UI

• Configuration Manager use and USB archives

• Parameter editing, job settings, password control

• External outputs and power saving

6️⃣ Maintenance & Troubleshooting

• Preventive maintenance schedule

• Motor calibration wizard

• CLARiTY error messages and LED status codes

• Diagnostic wizard and printhead fault tests

7️⃣ Illustrated Parts List

• LPA assembly and sub-assemblies

• Label web, ribbon path, and display components

• Connector and cable pinouts

8️⃣ Master/Slave Setup

• Dual-labeler auto-changeover configuration

• Hardware and software setup steps

Appendices A–E

• Technical drawings & specifications

• Electrical I/O interface specs

• CLARiTY Config Manager parameters

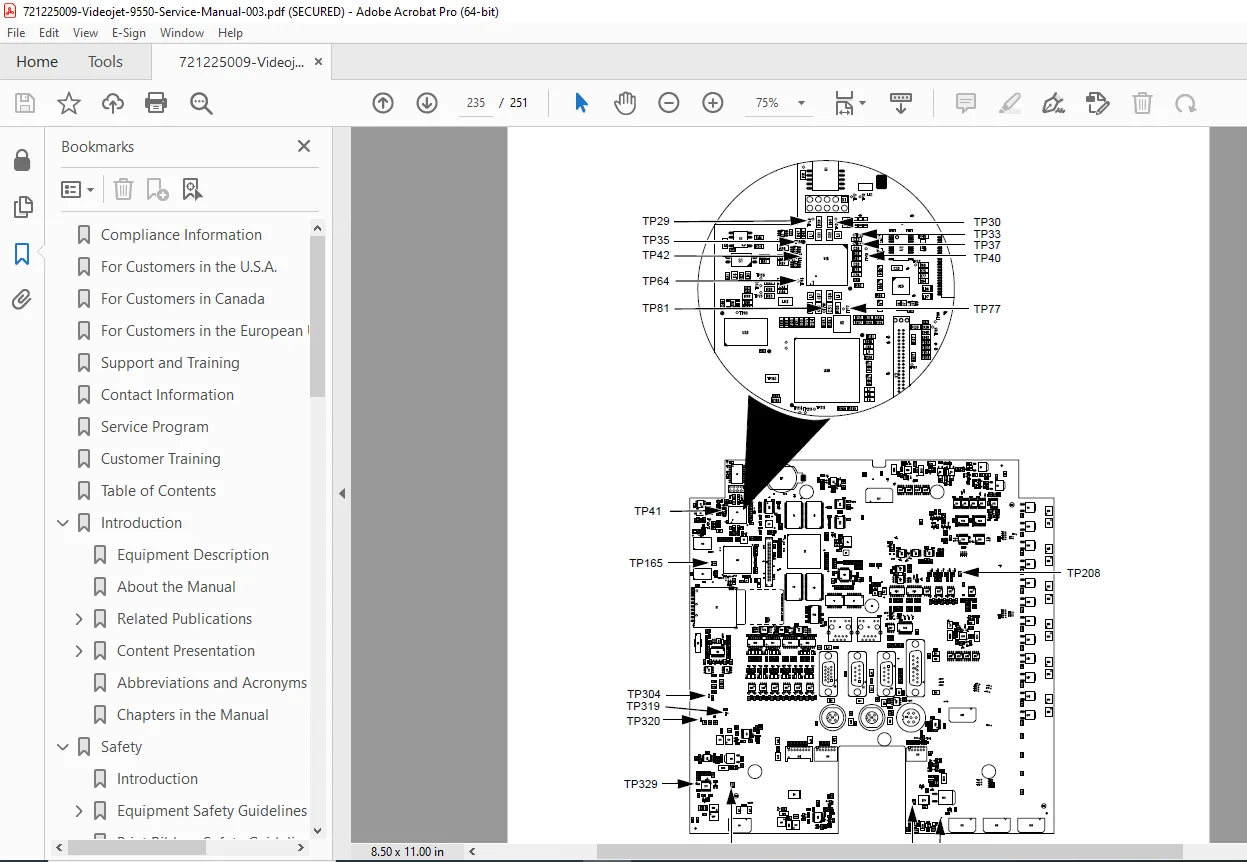

• Main board test points & theory of printing

• Equipment availability metrics (OEE)

  721225009-Videojet-9550-Service…

⚙️ Technical Highlights

💡 Why This Manual Matters

• Enables accurate calibration, fault resolution, and board testing

• Saves downtime by guiding technicians through diagnostic wizards

• Contains complete wiring pinouts and I/O tables

• Ensures compliance with UL 60950-1 and CE directives

• Factory-authored for maximum safety and reliability
