Villa Endos AC / ACP Intraoral X-Ray Unit Service Manual – PDF Download
$24.95
Official Service Manual for Villa Sistemi Medicali Endos AC / ACP intraoral X-ray units.
Covers installation, electrical connection, tubehead data, calibration, troubleshooting, and spare-parts diagrams for all wall, ceiling, dental-chair, and mobile configurations.
Description
Villa Endos AC / ACP Intraoral X-Ray Unit Service Manual (Rev. 6 – 2007, 230 V 70 kV 8 mA) – Installation, Timer, Calibration & Schematics – PDF Download
Long Description
⚙️ Overview
The Villa Endos AC / ACP Service Manual (Rev. 6, 13 July 2007) is the official factory documentation for Villa Sistemi Medicali’s intraoral radiographic units used in dental diagnostics.
It provides complete technical data, assembly instructions, calibration procedures, and electrical schematics to support installation, servicing, and preventive maintenance across standard, ceiling, chair, mobile, and remote-timer configurations

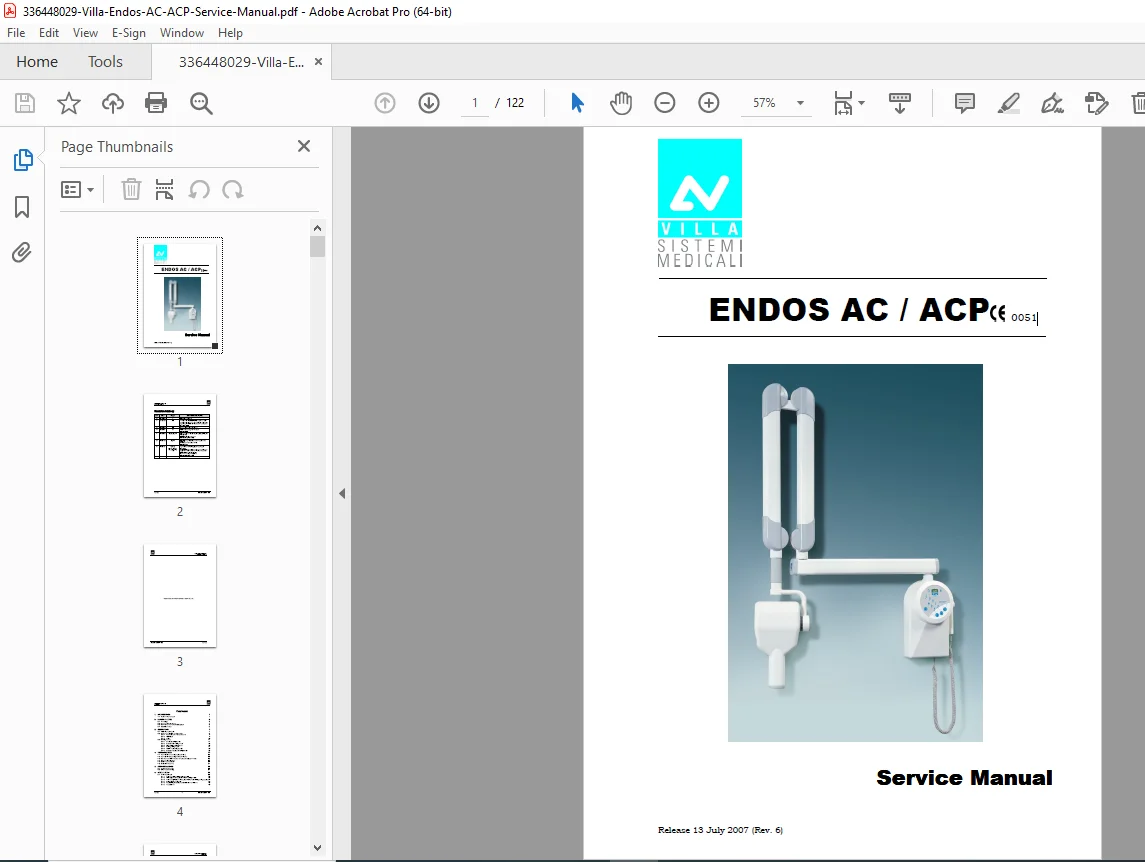

336448029-Villa-Endos-AC-ACP-Se…
IMAGES:
🧩 Key Sections
Safety & Radiation Protection – Regulatory compliance with EN 60601-1 and 60601-2-7; X-ray exposure precautions, grounding, EMC guidelines, and operator protection.

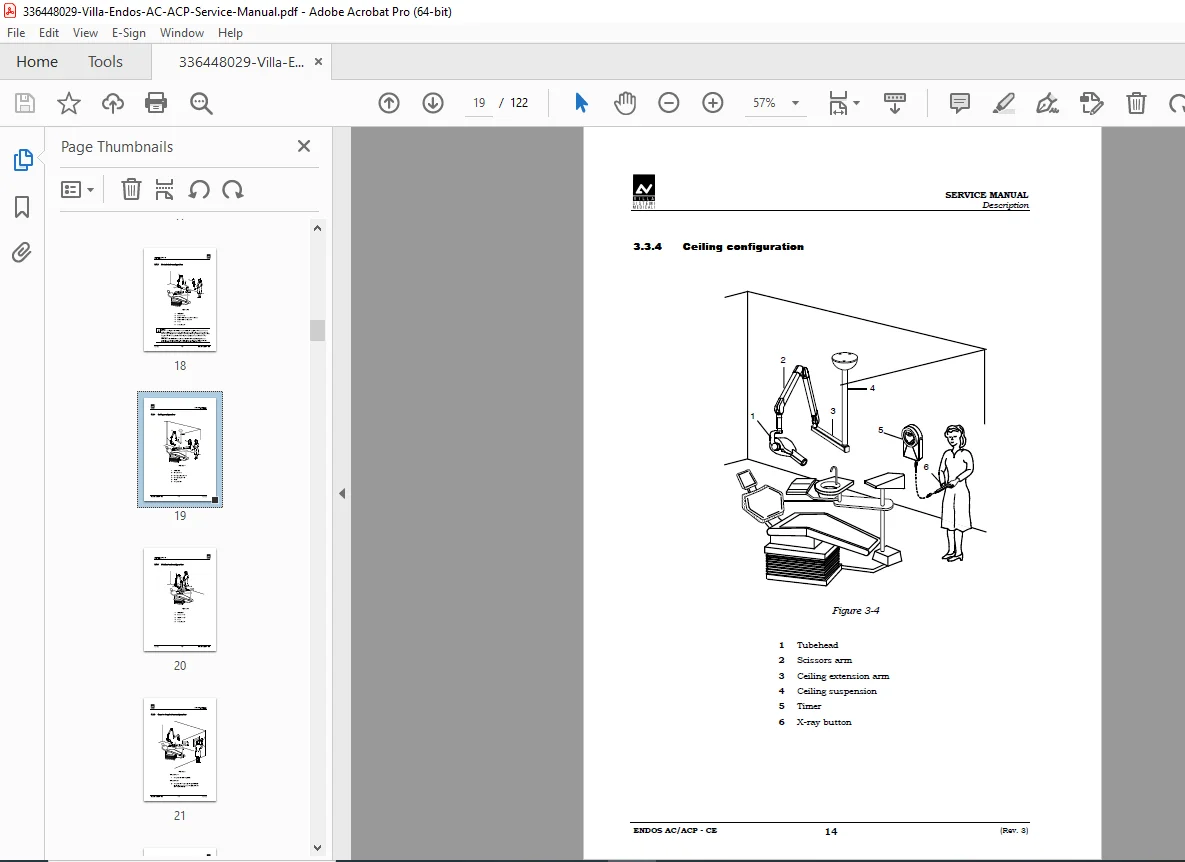

Description & Configuration – Structural overview including tubehead (70 kV, 8 mA), digital ACP timer, extension & scissors arms, remote X-ray button, and mounting methods.
Technical Data – Comprehensive electrical and mechanical parameters:
Voltage: 230 V ±10 % AC Power consumption: 920 VA
Tubehead current 8 mA, focal spot 0.8 mm, HVL > 1.5 mm Al eq.
Anode tilt 19°, thermal capacity 6 – 7 kJ, leakage < 0.1 mGy/h @ 1 m
Duty cycle 1:32 (continuous with intermittent load)
Installation & Electrical Connection – Wall, ceiling, stand, and chair installations with torque specs, counterplate mounting, chemical screw use, and terminal X3/X4 grounding diagrams for 230 V lines.
Timer Calibration – Automatic voltage-compensated exposure times, Computer Controlled Density correction, test values for each preset tooth program (0.02 – 3.2 s).
Troubleshooting & Error Messages – Startup faults, resettable errors, X-ray emission warnings, and diagnostic LED signals for READY/EXPOSURE.
Schematics & Drawings – Electrical layouts, interconnects, and signal flow of power and control boards.
Spare Parts & Templates – Tubehead replacement, arm adjustment, safety switches, and fixing templates for mounting.
🧠 Technical Highlights
| Parameter | Specification |
|---|---|
| Model | Endos AC / ACP |
| Manufacturer | Villa Sistemi Medicali – Buccinasco (MI), Italy |
| Tubehead Voltage | 70 kV Current: 8 mA |
| Power Supply | 230 V ± 10 %, 50 Hz single-phase |
| Protection Class | Class I, Type B applied parts (IP20) |
| Timer Range | 0.02 – 3.2 s (33 steps) + 30 auto selections |
| Exposure Accuracy | ± 10 % or ± 20 ms |
| Tube Types | CEI OCX/70-G or Kailong KL16-0.8-70G |
| Filtration / Focal Spot | ≥ 2 mm Al eq / 0.8 mm (IEC 336) |
| Weight (standard set) | 25.4 kg net / 30.4 kg gross |
📄 File Details
| Parameter | Details |
|---|---|
| File Name | 336448029-Villa-Endos-AC-ACP-Service-Manual.pdf |
| Revision / Date | Rev. 6 – 13 July 2007 |
| Pages | ≈ 122 |
| Language | English (Translated from Italian original) |
| File Type | Searchable PDF |
| File Size | ~3.31 MB |
| Compatibility | Windows / macOS / Android / iOS |
| Delivery | Instant Digital Download |
