Volkswagen Golf IV Bora Circuit Wiring Diagram Manual – PDF DOWNLOAD

Description

Volkswagen Golf IV Bora Circuit Wiring Diagram Manual – PDF DOWNLOAD

FILE DETAILS:

Volkswagen Golf IV Bora Circuit Wiring Diagram Manual – PDF DOWNLOAD

Language : English
Pages : 1820
Downloadable : Yes
File Type : PDF

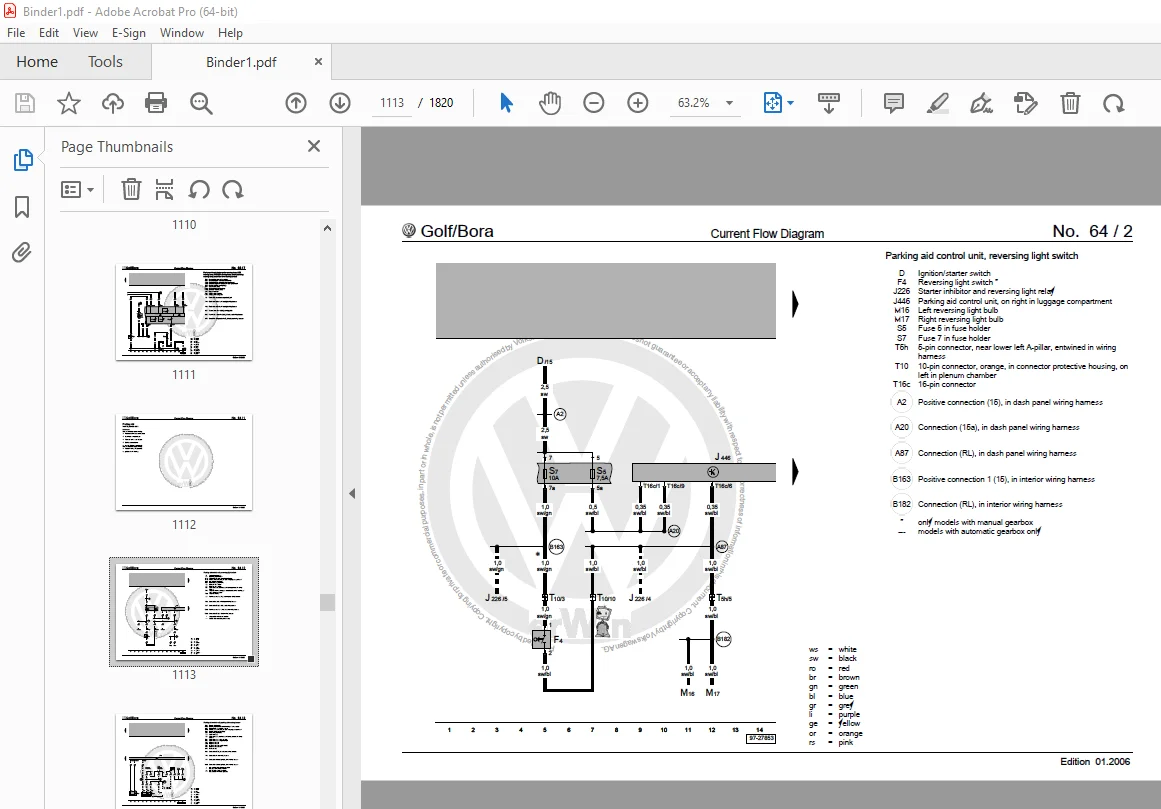

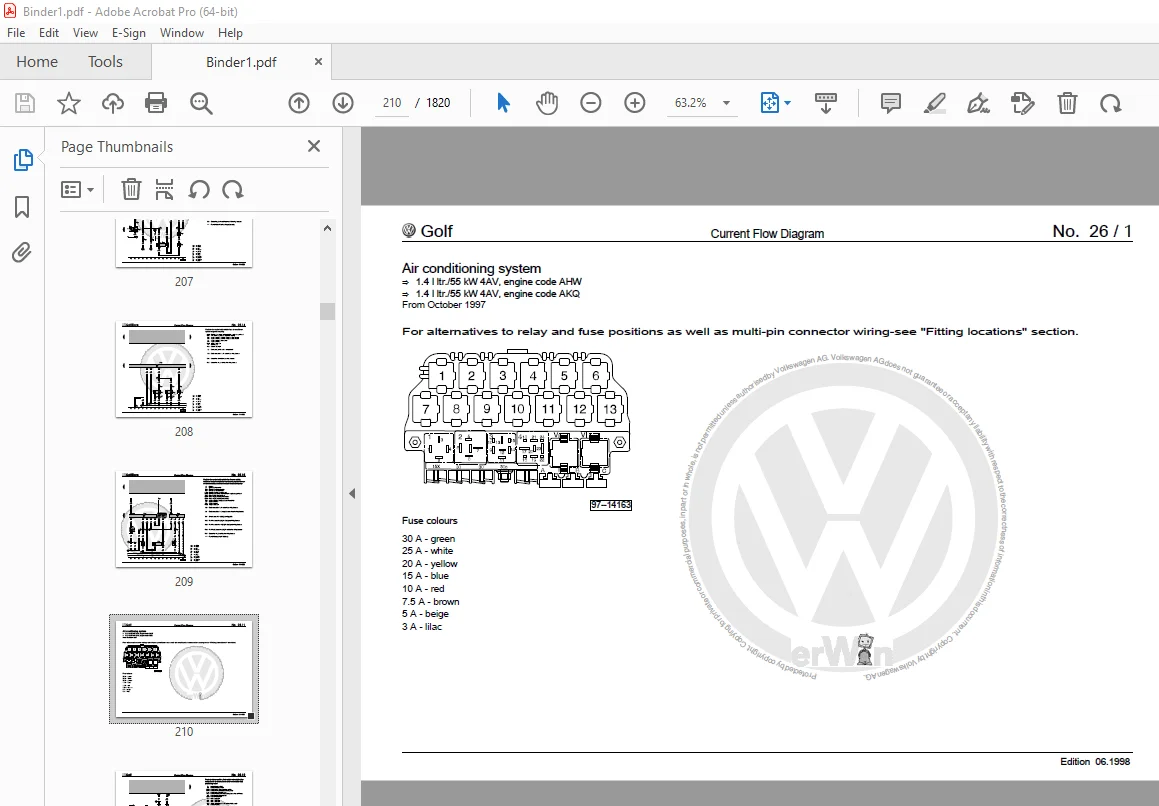

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Volkswagen Golf IV Bora Circuit Wiring Diagram Manual – PDF DOWNLOAD

K0051020020 Basic equipment from October 1998 1
001 – Basic equipment 1
1 Basic equipment 1
2 Battery, ignition/starter switch, X-contact relief relay 2
3 Dash panel insert 3
4 Dash panel insert, immobilizer, rev counter, odometer display 4
5 Dash panel insert, trailer operation warning lamp 5
6 Dash panel insert, handbrake warning, brake fluid level warning contact, turn signal indicator lamp, main beam warning lamp, fog light warning lamp, digital clock 6
7 Turn signal switch, headlight dipper/flasher switch, parking light switch, front left headlight, front left turn signal 7
8 Hazard warning light switch, turn signal relay, front right headlight, front right turn signal 8
9 Left tail light, left brake light, rear left turn signal, left reversing light, reversing light switch, rear fog light 9
10 Right tail light, right brake light, rear right turn signal, right reversing light, brake light switch 10
11 Self-diagnosis connection, radio connection, cigarette lighter 11
12 Light switch, rear fog light switch 12
13 Glove compartment light, number plate light 13
14 Dual-tone horn, fuel tank flap remote release, horn plate 14
15 Headlight range control regulator, headlight range control motor, switch and instrument illumination regulator 15
16 Heated rear window switch, heated rear window, luggage compartment light 16
17 Fresh air blower switch, fresh air/air recirculation flap switch, fresh air blower, fresh air and air recirculation flap control motor 17
18 Rear window wiper motor, windscreen and rear window washer pump 18
19 Intermittent wiper switch, wiper motor, automatic intermittent wash and wipe relay 19
20 Front interior light, rear left reading light, left door warning lamp 20
21 Rear right reading light, right door warning lamp, vanity mirror illumination 21
002 – 1 6 l/74 kW – Simos, engine code AEH 22
1 1 6 l/74 kW – Simos, engine code AEH 22
2 Alternator, starter 23
3 Simos control unit, ignition system 24
4 Simos control unit, crankcase breather heater element, coolant temperature sender, Hall sender 25
5 Simos control unit, throttle valve module, engine speed sender, power assisted steering pressure switch 26
6 Simos control unit, knock sensor, injectors 27
7 Simos control unit, Lambda probe, air mass meter, activated charcoal filter system solenoid valve, variable intake manifold changeover valve 28
8 Fuel pump, fuel gauge sender, coolant shortage indicator sender 29
9 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator 30
10 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, self-diagnosis connection, alternator warning lamp 31
11 Dash panel insert, multifunction display, ambient temperature indicator 32
003 – 1 4 l/55 kW – 4AV, engine code AHW 33
1 1 4 l/55 kW – 4AV, engine code AHW 33
2 Alternator, starter 34
3 4AV injection system control unit, ignition system 35
4 4CV injection system control unit, crankcase breather heater element, coolant temperature sender, Hall sender 36
5 4CV injection system control unit, throttle valve module, engine speed sender 37
6 4AV injection system control unit, intake manifold pressure sender, intake manifold temperature sender, knock sensor, injectors 38
7 4AV injection system control unit, Lambda probe, activated charcoal filter system solenoid valve, exhaust gas recirculation valve 39
8 Fuel pump, fuel gauge sender, coolant shortage indicator sender 40
9 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator 41
10 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, self-diagnosis connection 42
11 Dash panel insert, multifunction display, ambient temperature indicator 43
004 – 2 3 l/110 kW – Motronic, engine code AGZ 44
1 2 3 l/110 kW – Motronic, engine code AGZ 44
2 Alternator, starter 45
3 Ignition system 46
4 Motronic control unit, ignition system 47
5 Motronic control unit, coolant temperature sender, variable intake manifold changeover valve, Hall sender, intake air temperature sender, crankcase breather heater element 48
6 Motronic control unit, throttle valve module, knock sensor 1, knock sensor 2 49
7 Motronic control unit, engine speed sender 50
8 Motronic control unit, injectors 51
9 Motronic control unit, cruise control system (CCS) switch, thermal switch for fan run-on, continued coolant circulation pump 52
10 Motronic control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, cruise control system brake pedal switch, brake light switch 53
11 Motronic control unit, Lambda probe, air mass meter, activated charcoal filter system solenoid valve 54
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 55
13 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator 56
14 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, self-diagnosis connection, alternator warning lamp 57
15 Dash panel insert, multifunction display, ambient temperature indicator 58
005 – 1 9 l/66 kW – turbo diesel engine, engine code ALH 59
1 1 9 l/66 kW – turbo diesel engine, engine code ALH 59
2 Alternator, starter 60
3 Diesel direct injection system control unit, terminal 30 voltage supply relay, glow plugs – engine 61
4 Diesel direct injection system control unit, glow plug relay, fuel temperature sender, metering adjuster, modulating piston movement sender 62
5 Diesel direct injection system control unit, kickdown switch, idling speed switch, accelerator position sender 63
6 Diesel direct injection system control unit, coolant temperature sender, air mass meter, intake manifold pressure sender, intake manifold temperature sender 64
7 Diesel direct injection system control unit, engine speed sender, needle lift sender 65
8 Diesel direct injection system control unit, variable intake manifold flap changeover valve, exhaust gas recirculation valve, charge pressure control solenoid valve, crankcase breather heater element 66
9 Diesel direct injection system control unit, cruise control system (CCS) switch, clutch pedal switch, commencement of injection valve, fuel shut-off valve 67
10 Diesel direct injection system control unit, coolant heater element, brake pedal switch for CCS/diesel direct injection system, brake light switch, high and low heat output relay(s) 68
11 Fuel gauge sender, coolant shortage indicator sender 69
12 Dash panel insert, oil pressure warning, speedometer sender 70
13 Dash panel insert, coolant temperature/coolant shortage sender, fuel gauge, rev counter, speedometer, alternator warning lamp 71
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, cruise control system warning lamp, glow period warning lamp 72
006 – 1 9 l/50 kW – naturally aspirated diesel engine, engine code AGP 73
1 1 9 l/50 kW – naturally aspirated diesel engine, engine code AGP 73
2 Alternator, starter 74
3 Diesel direct injection system control unit, terminal 30 voltage supply relay, glow plugs – engine 75
4 Diesel direct injection system control unit, glow plug relay, fuel temperature sender, metering adjuster, modulating piston movement sender 76
5 Diesel direct injection system control unit, kickdown switch, idling speed switch, accelerator position sender 77
6 Diesel direct injection system control unit, coolant temperature display sender, intake manifold pressure sender, commencement of injection valve, intake manifold flap motor 78
7 Diesel direct injection system control unit, engine speed sender, needle lift sender 79
8 Diesel direct injection system control unit, crankcase breather heater element, exhaust gas recirculation valve, fuel shut-off valve 80
9 Diesel direct injection system control unit, cruise control system (CCS) switch, clutch pedal switch 81
10 Diesel direct injection system control unit, coolant heater element, brake pedal switch for CCS/diesel direct injection system, brake light switch, high and low heat output relay(s) 82
11 Fuel gauge sender, coolant shortage indicator sender 83
12 Dash panel insert, oil pressure warning, speedometer sender 84
13 Dash panel insert, coolant temperature/coolant shortage sender, fuel gauge, rev counter, speedometer, alternator warning lamp 85
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, cruise control system warning lamp, glow period warning lamp 86
007 – Anti-lock brake system (ABS), anti-lock brake system (ABS) with electronic differential lock (EDL) 87
1 Anti-lock brake system (ABS), anti-lock brake system (ABS) with electronic differential lock (EDL) 87
2 ABS control unit with EDL, brake light switch 88
3 ABS control unit with EDL, ABS warning lamp, ABS hydraulic pump 89
4 ABS control unit with EDL, speed sensor 90
008 – Climatronic 91
1 Climatronic 91
2 Climatronic control unit, temperature flap positioning motor 93
3 Climatronic control unit, central flap positioning motor, footwell/defrost flap positioning motor 94
4 Climatronic control unit, air flow flap positioning motor, vent temperature sender, fresh air intake duct temperature sensor 95
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photo sensor 96
6 Climatronic control unit, air conditioner pressure switch 97
7 Radiator fan control unit, radiator fan, air conditioner magnetic coupling, air conditioner cut-off thermo-switch 98
8 Radiator fan control unit, radiator fan thermo-switch 99
009 – Climatronic 100
1 Climatronic 100
2 Climatronic control unit, temperature flap control motor 101
3 Climatronic control unit, control motor for central flap, control motor for footwell/defroster flap 102
4 Climatronic control unit, air flow flap control motor, vent temperature sensor, fresh air duct temperature sensor 103
5 Climatronic control unit, ambient air temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photosensor 104
6 Climatronic control unit 105
7 Radiator fan control unit, radiator fan, air conditioning system magnetic clutch 106
8 Radiator fan control unit, thermal switch for radiator fan, high-pressure sender 107
010 – Climatronic 108
1 Climatronic 108
2 Climatronic control unit, temperature flap control motor 109
3 Climatronic control unit, control motor for central flap, control motor for footwell/defroster flap 110
4 Climatronic control unit, air flow flap control motor, vent temperature sensor, fresh air duct temperature sensor 111
5 Climatronic control unit, ambient air temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photosensor 112
6 Climatronic control unit, air conditioning system pressure switch 113
7 Radiator fan control unit, radiator fan, air conditioning system magnetic coupling, air conditioning system thermal switch (switch-off) 114
8 Radiator fan control unit, radiator fan thermal switch, continued coolant circulation control unit, fan run-on thermal switch, continued coolant circulation pump 115
011 – Airbag systems 116
1 Airbag systems 116
2 Airbag control unit, airbag coil connector, front airbag igniter, side airbag crash sensors 117
3 Airbag control unit, side airbag igniter, belt tensioner igniter 118
4 Airbag control unit, airbag warning lamp 119
012 – Fog light and rear fog light 120
1 Fog light and rear fog light 120
2 Left fog light, left headlight, left side light, front left turn signal 121
3 Right fog light, fog light relay, right headlight, right side light, front right turn signal 122
4 Light switch, fog light switch, rear fog light switch 123
5 Rear fog light, left tail light, brake light, reversing light 124
6 Dash panel insert, turn signal warning lamps, main beam warning lamp, rear fog light warning lamp 125
013 – Front seat heating 126
1 Front seat heating 126
2 Heated driver seat control unit, temperature sensor, heated driver seat, driver seat cushion lateral support heater 127
3 Heated front passenger seat control unit, temperature sensor, heated front passenger seat cushion, heated front passenger seat backrest 128
014 – 1 9 l/66 kW – turbo diesel engine, engine code AGR 129
1 1 9 l/66 kW – turbo diesel engine, engine code AGR 129
2 Alternator, starter 130
3 Diesel direct injection system control unit, terminal 30 voltage supply relay, glow plugs – engine 131
4 Diesel direct injection system control unit, glow plug relay, fuel temperature sender, metering adjuster, modulating piston movement sender 132
5 Diesel direct injection system control unit, kickdown switch, idling speed switch, accelerator position sender 133
6 Diesel direct injection system control unit, coolant temperature sender, air mass meter, intake manifold pressure sender, intake manifold temperature sender 134
7 Diesel direct injection system control unit, engine speed sender, needle lift sender 135
8 Diesel direct injection system control unit, variable intake manifold flap changeover valve, exhaust gas recirculation valve, charge pressure control solenoid valve, crankcase breather heater element 136
9 Diesel direct injection system control unit, cruise control system (CCS) switch, clutch pedal switch, commencement of injection valve, fuel shut-off valve 137
10 Diesel direct injection system control unit, coolant heater element, brake pedal switch for CCS/diesel direct injection system, brake light switch, high and low heat output relay(s) 138
11 Fuel gauge sender, coolant shortage indicator sender 139
12 Dash panel insert, oil pressure warning, speedometer sender 140
13 Dash panel insert, coolant temperature/coolant shortage sender, fuel gauge, rev counter, speedometer, alternator warning lamp 141
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, cruise control system warning lamp, glow period warning lamp 142
015 – Airbag system, routing wiring on vehicles with wiring repaired using wiring harness repair set (only vehicles to model year 1999) 143
1 Airbag system, routing wiring on vehicles with wiring repaired using wiring harness repair set (only vehicles to model year 1999) 143
2 Airbag control unit, airbag coil connector, front airbag igniter, side airbag crash sensors 144
3 Airbag control unit, side airbag igniter, belt tensioner igniter 145
4 Airbag control unit, airbag warning lamp 146
016 – 4-speed automatic gearbox (AG4) 147
1 4-speed automatic gearbox (AG4) 147
2 Starter inhibitor and reversing light relay 148
3 Automatic gearbox control unit, multifunction switch 149
4 Automatic gearbox control unit, solenoid valves, gearbox speed sender, gearbox oil temperature sender 150
5 Automatic gearbox control unit, vehicle speed sender 151
6 Automatic gearbox control unit, selector lever lock solenoid 152
017 – 4-speed automatic gearbox (AG4) 153
1 4-speed automatic gearbox (AG4) 153
2 Starter inhibitor and reversing light relay 154
3 Automatic gearbox control unit, multifunction switch 155
4 Automatic gearbox control unit, solenoid valves, gearbox speed sender, kickdown switch, gearbox oil temperature sender 156
5 Automatic gearbox control unit, vehicle speed sender 157
6 Automatic gearbox control unit, selector lever lock solenoid 158
018 – 1 8 l/92 kW – Motronic, engine code AGN 159
1 1 8 l/92 kW – Motronic, engine code AGN 159
2 Alternator, starter 160
3 Motronic control unit, ignition system 161
4 Motronic control unit, coolant temperature sender, Hall sender 162
5 Motronic control unit, throttle valve module, engine speed sender, power assisted steering pressure switch 163
6 Motronic control unit, knock sensor 1, knock sensor 2 164
7 Motronic control unit, crankcase breather heater element 165
8 Motronic control unit, injectors, air mass meter 166
9 Motronic control unit, Lambda probe, activated charcoal filter solenoid valve, variable intake manifold changeover valve, camshaft control valve 167
10 Fuel pump, fuel gauge sender, coolant shortage indicator sender 168
11 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator 169
12 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, self-diagnosis connection, alternator warning lamp 170
13 Dash panel insert, multifunction display, ambient temperature indicator 171
019 – Cruise control system (CCS) 172
1 Cruise control system (CCS) 172
2 Brake light switch, cruise control system brake pedal switch 173
3 Simos control unit, cruise control system (CCS) switch, clutch pedal switch 174
4 Simos control unit, throttle valve module 175
020 – Cruise control system (CCS) 176
1 Cruise control system (CCS) 176
2 Brake light switch, brake pedal switch for CCS 178
3 Motronic control unit, switch for cruise control system (CCS), clutch pedal switch 179
4 Motronic control unit, throttle valve control part 180
021 – Climatronic 181
1 Climatronic 181
2 Climatronic control unit, temperature flap positioning motor 182
3 Climatronic control unit, central flap positioning motor, footwell/defrost flap positioning motor 183
4 Climatronic control unit, air flow flap positioning motor, vent temperature sender, fresh air intake duct temperature sensor 184
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photo sensor 185
6 Climatronic control unit, air conditioner pressure switch 186
7 Radiator fan control unit, radiator fan, air conditioner magnetic coupling, air conditioner cut-off thermo-switch 187
8 Radiator fan control unit, radiator fan thermo switch, radiator fan relay 188
022 – Trailer towing 189
1 Trailer towing 189
2 Rear left turn signal, left reversing light,left tail light, brake lght, rear fog light 190
3 Trailer towing socket, rear fog light cut-off 191
4 Rear right turn signal, right tail light, right brake light, Hi-level brake light, right reversing light 192
5 Dash panel insert,trailer towing warning lamp, rear fog light warning lamp, turn signal warning lamp 193
023 – Air conditioning system 194
1 Air conditioning system 194
2 Switch for fresh air blower, switch for fresh and recirculating air flap, fresh air blower, positioning motor for fresh and recirculating air flap 195
3 Radiator fan control unit, air conditioning system switch, air conditioning system pressure switch, air conditioning system shut-off thermo switch, ambient temperature switch 196
4 Radiator fan control unit, radiator fan, air conditioner system magnetic coupling 197
5 Radiator fan control unit, radiator fan thermo switch, radiator fan relay 198
024 – Air conditioning system 199
1 Air conditioning system 199
2 Fresh air blower switch , fresh air/ recirculating air flap switch, fresh air blower, fresh air/recirculating air flap positioning motor 201
3 Radiator fan control unit, air conditioning system switch, air conditioning system pressure switch, air conditioning system shut-off thermo switch, ambient temperature switch 202
4 Radiator fan control unit, radiator fan, air conditioner system magnetic coupling 203
5 Radiator fan control unit, radiator fan thermo switch, radiator fan relay 204
025 – Air conditioning system 205
1 Air conditioning system 205
2 Fresh air blower switch , fresh air/air recirculation flap switch, fresh air blower, fresh air/air recirculation flap positioning motor 206
3 Radiator fan control unit, air conditioning system switch, air conditioning system pressure switch, air conditioning system shut-off thermo switch, ambient temperature switch 207
4 Radiator fan control unit, radiator fan, air conditioner system magnetic coupling 208
5 Radiator fan control unit, radiator fan thermo switch, continued coolant circulantion control unit, radiator fan run-on thermo switch, continued coolant circulantion pump 209
026 – Air conditioning system 210
1 Air conditioning system 210
2 Fresh air blower switch , fresh air/air recirculation flap switch, fresh air blower, fresh air/air recirculation flap positioning motor 211
3 Radiator fan control unit, air conditioning system switch, ambient temperature switch 212
4 Radiator fan control unit, radiator fan, air conditioner system magnetic coupling 213
5 Radiator fan control unit, radiator fan, air conditioner system magnetic coupling 214
027 – Radiator fan, single speed 215
1 Radiator fan, single speed 215
2 Radiator fan, single speed 216
028 – Radiator fan, 2 speed 217
1 Radiator fan, 2 speed 217
2 Radiator fan, 2 speed 218
029 – Radiator fan, 2 speed, with fan run-on 219
1 Radiator fan, 2 speed, with fan run-on 219
2 Radiator fan control unit, radiator fan 220
3 Radiator fan control unit, radiator fan thermo switch, continued coolant circulantion control unit, radiator fan run-on thermo switch, continued coolant circulantion pump 221
030 – Radiator fan, 2 speed 222
1 Radiator fan, 2 speed 222
2 Radiator fan, 2 speed 223
031 – Telephone system 224
1 Telephone system 224
2 Radio, radio/telephone loudspeaker change-over relay, front loudspeakers 225
3 Radio, rear loudspeakers 226
4 Operatig electrions control unit, aerial, microphone 227
032 – Convenience system 228
1 Convenience system 228
2 Driver door control unit, driver door window regulator, interior locking switch 229
3 Driver door control unit, driver side central locking lock unit, central locking warning lamp, left door warning lamp 230
4 Driver door control unit, electrically adjustable exterior mirror for driver door 231
5 Driver door control unit, mirror adjustment switch in models to April 1998, mirror adjustment changeover switch 232
6 Driver door control unit, mirror adjustment switch in models from May 1998, exterior mirror heater button, fold-in mirror switch 233
7 Front passenger door control unit, window regulator for front passenger door, front passenger side central locking lock unit 234
8 Front passenger door control unit, electrically adjustable exterior mirror for front passenger door, right door warning lamp 235
9 Rear left door control unit, rear left door window regulator, rear left central locking lock unit 236
10 Rear right door control unit, rear right door window regulator, rear right central locking lock unit 237
11 Front interior light, front and rear reading lights, illuminated vanity mirror (driver and front passenger sides) 238
12 Convenience system central control unit 239
13 Convenience system central control unit, sliding sunroof adjustment control unit, sliding sunroof adjustment regulator 240
14 Convenience system central control unit, rear lid central locking motor, rear lid remote release relay, rear lid release motor 241
15 Convenience system central control unit, rear lid release switch, luggage compartment light 242
16 Convenience system central control unit, rear lid handle release button, key operated switch to block release of rear lid remote, contact switch in lock cylinder 243
17 Convenience system central control unit 244
033 – Daytime running light 245
1 Daytime running light 245
2 Dash panel insert, turn signal switch, headlight dipper/flasher switch, parking light switch 246
3 Left headlight, left side light, front left turn signal, right headlight, right side light, front right turn signal 247
4 Light switch, rear fog light switch 248
5 Left brake light, rear fog light, left reversing light, left tail light, rear left turn signal 249
6 Right tail light, right brake light, rear right turn signal, right reversing light 250
034 – 1 8 l/110 kW – Motronic, engine code AGU 251
1 1 8 l/110 kW – Motronic, engine code AGU 251
2 Alternator, starter 252
3 Ignition system 253
4 Motronic control unit, ignition system 254
5 Motronic control unit, coolant temperature sender, altitude sender, Hall sender 255
6 Motronic control unit, throttle valve module, engine speed sender, intake air temperature sender 256
7 Motronic control unit, knock sensor 1, knock sensor 2, power assisted steering pressure switch 257
8 Motronic control unit 258
9 Motronic control unit, injectors, air mass meter 259
10 Motronic control unit, activated charcoal filter system solenoid valve, clutch pedal switch, charge pressure control solenoid valve, Lambda probe 260
11 Crankcase breather heater element, fuel pump, fuel gauge sender, coolant shortage indicator sender 261
12 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator 262
13 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, self-diagnosis connection, alternator warning lamp 263
14 Dash panel insert, multifunction display, ambient temperature indicator 264
035 – Front seat heating, leather seat 265
1 Front seat heating, leather seat 265
2 Driver seat cushion lateral support heater, heated driver seat backrest 266
3 Heated driver seat control unit, temperature sensor, heated driver seat 267
4 Heated front passenger seat control unit, temperature sensor, heated front passenger seat cushion, front passenger seat cushion lateral support heater 268
036 – Central locking 269
1 Central locking 269
2 Mirror adjustment switch, electrically adjustable exterior mirror for driver’s door 270
3 Central locking and anti-theft alarm control unit, electrically adjustable exterior mirror for front passenger door, central locking deadlock function warning lamp 271
4 Central locking and anti-theft alarm system control unit, driver side central locking lock unit, left door warning light 272
5 Central locking and anti-theft alarm system control unit, front passenger side central locking lock unit, right door warning light 273
6 Central locking and anti-theft alarm system control unit, rear left central locking lock unit 274
7 Central locking and anti-theft alarm system control unit, rear left central locking lock unit, rear lid central locking motor 275
8 Central locking and anti-theft alarm system control unit, sliding sunroof adjustment control unit, sliding sunroof adjustment regulator, luggage compartment light 276
9 Convenience system central control unit, front interior light, rear reading light, driver and front passenger side illuminated vanity mirrors 277
10 Central locking and anti-theft alarm system control unit, anti-theft alarm system 278
11 Central locking and anti-theft alarm system control unit 279
037 – Radio systems 280
1 Radio systems 280
2 Radio, CD changer, front loudspeakers 281
3 Radio, front loudspeakers, rear loudspeakers 282
4 Radio, aerial 283
038 – Heated washer jets 284
1 Heated washer jets 284
2 Heated washer jets 285
039 – Radio system “gamma” with CD changer and “Digital sound package” 286
1 Radio system “gamma” with CD changer and “Digital sound package” 286
2 Amplifier for ‘Digital sound package’, programme selection operating unit 287
3 Amplifier for ‘Digital sound package’, front loudspeakers 288
4 Amplifier for ‘Digital sound package’, rear loudspeakers 289
5 Radio, CD changer 290
6 Radio, aerial 291
040 – Radio-Navigation system (MFD) with colour display 292
1 Radio-Navigation system (MFD) with colour display 292
2 Control unit with display unit for navigation, dash panel insert 293
3 Control unit with display unit for radio and navigation, front loudspeakers 294
4 Control unit with display unit for radio and navigation, rear loudspeakers, aerial for radio/telephone, aerial for navigation (GPS) 295
041 – Automatic anti-dazzle interior mirror, rain sensor 296
1 Automatic anti-dazzle interior mirror, rain sensor 296
2 Automatic intermittent wash and wipe relay, automatic anti-dazzle interior mirror, rain sensor 297
3 Automatic intermittent wash/wipe relay, intermittent wiper switch, wiper motor 298
4 Rear window wiper motor, windscreen and rear window washer pump 299
042 – Headlight washer system 300
1 Headlight washer system 300
2 Headlight washer system 301
3 Automatic intermittent wash/wipe relay, intermittent wiper switch, wiper motor 302
4 Rear window wiper motor, windscreen and rear window washer pump 303
043 – Radio and navigation system with CD changer and “Digital Sound Package” 304
1 Radio and navigation system with CD changer and “Digital Sound Package” 304
2 Control unit with display for radio and navigation system, dash panel insert 305
3 Control unit with display for radio and navigation system, CD changer 306
4 Control unit with display for radio and navigation system, navigation aerial (GPS), radio/telephone aerial 307
5 ‘Digital sound package’ amplifier 308
6 ‘Digital sound package’ amplifier, front loudspeakers 309
7 ‘Digital sound package’ amplifier, rear loudspeakers 310
044 – Sliding/tilting sunroof (without convenience central locking system) 311
1 Sliding/tilting sunroof (without convenience central locking system) 311
2 Sliding sunroof adjustment control unit, sliding sunroof adjustment regulator 312
045 – Socket (12V) 313
1 Socket (12V) 313
2 12 V socket 314
046 – Anti-lock brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stabilisation program (ESP) 315
1 Anti-lock brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stabilisation program (ESP) 315
2 ABS/ABS control unit with EDL/TCS/ESP, TCS and ESP button 316
3 ABS/ABS control unit with EDL/TCS/ESP, steering angle sender 317
4 ABS/ABS control unit with EDL/TCS/ESP, speed sensor 318
5 ABS/ABS control unit with EDL/TCS/ESP, lateral acceleration sender, brake pressure sender, yaw rate sender, ABS hydraulic pump 319
6 ABS control unit with EDL/TCS/ESP, longitudinal acceleration sender, brake pressure solenoid valve, brake pressure solenoid trip switch 320
7 ABS control unit with EDL/TCS/ESP, handbrake warning switch, brake fluid level warning contact, brake light suppression relay 321
8 Control unit with display in dash panel insert, handbrake warning switch, brake system warning lamp, ABS warning lamp, TCS and ESP warning lamp 322
047 – Telephone system, (not for vehicles with radio-navigation system) 323
1 Telephone system, (not for vehicles with radio-navigation system) 323
2 Radio, front loudspeaker 324
3 Radio, rear loudspeakers 325
4 Operatig electrions control unit, aerial, microphone 326
048 – Radio systems 327
1 Radio systems 327
2 Radio, CD changer, front loudspeakers 328
3 Radio, front loudspeakers, rear loudspeakers 329
4 Radio, aerial 330
049 – Radio system “gamma” with CD changer and “Digital Sound Package” 331
1 Radio system “gamma” with CD changer and “Digital Sound Package” 331
2 ‘Digital sound package’ amplifier, program selection operating unit 332
3 ‘Digital sound package’ amplifier, front loudspeakers 333
4 ‘Digital sound package’ amplifier, rear loudspeakers 334
5 Radio, CD changer 335
6 Radio, aerial 336
050 – All-wheel drive (4Motion), models with a petrol engine 337
1 All-wheel drive (4Motion), models with a petrol engine 337
2 All-wheel drive control unit 338
3 All-wheel drive control unit, hydraulics temperature sender, oil pressure control motor, fuel pump, fuel gauge sender, handbrake warning switch 339
4 Dash panel insert, handbrake warning lamp, fuel gauge, coolant temperature gauge 340
051 – All-wheel drive (4Motion) models with a diesel engine 341
1 All-wheel drive (4Motion) models with a diesel engine 341
2 All-wheel drive control unit 342
3 All-wheel drive control unit, hydraulics temperature sender, oil pressure control motor, fuel pump, fuel pump relay, fuel gauge sender, oil pressure switch 343
4 Dash panel insert, handbrake warning lamp, fuel gauge, coolant temperature gauge, handbrake warning switch 344
052 – Central locking 345
1 Central locking 345
2 Mirror adjustment switch, electrically adjustable exterior mirror for driver’s door 346
3 Electrically adjustable exterior mirror for front passenger side door 347
4 Central locking and anti-theft alarm system control unit, driver side central locking lock unit, left door warning lamp, central locking deadlock function warning lamp 348
5 Central locking and anti-theft alarm system control unit, front passenger side central locking lock unit, right door warning lamp 349
6 Central locking and anti-theft alarm system control unit, rear left central locking lock unit 350
7 Central locking and anti-theft alarm system control unit, rear right central locking lock unit, rear lid remote release relay, rear lid release motor 351
8 Central locking and anti-theft alarm system control unit, rear lid release switch, luggage compartment light 352
9 Central locking and anti-theft alarm system control unit, rear lid handle release button, key operated switch to block remote release of rear lid, rear lid central locking motor 353
10 Convenience system central control unit, sliding sunroof adjustment control unit, sliding sunroof adjustment regulator 354
11 Central locking and anti-theft alarm system control unit, front interior light, front and rear reading lights, illuminated vanity mirror (driver and front passenger sides) 355
12 Central locking and anti-theft alarm system control unit, anti-theft alarm system horn, central locking and anti-theft alarm system aerial, anti-theft alarm (ATA) system contact switch 356
13 Convenience system central control unit 357
053 – Telephone system (only models with radio and navigation system) 358
1 Telephone system (only models with radio and navigation system) 358
2 Operating electronics control unit, aerial, microphone 359
054 – Telematics with radio/navigation system 360
1 Telematics with radio/navigation system 360
2 Control unit with display unit for radio/navigation 361
3 Control unit with display unit for radio and navigation, telematics control unit, telematics operating unit 362
4 Telematics control unit, telematics operating unit 363
5 Telematics control unit, operating electrconics control unit, control unit with display unit in dash panel insert 364
055 – 2 0 l/85 kW – Motronic, engine code AQY 365
1 2 0 l/85 kW – Motronic, engine code AQY 365
2 Alternator, starter 366
3 Motronic control unit, ignition system 367
4 Motronic control unit, coolant temperature sender, Hall sender 368
5 Motronic control unit, throttle valve module, knock sensor 1, knock sensor 2 369
6 Motronic control unit, engine speed sender, injectors 370
7 Motronic control unit, secondary air pump 371
8 Motronic control unit, air mass meter, Lambda probes, activated charcoal filter system solenoid valve, fuel pump relay 372
9 Fuel pump, fuel gauge sender, coolant shortage indicator sender, crankcase breather heater element 373
10 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator, alternator warning lamp 374
11 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, multifunction display, ambient temperature indicator 375
056 – Cruise control system (CCS) 376
1 Cruise control system (CCS) 376
2 Motronic control unit, clutch pedal switch, brake light switch, brake pedal switch for CCS 377
3 Motronic control unit, cruise control system (CCS) switch, throttle valve module 378
057 – Memory for driver’s seat and exterior mirror 379
1 Memory for driver’s seat and exterior mirror 379
2 Seat adjustment control unit with memory, height adjustment button, longitudinal adjustment button, backrest adjustment button for driver’s seat, Emergency ‘OFF’ switch for memory function 380
3 Seat adjustment control unit with memory, longitudinal adjustment motor, front height adjustment motor, rear height adjustment motor 381
4 Seat adjustment control unit with memory, backrest adjustment motor 382
5 Seat adjustment control unit with memory, self-diagnosis connection 383
6 Driver door control unit, electrically adjustable exterior mirror for driver door 384
7 Driver door control unit, mirror adjustment switch, fold-in mirror switch 385
8 Driver door control unit, front passenger door control unit 386
9 Front passenger door control unit, electrically adjustable exterior mirror for front passenger door 387
058 – Anti-lock brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) 388
1 Anti-lock brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) 388
2 ABS control unit with EDL, brake light switch 389
3 ABS control unit with EDL, ABS hydraulic pump 390
4 ABS control unit with EDL, speed sensor 391
5 ABS control unit with EDL, traction control system switch, ABS warning lamp, brake system warning lamp, TCS warning lamp 392
059 – 1 8 l/110 kW – Motronic, engine code AQA 393
1 1 8 l/110 kW – Motronic, engine code AQA 393
2 Alternator, starter 394
3 Motronic control unit, ignition system 395
4 Motronic control unit, coolant temperature sender, Hall sender, charge air pressure sender 396
5 Motronic control unit, throttle valve module, intake air temperature sender, throttle valve module angle sender (electric throttle control), knock sensor 1 397
6 Motronic control unit, engine speed sender, knock sensor 2, power assisted steering pressure switch, crankcase breather heater element 398
7 Motronic control unit, injectors, air mass meter 399
8 Motronic control unit, activated charcoal filter system solenoid valve, accelerator position sender, Lambda probe 400
9 Motronic control unit, continued coolant circulation pump 401
10 Motronic control unit, charge pressure control solenoid valve, turbocharger air recirculation valve, fuel pump relay 402
11 Motronic control unit, cruise control system (CCS) switch, clutch pedal switch, brake light switch, brake pedal switch for CCS 403
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 404
13 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage warning lamp, electric power control fault lamp 405
14 Dash panel insert, coolant temperature gauge, fuel gauge, multifunction display, ambient temperature indicator, speedometer, self-diagnosis connection 406
060 – Radio with CD player 407
1 Radio with CD player 407
2 Radio, CD player 408
3 Radio, CD changer, front left loudspeaker 409
4 Radio, front loudspeakers, radio loudspeakers 410
5 Radio, aerial 411
061 – Anti-theft alarm system, interior monitor 412
1 Anti-theft alarm system, interior monitor 412
2 Convenience system central control unit, anti-theft alarm system 413
3 Convenience system central control unit, interior monitor deactivation switch, alarm horn 414
4 Convenience system central control unit, interior monitor sensor and sender, rear reading lights 415
5 Convenience system central control unit 416
062 – Telematics with radio system 417
1 Telematics with radio system 417
2 Radio 418
3 Radio, telematics control unit, telematics operating unit 419
4 Telematics control unit, telematics operating unit 420
5 Telematics control unit, operating electronics control unit, control unit with display in dash panel insert 421
063 – 1 4 l/55 kW – 4AV, engine code AHW, AKQ 422
1 1 4 l/55 kW – 4AV, engine code AHW, AKQ 422
2 Alternator, starter 423
3 4AV injection system control unit, ignition system 424
4 4CV injection system control unit, crankcase breather heater element, coolant temperature sender, Hall sender 425
5 4CV injection system control unit, throttle valve module, engine speed sender 426
6 4AV injection system control unit, intake manifold pressure sender, intake manifold temperature sender, knock sensor, injectors 427
7 4AV injection system control unit, Lambda probe, activated charcoal filter system solenoid valve, exhaust gas recirculation valve, fuel pump relay 428
8 Fuel pump, fuel gauge sender, coolant shortage indicator sender 429
9 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator, alternator warning lamp 430
10 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, self-diagnosis connection, multifunction display, ambient temperature indicator 431
064 – Climatronic 432
1 Climatronic 432
2 Climatronic control unit, temperature flap control motor 433
3 Climatronic control unit, control motor for central flap, control motor for footwell/defroster flap 434
4 Climatronic control unit, air flow flap control motor, vent temperature sensor, fresh air duct temperature sensor 435
5 Climatronic control unit, ambient air temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photosensor 436
6 Climatronic control unit 437
7 Radiator fan control unit, radiator fan, air conditioning system magnetic clutch 438
8 Radiator fan control unit, thermal switch for radiator fan, high-pressure sender 439
065 – 1 6 l/74 kW – Simos, engine codes AEH, AKL 440
1 1 6 l/74 kW – Simos, engine codes AEH, AKL 440
2 Alternator, starter 441
3 Simos control unit, ignition system 442
4 Simos control unit, crankcase breather heater element, coolant temperature sender, Hall sender 443
5 Simos control unit, throttle valve module, engine speed sender, power assisted steering pressure switch 444
6 Simos control unit, knock sensor, injectors 445
7 Simos control unit, Lambda probe, air mass meter, activated charcoal filter system solenoid valve, variable intake manifold changeover valve, fuel pump relay 446
8 Fuel pump, fuel gauge sender, coolant shortage indicator sender 447
9 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator, alternator warning lamp 448
10 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, multifunction display, ambient temperature indicator 449
066 – 1 8 l/92 kW – Motronic, engine code AGN 450
1 1 8 l/92 kW – Motronic, engine code AGN 450
2 Alternator, starter 451
3 Motronic control unit, ignition system 452
4 Motronic control unit, coolant temperature sender, Hall sender 453
5 Motronic control unit, throttle valve module, engine speed sender, power assisted steering pressure switch 454
6 Motronic control unit, knock sensor 1, knock sensor 2 455
7 Motronic control unit, crankcase breather heater element 456
8 Motronic control unit, injectors, air mass meter 457
9 Motronic control unit, Lambda probe, activated charcoal filter solenoid valve, variable intake manifold changeover valve, camshaft control valve, fuel pump relay 458
10 Fuel pump, fuel gauge sender, coolant shortage indicator sender 459
11 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator, alternator warning lamp 460
12 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, multifunction display, ambient temperature indicator 461
067 – 1 8 l/110 kW – Motronic, engine code AGU 462
1 1 8 l/110 kW – Motronic, engine code AGU 462
2 Alternator, starter 463
3 Ignition system 464
4 Motronic control unit, ignition system 465
5 Motronic control unit, coolant temperature sender, altitude sender, Hall sender 466
6 Motronic control unit, throttle valve module, engine speed sender, intake air temperature sender 467
7 Motronic control unit, knock sensor 1, knock sensor 2, power assisted steering pressure switch 468
8 Motronic control unit 469
9 Motronic control unit, injectors, air mass meter 470
10 Motronic control unit, activated charcoal filter system solenoid valve, clutch pedal switch, charge pressure control solenoid valve, Lambda probe, fuel pump relay 471
11 Crankcase breather heater element, fuel pump, fuel gauge sender, coolant shortage indicator sender 472
12 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator, alternator warning lamp 473
13 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, multifunction display, ambient temperature indicator 474
068 – 2 3 l/110 kW – Motronic, engine code AGZ 475
1 2 3 l/110 kW – Motronic, engine code AGZ 475
2 Alternator, starter 476
3 Ignition system 477
4 Motronic control unit, ignition system 478
5 Motronic control unit, coolant temperature sender, variable intake manifold changeover valve, Hall sender, intake air temperature sender, crankcase breather heater element 479
6 Motronic control unit, throttle valve module, knock sensor 1, knock sensor 2 480
7 Motronic control unit, engine speed sender 481
8 Motronic control unit, injectors 482
9 Motronic control unit, cruise control system (CCS) switch, continued coolant circulation pump 483
10 Motronic control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, cruise control system brake pedal switch, brake light switch 484
11 Motronic control unit, Lambda probe, air mass meter, activated charcoal filter system solenoid valve, fuel pump relay 485
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 486
13 Dash panel insert, optical and acoustic oil pressure warning, speedometer sender, coolant temperature/coolant shortage indicator, alternator warning lamp 487
14 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, multifunction display, ambient temperature indicator 488
201 – -Fitting locations: Position of relays and fuses – 3 489
1 Position of relays and fuses 489
1 1 Position of relays and fuses 489
1 1 1 Relay positions on relay plate: 489
1 1 2 Fuse locations on relay plate: 489
1 1 4 Fuse locations on 13 position additional relay carrier, left-handdrive vehicles: 490
1 1 6 Fuse on 13 position additional relay carrier, right-handdrive vehicles: 491
1 1 8 Fuses in fuse holder: 493
1 1 9 Fuses in fuse holder: 494
1 1 10 Fuses in fuse holder: 495
202 – -Fitting locations:Wiring harness coupling stations 497
1 Wiring harness coupling stations 497
2 Coupling station in protective housing in plenum chamber 498
3 Coupling stations on left and right-hand A-pillars 499
203 – -Fitting locations:Control units and relays 500
1 Control units and relays 500
2 Control unit for ABS/ABS with EDL 501
3 Central control unit for convenience system, Control unit for sliding roof adjustment 502
4 Control unit for Climatronic 503
5 Door control unit driver’s and front passenger’s sides 504
6 Door control unit rear left and rear right 505
7 Control unit for radiator fan, 2 speed with fan run-on 506
204 – -Fitting locations:Multi-pin connectors 507
1 Multi-pin connectors 507
2 On engine, On body 508
3 On engine 509
4 On the body 510
5 On the body 511
6 On the body 512
7 On the body 513
8 On the body 514
9 On the body 515
401 – -Fault finding programme:Battery discharges (Voltage leakage suspected) 516
1 Test prerequisites 516
402 – -Fault finding programme:Starter does not turn 517
1 Starter does not turn 517
403 – -Fault finding programme:Starter motor turns too slowly and does not crank engine 518
1 Test prerequisites 518
404 – -Fault finding programme:Alternator warning lamp does not go out as speed increases 519
1 Alternator warning lamp does not go out as speed increases 519
405 – -Fault finding programme:Alternator warning lamp does not light up when ignition is switched on 520
1 Test prerequisites 520
406 – -Fault finding programme:Checking alternator and voltage regulator 521
1 Contents, Checking function of freewheel coupling in ribbed belt pulley (for Diesel engines only) 521
2 Test prerequisites 522
407 – -Fault finding programme:Checking dual tone horn system 523
1 Test prerequisites 523
2 -Fault finding programme:Checking dual tone horn system 524
408 – -Fault finding programme:Checking fog lights 525
1 Test prerequisites 525
2 -Fault finding programme:Checking fog lights 526
409 – -Fault finding programme:Checking turn signals and hazard warning lights system 527
1 Test prerequisites 527
2 -Fault finding programme:Checking turn signals and hazard warning lights system 528
3 -Fault finding programme:Checking turn signals and hazard warning lights system 529
4 -Fault finding programme:Checking turn signals and hazard warning lights system 530
5 -Fault finding programme:Checking turn signals and hazard warning lights system 531
6 -Fault finding programme:Checking turn signals and hazard warning lights system 532
7 -Fault finding programme:Checking turn signals and hazard warning lights system 533
410 – -Fault finding programme:Checking additional heating heater elements (for vehicles with manual gearbox and engines codes AGP, ALH, AGR and AHF) 534
1 Function, Test prerequisites 534
2 -Fault finding programme:Checking additional heating heater elements (for vehicles with manual gearbox and engines codes AGP, ALH, AGR and AHF) 535
3 -Fault finding programme:Checking additional heating heater elements (for vehicles with manual gearbox and engines codes AGP, ALH, AGR and AHF) 536
4 -Fault finding programme:Checking additional heating heater elements (for vehicles with manual gearbox and engines codes AGP, ALH, AGR and AHF) 537
5 -Fault finding programme:Checking additional heating heater elements (for vehicles with manual gearbox and engines codes AGP, ALH, AGR and AHF) 538
6 -Fault finding programme:Checking additional heating heater elements (for vehicles with manual gearbox and engines codes AGP, ALH, AGR and AHF) 539
7 -Fault finding programme:Checking additional heating heater elements (for vehicles with manual gearbox and engines codes AGP, ALH, AGR and AHF) 540
411 – – Fault finding programme: Checking front heated seat – 3 541
1 Checking front seat heating 541
1 1 Prerequisites and preparatory measures 541
1 2 Checking driver’s heated seat: 541
1 3 Checking seat heating for front passenger seat 544
412 – -Fault finding programme:Checking windscreen wash/wipe system 549
1 Contents, Prerequisites 549
2 Checking windscreen wipe system 550
3 Checking windscreen washer system 551
4 -Fault finding programme:Checking windscreen wash/wipe system 552
5 -Fault finding programme:Checking windscreen wash/wipe system 553
413 – -Fault finding programme:Checking rear window wash/wipe system 554
1 Contents, Prerequisites 554
2 Checking rear window wipe system 555
3 Checking rear window washer system 556
4 -Fault finding programme:Checking rear window wash/wipe system 557
414 – -Fault finding programme:Checking headlight washer system 558
1 Prerequisites 558
2 -Fault finding programme:Checking headlight washer system 559
415 – -Fault finding programme:Checking heated front seats with leather covers 560
1 Contents, Test prerequisites 560
2 Checking left seat heating 561
3 -Fault finding programme:Checking heated front seats with leather covers 562
4 -Fault finding programme:Checking heated front seats with leather covers 563
5 -Fault finding programme:Checking heated front seats with leather covers 564
6 Checking right seat heating 565
7 -Fault finding programme:Checking heated front seats with leather covers 566
8 -Fault finding programme:Checking heated front seats with leather covers 567
9 -Fault finding programme:Checking heated front seats with leather covers 568
416 – -Fault finding programme:Checking rain sensor for windscreen wiper system 569
1 test prerequisites 569
2 Checking windscreen wiper system rain sensor 570
3 -Fault finding programme:Checking rain sensor for windscreen wiper system 571
4 -Fault finding programme:Checking rain sensor for windscreen wiper system 572
5 -Fault finding programme:Checking rain sensor for windscreen wiper system 573
417 – -Fault finding programme:Checking radio system 574
1 Contents 574
2 Radio not functioning, FM (UKW) reception distorted, poor or intermittent 575
3 One more loudspeakers not functioning 576
4 GALA (Speed dependant volume adaptation) not functioning, LED for anti-theft coding not flashing when radio is switched off 577
5 Checking roof aerial 578
6 Cassette reproduction dull or distorted 579
7 Auto-reverse continually switches back and forth or switches too early 580
418 – -Fault finding programme:Checking preparation for telephone 581
1 Test prerequisites 581
2 -Fault finding programme:Checking preparation for telephone 582
3 -Fault finding programme:Checking preparation for telephone 583
4 -Fault finding programme:Checking preparation for telephone 584
5 -Fault finding programme:Checking preparation for telephone 585
419 – -Fault finding programme:Checking cruise control system (CCS) 586
1 Contents 586
2 Activating or deactivating cruise control system 587
420 – -Fault finding programme:Checking fuel pump in four-wheel drive vehicles fitted with Diesel engine 588
1 Test prerequisites 588
2 -Fault finding programme:Checking fuel pump in four-wheel drive vehicles fitted with Diesel engine 589
421 – -Fault finding programme:Checking telephone system 590
1 Checking telephone system 590
2 -Fault finding programme:Checking telephone system 591
3 -Fault finding programme:Checking telephone system 592
4 -Fault finding programme:Checking telephone system 593
5 -Fault finding programme:Checking telephone system 594
6 -Fault finding programme:Checking telephone system 595
7 -Fault finding programme:Checking telephone system 596
8 -Fault finding programme:Checking telephone system 597
9 -Fault finding programme:Checking telephone system 598
10 -Fault finding programme:Checking telephone system 599
422 – -Fault finding programme:Checking telephone system 600
1 Checking telephone system 600
2 -Fault finding programme:Checking telephone system 601
3 -Fault finding programme:Checking telephone system 602
4 -Fault finding programme:Checking telephone system 603
5 -Fault finding programme:Checking telephone system 604
6 -Fault finding programme:Checking telephone system 605
7 -Fault finding programme:Checking telephone system 606
8 -Fault finding programme:Checking telephone system 607
K0051136020 Basic equipment Golf Variant and Bora Variant from May 1999 608
001 – Basic equipment, Golf Variant and Bora Variant 608
1 Basic equipment, Golf Variant and Bora Variant 608
2 Battery, ignition/starter switch, X-contact relief relay 609
3 Dash panel insert 610
4 Dash panel insert, immobilizer, rev counter, odometer display, speedometer 611
5 Dash panel insert, trailer operation warning lamp, digital clock, bonnet contact switch, front left brake pad wear sender, brake pad warning lamp 612
6 Dash panel insert, brake system warning lamp, brake fluid level warning contact, turn signal warning lamps, main beam warning lamp, rear fog light warning lamp 613
7 Turn signal switch, headlight dipper/flasher switch, parking light switch, front left headlight, front left turn signal 614
8 Hazard warning light switch, turn signal relay, front right headlight, front right turn signal 615
9 Left tail light, left brake light, rear left turn signal, left reversing light, reversing lights switch, rear left fog light 616
10 Right tail light, right brake light, rear right turn signal, right reversing light, brake light switch 617
11 Self-diagnosis connection, connection for radio, cigarette lighter 618
12 Light switch, rear fog light switch 619
13 Glove compartment light, number plate lights 620
14 Dual tone horn, tank filler flap remote release switch, horn plate 621
15 Headlight range control regulator, headlight range control motor, illumination regulators – switches and instruments 622
16 Heated rear window switch, heated rear window, luggage compartment light 623
17 Fresh air blower switch, fresh air/air recirculation flap switch, fresh air blower, fresh air/recirculated air flap control motor 624
18 Rear window wiper motor, windscreen and rear window washer pump 625
19 Intermittent wiper switch, windscreen wiper motor, automatic intermittent wash and wipe relay 626
20 Front interior light, reading light, left door warning lamp, driver door contact switch, rear left door contact switch 627
21 Rear right reading light, right door warning lamp, illuminated vanity mirror 628
002 – Basic equipment, Golf and Bora 629
1 Basic equipment, Golf and Bora 629
2 Battery, ignition/starter switch, X-contact relief relay 630
3 Dash panel insert 631
4 Dash panel insert, immobilizer, rev counter, odometer display, speedometer 632
5 Dash panel insert, trailer operation warning lamp, digital clock, bonnet contact switch, front left brake pad wear sender, brake pad warning lamp 633
6 Dash panel insert, brake system warning lamp, brake fluid level warning contact, turn signal warning lamps, main beam warning lamp, rear fog light warning lamp 634
7 Turn signal switch, headlight dipper/flasher switch, parking light switch, front left headlight, front left turn signal 635
8 Hazard warning light switch, turn signal relay, front right headlight, front right turn signal 636
9 Left tail light, left brake light, rear left turn signal, left reversing light, reversing lights switch, rear left fog light 637
10 Right tail light, right brake light, rear right turn signal, right reversing light, brake light switch 638
11 Self-diagnosis connection, connection for radio, cigarette lighter 639
12 Light switch, rear fog light switch 640
13 Glove compartment light, number plate lights 641
14 Dual tone horn, tank filler flap remote release switch, horn plate 642
15 Headlight range control regulator, headlight range control motor, illumination regulators – switches and instruments 643
16 Heated rear window switch, heated rear window, luggage compartment light 644
17 Fresh air blower switch, fresh air/air recirculation flap switch, fresh air blower, fresh air/recirculated air flap control motor 645
18 Rear window wiper motor, windscreen and rear window washer pump 646
19 Intermittent wiper switch, windscreen wiper motor, automatic intermittent wash and wipe relay 647
20 Front interior light, reading light, left door warning lamp, driver door contact switch, rear left door contact switch 648
21 Rear right reading light, right door warning lamp, illuminated vanity mirror 649
003 – 1 4 l/55 kW – 4AV, engine code AHW 650
1 1 4 l/55 kW – 4AV, engine code AHW 650
2 Alternator, starter 651
3 4AV injection system control unit, ignition system 652
4 4CV injection system control unit, coolant temperature sender, Hall sender 653
5 4CV injection system control unit, throttle valve module, engine speed sender 654
6 4avant and 4CV injection system control unit, intake manifold pressure sender, intake air temperature sender, knock sensor, injectors 655
7 4avant and 4CV injection system control unit, lambda probe, activated charcoal filter system solenoid valve, exhaust gas recirculation valve, fuel pump relay 656
8 Fuel pump, fuel gauge sender, coolant shortage indicator sender, heater element for crankcase breather 657
9 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 658
10 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp, exhaust emissions warning lamp 659
11 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection 660
004 – 1 6 l/74 kW Simos, engine code APF 661
1 1 6 l/74 kW Simos, engine code APF 661
2 Alternator, starter 662
3 Current supply relay for Simos control unit 663
4 Simos control unit, ignition system, throttle valve module, throttle valve drive angle sender for electric throttle 664
5 Simos control unit, engine speed sender, power assisted steering pressure switch, coolant temperature sender, knock sensor 665
6 Simos control unit, Hall sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, variable intake manifold change-over valve, map-controlled engine cooling system thermostat 666
7 Simos control unit, heater element for crankcase breather 667
8 Simos control unit, injectors 668
9 Simos control unit, radiator outlet coolant temperature sender, potentiometer for temperature selection rotary knob, temperature flap position switch, 2-way valve for coolant shut-off valve 669
10 Simos control unit, accelerator position sender, lambda probe 670
11 Simos control unit, cruise control system switch (GND) 671
12 Simos control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, cruise control system brake pedal switch, brake light switch 672
13 Simos control unit, lambda probe after catalytic converter, air mass meter, fuel pump relay, activated charcoal filter system solenoid valve 673
14 Fuel pump, fuel gauge sender, coolant shortage indicator sender 674
15 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 675
16 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 676
17 Dash panel insert, electric power control fault lamp, multifunction display, ambient temperature indicator, self-diagnosis connection 677
005 – 1 8 litre/92 kW Motronic, engine codes AGN 678
1 1 8 litre/92 kW Motronic, engine codes AGN 678
2 Alternator, starter 679
3 Motronic control unit, ignition system 680
4 Motronic control unit, coolant temperature sender, hall sender 681
5 Motronic control unit, throttle vale control part, engine speed sensor, power steering pressure switch 682
6 Motronic control unit, knock sensor I, knock sensor II 683
7 Motronic control unit, heater element (crankcase breather) 684
8 Motronic control unit, injectors, air mass meter 685
9 Motronic control unit, lambda probe, activated charcoal filter system solenoid valve, intake manifold change-over valve, inlet camshaft timing adjustment valve, fuel pump relay 686
10 Fuel pump, fuel gauge sender, coolant shortage indicator sender 687
11 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 688
12 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 689
13 Dash panel insert, multi-function display, ambient temperature indicator, self-diagnosis connection, cruise control system warning lamp 690
006 – 2 0 litre/85 kW Motronic, engine codes AQY 691
1 2 0 litre/85 kW Motronic, engine codes AQY 691
2 Alternator, starter 692
3 Motronic control unit, ignition system 693
4 Motronic control unit, coolant temperature sender, Hall sender 694
5 Motronic control unit, throttle valve control unit, knock sensor I, knock sensor II 695
6 Motronic control unit, engine speed sender, injectors 696
7 Motronic control unit, secondary air pump motor, secondary air inlet valve 697
8 Motronic control unit, air mass meter, lambda probes, activated charcoal filter system solenoid valve, fuel pump relay 698
9 Fuel pump, fuel gauge sender, coolant shortage indicator sender, heater element (crankcase breather) 699
10 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 700
11 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 701
12 Dash panel insert, multi-function display, ambient temperature indicator, self-diagnosis connection, cruise control system warning lamp, exhaust emissions warning lamp 702
007 – 2 3 litre/110 kW Motronic, engine codes AGZ 703
1 2 3 litre/110 kW Motronic, engine codes AGZ 703
2 Alternator, starter 704
3 Ignition system 705
4 Motronic control unit, ignition system 706
5 Motronic control unit, coolant temperature sender, intake manifold change-over valve, Hall sender, intake manifold temperature sender, heater element (crankcase breather) 707
6 Motronic control unit, throttle valve control part, knock sensor I, knock sensor II 708
7 Motronic control unit, engine speed sender 709
8 Motronic control unit, injectors 710
9 Motronic control unit, cruise control system (CCS) switch, coolant continued circulation pump 711
10 Motronic control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, brake pedal switch for CCS, brake light switch 712
11 Motronic control unit, lambda probe, air mass meter, activated charcoal filter system solenoid valve 1, fuel pump relay 713
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 714
13 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 715
14 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 716
15 Dash panel insert, cruise control system warning lamp, multi-function display, ambient temperature display, self-diagnosis connection 717
008 – 2 8 litre/150 kW Motronic, engine codes AQP 718
1 2 8 litre/150 kW Motronic, engine codes AQP 718
2 Alternator, starter 720
3 Motronic control unit, ignition system 721
4 Motronic control unit, throttle valve control unit, throttle valve drive angel sender (electric throttle operation), engine speed sender, Hall sender 722
5 Motronic control unit, coolant temperature sender, knock sensor I, knock sensor II 723
6 Motronic control unit, injectors 724
7 Motronic control unit, continued circulation of coolant pump 725
8 Motronic control unit, intake manifold change-over valve, inlet camshaft timing adjustment valve, heater element (crankcase breather) 726
9 Motronic control unit, accelerator pedal position sender, lambda probe 727
10 Motronic control unit, activated charcoal filter system solenoid valve 1, lambda probe after catalyst, lambda probe after catalyst II 728
11 Motronic control unit, cruise control switch (CCS), Lambda probe II after catalyst 729
12 Motronic control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, brake pedal switch for CCS, brake light switch 730
13 Motronic control unit, air mass meter, fuel pump relay 731
14 Fuel pump, fuel gauge sender, coolant shortage indicator sender 732
15 Dash panel insert, oil pressure warning lamp, oil level/oil temperature sender, speedometer sender 733
16 Dash panel insert, coolant temperature gauge and fuel gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 734
17 Dash panel insert, electric throttle control fault lamp, CCS warning lamp, multi-function display, ambient temperature display, self-diagnosis connection, exhaust emissions warning lamp 735
009 – 1 9 l/50 kW – Naturally aspirated diesel engine, engine code AGP 736
1 1 9 l/50 kW – Naturally aspirated diesel engine, engine code AGP 736
2 Alternator, starter 737
3 Diesel direct injection system control unit, terminal 30 voltage supply relay, glow plugs – engine 738
4 Diesel direct injection system control unit, glow plug relay, fuel temperature sender, metering adjuster, modulating piston movement sender 739
5 Diesel direct injection system control unit, intake manifold flap motor, intake manifold temperature sender, coolant temperature display sender 740
6 Diesel direct injection system control unit, exhaust gas recirculation valve 741
7 Diesel direct injection system control unit, accelerator position sender, kickdown switch, idling speed switch, engine speed sender, needle lift sender 742
8 Diesel direct injection system control unit, cruise control system switch (GND), clutch pedal switch, commencement of injection valve, fuel shut-off valve 743
9 Diesel direct injection system control unit, coolant heating element, brake pedal switch, brake light switch, high and low heat output relay 744
10 Fuel gauge sender, coolant shortage indicator sender 745
11 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 746
12 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 747
13 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, cruise control system warning lamp, glow period warning lamp 748
010 – 1 9 l/66 kW – Turbodiesel engine, engine code AGR 749
1 1 9 l/66 kW – Turbodiesel engine, engine code AGR 749
2 Alternator, starter 750
3 Diesel direct injection system control unit, terminal 30 voltage supply relay, glow plugs – engine 751
4 Diesel direct injection system control unit, glow plug relay, fuel temperature sender, metering adjuster, modulating piston movement sender 752
5 Diesel direct injection system control unit, coolant temperature display sender, intake manifold pressure sender, intake manifold temperature sender, heater element for crankcase breather 753
6 Diesel direct injection system control unit 754
7 Diesel direct injection system control unit, kickdown switch, engine speed sender, idling speed switch, accelerator position sender, needle lift sender 755
8 Diesel direct injection system control unit, air mass meter, exhaust gas recirculation valve, variable intake manifold flap change-over valve, exhaust gas recirculation valve, charge pressure control solenoid valve 756
9 Diesel direct injection system control unit, cruise control system switch (GND), clutch pedal switch, commencement of injection valve, fuel shut-off valve 757
10 Diesel direct injection system control unit, coolant heating element, cruise control system brake pedal switch/diesel direct injection system, brake light switch, high and low heat output relay 758
11 Fuel gauge sender, coolant shortage indicator sender 759
12 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 760
13 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 761
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, cruise control system warning lamp, glow period warning lamp 762
011 – 1 9 l/85 kW Turbo diesel engine with unit injectors, engine codes AJM 763
1 1 9 l/85 kW Turbo diesel engine with unit injectors, engine codes AJM 763
2 Alternator, starter 765
3 Diesel direct injection system control unit, glow plugs – engine 766
4 Diesel direct injection system control unit, glow plug relay, kick-down switch, engine speed sender, idling switch, accelerator pedal position sender, terminal 30 voltage supply relay 767
5 Diesel direct injection system control unit, coolant temperature sender, intake manifold pressure sender, intake manifold temperature sender, heater element (crankcase breather) 768
6 Diesel direct injection system control unit 769
7 Diesel direct injection system control unit, unit injector solenoid valves, hall sender (for camshaft position) 770
8 Diesel direct injection system control unit, air mass meter, intake manifold flap change-over valve, fuel temperature sender, exhaust gas recirculation valve, charge pressure control solenoid valve 771
9 Diesel direct injection system control unit, cruise control system switch (CCS), clutch pedal switch 772
10 Diesel direct injection system control unit, coolant heater element, cruise cont sys brake pedal switch (diesel direct inj system), brake light switch, high and low heat output relay 773
11 Fuel gauge sender, fuel pump relay, fuel pump (pre-supply pump) 774
12 Oil level/oil temperature sender, oil pressure switch, speedometer sender, coolant shortage indicator sender 775
13 Dash panel insert, coolant temperature gauge and fuel gauge, fuel gauge, rev counter, oil pressure warning lamp 776
14 Dash panel insert, multi-function display, ambient temperature indicator, self-diagnosis connection, glow period warning lamp, cruise control system warning lamp, speedometer 777
012 – Anti-lock brake system (ABS), anti-locking brake system (ABS) with electronic differential lock (EDL) and traction control system (TCS) 778
1 Anti-lock brake system (ABS), anti-locking brake system (ABS) with electronic differential lock (EDL) and traction control system (TCS) 778
2 ABS control unit with EDL, brake light switch, longitudinal acceleration sender 779
3 ABS control unit with EDL, ABS hydraulic pump 780
4 ABS control unit with EDL, speed sensor 781
5 ABS control unit with EDL, ABS warning lamp, brake system warning lamp, traction control system warning lamp 782
6 Traction control system switch 783
013 – Anti-locking brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stability program (ESP) 784
1 Anti-locking brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stability program (ESP) 784
2 ABS/ABS control unit with EDL/ ASR/ ESP, TCS and ESP button 785
3 ABS/ABS control unit with EDL/ ASR/ ESP, steering angle sender 786
4 ABS control unit with EDL/ ASR/ ESP, speed sensor 787
5 ABS/ABS control unit with EDL/ ASR/ ESP, lateral acceleration sender, brake pressure sender, yaw rate sender, ABS hydraulic pump 788
6 ABS control unit with EDL/ ASR/ ESP, longitudinal acceleration sender, brake pressure solenoid valve, brake pressure solenoid trip switch 789
7 ABS/ABS control unit with EDL, brake fluid level warning contact, brake light suppression relay 790
8 Control unit with display in dash panel insert, brake system warning lamp, ABS warning lamp, TCS and ESP warning lamp, handbrake warning switch 791
014 – Airbag system 792
1 Airbag system 792
2 Airbag control unit, airbag coil connector, front airbag igniter , side airbag crash sensors 794
3 Airbag control unit, side airbag igniter, rear side airbag crash sensor, curtain airbag igniter 795
4 Airbag control unit, belt tensioner igniter, airbag warning lamp 796
015 – 1 4 litre/55 kW Motronic, engine codes APE 797
1 1 4 litre/55 kW Motronic, engine codes APE 797
2 Alternator, starter 799
3 Motronic control unit, ignition system 800
4 Motronic control unit, throttle valve control unit, coolant temperature sender, intake air temperature sender, intake manifold pressure sender 801
5 Motronic control unit, Hall sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve 802
6 Motronic control unit, knock sensor, engine speed sender, injectors 803
7 Motronic control unit 804
8 Motronic control unit, accelerator pedal position sender, lambda probe 805
9 Motronic control unit, cruise control system switch (CCS), clutch pedal switch 806
10 Motronic control unit, cruise conttrol system brake pedal switch, brake light switch, lambda probe after catalyst, fuel pump relay, activated charcoal filter system solenoid valve 807
11 Fuel pump, fuel gauge sender, coolant shortage indicator sender, heater element (crankcase breather) 808
12 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 809
13 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 810
14 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multi-function display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 811
016 – 1 6 litre/74 kW Simos, engine codes AEH 812
1 1 6 litre/74 kW Simos, engine codes AEH 812
2 Alternator, starter 814
3 Simos control unit, ignition system 815
4 Simos control unit, coolant temperature sender, Hall sender 816
5 Simos control unit, throttle vale control part, engine speed sensor, power steering pressure switch 817
6 Simos control unit, knock sensor, injectors 818
7 Simos control unit, heater element (crankcase breather) 819
8 Simos control unit, lambda probe, air mass meter, activated charcoal filter system solenoid valve, intake manifold change-over valve, fuel pump relay 820
9 Fuel pump, fuel gauge sender, coolant shortage indicator sender 821
10 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 822
11 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 823
12 Dash panel insert, multi-function display, ambient temperature indicator, self-diagnosis connection, exhaust emissions warning lamp 824
017 – 1 8 l/110 kW Motronic, engine code ARZ 825
1 1 8 l/110 kW Motronic, engine code ARZ 825
2 Alternator, starter 826
3 Motronic current supply relay 827
4 Motronic control unit, ignition system 828
5 Motronic control unit 829
6 Motronic control unit, coolant temperature sender, Hall sender, charge air pressure sender, charge pressure control solenoid valve, turbocharger air recirculation valve 830
7 Motronic control unit, throttle valve module, throttle valve drives angle sender (electric throttle), knock sensor 1, intake air temperature sender 831
8 Motronic control unit, engine speed sender, knock sensor 2, power assisted steering pressure switch 832
9 Motronic control unit, injectors, lambda probe 833
10 Motronic control unit, accelerator position sender, lambda probe after catalytic converter, active charcoal filter system solenoid valve 1 834
11 Motronic control unit, fuel pump relay, cruise control system switch (GND), air mass meter 835
12 Motronic control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, cruise control system brake pedal switch, brake light switch 836
13 Fuel pump, fuel gauge sender, coolant shortage indicator sender 837
14 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 838
15 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 839
16 Dash panel insert, cruise control system warning lamp, multifunction display, ambient temperature indicator, self-diagnosis connection, exhaust emissions warning lamp 840
018 – Cruise control system (CCS) 841
1 Cruise control system (CCS) 841
2 Simos control unit, cruise control system switch, clutch pedal switch, cruise control system brake pedal switch, brake light switch 843
3 Simos control unit, throttle valve control unit 844
019 – Cruise control system (CCS) 845
1 Cruise control system (CCS) 845
2 Motronic control unit, cruise control system switch, clutch pedal switch, cruise control system brake pedal switch, brake light switch 846
3 Motronic control unit, throttle valve control part 847
020 – Cruise control system (CCS) 848
1 Cruise control system (CCS) 848
2 Motronic control unit, cruise control system switch, clutch pedal switch, cruise control system brake pedal switch, brake light switch 850
3 Motronic control unit, throttle valve control unit 851
021 – Radiator fan, 2 speed 852
1 Radiator fan, 2 speed 852
2 Radiator fan, 2 speed 853
022 – Radiator fan 854
1 Radiator fan 854
2 Radiator fan control unit, radiator fan 855
3 Simos control unit, coolant temperature sender – radiator outlet, rotary knob temperature selection potentiometer, temperature flap position switch, coolant cut-off valve two-way valve 856
023 – Radiator fan, 2 speed, with radiator fan run-on 857
1 Radiator fan, 2 speed, with radiator fan run-on 857
2 Radiator fan control unit, radiator fan thermo-switch 859
3 Radiator fan control unit, radiator fan, continued circulation of coolant pump 860
024 – Radiator fan, 2 speed, (not for models with air conditioner) 861
1 Radiator fan, 2 speed, (not for models with air conditioner) 861
2 Radiator fan, radiator fan thermo-switch, radiator fan relay connection 863
025 – Air conditioning system 864
1 Air conditioning system 864
2 Fresh air blower switch, fresh air/air recirculation flap switch, fresh air blower, fresh air/recirculated air flap control motor 865
3 Radiator fan control unit, air conditioning system switch, ambient temperature switch, temperature sender for compressor switch-off 866
4 Radiator fan control unit, radiator fan, air conditioning system magnetic coupling, continued coolant circulation pump 867
5 Radiator fan control unit, radiator fan, thermal switch for radiator fan, high pressure sender 868
026 – Air conditioning system 869
1 Air conditioning system 869
2 Fresh air blower switch, fresh air/air recirculation flap switch, fresh air blower, fresh air/recirculated air flap control motor 870
3 Radiator fan control unit, air conditioning system switch, ambient temperature switch, temperature sender for compressor switch-off 871
4 Radiator fan control unit, radiator fan, air conditioning system magnetic coupling, continued coolant circulation pump 872
5 Radiator fan control unit, high pressure sender 873
6 Simos control unit, radiator outlet coolant temperature sender, potentiometer for temperature selection rotary knob, temperature flap position switch, 2-way valve for coolant shut-off valve 874
027 – Climatronic 875
1 Climatronic 875
2 Climatronic control unit, temperature flap control motor 876
3 Climatronic control unit, central flap control motor, footwell and defrost flap control motor 877
4 Climatronic control unit, air flow flap control motor, vent temperature sender, fresh air intake duct temperature sensor 878
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photo-sensor 879
6 Climatronic control unit 880
7 Radiator fan control unit, radiator fan, air conditioner magnetic coupling, continued coolant circulation pump 881
8 Radiator fan control unit, radiator fan thermal switch, high pressure sender 882
028 – Climatronic 883
1 Climatronic 883
2 Climatronic control unit, temperature flap control motor 884
3 Climatronic control unit, central flap control motor, footwell and defroster flap control motor 885
4 Climatronic control unit, air flow flap control motor, vent temperature sender, fresh air intake duct temperature sensor 886
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photosensor 887
6 Climatronic control unit 888
7 Radiator fan control unit, radiator fan, air conditioning system magnetic coupling 889
8 Radiator fan control unit, high pressure sender 890
9 Simos control unit, radiator outlet coolant temperature sender, 2-way valve for coolant shut-off valve, coolant shut-off valve relay 891
029 – 4-speed automatic gearbox (AG4) 892
1 4-speed automatic gearbox (AG4) 892
2 Starter inhibitor and reversing light relay 893
3 Automatic gearbox control unit, multifunction switch 894
4 Automatic gearbox control unit, solenoid valves, gearbox speed sender, kickdown switch, gearbox oil temperature sender 895
5 Automatic gearbox control unit, vehicle speed sender 896
6 Automatic gearbox control unit, selector lever lock solenoid 897
7 Automatic gearbox control unit 898
030 – Four-speed automatic gearbox (AG4) 899
1 Four-speed automatic gearbox (AG4) 899
2 Starter inhibitor and reversing light relay 901
3 Automatic gearbox control unit, multi-function switch 902
4 Automatic gearbox control unit, solenoid valve, gearbox speed sender, gearbox oil temperature sender 903
5 Automatic gearbox control unit, vehicle speed sender 904
6 Automatic gearbox control unit, selector lever lock solenoid 905
7 Automatic gearbox control unit 906
031 – Four-wheel drive (4 Motion) with petrol engine 907
1 Four-wheel drive (4 Motion) with petrol engine 907
2 Four-wheel drive control unit, haldex coupling pump 908
3 Four-wheel drive control unit, hydraulic temperature sender, oil pressure control motor, fuel pump, fuel gauge sender 909
4 Dash panel insert, brake system warning lamp, fuel gauge, coolant temperature gauge, handbrake warning switch 910
032 – Four-wheel drive (4 Motion) with diesel engine 911
1 Four-wheel drive (4 Motion) with diesel engine 911
2 Four-wheel drive control unit, haldex coupling pump 912
3 Four-wheel drive control unit, hydraulic temperature sender, oil pressure control motor, oil pressure switch 913
4 Dash panel insert, brake system warning lamp, handbrake warning switch, fuel pump, fuel pump relay, fuel gauge sender 914
5 Dash panel insert, fuel gauge, coolant temperature gauge 915
033 – Fog light and rear fog light 916
1 Fog light and rear fog light 916
2 Left fog light, left headlight, left side light, front left turn signal 917
3 Right fog light, fog light relay, right headlight, right side light, front right turn signal 918
4 Light switch, fog light switch, rear fog light switch 919
5 Rear fog light, left tail light, brake light, reversing light 920
6 Dash panel insert, turn signal warning lamps, main beam warning lamp, rear fog light warning lamp 921
034 – Day driving light 922
1 Day driving light 922
2 Dash panel insert, turn signal switch, headlight dipper/flasher switch, parking light switch 923
3 Left headlight, left side light, front left turn signal, right headlight, right side light, front right turn signal 924
4 Light switch, rear fog light switch 925
5 Left brake light, rear fog light, left reversing light, left tail light, rear left turn signal, high level brake light 926
6 Right tail light, right brake light, rear right turn signal, right reversing light, high level brake light 927
035 – Headlight washer system 928
1 Headlight washer system 928
2 Intermittent wash/wipe relay, intermittent wiper control, headlight washer system pump, windscreen washer fluid level sender 929
3 Intermittent wiper switch, windscreen wiper motor, automatic intermittent wash/wipe relay, windscreen and rear window washer pump 930
036 – Trailer towing 931
1 Trailer towing 931
2 Rear left turn signal, left reversing light,left tail light, left brake light, rear fog light 932
3 Trailer towing socket, rear fog light cut-off 933
4 Behind right turn signal, right tail light, right brake light, high level brake light, right reversing light 934
5 Dash panel insert,trailer towing warning lamp, rear fog light warning lamp, turn signal warning lamp 935
037 – Trailer operation 936
1 Trailer operation 936
2 Rear left turn signal, left reversing light, left tail light, left brake light, rear fog light 937
3 Trailer socket, rear fog light switch-off 938
4 Rear right turn signal, right tail light, right brake light, high level brake light, right reversing light 939
5 Dash panel insert, trailer operation warning lamp, rear fog light warning lamp, turn signal warning lamps 940
038 – Exterior mirror, electrically adjustable and heated 941
1 Exterior mirror, electrically adjustable and heated 941
2 Mirror adjustment switch, electrically adjustable exterior mirror for driver’s door 942
3 Front passenger’s door electrically adjustable exterior mirror 943
039 – Exterior mirror, electrically adjustable and separated heating 944
1 Exterior mirror, electrically adjustable and separated heating 944
2 Mirror adjustment switch, electrically adjustable exterior mirror for driver’s door 946
3 Electrically adjustable exterior mirror for front passenger’s door, heated exterior mirror relay 947
040 – Automatic anti-dazzle interior mirror, rain sensor 948
1 Automatic anti-dazzle interior mirror, rain sensor 948
2 Automatic intermittent wash and wipe relay, automatic anti-dazzle interior mirror, rain sensor 949
3 Intermittent wiper switch, windscreen wiper motor, automatic intermittent wash and wipe relay, windscreen and rear window washer pump 950
041 – 12 V socket 951
1 12 V socket 951
2 12 V socket 952
042 – Telephone system 953
1 Telephone system 953
2 Mobile phone operating electronics control unit, aerial, microphone 954
043 – Radio and navigation system with black/white-display, radio navigation system (MFD) with colour display 955
1 Radio and navigation system with black/white-display, radio navigation system (MFD) with colour display 955
2 Control unit with display for radio and navigation system, 956
3 Control unit with display for radio and navigation, front loudspeaker, radio, telephone and auxiliary heater aerial, navigation system aerial (GPS) 957
4 Control unit with display for radio and navigation sytem, rear loudspeaker 958
5 Control unit with display for radio and navigation system 959
044 – Radio and navigation system (black/white-display) with CD changer and ‘digital sound package’, radio and navigation system (MFD) (colour display) with CD changer and ‘digital sound package’ 960
1 Radio and navigation system (black/white-display) with CD changer and ‘digital sound package’, radio and navigation system (MFD) (colour display) with CD changer and ‘digital sound package’ 960
2 Control unit with display for radio and navigation system, 961
3 Control unit with display for radio and navigation system, CD changer 962
4 Control unit with display for radio and navigation, navigation system aerial (GPS), telephone and auxiliary heater aerial 963
5 Control unit with display for radio and navigation system, amplifier ‘digital sound package’ 964
6 Amplifier ‘digital sound package’, front right loudspeaker 965
7 Amplifier ‘digital sound package’, rear right loudspeaker 966
045 – Central locking with remote control 967
1 Central locking with remote control 967
2 Central locking and anti-theft alarm system control unit, driver side central locking lock unit, left door warning lamp, central locking deadlock function warning lamp 968
3 Central locking and anti-theft alarm system control unit, front passenger side central locking lock unit, right door warning lamp 969
4 Central locking and anti-theft alarm system control unit, rear left central locking lock unit 970
5 Central locking and anti-theft alarm system control unit, rear right central locking lock unit, rear lid remote release relay, rear lid release motor 971
6 Central locking and anti-theft alarm system control unit, rear lid release switch, luggage compartment light 972
7 Central locking and anti-theft alarm system control unit, rear lid handle release button, key operated switch to block release of rear lid remote, rear lid central locking motor 973
8 Central locking and anti-theft alarm system control unit, rear lid remote release relay, rear lid release motor, rear lid handle release button 974
9 Central locking and anti-theft alarm system control unit, luggage compartment light (only Golf Variant/Bora Variant) 975
10 Convenience system central control unit, sliding sunroof adjustment regulator, sliding sunroof adjustment regulator 976
11 Central locking and anti-theft alarm system control unit, front interior light, rear and front reading lights, illuminated vanity mirror (driver- and front passenger side) 977
12 Central locking and anti-theft alarm system control unit, anti-theft alarm system horn, central locking and anti-theft alarm system aerial, bonnet contact switch 978
13 Central locking and anti-theft alarm system control unit 979
046 – Convenience system 980
1 Convenience system 980
2 Driver door control unit, window regulator for driver door, interior locking switch, window regulator switch, rear window regulator isolation switch 981
3 Driver door control unit, driver side central locking lock unit, driver side central locking warning lamp, left door warning lamp 982
4 Driver door control unit, electrically adjustable exterior mirror for driver door 983
5 Driver door control unit, mirror adjustment switch, exterior mirror heater button, mirror fold-in feature system switch 984
6 Front passenger door control unit, window regulator for front passenger door, front passenger side central locking lock unit 985
7 Front passenger door control unit, electrically adjustable exterior mirror for front passenger door, right door warning lamp 986
8 Rear left door control unit, rear left door window regulator, rear left central locking lock unit 987
9 Rear right door control unit, rear right door window regulator, rear right central locking lock unit 988
10 Front interior light, rear and front reading lights, illuminated vanity mirror (driver- and front passenger side) 989
11 Convenience system central control unit 990
12 Convenience system central control unit, sliding sunroof adjustment regulator, sliding sunroof adjustment regulator 991
13 Convenience system central control unit, rear lid central locking motor, rear lid remote release relay, rear lid release motor 992
14 Convenience system central control unit, luggage compartment light (only Golf/ Bora) 993
15 Convenience system central control unit, rear lid handle release button, key operated switch to block release of rear lid remote 994
16 Convenience system central control unit, rear lid remote release relay, rear lid release motor, rear lid handle release button 995
17 Convenience system central control unit, luggage compartment light (only Golf Variant/ Bora Variant) 996
18 Convenience system central control unit, anti-theft alarm system horn, central locking and anti-theft alarm system aerial, bonnet contact switch 997
19 Convenience system central control unit 998
047 – Interior monitoring (models with central locking) 999
1 Interior monitoring (models with central locking) 999
2 Central locking and anti-theft alarm system control unit, anti-theft alarm system horn, bonnet contact switch 1000
3 Central locking control unit and anti-theft alarm system, alarm horn, central locking and anti-theft alarm system aerial 1001
4 Central locking control unit and anti-theft alarm system, interior monitoring deactivation switch, front interior light, front reading lights 1002
5 Central locking control unit and anti-theft alarm system, transmitter and sensor for interior monitoring, reading lights rear 1003
6 Central locking control unit and anti-theft alarm system 1004
048 – Interior monitoring (models with convenience system) 1005
1 Interior monitoring (models with convenience system) 1005
2 Convenience system central control unit, anti-theft alarm system horn, bonnet contact switch 1006
3 Convenience system central control unit, alarm horn, central locking and anti-theft alarm system 1007
4 Convenience system central control unit, interior monitoring deactivation switch, front interior light, front reading lights 1008
5 Convenience system central control unit, sender and sensor for interior monitoring, reading lights rear 1009
6 Convenience system central control unit 1010
049 – Sliding / tilting sunroof 1011
1 Sliding / tilting sunroof 1011
2 Sliding sunroof adjustment control unit, sliding sunroof adjustment regulator 1012
050 – Gas discharge headlights with automatic headlight range control 1013
1 Gas discharge headlights with automatic headlight range control 1013
2 Left gas discharge light control unit, left gas discharge bulb, left main beam bulb, left side light bulb, front left turn signal bulb 1014
3 Headlight range control, control unit, headlight range control motor 1015
4 Control unit for headlight range control, vehicle inclination sender 1016
5 Right gas discharge light control unit, right gas discharge bulb, right main beam bulb, right side light bulb, front right turn signal bulb 1017
6 Dash panel insert, turn signal warning lamp, main beam warning lamp 1018
051 – CAN-bus network, drive train 1019
1 CAN-bus network, drive train 1019
2 Dash panel insert, self-diagnosis connection 1020
3 Dash panel insert, data bus diagnostic interface, connection for: steering angle sender, airbag control unit, ABS/ABS with EDL control unit 1021
4 Connection for: four-wheel drive control unit, automatic gearbox control unit, engine control units 1022
052 – 1 6 litre/77kW 4LV, engine codes ATN 1023
1 1 6 litre/77kW 4LV, engine codes ATN 1023
2 Alternator, starter 1025
3 4LV/4MV control unit (injection system), ignition system 1026
4 4LV/4MV control unit (injection system), throttle valve control unit, engine speed sender, coolant temperature sender 1027
5 4LV/4MV control unit (injection system), intake air temperature sender, intake manifold pressure sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, hall sender 1028
6 4LV/4MV control unit (injection system), heater element (crankcase breather) 1029
7 4CV control unit (injection system), injectors, knock sensor 1030
8 4CV control unit (injection system), accelerator pedal position sender, Lambda probe (before catalyst) 1031
9 4LV/4MV control unit (injection system), cruise control system switch (CCS), clutch pedal switch, cruise control system brake pedal switch, brake light switch 1032
10 4LV/4MV control unit (injection system), fuel pump relay, lambda probe after catalyst, activated charcoal filter system solenoid valve 1 1033
11 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1034
12 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1035
13 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1036
14 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multi-function display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1037
053 – 2 0 l/88 kW Motronic, engine code ATF 1038
1 2 0 l/88 kW Motronic, engine code ATF 1038
2 Alternator, starter 1040
3 Motronic current supply relay 1041
4 Motronic control unit, ignition system, throttle valve module, throttle valve drive angle sender for electric throttle 1042
5 Motronic control unit, coolant temperature display sender, Hall sender, heater element for crankcase breather 1043
6 Motronic control unit, engine speed sender, knock sensor 1, knock sensor 2 1044
7 Motronic control unit 1045
8 Motronic control unit, injectors, lambda probe after catalytic converter 1046
9 Motronic control unit, accelerator position sender, lambda probe (upstream of catalytic converter), active charcoal filter system solenoid valve 1047
10 Motronic control unit, fuel pump relay, cruise control system switch (GND), air mass meter 1048
11 Motronic control unit, secondary air pump motor, clutch pedal switch, cruise control system brake pedal switch, brake light switch 1049
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1050
13 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1051
14 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1052
15 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, self-diagnosis connection, exhaust emissions warning lamp 1053
054 – Tailgate/boot lid release 1054
1 Tailgate/boot lid release 1054
2 Tailgate/boot lid remote release control unit, tailgate/boot lid release motor, tailgate/boot lid handle release button, contact switch in lock cylinder for tailgate/boot lid 1055
3 Tailgate/boot lid remote release control unit, luggage compartment light 1056
055 – 5-speed automatic gearbox (AG5) 1057
1 5-speed automatic gearbox (AG5) 1057
2 Starter inhibitor and reversing light relay 1059
3 Automatic gearbox control unit, multifunction switch 1060
4 Automatic gearbox control unit, solenoid valve, brake pressure switch, gearbox oil temperature sender 1061
5 Automatic gearbox control unit, vehicle speed sender, intermediate shaft speed sender, gearbox input speed sender, Tiptronic switch 1062
6 Automatic gearbox control unit 1063
7 Automatic gearbox control unit, selector lever lock solenoid 1064
056 – 1 9 l/110 kW – Turbo diesel engine with unit injectors, engine code ARL 1065
1 1 9 l/110 kW – Turbo diesel engine with unit injectors, engine code ARL 1065
2 Alternator, starter 1067
3 Diesel direct injection system control unit, glow plugs – engine 1068
4 Diesel direct injection system control unit, glow plug relay, kickdown switch, engine speed sender, idling speed switch, accelerator position sender, terminal 30 voltage supply relay 1069
5 Diesel direct injection system control unit, coolant temperature display sender, intake manifold pressure sender, intake manifold temperature sender, heater element for crankcase breather 1070
6 Diesel direct injection system control unit 1071
7 Diesel direct injection system control unit, unit injector valves, Hall sender, (for camshaft position) 1072
8 Diesel direct injection system control unit, air mass meter, variable intake manifold flap change-over valve, fuel temperature sender, exhaust gas recirculation valve, charge pressure control solenoid valve 1073
9 Diesel direct injection system control unit, cruise control system switch, clutch pedal switch 1074
10 Diesel direct injection system control unit, coolant heating element, cruise control system brake pedal switch/diesel direct injection system, brake light switch, high and low heat output relay 1075
11 Fuel pump relay, fuel gauge sender, fuel pump (pre-supply pump) 1076
12 Oil level and oil temperature sender, oil pressure switch, speedometer sender, coolant shortage indicator sender 1077
13 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, oil pressure warning lamp 1078
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, glow period warning lamp, cruise control system warning lamp, speedometer 1079
057 – Radiator fan, 2 speed, for vehicles with four-wheel drive and trailer tow bar (not for models with air conditioner) 1080
1 Radiator fan, 2 speed, for vehicles with four-wheel drive and trailer tow bar (not for models with air conditioner) 1080
2 Radiator fan control unit, radiator fan thermo-switch 1081
3 Radiator fan control unit, radiator fan 1082
058 – Multi-function steering wheel for CCS and radio 1083
1 Multi-function steering wheel for CCS and radio 1083
2 Operating unit in steering wheel, horn plate, airbag coil connector, airbag igniter, driver’s side 1084
3 Multi-function steering wheel control unit, dual tone horn relay 1085
4 Multi-function steering wheel control unit, cruise control system switch (CCS), dual tone horn 1086
059 – Radio systems 1087
1 Radio systems 1087
2 Radio, CD changer, front left loudspeaker 1088
3 Radio, front right loudspeaker, rear loudspeaker 1089
4 Radio, aerial 1090
060 – Driving school vehicle 1091
1 Driving school vehicle 1091
2 Footwell lighting switch, left footwell light, warning buzzer switch, brake pedal switch, buzzer 1092
3 Clutch pedal switch for warning buzzer (front passenger’s side), brake pedal switch for engine off (front passenger’s side), accelerator pedal switch for warning buzzer (front passenger’s side), 12 V socket, buzzer 1093
061 – Radio and navigation system (MFD) (colour display) with traffic information evaluation 1094
1 Radio and navigation system (MFD) (colour display) with traffic information evaluation 1094
2 Control unit with display for radio and navigation system, 1095
3 Control unit with display for radio and navigation, traffic information control unit, front loudspeaker, radio, telephone and auxiliary heater aerial, navigation system aerial (GPS) 1096
4 Control unit with display for radio and navigation sytem, rear loudspeaker 1097
5 Control unit with display for radio and navigation system 1098
062 – Anti-lock brake system (ABS) with electronic differential lock (EDL) and traction control system (TCS) 1099
1 Anti-lock brake system (ABS) with electronic differential lock (EDL) and traction control system (TCS) 1099
2 ABS/ABS with EDL/TCS control unit, traction control system switch 1100
3 ABS/ABS with EDL/TCS control unit, ABS hydraulic pump 1101
4 ABS/ABS with EDL/TCS control unit, speed sensors 1102
5 ABS/ABS with EDL/TCS control unit, handbrake warning switch, self-diagnosis connection 1103
6 Dash panel insert, brake system warning lamp, ABS warning lamp, TCS warning lamp, brake pad/lining warning lamp, brake fluid level warning contact 1104
063 – Anti-lock brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stability programme (ESP) 1105
1 Anti-lock brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stability programme (ESP) 1105
2 ABS with EDL/TCS/ESP control unit, TCS/ESP button 1106
3 ABS with EDL/TCS/ESP control unit, steering angle sender 1107
4 ABS with EDL/TCS/ESP control unit, speed sensors 1108
5 ABS with EDL/ TCS/ ESP control unit, lateral acceleration sender, brake pressure sender, yaw rate sender, ABS hydraulic pump, longitudinal acceleration sender 1109
6 ABS with EDL/TCS/ESP control unit, handbrake warning switch, self-diagnosis connection 1110
7 Dash panel insert, brake system warning lamp, ABS warning lamp, TCS/ESP warning lamp, brake pad/lining warning lamp, brake fluid level warning contact 1111
064 – Parking aid 1112
1 Parking aid 1112
2 Parking aid control unit, reversing light switch 1113
3 Parking aid control unit, parking aid warning buzzer 1114
4 Parking aid control unit, rear parking aid sender 1115
065 – 1 6 l/75 kW Simos, engine code AVU 1116
1 1 6 l/75 kW Simos, engine code AVU 1116
2 Alternator, starter 1117
3 Current supply relay for Simos control unit 1118
4 Simos control unit, ignition system, throttle valve module, throttle valve drive angle sender for electric throttle 1119
5 Simos control unit, engine speed sender, power assisted steering pressure switch, coolant temperature sender, knock sensor 1120
6 Simos control unit, Hall sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, variable intake manifold change-over valve, map-controlled engine cooling system thermostat 1121
7 Simos control unit, heater element for crankcase breather 1122
8 Simos control unit, injectors 1123
9 Simos control unit, radiator outlet coolant temperature sender, potentiometer for temperature selection rotary knob, temperature flap position switch, 2-way valve for coolant shut-off valve 1124
10 Simos control unit, air mass meter, lambda probe 1125
11 Simos control unit, brake servo control unit, vacuum pump for brakes 1126
12 Simos control unit, secondary air pump motor, cruise control system brake pedal switch, brake light switch 1127
13 Simos control unit, cruise control system switch, clutch pedal switch 1128
14 Simos control unit, lambda probe after catalytic converter, fuel pump relay, active charcoal filter system solenoid valve, accelerator position sender 1129
15 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1130
16 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1131
17 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1132
18 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1133
066 – 1 6 l/77 kW, 4MV, engine code AZD 1134
1 1 6 l/77 kW, 4MV, engine code AZD 1134
2 Alternator, starter 1135
3 4MV injection system control unit 1136
4 4MV injection system control unit, ignition system 1137
5 4MV injection system control unit, throttle valve module, engine speed sender, coolant temperature sender 1138
6 4MV injection system control unit, intake air temperature sender, intake manifold pressure sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, Hall sender 1139
7 4MV injection system control unit, heater element for crankcase breather 1140
8 4MV injection system control unit, injectors, knock sensor 1141
9 4MV injection system control unit, accelerator position sender, lambda probe upstream of catalytic converter 1142
10 4MV injection system control unit, cruise control system switch, clutch pedal switch, cruise control system brake pedal switch, brake light switch 1143
11 4MV injection system control unit, fuel pump relay, lambda probe after catalytic converter, activated charcoal filter system solenoid valve 1144
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1145
13 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1146
14 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1147
15 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1148
067 – 2 0 litre/85 kW Motronic, engine codes APK 1149
1 2 0 litre/85 kW Motronic, engine codes APK 1149
2 Alternator, starter 1150
3 Motronic control unit, ignition system 1151
4 Motronic control unit, coolant temperature sender, hall sender 1152
5 Motronic control unit, throttle valve control unit, knock sensor I, knock sensor II 1153
6 Motronic control unit, engine speed sender, injectors 1154
7 Motronic control unit, heater element (crankcase breather) 1155
8 Motronic control unit, air mass meter, lambda probe, activated charcoal filter system solenoid valve, fuel pump relay 1156
9 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1157
10 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1158
11 Dash panel insert, coolant temperature gauge and fuel gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1159
12 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multi-function display, ambient temperature indicator, self-diagnosis connection, exhaust emissions warning lamp 1160
068 – 2 3 l/125 kW Motronic, engine code AQN 1161
1 2 3 l/125 kW Motronic, engine code AQN 1161
2 Alternator, starter 1162
3 Motronic control unit 1163
4 Motronic control unit, ignition system 1164
5 Motronic control unit, ignition system, throttle valve module, heater element for crankcase breather, continued coolant circulation pump 1165
6 Motronic control unit, coolant temperature sender, Hall sender 1166
7 Motronic control unit, engine speed sender, knock sensor 1, knock sensor 2 1167
8 Motronic control unit 1168
9 Motronic control unit, injectors 1169
10 Motronic control unit, lambda probe upstream of catalytic converter, inlet camshaft control, variable intake manifold change-over valve 1170
11 Motronic control unit, lambda probe after catalytic converter, lambda probe 2 1171
12 Motronic control unit, accelerator position sender, lambda probe 2 after catalytic converter, activated charcoal filter system solenoid valve 1172
13 Motronic control unit, brake servo control unit, vacuum pump for brakes 1173
14 Motronic control unit, secondary air pump motor, secondary air inlet valve, cruise control system brake pedal switch, brake light switch 1174
15 Motronic control unit, cruise control system switch, clutch pedal switch 1175
16 Motronic control unit, air mass meter, fuel pump relay 1176
17 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1177
18 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1178
19 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1179
20 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1180
069 – Radio and navigation system (MFD) (colour display) with “digital sound package” and TV tuner 1181
1 Radio and navigation system (MFD) (colour display) with “digital sound package” and TV tuner 1181
2 Control unit with display for radio and navigation system, dash panel insert 1182
3 Control unit with display for radio and navigation, radio and telephone aerial, navigation system aerial (GPS) 1183
4 Control unit with display for radio and navigation system, traffic information control unit, TV tuner 1184
5 Control unit with display for radio and navigation system, rear window aerial, navigation system tuner for TV 1185
6 Amplifier ‘digital sound package’ 1186
7 Amplifier ‘digital sound package’, front loudspeaker 1187
8 Amplifier ‘digital sound package’, rear loudspeaker 1188
070 – Radio and navigation system (MFD) (colour display) with CD changer and TV tuner 1189
1 Radio and navigation system (MFD) (colour display) with CD changer and TV tuner 1189
2 Control unit with display for radio and navigation system, 1190
3 Control unit with display for radio and navigation sytem, rear loudspeaker 1191
4 Control unit with display for radio and navigation system, CD changer 1192
5 Control unit with display for radio and navigation, traffic information control unit, front loudspeaker, radio, telephone and auxiliary heater aerial, navigation system aerial (GPS) 1193
6 Control unit with display for radio and navigation system, traffic information control unit, TV tuner 1194
7 Control unit with display for radio and navigation system, rear window aerial, navigation system tuner for TV 1195
071 – Electric seat adjustment front, memory for driver’s seat and exterior mirror 1196
1 Electric seat adjustment front, memory for driver’s seat and exterior mirror 1196
2 Seat adjustment (with memory) control unit, height adjustment button, longitudinal adjustment button, backrest adjustment switch driver’s seat, ‘Emergency ”OFF” switch’ for memory funktion 1197
3 Seat adjustment (with memory) control unit, seat longitudinal adjustment motor, seat front height adjustment motor, seat rear height adjustment motor 1198
4 Seat adjustment (with memory) control unit, backrest (top) adjustment motor 1199
5 Seat adjustment (with memory) control unit, self-diagnosis connection 1200
6 Seat adjustment front passenger’s seat 1201
7 Door control unit (driver’s side), electrically adjustable exterior mirrors for driver’s door 1202
8 Door control unit (driver’s side), mirror adjustment switch, mirror fold system switch 1203
9 Door control unit (driver’s side), door control unit (front passenger’s side) 1204
10 Door control unit (front passenger’s side), electrically adjustable exterior mirrors for front passenger’s door 1205
073 – Basic equipment, Golf and Bora 1206
1 Basic equipment, Golf and Bora 1206
2 Battery, ignition/starter switch, X-contact relief relay 1207
3 Dash panel insert 1208
4 Dash panel insert, immobilizer, rev counter, odometer display, speedometer, alternator warning lamp 1209
5 Dash panel insert, trailer operation warning lamp, digital clock, bonnet contact switch, front left brake pad wear sender, brake pad warning lamp 1210
6 Dash panel insert, brake system warning lamp, brake fluid level warning contact, turn signal warning lamps, main beam warning lamp, rear fog light warning lamp 1211
7 Turn signal switch, headlight dipper/flasher switch, parking light switch, front left headlight, front left turn signal 1212
8 Hazard warning light switch, turn signal relay, front right headlight, front right turn signal 1213
9 Left tail light, left brake light, rear left turn signal, reversing lights switch, left reversing light, rear fog light, high level brake light bulb (Golf) 1214
10 Right tail light, right brake light, rear right turn signal, right reversing light, brake light switch, high level brake light (Bora) 1215
11 Self-diagnosis connection, connection for radio, cigarette lighter 1216
12 Light switch, rear fog light switch 1217
13 Glove compartment light, number plate lights 1218
14 Dual tone horn, tank filler flap remote release switch, horn plate 1219
15 Headlight range control regulator, headlight range control motor, illumination regulators – switches and instruments 1220
16 Heated rear window switch, heated rear window, luggage compartment light 1221
17 Fresh air blower switch, fresh air/air recirculation flap switch, fresh air blower, fresh air/recirculated air flap control motor 1222
18 Rear window wiper motor, windscreen and rear window washer pump 1223
19 Intermittent wiper switch, windscreen wiper motor, automatic intermittent wash and wipe relay 1224
20 Front interior light, rear left reading light, left door warning lamp 1225
21 Rear right reading light, right door warning lamp, illuminated vanity mirror 1226
074 – Central locking (with remote control) 1227
1 Central locking (with remote control) 1227
2 Central locking and anti-theft alarm system control unit, central locking lock unit (driver’s side), Door warning lamp, left, central locking warning lamp -SAFE- 1228
3 Central locking control unit and anti-theft alarm system, central locking lock unit (front passenger’s side), door warning lamp, right 1229
4 Central locking control unit and anti-theft alarm system, central locking lock unit (rear left) 1230
5 Central locking control unit and anti-theft alarm system, central locking lock unit (rear right), tailgate/boot lid release motor 1231
6 Central locking control unit and anti-theft alarm, luggage compartment light (only Golf/ Bora) 1232
7 Central locking control unit and anti-theft alarm system, release button (tailgate/boot lid handle), tailgate/bootlid remote release key switch 1233
8 Central locking control unit and anti-theft alarm, tailgate/bootlid release motor, release button (tailgate/boot lid handle) 1234
9 Central locking and anti-theft alarm system control unit, luggage compartment light (only Golf estate/Bora estate) 1235
10 Central locking control unit and anti-theft alarm system, sliding sunroof adjustment control unit, sliding sunroof adjustment regulator 1236
11 Central locking control unit and anti-theft alarm, interior light front, reading lights front and rear, illuminated vanity mirror (driver’s and front passenger’s side) 1237
12 Central locking control unit and anti-theft alarm system, anti-theft alarm system horn, central locking and anti-theft alarm system aerial, bonnet contact switch 1238
13 Central locking control unit and anti-theft alarm system 1239
075 – Convenience system 1240
1 Convenience system 1240
2 Door control unit (driver’s side), window lifters for driver’s side, interior locking switch, window lifter switch, rear window lifter isolation switch 1241
3 Door control unit (driver side), central locking lock unit (driver side), central locking warning lamp, door warning lamp left 1242
4 Door control unit (driver side), mirror adjustment switch, exterior mirror heating button, mirror fold system switch 1243
5 Door control unit (driver’s side), electrically adjustable exterior mirrors for driver’s door 1244
6 Door control unit (front passenger’s side), window lifter for front passenger’s door, central locking lock unit (front passenger’s side) 1245
7 Door control unit (front passenger’s side), electrically adjustable exterior mirrors for front passenger’s door, door warning lamp, right 1246
8 Door control unit (rear left), rear left window lifter for door, central locking lock unit (rear left) 1247
9 Door control unit (rear right), rear right window lifter for door, central locking lock unit (rear right) 1248
10 Interior light front, reading lights front and rear, illuminated make-up mirror (driver and front passenger’s side) 1249
11 Convenience system central control unit 1250
12 Convenience system central control unit, sliding sunroof adjustment control unit, sliding sunroof adjustment regulator 1251
13 Convenience system central control unit, central locking motor, tailgate/boot lid, tailgate/bootlid release motor 1252
14 Convenience system central control unit, luggage compartment light (only Golf/ Bora) 1253
15 Convenience system central control unit, release button (tailgate/bootlid handle), tailgate/boot lid remote release key switch 1254
16 Convenience system central control unit, tailgate/bootlid release motor, release button (tailgate/bootlid handle) 1255
17 Convenience system central control unit, luggage compartment light (only Golf Variant/ Bora Variant) 1256
18 Convenience system central control unit, anti-theft alarm system horn, central locking and anti-theft alarm system aerial, bonnet contact switch 1257
19 Convenience system central control unit 1258
076 – Interior monitor 1259
1 Interior monitor 1259
2 Central locking and anti-theft alarm system control unit, convenience system central control unit, anti-theft alarm system horn, bonnet contact switch 1260
3 Central locking and anti-theft alarm system control unit, convenience system central control unit, interior monitoring deactivation switch, front interior light, front reading lights 1261
4 Central locking and anti-theft alarm system control unit, convenience system central control unit, interior monitoring sensor and sender, rear reading lights 1262
5 Central locking and anti-theft alarm system control unit, convenience system central control unit 1263
077 – 2 0 l/85 kW Motronic, engine code AZJ 1264
1 2 0 l/85 kW Motronic, engine code AZJ 1264
2 Alternator, starter 1265
3 Motronic current supply relay, Motronic control unit 1266
4 Motronic control unit, ignition system 1267
5 Motronic control unit, throttle valve module, variable intake manifold change-over valve, heater element for crankcase breather 1268
6 Motronic control unit, coolant temperature sender, Hall sender 1269
7 Motronic control unit, engine speed sender, knock sensors 1270
8 Motronic control unit 1271
9 Motronic control unit, injectors, lambda probe after catalytic converter 1272
10 Motronic control unit, accelerator position sender, lambda probe (upstream of catalytic converter), active charcoal filter system solenoid valve 1273
11 Motronic control unit, fuel pump relay, cruise control system switch (GND), air mass meter 1274
12 Motronic control unit, secondary air pump motor, clutch pedal switch, cruise control system brake pedal switch, brake light switch 1275
13 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1276
14 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1277
15 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1278
16 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1279
078 – 2 8 l/150 kW Motronic, engine code BDE 1280
1 2 8 l/150 kW Motronic, engine code BDE 1280
2 Alternator, starter 1281
3 Motronic current supply relay 1282
4 Motronic control unit, ignition system 1283
5 Motronic control unit, ignition system, inlet camshaft control valve 1284
6 Motronic control unit, throttle valve module, variable intake manifold change-over valve, continued coolant circulation pump, heater element for crankcase breather 1285
7 Motronic control unit, engine speed sender, Hall sender, coolant temperature sender 1286
8 Motronic control unit, knock sensors 1287
9 Motronic control unit, injectors 1288
10 Motronic control unit, active charcoal filter system solenoid valve 1289
11 Motronic control unit, accelerator position sender, lambda probe 1290
12 Motronic control unit, lambda probe after catalytic converter, lambda probe 2 1291
13 Motronic control unit, cruise control system switch, lambda probe 2 after catalytic converter 1292
14 Motronic control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, cruise control system brake pedal switch, brake light switch 1293
15 Motronic control unit, air mass meter, fuel pump relay 1294
16 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1295
17 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1296
18 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1297
19 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1298
079 – 1 9 l/74 kW – Turbo diesel engine with unit injectors, engine code AXR 1299
1 1 9 l/74 kW – Turbo diesel engine with unit injectors, engine code AXR 1299
2 Alternator, starter 1300
3 Diesel direct injection system control unit, glow plugs – engine 1301
4 Diesel direct injection system control unit, glow plug relay, kickdown switch, engine speed sender, idling speed switch, accelerator position sender, terminal 30 voltage supply relay 1302
5 Diesel direct injection system control unit, unit injector valves, Hall sender, (for camshaft position) 1303
6 Diesel direct injection system control unit 1304
7 Diesel direct injection system control unit, coolant temperature display sender, intake manifold pressure sender, intake manifold temperature sender, heater element for crankcase breather 1305
8 Diesel direct injection system control unit, air mass meter, variable intake manifold flap change-over valve, exhaust gas recirculation valve, charge pressure control solenoid valve, intake manifold flap motor 1306
9 Diesel direct injection system control unit, cruise control system switch (GND), clutch pedal switch, fuel temperature sender 1307
10 Diesel direct injection system control unit, coolant heating element, brake pedal switch, brake light switch, high and low heat output relay 1308
11 Fuel pump relay, fuel gauge sender, fuel pump (pre-supply pump) 1309
12 Oil level and oil temperature sender, oil pressure switch, speedometer sender, coolant shortage indicator sender 1310
13 Dash panel insert, coolant temperature/coolant shortage, fuel gauge, rev counter 1311
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, glow period warning lamp, cruise control system warning lamp, speedometer 1312
080 – Fog light and rear fog light 1313
1 Fog light and rear fog light 1313
2 Left fog light, left headlight, left side light, front left turn signal 1314
3 Right fog light, fog light relay, right headlight, right side light, front right turn signal 1315
4 Light switch, fog light switch, rear fog light switch 1316
5 Rear fog light, left tail light, brake light, reversing light 1317
6 Dash panel insert, turn signal warning lamps, main beam warning lamp, rear fog light warning lamp 1318
081 – Day driving light 1319
1 Day driving light 1319
2 Dash panel insert 1320
3 Left headlight, left side light, front left turn signal, turn signal switch, headlight dipper/flasher switch 1321
4 Right headlight, right side light, front right turn signal 1322
5 Light switch, rear fog light switch 1323
6 Left brake light, rear fog light, left reversing light, left tail light, rear left turn signal 1324
7 Right tail light, right brake light, rear right turn signal, right reversing light, high level brake light 1325
082 – Airbags system 1326
1 Airbags system 1326
2 Airbag control unit, airbag coil connector, front airbag igniter , side airbag crash sensors 1327
3 Airbag control unit, side airbag igniter, belt tensioner igniter 1328
4 Airbag control unit, rear side airbag crash sensor, curtain airbag igniter 1329
5 Airbag control unit, airbag warning lamp, diagnostic socket 1330
083 – 1 8 l/110 kW Motronic, engine code AUM 1331
1 1 8 l/110 kW Motronic, engine code AUM 1331
2 Alternator, starter 1333
3 Motronic current supply relay 1334
4 Motronic control unit, ignition system 1335
5 Motronic control unit 1336
6 Motronic control unit, coolant temperature sender, Hall sender, charge air pressure sender, charge pressure control solenoid valve, turbocharger air recirculation valve, inlet camshaft control valve 1 1337
7 Motronic control unit, throttle valve module, throttle valve drives angle sender (electric throttle), knock sensor 1, intake air temperature sender 1338
8 Motronic control unit, engine speed sender, knock sensor 2, power assisted steering pressure switch 1339
9 Motronic control unit, injectors, lambda probe after catalytic converter 1340
10 Motronic control unit, accelerator position sender, lambda probe, active charcoal filter system solenoid valve 1341
11 Motronic control unit, brake servo control unit, vacuum pump for brakes 1342
12 Motronic control unit, secondary air pump relay, secondary air pump motor, secondary air inlet valve, brake light switch, cruise control system brake pedal switch 1343
13 Motronic control unit, cruise control system switch, clutch pedal switch 1344
14 Motronic control unit, fuel pump relay, air mass meter 1345
15 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1346
16 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1347
17 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1348
18 Dash panel insert, cruise control system warning lamp, multifunction display, ambient temperature indicator, self-diagnosis connection, exhaust emissions warning lamp 1349
085 – e-generation with PDA (personal data assistant) 1350
1 e-generation with PDA (personal data assistant) 1350
2 Position of fuses 1351
3 Mobile phone operating electronics control unit, aerial, microphone, pocket PC (PDA) 1352
086 – Front seat heating 1353
1 Front seat heating 1353
2 Heated driver seat control unit, temperature sensor, heated driver seat, driver seat cushion lateral support heater 1354
3 Heated front passenger seat control unit, temperature sensor, heated front passenger seat cushion, heated front passenger seat backrest 1355
087 – Front seat heating, leather seat 1356
1 Front seat heating, leather seat 1356
2 Driver seat cushion lateral support heater, heated driver seat backrest 1357
3 Heated driver seat control unit, temperature sensor, heated driver seat 1358
4 Heated front passenger seat control unit, temperature sensor, heated front passenger seat cushion, front passenger seat cushion lateral support heater 1359
088 – 1 6 l/81 kW Motronic, engine code BAD 1360
1 1 6 l/81 kW Motronic, engine code BAD 1360
2 Alternator, starter 1361
3 Motronic control unit 1362
4 Motronic control unit, ignition system 1363
5 Motronic control unit, throttle valve module, engine speed sender, coolant temperature sender 1364
6 Motronic control unit, intake air temperature sender, intake manifold pressure sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, fuel pressure sender 1365
7 Motronic control unit, intake manifold flap potentiometer, Hall sender 1366
8 Motronic control unit, knock sensor 1367
9 Motronic control unit, injectors 1368
10 Motronic control unit, accelerator position sender, Motronic current supply relay 1369
11 Motronic control unit, inlet camshaft control valve, fuel pressure regulating valve, fuel metering valve, intake manifold flap air flow control valve 1370
12 Motronic control unit, lambda probe, map-controlled engine cooling system thermostat, active charcoal filter system solenoid valve 1371
13 Motronic control unit, NOx sensor control unit, NOx sender, brake servo pressure sensor 1372
14 Motronic control unit, potentiometer for temperature selection rotary knob, temperature flap position switch, 2-way valve for coolant shut-off valve 1373
15 Motronic control unit, cruise control system switch, exhaust gas temperature sender, radiator outlet coolant temperature sender 1374
16 Motronic control unit, fuel pump relay, air mass meter, brake pedal switch, cruise control system brake pedal switch, brake light switch, clutch pedal switch 1375
17 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1376
18 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1377
19 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1378
20 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1379
089 – 1 6 l/77 kW 4LV, engine code BCB 1380
1 1 6 l/77 kW 4LV, engine code BCB 1380
2 Alternator, starter 1381
3 4LV control unit (injection system), heater element (crankcase breather) 1382
4 4LV control unit (injection system), ignition system 1383
5 4LV control unit (injection system), throttle valve control module, engine speed sender, coolant temperature sender 1384
6 4LV control unit (injection system), intake air temperature sender, intake manifold pressure sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, Hall sender 1385
7 4LV control unit (injection system) 1386
8 4LV control unit (injection system), injectors, knock sensor 1387
9 4LV control unit (injection system), accelerator pedal position sender, lambda probe (before catalyst) 1388
10 4LV control unit (injection system), cruise control system switch (CCS), clutch pedal switch, cruise control system brake pedal switch, brake light switch 1389
11 4LV control unit (injection system), fuel pump relay, lambda probe after catalyst, active charcoal filter system solenoid valve 1 1390
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1391
13 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1392
14 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1393
15 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multi-function display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1394
090 – Tailgate/boot lid release 1395
1 Tailgate/boot lid release 1395
2 Tailgate/bootlid remote release control unit, tailgate/bootlid release motor, tailgate/bootlid handle release button, contact switch in lock cylinder for tailgate/bootlid 1396
3 Tailgate/boot lid remote release control unit, luggage compartment light 1397
091 – Gas discharge headlights with automatic headlight range control 1398
1 Gas discharge headlights with automatic headlight range control 1398
2 Left gas discharge light control unit, left gas discharge bulb, left main beam bulb, left side light bulb, front left turn signal bulb 1399
3 Headlight range control, control unit, headlight range control motor 1400
4 Control unit for headlight range control, vehicle inclination sender 1401
5 Right gas discharge light control unit, right gas discharge bulb, right main beam bulb, right side light bulb, front right turn signal bulb 1402
6 Dash panel insert, turn signal warning lamp, main beam warning lamp 1403
092 – Multi-function steering wheel for CCS and radio 1404
1 Multi-function steering wheel for CCS and radio 1404
2 Operating unit in steering wheel, horn plate, airbag coil connector, driver airbag igniter 1405
3 Multi-function steering wheel control unit, dual tone horn relay 1406
4 Multi-function steering wheel control unit, cruise control system switch (CCS), dual tone horn 1407
093 – Automatic anti-dazzle interior mirror, rain sensor 1408
1 Automatic anti-dazzle interior mirror, rain sensor 1408
2 Automatic anti-dazzle interior mirror 1409
3 Windscreen wiper motor, automatic intermittent wash/wipe relay, rain sensor 1410
4 Intermittent wiper switch, automatic intermittent wash/wipe relay, windscreen and rear window washer pump 1411
094 – Headlight washer system 1412
1 Headlight washer system 1412
2 Automatic intermittent wash/wipe relay, intermittent wiper control, headlight washer system pump, windscreen washer fluid level sender 1413
3 Intermittent wiper switch, windscreen wiper motor, automatic intermittent wash/wipe relay, windscreen and rear window washer pump 1414
095 – Anti-locking brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stability program (ESP) 1415
1 Anti-locking brake system (ABS) with electronic differential lock (EDL), traction control system (TCS) and electronic stability program (ESP) 1415
2 ABS/ABS control unit with EDL/ ASR/ ESP, TCS and ESP button 1416
3 ABS/ABS control unit with EDL/ ASR/ ESP, steering angle sender 1417
4 ABS/ABS control unit with EDL/ ASR/ ESP, speed sensor 1418
5 ABS/ABS control unit with EDL/ ASR/ ESP, lateral acceleration sender, brake pressure sender, yaw rate sender, ABS hydraulic pump, longitudinal acceleration sender, ESP sensor unit 1419
6 ABS/ABS control unit with EDL/ ASR/ ESP, handbrake warning switch, self-diagnosis connection 1420
7 Dash panel insert, brake system warning lamp, ABS warning lamp, ESP and TCS warning lamp, brake pad wear control, brake fluid level warning contact 1421
096 – Climatronic 1422
1 Climatronic 1422
2 Climatronic control unit, temperature flap control motor 1423
3 Climatronic control unit, central flap control motor, footwell and defroster flap control motor 1424
4 Climatronic control unit, air flow flap control motor, vent temperature sender, fresh air intake duct temperature sensor 1425
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, evaporator output temperature sender, sunlight penetration photosensor 1426
6 Climatronic control unit, air conditioning system magnetic coupling 1427
7 Motronic control unit, radiator outlet coolant temperature sender, 2-way valve for coolant shut-off valve 1428
8 Radiator fan control unit, radiator fan 1429
9 Radiator fan control unit, high pressure sender 1430
097 – Radiator fan (not for models with air conditioning system) 1431
1 Radiator fan (not for models with air conditioning system) 1431
2 Radiator fan control unit, radiator fan 1432
3 Motronic control unit, potentiometer for temperature selection rotary knob, temperature flap position switch, 2-way valve for coolant shut-off valve 1433
4 Motronic control unit, radiator outlet coolant temperature sender 1434
098 – Climatronic 1435
1 Climatronic 1435
2 Climatronic control unit, temperature flap control motor 1436
3 Climatronic control unit, central flap control motor, footwell and defrost flap control motor 1437
4 Climatronic control unit, air flow flap control motor, vent temperature sender, fresh air intake duct temperature sensor 1438
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, evaporator out-flow temperature sender, sunlight penetration photo-sensor 1439
6 Climatronic control unit 1440
7 Radiator fan control unit, radiator fan, air conditioner magnetic coupling, continued coolant circulation pump 1441
8 Radiator fan control unit, radiator fan thermal switch, high pressure sender 1442
100 – 2 0 l/85 kW Motronic, engine code BEH, bivalent (natural gas/petrol) 1443
1 2 0 l/85 kW Motronic, engine code BEH, bivalent (natural gas/petrol) 1443
2 Alternator, starter 1444
3 Motronic current supply relay 1445
4 Gas or petrol operating mode change-over switch, high pressure valve for gas mode, fuel tank shut-off valves, shut-off valve relay 1 1446
5 Motronic control unit, variable intake manifold change-over valve, heater element for crankcase breather 1447
6 Motronic control unit, ignition system 1448
7 Motronic control unit, throttle valve module, coolant temperature sender 1449
8 Motronic control unit, Hall sender, fuel tank pressure sensor, gas fuel rail sensor 1450
9 Motronic control unit, engine speed sender, knock sensors 1451
10 Motronic control unit 1452
11 Motronic control unit, gas injection valves 1453
12 Motronic control unit, injectors, lambda probe after catalytic converter 1454
13 Motronic control unit, accelerator position sender, lambda probe (upstream of catalytic converter), active charcoal filter system solenoid valve 1455
14 Motronic control unit, fuel pump relay, cruise control system switch (GND), air mass meter 1456
15 Motronic control unit, secondary air pump motor, clutch pedal switch, cruise control system brake pedal switch, brake light switch 1457
16 Fuel pump, fuel gauge sender, fuel pump switch-off relay 1458
17 Coolant shortage indicator sender, oil level and oil temperature sender, speedometer sender 1459
18 Dash panel insert, coolant temperature/coolant shortage indicator, alternator warning lamp, fuel gauge, oil pressure warning, rev counter 1460
19 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, exhaust emissions warning lamp, cruise control system warning lamp, natural gas mode warning lamp, speedometer 1461
101 – 1 4 l /55 kW Motronic, engine codes BCA 1462
1 1 4 l /55 kW Motronic, engine codes BCA 1462
2 Alternator, starter 1463
3 Motronic control unit 1464
4 Motronic control unit, ignition system 1465
5 Motronic control unit, heater element (crankcase breather) 1466
6 Motronic control unit, throttle valve control module, coolant temperature sender, intake air temperature sender, intake manifold pressure sender 1467
7 Motronic control unit, hall sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, engine speed sender 1468
8 Motronic control unit, injectors, knock sensor 1469
9 Motronic control unit, lambda probe before catalytic converter, lambda probe after catalytic converter 1470
10 Motronic control unit, accelerator pedal position sender, active charcoal filter system solenoid valve 1471
11 Motronic control unit, cruise control system switch (CCS), clutch pedal switch 1472
12 Motronic control unit, fuel pump relay, CCS brake pedal switch, brake light switch 1473
13 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1474
14 Dash panel insert, oil pressure warning, oil level and oil temperature warning, speedometer sender, coolant temperature and coolant shortage warning lamp 1475
15 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1476
16 Dash panel insert, electrically operated throttle fault lamp, CCS warning lamp, multi-function display, ambient temperature display, exhaust emissions warning lamp, diagnostic socket 1477
102 – 3 2 l/177 kW Motronic, engine code BFH 1478
1 3 2 l/177 kW Motronic, engine code BFH 1478
2 Alternator, starter 1479
3 Motronic current supply relay 1480
4 Motronic control unit, ignition system 1481
5 Motronic control unit, ignition system, inlet camshaft control valve 1482
6 Motronic control unit, throttle valve module, variable intake manifold change-over valve, continued coolant circulation pump, heater element for crankcase breather 1483
7 Motronic control unit, engine speed sender, Hall sender, coolant temperature sender 1484
8 Motronic control unit, knock sensors 1485
9 Motronic control unit, injectors 1486
10 Motronic control unit 1487
11 Motronic control unit, accelerator position sender, lambda probe 1488
12 Motronic control unit, lambda probe after catalytic converter, lambda probe 2, exhaust flap valve 1489
13 Motronic control unit, cruise control system switch, lambda probe 2 after catalytic converter 1490
14 Motronic control unit, secondary air pump relay, secondary air pump motor, clutch pedal switch, brake pedal switch, brake light switch 1491
15 Motronic control unit, air mass meter, fuel pump relay, secondary air inlet valve, active charcoal filter system solenoid valve 1 1492
16 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1493
17 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1494
18 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1495
19 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1496
103 – 1 6 l/75 kW Simos, engine code BFQ 1497
1 1 6 l/75 kW Simos, engine code BFQ 1497
2 Alternator, starter 1498
3 Current supply relay for Simos control unit 1499
4 Simos control unit, ignition system, throttle valve module, throttle valve drive angle sender for electric throttle 1500
5 Simos control unit, engine speed sender, power assisted steering pressure switch, coolant temperature sender, knock sensor 1501
6 Simos control unit, Hall sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, variable intake manifold change-over valve, map-controlled engine cooling system thermostat 1502
7 Simos control unit 1503
8 Simos control unit, injectors 1504
9 Simos control unit, radiator outlet coolant temperature sender, potentiometer, temperature selection rotary knob, accelerator position sender 1505
10 Simos control unit, air mass meter, lambda probe 1506
11 Simos control unit, brake servo control unit, vacuum pump for brakes 1507
12 Simos control unit, secondary air pump motor, cruise control system brake pedal switch, brake light switch, active charcoal filter system solenoid valve 1508
13 Simos control unit, cruise control system switch, clutch pedal switch 1509
14 Simos control unit, lambda probe after catalytic converter, fuel pump relay 1510
15 Fuel pump, fuel gauge sender, coolant shortage indicator sender, heater element for crankcase breather 1511
16 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1512
17 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1513
18 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1514
104 – Gas discharge headlights with automatic headlight range control 1515
1 Gas discharge headlights with automatic headlight range control 1515
2 Gas discharge light control unit with headlight range control left, left gas discharge light control unit, left gas discharge (xenon) bulb, left headlight main beam bulb, left side light bulb, front left turn signal bulb 1516
3 Gas discharge light control unit with headlight range control left, left headlight range control motor, rear left vehicle level sender, front left vehicle level sender 1517
4 Gas discharge light control unit with headlight range control left, gas discharge light control unit with headlight range control right 1518
5 Gas discharge light control unit with headlight range control right, right headlight range control motor 1519
6 Right gas discharge light control unit, right gas discharge bulb, right main beam bulb, right side light bulb, front right turn signal bulb 1520
7 Dash panel insert, turn signal warning lamp, main beam warning lamp 1521
105 – 1 6 l/74 kW Simos, engine codes AEH 1522
1 1 6 l/74 kW Simos, engine codes AEH 1522
2 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1523
3 Alternator, starter 1524
4 Dash panel insert, CCS warning lamp, multi-function display, ambient temperature display, exhaust emissions warning lamp, diagnostic socket 1525
5 Simos control unit, ignition system 1526
6 Simos control unit, coolant temperature sender, hall sender 1527
7 Simos control unit, throttle valve control module, engine speed sender, power assisted steering pressure switch 1528
8 Simos control unit, knock sensor, injectors 1529
9 Simos control unit, heater element (crankcase breather) 1530
10 Simos control unit, lambda probe, air mass meter, active charcoal filter system solenoid valve, intake manifold change-over valve, fuel pump relay 1531
11 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1532
12 Dash panel insert, oil pressure warning, oil level and oil temperature warning, speedometer sender, coolant temperature and coolant shortage warning lamp 1533
106 – 1 6 l/75 kW Simos, engine code AVU 1534
1 1 6 l/75 kW Simos, engine code AVU 1534
2 Alternator, starter 1535
3 Current supply relay for Simos control unit 1536
4 Simos control unit, ignition system, throttle valve module, throttle valve drive angle sender for electric throttle 1537
5 Simos control unit, engine speed sender, power assisted steering pressure switch, coolant temperature sender, knock sensor 1538
6 Simos control unit, Hall sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, variable intake manifold change-over valve, map-controlled engine cooling system thermostat 1539
7 Simos control unit, heater element for crankcase breather 1540
8 Simos control unit, injectors 1541
9 Simos control unit, radiator outlet coolant temperature sender, potentiometer, temperature selection rotary knob, lambda probe after catalytic converter 1542
10 Simos control unit, air mass meter, lambda probe 1543
11 Simos control unit, brake servo control unit, vacuum pump for brakes 1544
12 Simos control unit, secondary air pump motor, cruise control system brake pedal switch, brake light switch 1545
13 Simos control unit, cruise control system switch, clutch pedal switch 1546
14 Simos control unit, active charcoal filter system solenoid valve, accelerator position sender, fuel pump relay 1547
15 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1548
16 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1549
17 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1550
18 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1551
107 – 1 6 l/77 kW, 4MV, engine code AZD 1552
1 1 6 l/77 kW, 4MV, engine code AZD 1552
2 Alternator, starter 1553
3 4MV injection system control unit, heater element for crankcase breather 1554
4 4MV injection system control unit, ignition system 1555
5 4MV injection system control unit, throttle valve module, engine speed sender, coolant temperature sender 1556
6 4MV injection system control unit, intake air temperature sender, intake manifold pressure sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, Hall sender 1557
7 4MV injection system control unit 1558
8 4MV injection system control unit, injectors, knock sensor 1559
9 4MV injection system control unit, accelerator position sender, lambda probe upstream of catalytic converter 1560
10 4MV injection system control unit, cruise control system switch, clutch pedal switch, cruise control system brake pedal switch, brake light switch 1561
11 4MV injection system control unit, fuel pump relay, lambda probe after catalytic converter, activated charcoal filter system solenoid valve 1562
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1563
13 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1564
14 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1565
15 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1566
108 – 1 6 l/77 kW 4LV, engine codes BCB 1567
1 1 6 l/77 kW 4LV, engine codes BCB 1567
2 Alternator, starter 1568
3 4LV control unit (injection system), crankcase breather heater element 1569
4 4LV control unit (injection system), ignition system 1570
5 4LV control unit (injection system), throttle valve control module, engine speed sender, coolant temperature sender 1571
6 4LV control unit (injection system), intake air temperature sender, intake manifold pressure sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, hall sender 1572
7 4LV control unit (injection system) 1573
8 4LV control unit (injection system), injectors, knock sensor 1574
9 4LV control unit (injection system), accelerator pedal position sender, lambda probe (before catalytic converter) 1575
10 4LV control unit (injection system), cruise control system switch (CCS), clutch pedal switch, CCS brake pedal switch, brake light switch 1576
11 4LV control unit (injection system), fuel pump relay, lambda probe after catalytic converter, active charcoal filter solenoid valve 1577
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1578
13 Dash panel insert, oil pressure warning, oil level and oil temperature warning, speedometer sender, coolant temperature and coolant shortage warning lamp 1579
14 Dash panel insert, coolant temperature and coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1580
15 Dash panel insert, electrically operated throttle fault lamp, CCS warning lamp, multi-function display, ambient temperature display, exhaust emissions warning lamp, diagnostic socket 1581
109 – 1 6 l/81 kW Motronic, engine code BAD 1582
1 1 6 l/81 kW Motronic, engine code BAD 1582
2 Alternator, starter 1583
3 Motronic control unit 1584
4 Motronic control unit, ignition system 1585
5 Motronic control unit, throttle valve module, engine speed sender, coolant temperature sender 1586
6 Motronic control unit, intake air temperature sender, intake manifold pressure sender, exhaust gas recirculation potentiometer, exhaust gas recirculation valve, fuel pressure sender 1587
7 Motronic control unit, intake manifold flap potentiometer, Hall sender 1588
8 Motronic control unit, knock sensor 1589
9 Motronic control unit, injectors 1590
10 Motronic control unit, accelerator position sender, Motronic current supply relay 1591
11 Motronic control unit, inlet camshaft control valve, fuel pressure regulating valve, fuel metering valve, intake manifold flap air flow control valve 1592
12 Motronic control unit, lambda probe, map-controlled engine cooling system thermostat, active charcoal filter system solenoid valve 1593
13 Motronic control unit, NOx sensor control unit, NOx sender, brake servo pressure sensor 1594
14 Motronic control unit, potentiometer for temperature selection rotary knob, exhaust temperature sender, radiator outlet coolant temperature sender, air mass meter 1595
15 Motronic control unit, cruise control system switch, clutch pedal switch 1596
16 Motronic control unit, fuel pump relay, brake light switch, brake pedal switch 1597
17 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1598
18 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1599
19 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1600
20 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1601
110 – 1 8 l/110 kW Motronic, engine code AUM 1602
1 1 8 l/110 kW Motronic, engine code AUM 1602
2 Alternator, starter 1603
3 Motronic current supply relay 1604
4 Motronic control unit, ignition system 1605
5 Motronic control unit 1606
6 Motronic control unit, coolant temperature sender, Hall sender, charge air pressure sender, charge pressure control solenoid valve, turbocharger air recirculation valve, inlet camshaft control valve 1 1607
7 Motronic control unit, throttle valve module, throttle valve drives angle sender (electric throttle), knock sensor 1, intake air temperature sender 1608
8 Motronic control unit, engine speed sender, knock sensor 2, power assisted steering pressure switch 1609
9 Motronic control unit, injectors, lambda probe after catalytic converter 1610
10 Motronic control unit, accelerator position sender, lambda probe, active charcoal filter system solenoid valve 1611
11 Simos control unit, brake servo control unit, vacuum pump for brakes 1612
12 Motronic control unit, secondary air pump relay, secondary air pump motor, secondary air inlet valve, brake light switch, cruise control system brake pedal switch 1613
13 Motronic control unit, cruise control system switch, clutch pedal switch 1614
14 Motronic control unit, fuel pump relay, air mass meter 1615
15 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1616
16 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1617
17 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1618
18 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1619
111 – 2 0 l/85 kW Motronic, engine code AQY 1620
1 2 0 l/85 kW Motronic, engine code AQY 1620
2 Alternator, starter 1621
3 Motronic control unit, ignition system 1622
4 Motronic control unit, coolant temperature sender, Hall sender 1623
5 Motronic control unit, throttle valve module, knock sensor 1, knock sensor 2 1624
6 Motronic control unit, engine speed sender, injectors 1625
7 Motronic control unit, heater element for crankcase breather 1626
8 Motronic control unit, lambda probe, lambda probe after catalytic converter, activated charcoal filter system solenoid valve 1, secondary air pump relay, secondary air pump motor 1627
9 Motronic control unit, fuel pump relay, air mass meter 1628
10 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1629
11 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender, coolant temperature/coolant shortage warning lamp 1630
12 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1631
13 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1632
112 – Double clutch gearbox 02E (DSG) 1633
1 Double clutch gearbox 02E (DSG) 1633
2 Starter motor relay, reversing light relay 1634
3 Mechatronic unit for double clutch gearbox, input shaft speed sender, gearbox oil temperature sender, temperature sender in control unit, hydraulic pressure sender, Tiptronic switch in steering wheel 1635
4 Mechatronics for direct shift gearbox, selector lever lock solenoid, selector lever sensors control unit, selector lever position display, gear selector movement sensor 1636
5 Mechatronic unit for double clutch gearbox, gearbox output speed sender, reversing light switch 1637
6 Mechatronic unit for double clutch gearbox, gear selector movement sensor, solenoid valves, gearbox input speed sender, clutch temperature sender 1638
7 Fuse locations 1639
113 – Radio “gamma” with CD changer and “digital sound package” 1640
1 Radio “gamma” with CD changer and “digital sound package” 1640
2 Amplifier for ‘Digital sound package’, programme selection operating unit 1641
3 Amplifier ‘Digital sound package’, front loudspeakers 1642
4 Amplifier for ‘Digital sound package’, rear loudspeakers 1643
5 Radio, CD changer 1644
6 Radio, aerial 1645
114 – Climatronic 1646
1 Climatronic 1646
2 Climatronic control unit, temperature flap control motor 1647
3 Climatronic control unit, central flap control motor, footwell and defroster flap control motor 1648
4 Climatronic control unit, air flow flap control motor, vent temperature sender, fresh air intake duct temperature sensor 1649
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, evaporator output temperature sender, sunlight penetration photosensor 1650
6 Climatronic control unit, air conditioner compressor regulating valve 1651
7 Motronic control unit, radiator outlet coolant temperature sender 1652
8 Radiator fan control unit, radiator fan 1653
9 Radiator fan control unit, high pressure sender 1654
115 – 1 8 l/132 kW Motronic, engine code BEK 1655
1 1 8 l/132 kW Motronic, engine code BEK 1655
2 Alternator, starter 1656
3 Motronic current supply relay 1657
4 Motronic control unit, ignition system 1658
5 Motronic control unit 1659
6 Motronic control unit, coolant temperature sender, Hall sender, charge air pressure sender, charge pressure control solenoid valve, turbocharger air recirculation valve, inlet camshaft control valve 1660
7 Motronic control unit, throttle valve module, knock sensor 1, intake air temperature sender 1661
8 Motronic control unit, engine speed sender, knock sensor 2, power assisted steering pressure switch 1662
9 Motronic control unit, injectors, lambda probe after catalytic converter 1663
10 Motronic control unit, accelerator position sender, lambda probe, active charcoal filter system solenoid valve 1664
11 Motronic control unit, cruise control system switch, clutch pedal switch 1665
12 Motronic control unit, fuel pump relay, brake light switch, brake pedal switch, air mass meter 1666
13 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1667
14 Dash panel insert, oil pressure warning, speedometer sender, coolant temperature/coolant shortage warning lamp 1668
15 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1669
16 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1670
116 – 2 0 l/85 kW Motronic, engine code BER 1671
1 2 0 l/85 kW Motronic, engine code BER 1671
2 Alternator, starter 1672
3 Motronic current supply relay 1673
4 Motronic control unit, ignition system, coolant temperature sender 1674
5 Motronic control unit, throttle valve module, engine speed sender, Hall sender 1675
6 Motronic control unit, intake air temperature sender, intake manifold pressure sender, knock sensors 1676
7 Motronic control unit 1677
8 Motronic control unit, injectors 1678
9 Motronic control unit, accelerator position sender, lambda probe upstream of catalytic converter, lambda probe after catalytic converter 1679
10 Motronic control unit, cruise control system switch, clutch pedal switch 1680
11 Motronic control unit, fuel pump relay, active charcoal filter system solenoid valve, brake light switch, brake pedal switch 1681
12 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1682
13 Dash panel insert, oil pressure warning, speedometer sender, coolant temperature/coolant shortage warning lamp 1683
14 Dash panel insert, coolant temperature gauge, fuel gauge, rev counter, speedometer, alternator warning lamp 1684
15 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1685
117 – 1 9 l/110 kW – Turbo diesel engine with unit injectors, engine code ARL 1686
1 1 9 l/110 kW – Turbo diesel engine with unit injectors, engine code ARL 1686
2 Alternator, starter 1687
3 Glow plug activation control unit, glow plugs – engine 1688
4 Diesel direct injection system control unit, kickdown switch, idling speed switch, accelerator position sender, terminal 30 voltage supply relay 1689
5 Diesel direct injection system control unit, coolant temperature display sender, intake manifold pressure sender, intake manifold temperature sender, heater element for crankcase breather 1690
6 Diesel direct injection system control unit 1691
7 Diesel direct injection system control unit, unit injector valves, Hall sender 1692
8 Diesel direct injection system control unit, air mass meter, fuel temperature sender, exhaust gas recirculation valve and charge pressure control, exhaust gas recirculation cooler change-over valve 1693
9 Diesel direct injection system control unit, cruise control system switch, clutch pedal switch 1694
10 Diesel direct injection system control unit, coolant heating element, brake pedal switch, brake light switch, high and low heat output relay 1695
11 Fuel pump relay, fuel gauge sender, fuel system pressurisation pump 1696
12 Oil level and oil temperature sender, oil pressure switch, speedometer sender, coolant shortage indicator sender 1697
13 Dash panel insert, coolant temperature and coolant shortage warning lamp, fuel gauge, rev counter, oil pressure warning lamp 1698
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, glow period warning lamp, cruise control system warning lamp, alternator warning lamp 1699
118 – 2 8 l/150 kW Motronic, engine code BDE 1700
1 2 8 l/150 kW Motronic, engine code BDE 1700
2 Alternator, starter 1701
3 Motronic current supply relay 1702
4 Motronic control unit, ignition system 1703
5 Motronic control unit, ignition system, inlet camshaft control valve 1704
6 Motronic control unit, throttle valve module, variable intake manifold change-over valve, continued coolant circulation pump, heater element for crankcase breather 1705
7 Motronic control unit, engine speed sender, Hall sender, coolant temperature sender 1706
8 Motronic control unit, knock sensors 1707
9 Motronic control unit, injectors 1708
10 Motronic control unit, active charcoal filter system solenoid valve 1709
11 Motronic control unit, accelerator position sender, lambda probe 1710
12 Motronic control unit, lambda probe after catalytic converter, lambda probe 2 1711
13 Motronic control unit, cruise control system switch, lambda probe 2 after catalytic converter 1712
14 Motronic control unit, secondary air pump motor, secondary air inlet valve, clutch pedal switch, brake pedal switch, brake light switch 1713
15 Motronic control unit, air mass meter, fuel pump relay 1714
16 Fuel pump, fuel gauge sender, coolant shortage indicator sender 1715
17 Dash panel insert, oil pressure warning, oil level/oil temperature sender, speedometer sender 1716
18 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, speedometer, alternator warning lamp 1717
19 Dash panel insert, electronic power control fault lamp, cruise control system warning lamp, multifunction display, ambient temperature indicator, exhaust emissions warning lamp, self-diagnosis connection 1718
120 – Climatronic 1719
1 Climatronic 1719
2 Climatronic control unit, temperature flap control motor 1720
3 Climatronic control unit, central flap control motor, footwell and defroster flap control motor 1721
4 Climatronic control unit, air flow flap control motor, vent temperature sender, fresh air intake duct temperature sensor 1722
5 Climatronic control unit, ambient temperature sensor, fresh air blower, fresh air blower control unit, sunlight penetration photosensor 1723
6 Climatronic control unit 1724
7 Radiator fan control unit, radiator fan, air conditioning system magnetic coupling 1725
8 Radiator fan control unit, high pressure sender 1726
9 Simos control unit, radiator outlet coolant temperature sender 1727
121 – 4-speed automatic gearbox (AG4) 1728
1 4-speed automatic gearbox (AG4) 1728
2 Starter inhibitor and reversing light relay 1729
3 Automatic gearbox control unit, multifunction switch 1730
4 Automatic gearbox control unit, solenoid valves, gearbox speed sender, kickdown switch, gearbox oil temperature sender 1731
5 Automatic gearbox control unit, vehicle speed sender 1732
6 Automatic gearbox control unit, selector lever lock solenoid 1733
7 Automatic gearbox control unit, selector lever lock solenoid 1734
122 – 1 9 l/110 kW – Turbo diesel engine with unit injectors, engine code ARL 1735
1 1 9 l/110 kW – Turbo diesel engine with unit injectors, engine code ARL 1735
2 Alternator, starter 1736
3 Diesel direct injection system control unit, glow plugs – engine 1737
4 Diesel direct injection system control unit, glow plug relay, kickdown switch, engine speed sender, idling speed switch, accelerator position sender, terminal 30 voltage supply relay 1738
5 Diesel direct injection system control unit, coolant temperature display sender, intake manifold pressure sender, intake manifold temperature sender, heater element for crankcase breather 1739
6 Diesel direct injection system control unit 1740
7 Diesel direct injection system control unit, unit injector valves, Hall sender 1741
8 Diesel direct injection system control unit, air mass meter, fuel temperature sender, exhaust gas recirculation valve and charge pressure control, exhaust gas recirculation cooler change-over valve 1742
9 Diesel direct injection system control unit, cruise control system switch, clutch pedal switch 1743
10 Diesel direct injection system control unit, coolant heating element, brake pedal switch, brake light switch, high and low heat output relay 1744
11 Fuel pump relay, fuel gauge sender, fuel system pressurisation pump 1745
12 Oil level and oil temperature sender, oil pressure switch, speedometer sender, coolant shortage indicator sender 1746
13 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, oil pressure warning lamp 1747
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, glow period warning lamp, cruise control system warning lamp, alternator warning lamp 1748
123 – 1 9 l/74 kW – Turbo diesel engine with unit injectors, engine code AXR 1749
1 1 9 l/74 kW – Turbo diesel engine with unit injectors, engine code AXR 1749
2 Alternator, starter 1750
3 Diesel direct injection system control unit, glow plugs – engine 1751
4 Diesel direct injection system control unit, glow plug relay, kickdown switch, engine speed sender, idling speed switch, accelerator position sender, terminal 30 voltage supply relay 1752
5 Diesel direct injection system control unit, unit injector valves, Hall sender 1753
6 Diesel direct injection system control unit 1754
7 Diesel direct injection system control unit, coolant temperature display sender, intake manifold pressure sender, intake manifold temperature sender, heater element for crankcase breather 1755
8 Diesel direct injection system control unit, air mass meter, variable intake manifold flap change-over valve, exhaust gas recirculation valve, charge pressure control solenoid valve, intake manifold flap motor 1756
9 Diesel direct injection system control unit, cruise control system switch (GND), clutch pedal switch, fuel temperature sender 1757
10 Diesel direct injection system control unit, coolant heating element, brake pedal switch, brake light switch, high and low heat output relay 1758
11 Fuel pump relay, fuel gauge sender, fuel system pressurisation pump 1759
12 Oil level and oil temperature sender, oil pressure switch, speedometer sender, coolant shortage indicator sender 1760
13 Dash panel insert, coolant temperature/coolant shortage indicator, fuel gauge, rev counter, oil pressure warning lamp 1761
14 Dash panel insert, multifunction display, ambient temperature indicator, self-diagnosis connection, glow period warning lamp, cruise control system warning lamp, alternator warning lamp 1762
125 – Heated rear window with automatic time switch 1763
1 Heated rear window with automatic time switch 1763
2 Fuse 26 in fuse holder 1764
3 Heated rear window switch, heated rear window 1765
126 – Socket (12V) 1766
1 Socket (12V) 1766
2 12 V socket 1767
201 – -Fitting locations: Position of relays and fuses – 3 1768
1 Position of relays and fuses 1768
1 1 Position of relays and fuses 1768
1 1 1 Relay positions on relay plate: 1768
1 1 2 Fuse locations on relay plate: 1768
1 1 4 Fuse locations on 13 position additional relay carrier, left-handdrive vehicles: 1769
1 1 6 Fuse on 13 position additional relay carrier, right-handdrive vehicles: 1770
1 1 8 Fuses in fuse holder: 1772
1 1 9 Fuses in fuse holder: 1773
1 1 10 Fuses in fuse holder: 1774
1 1 11 Fuses in fuse holder: 1775
1 1 12 Fuses in fuse holder: 1776
1 1 13 Fuses in fuse holder: 1777
1 1 14 Fuses in fuse holder: 1778
1 1 15 Fuses in fuse holder: 1779
202 – -Fitting locations:Wiring harness coupling stations 1781
1 Wiring harness coupling stations 1781
2 Coupling station in protective housing in plenum chamber 1782
3 Coupling stations on left and right-hand A-pillars, Coupling station on left-hand C-pillar, Golf 1783
4 Coupling station on left-hand C-pillar, Bora, Coupling station on tailgate, Golf estate/Bora estate, Coupling station on right-hand D-pillar, Golf estate/Bora estate 1784
203 – -Fitting locations:Control units and relays 1785
1 Control units and relays 1785
2 Control unit for ABS/ABS with EDL 1786
3 Central control unit for convenience system/control unit for central locking and anti-theft alarm system, Control unit for sliding sunroof adjustment 1787
4 Control unit for Climatronic 1788
5 Door control unit for electric windows, driver’s and front passenger’s sides 1789
6 Door control unit for electric windows, rear left and rear right 1790
7 Control unit for radiator fan, 2 speed with fan run-on 1791
8 Operating and control unit for heater with mapped cooling 1792
204 – -Fitting locations:Multi-pin connectors 1793
1 Contents 1793
2 Automatic gearbox/AG4 1794
3 Automatic gearbox/AG4, Self-diagnosis 1795
4 Lights, lamps, switches – interior, anti-theft alarm 1796
5 Lights, lamps, switches – interior, anti-theft alarm 1797
6 Lights, lamps, switches – interior, anti-theft alarm 1798
7 Lights, lamps, switches – interior, anti-theft alarm, Wiring 1799
8 Wiring 1800
9 Wiring 1801
401 – -Fault finding programme:Battery discharges (Voltage leakage suspected) 1802
1 Test prerequisites, Fuse assignment in fuse holder/battery 1802
2 -Fault finding programme:Battery discharges (Voltage leakage suspected) 1803
402 – -Fault finding programme:Starter motor does not turn 1804
1 Test prerequisites 1804
2 -Fault finding programme:Starter motor does not turn 1805
403 – -Fault finding programme:Starter motor turns too slowly and does not crank engine 1806
1 Test prerequisites 1806
404 – -Fault finding programme:Alternator warning lamp does not go out as speed increases 1807
1 Alternator warning lamp does not go out as spees increases 1807
405 – -Fault finding programme:Alternator warning lamp does not light up when ignition is switched on 1808
1 Test prerequisites 1808
406 – -Fault finding programme:Checking alternator and voltage regulator 1809
1 Contents, Test prerequisites 1809
2 Checking alternator and voltage regulator with V A G 1715, Test prerequisites 1810
3 -Fault finding programme:Checking alternator and voltage regulator 1811
407 – -Fault finding programme:Checking cruise control system (CCS) 1812
1 Contents 1812
2 Activating or deactivating cruise control system 1813
408 – -Fault finding programme:Checking sliding/tilting sunroof 1814
1 Contents, Test prerequisites 1814
2 Checking sliding/tilting sunroof (vehicles with electric windows) 1815
3 -Fault finding programme:Checking sliding/tilting sunroof 1816
4 -Fault finding programme:Checking sliding/tilting sunroof 1817
5 Checking sliding/tilting sunroof (vehicles without electric windows) 1818
6 -Fault finding programme:Checking sliding/tilting sunroof 1819
7 -Fault finding programme:Checking sliding/tilting sunroof 1820

S.V 27/01/2025
