Volkswagen Polo 2010-2015 Circuit Wiring Diagram Manual PDF

Description

Volkswagen Polo 2010-2015 Circuit Wiring Diagram Manual – PDF DOWNLOAD

FILE DETAILS:

Volkswagen Polo 2010-2015 Circuit Wiring Diagram Manual – PDF DOWNLOAD

Language : English
Pages : 2496
Downloadable : Yes
File Type : PDF

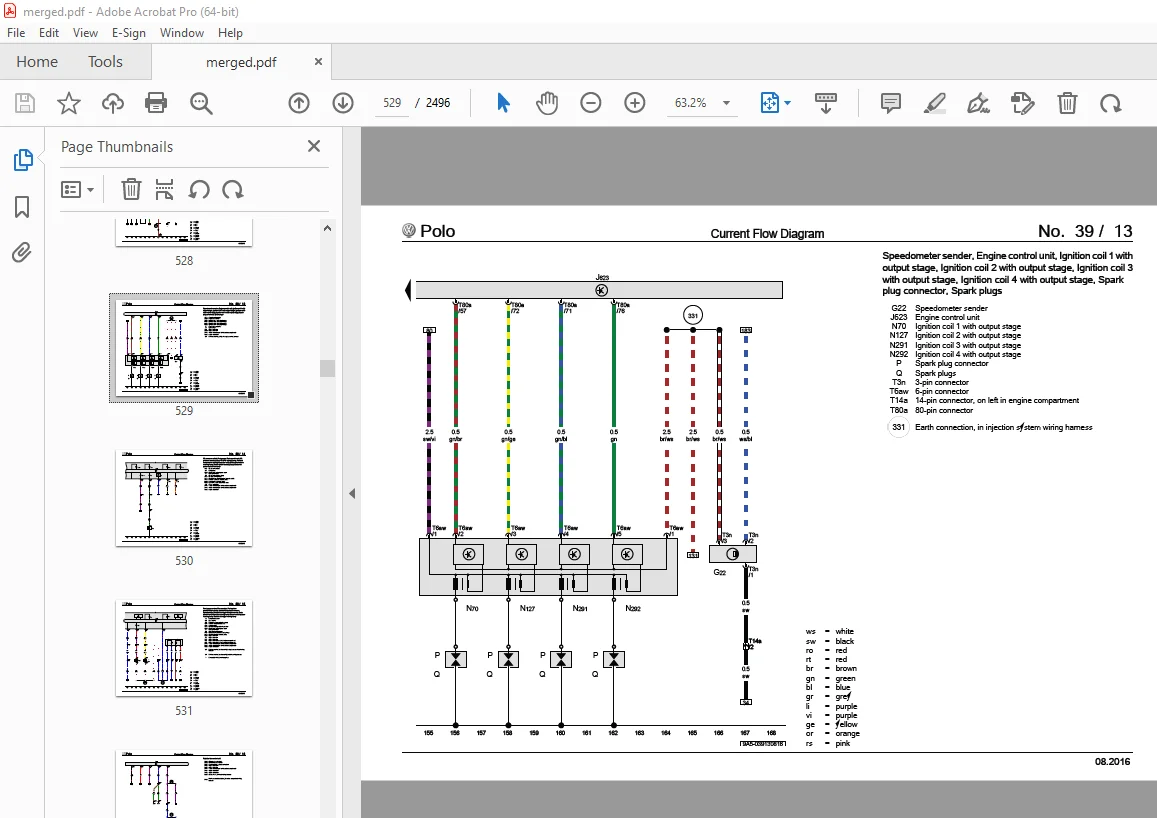

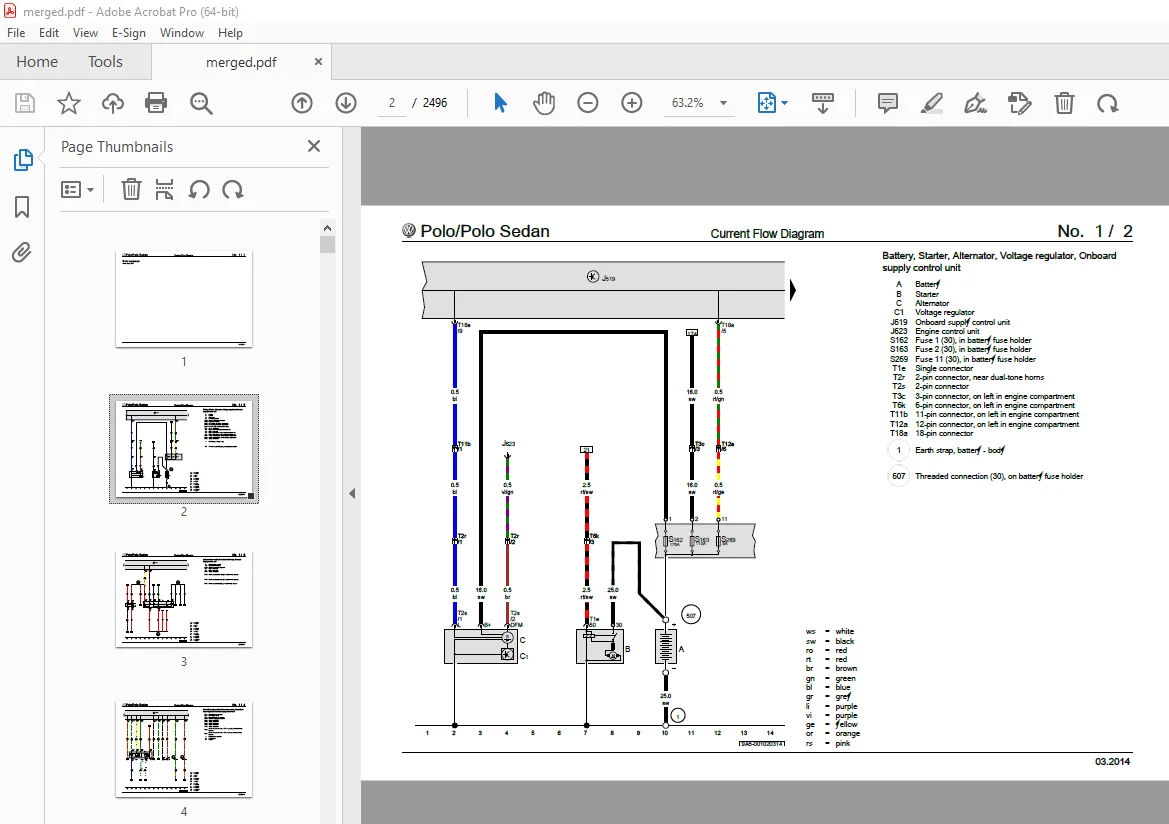

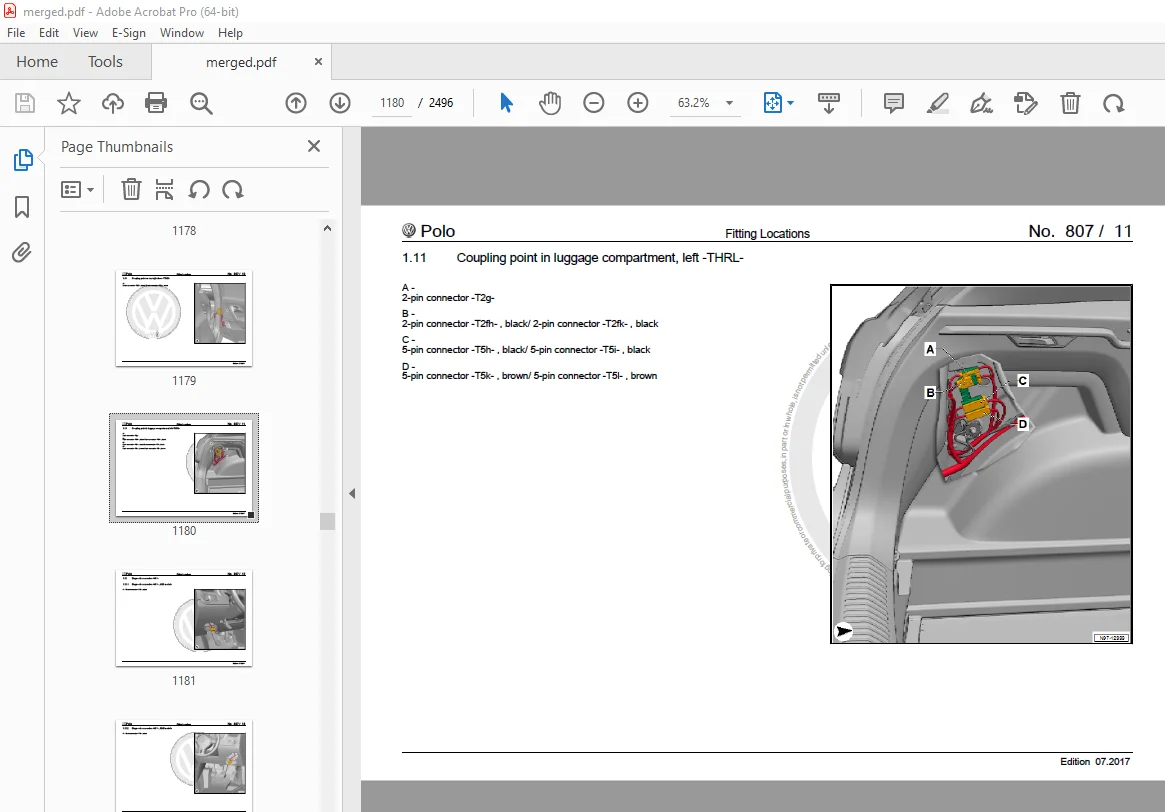

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Volkswagen Polo 2010-2015 Circuit Wiring Diagram Manual – PDF DOWNLOAD

001 –
Basic equipment 1
1
Basic equipment 1
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 2
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 3
4 Intermittent wiper switch, Rear wiper switch, Intermittent wiper regulator, Onboard supply control unit 4
5 Fuel pump relay, Onboard supply control unit, Fuel supply relay 5
6 Driver door contact switch, Front passenger door contact switch, Onboard supply control unit, Front interior light, Luggage compartment light, Glove compartment light, Front passenger reading light, Driver side reading light 6
7 Onboard supply control unit, Cigarette lighter illumination bulb, Cigarette lighter, Windscreen wiper motor 7
8 Hazard warning lights button, Heated rear window button, Handbrake warning switch, Onboard supply control unit, Heated rear window switch illumination bulb, Button illumination bulb 8
9 Luggage compartment light switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 9
10 Switch and instrument illumination regulator, Headlight range control regulator, Rear lid remote release button, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Button illumination bulb 10
11 Horn or dual tone horn, Onboard supply control unit 11
12 Reversing light switch, Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 12
13 Onboard supply control unit 13
14 Onboard supply control unit 14
15 Number plate light 15
16 Rear left fog light bulb, Left tail light bulb, Rear left turn signal bulb, Left brake and tail light bulb 16
17 Fuse 13 in fuse holder A, Fuse 21 in fuse holder A, Fuse 22 in fuse holder A 17
18 Fuse 36 in fuse holder A, Fuse 41 in fuse holder A, Fuse 43 in fuse holder A, Fuse 54 in fuse holder A 18
19 Brake light switch, Clutch pedal switch, Brake pedal switch 19
20 Additional brake light bulb, Heated rear window 20
21 Light switch, Front and rear fog light switch, Fog light warning lamp, Light switch illumination bulb 21
22 Rear left fog light bulb, Right tail light bulb, Left tail light bulb, Rear left turn signal bulb, Rear right turn signal bulb, Left reversing light bulb, Right reversing light bulb, Left brake and tail light bulb, Right brake and tail light bulb 22
23 Right tail light bulb, Left tail light bulb, Rear left turn signal bulb, Rear right turn signal bulb, Left brake and tail light bulb, Right brake and tail light bulb, Additional brake light bulb, Heated rear window 23
24 Left side light bulb, Right side light bulb, Front left turn signal bulb, Front right turn signal bulb, Left headlight dipped beam bulb, Left headlight main beam bulb, Right headlight dipped beam bulb, Right headlight main beam bulb 24
25 Luggage compartment light switch, Left reversing light bulb, Right reversing light bulb, Number plate light 25
26 Immobiliser reader coil, Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 26
27 Oil pressure switch, Brake fluid level warning contact, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp, Left turn signal warning lamp, Brake system warning lamp, Rear lid open warning lamp 27
28 Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Main beam warning lamp, Rear fog light warning lamp, Right turn signal warning lamp, Reserve fuel warning lamp, Dash panel insert illumination bulb 28
002 –
Convenience system 29
1
Convenience system 29
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 30
3 Ignition/starter switch, Onboard supply control unit 31
4 Onboard supply control unit 32
5 X-contact relief relay, Onboard supply control unit 33
6 Onboard supply control unit 34
7 Tilting mechanism button, Anti-theft alarm and vermin repellent system contact switch, Onboard supply control unit 35
8 Onboard supply control unit 36
9 Driver side interior locking switch, Driver side central locking lock unit, Convenience system central control unit, Interior lock switch illumination bulb 37
10 Interior monitoring switch, Rear lid contact switch, Convenience system central control unit 38
11 Window regulator switch in front passenger door, Front passenger side central locking lock unit, Convenience system central control unit, Window regulator switch illumination bulb 39
12 Rear left central locking lock unit, Rear right central locking lock unit, Convenience system central control unit 40
13 Rear window regulator isolation switch, Horn or dual tone horn, Anti-theft alarm system horn, Convenience system central control unit 41
14 Convenience system central control unit, Front interior light, Rear left reading light, Rear right reading light, Front passenger reading light, Driver side reading light, Light conductor for front centre console ambient lighting 42
15 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Ultrasonic sensor control unit, Convenience system central control unit, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 43
16 Front left window regulator switch, Rear left window regulator switch, in driver door, Rear right window regulator switch, in driver door, Front right window regulator switch in driver door, Convenience system central control unit, Window regulator switch illumination bulb 44
17 Convenience system central control unit, Left door warning lamp 45
18 Rear left window regulator switch, in door, Rear right window regulator switch, in door, Convenience system central control unit, Window regulator switch illumination bulb 46
19 Hazard warning lights button, Convenience system central control unit, Button illumination bulb 47
20 Convenience system central control unit, Rear left window regulator motor, Rear right window regulator motor, Driver side window regulator motor, Front passenger side window regulator motor, Tank filler flap locking motor 48
21 Convenience system central control unit 49
22 Luggage compartment light switch, Rear lid release motor, Luggage compartment light, Glove compartment light 50
23 Rear lid handle release button, Luggage compartment light switch, Contact switch in lock cylinder for rear lid, anti-theft alarm system and central locking system, Rear lid release motor, Luggage compartment light 51
24 Immobiliser reader coil, Sliding sunroof adjustment regulator, Sliding sunroof adjustment control unit, Control unit in dash panel insert, Dash panel insert, Rear lid open warning lamp, Door open warning lamp 52
003 –
1 6l engine , CCRA 53
1
1 6l engine , CCRA 53
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 54
3 Ignition/starter switch, Onboard supply control unit, Fuel supply relay 55
4 X-contact relief relay, Onboard supply control unit 56
5 Onboard supply control unit 57
6 Fuse 4 in fuse holder A, Fuse 5 in fuse holder A, Fuse 9 in fuse holder A, Fuse 10 in fuse holder A, Fuse 14 in fuse holder A, Fuse 16 in fuse holder A, Fuse 18 in fuse holder A 58
7 Fuse 25 in fuse holder A, Fuse 32 in fuse holder A, Fuse 35 in fuse holder A, Fuse 36 in fuse holder A, Fuse 37 in fuse holder A, Fuse 40 in fuse holder A, Fuse 41 in fuse holder A 59
8 Engine control unit 60
9 Engine control unit 61
10 Engine control unit 62
11 Brake light switch, Clutch pedal switch, Brake pedal switch, Engine control unit 63
12 Intake air temperature sender, Intake manifold pressure sender, Cold start device relay, Engine control unit, Fuel pump for cold start 64
13 Fuel pump relay, Engine control unit 65
14 Speedometer sender, Engine control unit, Ignition transformer, Spark plug connector, Spark plugs 66
15 Engine speed sender, Hall sender, Knock sensor 1, Coolant temperature sender, Engine control unit 67
16 Engine control unit, Cold start valve, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1 68
17 Accelerator position sender, Accelerator position sender 2, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Engine control unit 69
18 Lambda probe, Lambda probe after catalytic converter, Engine control unit 70
19 Radiator fan control unit, Radiator fan series resistor, Radiator fan 71
20 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Heater warning lamp 72
21 Oil pressure switch, Brake fluid level warning contact, Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp, Exhaust emissions warning lamp, Reserve fuel warning lamp, Brake system warning lamp 73
004 –
1 6l engine , CCRA,(2U4) 74
1
1 6l engine , CCRA,(2U4) 74
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 75
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 76
4 Handbrake warning switch, Onboard supply control unit 77
5 Reversing light switch, Onboard supply control unit 78
6 Onboard supply control unit 79
7 Onboard supply control unit 80
8 Onboard supply control unit 81
9 Fuse 5 in fuse holder A, Fuse 14 in fuse holder A, Fuse 18 in fuse holder A, Fuse 19 in fuse holder A, Fuse 20 in fuse holder A 82
10 Fuse 4 in fuse holder A, Fuse 9 in fuse holder A, Fuse 25 in fuse holder A, Fuse 32 in fuse holder A, Fuse 36 in fuse holder A, Fuse 37 in fuse holder A 83
11 Brake light switch, Clutch pedal switch, Brake pedal switch, Engine control unit 84
12 Starter motor relay, X contact relief relay 2, Engine control unit, Starter motor relay 2 85
13 Fuel pump relay, Engine control unit, Fuel supply relay 86
14 Speedometer sender, Engine control unit, Ignition transformer, Spark plug connector, Spark plugs 87
15 Engine speed sender, Hall sender, Knock sensor 1, Coolant temperature sender, Engine control unit 88
16 Intake air temperature sender, Intake manifold pressure sender, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 89
17 Accelerator position sender, Accelerator position sender 2, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Engine control unit 90
18 Clutch pedal switch for engine start, Lambda probe, Lambda probe after catalytic converter, Engine control unit, Activated charcoal filter solenoid valve 1 91
19 Engine control unit 92
20 Engine control unit 93
21 Engine control unit 94
22 Heater control unit, Fuel pre-heating heater element, Fuel preheating element 2, Fuel preheating element 3, Fuel preheating element 4 95
23 Radiator fan control unit, Radiator fan series resistor, Radiator fan 96
24 Immobiliser reader coil, Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Heater warning lamp 97
25 Oil pressure switch, Brake fluid level warning contact, Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp, Exhaust emissions warning lamp, Reserve fuel warning lamp, Brake system warning lamp 98
005 –
2 0l engine , CFEA 99
1
2 0l engine , CFEA 99
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 100
3 Ignition/starter switch, Blocking diode, X-contact relief relay, Onboard supply control unit 101
4 Onboard supply control unit, Fuel supply relay 102
5 Engine speed sender, Hall sender, Intake air temperature sender, Knock sensor 1, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 103
6 Accelerator position sender, Accelerator position sender 2, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Engine control unit 104
7 Brake light switch, Brake pedal switch, Electric drive main relay, Engine control unit 105
8 Engine control unit, Cold start valve, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1 106
9 Cruise control system switch, Cruise control system (CCS) SET button, Lambda probe, Lambda probe after catalytic converter, Engine control unit 107
10 Engine control unit 108
11 Brake fluid level warning contact, Clutch pedal switch, Fuel pump relay, Engine control unit 109
12 Cold start device relay, Engine control unit, Fuel pump for cold start 110
13 Speedometer sender, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage, Spark plug connector, Spark plugs 111
14 Oil pressure switch, Fuel gauge, Dash panel insert, Oil pressure warning lamp, Oil level warning lamp, Coolant temperature warning lamp (too cold), Exhaust emissions warning lamp, Brake system warning lamp, Electronic power control fault lamp 112
15 Fuel gauge sender, Rev counter, Fuel system pressurisation pump, Ambient temperature sensor, Speedometer, Coolant shortage indicator sender, Dash panel insert, Alternator warning lamp, Cruise control system warning lamp, Coolant shortage warning lamp 113
16 Radiator fan control unit 114
17 Radiator fan control unit 115
18 High-pressure sender, Air conditioning system magnetic clutch, Air conditioner compressor regulating valve, Radiator fan, Right radiator fan 116
19 Fuse 9 in fuse holder A, Fuse 14 in fuse holder A, Fuse 25 in fuse holder A, Fuse 35 in fuse holder A, Fuse 41 in fuse holder A 117
20 Fuse 4 in fuse holder A, Fuse 7 in fuse holder A, Fuse 10 in fuse holder A, Fuse 36 in fuse holder A, Fuse 40 in fuse holder A 118
21 Fuse 18 in fuse holder A, Fuse 32 in fuse holder A, Fuse 37 in fuse holder A, Fuse 45 in fuse holder A 119
006 –
Air conditioning system , CCRA 120
1
Air conditioning system , CCRA 120
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 121
3 Ignition/starter switch, Onboard supply control unit 122
4 Onboard supply control unit 123
5 Onboard supply control unit 124
6 X-contact relief relay 125
7 Fresh air blower switch, Air conditioning system switch, Fresh air and air recirculation flap switch, Air conditioning system control unit, Air conditioning system switch illumination bulb, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 126
8 Air conditioning system control unit 127
9 High-pressure sender, Air conditioning system control unit 128
10 Radiator fan control unit, Air conditioning system magnetic clutch, Radiator fan 129
11 Immobiliser reader coil, Control unit in dash panel insert, Immobiliser control unit, Dash panel insert 130
007 –
Climatronic 131
1
Climatronic 131
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 132
3 Ignition/starter switch, Onboard supply control unit 133
4 X-contact relief relay, Radiator fan control unit 134
5 Radiator fan control unit, Radiator fan series resistor, Radiator fan 135
6 High-pressure sender, Right radiator fan 136
7 Centre vent temperature sender, Footwell vent temperature sender, Evaporator output temperature sender, Climatronic control unit 137
8 Fresh air and air recirculation flap switch, Dash panel temperature sensor, Climatronic control unit, Fresh air and air recirculation warning lamp, Fresh air regulator illumination bulb, Air conditioner compressor regulating valve, Temperature sensor blower 138
9 Potentiometer for temperature selection rotary knob, Control and regulating unit for air conditioning system, Climatronic control unit, Fresh air blower 139
10 Potentiometer for temperature flap control motor, Potentiometer for footwell/defroster flap control motor, Potentiometer for air recirculation flap control motor, Climatronic control unit, Temperature flap control motor, Footwell and defroster flap co
trol motor 140
11 Sunlight penetration photosensor, Potentiometer for defroster flap control motor, Climatronic control unit, Defroster flap control motor 141
12 Rev counter, Ambient temperature sensor, Speedometer, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 142
008 –
Automated manual gearbox , CCRA 143
1
Automated manual gearbox , CCRA 143
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 144
3 Ignition/starter switch, Onboard supply control unit 145
4 Automatic gearbox control unit, Gearbox hydraulic pump relay, Hydraulic pump for gearbox 146
5 Brake light switch, Brake pedal switch, Automatic gearbox control unit 147
6 Automatic gearbox control unit 148
7 Handbrake warning switch, Automatic gearbox control unit, Clutch actuator valve, Selector lever valve 1, Selector lever valve 2, Selector lever valve 3 149
8 Gearbox input speed sender, Clutch position sender, Gear detection sensor, Automatic gearbox control unit 150
9 Gearbox hydraulic pressure sender, Sensor 2 for gear detection, Automatic gearbox control unit 151
10 X-contact relief relay, Selector lever sensors control unit 152
11 Starter motor relay, X contact relief relay 2, Starter motor relay 2 153
12 Fuse 4 in fuse holder A, Fuse 10 in fuse holder A, Fuse 18 in fuse holder A, Fuse 32 in fuse holder A, Fuse 33 in fuse holder A, Fuse 39 in fuse holder A, Fuse 42 in fuse holder A 154
13 Operating unit in steering wheel, Tiptronic switch in steering wheel to shift down, Multifunction buttons on left in steering wheel, Airbag coil connector and return ring with slip ring, Horn plate 155
14 Operating unit in steering wheel, Tiptronic switch in steering wheel to shift up, Multifunction buttons on left in steering wheel, Multifunction buttons on right in steering wheel 156
15 Immobiliser reader coil, Rev counter, Speedometer, Control unit in dash panel insert, Immobiliser control unit, Dash panel insert 157
009 –
Airbag systems 158
1
Airbag systems 158
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 159
3 Ignition/starter switch, Onboard supply control unit 160
4 Onboard supply control unit 161
5 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Airbag warning lamp 162
6 Onboard supply control unit 163
7 Airbag coil connector and return ring with slip ring, Airbag control unit, Driver side airbag igniter, Front passenger side airbag igniter 1 164
010 –
Anti-lock brake system (ABS) 165
1
Anti-lock brake system (ABS) 165
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 166
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 167
4 Onboard supply control unit 168
5 Handbrake warning switch, Onboard supply control unit 169
6 Onboard supply control unit 170
7 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit, Front right ABS inlet valve, Front right ABS outlet valve, Front left ABS inlet valve, Front left ABS outlet valve 171
8 ABS control unit, ABS return flow pump relay, ABS solenoid valve relay, ABS return flow pump 172
9 Brake light switch, Brake pedal switch, ABS control unit, Rear right ABS inlet valve, Rear left ABS inlet valve, Rear right ABS outlet valve, Rear left ABS outlet valve 173
10 Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, ABS warning lamp, Tyre Pressure Loss Indicator warning lamp 174
011 –
Coming home 175
1
Coming home 175
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 176
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 177
4 Onboard supply control unit 178
5 Rev counter, Speedometer, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Main beam warning lamp, Alternator warning lamp, Rear fog light warning lamp, Dash panel insert illumination bulb 179
6 Onboard supply control unit, Windscreen wiper motor 180
7 Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 181
8 Onboard supply control unit, Fuse 2 in fuse holder A, Fuse 21 in fuse holder A, Fuse 22 in fuse holder A, Fuse 44 in fuse holder A 182
9 Onboard supply control unit 183
10 Onboard supply control unit 184
11 Fuse 1 in fuse holder A, Fuse 3 in fuse holder A, Fuse 18 in fuse holder A, Fuse 20 in fuse holder A, Fuse 43 in fuse holder A, Fuse 54 in fuse holder A 185
12 Fuse 12 in fuse holder A, Fuse 13 in fuse holder A 186
13 Left fog light bulb, Right fog light bulb, Left side light bulb, Right side light bulb, Left headlight dipped beam bulb, Left headlight main beam bulb, Right headlight dipped beam bulb, Right headlight main beam bulb 187
14 Rear left fog light bulb, Right tail light bulb, Left tail light bulb, Left brake and tail light bulb, Right brake and tail light bulb 188
15 Rear left fog light bulb, Number plate light 189
16 Light switch, Fog light switch, Rear fog light switch, Rain and light sensor, Control unit for lighting and wiper functions, Light switch illumination bulb, Front and rear fog light switch illumination bulb 190
17 Fog light relay, Control unit for lighting and wiper functions 191
18 Control unit for lighting and wiper functions 192
19 Control unit for lighting and wiper functions 193
012 –
Interactive system 194
1
Interactive system 194
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 195
3 Ignition/starter switch, Onboard supply control unit 196
4 X-contact relief relay, Onboard supply control unit 197
5 Onboard supply control unit 198
6 Onboard supply control unit, Control unit for interactive system, Radio 199
7 Onboard supply control unit, Control unit for interactive system 200
8 Onboard supply control unit 201
9 Multifunction indicator, Control unit in dash panel insert, Dash panel insert 202
10 Control unit in dash panel insert, Dash panel insert, Dash panel insert illumination bulb 203
11 Headlight dipper and flasher switch, Parking light switch, Multifunction display call-up button 204
013 –
Radio 205
1
Radio 205
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 206
3 Ignition/starter switch, Onboard supply control unit 207
4 Onboard supply control unit 208
5 X-contact relief relay, Onboard supply control unit 209
6 Radio, Rear left treble loudspeaker, Rear left bass loudspeaker, Rear right treble loudspeaker, Rear right bass loudspeaker 210
7 Radio, Aerial, Front left treble loudspeaker, Front left bass loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 211
8 Control unit for interactive system, Radio 212
9 Immobiliser reader coil, Control unit in dash panel insert, Dash panel insert 213
014 –
Multifunction steering wheel 214
1
Multifunction steering wheel 214
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 215
3 Ignition/starter switch, Onboard supply control unit 216
4 X-contact relief relay, Onboard supply control unit 217
5 Multifunction indicator, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 218
6 Onboard supply control unit 219
7 Operating unit in steering wheel, Multifunction buttons on left in steering wheel, Tiptronic switch (shift down), Airbag coil connector and return ring with slip ring, Horn plate, Driver side airbag igniter 220
8 Operating unit in steering wheel, Multifunction buttons on left in steering wheel, Multifunction buttons on right in steering wheel, Tiptronic switch (shift up) 221
015 –
Light switch 222
1
Light switch 222
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 223
3 Ignition/starter switch, Onboard supply control unit 224
4 Onboard supply control unit 225
5 Onboard supply control unit 226
6 X-contact relief relay, Onboard supply control unit 227
7 Onboard supply control unit 228
8 Blocking diode, Onboard supply control unit 229
9 Light switch, Front and rear fog light switch, Fog light warning lamp, Light switch illumination bulb 230
10 Intermittent wiper switch, Rear wiper switch, Intermittent wiper regulator, Airbag coil connector and return ring with slip ring 231
11 Turn signal switch, Headlight dipper and flasher switch, Parking light switch, Cruise control system switch, Multifunction display call-up button, Cruise control system (CCS) SET button 232
12 Control unit in dash panel insert, Dash panel insert, Dash panel insert illumination bulb 233
13 Immobiliser reader coil, Multifunction indicator, Control unit in dash panel insert, Dash panel insert 234
016 –
Window wash/wipe system and heated rear window 235
1
Window wash/wipe system and heated rear window 235
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 236
3 Ignition/starter switch, Onboard supply control unit 237
4 Intermittent wiper regulator, X-contact relief relay, Onboard supply control unit 238
5 Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 239
6 Heated rear window button, Onboard supply control unit, Heated rear window switch illumination bulb, Heated rear window 240
7 Onboard supply control unit, Windscreen wiper motor 241
8 Onboard supply control unit 242
9 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 243
017 –
Fog light and rear fog light 244
1
Fog light and rear fog light 244
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 245
3 Ignition/starter switch, Onboard supply control unit 246
4 Onboard supply control unit 247
5 Light switch, Front and rear fog light switch, Headlight range control regulator, Onboard supply control unit, Fog light warning lamp, Light switch illumination bulb 248
6 X-contact relief relay 249
7 Left fog light bulb, Right fog light bulb, Rear left fog light bulb 250
8 Immobiliser reader coil, Control unit in dash panel insert, Dash panel insert, Rear fog light warning lamp 251
018 –
Automatic anti-dazzle interior mirror 252
1
Automatic anti-dazzle interior mirror 252
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 253
3 Ignition/starter switch, Onboard supply control unit 254
4 X-contact relief relay, Onboard supply control unit 255
5 Onboard supply control unit 256
6 Anti-dazzle interior mirror button, Rain and light sensor, Onboard supply control unit 257
019 –
System for lowering passenger side mirror 258
1
System for lowering passenger side mirror 258
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 259
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 260
4 Onboard supply control unit 261
5 Onboard supply control unit 262
6 Onboard supply control unit 263
7 Mirror adjustment switch, Mirror adjustment changeover switch, Onboard supply control unit, Mirror adjustment switch illumination bulb 264
8 Onboard supply control unit, Driver side turn signal repeater bulb, Driver side mirror adjustment motor, Driver side mirror adjustment motor 265
9 Potentiometer for horizontal adjustment of front passenger side mirror, Potentiometer for vertical adjustment of front passenger side mirror, Mirror memory control unit, Front passenger side mirror adjustment motor, Front passenger side mirror adjustme
t motor 266
10 Mirror memory control unit 267
11 Mirror memory control unit 268
12 Reversing light switch, Left reversing light bulb, Right reversing light bulb 269
13 Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 270
020 –
Parking aid (PDC) 271
1
Parking aid (PDC) 271
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 272
3 Ignition/starter switch, Onboard supply control unit 273
4 Reversing light switch, Onboard supply control unit 274
5 Onboard supply control unit 275
6 Rear parking aid warning buzzer, X-contact relief relay, Parking aid control unit 276
7 Parking aid control unit 277
8 Rear left parking aid sender, Rear centre left parking aid sender, Rear centre right parking aid sender, Rear right parking aid sender 278
9 Immobiliser reader coil, Control unit in dash panel insert, Immobiliser control unit, Dash panel insert 279
021 –
Electrohydraulic power steering 280
1
Electrohydraulic power steering 280
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 281
3 Ignition/starter switch, Onboard supply control unit 282
4 Power steering sensor, Power steering control unit, Onboard supply control unit, Steering hydraulics pump 283
5 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Alternator warning lamp, Electrohydraulic power steering warning lamp 284
6 X-contact relief relay 285
022 –
Climatronic 286
1
Climatronic 286
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 287
3 Ignition/starter switch, Onboard supply control unit 288
4 X-contact relief relay, Radiator fan control unit 289
5 Radiator fan control unit, Radiator fan series resistor, Radiator fan 290
6 High-pressure sender, Right radiator fan 291
7 Centre vent temperature sender, Footwell vent temperature sender, Evaporator output temperature sender, Climatronic control unit 292
8 Fresh air and air recirculation flap switch, Dash panel temperature sensor, Climatronic control unit, Fresh air and air recirculation warning lamp, Fresh air regulator illumination bulb, Air conditioner compressor regulating valve, Temperature sensor blower 293
9 Potentiometer for temperature selection rotary knob, Control and regulating unit for air conditioning system, Climatronic control unit, Fresh air blower 294
10 Potentiometer for temperature flap control motor, Potentiometer for footwell/defroster flap control motor, Potentiometer for air recirculation flap control motor, Climatronic control unit, Temperature flap control motor, Footwell and defroster flap co
trol motor 295
11 Sunlight penetration photosensor, Potentiometer for defroster flap control motor, Climatronic control unit, Defroster flap control motor 296
12 Rev counter, Ambient temperature sensor, Speedometer, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 297
023 –
Coming home 298
1
Coming home 298
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 299
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 300
4 Onboard supply control unit 301
5 Rev counter, Speedometer, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Main beam warning lamp, Alternator warning lamp, Rear fog light warning lamp, Dash panel insert illumination bulb 302
6 Onboard supply control unit, Windscreen wiper motor 303
7 Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 304
8 Onboard supply control unit, Fuse 2 in fuse holder A, Fuse 21 in fuse holder A, Fuse 22 in fuse holder A, Fuse 44 in fuse holder A 305
9 Onboard supply control unit 306
10 Onboard supply control unit 307
11 Fuse 1 in fuse holder A, Fuse 3 in fuse holder A, Fuse 18 in fuse holder A, Fuse 20 in fuse holder A, Fuse 43 in fuse holder A, Fuse 54 in fuse holder A 308
12 Fuse 12 in fuse holder A, Fuse 13 in fuse holder A 309
13 Left fog light bulb, Right fog light bulb, Left side light bulb, Right side light bulb, Left headlight dipped beam bulb, Left headlight main beam bulb, Right headlight dipped beam bulb, Right headlight main beam bulb 310
14 Rear left fog light bulb, Right tail light bulb, Left tail light bulb, Left brake and tail light bulb, Right brake and tail light bulb 311
15 Rear left fog light bulb, Number plate light 312
16 Light switch, Fog light switch, Rear fog light switch, Rain and light sensor, Control unit for lighting and wiper functions, Light switch illumination bulb, Front and rear fog light switch illumination bulb 313
17 Fog light relay, Control unit for lighting and wiper functions 314
18 Control unit for lighting and wiper functions 315
19 Control unit for lighting and wiper functions 316
024 –
Parking aid (PDC) 317
1
Parking aid (PDC) 317
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 318
3 Ignition/starter switch, Onboard supply control unit 319
4 Reversing light switch, Onboard supply control unit 320
5 Onboard supply control unit 321
6 Rear parking aid warning buzzer, X-contact relief relay, Parking aid control unit 322
7 Parking aid control unit 323
8 Rear left parking aid sender, Rear centre left parking aid sender, Rear centre right parking aid sender, Rear right parking aid sender 324
9 Immobiliser reader coil, Control unit in dash panel insert, Immobiliser control unit, Dash panel insert 325
025 –
Electrohydraulic power steering 326
1
Electrohydraulic power steering 326
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 327
3 Ignition/starter switch, Onboard supply control unit 328
4 Power steering sensor, Power steering control unit, Onboard supply control unit, Steering hydraulics pump 329
5 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Alternator warning lamp, Electrohydraulic power steering warning lamp 330
6 X-contact relief relay 331
026 –
Basic equipment 332
1
Basic equipment 332
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 333
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 334
4 Intermittent wiper switch, Rear wiper switch, Intermittent wiper regulator, Onboard supply control unit 335
5 Fuel pump relay, Onboard supply control unit, Fuel supply relay 336
6 Driver door contact switch, Front passenger door contact switch, Onboard supply control unit, Front interior light, Luggage compartment light, Glove compartment light, Front passenger reading light, Driver side reading light 337
7 Onboard supply control unit, Cigarette lighter illumination bulb, Cigarette lighter, Windscreen wiper motor 338
8 Hazard warning lights button, Heated rear window button, Handbrake warning switch, Onboard supply control unit, Heated rear window switch illumination bulb, Button illumination bulb 339
9 Luggage compartment light switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 340
10 Switch and instrument illumination regulator, Headlight range control regulator, Rear lid remote release button, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Button illumination bulb 341
11 Horn or dual tone horn, Onboard supply control unit 342
12 Reversing light switch, Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 343
13 Onboard supply control unit 344
14 Onboard supply control unit 345
15 Number plate light 346
16 Rear left fog light bulb, Left tail light bulb, Rear left turn signal bulb, Left brake and tail light bulb 347
17 Fuse 13 in fuse holder A, Fuse 21 in fuse holder A, Fuse 22 in fuse holder A 348
18 Fuse 36 in fuse holder A, Fuse 41 in fuse holder A, Fuse 43 in fuse holder A, Fuse 54 in fuse holder A 349
19 Brake light switch, Clutch pedal switch 350
20 High-level brake light bulb, Heated rear window 351
21 Light switch, Front and rear fog light switch, Fog light warning lamp, Light switch illumination bulb 352
22 Rear left fog light bulb, Right tail light bulb, Left tail light bulb, Rear left turn signal bulb, Rear right turn signal bulb, Left reversing light bulb, Right reversing light bulb, Left brake and tail light bulb, Right brake and tail light bulb 353
23 Right tail light bulb, Left tail light bulb, Rear left turn signal bulb, Rear right turn signal bulb, Left brake and tail light bulb, Right brake and tail light bulb, High-level brake light bulb, Heated rear window 354
24 Left side light bulb, Right side light bulb, Front left turn signal bulb, Front right turn signal bulb, Left headlight dipped beam bulb, Left headlight main beam bulb, Right headlight dipped beam bulb, Right headlight main beam bulb 355
25 Luggage compartment light switch, Left reversing light bulb, Right reversing light bulb, Number plate light 356
26 Immobiliser reader coil, Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 357
27 Oil pressure switch, Brake fluid level warning contact, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp, Left turn signal warning lamp, Brake system warning lamp, Rear lid open warning lamp 358
28 Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Main beam warning lamp, Rear fog light warning lamp, Right turn signal warning lamp, Reserve fuel warning lamp, Dash panel insert illumination bulb 359
027 –
Automatic anti-dazzle interior mirror 360
1
Automatic anti-dazzle interior mirror 360
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 361
3 Ignition/starter switch, Onboard supply control unit 362
4 X-contact relief relay, Onboard supply control unit 363
5 Onboard supply control unit 364
6 Anti-dazzle interior mirror button, Rain and light sensor, Onboard supply control unit 365
028 –
Light switch 366
1
Light switch 366
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 367
3 Ignition/starter switch, Onboard supply control unit 368
4 Onboard supply control unit 369
5 Onboard supply control unit 370
6 X-contact relief relay, Onboard supply control unit 371
7 Onboard supply control unit 372
8 Blocking diode, Onboard supply control unit 373
9 Light switch, Front and rear fog light switch, Fog light warning lamp, Light switch illumination bulb 374
10 Intermittent wiper switch, Rear wiper switch, Intermittent wiper regulator, Airbag coil connector and return ring with slip ring 375
11 Turn signal switch, Headlight dipper and flasher switch, Parking light switch, Cruise control system switch, Multifunction display call-up button, Cruise control system (CCS) SET button 376
12 Control unit in dash panel insert, Dash panel insert, Dash panel insert illumination bulb 377
13 Immobiliser reader coil, Multifunction indicator, Control unit in dash panel insert, Dash panel insert 378
029 –
Multifunction steering wheel 379
1
Multifunction steering wheel 379
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 380
3 Ignition/starter switch, Onboard supply control unit 381
4 X-contact relief relay, Onboard supply control unit 382
5 Multifunction indicator, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 383
6 Onboard supply control unit 384
7 Operating unit in steering wheel, Multifunction buttons on left in steering wheel, Tiptronic switch (shift down), Airbag coil connector and return ring with slip ring, Horn plate, Driver side airbag igniter 385
8 Operating unit in steering wheel, Multifunction buttons on left in steering wheel, Multifunction buttons on right in steering wheel, Tiptronic switch (shift up) 386
030 –
Fog light and rear fog light 387
1
Fog light and rear fog light 387
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 388
3 Ignition/starter switch, Onboard supply control unit 389
4 Onboard supply control unit 390
5 Light switch, Front and rear fog light switch, Headlight range control regulator, Onboard supply control unit, Fog light warning lamp, Light switch illumination bulb 391
6 X-contact relief relay 392
7 Left fog light bulb, Right fog light bulb, Rear left fog light bulb 393
8 Immobiliser reader coil, Control unit in dash panel insert, Dash panel insert, Rear fog light warning lamp 394
031 –
Radio 395
1
Radio 395
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 396
3 Ignition/starter switch, Onboard supply control unit 397
4 Onboard supply control unit 398
5 X-contact relief relay, Onboard supply control unit 399
6 Radio, Rear left treble loudspeaker, Rear left bass loudspeaker, Rear right treble loudspeaker, Rear right bass loudspeaker 400
7 Radio, Aerial, Front left treble loudspeaker, Front left bass loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 401
8 Control unit for interactive system, Radio 402
9 Immobiliser reader coil, Control unit in dash panel insert, Dash panel insert 403
032 –
Convenience system 404
1
Convenience system 404
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 405
3 Ignition/starter switch, Onboard supply control unit 406
4 Onboard supply control unit 407
5 X-contact relief relay, Onboard supply control unit 408
6 Onboard supply control unit 409
7 Tilting mechanism button, Anti-theft alarm and vermin repellent system contact switch, Onboard supply control unit 410
8 Onboard supply control unit 411
9 Driver side interior locking switch, Driver side central locking lock unit, Convenience system central control unit, Interior lock switch illumination bulb 412
10 Interior monitoring switch, Rear lid contact switch, Convenience system central control unit 413
11 Window regulator switch in front passenger door, Front passenger side central locking lock unit, Convenience system central control unit, Window regulator switch illumination bulb 414
12 Rear left central locking lock unit, Rear right central locking lock unit, Convenience system central control unit 415
13 Rear window regulator isolation switch, Horn or dual tone horn, Anti-theft alarm system horn, Convenience system central control unit 416
14 Convenience system central control unit, Front interior light, Rear left reading light, Rear right reading light, Front passenger reading light, Driver side reading light, Light conductor for front centre console ambient lighting 417
15 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Ultrasonic sensor control unit, Convenience system central control unit, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 418
16 Front left window regulator switch, Rear left window regulator switch, in driver door, Rear right window regulator switch, in driver door, Front right window regulator switch in driver door, Convenience system central control unit, Window regulator switch illumination bulb 419
17 Convenience system central control unit, Left door warning lamp 420
18 Rear left window regulator switch, in door, Rear right window regulator switch, in door, Convenience system central control unit, Window regulator switch illumination bulb 421
19 Hazard warning lights button, Convenience system central control unit, Button illumination bulb 422
20 Convenience system central control unit, Rear left window regulator motor, Rear right window regulator motor, Driver side window regulator motor, Front passenger side window regulator motor, Tank filler flap locking motor 423
21 Convenience system central control unit 424
22 Luggage compartment light switch, Rear lid release motor, Luggage compartment light, Glove compartment light 425
23 Rear lid handle release button, Luggage compartment light switch, Contact switch in lock cylinder for rear lid, anti-theft alarm system and central locking system, Rear lid release motor, Luggage compartment light 426
24 Immobiliser reader coil, Sliding sunroof adjustment regulator, Sliding sunroof adjustment control unit, Control unit in dash panel insert, Dash panel insert, Rear lid open warning lamp, Door open warning lamp 427
033 –
Automated manual gearbox , CCRA 428
1
Automated manual gearbox , CCRA 428
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 429
3 Ignition/starter switch, Onboard supply control unit 430
4 Automatic gearbox control unit, Gearbox hydraulic pump relay, Hydraulic pump for gearbox 431
5 Brake light switch, Brake pedal switch, Automatic gearbox control unit 432
6 Automatic gearbox control unit 433
7 Handbrake warning switch, Automatic gearbox control unit, Clutch actuator valve, Selector lever valve 1, Selector lever valve 2, Selector lever valve 3 434
8 Gearbox input speed sender, Clutch position sender, Gear detection sensor, Automatic gearbox control unit 435
9 Gearbox hydraulic pressure sender, Sensor 2 for gear detection, Automatic gearbox control unit 436
10 X-contact relief relay, Selector lever sensors control unit 437
11 Starter motor relay, X contact relief relay 2, Starter motor relay 2 438
12 Fuse 4 in fuse holder A, Fuse 10 in fuse holder A, Fuse 18 in fuse holder A, Fuse 32 in fuse holder A, Fuse 33 in fuse holder A, Fuse 39 in fuse holder A, Fuse 42 in fuse holder A 439
13 Operating unit in steering wheel, Tiptronic switch in steering wheel to shift down, Multifunction buttons on left in steering wheel, Airbag coil connector and return ring with slip ring, Horn plate 440
14 Operating unit in steering wheel, Tiptronic switch in steering wheel to shift up, Multifunction buttons on left in steering wheel, Multifunction buttons on right in steering wheel 441
15 Immobiliser reader coil, Rev counter, Speedometer, Control unit in dash panel insert, Immobiliser control unit, Dash panel insert 442
034 –
Air conditioning system , CCRA 443
1
Air conditioning system , CCRA 443
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 444
3 Ignition/starter switch, Onboard supply control unit 445
4 Onboard supply control unit 446
5 Onboard supply control unit 447
6 X-contact relief relay 448
7 Fresh air blower switch, Air conditioning system switch, Fresh air and air recirculation flap switch, Air conditioning system control unit, Air conditioning system switch illumination bulb, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 449
8 Air conditioning system control unit 450
9 High-pressure sender, Air conditioning system control unit 451
10 Radiator fan control unit, Air conditioning system magnetic clutch, Radiator fan 452
11 Immobiliser reader coil, Control unit in dash panel insert, Immobiliser control unit, Dash panel insert 453
035 –
Airbag systems 454
1
Airbag systems 454
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 455
3 Ignition/starter switch, Onboard supply control unit 456
4 Onboard supply control unit 457
5 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Airbag warning lamp 458
6 Onboard supply control unit 459
7 Airbag coil connector and return ring with slip ring, Airbag control unit, Driver side airbag igniter, Front passenger side airbag igniter 1 460
036 –
Anti-lock brake system (ABS) 461
1
Anti-lock brake system (ABS) 461
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 462
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 463
4 Onboard supply control unit 464
5 Handbrake warning switch, Onboard supply control unit 465
6 Onboard supply control unit 466
7 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit, Front right ABS inlet valve, Front right ABS outlet valve, Front left ABS inlet valve, Front left ABS outlet valve 467
8 ABS control unit, ABS return flow pump relay, ABS solenoid valve relay, ABS return flow pump 468
9 Brake light switch, Brake pedal switch, ABS control unit, Rear right ABS inlet valve, Rear left ABS inlet valve, Rear right ABS outlet valve, Rear left ABS outlet valve 469
10 Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, ABS warning lamp, Tyre Pressure Loss Indicator warning lamp 470
037 –
1 6l engine , CCRA 471
1
1 6l engine , CCRA 471
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 472
3 Ignition/starter switch, Onboard supply control unit, Fuel supply relay 473
4 X-contact relief relay, Onboard supply control unit 474
5 Onboard supply control unit 475
6 476
7 477
8 Engine control unit 478
9 Engine control unit 479
10 Engine control unit 480
11 Brake light switch, Clutch pedal switch, Engine control unit 481
12 Intake air temperature sender, Intake manifold pressure sender, Cold start device relay, Engine control unit, Fuel pump for cold start 482
13 Fuel pump relay, Engine control unit 483
14 Speedometer sender, Engine control unit, Ignition transformer, Spark plug connector, Spark plugs 484
15 Engine speed sender, Hall sender, Knock sensor 1, Coolant temperature sender, Engine control unit 485
16 Engine control unit, Cold start valve, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1 486
17 Accelerator position sender, Accelerator position sender 2, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Engine control unit 487
18 Lambda probe, Lambda probe after catalytic converter, Engine control unit 488
19 Radiator fan control unit, Radiator fan series resistor, Radiator fan 489
20 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Heater warning lamp 490
21 Oil pressure switch, Brake fluid level warning contact, Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp, Exhaust emissions warning lamp, Reserve fuel warning lamp, Brake system warning lamp 491
038 –
1 6l engine , CCRA,(2U4) 492
1
1 6l engine , CCRA,(2U4) 492
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 493
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 494
4 Handbrake warning switch, Onboard supply control unit 495
5 Reversing light switch, Onboard supply control unit 496
6 Onboard supply control unit 497
7 Onboard supply control unit 498
8 Onboard supply control unit 499
9 500
10 501
11 Brake light switch, Clutch pedal switch, Engine control unit 502
12 Starter motor relay, X contact relief relay 2, Engine control unit, Starter motor relay 2 503
13 Fuel pump relay, Engine control unit, Fuel supply relay 504
14 Speedometer sender, Engine control unit, Ignition transformer, Spark plug connector, Spark plugs 505
15 Engine speed sender, Hall sender, Knock sensor 1, Coolant temperature sender, Engine control unit 506
16 Intake air temperature sender, Intake manifold pressure sender, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 507
17 Accelerator position sender, Accelerator position sender 2, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Engine control unit 508
18 Clutch pedal switch for engine start, Lambda probe, Lambda probe after catalytic converter, Engine control unit, Activated charcoal filter solenoid valve 1 509
19 Engine control unit 510
20 Engine control unit 511
21 Engine control unit 512
22 Heater control unit, Fuel pre-heating heater element, Fuel preheating element 2, Fuel preheating element 3, Fuel preheating element 4 513
23 Radiator fan control unit, Radiator fan series resistor, Radiator fan 514
24 Immobiliser reader coil, Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Heater warning lamp 515
25 Oil pressure switch, Brake fluid level warning contact, Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp, Exhaust emissions warning lamp, Reserve fuel warning lamp, Brake system warning lamp 516
039 –
2 0l engine , CFEA 517
1
2 0l engine , CFEA 517
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 518
3 Ignition/starter switch, Blocking diode, X-contact relief relay, Onboard supply control unit 519
4 Onboard supply control unit, Fuel supply relay 520
5 Engine speed sender, Hall sender, Intake air temperature sender, Knock sensor 1, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 521
6 Accelerator position sender, Accelerator position sender 2, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Engine control unit 522
7 Brake light switch, Electric drive main relay, Engine control unit 523
8 Engine control unit, Cold start valve, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1 524
9 Cruise control system switch, Cruise control system (CCS) SET button, Lambda probe, Lambda probe after catalytic converter, Engine control unit 525
10 Engine control unit 526
11 Brake fluid level warning contact, Clutch pedal switch, Fuel pump relay, Engine control unit 527
12 Cold start device relay, Engine control unit, Fuel pump for cold start 528
13 Speedometer sender, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage, Spark plug connector, Spark plugs 529
14 Oil pressure switch, Fuel gauge, Dash panel insert, Oil pressure warning lamp, Oil level warning lamp, Coolant temperature warning lamp (too cold), Exhaust emissions warning lamp, Brake system warning lamp, Electronic power control fault lamp 530
15 Fuel gauge sender, Rev counter, Fuel system pressurisation pump, Ambient temperature sensor, Speedometer, Coolant shortage indicator sender, Dash panel insert, Alternator warning lamp, Cruise control system warning lamp, Coolant shortage warning lamp 531
16 Radiator fan control unit 532
17 Radiator fan control unit 533
18 High-pressure sender, Air conditioning system magnetic clutch, Air conditioner compressor regulating valve, Radiator fan, Right radiator fan 534
19 535
20 536
21 537
040 –
Interactive system 538
1
Interactive system 538
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 539
3 Ignition/starter switch, Onboard supply control unit 540
4 X-contact relief relay, Onboard supply control unit 541
5 Onboard supply control unit 542
6 Onboard supply control unit, Control unit for interactive system, Radio 543
7 Onboard supply control unit, Control unit for interactive system 544
8 Onboard supply control unit 545
9 Multifunction indicator, Control unit in dash panel insert, Dash panel insert 546
10 Control unit in dash panel insert, Dash panel insert, Dash panel insert illumination bulb 547
11 Headlight dipper and flasher switch, Parking light switch, Multifunction display call-up button 548
041 –
Window wash/wipe system 549
1
Window wash/wipe system 549
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 550
3 Ignition/starter switch, Onboard supply control unit 551
4 Intermittent wiper regulator, X-contact relief relay, Onboard supply control unit 552
5 Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 553
6 Heated rear window button, Onboard supply control unit, Heated rear window switch illumination bulb, Heated rear window 554
7 Onboard supply control unit, Windscreen wiper motor 555
8 Onboard supply control unit 556
9 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 557
042 –
System for lowering passenger side mirror 558
1
System for lowering passenger side mirror 558
2 Battery, Starter, Alternator, Voltage regulator, Onboard supply control unit 559
3 Ignition/starter switch, X-contact relief relay, Onboard supply control unit 560
4 Onboard supply control unit 561
5 Onboard supply control unit 562
6 Onboard supply control unit 563
7 Mirror adjustment switch, Mirror adjustment changeover switch, Onboard supply control unit, Mirror adjustment switch illumination bulb 564
8 Onboard supply control unit, Driver side turn signal repeater bulb, Driver side mirror adjustment motor 2, Driver side mirror adjustment motor 565
9 Potentiometer for horizontal adjustment of front passenger side mirror, Potentiometer for vertical adjustment of front passenger side mirror, Mirror memory control unit, Front passenger side mirror adjustment motor 2, Front passenger side mirror adjustment motor 566
10 Mirror memory control unit 567
11 Mirror memory control unit 568
12 Reversing light switch, Left reversing light bulb, Right reversing light bulb 569
13 Rev counter, Speedometer, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 570
801 – -Fitting Locations: Earth points – 3 571
1 Earth points 571
1 1 Engine compartment earth points 571
1 2 Vehicle interior earth points 573
1 3 Earth points in the rear vehicle area (Hatch) 575
1 4 Earth points in the rear vehicle area (Sedan) 577
802 – Fitting Locations – Fuses – 3 580
1 Fuse Locations 580
1 1 Fuse holder -SA- 581
1 1 1 Fuse colours 581
1 1 2 Fuse holder A -SA-, as of July 2011 582
1 2 Battery fuse holder -S- 586
1 2 1 Fuse cable colours 586
1 2 2 Battery fuse holder -S-, as of April, 2011 587
1 3 Battery fuse holder -S- 588
1 3 1 Fuse colours 588
1 3 2 Battery fuse holder -S-, as of April, 2011 589
803 – Fitting Locations – Relays – 3 591
1 Relays 591
1 1 Relay plate to the left, behind the dashboard 591
1 1 1 Relay descriptions: 591
804 – Fitting locations – Control units – 3 594
1 Control Units 594
1 1 Engine control unit -J623- 596
1 1 2 Connector description: 596
1 2 Radiator fan control unit -J293- 598
1 2 2 Connector description: 598
1 3 Automated manual gearbox control unit -J217- 600
1 3 2 Connector description: 600
1 4 Air conditioning control unit -J301- 602
1 4 2 Connector description: 602
1 5 Climatronic control unit -J255- 604
1 5 2 Connector description: 604
1 6 Central control unit for Convenience system -J393- 606
1 6 2 Connector description: 606
1 7 Steering wheel control unit -E221- 608
1 7 2 Connector description: 608
1 8 Instrument cluster indicator control unit -J285- 610
1 8 2 Connector description: 610
1 9 Airbag control unit -J234- 613
1 9 2 Connector description: 613
1 10 ABS control unit (38-pin) -J104- 615
1 10 2 Connector description: 615
1 11 Parking assist control unit (Sedan) -J446- 617
1 11 2 Connector description: 617
1 12 Parking assist control unit (Hatch) -J446- 619
1 12 2 Connector description: 619
1 13 Air conditioner regulator and control unit -J127- 621
1 13 2 Connector Description: 621
1 14 Interactive system control unit -J879- 623
1 14 2 Connector description: 623
1 15 Cleaning and lighting function control unit -J917- 625
1 15 2 Connector description: 625
1 16 Power steering control unit -J500- 627
1 16 2 Connector description: 627
1 17 Sunroof movement control unit -J245- 629
1 17 2 Connector description: 629
1 18 Mirror memory control unit -J267- 631
1 18 2 Connector description: 631
1 19 Onboard network control unit -J519- 633
1 19 2 Connector description: 633
1 20 Ultrasound sensor control unit -J347- 639
1 20 2 Connector description: 639
001 –
Airbag systems , (L0L) 641
1
Airbag systems , (L0L) 641
2 Airbag control unit, Warning lamp for airbag deactivated on front passenger side, Side airbag igniter on driver side, Side airbag igniter on front passenger side 642
3 Rear side airbag crash sensor on driver side, Rear side airbag crash sensor on passenger side, Airbag control unit, Driver side curtain airbag igniter, Front passenger side curtain airbag igniter 643
4 Driver side belt switch, Front passenger side belt switch, Key operated switch to deactivate airbag on front passenger side, Airbag control unit 644
5 Side airbag crash sensor on driver side, Side airbag crash sensor on front passenger side, Airbag control unit 645
6 Airbag control unit, Onboard supply control unit, Dash panel insert, Airbag igniter on driver side, Airbag igniter 1 on front passenger side, Diagnostic connection 646
002 –
Gas discharge headlights with automatic headlight range control , (8IG) 647
1
Gas discharge headlights with automatic headlight range control , (8IG) 647
2 Headlight range control unit, Onboard supply control unit, Left gas discharge (xenon) bulb, Left LED module for daytime running light and side light, Front left headlight, Left headlight range control motor, Left dip beam screen motor 648
3 Rear left vehicle level sender, Headlight range control unit, Onboard supply control unit 649
4 Headlight range control unit, Onboard supply control unit, Right gas discharge (xenon) bulb, Right LED module for daytime running light and side light, Front right headlight, Right headlight range control motor, Right dip beam screen motor 650
003 –
Radiator fan with air conditioning system , CHYA,CHYB,CJZC,CJZD,CUSB,CUSA,CUTA,CWVB 651
1
Radiator fan with air conditioning system , CHYA,CHYB,CJZC,CJZD,CUSB,CUSA,CUTA,CWVB 651
2 Radiator fan thermal switch, Climatronic control unit, Radiator fan control unit, Air conditioning system control unit, Engine control unit, Radiator fan 652
004 –
Anti-lock brake system (ABS) 653
1
Anti-lock brake system (ABS) 653
2 ABS control unit, ABS hydraulic unit, Front right ABS inlet valve, Front right ABS outlet valve, Fuse 3 on fuse holder B, Fuse 10 on fuse holder B, Fuse 39 on fuse holder C, Fuse 47 on fuse holder C, ABS return flow pump 654
3 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit, Vehicle stabilization program switch valve 1 655
4 Button for TCS and electronic stabilisation program, Tyre Pressure Loss Indicator button, Yaw rate sender, ABS control unit, Rear left ABS outlet valve 656
5 Steering angle sender, Lateral acceleration sender, Brake pressure sender 1, Longitudinal acceleration sender, Rotor position sender for active steering motor, ABS control unit, Power steering control unit, Onboard supply control unit 657
6 Brake fluid level warning contact, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 658
005 –
Power assisted steering , (1N1),(1N3) 659
1
Power assisted steering , (1N1),(1N3) 659
2 Ignition/starter switch, Steering moment sender, Rotor position sender for active steering motor, Power steering control unit, Active steering motor 660
3 Onboard supply control unit, Dash panel insert 661
006 –
Dynamic Chassis Control , (2H4) 662
1
Dynamic Chassis Control , (2H4) 662
2 Electronically controlled damping control unit, Front left shock absorber damping adjustment valve, Front right shock absorber damping adjustment valve, Rear left shock absorber damping adjustment valve, Rear right shock absorber damping adjustment valve 663
3 Driving mode selection button, Electronically controlled damping control unit, Onboard supply control unit 664
007 –
Climatronic , (9AK) 665
1
Climatronic , (9AK) 665
2 Sunlight penetration photosensor, Fresh air blower control unit, Climatronic control unit, Fresh air blower, Air flow flap control motor 666
3 Climatronic control unit, Onboard supply control unit, Centre flap control motor, Defroster flap control motor 667
4 Centre vent temperature sender, Footwell vent temperature sender, Humidity sender for air conditioning system, Evaporator output temperature sender, Climatronic control unit, Temperature flap control motor 668
5 High-pressure sender, Climatronic control unit 669
008 –
Earthing concept 670
1
Earthing concept 670
2 Battery, Radiator fan thermal switch, Treble horn, Bass horn, Battery monitor control unit, Left fog light bulb, Front left headlight, Earth strap, battery – body, Earth connection 1, in engine compartment wiring harness 671
3 High-pressure sender, Radiator fan control unit, Air conditioner compressor regulating valve, Radiator fan, Headlight washer system pump, Earth connection 1, in engine compartment wiring harness 672
4 Bonnet contact switch, ABS control unit, Right fog light bulb, Right daytime running light bulb, Front right headlight, Left washer jet heater element, Right washer jet heater element, Earth connection, in right side engine compartment wiring harness, Earth point 1, on front of right longitudinal member 673
5 Selector lever, Brake light switch, Oil level and oil temperature sender, Clutch position sender, Automatic glow period control unit, Gearbox, Coolant circulation pump, Coolant circulation pump 2 674
6 Automatic gearbox control unit, Engine/motor control unit, Mechatronic unit for dual clutch gearbox 675
7 Rain and light sensor, Anti-theft alarm sensor, Onboard supply control unit, Centre interior light, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror, Automatic anti-dazzle interior mirror 676
8 Fresh air blower control unit, Onboard supply control unit, Windscreen wiper motor, Fresh air blower 677
9 Fuel delivery unit, Cigarette lighter, Heated seat cushion for driver seat, Heated seat cushion for front passenger seat 678
10 Driving mode selection button, Alarm horn, Electronically controlled damping control unit, Climatronic control unit, Air conditioning system control unit, Headlight range control unit, Fuel pump control unit, Heated front seats control unit, Rear cent e reading light 679
11 Rotary light switch, Steering column combination switch, Headlight washer system relay, Heater control unit, Control unit in dash panel insert, Adaptive cruise control unit, Diagnostic connection 680
12 Headlight range control and instrument illumination regulator, Heated driver seat regulator, Heated front passenger seat regulator, Hazard warning lights button 681
13 Heated rear window button, Button for TCS and electronic stabilisation program, Parking aid button, Tyre Pressure Loss Indicator button, Start/Stop operation button 682
14 Multimedia system operating unit, Power steering control unit, Control unit 1 for information electronics, Amplifier, Reversing camera 683
15 Trailer detector control unit, Parking aid control unit, Left tail light, Right tail light, Trailer socket, Left number plate light, Right number plate light 684
16 Ignition coil 1 with output stage, Ignition coil 2 with output stage 685
17 Driver side interior locking button for central locking system, Driver side central locking lock unit, Driver door control unit, Central locking SAFELOCK function warning lamp 686
18 Rear left central locking lock unit, Rear right central locking lock unit 687
19 Front passenger side central locking lock unit, Front passenger door control unit 688
009 –
Basic equipment , (L0L) 689
1
Basic equipment , (L0L) 689
2 Onboard supply control unit 690
3 Ignition/starter switch, Selector lever, Steering column combination switch, Onboard supply control unit, Terminal 15 relay, Ignition key withdrawal lock solenoid 691
4 Headlight dipper and flasher switch, Cruise control system switch, Cruise control system (CCS) SET button, Steering column combination switch, Onboard supply control unit 692
5 Intermittent wiper switch, Rear wiper switch, Washer pump switch (automatic wash/wipe and headlight washer system), Steering column combination switch, Onboard supply control unit 693
6 Multifunction display call-up button, Multifunction display memory switch, Steering column combination switch, Horn plate, Onboard supply control unit, Washer pump relay, Windscreen and rear window washer pump 694
7 Rotary light switch, Fog light switch, Headlight range control and instrument illumination regulator, Rear fog light switch, Onboard supply control unit, Headlight range control regulator illumination bulb 695
8 Treble horn, Bass horn, Onboard supply control unit, Left daytime running light bulb, Front left headlight, Left headlight range control motor 696
9 Onboard supply control unit, Right daytime running light bulb, Front right headlight, Right headlight range control motor, Left washer jet heater element, Right washer jet heater element 697
10 Hazard warning lights button, Heated rear window button, Bonnet contact switch, Onboard supply control unit, Cigarette lighter illumination bulb, Cigarette lighter 698
11 Reversing light switch, Onboard supply control unit, Left exterior mirror, Right exterior mirror 699
12 Onboard supply control unit, Left fog light bulb, Right fog light bulb, Windscreen wiper motor, Left number plate light, Right number plate light 700
13 Onboard supply control unit, Left tail light, Right tail light 701
14 Rear lid lock unit, Onboard supply control unit, High-level brake light bulb, Rear window wiper motor, Luggage compartment light 702
15 Anti-dazzle interior mirror button, Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Rain and light sensor, Onboard supply control unit, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror, Automatic anti-dazzle interior mirror 703
16 Onboard supply control unit, Front left footwell light, Front right footwell light, Front passenger reading light 704
17 Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Onboard supply control unit, Terminal 75x voltage supply relay, Rear centre reading light 705
18 Onboard supply control unit, Diagnostic connection 706
19 Heater/heat output switch, Heater control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 707
20 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 708
010 –
Trailer coupling , (1D2) 709
1
Trailer coupling , (1D2) 709
2 Ignition/starter switch, Trailer detector control unit, Onboard supply control unit 710
3 Trailer detector control unit, Trailer socket 711
011 –
Parking aid (PDC) , (7X1),(7X2) 712
1
Parking aid (PDC) , (7X1),(7X2) 712
2 Rear left parking aid sender, Rear centre left parking aid sender, Rear centre right parking aid sender, Rear right parking aid sender, Rear parking aid warning buzzer, Parking aid control unit 713
3 Parking aid button, Parking aid control unit, Onboard supply control unit 714
4 Front right parking aid sender, Front centre right parking aid sender, Front centre left parking aid sender, Front left parking aid sender, Front parking aid warning buzzer, Parking aid control unit 715
012 –
Dual clutch gearbox 0CW , (0EG) 716
1
Dual clutch gearbox 0CW , (0EG) 716
2 Ignition/starter switch, Engine control unit, Mechatronic unit for dual clutch gearbox 717
3 Mechatronic unit for dual clutch gearbox 718
4 Selector lever, Ignition key withdrawal lock solenoid 719
5 Selector lever, Selector lever locked in position P switch, Selector lever lock solenoid, Selector lever position display 720
6 Multifunction buttons on left in steering wheel, Multifunction buttons on right in steering wheel, Tiptronic switch (shift up), Tiptronic switch (shift down), Multifunction steering wheel control unit, Onboard supply control unit 721
013 –
Fuse assignment 722
1
Fuse assignment 722
2 Battery, Battery monitor control unit, Battery isolation igniter, Fuse holder H, Terminal 30 wiring junction 2 723
3 Alternator with voltage regulator, Fuse 1 (30), Fuse holder A, Terminal 30 wiring junction 2 724
4 Automatic gearbox control unit, Fuse holder B 725
5 Fuse holder B 726
6 Fuse holder B 727
7 Fuse holder B 728
8 Fuse holder B 729
9 Fuse holder B 730
10 Fuse holder C 731
11 Fuse holder C 732
12 Fuse holder C 733
13 Fuse holder C 734
14 Fuse holder C 735
15 Fuse holder C 736
16 Fuse holder C 737
17 Fuse holder C 738
18 Fuse holder C 739
19 Fuse holder C, Fuse holder D 740
20 Fuse holder F 741
014 –
Seat heating , (4A3) 742
1
Seat heating , (4A3) 742
2 Onboard supply control unit, Heated front seats control unit, Fuse holder C 743
3 Heated driver seat regulator, Heated front passenger seat regulator, Heated front seats control unit 744
4 Heated front seats control unit, Heated seat cushion for driver seat, Heated backrest for driver seat, Heated seat cushion for front passenger seat, Heated backrest for front passenger seat 745
015 –
Convenience system , (L0L) 746
1
Convenience system , (L0L) 746
2 Rear lid handle release button, Rear lid lock unit, Onboard supply control unit, Fuse 51 on fuse holder C, Rear lid central locking motor, Luggage compartment light 747
3 Central locking button, Driver side central locking lock unit, Onboard supply control unit, Central locking SAFELOCK function warning lamp 748
4 Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit 749
5 Front left window regulator switch, Front right window regulator switch in driver door, Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit, Driver side window regulator motor 750
6 Rear left door contact switch, Rear left central locking lock unit, Onboard supply control unit, Rear left door central locking motor, lock 751
7 Rear left window regulator switch, in door, Rear right window regulator switch, in door, Rear left door control unit, Rear right door control unit, Onboard supply control unit, Rear left window regulator motor, Rear right window regulator motor 752
8 Interior monitoring deactivation switch, Rear right door contact switch, Rear right central locking lock unit, Onboard supply control unit, Tank filler flap locking motor, Rear right door central locking motor, lock, Centre interior light 753
9 Front passenger side central locking lock unit, Onboard supply control unit 754
10 Window regulator switch in front passenger door, Anti-theft alarm sensor, Alarm horn, Front passenger door control unit, Onboard supply control unit, Front passenger side window regulator motor 755
11 Onboard supply control unit, Left exterior mirror, Right exterior mirror 756
12 Onboard supply control unit, Left exterior mirror 757
016 –
Air conditioning system , (9AB) 758
1
Air conditioning system , (9AB) 758
2 Fresh air blower switch, Air conditioning system control unit, Onboard supply control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower 759
3 High-pressure sender, Air conditioning system control unit 760
4 Evaporator output temperature sender, Air conditioning system control unit, Fresh air and air recirculation flap control motor 761
017 –
Radio navigation system 762
1
Radio navigation system 762
2 Display unit for front information display and operating unit control unit, Control unit 1 for information electronics 763
3 Control unit 1 for information electronics, Connection for external audio sources 764
4 Control unit 1 for information electronics, Rear left bass loudspeaker, Front left treble loudspeaker, Front left bass loudspeaker, Front right bass loudspeaker 765
5 Control unit 1 for information electronics, Roof aerial, Rear right bass loudspeaker, Front right treble loudspeaker, GPS aerial 766
6 Onboard supply control unit, Control unit 1 for information electronics, Telephone microphone, Left aerial module, Frequency modulation (FM) frequency filter in negative wire, Frequency modulation (FM) frequency filter in positive wire 767
018 –
1 0l petrol engine , CHYA,CHYB 768
1
1 0l petrol engine , CHYA,CHYB 768
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 769
3 Main relay, Fuse holder B 770
4 Start/Stop operation button, Driving mode selection button, Onboard supply control unit 771
5 Engine/motor control unit 772
6 Steering column combination switch, Accelerator pedal module, Engine/motor control unit 773
7 Brake light switch, Clutch position sender, Engine/motor control unit 774
8 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Radiator fan control unit, Engine/motor control unit 775
9 Throttle valve module, Coolant temperature sender, Gearbox neutral position sender, Engine/motor control unit 776
10 Intake manifold sender, Hall sender, Intake manifold pressure sender, Engine/motor control unit 777
11 Engine speed sender, Engine/motor control unit, Activated charcoal filter solenoid valve 1 778
12 Knock sensor 1, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Camshaft control valve 1 779
13 Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 780
14 Oil pressure switch, Fuel gauge, Fuel delivery unit, Coolant temperature gauge, Fuel system pressurisation pump, Engine/motor control unit, Dash panel insert 781
019 –
Reversing camera (Rear Assist) , (KA1) 782
1
Reversing camera (Rear Assist) , (KA1) 782
2 Onboard supply control unit, Control unit 1 for information electronics, Reversing camera 783
020 –
1 2l petrol engine , CJZC,CJZD 784
1
1 2l petrol engine , CJZC,CJZD 784
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 785
3 Main relay, Fuse holder B 786
4 Start/Stop operation button, Driving mode selection button, Onboard supply control unit 787
5 Engine/motor control unit, Vacuum pump for brakes 788
6 Steering column combination switch, Accelerator pedal module, Engine/motor control unit 789
7 Brake light switch, Clutch position sender, Engine/motor control unit, Mechatronic unit for dual clutch gearbox 790
8 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Engine/motor control unit 791
9 Oil pressure switch for reduced oil pressure, Throttle valve module, Gearbox neutral position sender, Engine/motor control unit 792
10 Hall sender, Coolant temperature sender, Engine/motor control unit, Charge pressure positioner 793
11 Intake manifold sender, Charge pressure sender, Charge pressure sender, Intake air temperature sender, Intake manifold pressure sender, Fuel pressure sender, Intake air temperature sender 2, Engine/motor control unit 794
12 Engine speed sender, Knock sensor 1, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 795
13 Engine/motor control unit, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Fuel pressure regulating valve 796
14 Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 797
15 Fuel gauge, Fuel delivery unit, Coolant temperature gauge, Fuel system pressurisation pump, Engine/motor control unit, Dash panel insert, Charge air cooling pump 798
021 –
Multifunction steering wheel , (2FS),(2FW),(2PK),(2PU),(1XX),(2ZH) 799
1
Multifunction steering wheel , (2FS),(2FW),(2PK),(2PU),(1XX),(2ZH) 799
2 Horn plate, Airbag control unit, Multifunction steering wheel control unit, Onboard supply control unit, Driver side airbag igniter 800
3 Multifunction buttons on left in steering wheel, Multifunction buttons on right in steering wheel, Tiptronic switch (shift up), Tiptronic switch (shift down), Multifunction indicator, Multifunction steering wheel control unit, Onboard supply control unit, Dash panel insert 801
022 –
1 4l diesel engine , CUSA,CUSB,CUTA 802
1
1 4l diesel engine , CUSA,CUSB,CUTA 802
2 Battery, Starter, Alternator with voltage regulator, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 803
3 Terminal 30 voltage supply relay, High heat output relay, Fuse holder B, Auxiliary air heater element 804
4 Fuse holder B 805
5 Start/Stop operation button, Driving mode selection button, Onboard supply control unit 806
6 Engine/motor control unit 807
7 Steering column combination switch, Radiator fan control unit, Multifunction steering wheel control unit, Engine/motor control unit 808
8 Brake light switch, Oil level and oil temperature sender, Clutch position sender, Engine/motor control unit, Mechatronic unit for dual clutch gearbox 809
9 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Engine/motor control unit 810
10 Accelerator pedal module, Exhaust gas temperature sender 3, Engine/motor control unit, Exhaust flap control unit 811
11 Air mass meter, Gearbox neutral position sender, Engine/motor control unit, Heater element for crankcase breather 812
12 Automatic glow period control unit, Engine/motor control unit, Charge pressure control solenoid valve, Variable intake manifold flap changeover valve 813
13 Engine/motor control unit, Charge air cooling pump, Auxiliary pump for heating 814
14 Exhaust gas temperature sender 1, Pressure differential sender, Engine/motor control unit, Glow plug 1, Glow plug 2, Glow plug 3 815
15 Charge pressure sender, Coolant temperature sender, Fuel temperature sender, Exhaust gas pressure sensor 1, Charge air temperature sender before charge air cooler, Engine/motor control unit 816
16 Engine speed sender, Hall sender, Fuel pressure sender, Charge air temperature sender after charge air cooler, Engine/motor control unit 817
17 Throttle valve module, Exhaust gas recirculation valve 2, Variable intake manifold position sender, Engine/motor control unit 818
18 Exhaust gas recirculation valve 1, Knock sensor 1, Position sender for charge pressure positioner, Engine/motor control unit 819
19 Oil pressure switch, Engine/motor control unit, Fuel pressure regulating valve, Fuel metering valve, Valve for oil pressure control, Coolant valve for cylinder head 820
20 Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3 821
21 Fuel delivery unit, Fuel gauge, Coolant temperature gauge, Fuel system pressurisation pump, Fuel pump relay, Engine/motor control unit, Dash panel insert 822
023 –
Radiator fan, one-speed 823
1
Radiator fan, one-speed 823
2 Radiator fan thermal switch, Radiator fan 824
024 –
Sliding sunroof , (3FB) 825
1
Sliding sunroof , (3FB) 825
2 Sliding sunroof adjustment, Sliding sunroof adjustment regulator, Sunroof button, Sliding sunroof adjustment control unit, Onboard supply control unit, Sliding sunroof motor 826
025 –
Data bus network 827
1
Data bus network 827
2 Onboard supply control unit 828
3 Onboard supply control unit, Amplifier, Diagnostic connection, Connection 1 (powertrain CAN bus, high), in main wiring harness, Connection 1 (powertrain CAN bus, low), in main wiring harness, Connection 1 (convenience CAN bus, high), in main wiri
g harness, Connection 1 (convenience CAN bus, low), in main wiring harness 829
4 Connection 1 (powertrain CAN bus, high), in main wiring harness, Connection 1 (powertrain CAN bus, low), in main wiring harness, Connection 1 (convenience CAN bus, high), in main wiring harness, Connection 1 (convenience CAN bus, low), in main wiring harness 830
5 Multimedia system operating unit, Connection 1 (powertrain CAN bus, high), in main wiring harness, Connection 1 (powertrain CAN bus, low), in main wiring harness, Connection 1 (convenience CAN bus, high), in main wiring harness, Connection 1 (co
venience CAN bus, low), in main wiring harness 831
6 832
026 –
Radiator fan, two-speed 833
1
Radiator fan, two-speed 833
2 Radiator fan thermal switch, Radiator fan 834
027 –
Headlight washer system , (8X1) 835
1
Headlight washer system , (8X1) 835
2 Intermittent wiper switch, Rear wiper switch, Washer pump switch (automatic wash/wipe and headlight washer system), Steering column combination switch, Headlight washer system relay, Onboard supply control unit, Headlight washer system pump 836
3 Windscreen washer fluid level sender, Onboard supply control unit, Washer fluid level warning lamp 837
028 –
Adaptive cruise control , (8T3),(8T5) 838
1
Adaptive cruise control , (8T3),(8T5) 838
2 Adaptive cruise control unit, Onboard supply control unit 839
029 –
Radiator fan , CUSA,CUSB,CUTA,DAJA,DAJB,CHZB,CHZC 840
1
Radiator fan , CUSA,CUSB,CUTA,DAJA,DAJB,CHZB,CHZC 840
2 Radiator fan control unit, Radiator fan, Radiator fan 2 841
030 –
1 4l petrol engine , CZEA 842
1
1 4l petrol engine , CZEA 842
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 843
3 Main relay, Fuse holder B 844
4 Start/Stop operation button, Driving mode selection button, Onboard supply control unit 845
5 Engine/motor control unit 846
6 Steering column combination switch, Accelerator pedal module, Engine/motor control unit 847
7 Brake light switch, Clutch position sender, Engine/motor control unit, Mechatronic unit for dual clutch gearbox 848
8 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Engine/motor control unit 849
9 Oil pressure switch for reduced oil pressure, Throttle valve module, Gearbox neutral position sender, Engine/motor control unit 850
10 Coolant temperature sender, Engine/motor control unit, Charge pressure positioner 851
11 Hall sender, Fuel pressure sender, Hall sender 3, Engine/motor control unit 852
12 Intake manifold sender, Charge pressure sender, Engine speed sender, Charge pressure sender, Intake air temperature sender, Intake manifold pressure sender, Intake air temperature sender 2, Engine/motor control unit 853
13 Knock sensor 1, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve 854
14 Engine/motor control unit 855
15 Engine/motor control unit, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Exhaust camshaft control valve 1, Valve for oil pressure control 856
16 Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 857
17 Fuel gauge, Fuel delivery unit, Coolant temperature gauge, Fuel system pressurisation pump, Engine/motor control unit, Dash panel insert, Charge air cooling pump 858
031 –
Basic equipment , (L0R) 859
1
Basic equipment , (L0R) 859
2 Onboard supply control unit 860
3 Ignition/starter switch, Selector lever, Steering column combination switch, Onboard supply control unit, Terminal 15 relay, Ignition key withdrawal lock solenoid 861
4 Headlight dipper and flasher switch, Cruise control system switch, Cruise control system (CCS) SET button, Steering column combination switch, Onboard supply control unit 862
5 Intermittent wiper switch, Rear wiper switch, Washer pump switch (automatic wash/wipe and headlight washer system), Steering column combination switch, Onboard supply control unit 863
6 Multifunction display call-up button, Multifunction display memory switch, Steering column combination switch, Horn plate, Onboard supply control unit, Washer pump relay, Windscreen and rear window washer pump 864
7 Rotary light switch, Fog light switch, Headlight range control and instrument illumination regulator, Rear fog light switch, Onboard supply control unit, Headlight range control regulator illumination bulb 865
8 Treble horn, Bass horn, Onboard supply control unit, Left daytime running light bulb, Front left headlight, Left headlight range control motor 866
9 Onboard supply control unit, Right daytime running light bulb, Front right headlight, Right headlight range control motor, Left washer jet heater element, Right washer jet heater element 867
10 Hazard warning lights button, Heated rear window button, Bonnet contact switch, Onboard supply control unit, Cigarette lighter illumination bulb, Cigarette lighter 868
11 Onboard supply control unit, Left fog light bulb, Left exterior mirror, Right exterior mirror 869
12 Reversing light switch, Onboard supply control unit, Right fog light bulb, Windscreen wiper motor, Left number plate light, Right number plate light 870
13 Onboard supply control unit, Left tail light, Right tail light 871
14 Rear lid lock unit, Onboard supply control unit, High-level brake light bulb, Rear window wiper motor, Luggage compartment light 872
15 Anti-dazzle interior mirror button, Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Rain and light sensor, Onboard supply control unit, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror, Automatic anti-dazzle interior mirror 873
16 Onboard supply control unit, Front left footwell light, Front right footwell light, Front passenger reading light 874
17 Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Onboard supply control unit, Terminal 75x voltage supply relay, Rear centre reading light 875
18 Onboard supply control unit, Diagnostic connection 876
19 Heater/heat output switch, Heater control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 877
20 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 878
032 –
Airbag systems , (L0R) 879
1
Airbag systems , (L0R) 879
2 Airbag control unit, Front passenger side airbag deactivated warning lamp, Side airbag igniter on driver side, Side airbag igniter on front passenger side 880
3 Crash sensor for driver side airbag, Crash sensor for passenger side airbag, Airbag control unit, Driver side curtain airbag igniter, Front passenger side curtain airbag igniter 881
4 Driver side belt switch, Front passenger side belt switch, Key operated switch to deactivate front passenger side airbag, Seat occupied sensor, front passenger side, Airbag control unit 882
5 Side airbag crash sensor on driver side, Side airbag crash sensor on front passenger side, Airbag control unit 883
6 Airbag control unit, Onboard supply control unit, Dash panel insert, Driver side airbag igniter, Front passenger side airbag igniter 1, Diagnostic connection 884
033 –
Convenience system , (L0R) 885
1
Convenience system , (L0R) 885
2 Rear lid handle release button, Rear lid lock unit, Onboard supply control unit, Fuse 51 on fuse holder C, Rear lid central locking motor, Luggage compartment light 886
3 Central locking button, Driver side central locking lock unit, Onboard supply control unit, Central locking SAFELOCK function warning lamp 887
4 Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit 888
5 Front left window regulator switch, Front right window regulator switch in driver door, Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit, Driver side window regulator motor 889
6 Rear left door contact switch, Rear left central locking lock unit, Onboard supply control unit, Rear left door central locking motor, lock 890
7 Rear left window regulator switch, in door, Rear right window regulator switch, in door, Rear left door control unit, Rear right door control unit, Onboard supply control unit, Rear left window regulator motor, Rear right window regulator motor 891
8 Interior monitoring deactivation switch, Rear right door contact switch, Rear right central locking lock unit, Onboard supply control unit, Tank filler flap locking motor, Rear right door central locking motor, lock, Centre interior light 892
9 Front passenger side central locking lock unit, Onboard supply control unit 893
10 Window regulator switch in front passenger door, Anti-theft alarm sensor, Alarm horn, Front passenger door control unit, Onboard supply control unit, Front passenger side window regulator motor 894
11 Onboard supply control unit, Left exterior mirror, Right exterior mirror 895
12 Onboard supply control unit, Alarm horn relay, Right exterior mirror 896
034 –
6-speed automatic gearbox , (0ID) 897
1
6-speed automatic gearbox , (0ID) 897
2 Multifunction switch, Automatic gearbox control unit, Gearbox 898
3 Gearbox oil temperature sender, Gearbox input speed sender, Gearbox output speed sender, Automatic gearbox control unit, Gearbox, Solenoid valve 2, Automatic gearbox pressure regulating valve 1, Automatic gearbox pressure regulating valve 5, Automatic gearbox pressure regulating valve 7 899
4 Automatic gearbox control unit, Engine control unit, Gearbox, Automatic gearbox pressure regulating valve 2, Automatic gearbox pressure regulating valve 4 900
5 Selector lever, Onboard supply control unit, Ignition key withdrawal lock solenoid, Fuse holder C 901
6 Selector lever, Selector lever locked in position P switch, Selector lever lock solenoid, Selector lever position display 902
035 –
Preparation for mobile telephone , (9ZX),(9IE),(9IF),(9ZE) 903
1
Preparation for mobile telephone , (9ZX),(9IE),(9IF),(9ZE) 903
2 Control unit 1 for information electronics, Two-way signal amplifier for mobile telephone/data services, GSM aerial, Storage compartment with interface for mobile telephone, Fuse holder C 904
036 –
Preparation for radio navigation system , (7UN) 905
1
Preparation for radio navigation system , (7UN) 905
2 Onboard supply control unit, Control unit 1 for information electronics, Control unit for navigation system, Navigation system interface 906
3 Control unit for navigation system, Aerial 907
037 –
1 8l petrol engine , DAJA,DAJB 908
1
1 8l petrol engine , DAJA,DAJB 908
2 Battery, Starter, Airbag control unit, Battery isolation igniter, Fuse holder H 909
3 Engine component current supply relay, Fuse holder B 910
4 Main relay, Starter relay 1, Starter relay 2, Fuse holder B 911
5 Engine control unit, Coolant shut-off valve, Fuse holder B 912
6 Radiator outlet coolant temperature sender, Engine control unit 913
7 Accelerator pedal module, Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Accelerator position sender, Accelerator position sender 2, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 914
8 Oil pressure switch, Hall sender, Fuel pressure sender, Intake manifold flap potentiometer, Engine control unit 915
9 Brake light switch, Oil level and oil temperature sender, Clutch position sender, Engine control unit 916
10 Engine control unit, Injector 2, cylinder 1, Injector 2, cylinder 2, Injector 2, cylinder 3, Injector 2, cylinder 4 917
11 Throttle valve module, Engine control unit, Actuator for engine temperature regulation 918
12 Gearbox neutral position sender, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 919
13 Charge pressure sender, Engine control unit 920
14 Intake manifold sender, Engine control unit, Charge pressure positioner 921
15 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 922
16 Fuel pressure sender for low pressure, Engine control unit, Ignition coil 4 with output stage, Auxiliary pump for heating 923
17 Engine speed sender, Hall sender 3, Engine control unit 924
18 Engine control unit, Exhaust cam actuator A for cylinder 2, Exhaust cam actuator B for cylinder 2, Exhaust cam actuator A for cylinder 3, Exhaust cam actuator B for cylinder 3, Exhaust cam actuator A for cylinder 4, Exhaust cam actuator B for cylinder 4 925
19 Knock sensor 1, Coolant temperature sender, Engine control unit, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Intake manifold flap valve, Exhaust camshaft control valve 1, Radiator fan 926
20 Oil pressure switch, Oil pressure switch for reduced oil pressure, Engine control unit, Turbocharger air recirculation valve, Fuel pressure regulating valve, Valve for oil pressure control, Piston cooling jet control valve 927
21 Cruise control system (CCS) SET button, Steering column combination switch, Onboard supply control unit, Engine control unit, Control unit for structure-borne sound, Actuator for structure-borne sound 928
22 Fuel gauge sender, Fuel system pressurisation pump, Dash panel insert 929
038 –
1 6l petrol engine , CWVB 930
1
1 6l petrol engine , CWVB 930
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 931
3 Main relay, Fuse holder B 932
4 Onboard supply control unit, Engine/motor control unit 933
5 Accelerator pedal module, Engine/motor control unit 934
6 Steering column combination switch, Brake light switch, Clutch position sender, Engine/motor control unit, Gearbox 935
7 Oil pressure switch, Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Coolant temperature sender, Engine/motor control unit 936
8 Throttle valve module, Engine/motor control unit 937
9 Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3 938
10 Intake manifold sender, Hall sender, Intake manifold pressure sender, Intake air temperature sender 2, Engine/motor control unit 939
11 Engine speed sender, Knock sensor 1, Engine/motor control unit, Activated charcoal filter solenoid valve 1 940
12 Engine/motor control unit, Ignition coil 1 with output stage, Camshaft control valve 1 941
13 Engine/motor control unit, Ignition coil 2 with output stage, Ignition coil 3 with output stage 942
14 Fuel gauge, Fuel delivery unit, Coolant temperature gauge, Fuel system pressurisation pump, Dash panel insert 943
039 –
1 0l petrol engine , CHZB,CHZC 944
1
1 0l petrol engine , CHZB,CHZC 944
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 945
3 Main relay, Fuse holder B 946
4 Start/Stop operation button, Onboard supply control unit 947
5 Radiator outlet coolant temperature sender, Engine/motor control unit 948
6 Steering column combination switch, Accelerator pedal module, Engine/motor control unit 949
7 Brake light switch, Lambda probe 1 before catalytic converter, Clutch position sender, Engine/motor control unit, Mechatronic unit for dual clutch gearbox 950
8 Throttle valve module, Lambda probe 1 after catalytic converter, Coolant temperature sender, Gearbox neutral position sender, Engine/motor control unit 951
9 Hall sender, Fuel pressure sender, Hall sender 3, Engine/motor control unit, Charge pressure positioner 952
10 Intake manifold sender, Charge pressure sender, Engine speed sender, Charge pressure sender, Intake air temperature sender, Intake manifold pressure sender, Intake air temperature sender 2, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2 953
11 Oil pressure sender, Knock sensor 1, Engine/motor control unit, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 954
12 Engine/motor control unit, Camshaft control valve 1, Fuel pressure regulating valve, Exhaust camshaft control valve 1, Valve for oil pressure control, Charge air cooling pump 955
13 Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 956
14 Fuel delivery unit, Fuel gauge, Coolant temperature gauge, Fuel system pressurisation pump, Dash panel insert 957
040 –
LED headlights , (8IT) 958
1
LED headlights , (8IT) 958
2 Output module 1 for left LED headlight, Headlight range control unit, Onboard supply control unit, Front left headlight, Left headlight dipped beam bulb, Left headlight main beam bulb, Left headlight range control motor 959
3 Rear left vehicle level sender, Headlight range control unit, Onboard supply control unit 960
4 Output module 1 for right LED headlight, Headlight range control unit, Onboard supply control unit, Right LED module for daytime running light and side light, Front right headlight, Front right turn signal bulb, Right headlight dipped beam bulb, Right headlight main beam bulb, Right headlight range control motor 961
041 –
1 4l diesel engine , CYZA,CYZB 962
1
1 4l diesel engine , CYZA,CYZB 962
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 963
3 High heat output relay, Fuse holder B, Auxiliary air heater element 964
4 Terminal 30 voltage supply relay, Fuse holder B 965
5 Start/Stop operation button, Driving mode selection button, Onboard supply control unit, Fuse holder C 966
6 Onboard supply control unit, Engine/motor control unit 967
7 Steering column combination switch, Knock sensor 1, Engine/motor control unit, Heater element for crankcase breather 968
8 Brake light switch, Oil level and oil temperature sender, Clutch position sender, Engine/motor control unit 969
9 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Engine/motor control unit 970
10 Accelerator pedal module, Engine/motor control unit, Exhaust gas recirculation cooler changeover valve, Valve for oil pressure control 971
11 Air mass meter, Exhaust gas temperature sender 3, Gearbox neutral position sender, Engine/motor control unit, Exhaust flap control unit 972
12 Automatic glow period control unit, Engine/motor control unit, Charge pressure control solenoid valve, Glow plug 1, Glow plug 2, Glow plug 3, Charge pressure positioner 973
13 Engine/motor control unit, Charge air cooling pump, Auxiliary pump for heating 974
14 Coolant temperature sender, Exhaust gas temperature sender 1, Fuel pressure sender, Charge air temperature sender before charge air cooler, Charge air temperature sender after charge air cooler, Engine/motor control unit 975
15 Temperature and pressure sender for low-pressure fuel system, Engine speed sender, Charge pressure sender, Pressure differential sender, Engine/motor control unit 976
16 Throttle valve module, Exhaust gas recirculation valve 1, Variable intake manifold position sender, Engine/motor control unit 977
17 Hall sender, Position sender for charge pressure positioner, Engine/motor control unit 978
18 Oil pressure switch, Engine/motor control unit, Fuel pressure regulating valve, Fuel metering valve 979
19 Fuel delivery unit, Fuel gauge, Coolant temperature gauge, Fuel system pressurisation pump, Engine/motor control unit, Dash panel insert 980
042 –
Radio navigation system 981
1
Radio navigation system 981
2 Display unit for front information display and operating unit control unit, Control unit 1 for information electronics 982
3 Control unit 1 for information electronics, Connection for external audio sources 983
4 Control unit 1 for information electronics, Front left treble loudspeaker, Front left bass loudspeaker, Connection for external audio sources 984
5 Control unit 1 for information electronics, Rear left loudspeaker, Rear right loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 985
6 Control unit 1 for information electronics, Roof aerial, Telephone microphone, GPS aerial 986
7 Onboard supply control unit, Control unit 1 for information electronics, Left aerial module, Frequency modulation (FM) frequency filter in negative wire, Frequency modulation (FM) frequency filter in positive wire 987
043 –
1 2l petrol engine , CJZC,CJZD 988
1
1 2l petrol engine , CJZC,CJZD 988
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 989
3 Main relay, Fuse holder B 990
4 Start/Stop operation button, Driving mode selection button, Onboard supply control unit 991
5 Engine/motor control unit, Vacuum pump for brakes 992
6 Steering column combination switch, Accelerator pedal module, Engine/motor control unit 993
7 Brake light switch, Clutch position sender, Engine/motor control unit, Mechatronic unit for dual clutch gearbox 994
8 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Engine/motor control unit 995
9 Oil pressure switch for reduced oil pressure, Throttle valve module, Gearbox neutral position sender, Engine/motor control unit 996
10 Hall sender, Coolant temperature sender, Engine/motor control unit, Charge pressure positioner 997
11 Intake manifold sender, Charge pressure sender, Charge pressure sender, Intake air temperature sender, Intake manifold pressure sender, Fuel pressure sender, Intake air temperature sender 2, Engine/motor control unit 998
12 Engine speed sender, Knock sensor 1, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 999
13 Engine/motor control unit, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Fuel pressure regulating valve 1000
14 Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1001
15 Fuel gauge, Fuel delivery unit, Coolant temperature gauge, Fuel system pressurisation pump, Engine/motor control unit, Dash panel insert, Charge air cooling pump 1002
044 –
1 4l petrol engine , CZEA 1003
1
1 4l petrol engine , CZEA 1003
2 Battery, Starter, Battery monitor control unit, Starter relay 1, Starter relay 2, Fuse holder B 1004
3 Main relay, Fuse holder B 1005
4 Start/Stop operation button, Driving mode selection button, Onboard supply control unit 1006
5 Engine/motor control unit, Vacuum pump for brakes 1007
6 Steering column combination switch, Accelerator pedal module, Engine/motor control unit 1008
7 Brake light switch, Clutch position sender, Engine/motor control unit, Mechatronic unit for dual clutch gearbox 1009
8 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Engine/motor control unit 1010
9 Oil pressure switch for reduced oil pressure, Throttle valve module, Gearbox neutral position sender, Engine/motor control unit 1011
10 Coolant temperature sender, Engine/motor control unit, Charge pressure positioner 1012
11 Hall sender, Fuel pressure sender, Hall sender 3, Engine/motor control unit 1013
12 Intake manifold sender, Charge pressure sender, Engine speed sender, Charge pressure sender, Intake air temperature sender, Intake manifold pressure sender, Intake air temperature sender 2, Engine/motor control unit 1014
13 Knock sensor 1, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve 1015
14 Engine/motor control unit 1016
15 Engine/motor control unit, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Exhaust camshaft control valve 1, Valve for oil pressure control 1017
16 Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1018
17 Fuel gauge, Fuel delivery unit, Coolant temperature gauge, Fuel system pressurisation pump, Engine/motor control unit, Dash panel insert, Charge air cooling pump 1019
045 –
Sound system , (9VG) 1020
1
Sound system , (9VG) 1020
2 Control unit 1 for information electronics, Amplifier, Front left treble loudspeaker, Front left bass loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 1021
3 Control unit 1 for information electronics, Rear left loudspeaker, Rear right loudspeaker, Amplifier 1022
4 Onboard supply control unit, Control unit 1 for information electronics, Amplifier, Subwoofer 1023
046 –
Seat heating , (4A3),(L0R) 1024
1
Seat heating , (4A3),(L0R) 1024
2 Onboard supply control unit, Heated front seats control unit, Fuse holder C 1025
3 Heated driver seat regulator, Heated front passenger seat regulator, Heated front seats control unit 1026
4 Heated front seats control unit, Heated seat cushion for driver seat, Heated backrest for driver seat, Heated seat cushion for front passenger seat, Heated backrest for front passenger seat 1027
047 –
6-speed automatic gearbox , (0ID) 1028
1
6-speed automatic gearbox , (0ID) 1028
2 Multifunction switch, Automatic gearbox control unit, Gearbox 1029
3 Gearbox oil temperature sender, Gearbox input speed sender, Gearbox output speed sender, Automatic gearbox control unit, Gearbox, Solenoid valve 2, Automatic gearbox pressure regulating valve 1, Automatic gearbox pressure regulating valve 5, Automatic gearbox pressure regulating valve 7 1030
4 Automatic gearbox control unit, Engine control unit, Gearbox, Automatic gearbox pressure regulating valve 2, Automatic gearbox pressure regulating valve 4 1031
5 Selector lever, Onboard supply control unit, Ignition key withdrawal lock solenoid, Fuse holder C 1032
6 Selector lever, Selector lever locked in position P switch, Selector lever lock solenoid, Selector lever position display 1033
801 – – Fitting locations: Earth points – 3 1034
1 Earth points 1034
1 1 Overview of earth points 1034
802 – – Fitting locations: Fuses – 3 1039
1 Fuses 1039
1 1 Overview of fuse holders 1039
1 2 Fitting location of fuse holder A -SA- 1040
1 3 Fuse assignment for fuse holder A -SA-, from January 2014 1041
1 4 Fuse assignment for fuse holder A -SA-, from November 2014 1041
1 5 Fitting location of fuse holder B -SB- 1042
1 6 Fuse assignment for fuse holder B -SB-, from January 2014 1043
1 7 Fuse assignment for fuse holder B -SB-, from November 2014 1045
1 8 Fuse assignment for fuse holder B -SB-, from May 2016 1048
1 9 Fitting location of fuse holder C -SC- 1050
1 9 1 Fitting location of fuse holder C -SC-, LHD models 1050
1 9 2 Fitting location of fuse holder C -SC-, RHD models 1052
1 10 Fuse assignment for fuse holder C -SC-, from January 2014 1053
1 11 Fuse assignment of fuse holder C -SC-, from November 2014 1056
1 12 Fuse assignment for fuse holder C -SC-, from May 2016 1059
1 13 Fitting location of fuse holder D -SD-/fuse holder F -SF- 1062
1 13 1 Fitting location of fuse holder D -SD-/fuse holder F -SF-, LHD models 1062
1 13 2 Fitting location of fuse holder D -SD-/fuse holder F -SF-, RHD models 1064
1 14 Fuse assignment for fuse holder D -SD-, from January 2014 1065
1 15 Fuse assignment for fuse holder F -SF-, from January 2014 1065
1 16 Fuse assignment for fuse holder F -SF-, from November 2014 1065
1 17 Fitting location of fuse holder H -SH- 1066
1 18 Fuse assignment for fuse holder H -SH- 1067
803 – – Fitting locations: Relays – 3 1069
1 Relays 1069
1 1 Overview of relay carriers 1069
1 2 Relay and fuse carrier 2 -SR2-, on left in engine compartment 1070
1 2 1 Fitting location and relay assignment of relay and fuse carrier 2 -SR2-, on left in engine compartment, from January 2014 1070
1 2 2 Fitting location and relay assignment of relay and fuse carrier 2 -SR2-, on left in engine compartment, from November 2014 1072
1 3 Relay and fuse carrier 3 -SR3-, on left in engine compartment 1073
1 3 1 Fitting location and relay assignment of relay and fuse carrier 3 -SR3-, on left in engine compartment, from January 2014 1073
1 4 Relay and fuse carrier 1 -SR1-, under dash panel 1074
1 4 1 Fitting location and relay assignment of relay and fuse carrier 1 -SR1-, on left under dash panel, LHD, from January 2014 1074
1 4 2 Fitting location and relay assignment of relay and fuse carrier 1 -SR1-, on right under dash panel, RHD, from April 2014 1076
804 – – Fitting locations: control units in front part of vehicle – 3 1077
1 Control units in front part of vehicle 1077
1 1 Overview of control units 1077
1 2 Adaptive cruise control unit -J428- 1078
1 3 Mechatronic unit for dual clutch gearbox -J743- 1079
1 3 1 Mechatronic unit for dual clutch gearbox -J743-, 25-pin connector -T25- 1079
1 4 Automatic gearbox control unit -J217- 1081
1 4 1 Automatic gearbox control unit -J217-, 52-pin connector -T52- 1081
1 5 Automatic glow period control unit -J179- 1083
1 6 Engine control unit -J623- 1084
1 6 1 Engine control unit -J623-, 60-pin connector -T60-/94-pin connector -T94- 1084
1 6 2 Engine control unit -J623-, 105-pin connector -T105-/91-pin connector -T91- 1085
1 7 Wiper motor -V-/wiper motor control unit -J400- 1087
1 7 1 Windscreen wiper motor -V-/wiper motor control unit -J400-, left-hand drive models 1087
1 7 2 Windscreen wiper motor -V-/wiper motor control unit -J400-, right-hand drive models 1088
1 8 Control unit for structure-borne sound -J869- 1090
1 9 ABS control unit -J104- 1092
1 10 Battery monitor control unit -J367- 1093
1 10 1 Battery monitor control unit -J367-, battery in engine compartment 1093
1 10 2 Battery monitor control unit -J367-, battery in luggage compartment 1095
1 11 Radiator fan control unit -J293- 1096
805 – – Fitting locations: control units in middle part of vehicle – 3 1099
1 Control units in middle part of vehicle 1099
1 1 Overview of control units 1099
1 2 Fresh air blower control unit -J126- 1101
1 2 1 Fresh air blower control unit -J126-, left-hand drive models 1101
1 2 2 Fresh air blower control unit -J126-, right-hand drive models 1102
1 3 Front passenger door control unit -J387- 1104
1 3 1 Front passenger door control unit -J387-, left-hand drive models 1104
1 3 2 Front passenger door control unit -J387-, right-hand drive models 1106
1 4 Headlight range control unit -J431- 1108
1 4 1 Headlight range control unit -J431-, left-hand drive models 1108
1 4 2 Headlight range control unit -J431-, right-hand drive models 1110
1 5 Display unit for front information display and operating unit control unit -J685- / control unit 1 for information electronics -J794- 1112
1 6 Control unit 1 for information electronics -J794- 1115
1 7 Dash panel insert -K- / control unit in dash panel insert -J285- 1117
1 8 Rear right door control unit -J389- 1119
1 9 Power steering control unit -J500- 1121
1 9 1 Power steering control unit -J500-, left-hand drive models 1121
1 9 2 Power steering control unit -J500-, right-hand drive models 1123
1 10 Sliding sunroof adjustment control unit -J245- 1124
1 11 Fuel pump control unit -J538- 1126
1 12 Rear left door control unit -J388- 1128
1 13 Multifunction steering wheel control unit -J453- 1130
1 14 Driver door control unit -J386- 1132
1 14 1 Driver door control unit -J386-, left-hand drive models 1132
1 14 2 Driver door control unit -J386-, right-hand drive models 1134
1 15 Electronically controlled damping control unit -J250- 1136
1 16 Onboard supply control unit -J519- 1138
1 16 1 Onboard supply control unit -J519-, left-hand drive models 1138
1 16 2 Onboard supply control unit -J519-, right-hand drive models 1143
1 17 Heater control unit -J65- 1147
1 18 Air conditioning system control unit -J301- 1149
1 19 Climatronic control unit -J255- 1152
1 20 Airbag control unit -J234- 1155
1 21 Heated front seats control unit -J774- 1157
1 21 1 Heated front seats control unit -J774-, left-hand drive models 1157
1 21 2 Heated front seats control unit -J774-, right-hand drive models 1158
1 22 Exhaust flap control unit -J883- 1160
806 – – Fitting locations: control units in rear part of vehicle – 3 1163
1 Control units in rear part of vehicle 1163
1 1 Overview of control units 1163
1 2 Trailer detector control unit -J345- 1164
1 3 Parking aid control unit -J446- 1165
1 4 Battery monitor control unit -J367- 1168
807 – – Fitting locations: coupling points – 3 1170
1 Coupling points 1170
1 1 Coupling point in engine compartment, left -TML- 1170
1 2 Coupling point on engine, top centre -TMOM- 1171
1 3 Coupling point on engine, top right -TMOR- 1172
1 4 Coupling point on front left door -TTVL- 1173
1 5 Coupling point for front left seat -TSVL- 1174
1 6 Coupling point on rear left door -TTHL- 1175
1 7 Coupling point for roof -TH- 1176
1 8 Coupling point on front right door -TTVR- 1177
1 9 Coupling point for front right seat -TSVR- 1178
1 10 Coupling point on rear right door -TTHR- 1179
1 11 Coupling point in luggage compartment, left -THRL- 1180
1 12 Diagnostic connection -U31- 1181
1 12 1 Diagnostic connection -U31-, LHD models 1181
1 12 2 Diagnostic connection -U31-, RHD models 1182
001 –
1 2l petrol engine , CGPA,CGPB 1183
1
1 2l petrol engine , CGPA,CGPB 1183
2 Battery, Starter, Ignition/starter switch, Terminal 50 voltage supply relay, Fuse holder A, Fuse holder B 1184
3 Fuel pump relay, Fuel supply relay, Terminal 75 voltage supply relay 1, Fuse holder B 1185
4 Accelerator position sender, Accelerator position sender 2, Main relay, Onboard supply control unit, Engine control unit 1186
5 Cruise control system switch, Onboard supply control unit, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 1187
6 Knock sensor 1, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1188
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Throttle valve drive for electric throttle, Engine control unit 1189
8 Brake light switch, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, ABS control unit, Throttle valve module, Engine control unit 1190
9 Lambda probe, Lambda probe after catalytic converter, Clutch position sender, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 1191
10 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Reserve fuel warning lamp 1192
11 Oil pressure switch, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1193
002 –
1 6l diesel engine , CAYA,CAYB,CAYC 1194
1
1 6l diesel engine , CAYA,CAYB,CAYC 1194
2 Battery, Starter, Alternator, Ignition/starter switch, Fuse holder A 1195
3 Terminal 30 voltage supply relay, Terminal 75 voltage supply relay 1, Fuse holder B 1196
4 Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1197
5 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Low heat output relay, Engine control unit, Fuel supply relay, Heater element for crankcase breather 1198
6 Cruise control system switch, Brake light switch, ABS control unit, Onboard supply control unit, Engine control unit 1199
7 Lambda probe 1 before catalytic converter, Lambda probe, Air mass meter, Onboard supply control unit, Engine control unit, Lambda probe heater 1200
8 Auxiliary heating heater element contact switch, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1201
9 Engine speed sender, Coolant temperature sender, Throttle valve potentiometer, Fuel temperature sender, Throttle valve module, Engine control unit 1202
10 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1203
11 Exhaust gas recirculation valve 1, Exhaust gas recirculation potentiometer, Fuel pressure sender, Position sender for charge pressure positioner, Engine control unit, Exhaust gas recirculation control motor 1204
12 Intake manifold flap control unit, Hall sender, Intake manifold flap potentiometer, Engine control unit, Intake manifold flap motor 1205
13 Intake manifold sender, Charge pressure sender, Intake air temperature sender, Clutch position sender, Pressure differential sender, Engine control unit 1206
14 Engine control unit, Charge pressure control solenoid valve, Exhaust gas recirculation cooler changeover valve, Coolant circulation pump 2 1207
15 Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1208
16 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1209
003 –
Cruise control system (CCS) 1210
1
Cruise control system (CCS) 1210
2 Cruise control system switch, Cruise control system (CCS) SET button, Blocking diode, Onboard supply control unit, Steering column electronics control unit 1211
3 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 1212
004 –
Convenience system, left-hand drive 1213
1
Convenience system, left-hand drive 1213
2 Sunroof button, Sliding sunroof adjustment control unit, Onboard supply control unit, Sliding sunroof motor 1214
3 Rear lid handle release button, Rear lid lock unit, Onboard supply control unit, Rear lid central locking motor, Right luggage compartment light 1215
4 Driver side interior locking button for central locking system, Driver side central locking lock unit, Onboard supply control unit, Central locking deadlock function warning lamp -SAFE- 1216
5 Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit 1217
6 Front left window regulator switch, Front right window regulator switch in driver door, Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit, Driver side window regulator motor 1218
7 Rear left door contact switch, Rear left central locking lock unit, Onboard supply control unit, Rear left door central locking motor, lock 1219
8 Rear left window regulator switch, in door, Rear right window regulator switch, in door, Rear left door control unit, Rear right door control unit, Onboard supply control unit, Rear left window regulator motor, Rear right window regulator motor 1220
9 Rear right door contact switch, Rear right central locking lock unit, Onboard supply control unit, Tank filler flap locking motor, Rear right door central locking motor, lock 1221
10 Front passenger side central locking lock unit, Onboard supply control unit 1222
11 Window regulator switch in front passenger door, Front passenger door control unit, Onboard supply control unit, Front passenger side window regulator motor 1223
005 –
Airbag systems 1224
1
Airbag systems 1224
2 Driver side belt switch, Front passenger side belt switch, Battery master/isolator switch, Key operated switch to deactivate front passenger side airbag, Airbag coil connector and return ring with slip ring, Seat occupied sensor, front passenger side, Airbag control unit, Driver side airbag igniter 1225
3 Airbag control unit, Front passenger side airbag igniter 1, Driver seat belt tensioner igniter 1, Front passenger seat belt tensioner igniter 1, Side airbag igniter on driver side, Side airbag igniter on front passenger side 1226
4 Side airbag crash sensor on driver side, Side airbag crash sensor on front passenger side, Rear side airbag crash sensor on driver side, Rear side airbag crash sensor on front passenger side, Airbag control unit, Driver side curtain airbag igniter, Fro
t passenger side curtain airbag igniter 1227
5 Airbag control unit, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Front passenger side airbag deactivated warning lamp, Diagnostic connection 1228
006 –
Power assisted steering 1229
1
Power assisted steering 1229
2 Power steering sensor, Control unit in dash panel insert, Power steering control unit, Onboard supply control unit, Dash panel insert, Steering hydraulics pump 1230
007 –
Anti-lock brake system (ABS) 1231
1
Anti-lock brake system (ABS) 1231
2 ABS control unit, Fuse holder A, Fuse holder B 1232
3 Brake light switch, ABS control unit 1233
4 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit 1234
5 Tyre pressure monitor display button, ABS control unit, Onboard supply control unit 1235
6 Handbrake warning switch, Brake fluid level warning contact, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 1236
008 –
1 4l petrol engine , CGGB 1237
1
1 4l petrol engine , CGGB 1237
2 Battery, Starter, Alternator, Ignition/starter switch, Terminal 50 voltage supply relay, Fuse holder A, Fuse holder B 1238
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1239
4 Accelerator position sender, Main relay, Engine control unit 1240
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1241
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 1242
7 Engine speed sender, Hall sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1243
8 Brake light switch, Lambda probe, Clutch position sender, ABS control unit, Engine control unit, Lambda probe heater 1244
9 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 1245
10 Lambda probe after catalytic converter, Onboard supply control unit, Engine control unit, Diagnostic connection 1246
11 Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert 1247
12 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1248
009 –
1 2l petrol engine , CHFA 1249
1
1 2l petrol engine , CHFA 1249
2 Battery, Starter, Alternator, Ignition/starter switch, Terminal 50 voltage supply relay, Fuse holder A, Fuse holder B 1250
3 Fuel pump relay, Fuel supply relay, Terminal 75 voltage supply relay 1, Fuse holder B 1251
4 Accelerator position sender, Accelerator position sender 2, Main relay, Engine control unit 1252
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 1253
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1254
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Onboard supply control unit, Engine control unit 1255
8 Brake light switch, Clutch position sender, ABS control unit, Onboard supply control unit, Engine control unit 1256
9 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 1257
10 Lambda probe, Engine control unit 1258
11 Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1259
12 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1260
010 –
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) 1261
1
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) 1261
2 ABS control unit, Fuse holder A, Fuse holder B 1262
3 TCS and ESP button, Tyre pressure monitor display button, ABS control unit 1263
4 Brake light switch, ABS control unit, Onboard supply control unit 1264
5 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit 1265
6 Handbrake warning switch, Brake fluid level warning contact, Steering angle sender, Control unit in dash panel insert, Dash panel insert 1266
011 –
Parking aid (PDC) 1267
1
Parking aid (PDC) 1267
2 Rear parking aid warning buzzer, Parking aid control unit, Onboard supply control unit 1268
3 Rear left parking aid sender, Rear centre left parking aid sender, Rear centre right parking aid sender, Rear right parking aid sender, Parking aid control unit 1269
012 –
Dual clutch gearbox (DSG) , (0EG) 1270
1
Dual clutch gearbox (DSG) , (0EG) 1270
2 Starter inhibitor relay, Onboard supply control unit, Terminal 50 voltage supply relay, Mechatronic unit for dual clutch gearbox 1271
3 Onboard supply control unit, Mechatronic unit for dual clutch gearbox 1272
4 Onboard supply control unit, Mechatronic unit for dual clutch gearbox 1273
5 Selector lever, Dash panel insert, Ignition key withdrawal lock solenoid 1274
6 Selector lever, Selector lever lock solenoid, Selector lever position display 1275
013 –
Interface for external use 1276
1
Interface for external use 1276
2 Onboard supply control unit, Multimedia system control unit, Radio, Connection for external audio sources 1277
014 –
Trailer coupling 1278
1
Trailer coupling 1278
2 Trailer detector control unit, Onboard supply control unit, Fuse holder E 1279
3 Trailer detector control unit, Onboard supply control unit, Trailer socket 1280
4 Rear fog light cut-out contact switch, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Rear left fog light bulb, Trailer socket 1281
015 –
Heated seats 1282
1
Heated seats 1282
2 Onboard supply control unit, Heated front seats control unit 1283
3 Heated driver seat regulator, Heated front seats control unit, Heated seat cushion for driver seat, Heated backrest for driver seat 1284
4 Heated front passenger seat regulator, Heated front seats control unit, Heated seat cushion for front passenger seat, Heated backrest for front passenger seat 1285
016 –
Automatic anti-dazzle interior mirror, rain sensor 1286
1
Automatic anti-dazzle interior mirror, rain sensor 1286
2 Onboard supply control unit, Automatic anti-dazzle interior mirror 1287
3 Rain sensor, Onboard supply control unit 1288
017 –
12 V sockets 1289
1
12 V sockets 1289
2 Cigarette lighter illumination bulb, Socket illumination bulb, Cigarette lighter, 12 V socket 1290
018 –
Auxiliary air heater , CAYA,CAYB,CAYC,CFWA 1291
1
Auxiliary air heater , CAYA,CAYB,CAYC,CFWA 1291
2 Low heat output relay, High heat output relay, Engine control unit 1292
3 Auxiliary air heater element 1293
019 –
Driving school equipment 1294
1
Driving school equipment 1294
2 Driving school mode warning buzzer, Driving school mode relay, Driving school vehicle footwell illumination 1295
3 Footwell light switch, Warning buzzer switch, Onboard supply control unit 1296
020 –
Radio system RCD 310 1297
1
Radio system RCD 310 1297
2 Onboard supply control unit, Radio, Aerial 1298
3 Rear left bass loudspeaker, Front left treble loudspeaker, Front left bass loudspeaker 1299
4 Rear right bass loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 1300
5 Radio aerial 2, Left aerial module, Frequency modulation (FM) frequency filter in negative wire, Frequency modulation (FM) frequency filter in positive wire, Heated rear window 1301
021 –
Preparation for radio 1302
1
Preparation for radio 1302
2 Onboard supply control unit, Front left loudspeaker, Front right loudspeaker, Aerial 1303
3 Rear left loudspeaker, Rear right loudspeaker 1304
4 Radio aerial 2, Left aerial module, Frequency modulation (FM) frequency filter in negative wire, Frequency modulation (FM) frequency filter in positive wire, Heated rear window 1305
022 –
Universal preparation for mobile telephone 1306
1
Universal preparation for mobile telephone 1306
2 Mobile telephone operating electronics control unit, Onboard supply control unit, Telephone microphone 1307
3 Mobile telephone operating electronics control unit, Control unit with display for radio and navigation, Telephone microphone, Radio and telephone aerial, Telephone bracket 1308
023 –
Radio navigation system 1309
1
Radio navigation system 1309
2 Control unit with display for radio and navigation, Onboard supply control unit, Roof aerial 1310
3 Control unit with display for radio and navigation, Telephone microphone, Telephone bracket 1311
4 Rear left bass loudspeaker, Front left treble loudspeaker, Front left bass loudspeaker 1312
5 Rear right bass loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 1313
6 Radio aerial 2, Left aerial module, Frequency modulation (FM) frequency filter in negative wire, Frequency modulation (FM) frequency filter in positive wire, Heated rear window 1314
024 –
Headlight washer system 1315
1
Headlight washer system 1315
2 Headlight washer system relay, Onboard supply control unit, Headlight washer system pump 1316
025 –
Climatic 1317
1
Climatic 1317
2 Fresh air blower switch, Air conditioning system control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 1318
3 Centre vent temperature sender, Footwell vent temperature sender, Evaporator output temperature sender, Air conditioning system control unit, Temperature flap control motor 1319
4 High-pressure sender, Air conditioning system control unit, Onboard supply control unit 1320
5 Radiator fan thermal switch, Radiator fan control unit, Radiator fan 1321
026 –
Climatronic 1322
1
Climatronic 1322
2 Sunlight penetration photosensor, Fresh air blower control unit, Climatronic control unit, Fresh air blower, Air flow flap control motor 1323
3 Climatronic control unit, Onboard supply control unit, Centre flap control motor, Defroster flap control motor 1324
4 Centre vent temperature sender, Footwell vent temperature sender, Evaporator output temperature sender, Climatronic control unit, Temperature flap control motor 1325
5 High-pressure sender, Humidity sender for air conditioning system, Climatronic control unit, Air conditioner compressor regulating valve 1326
6 Radiator fan control unit 1327
027 –
Fog light 1328
1
Fog light 1328
2 Light switch, Left fog light bulb, Right fog light bulb 1329
028 –
Radio system RCD 510 1330
1
Radio system RCD 510 1330
2 Onboard supply control unit, Radio, Aerial 1331
3 Rear left bass loudspeaker, Front left treble loudspeaker, Front left bass loudspeaker 1332
4 Rear right bass loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 1333
5 Radio aerial 2, Left aerial module, Frequency modulation (FM) frequency filter in negative wire, Frequency modulation (FM) frequency filter in positive wire, Heated rear window 1334
029 –
Air conditioning system with manual regulation 1335
1
Air conditioning system with manual regulation 1335
2 Fresh air blower switch, Air conditioning system control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower 1336
3 High-pressure sender, Evaporator output temperature sender, Air conditioning system control unit, Fresh air and air recirculation flap control motor 1337
4 Air conditioning system control unit, Onboard supply control unit 1338
5 Radiator fan thermal switch, Radiator fan control unit, Radiator fan 1339
6 Radiator fan thermal switch, Radiator fan control unit, Radiator fan 1340
030 –
Gas discharge headlights with automatic headlight range control 1341
1
Gas discharge headlights with automatic headlight range control 1341
2 Headlight range control unit, Onboard supply control unit, Front left headlight 1342
3 Headlight range control unit, Onboard supply control unit, Data bus diagnostic interface, Dash panel insert 1343
4 Headlight range control unit, Onboard supply control unit, Front right headlight 1344
5 Light switch, Front and rear fog light switch, Onboard supply control unit, Light switch illumination bulb 1345
031 –
Sliding/tilting sunroof 1346
1
Sliding/tilting sunroof 1346
2 Sunroof button, Sliding sunroof adjustment control unit, Onboard supply control unit, Sliding sunroof motor 1347
032 –
1 4l petrol engine , CAVB,CAVE,CTHE 1348
1
1 4l petrol engine , CAVB,CAVE,CTHE 1348
2 Battery, Starter, Alternator, Suppression filter, Airbag control unit, Battery isolation igniter, Fuse holder A, Fuse holder B, Fuse holder F 1349
3 Ignition/starter switch, Fuse holder B 1350
4 Starter inhibitor relay, Terminal 30 voltage supply relay, Additional coolant pump relay, Circulation pump 1351
5 Cruise control system switch, Radiator outlet coolant temperature sender, Engine control unit 1352
6 Lambda probe, Lambda probe after catalytic converter, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Spark plug 1, Spark plug 2 1353
7 Accelerator position sender 2, Oil level and oil temperature sender, Brake servo pressure sensor, Engine control unit, Ignition coil 3 with output stage, Ignition coil 4 with output stage, Spark plug 3, Spark plug 4 1354
8 Brake light switch, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Vacuum pump for brakes 1355
9 Oil pressure switch, Fuel gauge sender, Knock sensor 1, Fuel pump control unit, Engine control unit, Fuel pressure regulating valve 1356
10 Engine control unit, Control unit for structure-borne sound, Charge pressure control solenoid valve, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Turbocharger air recirculation valve, Magnetic clutch for supercharger, Actuator for structure-borne sound 1357
11 Engine speed sender, Coolant temperature sender, Intake air temperature sender 2, Radiator fan control unit, Engine control unit 1358
12 High-pressure sender, Fuel pressure sender, Engine control unit, Air conditioner compressor regulating valve 1359
13 Hall sender, Intake air temperature sender, Intake air temperature sender 3, Engine control unit 1360
14 Throttle valve module, Engine control unit, Regulating flap control unit 1361
15 Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1362
033 –
1 2l petrol engine , CBZB,CBZC 1363
1
1 2l petrol engine , CBZB,CBZC 1363
2 Battery, Starter, Alternator, Starter inhibitor relay, Data bus diagnostic interface, Fuse holder A, Fuse holder B 1364
3 Climatronic control unit, Main relay, Air conditioning system control unit, Additional coolant pump relay, Fuse holder B 1365
4 Engine control unit, Coolant circulation pump 1366
5 Accelerator position sender, Accelerator position sender 2, Engine control unit, Output stage, Ignition transformer 1367
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1, Fuel pressure regulating valve, Coolant regulating valve 1368
7 Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1369
8 Fuel pressure sender, Engine control unit, Charge pressure positioner 1370
9 Engine speed sender, Charge pressure sender, Engine control unit 1371
10 Cruise control system switch, Fuel gauge sender, Fuel system pressurisation pump, Onboard supply control unit, Engine control unit 1372
11 Brake light switch, Clutch pedal switch, ABS control unit, Onboard supply control unit, Engine control unit 1373
12 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 1374
13 Lambda probe, Lambda probe after catalytic converter, Engine control unit 1375
14 Start/Stop operation button, Starter relay 1, Starter relay 2 1376
15 Coolant shortage indicator sender, Control unit in dash panel insert, Voltage stabiliser, Dash panel insert 1377
16 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1378
034 –
1 2l diesel engine with start/stop system , CFWA 1379
1
1 2l diesel engine with start/stop system , CFWA 1379
2 Battery, Starter, Ignition/starter switch, Battery monitor control unit, Fuse holder A, Fuse holder B 1380
3 Terminal 30 voltage supply relay, Fuse holder B 1381
4 Onboard supply control unit, Voltage stabiliser, Starter relay 1, Starter relay 2 1382
5 Auxiliary heating heater element contact switch, Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3 1383
6 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Engine control unit, Fuel supply relay 1384
7 Brake light switch, Clutch position sender, ABS control unit, Engine control unit, Mechatronic unit for dual clutch gearbox 1385
8 Air mass meter, Power steering control unit, Engine control unit, Air conditioner compressor regulating valve 1386
9 Lambda probe 1 before catalytic converter, Charge pressure sender, Lambda probe, Intake air temperature sender, Throttle valve potentiometer, Throttle valve module, Engine control unit, Lambda probe heater 1387
10 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Fuel pressure regulating valve, Fuel metering valve 1388
11 Exhaust gas recirculation valve 1, Engine speed sender, Coolant temperature sender, Fuel temperature sender, Exhaust gas recirculation potentiometer, Engine control unit, Exhaust gas recirculation control motor 1389
12 Intake manifold flap control unit, Hall sender, Fuel pressure sender, Intake manifold flap potentiometer, Position sender for charge pressure positioner, Engine control unit, Intake manifold flap motor 1390
13 Radiator fan control unit, Engine control unit, Charge pressure control solenoid valve, Exhaust gas recirculation cooler changeover valve, Radiator fan, Coolant circulation pump 2 1391
14 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1392
15 Pressure differential sender, Gearbox neutral position sender, Engine control unit, Heater element for crankcase breather 1393
16 Start/Stop operation button, Data bus diagnostic interface 1394
17 Fuel gauge sender, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1395
18 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1396
035 –
Trailer coupling 1397
1
Trailer coupling 1397
2 Trailer detector control unit, Onboard supply control unit, Fuse holder E 1398
3 Trailer detector control unit, Onboard supply control unit, Trailer socket 1399
4 Rear fog light cut-out contact switch, Control unit in dash panel insert, Dash panel insert, Rear left fog light bulb, Trailer socket 1400
036 –
Basic equipment 1401
1
Basic equipment 1401
2 Battery, Starter, Ignition/starter switch, Fuse holder B 1402
3 X-contact relief relay, Dipped beam relay, Fuse holder B 1403
4 Light switch, Front and rear fog light switch, Onboard supply control unit, Light switch illumination bulb 1404
5 Switch and instrument illumination regulator, Onboard supply control unit 1405
6 Steering column combination switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 1406
7 Turn signal switch, Steering column combination switch, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Windscreen wiper motor 1407
8 Hazard warning lights button, Heated rear window button, Reversing light switch, Bonnet contact switch, Onboard supply control unit 1408
9 Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 1409
10 Onboard supply control unit, Front left headlight, Left headlight range control motor 1410
11 Onboard supply control unit, Front right headlight, Additional brake light bulb, Right headlight range control motor, Right luggage compartment light 1411
12 Onboard supply control unit, Left tail light, Right tail light, Left number plate light, Right number plate light 1412
13 Onboard supply control unit, Cigarette lighter illumination bulb, Socket illumination bulb, Cigarette lighter, 12 V socket 1413
14 Window regulator switch in front passenger door, Operating unit for window regulator in driver door, Onboard supply control unit 1414
15 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Onboard supply control unit, Front passenger reading light, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 1415
16 Onboard supply control unit, Left footwell light, Right footwell light, Rear centre reading light 1416
17 Treble horn, Bass horn, Onboard supply control unit 1417
18 Heater control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 1418
19 Diagnostic connection 1419
20 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 1420
21 Brake fluid level warning contact, Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Control unit in dash panel insert, Dash panel insert 1421
037 –
Radiator fan with air conditioning system 1422
1
Radiator fan with air conditioning system 1422
2 Radiator fan thermal switch, Radiator fan control unit, Radiator fan 1423
038 –
Radiator fan with no air conditioning system 1424
1
Radiator fan with no air conditioning system 1424
2 Radiator fan thermal switch, Radiator fan 1425
039 –
Radio system RCD 210 1426
1
Radio system RCD 210 1426
2 Onboard supply control unit, Radio, Aerial 1427
3 Front left treble loudspeaker, Front left bass loudspeaker, Front right treble loudspeaker, Front right bass loudspeaker 1428
040 –
Heated washer jets 1429
1
Heated washer jets 1429
2 Left washer jet heater element, Right washer jet heater element 1430
041 –
Daytime running light 1431
1
Daytime running light 1431
2 Light switch, Left daytime running light bulb, Right daytime running light bulb 1432
042 –
Multifunction steering wheel 1433
1
Multifunction steering wheel 1433
2 Multifunction buttons on left in steering wheel, Coil connector, Horn plate, Multifunction steering wheel control unit, Driver side airbag igniter 1434
043 –
Anti-theft alarm system 1435
1
Anti-theft alarm system 1435
2 Anti-theft alarm sensor, Alarm horn, Onboard supply control unit 1436
3 Interior monitoring switch, Bonnet contact switch, Onboard supply control unit 1437
044 –
Electrically adjustable and heated exterior mirror 1438
1
Electrically adjustable and heated exterior mirror 1438
2 Mirror adjustment switch, Onboard supply control unit 1439
3 Driver door control unit, Onboard supply control unit, Driver side exterior mirror 1440
4 Front passenger door control unit, Onboard supply control unit, Front passenger side exterior mirror 1441
045 –
Fuse assignment 1442
1
Fuse assignment 1442
2 Battery, Fuse holder A 1443
3 Fuse holder A, Fuse holder C 1444
4 Fuse 5, Fuse holder D, Fuse holder E 1445
5 Fuse holder B 1446
6 Fuse holder B 1447
7 Onboard supply control unit, Fuse holder B 1448
8 Onboard supply control unit, Fuse holder B 1449
9 Onboard supply control unit, Fuse holder B 1450
10 Onboard supply control unit, Fuse holder B 1451
11 Onboard supply control unit, Fuse holder B 1452
12 Onboard supply control unit, Fuse holder B 1453
13 Onboard supply control unit, Fuse holder B 1454
14 Onboard supply control unit, Fuse holder B 1455
15 Fuse holder B 1456
16 Fuse holder B 1457
17 Fuse holder B 1458
18 Fuse holder B 1459
19 Fuse holder B 1460
20 Fuse holder B 1461
21 Fuse holder B 1462
046 –
Daytime running light and fog lights 1463
1
Daytime running light and fog lights 1463
2 Onboard supply control unit, Left fog light bulb, Right fog light bulb, Left daytime running light bulb, Right daytime running light bulb, Left static cornering light, Right static cornering light 1464
3 Light switch, Steering angle sender, Onboard supply control unit 1465
048 –
1 6l diesel engine with start/stop system , CAYB 1466
1
1 6l diesel engine with start/stop system , CAYB 1466
2 Battery, Starter, Alternator, Ignition/starter switch, Battery monitor control unit, Fuse holder A, Fuse holder B 1467
3 Terminal 30 voltage supply relay, Fuse holder B 1468
4 Onboard supply control unit, Voltage stabiliser, Starter relay 1, Starter relay 2 1469
5 Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1470
6 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Engine control unit, Terminal 75 voltage supply relay 1, Terminal 50 voltage supply relay 1471
7 Brake light switch, Clutch position sender, Fuel pump relay, ABS control unit, Engine control unit 1472
8 Air mass meter, Power steering control unit, Engine control unit 1473
9 Lambda probe 1 before catalytic converter, Lambda probe, Throttle valve potentiometer, Throttle valve module, Engine control unit, Lambda probe heater 1474
10 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1475
11 Exhaust gas recirculation valve 1, Engine speed sender, Coolant temperature sender, Fuel temperature sender, Exhaust gas recirculation potentiometer, Engine control unit, Exhaust gas recirculation control motor 1476
12 Fuel pressure sender, Position sender for charge pressure positioner, Engine control unit 1477
13 Intake manifold flap control unit, Hall sender, Intake manifold flap potentiometer, Engine control unit, Intake manifold flap motor 1478
14 Engine control unit, Charge pressure control solenoid valve, Exhaust gas recirculation cooler changeover valve, Continued coolant circulation pump 1479
15 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1480
16 Charge pressure sender, Intake air temperature sender, Exhaust gas pressure sensor 1, Engine control unit 1481
17 Data bus diagnostic interface 1482
18 Fuel gauge sender, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1483
19 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1484
049 –
Climatronic, right-hand drive 1485
1
Climatronic, right-hand drive 1485
2 Sunlight penetration photosensor, Fresh air blower control unit, Climatronic control unit, Fresh air blower, Air flow flap control motor 1486
3 Climatronic control unit, Onboard supply control unit, Centre flap control motor, Defroster flap control motor 1487
4 Centre vent temperature sender, Footwell vent temperature sender, Evaporator output temperature sender, Climatronic control unit, Temperature flap control motor 1488
5 High-pressure sender, Humidity sender for air conditioning system, Climatronic control unit, Radiator fan control unit, Air conditioner compressor regulating valve 1489
052 –
Dual headlight 1490
1
Dual headlight 1490
2 Dipped beam relay 1491
3 Onboard supply control unit, Front left headlight 1492
4 Onboard supply control unit, Front right headlight 1493
053 –
Basic equipment for models with start/stop system , CAYB 1494
1
Basic equipment for models with start/stop system , CAYB 1494
2 Battery, Starter, Alternator, Battery monitor control unit 1495
3 Engine control unit, Terminal 50 voltage supply relay, Starter relay 1, Starter relay 2 1496
4 Ignition/starter switch, Voltage stabiliser, Fuse holder B 1497
5 X-contact relief relay, Terminal 75 voltage supply relay 1, Fuse holder B 1498
6 Light switch, Front and rear fog light switch, Onboard supply control unit, Light switch illumination bulb 1499
7 Switch and instrument illumination regulator, Onboard supply control unit 1500
8 Steering column combination switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 1501
9 Turn signal switch, Steering column combination switch, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Windscreen wiper motor 1502
10 Hazard warning lights button, Heated rear window button, Reversing light switch, Bonnet contact switch, Onboard supply control unit 1503
11 Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 1504
12 Onboard supply control unit, Front left headlight, Left headlight range control motor 1505
13 Onboard supply control unit, Front right headlight, Additional brake light bulb, Right headlight range control motor, Right luggage compartment light 1506
14 Onboard supply control unit, Left tail light, Right tail light, Left number plate light, Right number plate light 1507
15 Onboard supply control unit, Cigarette lighter illumination bulb, Socket illumination bulb, Cigarette lighter, 12 V socket 1508
16 Window regulator switch in front passenger door, Operating unit for window regulator in driver door, Onboard supply control unit 1509
17 Treble horn, Onboard supply control unit, Front passenger reading light 1510
18 Onboard supply control unit, Data bus diagnostic interface, Diagnostic connection 1511
19 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 1512
20 Brake fluid level warning contact, Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Control unit in dash panel insert, Dash panel insert 1513
054 –
Convenience system 1514
1
Convenience system 1514
2 Rear lid handle release button, Rear lid lock unit, Onboard supply control unit, Rear lid central locking motor, Right luggage compartment light 1515
3 Driver side interior locking button for central locking system, Driver side central locking lock unit, Onboard supply control unit, Central locking SAFELOCK function warning lamp 1516
4 Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit 1517
5 Front left window regulator switch, Front right window regulator switch in driver door, Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit, Driver side window regulator motor 1518
6 Rear left door contact switch, Rear left central locking lock unit, Onboard supply control unit, Rear left door central locking motor, lock 1519
7 Rear left window regulator switch, in door, Rear right window regulator switch, in door, Rear left door control unit, Rear right door control unit, Onboard supply control unit, Rear left window regulator motor, Rear right window regulator motor 1520
8 Rear right door contact switch, Rear right central locking lock unit, Onboard supply control unit, Tank filler flap locking motor, Rear right door central locking motor, lock 1521
9 Front passenger side central locking lock unit, Onboard supply control unit 1522
10 Window regulator switch in front passenger door, Front passenger door control unit, Onboard supply control unit, Front passenger side window regulator motor 1523
055 –
Fuse assignment , CAYB 1524
1
Fuse assignment , CAYB 1524
2 Battery, Battery monitor control unit, Fuse holder A 1525
3 Radiator fan control unit, Fuse holder A, Fuse holder C 1526
4 Fuse holder D 1527
5 Fuse holder B 1528
6 Fuse holder B 1529
7 Onboard supply control unit, Fuse holder B 1530
8 Onboard supply control unit, Fuse holder B 1531
9 Onboard supply control unit, Fuse holder B 1532
10 Onboard supply control unit, Fuse holder B 1533
11 Onboard supply control unit, Fuse holder B 1534
12 Fuse holder B 1535
13 Fuse holder B 1536
14 Fuse holder B 1537
056 –
Climatic , (7L6),(7L8),(9AP) 1538
1
Climatic , (7L6),(7L8),(9AP) 1538
2 Fresh air blower switch, Air conditioning system control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 1539
3 High-pressure sender, Centre vent temperature sender, Footwell vent temperature sender, Evaporator output temperature sender, Air conditioning system control unit, Temperature flap control motor 1540
4 Air conditioning system control unit, Onboard supply control unit, Data bus diagnostic interface 1541
5 Radiator fan thermal switch, Radiator fan control unit, Radiator fan 1542
057 –
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) , (7L6),(7L8) 1543
1
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) , (7L6),(7L8) 1543
2 ABS control unit, Voltage stabiliser 2 1544
3 TCS and ESP button, Tyre Pressure Loss Indicator button, ABS control unit 1545
4 Brake light switch, ABS control unit, Onboard supply control unit 1546
5 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit, Data bus diagnostic interface 1547
6 Brake fluid level warning contact, Parking brake contact switch, Steering angle sender, Control unit in dash panel insert, Dash panel insert 1548
058 –
Airbag systems , (7L6) 1549
1
Airbag systems , (7L6) 1549
2 Driver side belt switch, Front passenger side belt switch, Key operated switch to deactivate front passenger side airbag, Seat occupied sensor, front passenger side, Airbag control unit, Driver side airbag igniter 1550
3 Airbag control unit, Front passenger side airbag igniter 1, Driver seat belt tensioner igniter 1, Front passenger seat belt tensioner igniter 1, Side airbag igniter on driver side, Side airbag igniter on front passenger side 1551
4 Side airbag crash sensor on driver side, Side airbag crash sensor on front passenger side, Rear left body acceleration sender, Rear right body acceleration sender, Airbag control unit 1552
5 Airbag control unit, Control unit in dash panel insert, Onboard supply control unit, Data bus diagnostic interface, Dash panel insert, Front passenger side airbag deactivated warning lamp 1553
059 –
Electrically adjustable and heated exterior mirror 1554
1
Electrically adjustable and heated exterior mirror 1554
2 Mirror adjustment switch, Onboard supply control unit 1555
3 Driver door control unit, Onboard supply control unit, Driver side exterior mirror 1556
4 Front passenger door control unit, Onboard supply control unit, Front passenger side exterior mirror 1557
060 –
1 6l diesel engine , CAYA,CAYB,CAYC 1558
1
1 6l diesel engine , CAYA,CAYB,CAYC 1558
2 Battery, Starter, Alternator, Starter inhibitor relay, Fuse holder A 1559
3 Terminal 30 voltage supply relay, Fuse holder B 1560
4 High-pressure sender, Air conditioner compressor regulating valve 1561
5 Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1562
6 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Low heat output relay, Engine control unit, Fuel supply relay 1563
7 Cruise control system switch, Brake light switch, ABS control unit, Onboard supply control unit, Engine control unit 1564
8 Lambda probe 1 before catalytic converter, Lambda probe, Air mass meter, Onboard supply control unit, Engine control unit, Lambda probe heater 1565
9 Auxiliary heating heater element contact switch, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1566
10 Engine speed sender, Coolant temperature sender, Throttle valve potentiometer, Fuel temperature sender, Throttle valve module, Engine control unit 1567
11 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1568
12 Exhaust gas recirculation valve 1, Exhaust gas recirculation potentiometer, Fuel pressure sender, Position sender for charge pressure positioner, Engine control unit, Exhaust gas recirculation control motor 1569
13 Intake manifold flap control unit, Hall sender, Intake manifold flap potentiometer, Engine control unit, Intake manifold flap motor 1570
14 Intake manifold sender, Charge pressure sender, Intake air temperature sender, Clutch position sender, Pressure differential sender, Engine control unit 1571
15 Engine control unit, Heater element relay, Charge pressure control solenoid valve, Heater element for crankcase breather, Exhaust gas recirculation cooler changeover valve, Coolant circulation pump 2 1572
16 Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1573
17 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1574
061 –
1 6l diesel engine with start/stop system , CAYB 1575
1
1 6l diesel engine with start/stop system , CAYB 1575
2 Battery, Starter, Alternator, Ignition/starter switch, Battery monitor control unit, Fuse holder A, Fuse holder B 1576
3 Terminal 30 voltage supply relay, Fuse holder B 1577
4 Onboard supply control unit, Voltage stabiliser, Starter relay 1, Starter relay 2 1578
5 High-pressure sender, Air conditioner compressor regulating valve 1579
6 Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1580
7 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Engine control unit, Fuel supply relay 1581
8 Brake light switch, Clutch position sender, ABS control unit, Engine control unit, Terminal 50 voltage supply relay, Mechatronic unit for dual clutch gearbox 1582
9 Air mass meter, Power steering control unit, Engine control unit 1583
10 Lambda probe 1 before catalytic converter, Lambda probe, Throttle valve potentiometer, Throttle valve module, Engine control unit, Lambda probe heater 1584
11 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1585
12 Exhaust gas recirculation valve 1, Engine speed sender, Coolant temperature sender, Fuel temperature sender, Exhaust gas recirculation potentiometer, Engine control unit, Exhaust gas recirculation control motor 1586
13 Fuel pressure sender, Position sender for charge pressure positioner, Engine control unit 1587
14 Intake manifold flap control unit, Hall sender, Intake manifold flap potentiometer, Engine control unit, Intake manifold flap motor 1588
15 Engine control unit, Heater element relay, Charge pressure control solenoid valve, Heater element for crankcase breather, Exhaust gas recirculation cooler changeover valve, Continued coolant circulation pump 1589
16 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1590
17 Intake manifold sender, Charge pressure sender, Intake air temperature sender, Pressure differential sender, Gearbox neutral position sender, Engine control unit 1591
18 Start/Stop operation button, Data bus diagnostic interface 1592
19 Fuel gauge sender, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1593
20 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1594
062 –
Fuse assignment 1595
1
Fuse assignment 1595
2 Battery, Fuse holder A 1596
3 Fuse holder A, Fuse holder C 1597
4 Fuse 5, Fuse holder D, Fuse holder E 1598
5 Fuse holder B 1599
6 Fuse holder B 1600
7 Fuse holder B 1601
8 Fuse holder B 1602
9 Onboard supply control unit, Fuse holder B 1603
10 Onboard supply control unit, Fuse holder B 1604
11 Onboard supply control unit, Fuse holder B 1605
12 Onboard supply control unit, Fuse holder B 1606
13 Onboard supply control unit, Fuse holder B 1607
14 Onboard supply control unit, Fuse holder B 1608
15 Onboard supply control unit, Fuse holder B 1609
16 Fuse holder B 1610
17 Fuse holder B 1611
18 Fuse holder B 1612
19 Fuse holder B 1613
20 Fuse holder B 1614
21 Fuse holder B 1615
22 Fuse holder B 1616
063 –
Basic equipment for models with start/stop system , (7L6),(7L8) 1617
1
Basic equipment for models with start/stop system , (7L6),(7L8) 1617
2 Battery, Starter, Alternator, Battery monitor control unit 1618
3 Starter relay 1, Starter relay 2 1619
4 Ignition/starter switch, Voltage stabiliser, Fuse holder B 1620
5 X-contact relief relay, Fuse holder B 1621
6 Light switch, Front and rear fog light switch, Onboard supply control unit, Light switch illumination bulb 1622
7 Switch and instrument illumination regulator, Onboard supply control unit 1623
8 Steering column combination switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 1624
9 Turn signal switch, Steering column combination switch, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Windscreen wiper motor 1625
10 Hazard warning lights button, Heated rear window button, Reversing light switch, Bonnet contact switch, Onboard supply control unit 1626
11 Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 1627
12 Onboard supply control unit, Front left headlight, Left headlight range control motor 1628
13 Onboard supply control unit, Front right headlight, Additional brake light bulb, Right headlight range control motor, Right luggage compartment light 1629
14 Onboard supply control unit, Left tail light, Right tail light, Left number plate light, Right number plate light 1630
15 Onboard supply control unit, Cigarette lighter illumination bulb, Socket illumination bulb, Cigarette lighter, 12 V socket 1631
16 Window regulator switch in front passenger door, Operating unit for window regulator in driver door, Onboard supply control unit 1632
17 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Onboard supply control unit, Front passenger reading light, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 1633
18 Treble horn, Bass horn, Onboard supply control unit, Left footwell light, Right footwell light, Rear centre reading light 1634
19 Onboard supply control unit, Data bus diagnostic interface, Diagnostic connection 1635
20 Heater control unit, Onboard supply control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 1636
21 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 1637
22 Brake fluid level warning contact, Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Control unit in dash panel insert, Dash panel insert 1638
064 –
Basic equipment 1639
1
Basic equipment 1639
2 Battery, Starter, Ignition/starter switch, Fuse holder B 1640
3 X-contact relief relay, Dipped beam relay, Fuse holder B 1641
4 Light switch, Front and rear fog light switch, Onboard supply control unit, Blocking diode 2, Light switch illumination bulb 1642
5 Switch and instrument illumination regulator, Onboard supply control unit 1643
6 Steering column combination switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 1644
7 Turn signal switch, Steering column combination switch, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Windscreen wiper motor 1645
8 Hazard warning lights button, Heated rear window button, Reversing light switch, Bonnet contact switch, Onboard supply control unit 1646
9 Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 1647
10 Onboard supply control unit, Front left headlight, Left headlight range control motor 1648
11 Onboard supply control unit, Front right headlight, High-level brake light bulb, Right headlight range control motor, Right luggage compartment light 1649
12 Onboard supply control unit, Left tail light, Right tail light, Left number plate light, Right number plate light 1650
13 Onboard supply control unit, Cigarette lighter illumination bulb, Socket illumination bulb, Cigarette lighter, 12 V socket 1651
14 Window regulator switch in front passenger door, Operating unit for window regulator in driver door, Onboard supply control unit 1652
15 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Onboard supply control unit, Front passenger reading light, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 1653
16 Onboard supply control unit, Left footwell light, Right footwell light, Rear centre reading light 1654
17 Treble horn, Bass horn, Onboard supply control unit 1655
18 Heater control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 1656
19 Diagnostic connection 1657
20 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 1658
21 Brake fluid level warning contact, Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Control unit in dash panel insert, Dash panel insert 1659
065 –
Multifunction display (MFI) 1660
1
Multifunction display (MFI) 1660
2 Reset button, Ambient temperature sensor, Multifunction indicator, Onboard supply control unit, Dash panel insert 1661
066 –
Auxiliary air heater (PTC) , (7E6),(7E7) 1662
1
Auxiliary air heater (PTC) , (7E6),(7E7) 1662
2 Low heat output relay, High heat output relay, Engine control unit 1663
3 Fuse 1, Fuse 2, Fuse 3, Auxiliary air heater element 1664
067 –
Panoramic sliding sunroof 1665
1
Panoramic sliding sunroof 1665
2 Sliding sunroof adjustment, Sliding sunroof adjustment regulator, Sunroof button, Sliding sunroof adjustment control unit, Onboard supply control unit, Sliding sunroof motor 1666
068 –
Fuse assignment 1667
1
Fuse assignment 1667
2 Battery, Battery isolation igniter, Fuse holder A, Fuse holder F 1668
3 Fuse holder A 1669
4 Fuse holder A, Fuse holder C 1670
5 Fuse 5, Fuse holder D, Fuse holder E 1671
6 Fuse holder B 1672
7 Fuse holder B 1673
8 Fuse holder B 1674
9 Light switch, Fuse holder B 1675
10 Fuse holder B 1676
11 Fuse holder B 1677
12 Fuse holder B 1678
13 Fuse holder B 1679
14 Fuse holder B 1680
15 Fuse holder B 1681
16 Onboard supply control unit, Fuse holder B 1682
17 Onboard supply control unit, Fuse holder B 1683
18 Onboard supply control unit, Fuse holder B 1684
19 Onboard supply control unit, Fuse holder B 1685
20 Onboard supply control unit, Fuse holder B 1686
21 Fuse holder B 1687
22 Fuse holder B 1688
23 Fuse holder B 1689
24 Fuse holder B 1690
25 Fuse holder B 1691
26 Fuse holder B 1692
27 Fuse holder B 1693
28 Fuse holder B 1694
29 Fuse holder B 1695
30 Fuse holder B 1696
069 –
1 4l petrol engine , CGGB 1697
1
1 4l petrol engine , CGGB 1697
2 Battery, Starter, Alternator, Ignition/starter switch, Starter inhibitor relay, Fuse holder A, Fuse holder B 1698
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1699
4 High-pressure sender, Air conditioner compressor regulating valve 1700
5 Accelerator position sender, Main relay, Engine control unit 1701
6 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1702
7 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 1703
8 Engine speed sender, Hall sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1704
9 Brake light switch, Lambda probe, Clutch position sender, ABS control unit, Engine control unit, Lambda probe heater 1705
10 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 1706
11 Lambda probe after catalytic converter, Onboard supply control unit, Engine control unit, Diagnostic connection 1707
12 Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert 1708
13 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1709
070 –
1 2l petrol engine , CHFA 1710
1
1 2l petrol engine , CHFA 1710
2 Battery, Starter, Alternator, Ignition/starter switch, Fuse holder A, Fuse holder B 1711
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1712
4 Accelerator position sender, Accelerator position sender 2, Current supply relay for Simos control unit, Engine control unit 1713
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Spark plug 1, Spark plug 2, Spark plug 3 1714
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1715
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Onboard supply control unit, Engine control unit 1716
8 Brake light switch, Clutch position sender, ABS control unit, Onboard supply control unit, Engine control unit 1717
9 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 1718
10 Lambda probe, Engine control unit 1719
11 Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1720
12 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1721
071 –
1 2l petrol engine , CGPA,CGPB 1722
1
1 2l petrol engine , CGPA,CGPB 1722
2 Battery, Starter, Ignition/starter switch, Fuse holder A, Fuse holder B 1723
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1724
4 Accelerator position sender, Accelerator position sender 2, Current supply relay for Simos control unit, Onboard supply control unit, Engine control unit 1725
5 Cruise control system switch, Onboard supply control unit, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 1726
6 Knock sensor 1, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1727
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1728
8 Brake light switch, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Throttle valve module, Engine control unit 1729
9 Lambda probe, Lambda probe after catalytic converter, Clutch position sender, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 1730
10 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Reserve fuel warning lamp 1731
11 Oil pressure switch, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1732
072 –
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) 1733
1
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) 1733
2 ABS control unit, Fuse holder A, Fuse holder B, Fuse holder F 1734
3 TCS and ESP button, Tyre Pressure Loss Indicator button, ABS control unit 1735
4 Brake light switch, ABS control unit, Onboard supply control unit 1736
5 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ESP sensor unit, ABS control unit 1737
6 Brake fluid level warning contact, Parking brake contact switch, Steering angle sender, Control unit in dash panel insert, Dash panel insert 1738
073 –
Anti-lock brake system (ABS) , (1AC) 1739
1
Anti-lock brake system (ABS) , (1AC) 1739
2 ABS control unit, Fuse holder A, Fuse holder B 1740
3 Brake light switch, ABS control unit 1741
4 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit 1742
5 Tyre Pressure Loss Indicator button, ABS control unit, Onboard supply control unit 1743
6 Brake fluid level warning contact, Parking brake contact switch, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 1744
074 –
1 2l diesel engine , CFWA 1745
1
1 2l diesel engine , CFWA 1745
2 Battery, Starter, Alternator with voltage regulator, Ignition/starter switch, Fuse holder A, Fuse holder B 1746
3 Terminal 30 voltage supply relay, Fuse holder B 1747
4 Onboard supply control unit 1748
5 Auxiliary heating heater element contact switch, Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3 1749
6 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Engine control unit, Fuel supply relay 1750
7 Brake light switch, Air mass meter, Clutch position sender, ABS control unit, Engine control unit 1751
8 Power steering control unit, Engine control unit 1752
9 Lambda probe 1 before catalytic converter, Charge pressure sender, Lambda probe, Intake air temperature sender, Throttle valve potentiometer, Throttle valve module, Engine control unit, Lambda probe heater 1753
10 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Fuel pressure regulating valve, Fuel metering valve 1754
11 Exhaust gas recirculation valve 1, Engine speed sender, Coolant temperature sender, Fuel temperature sender, Exhaust gas recirculation potentiometer, Engine control unit, Exhaust gas recirculation control motor 1755
12 Intake manifold flap control unit, Hall sender, Fuel pressure sender, Intake manifold flap potentiometer, Position sender for charge pressure positioner, Engine control unit, Intake manifold flap motor 1756
13 Engine control unit, Charge pressure control solenoid valve, Exhaust gas recirculation cooler changeover valve, Coolant circulation pump 2 1757
14 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Pressure differential sender, Exhaust gas temperature sender 4, Engine control unit, Heater element for crankcase breather 1758
15 Radiator fan thermal switch, High-pressure sender, Air conditioner compressor regulating valve, Radiator fan 1759
16 Fuel gauge sender, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1760
17 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1761
075 –
1 2l petrol engine , CGPA,CGPB 1762
1
1 2l petrol engine , CGPA,CGPB 1762
2 Battery, Starter, Ignition/starter switch, Fuse holder A, Fuse holder B 1763
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1764
4 High-pressure sender, Air conditioner compressor regulating valve 1765
5 Accelerator position sender, Accelerator position sender 2, Terminal 30 voltage supply relay, Onboard supply control unit, Engine control unit 1766
6 Onboard supply control unit, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 1767
7 Cruise control system switch, Knock sensor 1, Onboard supply control unit, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1768
8 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1769
9 Brake light switch, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Clutch position sender, Throttle valve module, Engine control unit 1770
10 Lambda probe, Lambda probe after catalytic converter, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 1771
11 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Reserve fuel warning lamp 1772
12 Oil pressure switch, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1773
076 –
1 2l petrol engine with start/stop system , CGPA,(7L6),(7L8) 1774
1
1 2l petrol engine with start/stop system , CGPA,(7L6),(7L8) 1774
2 Battery, Starter, Ignition/starter switch, Battery monitor control unit, Fuse holder A, Fuse holder B 1775
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1776
4 High-pressure sender, Air conditioner compressor regulating valve 1777
5 Accelerator position sender, Accelerator position sender 2, Terminal 30 voltage supply relay, Onboard supply control unit, Engine control unit 1778
6 Onboard supply control unit, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 1779
7 Cruise control system switch, Knock sensor 1, Onboard supply control unit, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1780
8 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Brake servo pressure sensor, Gearbox neutral position sender, Engine control unit 1781
9 Brake light switch, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Clutch position sender, Throttle valve module, Engine control unit 1782
10 Lambda probe, Lambda probe after catalytic converter, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 1783
11 Voltage stabiliser, Starter relay 1, Starter relay 2 1784
12 Start/Stop operation button, Data bus diagnostic interface 1785
13 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Reserve fuel warning lamp 1786
14 Oil pressure switch, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1787
077 –
1 6l diesel engine , CAYA,CAYB,CAYC 1788
1
1 6l diesel engine , CAYA,CAYB,CAYC 1788
2 Battery, Starter, Alternator, Starter inhibitor relay, Fuse holder A 1789
3 Terminal 30 voltage supply relay, Fuse holder B 1790
4 High-pressure sender, Air conditioner compressor regulating valve 1791
5 Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1792
6 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Low heat output relay, Engine control unit, Fuel supply relay 1793
7 Cruise control system switch, Brake light switch, ABS control unit, Onboard supply control unit, Engine control unit 1794
8 Lambda probe 1 before catalytic converter, Lambda probe, Air mass meter, Onboard supply control unit, Engine control unit, Lambda probe heater 1795
9 Auxiliary heating heater element contact switch, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1796
10 Engine speed sender, Coolant temperature sender, Throttle valve potentiometer, Fuel temperature sender, Throttle valve module, Engine control unit 1797
11 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1798
12 Exhaust gas recirculation valve 1, Exhaust gas recirculation potentiometer, Fuel pressure sender, Position sender for charge pressure positioner, Engine control unit, Exhaust gas recirculation control motor 1799
13 Hall sender, Clutch position sender, Engine control unit 1800
14 Intake manifold sender, Charge pressure sender, Intake air temperature sender, Pressure differential sender, Engine control unit 1801
15 Engine control unit, Heater element relay, Charge pressure control solenoid valve, Heater element for crankcase breather, Exhaust gas recirculation cooler changeover valve, Coolant circulation pump 2 1802
16 Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1803
17 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1804
078 –
1 6l diesel engine with start/stop system , CAYB 1805
1
1 6l diesel engine with start/stop system , CAYB 1805
2 Battery, Starter, Alternator with voltage regulator, Ignition/starter switch, Battery monitor control unit, Fuse holder A, Fuse holder B 1806
3 Terminal 30 voltage supply relay, Fuse holder B 1807
4 Onboard supply control unit, Voltage stabiliser, Starter relay 1, Starter relay 2 1808
5 High-pressure sender, Air conditioner compressor regulating valve 1809
6 Auxiliary heating heater element contact switch, Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1810
7 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Engine control unit, Fuel supply relay 1811
8 Brake light switch, Clutch position sender, ABS control unit, Engine control unit, Terminal 50 voltage supply relay, Mechatronic unit for dual clutch gearbox 1812
9 Air mass meter, Power steering control unit, Engine control unit 1813
10 Lambda probe 1 before catalytic converter, Lambda probe, Throttle valve potentiometer, Throttle valve module, Engine control unit, Lambda probe heater 1814
11 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1815
12 Exhaust gas recirculation valve 1, Engine speed sender, Coolant temperature sender, Fuel temperature sender, Exhaust gas recirculation potentiometer, Engine control unit, Exhaust gas recirculation control motor 1816
13 Hall sender, Fuel pressure sender, Position sender for charge pressure positioner, Engine control unit 1817
14 Engine control unit, Heater element relay, Charge pressure control solenoid valve, Heater element for crankcase breather, Exhaust gas recirculation cooler changeover valve, Continued coolant circulation pump 1818
15 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1819
16 Intake manifold sender, Charge pressure sender, Intake air temperature sender, Pressure differential sender, Gearbox neutral position sender, Engine control unit 1820
17 Start/Stop operation button, Data bus diagnostic interface 1821
18 Fuel gauge sender, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1822
19 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1823
079 –
Basic equipment , (7L6),(7L8) 1824
1
Basic equipment , (7L6),(7L8) 1824
2 Battery, Starter, Alternator, Battery monitor control unit 1825
3 Starter relay 1, Starter relay 2 1826
4 Ignition/starter switch, Voltage stabiliser, Fuse holder B 1827
5 X-contact relief relay, Fuse holder B 1828
6 Light switch, Front and rear fog light switch, Onboard supply control unit, Light switch illumination bulb 1829
7 Switch and instrument illumination regulator, Onboard supply control unit 1830
8 Steering column combination switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 1831
9 Turn signal switch, Steering column combination switch, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Windscreen wiper motor 1832
10 Hazard warning lights button, Heated rear window button, Reversing light switch, Bonnet contact switch, Onboard supply control unit 1833
11 Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 1834
12 Onboard supply control unit, Front left headlight, Left headlight range control motor 1835
13 Onboard supply control unit, Front right headlight, High-level brake light bulb, Right headlight range control motor, Right luggage compartment light 1836
14 Onboard supply control unit, Left tail light, Right tail light, Left number plate light, Right number plate light 1837
15 Onboard supply control unit, Cigarette lighter illumination bulb, Cigarette lighter 1838
16 Window regulator switch in front passenger door, Operating unit for window regulator in driver door, Onboard supply control unit 1839
17 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Onboard supply control unit, Front passenger reading light, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 1840
18 Treble horn, Bass horn, Onboard supply control unit, Left footwell light, Right footwell light, Rear centre reading light 1841
19 Onboard supply control unit, Data bus diagnostic interface, Diagnostic connection 1842
20 Heater control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 1843
21 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 1844
22 Brake fluid level warning contact, Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Control unit in dash panel insert, Dash panel insert 1845
080 –
Basic equipment 1846
1
Basic equipment 1846
2 Battery, Starter, Ignition/starter switch, Fuse holder B 1847
3 X-contact relief relay, Dipped beam relay, Fuse holder B 1848
4 Light switch, Front and rear fog light switch, Onboard supply control unit, Blocking diode 2, Light switch illumination bulb 1849
5 Switch and instrument illumination regulator, Onboard supply control unit 1850
6 Steering column combination switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 1851
7 Turn signal switch, Steering column combination switch, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Windscreen wiper motor 1852
8 Hazard warning lights button, Heated rear window button, Reversing light switch, Onboard supply control unit 1853
9 Bonnet contact switch, Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 1854
10 Onboard supply control unit, Front left headlight, Left headlight range control motor 1855
11 Onboard supply control unit, Front right headlight, High-level brake light bulb, Right headlight range control motor, Right luggage compartment light 1856
12 Onboard supply control unit, Left tail light, Right tail light, Left number plate light, Right number plate light 1857
13 Onboard supply control unit, Cigarette lighter illumination bulb, Cigarette lighter 1858
14 Window regulator switch in front passenger door, Operating unit for window regulator in driver door, Onboard supply control unit 1859
15 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Onboard supply control unit, Front passenger reading light, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 1860
16 Onboard supply control unit, Left footwell light, Right footwell light, Rear centre reading light 1861
17 Treble horn, Bass horn, Onboard supply control unit 1862
18 Heater control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 1863
19 Diagnostic connection 1864
20 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 1865
21 Brake fluid level warning contact, Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Control unit in dash panel insert, Dash panel insert 1866
081 –
Cruise control system (CCS) 1867
1
Cruise control system (CCS) 1867
2 Cruise control system switch, Cruise control system (CCS) SET button, Blocking diode, Onboard supply control unit, Steering column electronics control unit 1868
3 Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 1869
082 –
Airbag systems 1870
1
Airbag systems 1870
2 Driver side belt switch, Front passenger side belt switch, Battery master/isolator switch, Key operated switch to deactivate front passenger side airbag, Airbag coil connector and return ring with slip ring, Seat occupied sensor, front passenger side, Airbag control unit, Driver side airbag igniter, Front passenger side airbag igniter 1 1871
3 Airbag control unit, Driver seat belt tensioner igniter 1, Front passenger seat belt tensioner igniter 1, Side airbag igniter on driver side, Side airbag igniter on front passenger side 1872
4 Side airbag crash sensor on driver side, Side airbag crash sensor on front passenger side, Rear side airbag crash sensor on driver side, Rear side airbag crash sensor on passenger side, Airbag control unit, Driver side curtain airbag igniter, Front passenger side curtain airbag igniter 1873
5 Airbag control unit, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert, Front passenger side airbag deactivated warning lamp, Diagnostic connection 1874
083 –
Airbag systems , (7L6) 1875
1
Airbag systems , (7L6) 1875
2 Driver side belt switch, Front passenger side belt switch, Key operated switch to deactivate front passenger side airbag, Seat occupied sensor, front passenger side, Airbag control unit, Driver side airbag igniter 1876
3 Airbag control unit, Front passenger side airbag igniter 1, Driver seat belt tensioner igniter 1, Front passenger seat belt tensioner igniter 1, Side airbag igniter on driver side, Side airbag igniter on front passenger side 1877
4 Side airbag crash sensor on driver side, Side airbag crash sensor on front passenger side, Rear left body acceleration sender, Rear right body acceleration sender, Airbag control unit 1878
5 Airbag control unit, Control unit in dash panel insert, Onboard supply control unit, Data bus diagnostic interface, Dash panel insert, Front passenger side airbag deactivated warning lamp 1879
084 –
Dual headlight , (7L3) 1880
1
Dual headlight , (7L3) 1880
2 Dipped beam relay 1881
3 Onboard supply control unit, Front left headlight 1882
4 Onboard supply control unit, Front right headlight 1883
085 –
Dual headlight , (7L6),(7L8) 1884
1
Dual headlight , (7L6),(7L8) 1884
2 Headlight dipper and flasher switch 1885
3 Onboard supply control unit, Front left headlight 1886
4 Onboard supply control unit, Front right headlight 1887
086 –
1 2l petrol engine , CGPA,CGPB 1888
1
1 2l petrol engine , CGPA,CGPB 1888
2 Battery, Starter, Ignition/starter switch, Fuse holder A, Fuse holder B 1889
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1890
4 High-pressure sender, Air conditioner compressor regulating valve 1891
5 Accelerator position sender, Accelerator position sender 2, Terminal 30 voltage supply relay, Onboard supply control unit, Engine control unit 1892
6 Onboard supply control unit, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 1893
7 Cruise control system switch, Knock sensor 1, Onboard supply control unit, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1894
8 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1895
9 Brake light switch, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Clutch position sender, Throttle valve module, Engine control unit 1896
10 Lambda probe, Lambda probe after catalytic converter, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 1897
11 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp, Reserve fuel warning lamp 1898
12 Oil pressure switch, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1899
087 –
1 2l petrol engine with start/stop system , CGPA,(7L6),(7L8) 1900
1
1 2l petrol engine with start/stop system , CGPA,(7L6),(7L8) 1900
2 Battery, Starter, Alternator, Ignition/starter switch, Battery monitor control unit, Fuse holder A, Fuse holder B 1901
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1902
4 High-pressure sender, Air conditioner compressor regulating valve 1903
5 Accelerator position sender, Accelerator position sender 2, Terminal 30 voltage supply relay, Onboard supply control unit, Engine control unit 1904
6 Onboard supply control unit, Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage 1905
7 Cruise control system switch, Knock sensor 1, Onboard supply control unit, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Activated charcoal filter solenoid valve 1 1906
8 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Brake servo pressure sensor, Gearbox neutral position sender, Engine control unit 1907
9 Brake light switch, Throttle valve drive for electric throttle, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Clutch position sender, Throttle valve module, Engine control unit 1908
10 Lambda probe, Lambda probe after catalytic converter, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 1909
11 Voltage stabiliser, Starter relay 1, Starter relay 2 1910
12 Start/Stop operation button, Data bus diagnostic interface 1911
13 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Control unit in dash panel insert, Terminal 50 voltage supply relay, Dash panel insert, Alternator warning lamp, Reserve fuel warning lamp 1912
14 Oil pressure switch, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1913
090 –
1 6l petrol engine , CLSA 1914
1
1 6l petrol engine , CLSA 1914
2 Battery, Starter, Alternator, Ignition/starter switch, Onboard supply control unit, Fuse holder A, Fuse holder B 1915
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1916
4 Accelerator position sender, Terminal 30 voltage supply relay, Engine control unit 1917
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1918
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1, Camshaft control valve 1 1919
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1920
8 Knock sensor 1, Throttle valve module, Engine control unit 1921
9 Brake light switch, Lambda probe, Clutch position sender, Onboard supply control unit, Engine control unit, Lambda probe heater 1922
10 ABS control unit, Onboard supply control unit, Engine control unit, Diagnostic connection 1923
11 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 1924
12 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1925
091 –
1 4l petrol engine , CLPA 1926
1
1 4l petrol engine , CLPA 1926
2 Battery, Starter, Alternator, Ignition/starter switch, Onboard supply control unit, Fuse holder A, Fuse holder B 1927
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1928
4 Accelerator position sender, Terminal 30 voltage supply relay, Engine control unit 1929
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1930
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1 1931
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1932
8 Knock sensor 1, Throttle valve module, Engine control unit 1933
9 Brake light switch, Lambda probe, Clutch position sender, Onboard supply control unit, Engine control unit, Lambda probe heater 1934
10 ABS control unit, Onboard supply control unit, Engine control unit, Diagnostic connection 1935
11 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 1936
12 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1937
092 –
1 6l petrol engine , CLSA 1938
1
1 6l petrol engine , CLSA 1938
2 Battery, Starter, Alternator, Ignition/starter switch, Onboard supply control unit, Fuse holder A, Fuse holder B 1939
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1940
4 Accelerator position sender, Terminal 30 voltage supply relay, Engine control unit 1941
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1942
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1, Camshaft control valve 1 1943
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1944
8 Knock sensor 1, Throttle valve module, Engine control unit 1945
9 Brake light switch, Lambda probe, Clutch position sender, Onboard supply control unit, Engine control unit, Lambda probe heater 1946
10 ABS control unit, Onboard supply control unit, Engine control unit, Diagnostic connection 1947
11 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 1948
12 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1949
093 –
1 4l petrol engine , CLPA 1950
1
1 4l petrol engine , CLPA 1950
2 Battery, Starter, Alternator, Ignition/starter switch, Onboard supply control unit, Fuse holder A, Fuse holder B 1951
3 Fuel pump relay, Fuel supply relay, Fuse holder B 1952
4 Accelerator position sender, Terminal 30 voltage supply relay, Engine control unit 1953
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 1954
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1 1955
7 Engine speed sender, Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 1956
8 Knock sensor 1, Throttle valve module, Engine control unit 1957
9 Brake light switch, Lambda probe, Clutch position sender, Onboard supply control unit, Engine control unit, Lambda probe heater 1958
10 ABS control unit, Onboard supply control unit, Engine control unit, Diagnostic connection 1959
11 Fuel gauge sender, Fuel gauge, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert, Alternator warning lamp 1960
12 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert, Oil pressure warning lamp 1961
094 –
1 6l diesel engine , CLNA 1962
1
1 6l diesel engine , CLNA 1962
2 Battery, Starter, Alternator, Starter inhibitor relay, Fuse holder A, Fuse holder B 1963
3 Terminal 30 voltage supply relay, Fuse holder B 1964
4 Automatic glow period control unit, Engine control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1965
5 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Low heat output relay, Engine control unit, Fuel supply relay 1966
6 Cruise control system switch, Brake light switch, ABS control unit, Onboard supply control unit, Engine control unit 1967
7 Lambda probe 1 before catalytic converter, Lambda probe, Air mass meter, Onboard supply control unit, Engine control unit, Lambda probe heater 1968
8 Auxiliary heating heater element contact switch, Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1969
9 Engine speed sender, Coolant temperature sender, Throttle valve potentiometer, Fuel temperature sender, Throttle valve module, Engine control unit 1970
10 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine control unit 1971
11 Exhaust gas recirculation valve 1, Exhaust gas recirculation potentiometer, Fuel pressure sender, Position sender for charge pressure positioner, Engine control unit, Exhaust gas recirculation control motor 1972
12 Clutch position sender, Engine control unit 1973
13 Intake manifold sender, Charge pressure sender, Intake air temperature sender, Pressure differential sender, Engine control unit 1974
14 Engine control unit, Heater element relay, Charge pressure control solenoid valve, Heater element for crankcase breather, Exhaust gas recirculation cooler changeover valve, Coolant circulation pump 2 1975
15 Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1976
16 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1977
095 –
1 6l diesel engine , CAYC,CLNA 1978
1
1 6l diesel engine , CAYC,CLNA 1978
2 Battery, Starter, Alternator, Starter inhibitor relay, Fuse holder A, Fuse holder B 1979
3 Terminal 30 voltage supply relay, Fuse holder B 1980
4 Automatic glow period control unit, Engine/motor control unit, Glow plug 1, Glow plug 2, Glow plug 3, Glow plug 4 1981
5 Accelerator pedal module, Accelerator position sender, Accelerator position sender 2, Low heat output relay, High heat output relay, Engine/motor control unit, Fuel supply relay 1982
6 Cruise control system switch, Brake light switch, ABS control unit, Onboard supply control unit, Engine/motor control unit 1983
7 Lambda probe 1 before catalytic converter, Lambda probe, Air mass meter, Onboard supply control unit, Engine/motor control unit, Lambda probe heater 1984
8 Auxiliary heating heater element contact switch, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Fuel pressure regulating valve, Fuel metering valve 1985
9 Engine speed sender, Coolant temperature sender, Throttle valve potentiometer, Fuel temperature sender, Throttle valve module, Engine/motor control unit 1986
10 Radiator outlet coolant temperature sender, Exhaust gas temperature sender 1, Exhaust gas temperature sender 3, Exhaust gas temperature sender 4, Engine/motor control unit 1987
11 Exhaust gas recirculation valve 1, Exhaust gas recirculation potentiometer, Fuel pressure sender, Position sender for charge pressure positioner, Engine/motor control unit, Exhaust gas recirculation control motor 1988
12 Clutch position sender, Engine/motor control unit 1989
13 Intake manifold sender, Charge pressure sender, Intake air temperature sender, Pressure differential sender, Engine/motor control unit 1990
14 Engine/motor control unit, Heater element relay, Charge pressure control solenoid valve, Heater element for crankcase breather, Exhaust gas recirculation cooler changeover valve, Coolant circulation pump 2 1991
15 High-pressure sender, Air conditioner compressor regulating valve 1992
16 Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 1993
17 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 1994
096 –
6-speed automatic gearbox 1995
1
6-speed automatic gearbox 1995
2 Multifunction switch, Starter inhibitor relay, Automatic gearbox control unit, Onboard supply control unit 1996
3 Automatic gearbox control unit, Solenoid valve 1, Solenoid valve 2, Solenoid valve 3, Solenoid valve 4, Solenoid valve 5, Solenoid valve 6, Solenoid valve 9, Solenoid valve 10 1997
4 Gearbox oil temperature sender, Gearbox input speed sender, Gearbox output speed sender, Automatic gearbox control unit 1998
5 Tiptronic switch, Selector lever locked in position P switch, Automatic gearbox control unit 1999
6 Tiptronic switch, Automatic gearbox control unit, Selector lever display illumination bulb, Selector lever lock solenoid, Selector lever position display 2000
7 Multifunction indicator, Control unit in dash panel insert 2001
100 –
1 4l petrol engine (BiFuel) , CMAA 2002
1
1 4l petrol engine (BiFuel) , CMAA 2002
2 Battery, Starter, Alternator, Ignition/starter switch, Fuse holder A, Fuse 2 in fuse holder A, Fuse holder B 2003
3 Fuel pump relay, Fuel supply relay, Fuse holder B 2004
4 Accelerator position sender, Terminal 30 voltage supply relay, Engine control unit 2005
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 2006
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 2007
7 Engine speed sender, Hall sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 2008
8 Brake light switch, Clutch position sender, ABS control unit, Engine control unit 2009
9 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 2010
10 Lambda probe after catalytic converter, Onboard supply control unit, Engine control unit 2011
11 Engine control unit, Gas mode control unit 2012
12 Gas mode control unit, Gas injection valve 1, Gas injection valve 2, Gas injection valve 3, Gas injection valve 4, High-pressure valve for gas mode, Gas tank valve 2013
13 Petrol or gas fuel selection switch, Gas gauge, Gas gauge sender, Gas mode control unit 2014
14 Gas rail sensor, Gas mode control unit 2015
15 Diagnostic connection 2016
16 Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert 2017
17 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 2018
101 –
1 6l petrol engine (BiFuel) , CNKA 2019
1
1 6l petrol engine (BiFuel) , CNKA 2019
2 Battery, Starter, Alternator, Ignition/starter switch, Fuse holder A 2020
3 Fuel pump relay, Fuel supply relay 2021
4 Accelerator position sender, Terminal 30 voltage supply relay, Engine control unit 2022
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 2023
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1 2024
7 Engine speed sender, Hall sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 2025
8 Brake light switch, Clutch position sender, ABS control unit, Engine control unit 2026
9 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 2027
10 Lambda probe, Lambda probe after catalytic converter, Onboard supply control unit, Engine control unit 2028
11 Engine control unit, Gas mode control unit 2029
12 Gas mode control unit, Gas injection valve 1, Gas injection valve 2, Gas injection valve 3, Gas injection valve 4, High-pressure valve for gas mode 2030
13 Petrol or gas fuel selection switch, Gas gauge sender, Gas mode control unit 2031
14 Gas rail temperature and pressure sensor, Gas mode control unit, Gas tank valve 2032
15 Diagnostic connection 2033
16 Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 2034
17 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 2035
102 –
1 4l petrol engine (BiFuel) , CMAA 2036
1
1 4l petrol engine (BiFuel) , CMAA 2036
2 Battery, Starter, Alternator, Ignition/starter switch, Fuse holder A, Fuse 2 on fuse holder A, Fuse holder B 2037
3 Fuel pump relay, Fuel supply relay, Fuse holder B 2038
4 Accelerator position sender, Terminal 30 voltage supply relay, Engine control unit 2039
5 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage 2040
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 2041
7 Engine speed sender, Hall sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 2042
8 Brake light switch, Clutch position sender, ABS control unit, Engine control unit 2043
9 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 2044
10 Lambda probe after catalytic converter, Onboard supply control unit, Engine control unit 2045
11 Engine control unit, Gas mode control unit 2046
12 Gas mode control unit, Gas injection valve 1, Gas injection valve 2, Gas injection valve 3, Gas injection valve 4, High-pressure valve for gas mode, Gas tank valve 2047
13 Petrol or gas fuel selection switch, Gas gauge, Gas gauge sender, Gas mode control unit 2048
14 Gas rail sensor, Gas mode control unit 2049
15 Diagnostic connection 2050
16 Fuel system pressurisation pump, Control unit in dash panel insert, Dash panel insert 2051
17 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 2052
103 –
1 4l petrol engine with start/stop system , CPTA 2053
1
1 4l petrol engine with start/stop system , CPTA 2053
2 Battery, Starter, Alternator, Fuse holder A 2054
3 Main relay, Engine control unit 2055
4 Engine control unit, Starter relay 1, Starter relay 2 2056
5 Throttle valve module, Engine control unit, Injector, cylinder 1, Injector, cylinder 4 2057
6 Engine control unit, Ignition coil 1 with output stage, Ignition coil 4 with output stage 2058
7 Brake light switch, Knock sensor 1, Clutch position sender, Engine control unit 2059
8 Accelerator position sender, Brake servo pressure sensor, Engine control unit, Fuel pressure regulating valve, Charge air cooling pump 2060
9 Engine control unit, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Exhaust camshaft control valve 1, Valve for oil pressure control 2061
10 Engine control unit, Inlet cam actuator for cylinder 2, Exhaust cam actuator for cylinder 2, Inlet cam actuator for cylinder 3, Exhaust cam actuator for cylinder 3 2062
11 Coolant temperature sender, Position sender for charge pressure positioner, Engine control unit 2063
12 Hall sender, Intake manifold pressure sender, Fuel pressure sender, Hall sender 3, Engine control unit 2064
13 Engine speed sender, Charge pressure sender, Radiator outlet coolant temperature sender, Engine control unit 2065
14 Lambda probe, Lambda probe after catalytic converter, Engine control unit 2066
15 Cruise control system switch, Start/Stop operation button, Oil pressure switch, Engine control unit 2067
16 Fuel system pressurisation pump, Control unit in dash panel insert, Fuel pump control unit, Engine control unit 2068
17 Oil pressure switch for reduced oil pressure, Oil level and oil temperature sender, Control unit in dash panel insert 2069
104 –
Auxiliary air heater (PTC) 2070
1
Auxiliary air heater (PTC) 2070
2 Low heat output relay, High heat output relay, Engine control unit 2071
3 Engine control unit, Fuse 1, Fuse 2, Fuse 3, Auxiliary air heater element 2072
105 –
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) , (7L6),(7L8) 2073
1
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) , (7L6),(7L8) 2073
2 ABS control unit, Voltage stabiliser 2 2074
3 Button for TCS and electronic stabilisation program, Tyre Pressure Loss Indicator button, ABS control unit 2075
4 Brake light switch, ABS control unit, Onboard supply control unit 2076
5 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit, Data bus diagnostic interface 2077
6 Brake fluid level warning contact, Parking brake contact switch, Steering angle sender, Control unit in dash panel insert, Dash panel insert 2078
106 –
2 0l petrol engine , CDLJ 2079
1
2 0l petrol engine , CDLJ 2079
2 Battery, Starter, Alternator, Suppression filter, Airbag control unit, Battery isolation igniter, Fuse holder A, Fuse holder B, Fuse holder F 2080
3 Ignition/starter switch, Fuse holder B 2081
4 Starter inhibitor relay, Main relay, Additional coolant pump relay, Circulation pump 2082
5 Cruise control system switch, Steering column combination switch, Onboard supply control unit 2083
6 Engine control unit 2084
7 Fuel gauge sender, Fuel system pressurisation pump, Fuel pump control unit, Engine control unit 2085
8 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 2086
9 Engine control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage, Spark plug 1, Spark plug 2, Spark plug 3, Spark plug 4 2087
10 Intake air temperature sender, Coolant temperature sender, Intake manifold flap potentiometer, Fuel pressure sender for low-pressure, Engine control unit, Intake manifold flap motor 2088
11 Engine speed sender, Hall sender, Knock sensor 2, Fuel pressure sender, Engine control unit, Camshaft control valve 1 2089
12 Knock sensor 1, Radiator outlet coolant temperature sender, Engine control unit, Charge pressure control solenoid valve, Activated charcoal filter solenoid valve 1, Turbocharger air recirculation valve 2090
13 Accelerator position sender, Accelerator position sender 2, Throttle valve drive angle sender 1 for electric throttle, Throttle valve drive angle sender 2 for electric throttle, Throttle valve module, Engine control unit 2091
14 Charge pressure sender, Lambda probe, Lambda probe after catalytic converter, Engine control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 2092
15 Brake light switch, Air mass meter, Engine control unit, Fuel pressure regulating valve, Fuse carrier 6 2093
16 Control unit for structure-borne sound, Actuator for structure-borne sound 2094
17 Oil pressure switch, Coolant shortage indicator sender, Control unit in dash panel insert, Dash panel insert 2095
107 –
Radiator fan , CDLJ 2096
1
Radiator fan , CDLJ 2096
2 Radiator fan control unit, Engine control unit, Radiator fan, Right radiator fan 2097
108 –
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) 2098
1
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) 2098
2 ABS control unit, Fuse holder A, Fuse holder B, Fuse holder F 2099
3 Button for TCS and electronic stabilisation program, Tyre Pressure Loss Indicator button, ABS control unit 2100
4 Brake light switch, ABS control unit, Onboard supply control unit 2101
5 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, Sensor unit for electronic stabilisation program, ABS control unit 2102
6 Brake fluid level warning contact, Parking brake contact switch, Steering angle sender, Control unit in dash panel insert, Dash panel insert 2103
109 –
Convenience system, right-hand drive , (L0R) 2104
1
Convenience system, right-hand drive , (L0R) 2104
2 Rear lid handle release button, Rear lid lock unit, Onboard supply control unit, Rear lid central locking motor, Right luggage compartment light 2105
3 Driver side interior locking button for central locking system, Onboard supply control unit, Central locking SAFELOCK function warning lamp, Driver door lock unit 2106
4 Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit 2107
5 Front left window regulator switch, Front right window regulator switch in driver door, Operating unit for window regulator in driver door, Driver door control unit, Onboard supply control unit, Driver side window regulator motor 2108
6 Rear left door contact switch, Onboard supply control unit, Rear left door lock unit, Rear left door central locking motor, lock 2109
7 Rear left window regulator switch, in door, Rear right window regulator switch, in door, Rear left door control unit, Rear right door control unit, Onboard supply control unit, Rear left window regulator motor, Rear right window regulator motor 2110
8 Rear right door contact switch, Onboard supply control unit, Rear right door lock unit, Tank filler flap locking motor, Rear right door central locking motor, lock 2111
9 Onboard supply control unit, Front passenger door lock unit 2112
10 Onboard supply control unit 2113
11 Window regulator switch in front passenger door, Front passenger door control unit, Onboard supply control unit, Front passenger side window regulator motor 2114
110 –
Basic equipment , (7L6),(7L8) 2115
1
Basic equipment , (7L6),(7L8) 2115
2 Battery, Starter, Alternator, Battery monitor control unit 2116
3 Starter relay 1, Starter relay 2 2117
4 Ignition/starter switch, Voltage stabiliser, Fuse holder B 2118
5 X-contact relief relay, Fuse holder B 2119
6 Light switch, Front and rear fog light switch, Onboard supply control unit, Light switch illumination bulb 2120
7 Switch and instrument illumination regulator, Onboard supply control unit 2121
8 Steering column combination switch, Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump 2122
9 Turn signal switch, Steering column combination switch, Airbag coil connector and return ring with slip ring, Horn plate, Onboard supply control unit, Windscreen wiper motor 2123
10 Hazard warning lights button, Heated rear window button, Reversing light switch, Bonnet contact switch, Onboard supply control unit 2124
11 Onboard supply control unit, Driver side turn signal repeater bulb, Front passenger side turn signal repeater bulb 2125
12 Onboard supply control unit, Front left headlight, Left headlight range control motor 2126
13 Onboard supply control unit, Front right headlight, High-level brake light bulb, Right headlight range control motor, Right luggage compartment light 2127
14 Onboard supply control unit, Left tail light, Right tail light, Left number plate light, Right number plate light 2128
15 Onboard supply control unit, Cigarette lighter illumination bulb, Cigarette lighter 2129
16 Window regulator switch in front passenger door, Operating unit for window regulator in driver door, Onboard supply control unit 2130
17 Driver vanity mirror contact switch, Front passenger vanity mirror contact switch, Onboard supply control unit, Front passenger reading light, Front passenger side illuminated vanity mirror, Driver side illuminated vanity mirror 2131
18 Treble horn, Bass horn, Onboard supply control unit, Left footwell light, Right footwell light, Rear centre reading light 2132
19 Onboard supply control unit, Data bus diagnostic interface, Diagnostic connection 2133
20 Heater control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 2134
21 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 2135
22 Brake fluid level warning contact, Ambient temperature sensor, Coolant shortage indicator sender, Windscreen washer fluid level sender, Control unit in dash panel insert, Dash panel insert 2136
111 –
1 2l petrol engine , CBZB,CBZC 2137
1
1 2l petrol engine , CBZB,CBZC 2137
2 Battery, Starter, Alternator, Starter inhibitor relay, Data bus diagnostic interface, Fuse holder A, Fuse holder B 2138
3 Main relay, Additional coolant pump relay, Fuse holder B 2139
4 Climatronic control unit, Air conditioning system control unit, Engine control unit, Coolant circulation pump 2140
5 Accelerator position sender, Accelerator position sender 2, Engine control unit, Output stage, Ignition transformer 2141
6 Engine control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Activated charcoal filter solenoid valve 1, Fuel pressure regulating valve, Coolant regulating valve 2142
7 Hall sender, Intake air temperature sender, Coolant temperature sender, Intake manifold pressure sender, Engine control unit 2143
8 Fuel pressure sender, Engine control unit, Charge pressure positioner 2144
9 Engine speed sender, Charge pressure sender, Engine control unit 2145
10 Cruise control system switch, Fuel gauge sender, Fuel system pressurisation pump, Onboard supply control unit, Engine control unit 2146
11 Brake light switch, Clutch pedal switch, ABS control unit, Onboard supply control unit, Engine control unit 2147
12 Knock sensor 1, Throttle valve module, Onboard supply control unit, Engine control unit 2148
13 Lambda probe, Lambda probe after catalytic converter, Engine control unit 2149
14 Start/Stop operation button, Starter relay 1, Starter relay 2 2150
15 Coolant shortage indicator sender, Control unit in dash panel insert, Voltage stabiliser, Dash panel insert 2151
16 Oil pressure switch, Brake fluid level warning contact, Oil level and oil temperature sender, Control unit in dash panel insert, Dash panel insert 2152
112 –
Radiator fan with air conditioning system 2153
1
Radiator fan with air conditioning system 2153
2 Radiator fan thermal switch, Radiator fan control unit, Radiator fan 2154
113 –
Radiator fan , CAVB,CAVE,CTHE 2155
1
Radiator fan , CAVB,CAVE,CTHE 2155
2 Radiator fan control unit, Engine control unit, 2-pin connector, Right radiator fan 2156
114 –
Anti-lock brake system (ABS) , (1AC),(7K0) 2157
1
Anti-lock brake system (ABS) , (1AC),(7K0) 2157
2 Fuse holder A, Fuse holder B 2158
3 Brake light switch, Rear right speed sensor, Front right speed sensor, ABS control unit 2159
4 Rear left speed sensor, Front left speed sensor, ABS control unit 2160
5 Brake fluid level warning contact, Parking brake contact switch, Control unit in dash panel insert, Onboard supply control unit, Dash panel insert 2161
115 –
Anti-lock brake system (ABS) , (1AC),(7K6) 2162
1
Anti-lock brake system (ABS) , (1AC),(7K6) 2162
2 Fuse holder A, Fuse holder B 2163
3 Brake light switch, Rear right speed sensor, Front right speed sensor, ABS control unit 2164
4 Light switch, Tyre Pressure Loss Indicator button, Rear left speed sensor, Front left speed sensor, ABS control unit 2165
5 ABS control unit, Onboard supply control unit 2166
6 Brake fluid level warning contact, Parking brake contact switch, Control unit in dash panel insert, Dash panel insert 2167
801 – -Fitting locations: Earth points – 3 2168
1 Earth points 2168
1 1 Overview of earth points 2168
802 – – Fitting locations: Relays – 3 2172
1 Relays 2172
1 1 Overview of relays on relay carrier 2172
1 2 Automatic glow period control unit -J179- 2173
1 3 Auxiliary engine coolant pump relay -J496- 2173
1 4 Auxiliary engine coolant pump relay -J496- 2174
1 5 Relay carrier, from May 2009 2174
1 6 Relay carrier, from November 2009 2177
1 7 Relay carrier, from May 2011 2179
1 8 Relay carrier, from November 2011 2180
1 9 Relay carrier, from May 2012 2182
1 10 Relay carrier, from May 2013 2183
803 – -Fitting locations: Fuses – 3 2185
1 Fuses 2185
1 1 Overview of fuses 2185
1 2 Fuse assignment in battery fuse holder 2186
1 3 Fuse assignment in fuse holder B 2188
1 4 Fuse assignment on relay carrier, from May 2009 2196
1 5 Fuse assignment on relay carrier, from November 2009 2197
1 6 Fuse assignment on relay carrier, from May 2012 2198
1 7 Fuse holder F -SF- 2199
804 – -Fitting locations: control units – 3 2200
1 Control units 2200
1 1 Overview of control units 2200
1 2 Control unit for structure-borne sound -J869- 2203
1 2 1 Connector assignment: 2204
1 3 ABS control unit -J104- 2205
1 3 1 Fitting location: 2205
1 3 2 Connector assignment: 2205
1 4 Airbag control unit -J234- 2207
1 4 1 Fitting location: 2207
1 4 2 Connector assignment: 2207
1 5 Control unit with display for radio and navigation -J503- 2209
1 5 1 Connector assignment: 2209
1 6 Air conditioning system control unit -J301- 2210
1 6 1 Connector assignment: 2210
1 7 Climatronic control unit -J255- 2211
1 7 1 Connector assignment: 2211
1 8 Multimedia system control unit -J650- 2212
1 8 1 Fitting location: 2212
1 9 Data bus diagnostic interface -J533- 2213
1 10 Front passenger door control unit -J387- 2213
1 10 1 Fitting location: 2213
1 10 2 Connector assignment 2213
1 11 Mobile telephone operating electronics control unit -J412- 2215
1 11 1 Fitting location: 2215
1 11 2 Connector assignment: 2215
1 12 Sliding sunroof adjustment control unit -J245- 2217
1 12 1 Fitting location up to May 2010 2217
1 13 Rear right door control unit -J389- 2218
1 13 1 Fitting location: 2218
1 13 2 Connector assignment 2218
1 14 Sliding sunroof adjustment control unit -J245- 2220
1 14 1 Fitting location from May 2010 2220
1 15 Trailer detector control unit -J345- 2221
1 15 1 Fitting location: 2221
1 15 2 Connector assignment: 2221
1 16 Parking aid control unit -J446- 2223
1 16 1 Connector assignment: 2223
1 17 Battery isolation igniter -N253- 2224
1 18 Rear left door control unit -J388- 2224
1 18 1 Fitting location: 2224
1 18 2 Connector assignment 2224
1 19 Voltage stabiliser -J532- 2226
1 19 1 Fitting location 2226
1 20 Multifunction steering wheel control unit -J453- 2226
1 20 1 Fitting location: 2226
1 21 Heated front seats control unit -J774- 2228
1 21 1 Location left-hand drive: 2228
1 21 3 Connector assignment: 2228
1 22 Driver door control unit -J386- 2230
1 22 1 Fitting location: 2230
1 22 2 Connector assignment 2230
1 23 Control unit in dash panel insert -J285- 2232
1 24 Onboard supply control unit -J519- 2233
1 24 1 Fitting location: 2233
1 24 2 Connector assignment: 2234
1 24 3 Description of signal for onboard supply control unit -J519- 2234
1 25 Engine control unit -J623- 2239
1 25 1 Fitting location: 2239
1 25 2 Engine control unit -J623-, 80-pin connector -T80- 2240
1 25 3 Engine control unit -J623-, 121-pin connector -T121- 2242
1 25 4 Engine control unit -J623-, 94-pin connector -T94-/60-pin connector -T60- 2244
1 26 Power steering sensor -G250- 2245
1 26 1 Fitting location: 2245
1 27 Gas mode control unit -J659- 2245
1 27 1 Fitting location: 2245
1 27 2 Connector assignment: (to November 2010) 2245
1 27 3 Connector assignment: (from November 2010) 2247
1 28 Power steering control unit -J500- 2248
1 28 1 Fitting location: 2248
1 29 Radiator fan control unit -J293- up to May 2011 2249
1 29 1 Fitting location: 2249
1 30 Radiator fan control unit -J293- from May 2011 2250
1 30 1 Fitting location 2250
1 31 Radiator fan control unit -J293- 2251
1 32 Mechatronic unit for dual clutch gearbox -J743- 2252
1 32 1 Fitting location: 2252
805 – -Fitting locations: coupling stations and connectors of wiring harnesses – 3 2253
1 Coupling stations and connectors of wiring harnesses 2253
1 1 Overview of coupling stations and connectors 2253
1 2 Radiator fan control unit -J293- 2254
1 3 Coupling stations for exhaust gas sensors 2255
1 3 1 Fitting location 2255
1 4 Coupling station on heater and air conditioner unit -T10c- 2255
1 5 Coupling station on right A-pillar -T28- 2256
1 5 1 Fitting location 2256
1 6 Right exterior mirror coupling station -T12c- 2256
1 7 Coupling station on right B-pillar -T28c- 2257
1 7 1 Fitting location 2257
1 8 Coupling stations for aerials 2257
1 8 1 Fitting location 2257
1 9 Coupling station for tank filler flap lock -T2ea- 2258
1 9 1 Fitting location 2258
1 10 Coupling stations in rear lid 2258
1 10 1 Fitting location 2258
1 11 Coupling station for PDC sensors -T6v- 2259
1 11 1 Fitting location 2259
1 12 Rear lid coupling stations 2259
1 12 1 Fitting location 2259
1 13 Coupling stations under front right seat 2260
1 13 1 Fitting location 2260
1 14 Coupling station on left B-pillar -T28b- 2260
1 14 1 Fitting location 2260
1 15 Coupling stations under front left seat 2261
1 15 1 Fitting location 2261
1 16 Left exterior mirror coupling station -T12b- 2261
1 17 Coupling station on left of A-pillar -T28a- 2262
1 17 1 Fitting location 2262
1 18 Coupling station, engine -T14- 2262
1 18 1 Fitting location 2262
1 19 Coupling station for DQ gearbox 2263
1 19 1 Fitting location: 2263
001 –
Dual headlight 2264
1
Dual headlight 2264
2 Control unit in dash panel insert, Left side light bulb, Front left headlight, Front left turn signal bulb, Left headlight dipped beam bulb, Left headlight main beam bulb, Left headlight range control motor 2265
3 Light switch, Bonnet contact switch, Dipped beam relay, Onboard supply control unit 2266
4 Front right headlight 2267
002 –
Airbag systems 2268
1
Airbag systems 2268
2 Driver side belt switch, Steering column combination switch, Airbag control unit, Airbag igniter on driver side 2269
3 Airbag control unit, Airbag igniter 1 on front passenger side, Driver seat belt tensioner igniter 1, Front passenger seat belt tensioner igniter 1, Diagnostic connection 2270
003 –
Central locking 2271
1
Central locking 2271
2 Onboard supply control unit, Tank filler flap locking motor 2272
3 Onboard supply control unit, Front passenger door lock unit, Rear right door lock unit 2273
4 Onboard supply control unit, Driver door lock unit, Rear left door lock unit 2274
004 –
Anti-theft alarm system, interior monitor 2275
1
Anti-theft alarm system, interior monitor 2275
2 Interior monitoring deactivation switch, Anti-theft alarm sensor, Onboard supply control unit 2276
005 –
Cruise control system (CCS) 2277
1
Cruise control system (CCS) 2277
2 Steering column combination switch, Blocking diode, Onboard supply control unit 2278
006 –
1 4l petrol engine , CLPA,CLPB 2279
1
1 4l petrol engine , CLPA,CLPB 2279
2 Battery, Starter, Alternator, Ignition/starter switch 2280
3 Onboard supply control unit 2281
4 Onboard supply control unit, Gearbox 2282
5 Fuel supply relay 2283
6 Engine/motor control unit, Fuel supply relay 2284
7 Brake fluid level warning contact, Accelerator position sender, Accelerator position sender 2, Engine/motor control unit 2285
8 Clutch pedal switch, Lambda probe, Main relay, Engine/motor control unit, Activated charcoal filter solenoid valve 1, Lambda probe heater 2286
9 Brake light switch, Engine/motor control unit, Injector, cylinder 1 2287
10 Engine/motor control unit, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Spark plug 1, Spark plug 2 2288
11 Throttle valve module, Engine/motor control unit, Ignition coil 3 with output stage, Ignition coil 4 with output stage, Spark plug 3, Spark plug 4 2289
12 Engine speed sender, Intake air temperature sender, Knock sensor 1, Coolant temperature sender, Intake manifold pressure sender, Engine/motor control unit 2290
13 Engine speed sender, Hall sender, Engine/motor control unit, Diagnostic connection 2291
14 Oil pressure switch, Fuel gauge sender, Fuel system pressurisation pump, Coolant shortage indicator sender, Control unit in dash panel insert 2292
007 –
1 6l petrol engine , CLSA 2293
1
1 6l petrol engine , CLSA 2293
2 Battery, Starter, Alternator, Ignition/starter switch 2294
3 Onboard supply control unit, Gearbox 2295
4 Onboard supply control unit 2296
5 Fuel supply relay 2297
6 Brake fluid level warning contact, Engine/motor control unit 2298
7 Clutch pedal switch, Accelerator position sender, Accelerator position sender 2, Engine/motor control unit, Activated charcoal filter solenoid valve 1 2299
8 Lambda probe, Main relay, Engine/motor control unit, Lambda probe heater 2300
9 Brake light switch, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3, Injector, cylinder 4 2301
10 Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Ignition coil 4 with output stage, Spark plug 1, Spark plug 2, Spark plug 3, Spark plug 4 2302
11 Knock sensor 1, Coolant temperature sender, Throttle valve module, Engine/motor control unit 2303
12 Engine speed sender, Hall sender, Intake air temperature sender, Intake manifold pressure sender, Clutch position sender, Engine/motor control unit 2304
13 Fuel gauge sender, Fuel system pressurisation pump, Control unit in dash panel insert, Engine/motor control unit, Diagnostic connection 2305
14 Oil pressure switch, Coolant shortage indicator sender, Control unit in dash panel insert 2306
008 –
1 0l petrol engine , CHZC 2307
1
1 0l petrol engine , CHZC 2307
2 Battery, Starter, Alternator, Ignition/starter switch 2308
3 Onboard supply control unit 2309
4 Brake fluid level warning contact, Onboard supply control unit, Engine/motor control unit 2310
5 Accelerator position sender, Accelerator position sender 2, Engine/motor control unit 2311
6 Lambda probe 1 after catalytic converter, Lambda probe 1 before catalytic converter, Lambda probe, Radiator outlet coolant temperature sender, Lambda probe after catalytic converter, Engine/motor control unit, Lambda probe heater, Lambda probe 1 heater after catalytic converter 2312
7 Brake light switch, Main relay, Engine/motor control unit 2313
8 Intake manifold sender, Oil pressure sender, Charge pressure sender, Engine/motor control unit 2314
9 Engine speed sender, Engine/motor control unit, Activated charcoal filter solenoid valve 1, Camshaft control valve 1, Exhaust camshaft control valve 1, Valve for oil pressure control 2315
10 Hall sender, Coolant temperature sender, Hall sender 3, Engine/motor control unit, Charge pressure positioner 2316
11 Fuel pressure sender, Engine/motor control unit, Injector, cylinder 1, Injector, cylinder 2, Injector, cylinder 3 2317
12 Knock sensor 1, Engine/motor control unit, Ignition coil 1 with output stage, Ignition coil 2 with output stage, Ignition coil 3 with output stage, Spark plug 1, Spark plug 2, Spark plug 3 2318
13 Intake manifold pressure sender, Engine/motor control unit, Fuel pressure regulating valve, Charge air cooling pump 2319
14 Clutch position sender, Throttle valve module, Engine/motor control unit, Vacuum pump 2320
15 Fuel pump control unit 2321
16 Coolant shortage indicator sender, Control unit in dash panel insert, Fuel pump control unit 2322
009 –
Trailer coupling 2323
1
Trailer coupling 2323
2 Trailer detector control unit, Trailer socket 2324
3 Trailer detector control unit 2325
010 –
Anti-lock brake system (ABS) , CLPA,CLPB,CLSA 2326
1
Anti-lock brake system (ABS) , CLPA,CLPB,CLSA 2326
2 ABS control unit 2327
3 Rear right speed sensor, Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit 2328
011 –
Radio navigation system 2329
1
Radio navigation system 2329
2 Control unit with display for radio and navigation, Front left loudspeaker, Front left door loudspeaker, Front right loudspeaker, Front right door loudspeaker 2330
3 Control unit with display for radio and navigation 2331
4 Control unit with display for radio and navigation, Rear left door loudspeaker, Rear right door loudspeaker 2332
012 –
6-speed automatic gearbox , CLPA,CLPB,CLSA 2333
1
6-speed automatic gearbox , CLPA,CLPB,CLSA 2333
2 Reversing switch, Multifunction switch, Gearbox oil temperature sender, Automatic gearbox control unit, Gearbox, Solenoid valve 1, Solenoid valve 2 2334
3 Gearbox input speed sender, Gearbox output speed sender, Automatic gearbox control unit, Gearbox, Automatic gearbox pressure regulating valve 1, Automatic gearbox pressure regulating valve 3, Automatic gearbox pressure regulating valve 4, Automatic gea box pressure regulating valve 5, Automatic gearbox pressure regulating valve 7 2335
4 Selector lever, Automatic gearbox control unit, Gearbox, Automatic gearbox pressure regulating valve 2 2336
5 Starter, Selector lever, Starter inhibitor relay, Automatic gearbox control unit, Onboard supply control unit, Ignition key withdrawal lock solenoid 2337
013 –
Air conditioning system with manual regulation , CLPA,CLPB,CLSA 2338
1
Air conditioning system with manual regulation , CLPA,CLPB,CLSA 2338
2 High-pressure sender, Air conditioning system control unit 2339
3 Evaporator output temperature sender, Air conditioning system control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 2340
4 Air conditioning system relay, Air conditioning system control unit, Engine/motor control unit, Air conditioner compressor regulating valve 2341
014 –
Air conditioning system with manual regulation , CHZC 2342
1
Air conditioning system with manual regulation , CHZC 2342
2 High-pressure sender, Air conditioning system control unit 2343
3 Evaporator output temperature sender, Air conditioning system control unit, Fresh air blower series resistor with overheating fuse, Fresh air blower, Fresh air and air recirculation flap control motor 2344
4 Air conditioning system control unit, Air conditioner compressor regulating valve 2345
015 –
Radiator fan , CHZC 2346
1
Radiator fan , CHZC 2346
2 Engine/motor control unit, Radiator fan 2347
016 –
Radiator fan , CLPA,CLPB,CLSA 2348
1
Radiator fan , CLPA,CLPB,CLSA 2348
2 Radiator fan control unit, Air conditioning system control unit, Engine/motor control unit, Radiator fan 2349
017 –
Data bus network 2350
1
Data bus network 2350
2 Onboard supply control unit, Diagnostic connection 2351
3 Steering column combination switch, Onboard supply control unit 2352
4 ABS control unit, Automatic gearbox control unit, Engine/motor control unit 2353
5 Airbag control unit, Control unit in dash panel insert, Air conditioning system control unit, Trailer detector control unit 2354
6 Rain sensor, Power steering control unit, Control unit with display for radio and navigation 2355
018 –
Fog light 2356
1
Fog light 2356
2 Left fog light bulb, Right fog light bulb 2357
019 –
Fog lights with static cornering light 2358
1
Fog lights with static cornering light 2358
2 Light switch, Onboard supply control unit, Left fog light bulb, Right fog light bulb 2359
020 –
Fuse assignment 2360
1
Fuse assignment 2360
2 Battery, Starter, Alternator, Fuse holder A, Fuse 1 on fuse holder A, Fuse 3 on fuse holder A, Fuse 4 on fuse holder A 2361
3 Fuse holder A, Fuse 5 on fuse holder A, Fuse 6 on fuse holder A 2362
4 Fuse holder B, Fuse 1 on fuse holder C, Fuse 2 on fuse holder B, Fuse 3 on fuse holder B, Fuse 5 on fuse holder C, Fuse 7 on fuse holder B, Fuse 8 on fuse holder B, Fuse 9 on fuse holder B, Fuse holder C 2363
5 Fuse holder B, Fuse 9 on fuse holder B, Fuse 17 on fuse holder B, Fuse 19 on fuse holder B, Fuse 20 on fuse holder B, Fuse 28 on fuse holder B, Fuse 34 on fuse holder B, Fuse 35 on fuse holder B, Fuse 36 on fuse holder B 2364
6 Light switch, Fuse holder B, Fuse 36 on fuse holder B, Fuse 37 on fuse holder B, Fuse 39 on fuse holder B, Fuse 40 on fuse holder B, Fuse 54 on fuse holder B, Fuse 55 on fuse holder B, Fuse 57 on fuse holder B, Fuse 58 on fuse holder B, Fuse 59 on fuse holder B 2365
7 Fuse holder B, Fuse holder D, Fuse 1 on fuse holder D, Fuse 2 on fuse holder D, Fuse 3 on fuse holder D 2366
021 –
Earthing concept 2367
1
Earthing concept 2367
2 Hazard warning lights button, Heated rear window button, Tyre Pressure Loss Indicator button, Parking brake contact switch, Treble horn, Air conditioning system control unit, Left fog light bulb, Right fog light bulb 2368
3 Power steering control unit, Control unit with display for radio and navigation, Onboard supply control unit, Fresh air blower 2369
4 Button for TCS and electronic stabilisation program, Selector lever, Operating unit for window regulator in driver door, Front passenger door lock unit 2370
5 Steering column combination switch, Fuel delivery unit, Ambient temperature sensor, Coolant shortage indicator sender, Air conditioning system relay, Control unit in dash panel insert, Fuel pump control unit, Cigarette lighter, Rear left door lock unit, Rear right door lock unit 2371
6 Light switch, Bonnet contact switch, Clutch position sender, X-contact relief relay, Starter inhibitor relay, Automatic gearbox control unit, Dipped beam relay, Front left headlight, Front right headlight, Driver side reading light 2372
7 Brake light switch, Brake fluid level warning contact, Alarm horn, Engine/motor control unit, Alarm horn relay, Gearbox, Vacuum pump 2373
8 Trailer detector control unit, Left tail light, Right tail light, Trailer socket, Left number plate light, Right number plate light 2374
9 Rear lid handle release button, Rear lid lock unit, High-pressure sender, Left turn signal repeater bulb, Right turn signal repeater bulb, High-level brake light bulb, Air conditioner compressor regulating valve, Windscreen wiper motor, Radiator fan, Rear window wiper motor, Heated rear window 2375
10 Anti-theft alarm sensor, ABS control unit, Diagnostic connection 2376
11 Ignition coil 2 with output stage, Ignition coil 3 with output stage, Charge air cooling pump 2377
12 Coolant temperature sender, Ignition coil 1 with output stage, Ignition coil 4 with output stage, Charge pressure positioner 2378
13 Intake manifold sender, Charge pressure sender, Hall sender, Intake air temperature sender, Fuel pressure sender, Hall sender 3 2379
022 –
Convenience system 2380
1
Convenience system 2380
2 Alarm horn, Onboard supply control unit, Alarm horn relay 2381
3 Window regulator switch in front passenger door, Treble horn, Front passenger side window regulator motor 2382
4 Operating unit for window regulator in driver door, Driver side window regulator motor 2383
023 –
Basic equipment 2384
1
Basic equipment 2384
2 Fuse holder B 2385
3 Fuse holder B 2386
4 Power steering control unit, Onboard supply control unit 2387
5 Hazard warning lights button, Heated rear window button, Onboard supply control unit, Driver side reading light 2388
6 Onboard supply control unit, Windscreen wiper motor, Heated rear window 2389
7 Rear lid handle release button, Rear lid lock unit, Onboard supply control unit 2390
8 Onboard supply control unit, Left turn signal repeater bulb, Right turn signal repeater bulb 2391
9 Steering column combination switch, Onboard supply control unit 2392
10 Steering column combination switch, Onboard supply control unit 2393
11 Light switch, Onboard supply control unit 2394
12 Light switch, Driver side interior locking button for central locking system, Onboard supply control unit 2395
13 Onboard supply control unit, Left tail light, Right tail light 2396
14 Onboard supply control unit, Rear window wiper motor, Windscreen and rear window washer pump, Left number plate light, Right number plate light 2397
15 Reversing light switch, Onboard supply control unit, High-level brake light bulb 2398
16 Ambient temperature sensor, Control unit in dash panel insert 2399
17 Immobiliser reader coil, Parking brake contact switch, Control unit in dash panel insert 2400
18 X-contact relief relay, Diagnostic connection 2401
19 Cigarette lighter 2402
024 –
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) , CHZC,CLPA,CLPB,CLSA 2403
1
Anti-lock brake system (ABS) with electronic stabilisation program (ESP) , CHZC,CLPA,CLPB,CLSA 2403
2 Rear right speed sensor, ABS control unit 2404
3 Front right speed sensor, Rear left speed sensor, Front left speed sensor, ABS control unit 2405
4 Button for TCS and electronic stabilisation program, Tyre Pressure Loss Indicator button, ABS control unit 2406
5 Steering column combination switch 2407
802 – – Fitting Locations: Fuses – 3 2408
1 Fuses 2408
1 1 Fuse holder A -SA-, From August2017 2408
1 1 1 Fitting Location Fuse holder A -SA-, From August 2017 2408
1 1 2 Fuse Assignment Fuse holder A -SA-, From August 2017 2410
1 2 Fuse holder B -SB-, From August2017 2411
1 2 1 Fitting Location Fuse holder B -SB-, From August 2017 2411
1 2 2 Fuse Assignment Fuse holder B -SB-, From August 2017 2412
1 3 Fuse holder C -SC-, From August2017 2416
1 3 1 Fitting Location Fuse holder C -SC-, From August 2017 2416
1 4 Fuse holder D -SD-, From August2017 2418
1 4 1 Fitting Location Fuse holder D -SD-, From August 2017 2418
1 4 2 Fuse Assignment Fuse holder D -SD-, From August 2017 2419
803 – – Fitting Locations: Relays – 3 2421
1 Relays 2421
1 1 Relay carrier (15 slot), from August 2017 2421
1 1 1 Relay carrier (15 slot), from August 2017 2423
804 – – Fitting Locations: Front part of vehicle – 3 2424
1 Front part of vehicle 2424
1 1 ABS control unit -J104-, from August2017 2424
1 2 Engine control unit -J623-, fromAugust 2017 2426
1 2 1 Engine control unit -J623-, CHZC,-T94- and -T60- 2427
1 2 2 Engine control unit -J623-, CLPA,CLPB, CLSA, -T80- and -T52- 2428
1 3 Radiator fan control unit -J293-, from August 2017 2429
805 – – Fitting Locations: Middle part of vehicle – 3 2430
1 Middle part of vehicle 2430
1 1 Onboard supply control unit -J519-, from August 2017 2430
1 2 Control unit in dash panel insert -J285-, from August 2017 2432
1 3 Airbag control unit -J234-, fromAugust 2017 2433
1 4 Air conditioning system control unit -J301-, from August 2017 2434
1 5 Fuel pump control unit -J538-,from August 2017 2435
1 6 Power steering control unit -J500-, from August 2017 2435
830 – Connector views: parts with prefix A to D – 3 2436
1 Connector views: parts with prefix A to D 2436
1 1 Starter -B- 2436
1 2 Alternator -C- 2436
1 3 Immobilizer reader coil -D2- 2436
831 – Connector views: parts with prefix E – 3 2438
1 Connectors views: parts with prefix E 2438
1 1 Window regulator switch in front passenger door -E107- 2438
1 2 Rear lid handle release button -E234- 2439
1 3 Driver side belt switch -E24- 2439
1 4 TCS and ESP button -E256- 2440
1 5 Driver side interior locking button for central lockingsystem -E308- 2440
1 6 Selector lever -E313- 2441
1 7 Operating unit for window regulator in driver door -E512- 2441
832 – Connector views: parts with prefix F – 3 2442
1 Connector views: parts with prefix F 2442
1 1 Oil pressure switch -F1- 2442
1 2 Rear lid lock unit -F256- 2442
1 3 Bonnet contact switch -F266- 2443
1 4 Parking brake contact switch -F321- 2443
1 5 Brake fluid level warning contact -F34- 2444
1 6 Reversing light switch -F4- 2444
833 – Connector views: parts with prefix G – 3 2446
1 Connector views: parts with prefix G 2446
1 1 Fuel gauge sender -G- / Fuel system pressurisation pump -G6- 2447
1 2 Oil pressure sender -G10- 2447
1 3 Ambient temperature sensor -G17- 2447
1 4 Accelerator position sender 2 -G185- / Accelerator position sender -G79- 2448
1 5 Rain sensor -G213- 2448
1 6 Fuel pressure sender -G247- 2449
1 7 Evaporator output temperature sender -G263- 2449
1 8 Engine speed sender -G28- 2450
1 9 Hall sender 3 -G300- 2450
1 10 Coolant shortage indicator sender -G32- 2451
1 11 Hall sender -G40- 2451
1 12 Intake air temperature sender -G42- / Intake manifold pressure sender -G71- 2452
1 13 Rear right speed sensor -G44- 2452
1 14 Front right speed sensor -G45- 2453
1 15 Rear left speed sensor -G46- 2453
1 16 Front left speed sensor -G47- 2454
1 17 Clutch position sender -G476- 2454
1 18 Knock sensor 1 -G61- 2455
1 19 Coolant temperature sender -G62- 2456
1 20 Radiator outlet coolant temperature sender -G83- 2457
1 21 Lambda probe 1 before catalytic converter GX10 2457
1 22 Charge pressure sender GX26 2458
1 23 Lambda probe 1 after catalytic converter GX7 2458
1 24 Intake manifold sender GX9 2459
834 – Connector views: parts with prefix H to I – 3 2460
1 Connector views: parts with prefix H to I 2460
1 1 Treble horn -H2- 2460
1 2 Alarm horn -H12- 2460
836 – Connector views: parts with prefix K to M – 3 2461
1 Connector views: parts with prefix K to M 2461
1 1 Left fog light bulb -L22- 2461
1 2 Right fog light bulb -L23- 2461
1 3 Additional brake light bulb -M25- 2462
1 4 Front left headlight -MX1- 2462
1 5 Front right headlight -MX2- 2463
1 6 Left tail light -MX3- 2463
1 7 Right tail light -MX4- 2464
837 – Connector views: parts with prefix N – 3 2465
1 Connector views: parts with prefix N 2465
1 1 Ignition coil 2 with output stage -N127- 2465
1 2 Airbag igniter 1 on front passenger side -N131- 2466
1 3 Driver seat belt tensioner igniter 1 -N153- 2467
1 4 Front passenger seat belt tensioner igniter 1 -N154- 2467
1 5 Inlet camshaft control valve 1 -N205- 2467
1 6 Fresh air blower series resistor with overheatingfuse -N24- 2468
1 7 Fuel pressure regulating valve -N276- 2468
1 8 Air conditioner compressor regulating valve -N280- 2469
1 9 Ignition coil 3 with output stage -N291- 2469
1 10 Ignition coil 4 with output stage -N292- 2470
1 11 Injector, cylinder 1 -N30- 2471
1 12 Injector, cylinder 2 -N31- 2471
1 13 Exhaust camshaft control valve 1 -N318- 2472
1 14 Injector, cylinder 3 -N32- 2473
1 15 Injector, cylinder 4 -N33- 2473
1 16 Ignition key withdrawal lock solenoid -N376- 2474
1 17 Valve for oil pressure control -N428- 2474
1 18 Ignition coil 1 with output stage -N70- 2475
1 19 Activated charcoal filter solenoid valve 1 -N80- 2476
1 20 Gearbox -NX1- 2476
839 – Connector views: parts with prefix R – 3 2478
1 Connector views: parts with prefix R 2478
1 1 Front left loudspeaker -R2- 2478
1 2 Front right loudspeaker -R3- 2478
1 3 Rear left door loudspeaker -RX15- 2479
1 4 Rear right door loudspeaker -RX16- 2479
1 5 Front left door loudspeaker -RX2- 2480
1 6 Front right door loudspeaker -RX3- 2480
840 – Connector views: parts with prefix S to U – 3 2482
1 Connector views: parts with prefix S to U 2482
1 1 Coupling station on engine -T14- 2482
1 2 Coupling station on gearbox 2482
1 3 Coupling station for alternator and air-conditionercompressor 2483
1 4 Coupling point in engine compartment, left 2484
1 5 Cigarette lighter -U1- 2484
1 6 Trailer socket -U10- 2485
1 7 Diagnostic connection -U31- 2485
841 – Connector views: parts with prefix V – 3 2486
1 Connector views: parts with prefix V 2486
1 1 Wiper motor -V- 2486
1 1 1 Connector -T4i- 2487
1 2 Rear window wiper motor -V12- 2487
1 3 Driver side window regulator motor -V147- 2487
1 4 Front passenger side window regulator motor -V148- 2488
1 5 Fresh air and air recirculation flap control motor -V154- 2488
1 6 Tank filler flap locking motor -V155- 2489
1 7 Charge air cooling pump -V188- , 3-cylinder engine 2489
1 8 Vacuum pump -V22- , 3-cylinderengine 2490
1 9 Charge pressure positioner -V465- , 3-cylinder engine 2490
1 10 Windscreen and rear window washer pump -V59- 2491
1 11 Radiator fan -V7- 2491
1 12 Driver door lock unit -VX21- 2492
1 13 Front passenger door lock unit -VX22- 2493
1 14 Rear left door lock unit -VX23- 2493
1 15 Rear right door lock unit -VX24- 2493
842 – Connector views: parts with prefix W to Z – 3 2495
1 Connector views: parts with prefix W to Z 2495
1 1 Driver side reading light -W19- 2495
1 2 Left number plate light -X4- 2495
1 3 Right number plate light -X5- 2496
1 4 Automatic anti-dazzle interior mirror -Y7- 2496

S.V 03/02/2025
