VOLVO ECR235D L ECR235DL EXCAVATOR Service Repair Manual – PDF Download

FILE DETAILS:

VOLVO ECR235D L ECR235DL EXCAVATOR Service Repair Manual

LANGUAGE:ENGLISH
PAGES:1800+
DOWNLOADABLE:YES
FILE TYPE:PDF

VOLVO ECR235D L ECR235DL EXCAVATOR SERVICE REPAIR MANUAL – PDF DOWNLOAD:

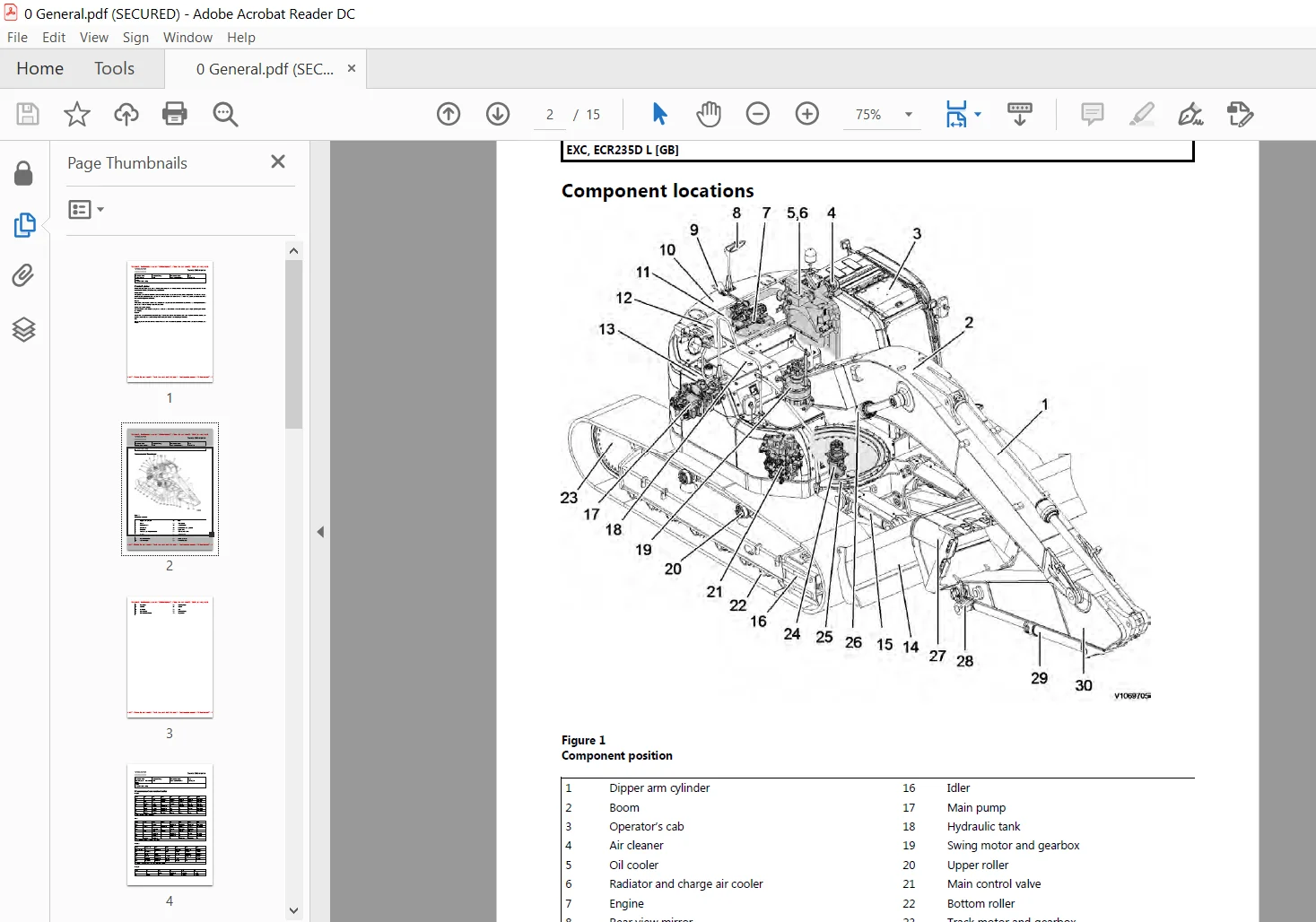

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

VOLVO ECR235D L ECR235DL EXCAVATOR Service Repair Manual

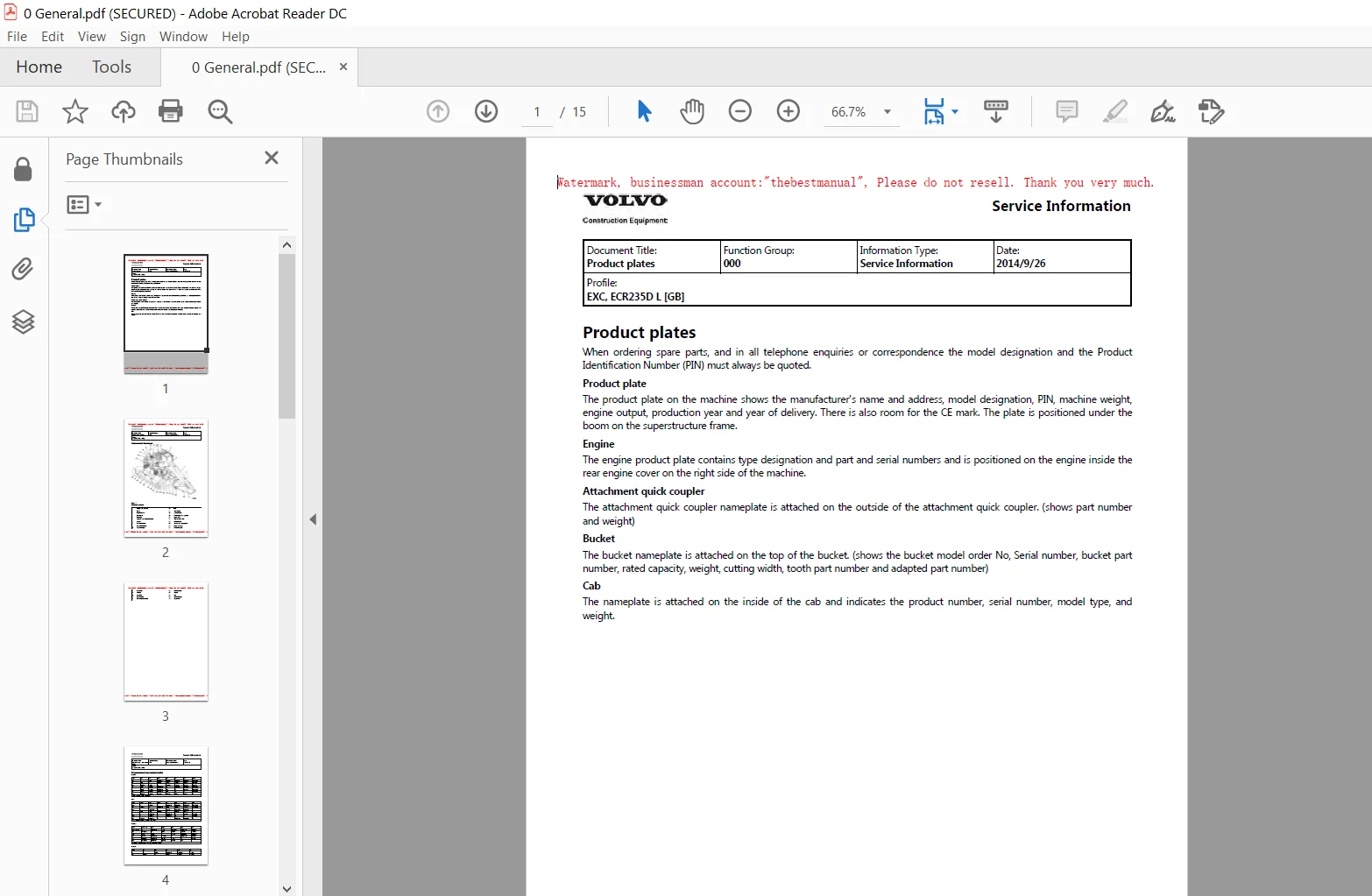

Product plates
When ordering spare parts, and in all telephone enquiries or correspondence the model designation and the Product Identification Number (PIN) must always be quoted.
Product plate
The product plate on the machine shows the manufacturer’s name and address, model designation, PIN, machine weight, engine output, production year and year of delivery. There is also room for the CE mark. The plate is positioned under the boom on the superstructure frame.
Engine
The engine product plate contains type designation and part and serial numbers and is positioned on the engine inside the rear engine cover on the right side of the machine.
Attachment quick coupler
The attachment quick coupler nameplate is attached on the outside of the attachment quick coupler. (shows part number and weight)
Bucket
The bucket nameplate is attached on the top of the bucket. (shows the bucket model order No, Serial number, bucket part number, rated capacity, weight, cutting width, tooth part number and adapted part number)
Cab
The nameplate is attached on the inside of the cab and indicates the product number, serial number, model type, and weight.

TABLE OF CONTENTS:

VOLVO ECR235D L ECR235DL EXCAVATOR Service Repair Manual

Volvo ECR235D L-SM
Volvo ECR235D L-SM\0 General.pdf
Volvo ECR235D L-SM\0 Safety.pdf
Volvo ECR235D L-SM\1 Standard Parts, Service.pdf
Volvo ECR235D L-SM\2 Engine with Mounting and Equipment.pdf
Volvo ECR235D L-SM\3 Elec. System, Warning System, Information System, Instruments.pdf
Volvo ECR235D L-SM\4 Power Transmission.pdf
Volvo ECR235D L-SM\5 Brake.pdf
Volvo ECR235D L-SM\6 Frame and Crawler Unit.pdf
Volvo ECR235D L-SM\7 Machinery House, Cab, Exterior Trim Parts Anywhere.pdf
Volvo ECR235D L-SM\8 Hydraulic System, Digging, Handling, Grading Equipment, Misc Equipment.pdf

PLEASE NOTE:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
