Volvo VN VHD v2 Truck Electrical Schematic Manual PDF Download

Description

Volvo Trucks VN VHD VERSION2 Electrical Schematic Manual – PDF DOWNLOAD

DESCRIPTION:

Volvo Trucks VN VHD VERSION2 Electrical Schematic Manual – PDF DOWNLOAD

Foreword :

• The descriptions and service procedures contained in this manual are based on designs and
  methods studies carried out up to October 2003.
• The products are under continuous development. Vehicles and components produced after
  the above date may therefore have different specifications and repair methods. When this is
  judged to have a significant bearing on this manual, supplementary service bulletins will be
  issued to cover the changes.
• The new edition of this manual will update the changes.
• In service procedures where the title incorporates an operation number, this is a reference to
  V.S.T. (Volvo Standard Times).
• Service procedures which do not include an operation number in the title are for general
  information and no reference is made to V.S.T.

The following levels of observations, cautions and warnings are used in this Service
Documentation:
Note: Indicates a procedure, practice, or condition that must be followed in order to have the
vehicle or component function in the manner intended.
Caution: Indicates an unsafe practice where damage to the product could occur.
Warning: Indicates an unsafe practice where personal injury or severe damage to the product
could occur.
Danger: Indicates an unsafe practice where serious personal injury or death could occur.

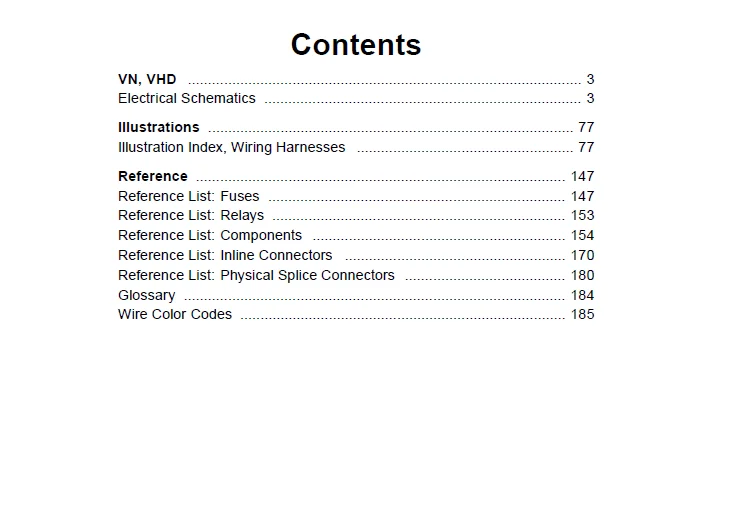

TABLE OF CONTENTS:

Volvo Trucks VN VHD VERSION2 Electrical Schematic Manual – PDF DOWNLOAD

VN, VHD …………………………………………………………………………………….. 3
Electrical Schematics ……………………………………………………………………. 3
Illustrations ………………………………………………………………………………. 77
Illustration Index, Wiring Harnesses ……………………………………………… 77
Reference ……………………………………………………………………………….. 147
Reference List: Fuses ……………………………………………………………….. 147
Reference List: Relays ………………………………………………………………. 153
Reference List: Components ……………………………………………………… 154
Reference List: Inline Connectors ………………………………………………. 170
Reference List: Physical Splice Connectors …………………………………. 180
Glossary ………………………………………………………………………………….. 184
Wire Color Codes ……………………………………………………………………… 185

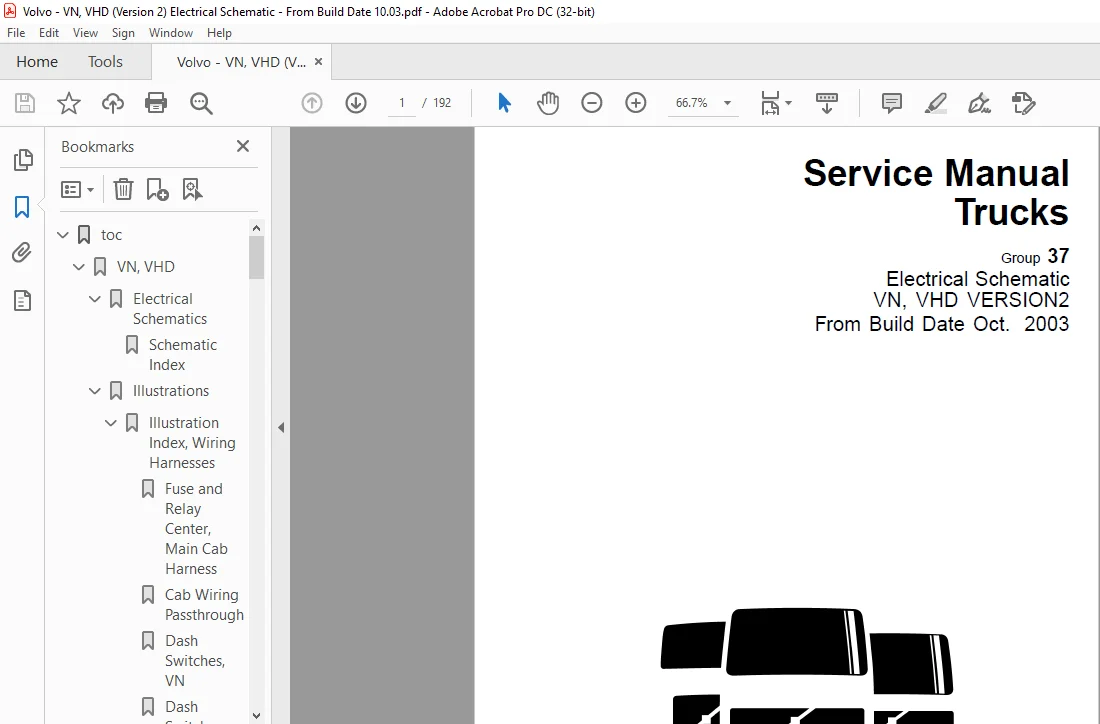

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
