Wacker Kramer 4407 Telehandler SPARE PARTS LIST Manual – PDF DOWNLOAD

Description

Wacker Kramer 4407 Telehandler SPARE PARTS LIST Manual – PDF DOWNLOAD

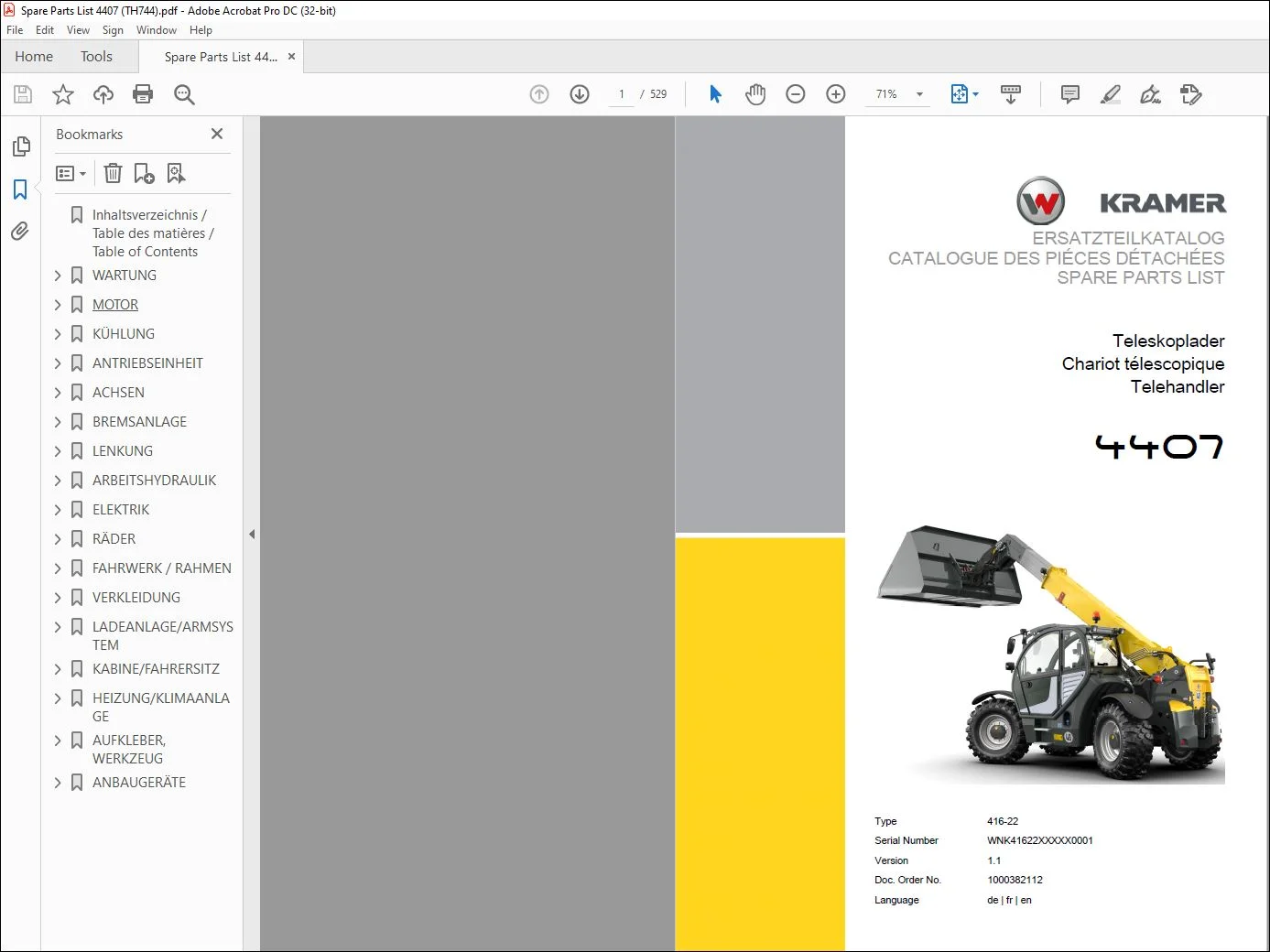

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Wacker Kramer 4407 Telehandler SPARE PARTS LIST Manual – PDF DOWNLOAD

General information about spare parts manual
General

• When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required.
• The following details are also necessary: material number and position number. The serial number is stamped on the machine chassis. It is also located on the type label.
• The serial number must be given in full. In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
• Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
• Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point. This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine.
• Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other. In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings.
• The portrayal is for clarification only and does not mean that the part shown can be ordered. Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety.
• The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts. Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

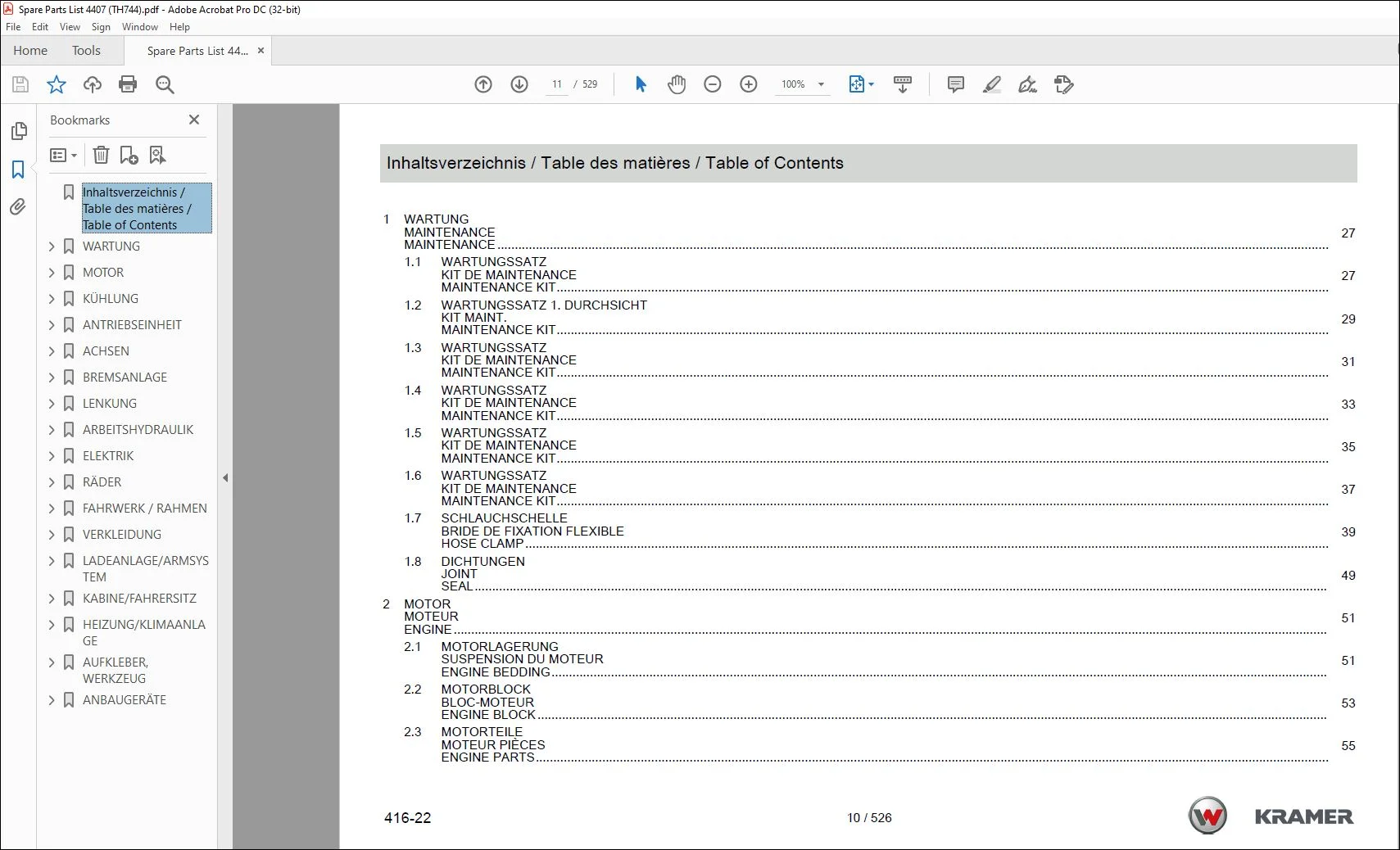

TABLE OF CONTENTS:

Wacker Kramer 4407 Telehandler SPARE PARTS LIST Manual – PDF DOWNLOAD

1 WARTUNG
MAINTENANCE
MAINTENANCE
11 WARTUNGSSATZ
KIT DE MAINTENANCE
MAINTENANCE KIT
12 WARTUNGSSATZ 1 DURCHSICHT
KIT MAINT
MAINTENANCE KIT
13 WARTUNGSSATZ
KIT DE MAINTENANCE
MAINTENANCE KIT
14 WARTUNGSSATZ
KIT DE MAINTENANCE
MAINTENANCE KIT
15 WARTUNGSSATZ
KIT DE MAINTENANCE
MAINTENANCE KIT
16 WARTUNGSSATZ
KIT DE MAINTENANCE
MAINTENANCE KIT
17 SCHLAUCHSCHELLE
BRIDE DE FIXATION FLEXIBLE
HOSE CLAMP
18 DICHTUNGEN
JOINT
SEAL
2 MOTOR
MOTEUR
ENGINE
21 MOTORLAGERUNG
SUSPENSION DU MOTEUR
ENGINE BEDDING

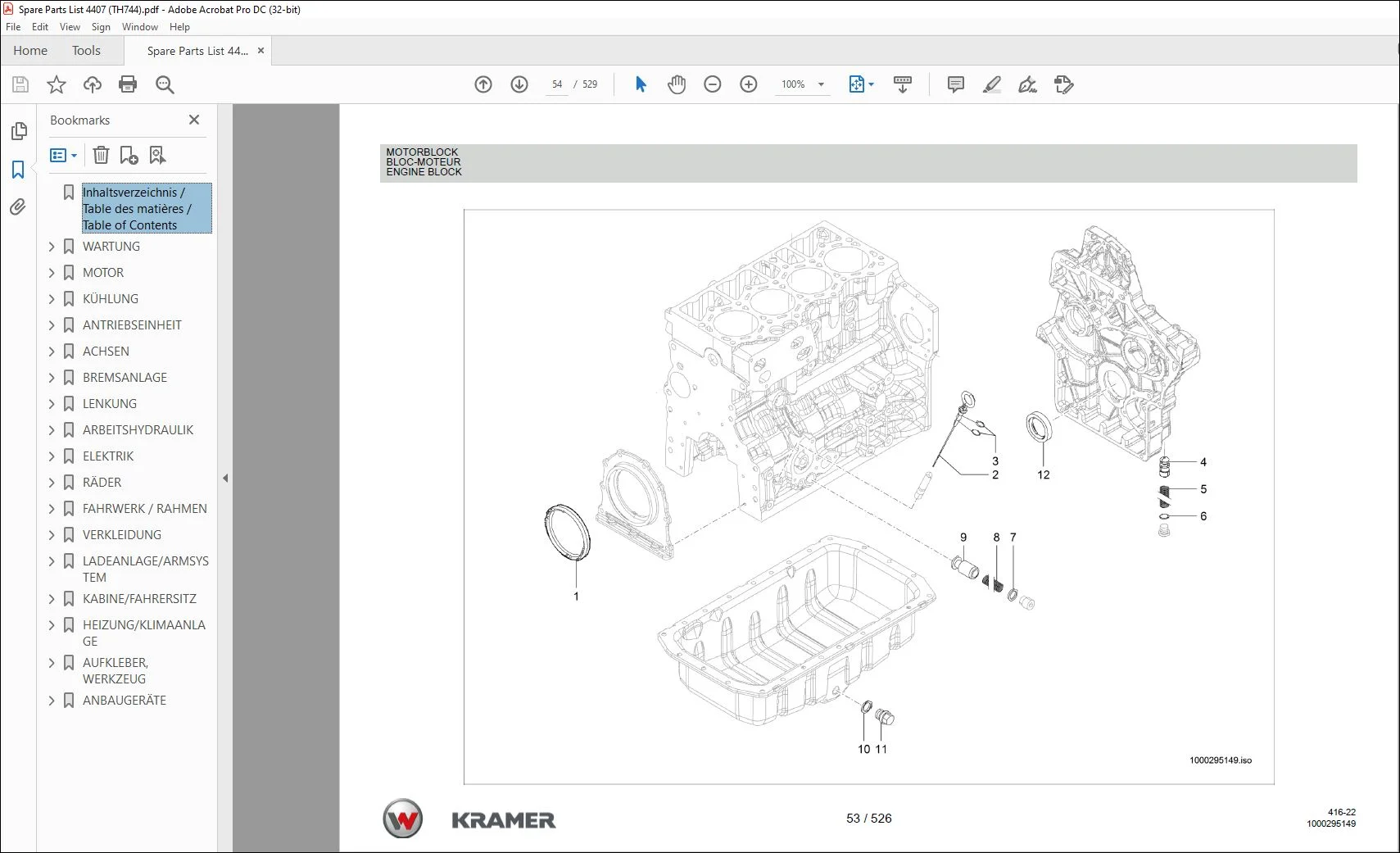

22 MOTORBLOCK
BLOC-MOTEUR
ENGINE BLOCK
23 MOTORTEILE
MOTEUR PIÈCES
ENGINE PARTS
Inhaltsverzeichnis / Table des matières / Table of Contents
24 MOTOR ANBAUTEILE
ACCESSOIRES MOTEUR
ENGINE ATTACHMENTS PARTS
25 ABGASANLAGE
SYSTÈME D’ÉCHAPPEMENT
EXHAUST SYSTEM
26 ABGASANLAGE
SYSTÈME D’ÉCHAPPEMENT
EXHAUST SYSTEM
27 KRAFTSTOFFVERSORGUNG
RAVITAILLEMENT EN CARBURANT
FUEL SYSTEM
28 ANSAUGANLAGE
SYSTÈME D’ADMISSION
INDUCTION SYSTEM29 ANSAUGANLAGE LRC
SYSTÈME D’ADMISSION LRC
INDUCTION SYSTEM LRC
210 UNTERDRUCKVORABSCHEIDER
DÉPRESSURISATION COLLECTEUR
PRE-FILTER
211 UNTERDRUCKVORABSCHEIDER
DÉPRESSURISATION COLLECTEUR
PRE-FILTER
212 GASREGULIERUNG
RÈGLEMENT DE GAZ
SPEED REGULATION
213 BEHÄLTER HARNSTOFF
CONTENEUR URÉE
CONTAINER UREA
214 HARNSTOFF-FÖRDERPUMPE
POMPE REFOULANTE
FUEL PUMP
215 HARNSTOFFVERSORGUNG
NUTRIMENTS
NUTRIENTS
3 KÜHLUNG
REFROIDISSEMENT
COOLING
Inhaltsverzeichnis / Table des matières / Table of Contents
31 LÜFTERANTRIEB
COMMANDE DE VENTILATEUR
FAN ACTUATION
32 KÜHLUNG + LAGERUNG
REFROIDISSEMENT + STOCKAGE
COOLING + STORAGE
4 ANTRIEBSEINHEIT
UNITÉ D’ENTRAÎNEMENT
DRIVE UNIT
41 GETRIEBELAGERUNG
STOCKAGE DE BOÎTE DE VITESSES
GEARBOX MOUNTING
42 FAHRANTRIEB KREISLAUF
COMMANDE CYCLE
DRIVES CYCLE
43 FAHRANTRIEB KÜHLKREISLAUF
COMMANDE CYCLE
DRIVES CYCLE
44 HYDRAULIKPUMPE
POMPE HYDRAULIQUE
HYDRAULIC PUMP
45 SCHNELLGANGGETRIEBE
BOÎTE DE VITESSES
GEARBOX
46 SCHNELLGANGGETRIEBE CARTRIDGE
BOÎTE DE VITESSES
GEARBOX
47 STEUERDECKEL- CARTRIDGE
COUVERCLE DE COMMANDE
CONTROL COVER
5 ACHSEN
ESSIEUX
AXLES
51 ACHSEN-BEFESTIGUNG
FIXATION D’AXE
AXLE ATTACHMENT
52 GELENKWELLE
ARBRE DE TRANSMISSION
CARDAN SHAFT
Inhaltsverzeichnis / Table des matières / Table of Contents
53 VORDERACHSE
AVANT-TRAIN
FRONT AXLE
54 WINKELTRIEB
TRACTION D’ANGLE
ANGLE DRIVE
55 DIFFERENTIAL
DIFFERENTIEL
DIFFERENTIAL
56 BREMSE
FREIN
BRAKE
57 DOPPELGELENKWELLE
ARBRE DOUBLE ARTICULÉ
DOUBLE CARDAN SHAFT
58 HINTERACHSE
ESSIEU ARRIÈRE
REAR AXLE
59 WINKELTRIEB
TRACTION D’ANGLE
ANGLE DRIVE
510 DIFFERENTIAL
DIFFERENTIEL
DIFFERENTIAL
511 DIFFERENTIALSPERRE
BLOCAGE DU DIFFÉRENTIEL
DIFFERENTIAL LOCK
512 BREMSE
FREIN
BRAKE
513 DOPPELGELENKWELLE
ARBRE DOUBLE ARTICULÉ
DOUBLE CARDAN SHAFT
514 LENKZYLINDER
IMPULSION DE PLANÈTE
PLANET IMPULSE
515 RADNABE
MOYEU
WHEEL HUB
Inhaltsverzeichnis / Table des matières / Table of Contents
6 BREMSANLAGE
SYSTÈME DE FREINAGE
BRAKE ASSEMBLY
61 BREMSPEDAL
PÉDALE DE FREIN
BRAKE PEDAL
62 BETRIEBSBREMSE
FREIN M DE SERVICE
SERVICE BRAKE
63 ANHAENGER BREMSE
REMORQUE FREIN
TRAILER BRAKE
7 LENKUNG
DIRECTION
STEERING ELEMENT
71 LENKSÄULE
ARBRE DU VOLANT
STEERING COLUMN
72 KREISLAUF LENKUNG-PUMPE-TANK
CIRCUIT HYDRAULIQUE DIRECTION-POMP-TANK
HYDRAULIC CIRCUIT STEERING-PUMP-TANK
73 LENKUNG
DIRECTION
8 ARBEITSHYDRAULIK
HYDRAULIQUE DE TRAVAIL
WORKING HYDRAULIC
81 ÖLBEHÄLTER
RÉSERVOIR D’HUILE
OIL TANK
82 STEUERGERÄT BEFESTIGUNG
FIXANT UNITÉ DE COMMANDE
FIXING CONTROL UNIT
83 HYDRAULIKPUMPE
POMPE HYDRAULIQUE
HYDRAULIC PUMP
84 HYDRAULIKPUMPE
POMPE HYDRAULIQUE
HYDRAULIC PUMP
Inhaltsverzeichnis / Table des matières / Table of Contents
85 STEUERGERÄT
BOÎTIER DE COMMANDES
CONTROL UNIT
86 STEUERGERÄT
BOÎTIER DE COMMANDES
CONTROL UNIT
87 STEUERGERÄT
APPAREIL DE COMMANDE
CONTROL UNIT
88 STEUERGERÄT
BOÎTIER DE COMMANDES
CONTROL UNIT
89 HUBZYLINDER
VÉRIN DE LEVAGE
LIFT CYLINDER
810 KIPPZYLINDER
CYLINDRE BASCULANT
TILT RAM
811 AUSSCHUBZYLINDER
CYLINDRE D’EXTENSION
EXTENSION CYLINDER
812 AUSGLEICHSZYLINDER
CYLINDRE DE COMPENSATION
REGULATION RAM
813 KREISLAUF-HUBZYLINDER
VÉRIN LEVAGE CYCLE
LIFT RAM CYCLE
814 KREISLAUF-AUSSCHUBZYLINDER
VÉRIN DE POUSSÉE CYCLE
PUSH-OUT RAM CYCLE
815 KREISLAUF-KIPPZYLINDER
VÉRIN DE CAVAGE CYCLE
TILT RAM CYCLE
816 KREISLAUF-AUSGLEICHSZYLINDER
CYLINDRE DE COMPENSATION DE CYCLE
CYCLE COMPENSATING CYLINDER
817 3STEUERKREIS
3 DISP ATTACHE RAPIDE CYCLE
3 QUICKHITCH FACILITY CYCLE
Inhaltsverzeichnis / Table des matières / Table of Contents
818 STEUERKREIS VORN
CIRCUIT HYDRAULIQUE MARTEAU HYDRAULIQUE
ADDITIONAL HYDRAULIC CIRCUIT AHEAD
819 3STEUERKREISL MULTIKUPPLER 2-FACH
3 DISP ATTACHE RAPIDE CYCLE
3 QUICKHITCH FACILITY CYCLE
820 3STEUERKREISL MULTIKUPPLER 4-FACH
3 DISP ATTACHE RAPIDE CYCLE
3 QUICKHITCH FACILITY CYCLE
821 KREISLAUF LASTSTABILISATOR
CYCLE STABILISATEUR DE FRET
CYCLE LOAD STABILIZER
822 KREISLAUF KIPPER
CYCLE OPT
CYCLE OPT
823 ZUSATZSTEUERKREIS HI
CIRCUIT DE COMMANDE D’ADDITIF ARRIÈRE
AUXILIARY CONTROL CIRCUIT REAR
824 ZUSATZSTEUERKREIS AUSSEN
CIRCUIT DE COMMANDE D’ADDITIF DEHORS
AUXILIARY CONTROL CIRCUIT OUTSIDE
825 KREISLAUF TANK-PUMPE-STEUERGERÄT
CIRCUIT HYDRAULIQUE TANK-POMP-CONTRÔLEUR
HYDRAULIC CIRCUIT TANK-PUMP-CONTROLER
826 KREISLAUF STEUERGERÄT-TANK
CIRCUIT HYDRAULIQUE CONTRÔLEUR-TANK
HYDRAULIC CIRCUIT CONTROLER-TANK
827 ARBEITSHYDRAULIK – STEUERGERÄT
CIRCULATION D’HUILE – DISTRIBUTEUR
OIL CIRCULATION – CONTROL VALVE
828 HITCH + KIPPER + ZUSATZSTEUERKREIS
HITCH + BENNE BASCULANTE + CYCLE ADD
HITCH + TIPPLER + CYCLE ADD
829 HITCH + KIPPER + ZUSATZSTEUERKREIS
HITCH + BENNE BASCULANTE + CYCLE ADD
HITCH + TIPPLER + CYCLE ADD
830 KREISLAUF – ABSCHALTVENTIL
CYCLE – CLAPET DE COUPURE
CYCLE – CUT-OFF VALVE
Inhaltsverzeichnis / Table des matières / Table of Contents
831 KREISLAUF DRUCKENTLASTUNG
CIRCUIT HYDRAULIQUE DÉCHARGE DE PRESSION
HYDRAULIC CIRCUIT PRESSURE DISCHARGE
832 KREISLAUF DRUCKENTLASTUNG
CIRCUIT HYDRAULIQUE DÉCHARGE DE PRESSION
HYDRAULIC CIRCUIT PRESSURE DISCHARGE
833 SCHMIERLEITUNG
LIGNE LUBRIFANTE
LUBRICATION LINE
834 ZENTRALSCHMIERANLAGE
SYSTÈME DE LUBRIFICATION CENTRALE
CENTRAL GREASING DIVICE
835 ZENTRALSCHMIERANLAGE
SYSTÈME DE LUBRIFICATION CENTRALE
CENTRAL GREASING DIVICE
9 ELEKTRIK
ÉQUIPEMENT ÉLECTRIQUE
ELECTRIC
91 FAHRZEUGBELEUCHTUNG
ÉCLAIRAGE DE VÉHICULE
VEHICLE LIGHTING
92 ARMATURENBRETT
TABLEAU DE BORD
INSTRUMENT PANEL
93 ARMATURENBRETT
TABLEAU DE BORD
INSTRUMENT PANEL
94 ARMATUREN – DACH
TABLEAU DE BORD
INSTRUMENT PANEL
95 PLATINE
PLATINE
PLATINE
96 KABINENKABELBAUM
FAISCEAU ÉLECTRIQUE
WIRING HARNESS
97 RAHMENKABELBAUM
FAISCEAU DE CÂBLES-CADRE
FRAMEWORK WIRING HARNESS
Inhaltsverzeichnis / Table des matières / Table of Contents
98 MOTORKABELBAUM
ARBRE DE CÂBLE DU MOTEUR
WIRING HARNESS ENGINE
99 KABELBAUM HEIZUNG/KLIMA
DIFFÉRENTS FAISCEAUX DE CÂBLES
VARIOUS WIRING HARNESSES
910 MOTOR-ÖLVORWÄRMUNG
PRÉCHAUFFAGE DE L’HUILE
OIL PREHEATER
911 KABELBAUM ÖLVORWÄRMUNG
PRÉCHAUFFAGE DE L’HU FAISCEAUX DE CÂBLES
OIL PREHEATER WIRING HARNESSES
912 KABELBAUM SCHNELLWECHSELPLATTE
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
913 KABELBAUM SCHNELLWECHSELPLATTE
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
914 KABELBAUM SCHNELLWECHSELPLATTE
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
915 KABELBAUM SCHNELLWECHSELPLATTE
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
916 KABELBAUM SCHNELLWECHSELPL- MULTIKUP
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
917 KABELBAUM SCHNELLWECHSELPLATTE
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
918 KABELBAUM SCHNELLWECHSELPLATTE
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
919 KABELBAUM SCHNELLWECHSELPLATTE
DIFFÉRENTS FAISCEAUX DE CÂBLES DE DISP
QUICKHITCH FACILITY WIRING HARNESSES
920 KABELBAUM SCHEIBENHEIZUNG
ESSUIE-GLACE AR FAISCEAUX DE CÂBLES
WIRING HARNESSES REAR WINDOW HEATER
Inhaltsverzeichnis / Table des matières / Table of Contents
921 KABELBAUM SCHAUFELRÜCKFÜHRAUTOMATIK
FAISCEAU DE CÂBLES REP DU GODET
WIRING HARNESS BUCKET REPOSITIONING
922 KABELBAUM SCHAUFELRÜCKFÜHRAUTOMATIK
FAISCEAU DE CÂBLES REP DU GODET
WIRING HARNESS BUCKET REPOSITIONING
923 KABELBAUM HARNSTOFF KABINE
HARNAIS CABINE URÉE
HARNESS UREA CABIN
924 KABELBAUM LUFTFILTER-EAT-KONSOLE-DOC
FILTRE HARNAIS AIR EAT CONSOLE-DOC
HARNESS AIR FILTER EAT CONSOLE-DOC
925 KABELBAUM LUFTFILTER-EAT-KONSOLE-LRC
FILTRE HARNAIS AIR EAT CONSOLE-LRC
HARNESS AIR FILTER EAT CONSOLE-LRC
926 KABELBAUM LUFTFILTER-EAT-KONSOLE-DPF
FILTRE HARNAIS AIR EAT CONSOLE-DPF
HARNESS AIR FILTER EAT CONSOLE-DPF
927 KABELBAUM
FAISCEAU ÉLECTRIQUE
WIRING HARNESS
928 ELEKTRISCHER AUSSENSPIEGEL
RÉTROVISEUR EXTÉRIEUR ÉLECTRIQUE
ELECTRICAL OUTSIDE MIRROR
929 KABELBAUM P370
FAISCEAUX DE CÂBLES P370
WIRING HARNESSES P370
930 ELEKTRIK-KOMPONENTEN
COMPOSANTES D’ÉQUIPEMENT ÉLECTRIQUE
ELECTRICAL CONNECTION COMPONENTS
931 STEUERHEBEL INCLEL VORSTEUERGERAET
LEVIER DE COMMANDE
CONTROL LEVER
932 BATTERIE-BATTERIEKABEL
CÂBLE DE BATTERIE – BATTERIE
BATTERY – BATTERY CABLE
933 KENNZEICHENBELEUCHTUNG
ECLAIRAGE DE LA PLAQUE MINÉRALOGIQUE BG
NUMBERPLATE LIGHT BG
Inhaltsverzeichnis / Table des matières / Table of Contents
934 POTENTIOMETER
POTENTIOMÈTRE
POTENTIOMETER

935 POTENTIOMETER
POTENTIOMÈTRE
POTENTIOMETER
345
936 ELEKTRIK TELESKOPARM
ÉQUIPEMENT ÉLECTRIQUE BRAS DE TÉLESCOPE
ELECTRICAL CONNECTION TELESCOPE ARM
347
937 ELEKTRIK TELESKOPARM
ÉQUIPEMENT ÉLECTRIQUE BRAS DE TÉLESCOPE
ELECTRICAL CONNECTION TELESCOPE ARM
351
938 BELEUCHTUNG LED
ÉCLAIRAGE LED
LIGHTING LED
355
939 BELEUCHTUNG HUBARM LED
ÉCLAIRAGE BRAS DE LEVAGE
LIGHTING LIFT ARM
940 STECKDOSE
PRISE
SOCKET
941 RADIO
RADIO
RADIO
942 RADIO
RADIO
RADIO
943 TELEMATIC
TELEMATIC
TELEMATIC
944 BELEUCHTUNG ANHAENGEKUPPLUNG
LIGHTING ATTELAGE DE REMORQUE
LIGHTING TRAILER HITCH
945 KAMERA SICHT
APPAREIL-PHOTO
CAMERA
946 KAMERA HECK
APPAREIL-PHOTO
CAMERA
Inhaltsverzeichnis / Table des matières / Table of Contents
10 RÄDER
ROUES
WHEELS
101 BEREIFUNG
PNEU
TYRE
102 BEREIFUNG
PNEU
TYRE
11 FAHRWERK / RAHMEN
CHÂSSIS / CADRE
CHASSIS / FRAMEWORK
111 RAHMEN
CADRE
FRAME
12 VERKLEIDUNG
RÉVÊTEMENT
TRIM
121 RADABDECKUNG
PROTECTION DE ROUE
WHEEL COVER
122 SPRITZGUMMI
CAOUTCHOUC DE PROJECTION
SPRAY RUBBER
123 MOTORHAUBE
CHÂSSIS
FRAME
124 UNTERFAHRSCHUTZ
TÔLE DE PROTECTION KPL
PROTECTIVE PLATE KPL
125 VERKLEIDUNG
RÉVÊTEMENT
TRIM
126 ABDECKUNG
CAPOT
COVER
13 LADEANLAGE/ARMSYSTEM
SYSTÈME DE CHARGE/FLECHE ET BALANCIER
LOADING SYSTEM/ARMSYSTEM
Inhaltsverzeichnis / Table des matières / Table of Contents
131 TELESKOPAUSLEGER
TÉLESCOPE STOCKAGE
TELESCOPE STORAGE
132 LAGERUNG
STOCKAGE
MOUNTING
133 KIPPHEBEL
BRAS DE CULBUTEUR
ROCKER ARM
134 SCHNELLWECHSELPLATTE
PLAQUE À CHANGEMENT RAPIDE
QUICKHITCH PLATE
135 SCHNELLWECHSELPLATTE
PLAQUE À CHANGEMENT RAPIDE
QUICKHITCH PLATE
136 SCHNELLWECHSELPLATTE
PLAQUE À CHANGEMENT RAPIDE
137 SCHNELLWECHSELPLATTE
PLAQUE À CHANGEMENT RAPIDE
QUICKHITCH PLATE
138 SCHNELLWECHSELPLATTE
PLAQUE À CHANGEMENT RAPIDE
QUICKHITCH PLATE
139 SCHNELLWECHSELPLATTE
PLAQUE À CHANGEMENT RAPIDE
QUICKHITCH PLATE
1310 SCHNELLWECHSELPLATTE
PLAQUE À CHANGEMENT RAPIDE
QUICKHITCH PLATE
1311 ÜBERLASTBEGRENZUNG
LIMITE DE SURCHARGE
OVERLOAD LIMIT
1312 SCHAUFELRÜCKFÜHRAUTOMATIK SRA
REPOSITIONNEMENT DU GODET
BUCKET BACKUP AUTOM SRA
14 KABINE/FAHRERSITZ
CABINE/SIÈGE DE CHAUFFEUR
CABIN/DRIVERS SEAT
Inhaltsverzeichnis / Table des matières / Table of Contents
141 FAHRERKABINE
CABINE
CAB
142 KABINEN SCHEIBEN
VITRES DE LA CABINE
CAB WINDOWS
143 HECKSCHEIBE
LUNETTE
REAR WINDOW
144 KABINENTÜR OBEN
PORTE DE CABINE
CAB DOOR
145 KABINENTÜR UNTEN
PORTE DE CABINE
CAB DOOR
146 WISCHERANLAGE
SYSTÈME D’ESSUIE-GLACE
WIPER DEVICE
147 WISCHERANLAGE
SYSTÈME D’ESSUIE-GLACE
WIPER DEVICE
148 RÜCKBLICKSPIEGEL
RÉTROVISEUR
REARVIEW MIRROR
149 HALTER
SUPPORT
BRACKET
1410 FAHRERKABINE VERKLEIDUNGEN
REVÉTEMENT
TRIM
1411 DÄMMATTEN
NATTE ISOLANTE
INSULATING MAT
1412 STAUFACH
CASIER
CENTRE CONSOLE
1413 FAHRERSITZ-BEFESTIGUNG
SIÈGE DU CONDUCTEUR FIXATION
OPERATOR’S SEAT ATTACHMENT
Inhaltsverzeichnis / Table des matières / Table of Contents
1414 FAHRERSITZ
SIÈGE CONDUCTEUR
DRIVERS SEAT
1415 FAHRERSITZ
SIÈGE CONDUCTEUR
1416 SITZHEIZUNG
SIÉGE CHAUFLAGE
SEAT HEATING
15 HEIZUNG/KLIMAANLAGE
CHAUFFAGE/CLIMATISEUR
HEATING/AIR CONDITION SYSTEM
151 HEIZUNG
CHAUFFAGE
HEATING
152 KLIMAANLAGE
CLIMATISEUR
AIR CONDITIONING SYSTEM
16 AUFKLEBER, WERKZEUG
AUTOCOLLANT, OUTIL
STICKER, TOOLS
161 AUFKLEBER
AUTOCOLLANT
STICKER
162 AUFKLEBER
AUTOCOLLANT
STICKER
163 AUFKLEBER
LABELS
LABEL
164 TRAGLASTDIAGRAMM
DIAGRAMME DE CHARGES
CARRY LOAD DIAGRAM
165 WERKZEUG
OUTIL
TOOLS
166 DOKUMENTE
DOCUMENTS
DOCUMENTS
Inhaltsverzeichnis / Table des matières / Table of Contents
17 ANBAUGERÄTE
APPAREILS PORTÉS
IMPLEMENTS TO ATTACH
171 SCHAUFEL
GODET
BUCKET
172 SCHAUFEL
GODETS
BUCKET
173 SCHAUFEL
GODETS
BUCKET
174 SCHAUFEL
GODETS
BUCKET
175 STAPELEINRICHTUNG
APPAREILLAGE À PILE
PALLET FORKS
176 STAPELEINRICHTUNG
APPAREILLAGE À PILE
PALLET FORKS
177 STAPELEINRICHTUNG
APPAREILLAGE À PILE
PALLET FORKS
178 STAPELEINRICHTUNG
APPAREILLAGE À PILE
PALLET FORKS
179 ANHÄNGEKUPPLUNG
ATTACHE-REMORQUE
TRAILER COUPLING
1710 ANHÄNGEKUPPLUNG
ATTACHE-REMORQUE
TRAILER COUPLING
1711 ANHÄNGEKUPPLUNG
ATTACHE-REMORQUE
TRAILER COUPLING
1712 ANHÄNGEKUPPLUNG
ATTACHE-REMORQUE
TRAILER COUPLING
Inhaltsverzeichnis / Table des matières / Table of Contents
1713 ANHAENGEKUPPLUNG
ATTACHE-REMORQUE
TRAILER COUPLING
1714 RANGIERKUPPLUNG
CROCHETS D’ATTELAGES
RANKING CLUTCH
1715 SPIEGEL ANHAENGEKUPPLUNG
MIROIR ATTACHE-REMORQUE
MIRROR TRAILER COUPLING
1716 ANHÄNGEKUPPLUNG
ATTACHE-REMORQUE
TRAILER COUPLING

Contact us: [email protected]

https://vimeo.com/733502028

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
