Wacker Kramer 4507 5507 5007 Telehandler Operator’s manual- PDF DOWNLOAD

Description

Wacker Kramer 4507 5507 5007 Telehandler Operator’s manual- PDF DOWNLOAD

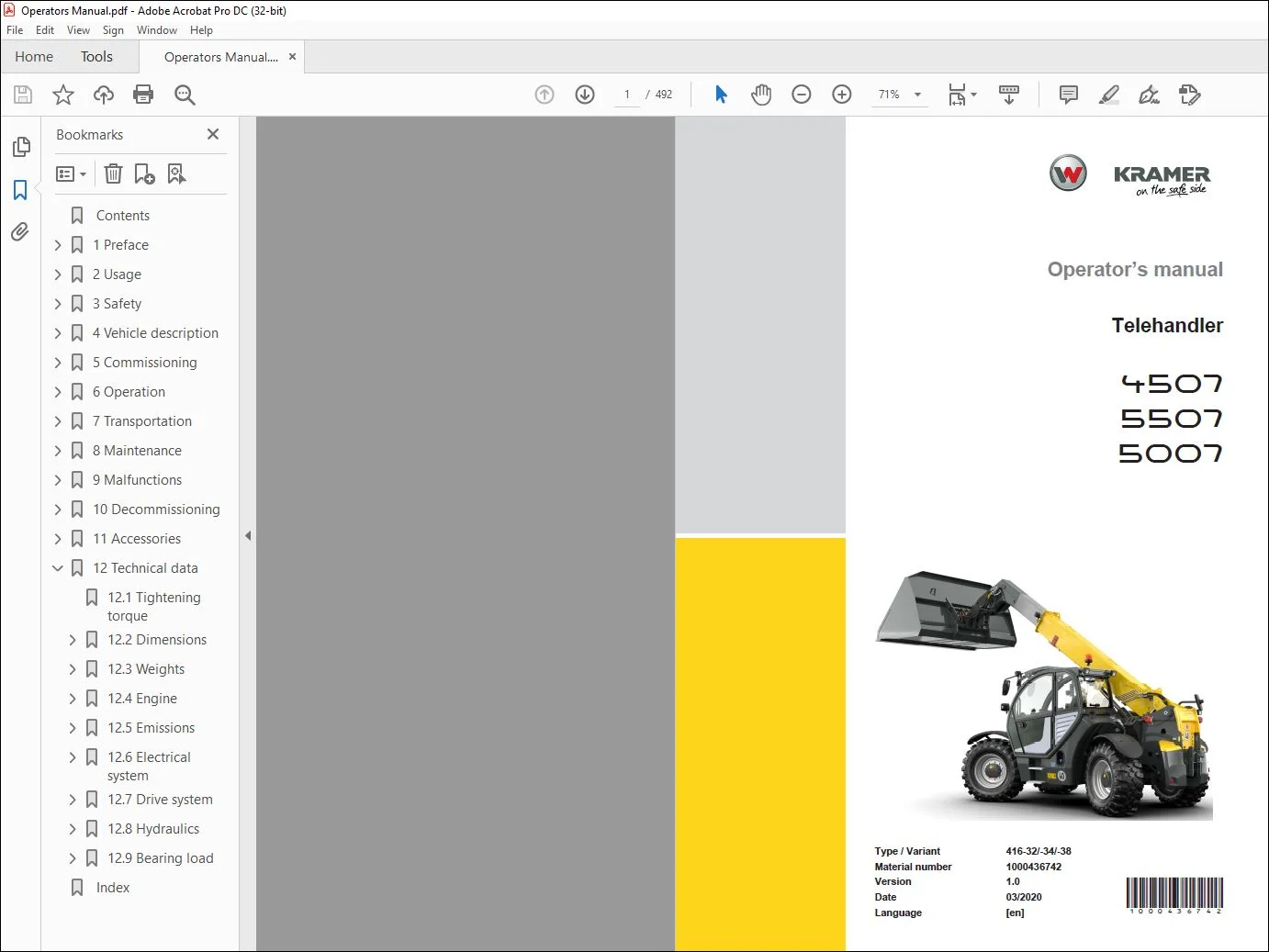

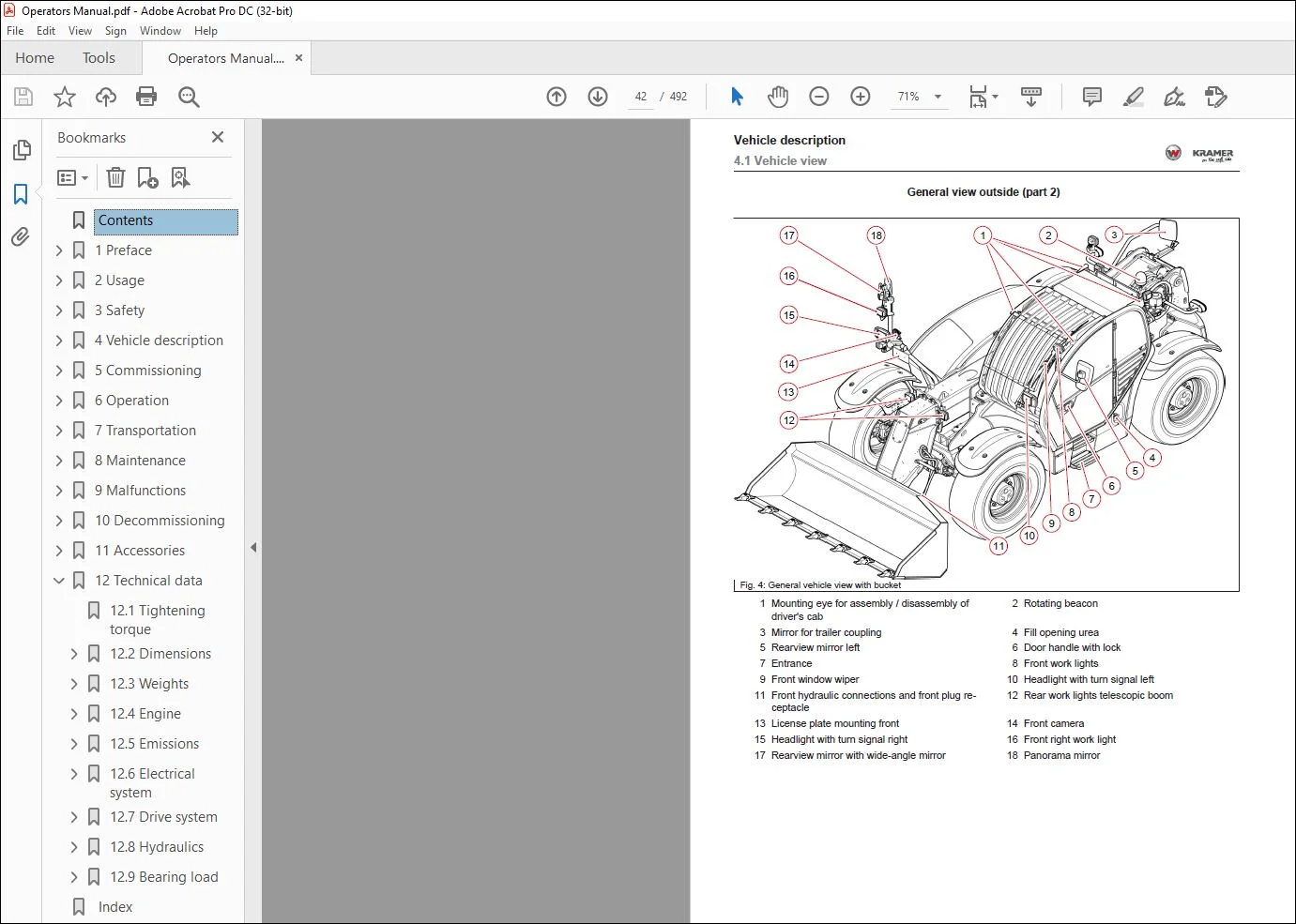

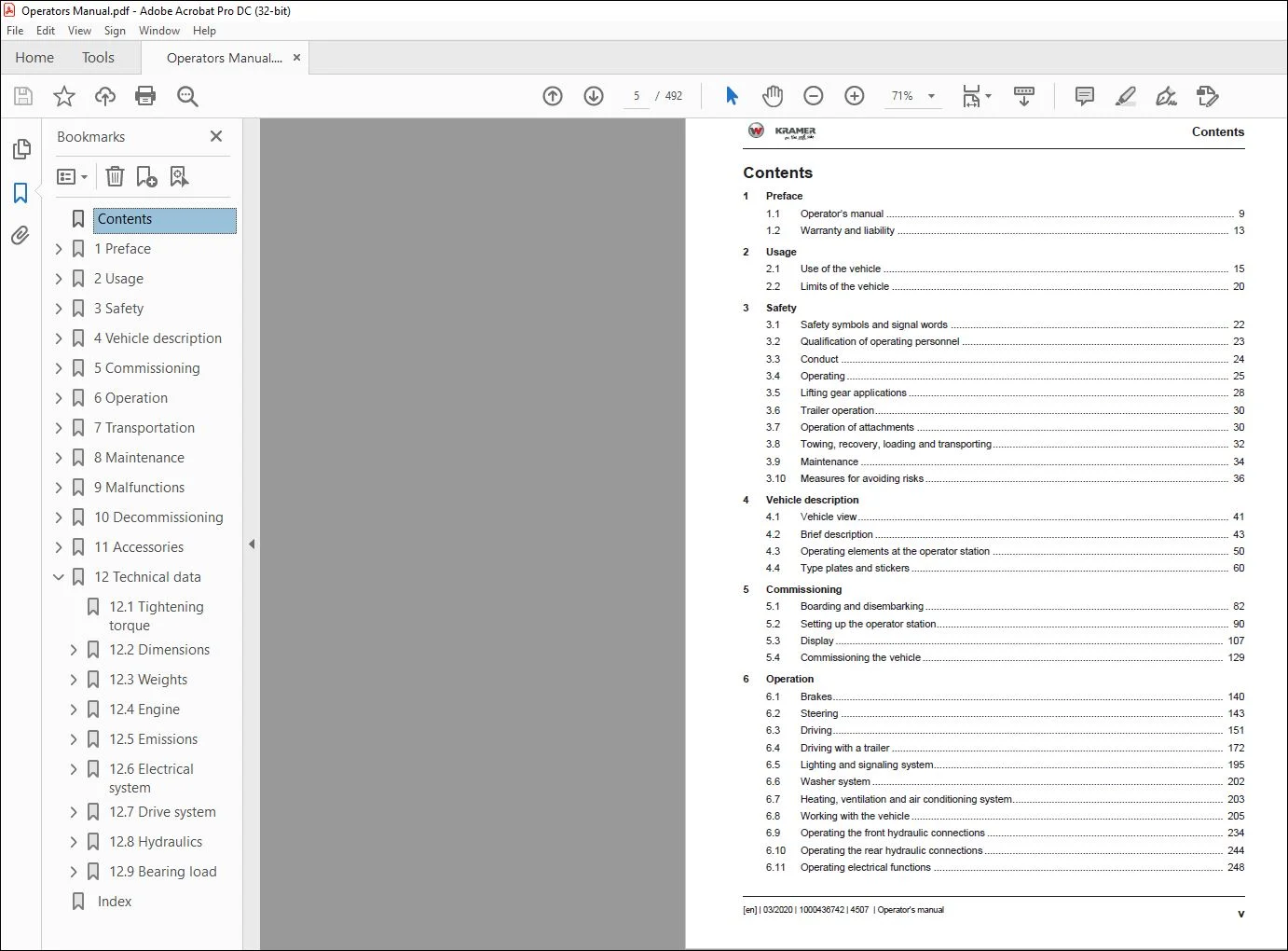

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Wacker Kramer 4507 5507 5007 Telehandler Operator’s manual- PDF DOWNLOAD

Preface
Operator’s manual
Information on this operator’s manual

• This operator’s manual is only valid for the vehicles listed on the title page.
• The operator’s manual provides information on the use, settings, operation and maintenance of the vehicle, including different attachments approved for the vehicle. The operator’s manual is therefore intended for the operator and the operating company.
• This operator’s manual also includes descriptions of additional equipment and options. These sections are not marked separately . The scope of description in the operator’s manual can therefore deviate from the actual equipment present onyour vehicle without a claim for retrofitting being able to be derived from this.
• The operator’s manual and any amendments form part of the vehicle and must always be available at the place of use of the vehicle .
• Store this operator’s manual in the place provided for this in or on the
vehicle.
• Immediately replace an incomplete or illegible operator’s manual with
a new one.
• In addition to the operator’s manual, observe statutory, generally applicable
and other binding regulations on accident prevention and environmental
protection.
• The manufacturer constantly keeps abreast of the latest technical developments and constantly improve its products. For this reason, we may from time to time need to make changes to figures and descriptions in this documentation that do not reflect products that have already been delivered and that will not be implemented on these vehicles.
• Technical specifications, dimensions and weights are not binding and correspond to the state at the time of printing. Responsibility for errorsor omissions not accepted.
• The specifications “left” and “right” in the descriptions always refer to
the vehicle in the travel direction.
• For further questions about the vehicle and the operator’s manual,
please contact your service partner at any time.
