Wacker Neuson 12002 Crawler Excavator Parts Manual 1000015275 PDF

Description

Wacker Neuson 12002 Crawler Excavator Parts Manual 1000015275 – PDF DOWNLOAD

FILE DETAILS:

Wacker Neuson 12002 Crawler Excavator Parts Manual 1000015275 – PDF DOWNLOAD

Language : English_German_French
Pages : 139
Downloadable : Yes
File Type : PDF

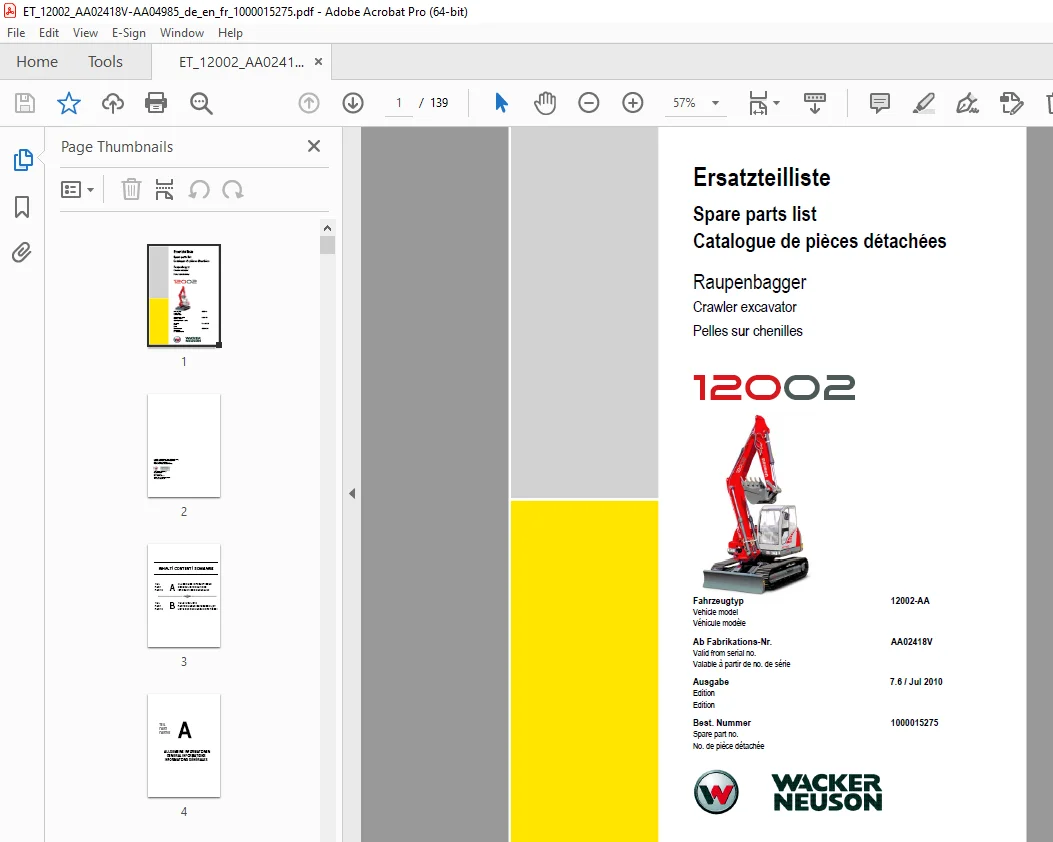

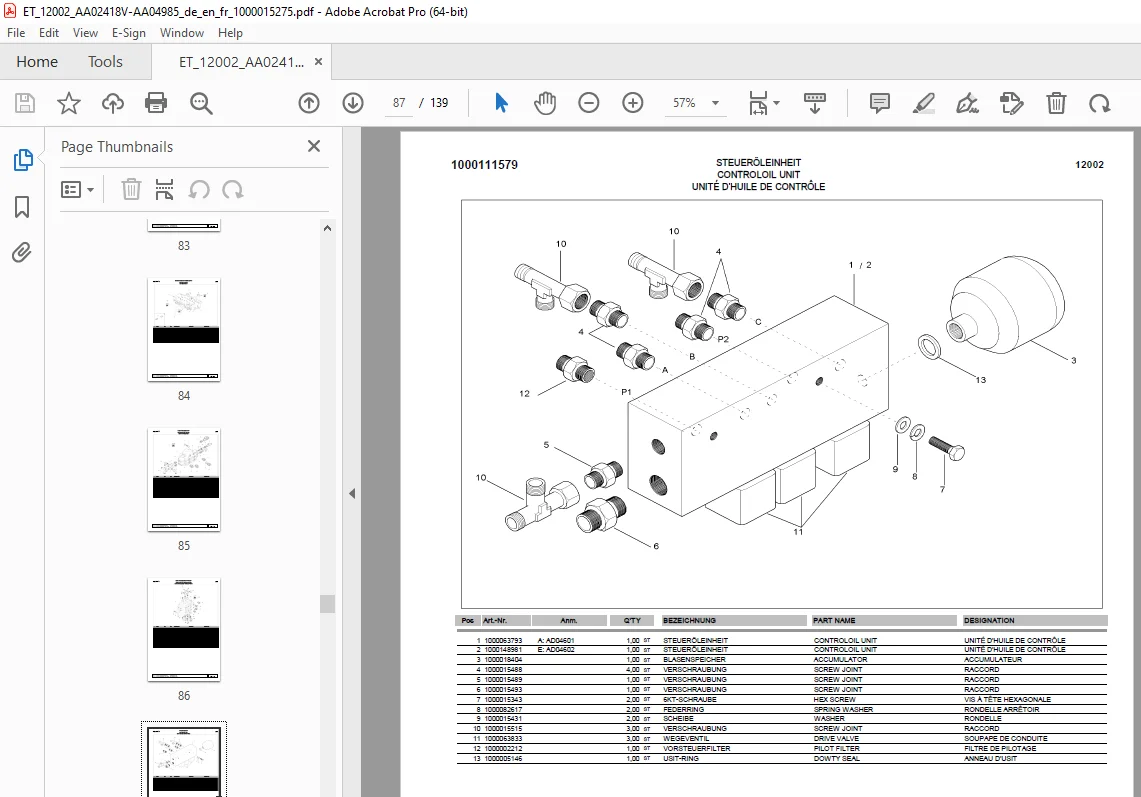

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Wacker Neuson 12002 Crawler Excavator Parts Manual 1000015275 – PDF DOWNLOAD

UNTERWAGEN
UNDERCARRIAGE
CHÂSSIS INFERIEUR
FAHRWERK STAHLKETTE
TRACKLAYING GEAR
CHENILLE TRAIN DE ROULEMENT
01/10
FÜHRUNGSROLLE STAHLKETTE
JOCKEY WHEEL STEEL CHAIN
ROULEAU DE TENSION CHAÎNE D’ACIER
01/20
STÜTZROLLE
SUPPORT ROLLER
ROULEAU D’APPUI
01/30
STÜTZROLLE
SUPPORT ROLLER
ROULEAU D’APPUI
01/40
STAHLKETTE
STEEL CHAIN
CHAÎNE EN ACIER
01/50
SPANNLAGER STAHLKETTE SP
TRACK TENSIONER STEEL CHAIN
TENSION CHENILLE CHAÎNE D’ACIER
01/60
FAHRWERK GUMMIKETTE
TRACKLAYING GEAR
CHENILLE TRAIN DE ROULEMENT
01/70
FÜHRUNGSROLLE (OPTION GUMMIKETTE) SP
JOCKEY WHEEL (RUBBER CHAIN)
ROULEAU CONDUCTEUR DE TENSION (OPTION)
01/80
SPANNLAGER (OPTION GUMMIKETTE) SP
TRACK TENSIONER (OPTION RUBBER-CHAIN)
TENSION DE CHENILLES ACIER (OPTION)
01/90
PLANIERSCHILD
DOZER BLADE
LAME DE TERRASSEMENT
01/100
OBERWAGEN
UPPERCARRIAGE
CHÂSSIS
CHASSIS
CHASSIS
CHÂSSIS
02/10
ABDECKUNG CHASSIS
CHASSIS COVER
COUVERCLE DU CHASSIS
02/20
SCHMIERUNG
LUBRICATION
LUBRIFICATION
02/30
RÜCKWAND
REAR PLATE
MUR ARRIÈRE
02/40
SEITENKLAPPE
SIDE FLAP
CLAPET LATÉRAL
02/50
STOSSSTANGE
BUMPER
PARE-CHOC
02/60
KONTERGEWICHT (OPTION) SP
COUNTERWEIGHT (OPTION)
CONTREPOIDS (OPTION)
02/70
MOTORHAUBE
ENGINE HOOD
CAPOT
02/80
VENTILABDECKUNG
VALVE COVER
COUVERCLE DE CLAPET
02/90
TANKABDECKUNG
TANK COVER
CAPOT DES RÉSERVOIRS
02/100
ARMSYSTEM
BOOM
FLÈCHE
HUBARM
LIFT ARM
FLÈCHE
03/10
LÖFFELSTIEL
DIPPERSTICK
MANCHE DE GODET
03/20
LÖFFELGELENK
CONNECTING LINK
BRAS DE GODET
03/30
KABINE
CABIN
CABINE
RAHMENANBAUTEILE 1 (SERIE AA) SP
CABIN FRAME 1
CADRE DE CABINE 1
04/10
RAHMENANBAUTEILE 1A SP
CABIN FRAME 1A
CADRE DE CABINE 1A
04/20
RAHMENANBAUTEILE 2 (SERIE AA) SP
CABIN FRAME 2
CADRE DE CABINE 2
04/30
RAHMENANBAUTEILE 2A SP
CABIN FRAME 2A
CADRE DE CABINE 2A
04/40
RAHMENANBAUTEILE 3 (SERIE AA) SP
CABIN FRAME 3
CADRE DE CABINE 3
04/50
VERKABELUNG
CABLING
POSE DE CÂBLES
04/60
FRONTSCHEIBE
FRONT WINDOW
PARE-BRISE
04/70
GLASSCHEIBE
GLASS WINDOW
FEUILLE DE VERRE
04/80
SCHIEBEFENSTER
SLIDE WINDOW
FENÊTRE COULISSANTE
04/90
TÜR
DOOR
PORTE
04/100
TAPEZIERUNG
CABIN MATS
PLAQUES DE LA CABINE
04/110
HEIZUNG
HEATING
CHAUFFAGE
04/120
FAHRERSITZ
DRIVERS SEAT
SIÈGE CONDUCTEUR
04/130
FAHRERSITZ LUFTGEFEDERT (OPTION) SP
AIR CUSHIONED SEAT (OPTION)
SIÈGE À SUSPENSION PNEUMATIQUE (OPTION)
04/140
DIESELMOTOR
ENGINE
MOTEUR
DIESELMOTOR
DIESEL ENGINE
MOTEUR DIESEL
05/10
DIESELMOTOR
DIESEL ENGINE
MOTEUR DIESEL
05/20
MOTORLAGERUNG
ENGINE BEDDING
SUSPENSION DU MOTEUR
05/30
ZYLINDERKOPF, VENTILDECKEL SP
CYLINDER HEAD, VALVE COVER
CULASSE DE CYLINDRE, COUVERCLE CLAPETS
05/40
ZYLINDERBLOCK
CYLINDER BLOCK
BLOC-CYLINDRES
05/50
KURBELWELLENDICHTUNG
SEAL CRANKSHAFT
GARNITURE DE VILEBREQUIN
05/60
ÖLWANNE
OIL SUMP
CARTER D’HUILE
05/70
NOCKENWELLE
CAMSHAFT
ARBE À CAMES
05/80
KURBELWELLE, KOLBEN
CRANKSHAFT, PISTON
PISTONS/VILEBREQUIN
05/90
SCHMIERSYSTEM
LUB OIL SYSTEM
SYSTEME DE GRAISSAGE
05/100
KÜHLSYSTEM
COOLING SYSTEM
SYSTEME DE REFROIDISSEMENT
05/110
EINSPRITZANLAGE
FUEL INJECTION EQUIPMENT
SYSTEME D’INJECTION
05/120
ANSAUGTRAKT SP
AIR SUCTION SYSTEM
ASPIRATION MOTEUR
05/130
AUSPUFF
EXHAUST
ÉCHAPPEMENT
05/140
STARTER, LICHTMASCHINE
STARTER + GENERATOR
STARTER + GENERATOR
05/150
KRAFTSTOFFTANK
FUEL TANK
RÉSERVOIR DE CARBURANT
05/160
DIESELBETANKUNGSPUMPE (OPTION) SP
DIESEL TANK FILLING PUMP (OPTION)
POMPE CARBURRANT (OPTION)
05/170
DIESELBETANKUNGSPUMPE (OPTION) SP
DIESEL TANK FILLING PUMP (OPTION)
POMPE CARBURRANT (OPTION)
05/180
GASBETÄTIGUNG – DREHZAHLR. (SERIE AA) SP
GAS LEVER – SPEED CONTROL
ACCELERATEUR-RÈGLAGE DE VITESSE
05/190
KOMBIKÜHLER
COMBICOOLER
RADIATEUR UNIVERSEL
05/200
PUMPENANTRIEB
HYDRAULIC PUMP DRIVE
EMBRAYAGE PAR POMPE HYRAULIQUE
05/210
HYDRAULIKKOMPONENTEN
HYDRAULIC COMPONENTS
SYSTEM HYDRAULIQUE
HYDRAULIKTANK
HYDRAULIC TANK
RÉSERVOIR HYDRAULIQUE
06/10
HYDRAULIKPUMPE 1 SP
HYDRAULIC PUMP 1
POMPE HYDRAULIQUE 1
06/20
HYDRAULIKPUMPE 2 SP
HYDRAULIC PUMP 2
POMPE HYDRAULIQUE 2
06/30
FAHRANTRIEB
DRIVE UNIT
MOTO RÉDUCTUEUR TRANSLATION
06/40
DREHDURCHFÜHRUNG
TURNING JOINT
EXÉCUTION ROTATIVE
06/50
DREHDURCHFÜHRUNG
TURNING JOINT
EXÉCUTION ROTATIVE
06/60
DREHANTRIEB
SWIVEL DRIVE
MOTEUR D´ORIENTATION
06/70
DREHANTRIEB
SWIVEL DRIVE
MOTEUR D´ORIENTATION
06/80
MOBILSTEUERBLOCK 1 SP
CONTROL VALVE 1
DISTRIBUTEUR 1
06/90
MOBILSTEUERBLOCK 2 (SERIE AA) SP
CONTROL VALVE 2
DISTRIBUTEUR 2
06/100
MOBILSTEUERBLOCK 3 (SERIE AB) SP
CONTROL VALVE 3
DISTRIBUTEUR 3
06/110
2FACH STEUERBLOCK SP
CONTROL BLOCK DOUBLE
BLOC DE COMMANDE
06/120
3FACH STEUERBLOCK (OPTION) SP
TRIPLE CONTROL BLOCK (OPTION)
BLOC DE COMMANDE TRIPLE (OPTION)
06/130
SEITE / PAGE / PAGE 1
INHALT / CONTENT / SOMMAIRE
BEZEICHNUNG
PART NAME
DESIGNATION
SEITE
PAGE
PAGE
STEUERÖLEINHEIT
CONTROLOIL UNIT
UNITÉ D’HUILE DE CONTRÔLE
06/140
SPERRVENTIL
BLOCK VALVE
SOUPAPE DE D’ARRÊT
06/150
UMSCHALTVENTIL
CHANGE OVER VALVE
SOUPAPE DE COMMUTATION
06/160
WECHSELVENTILBLOCK
VALVE BLOCK
BLOC DE CLAPETS
06/170
VERTEILERBLOCK KLEIN (OPTION) SP
MANIFOLD BLOCK SMALL (OPTION)
COLLECTEUR PETIT (OPTION)
06/180
VERTEILERBLOCK GROß SP
MANIFOLD BLOCK BIG
COLLECTEUR GRAND
06/190
HANDSTEUERVENTIL
JOYSTICK
LEVIER DE JEUX
06/200
FAHRVENTIL
VALVE
SOUPAPE
06/210
PLANIERSCHILDVENTIL
BLADE VALVE
SOUPAPE DE BOUCLIER
06/220
VENTIL ZUSATZHYDRAULIK
PILOT OPPERATED CHECK VALVES
HYDRAULIQUE AUXILIAIRE
06/230
4/3 WEGEVENTIL (OPTION) SP
4/3 VALVE (OPTION)
CLAPET (OPTION)
06/240
8/2 WEGEVENTIL (OPTION) SP
8/2 VALVE (OPTION)
8/2 CLAPET (OPTION)
06/250
HYDRAULIKZYLINDER
HYDRAULIC CYLINDER
VERINS HYDRAULIQUE
HUBARMZYLINDER
BOOM CYLINDER
VÉRIN FLÈCHE
07/10
LÖFFELSTIELZYLINDER
DIPPER ARM CYLINDER
VÉRIN BALANCIER
07/20
LÖFFELZYLINDER
BUCKET CYLINDER
VÉRIN DE GODET
07/30
PLANIERSCHILDZYLINDER
BLADE CYLINDER
CYLINDRE AU BOUCLIER
07/40
SCHWENKZYLINDER
BOOM OFFSET CYLINDER
CYLINDRE PIVOTANT
07/50
HYDRAULIK INSTALLATION
HYDRAULIC INSTALLATION
INSTALLATION HYDRAULIQUE
ÖLKÜHLER INSTALLATION
OIL COOLER INSTALLATION
INSTALLATION RÉFRIGÉRANT À L’HUILE
08/10
ÖLKÜHLER INSTALLATION
OIL COOLER INSTALLATION
INSTALLATION RÉFRIGÉRANT À L’HUILE
08/20
HYDRAULIKPUMPE INSTALLATION
HYDRAULIC PUMP INSTALLATION
INST. POMPE HYDRAULIQUE
08/30
FAHRANTRIEB INSTALLATION
TRAVELLING GEAR INSTALLATION
MOTEUR DE TRANSLATION INST.
08/40
DREHANTRIEB INSTALLATION
TURNTABLE DRIVE UNIT INSTALLATION
INST. MOTEUR D’ORIENTATION
08/50
DREHANTRIEB INSTALLATION
TURNTABLE DRIVE UNIT INSTALLATION
INST. MOTEUR D’ORIENTATION
08/60
LECKÖLLEITUNGEN MOBILSTEUERBLOCK SP
LEAKAGE PIPE-CONTROL VALVE
CONDUIT POUR L´HUILE DE FUITE
08/70
SCHWENKZYLINDER INSTALLATION
BOOM OFFSET CYLINDER INSTALLATION
INST. VÉRIN DEPORT DE FLÈCHE
08/80
PLANIERSCHILDZYLINDER INSTALLATION
DOZER BLADE CYLINDER INSTALLATION
INST. VERIN LAME NIVELEUSE
08/90
ZUSATZHYDRAULIK-INSTALLATION
AUXILIARY FUNCTION INSTALLATION
INSTALLATION FONCTION AUXILIAIRES
08/100
ZH ELEKTR. BETÄTIGT (OPTION) SP
INST. ELECTRICAL AUXILIARY FUNCTION
INST. FUNCTION AUXILIAIRES ÉLECTRICAL
08/110
HANDSTEUERVENTILE INSTALLATION
HAND LEVERS INSTALLATION
INSTALLATION MANIPULATEURS
08/120
HANDSTEUERVENTILE INST. (OPTION) SP
INSTALLATION HAND LEVERS (OPTION)
INSTALLATION MANIPULATEURS (OPTION)
08/130
VORSTEUERVENTILE INSTALLATION
INSTALLATION PILOT OPPERATED CHECK VALVE
INSTALLATION CLAPETS A BASSE PRESSION
08/140
HUBARM INSTALLATION
LIFTING BOOM INSTALLATION
INSTALLATION FLÈCHE
08/150
HUBARMZYLINDER INSTALLATION
LIFTING BOOM CYLINDER INSTALLATION
INSTALLATION VERIN DE FLÈCHE
08/160
LÖFFELSTIEL INSTALLATION
DIPPER ARM INSTALLATION
INST. BRAS DE LA PELLE
08/170
ÜBERLASTWARNEINRICHTUNG D.
STALLING LOAD WARNING G
EFFORT DE CALAGE D’AVERTISSEMENT A
08/180
ÜBERLASTWARNEINRICHTUNG FRANKREICH
OVERLOAD WARNING F
EFFORT DE CALAGE D`AVERISSEMENT F
08/190
GREIFERANBAU (OPTION) SP
GRAB EQUIPMENT (OPTION)
EQUIPEMENT DE BENNE PRENEUSE (OPTION)
08/200
VORSTEUERUNG (OPTION 3.STEUERKREIS) SP
PILOT CONTROL ELECTRICAL CONTROL CIRCUIT
COMMANDE CERCLE DE COMMANDE
ÉLECTRIQUE
08/210
3.STEUERKREIS-INST. (OPTION) SP
3. HYDRAULIC CIRCUIT (OPTION)
3. CIRCUIT DE COMMANDE (OPTION)
08/220
ELEKTRO INSTALLATION
ELECTRICAL INSTALLATION
INSTALLATION ELECTRIQUE
BATTERIE
BATTERY
BATTERIE
09/10
KABELBAUM MOTOR
WIRING HARNESS ENGINE
FAISCEAU DU MOTEUR
09/20
KABELBAUM CHASSIS
HARNESS WIRING CHASSIS
FAISCEAU ÉLECTRIQUE DU CHÂSSIS
09/30
ARMATURENBRETT
INSTRUMENT PANEL
TABLEAU DE BORD
09/40
ARMATURENBRETT
INSTRUMENT PANEL
TABLEAU DE BORD
09/50
RELAISPLATTE
RELAY PLATE
PLAQUE DE RELAIS
09/60
CHASSISSCHEINWERFER
CHASSIS HEADLIGHT
PHARE DU CHÂSSIS
09/70
ARMSCHEINWERFER
HEADLIGHTS
PHARE
09/80
ZUBEHÖR
ATTACHEMENT
OUTILLAGE
WERKZEUG
TOOLS
OUTIL
10/10
AUFKLEBER
STICKER
AUTOCOLLANT
10/20
ÜBERSICHT NACHRÜSTSÄTZE
OVERVIEW ACCESSORY KITS
RÉCAPITULATIF DES KITS OPTION À MONTER
10/30
SEITE /

DESCRIPTION:

Wacker Neuson 12002 Crawler Excavator Parts Manual 1000015275 – PDF DOWNLOAD

INFORMATION
1. TEXTURE OF SPARE PARTS MANUAL
1.1. EXAMPLE
Pos Art.-Nr. Anm. Q’TY BEZEICHNUNG PART NAME DESIGNATION
1 1408410 A: AA00733V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
1 1408309 E: AA00734V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
2 9901175 2,00 ST SCHRAUBE SCREW VIS
3 9910021 1,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
4 9910024 4,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
5 9910022 2,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
􀁣 􀁤 􀁥 􀁦 􀁧
1.3. EXPLANATION
􀁣Illustration reference number
􀁤Part number
􀁥Remarks (see symbols and notes)
􀁦quantity required (see note below)
􀁧Part name
1.3. NOTES
The quantity shown in column 􀁦 is the quantity required for the particular application that is illustrated. If the parts are components of an
assembly, this refers to the quantity in one assembly or sub assembly.
1.4. REMARKS
The in column 􀁥 listed information shows, from which serial number the new part is valid.
A􀃙N: Old and new part are exchangeable
A=>N: Old part is exchangeable through the new one, but not in the opposite
A#N: Old and new part not exchangeable
XX: The part is only sold as assembly
KDN 17/00: KDN Service news No../ Year
A: Valid to serial number
E: Valid from serial number
: Part includes a surcharge, redeemable upon return of old unit
2. ORDERING INSTRUCTIONS
Please pass the order with the following information to your dealer:
Your dealer:
Dealer stamp
– type of vehicle
– serial number
– type and serial number of the motor (for motor
spare parts)
– page
– reference number
– item number
3. GENERAL INFORMATION
The descriptive pictures shown in the spare manual can differ from the actual versions.
Not all the shown options are available in every country
Parts without item numbers are not available as spare parts.

S.V 05/01/2025
