Wacker Neuson 1902 Crawler Excavator Parts Manual 1000182866 PDF

Description

Wacker Neuson 1902 Crawler Excavator Parts Manual 1000182866 – PDF DOWNLOAD

FILE DETAILS:

Wacker Neuson 1902 Crawler Excavator Parts Manual 1000182866 – PDF DOWNLOAD

Language : English_German_French
Pages : 116
Downloadable : Yes
File Type : PDF

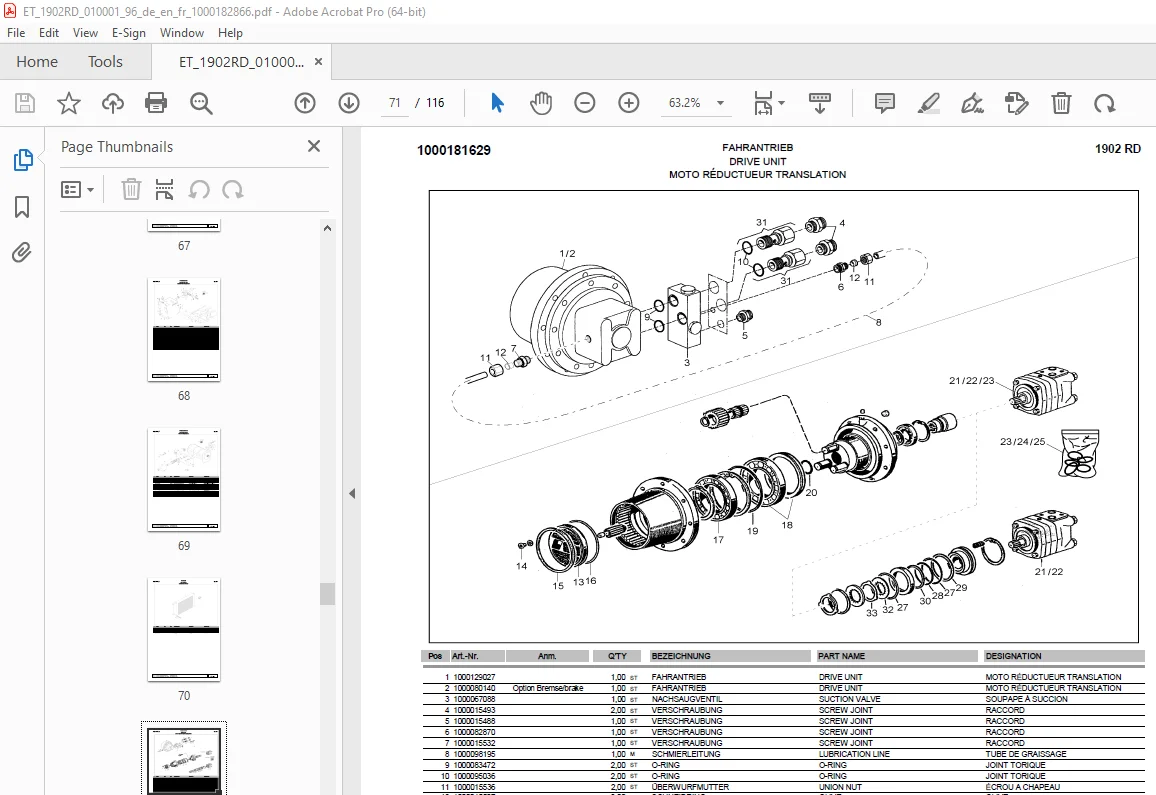

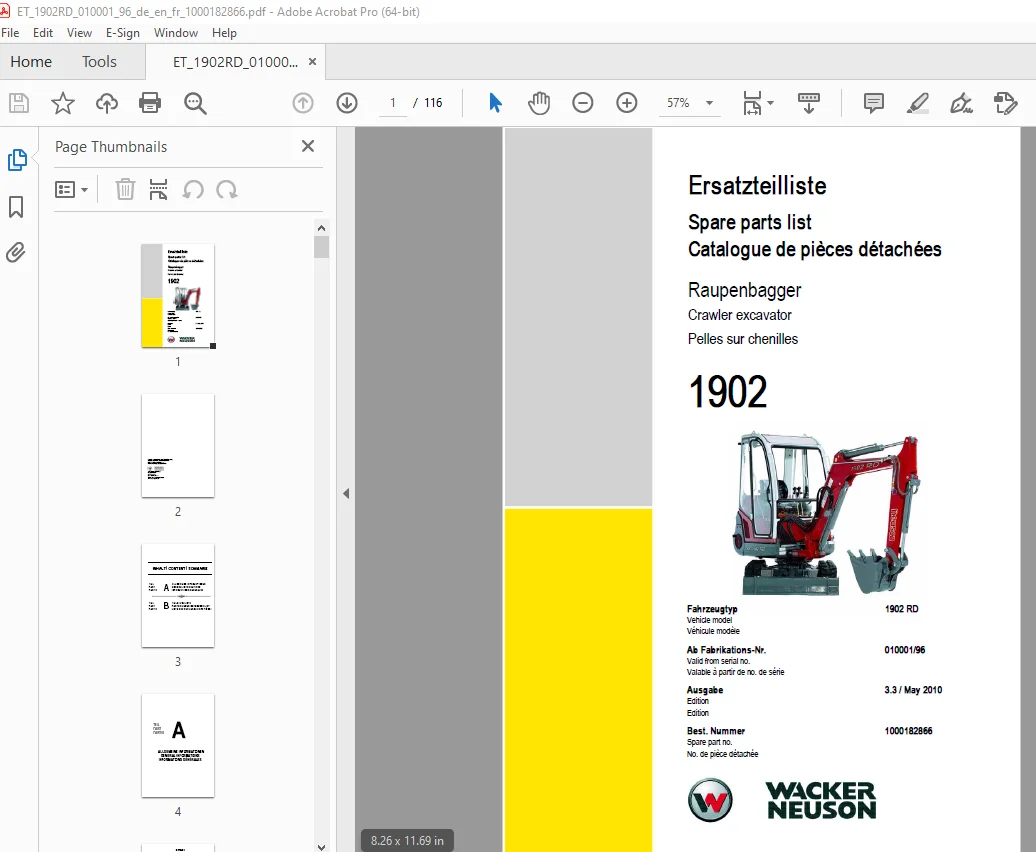

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Wacker Neuson 1902 Crawler Excavator Parts Manual 1000182866 – PDF DOWNLOAD

UNTERWAGEN
UNDERCARRIAGE
CHÂSSIS INFERIEUR
RAUPENFAHRWERK
TRACKLAYING GEAR
CHENILLE DE ROULEMENT
01/10
SPANNLAGER
TRACK TENSIONER COMPLETE
PALIER DE SERRAGE
01/20
FÜHRUNGSROLLE
GUIDE ROLLER
ROULEAU DE GUIDAGE
01/30
PLANIERSCHILD
DOZER BLADE
LAME DE TERRASSEMENT
01/40
PLANIERSCHILDVERBREITERUNG
DOZER BLADE BROADENING
ÉLARGISSEMENT LAME NIVELEUSE DU BOUTEUR
01/50
OBERWAGEN
UPPERCARRIAGE
CHÂSSIS
CHASSIS
CHASSIS
CHÂSSIS
02/10
ABDECKUNG CHASSIS
CHASSIS COVER
COUVERCLE DU CHASSIS
02/20
SCHMIERUNG
LUBRICATION
LUBRIFICATION
02/30
HALTER VENTIL
BRACKET VALVE
SUPPORT DE LA SOUPAPE
02/40
KIPPRAHMEN
TILT FRAME
CHASSIS BASCULANT
02/50
DÄMMATTE
INSULATING MAT
TAPIS ISOLANT
02/60
MOTORHAUBE
ENGINE HOOD
CAPOT
02/70
WERKZEUGKASTEN
TOOL BOX
BOÎTE À OUTILS
02/80
ARMSYSTEM
BOOM
FLÈCHE
HUBARM
LIFT ARM
FLÈCHE
03/10
LÖFFELSTIEL
DIPPERSTICK
MANCHE DE GODET
03/20
LÖFFELGELENK
CONNECTING LINK
BRAS DE GODET
03/30
KABINE
CABIN
CABINE
KABINE-MONTAGE
CABIN MOUNTING
MONTAGE DE CABINE
04/10
RAHMENANBAUTEILE 1 SP
CABIN FRAME 1
CADRE DE CABINE 1
04/20
RAHMENANBAUTEILE 1A SP
CABIN FRAME 1A
CADRE DE CABINE 1A
04/30
RADIO-EINBAUSATZ
RADIO MOUNTING KIT
BLOC DE MONTAGE DE LA RADIO
04/40
VERKABELUNG
CABLING
POSE DE CÂBLES
04/50
VERKABELUNG
CABLING
POSE DE CÂBLES
04/60
FRONTSCHEIBE
FRONT WINDOW
PARE-BRISE
04/70
FRONTSCHEIBE
FRONT WINDOW
PARE-BRISE
04/80
FRONTSCHEIBE UNTEN SP
LOWER WINDSCREEN
PARE BRISE INFERIEUR
04/90
FRONTSCHEIBE
FRONT WINDOW
PARE-BRISE
04/100
SEITENSCHEIBE
SIDE WINDOW
FENÊTRE LATÉRALE
04/110
HECKSCHEIBE
REAR WINDOW
LUNETTE
04/120
TÜR
DOOR
PORTE
04/130
SCHEIBENWASCHANLAGE SP
WIPER WASH ASSY
LAVE-GLACE
04/140
FAHRERSITZ
DRIVERS SEAT
SIÈGE CONDUCTEUR
04/150
HEIZUNG
HEATING
CHAUFFAGE
04/160
DIESELMOTOR
ENGINE
MOTEUR
DIESELMOTOR ANBAUTEILE SP
MOUNTINGSET DIESEL ENGINE
ÉQUIPEMEMT MOTEUR DIESEL
05/10
MOTORLAGERUNG
ENGINE BEDDING
SUSPENSION DU MOTEUR
05/20
WASSERKÜHLER
WATER COOLER
RÈFRIGÉRANT D’EAU
05/30
ZYLINDERKOPF, VENTILDECKEL SP
CYLINDER HEAD, VALVE COVER
CULASSE DE CYLINDRE, COUVERCLE CLAPETS
05/40
ZYLINDERBLOCK
CYLINDER BLOCK
BLOC-CYLINDRES
05/50
KURBELWELLENDICHTUNG
SEAL CRANKSHAFT
GARNITURE DE VILEBREQUIN
05/60
ÖLWANNE
OIL SUMP
CARTER D’HUILE
05/70
NOCKENWELLE
CAMSHAFT
ARBE À CAMES
05/80
KURBELWELLE, KOLBEN
CRANKSHAFT, PISTON
PISTONS/VILEBREQUIN
05/90
SCHMIERSYSTEM
LUB OIL SYSTEM
SYSTEME DE GRAISSAGE
05/100
KÜHLSYSTEM
COOLING SYSTEM
SYSTEME DE REFROIDISSEMENT
05/110
EINSPRITZANLAGE
FUEL INJECTION EQUIPMENT
SYSTEME D’INJECTION
05/120
EINSPRITZPUMPE
INJECTION PUMP
POMPE D’INJECTION
05/130
ANSAUGKRÜMMER
SUCTION MANIFOLD
COLLECTEUR D’ADMISSION
05/140
ANSAUGTRAKT SP
AIR SUCTION SYSTEM
ASPIRATION MOTEUR
05/150
AUSPUFFKRÜMMER
EXHAUST MANIFOLD
COUDE D’ÉCHAPPEMENT
05/160
AUSPUFF
EXHAUST
ÉCHAPPEMENT
05/170
KRAFTSTOFFTANK
FUEL TANK
RÉSERVOIR DE CARBURANT
05/180
KRAFTSTOFFVERSORGUNG
FUEL SYSTEM
RAVITAILLEMENT EN CARBURANT
05/190
GASBETÄTIGUNG
SPEED ACTUATING
COMMANDE D’ACCÉLÉRATEUR
05/200
DICHTUNGEN SP
SEAL KIT
POCHETTE DE JOINTS
05/210
PUMPENANTRIEB
HYDRAULIC PUMP DRIVE
EMBRAYAGE PAR POMPE HYRAULIQUE
05/220
HYDRAULIKKOMPONENTEN
HYDRAULIC COMPONENTS
SYSTEM HYDRAULIQUE
HYDRAULIKTANK
HYDRAULIC TANK
RÉSERVOIR HYDRAULIQUE
06/10
HYDRAULIKPUMPE
HYDRAULIC PUMP
POMPE HYDRAULIQUE
06/20
ÖLKÜHLER
OIL COOLER
RADIATEUR D’HUILE
06/30
FAHRANTRIEB
DRIVE UNIT
MOTO RÉDUCTUEUR TRANSLATION
06/40
VENTILANLENKUNG
VALVE ANGLE
ANGLE CLAPET
06/50
STEUERBLOCK
CONTROL BLOCK
BLOC DE COMMANDE
06/60
STEUERÖLEINHEIT
CONTROLOIL UNIT
UNITÉ D’HUILE DE CONTRÔLE
06/70
DREHDURCHFÜHRUNG
TURNING JOINT
EXÉCUTION ROTATIVE
06/80
DREHANTRIEB
SWIVEL DRIVE
MOTEUR D´ORIENTATION
06/90
NACHSAUGBLOCK
SUCTION BLOCK
BLOC À SUCCION
06/100
UMSCHALTVENTIL
CHANGE OVER VALVE
SOUPAPE DE COMMUTATION
06/110
HANDSTEUERVENTIL
JOYSTICK
LEVIER DE JEUX
06/120
PLANIERSCHILDVENTIL
BLADE VALVE
SOUPAPE DE BOUCLIER
06/130
KUGELHAHN
BALL COCK
ROBINET À BOULET
06/140
HYDRAULIKZYLINDER
HYDRAULIC CYLINDER
VERINS HYDRAULIQUE
PLANIERSCHILDZYLINDER
BLADE CYLINDER
CYLINDRE AU BOUCLIER
07/10
SCHWENKZYLINDER
BOOM OFFSET CYLINDER
CYLINDRE PIVOTANT
07/20
SEITE / PAGE / PAGE 1
INHALT / CONTENT / SOMMAIRE
BEZEICHNUNG
PART NAME
DESIGNATION
SEITE
PAGE
PAGE
HUBARMZYLINDER
BOOM CYLINDER
VÉRIN FLÈCHE
07/30
LÖFFELSTIELZYLINDER
DIPPER ARM CYLINDER
VÉRIN BALANCIER
07/40
LÖFFELZYLINDER
BUCKET CYLINDER
VÉRIN DE GODET
07/50
TELESKOPIERZYLINDER SP
TELESCOPIC CYLINDER
VERIN TELESCOPIQUE
07/60
HYDRAULIK INSTALLATION
HYDRAULIC INSTALLATION
INSTALLATION HYDRAULIQUE
HYDRAULIKPUMPE INSTALLATION
HYDRAULIC PUMP INSTALLATION
INST. POMPE HYDRAULIQUE
08/10
ÖLKÜHLER INSTALLATION
OIL COOLER INSTALLATION
INSTALLATION RÉFRIGÉRANT À L’HUILE
08/20
FAHRMOTOR INSTALLATION
TRAVELLING GEAR INSTALLATION
INST. APPAREILLAGE DE ROULEMENT
08/30
DREHEN UND SCHWENKEN INSTALLATION SP
ROTATE AND TURN INSTALLATION
INSTALLATION TOURNER
08/40
SCHILDZYLINDER INSTALLATION
DOZER BLADE CYLINDER INSTALLATION
INST. VERIN LAME NIVELEUSE
08/50
TELESKOPIERZYLINDER SP
TELESCOPIC CYLINDER
VERIN TELESCOPIQUE
08/60
ARMZYLINDER INSTALLATION
BOOM CYLINDER INSTALLATON
INSTALLATION VERINS DE FLECHE
08/70
ZUSATZHYDRAULIK-INSTALLATION
AUXILIARY FUNCTION INSTALLATION
INSTALLATION FONCTION AUXILIAIRES
08/80
HANDSTEUERVENTIL
JOYSTICK
LEVIER DE JEUX
08/90
ELEKTRO INSTALLATION
ELECTRICAL INSTALLATION
INSTALLATION ELECTRIQUE
ELEKTRO INSTALLATION 1 SP
ELECTRICAL INSTALLATION 1
INSTALLATION ELECTRIQUE 1
09/10
ELEKTRO INSTALLATION 2 SP
ELECTRICAL INSTALLATION 2
INSTALLATION ELECTRIQUE 2
09/20
BATTERIE
BATTERY
BATTERIE
09/30
ARMATURENBRETT
INSTRUMENT PANEL
TABLEAU DE BORD
09/40
RELAISKASTEN
RELAY CASE
BOÎTE DE RELAIS
09/50
ARBEITSSCHEINWERFER
WORKING LIGHT
PHARE DE TRAVAIL
09/60
HUPE
HORN
AVERTISSEUR
09/70
ZUBEHÖR
ATTACHEMENT
OUTILLAGE
AUFKLEBER
STICKER
AUTOCOLLANT
10/10
WERKZEUG
TOOLS
OUTIL
10/20
SWS-GABEL
QUICK-HITCH COUPLER
ATTACHE RAPIDE
10/30
TIEFLÖFFEL
BUCKET
GODET
10/40
TIEFLÖFFEL SWS
BUCKET QHS
GODET ATTACHE RAPIDE
10/50
GRABENRÄUMLÖFFEL
DITCHING BUCKET
GODET DE CURAGE
10/60
GRABRÄUMLÖFFEL SWS
DITCHING BUCKET QHS
GODET DE CURAGE ATT.RAP.
10/70
SCHWENKLÖFFEL
TILTING BUCKET
GODET DE CURAGE ORIENT.
10/80
SCHWENKLÖFFEL SWS
TILTING BUCKET QHS
GODET DE CURAGE ORIENT.
10/90
SCHWENKLÖFFELZYLINDER
SWIVEL BUCKET CYLINDER
CYLINDRE À GODET PIVOTANT
10/100
SWS KONSOLEN
QHS CONSOLE
CONSOLE ATTACHE RAPIDE
10/110
SEITE / PAGE / PAGE 2
RAUPENFAHRWERK
TRACKLAYING GEAR
CHENILLE DE ROULEMENT
1000182689

DESCRIPTION:

Wacker Neuson 1902 Crawler Excavator Parts Manual 1000182866 – PDF DOWNLOAD

1. TEXTURE OF SPARE PARTS MANUAL
1.1. EXAMPLE
Pos Art.-Nr. Anm. Q’TY BEZEICHNUNG PART NAME DESIGNATION
1 1408410 A: AA00733V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
1 1408309 E: AA00734V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
2 9901175 2,00 ST SCHRAUBE SCREW VIS
3 9910021 1,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
4 9910024 4,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
5 9910022 2,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
􀁣 􀁤 􀁥 􀁦 􀁧
1.3. EXPLANATION
􀁣Illustration reference number
􀁤Part number
􀁥Remarks (see symbols and notes)
􀁦quantity required (see note below)
􀁧Part name
1.3. NOTES
The quantity shown in column 􀁦 is the quantity required for the particular application that is illustrated. If the parts are components of an
assembly, this refers to the quantity in one assembly or sub assembly.
1.4. REMARKS
The in column 􀁥 listed information shows, from which serial number the new part is valid.
A􀃙N: Old and new part are exchangeable
A=>N: Old part is exchangeable through the new one, but not in the opposite
A#N: Old and new part not exchangeable
XX: The part is only sold as assembly
KDN 17/00: KDN Service news No../ Year
A: Valid to serial number
E: Valid from serial number
: Part includes a surcharge, redeemable upon return of old unit
2. ORDERING INSTRUCTIONS
Please pass the order with the following information to your dealer:
Your dealer:
Dealer stamp
– type of vehicle
– serial number
– type and serial number of the motor (for motor
spare parts)
– page
– reference number
– item number
3. GENERAL INFORMATION
The descriptive pictures shown in the spare manual can differ from the actual versions.
Not all the shown options are available in every country
Parts without item numbers are not available as spare parts.

S.V 04/01/2025
