Wacker Neuson 1D41. 1D42. 1D50. 1D81. 1D90. Hatz Diesel Instruction Book Manual – PDF DOWNLOAD

Description

Wacker Neuson 1D41. 1D42. 1D50. 1D81. 1D90. Hatz Diesel Instruction Book Manual – PDF DOWNLOAD

DESCRIPTION:

Wacker Neuson 1D41. 1D42. 1D50. 1D81. 1D90. Hatz Diesel Instruction Book Manual – PDF DOWNLOAD

A new HATZ diesel engine is ready to work for you:

This engine is intended only for the purpose determined and tested by the manufacturer of the
equipment in which it is installed. Using it in any other manner contravenes the intended purpose.
For danger and damage due to this, Motorenfabrik HATZ assumes no liability. The risk is with the
user only. Use of this engine in the intended manner presupposes compliance with the maintenance
and repair instructions laid down for it. Noncompliance leads to engine breakdown.
Please study this Instruction Book before you start the engine for the first time: it will help you to
avoid accidents, to operate the engine correctly, to perform maintenance work and to keep the engine
operating at full efficiency for a very long time.
Please pass this Instruction Manual on to the next user or to the following engine owner.

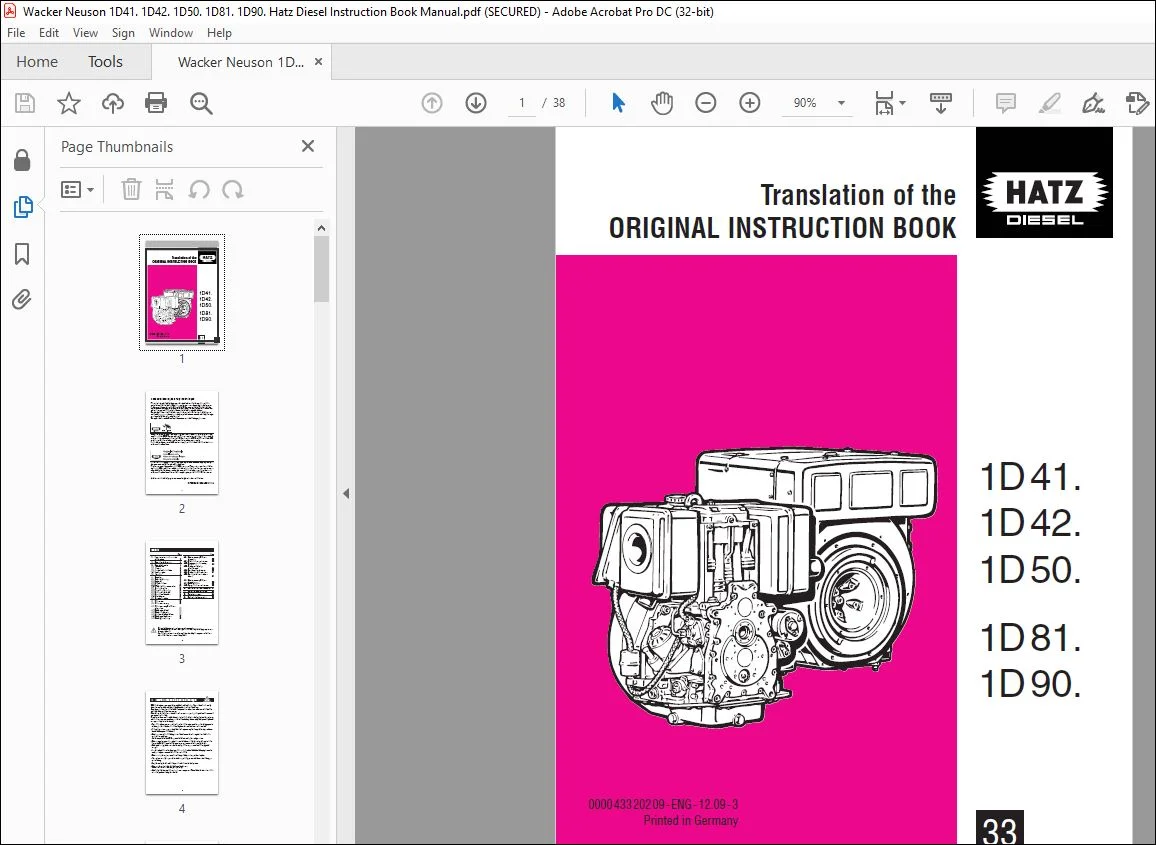

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Wacker Neuson 1D41. 1D42. 1D50. 1D81. 1D90. Hatz Diesel Instruction Book Manual – PDF DOWNLOAD

1. Important notes on safe operation
of the engine 3
2. Description of the engine 5
3. General information 7
3.1. Technical data 7
3.2. Transport 8
3.3 Instructions for installation 8
3.4. Load on engine 8
3.5. Type plate 8
4. Operation 9
4.1. Before initial start-up 9
4.1.1. Engine oil 9
4.1.2. Oil bath air cleaner 9
4.1.3. Fuel 10
4.1.4. Mechanical oil pressure monitor 11
4.2. Starting the engine 12
4.2.1. Preparations for starting 13
4.2.2. Starting with the handle 14
4.2.3. Starting in cold weather 15
4.2.4. Electric starter 16
4.3. Stopping the engine 17
5. Maintenance 19
5.1. Maintenace summary 19
5.2. Maintenance every 8 – 15 hours
of operation 21
5.2.1. Check engine oil level 21
5.2.2. Check air intake point 21
5.2.3. Air cleaner blockage indicator 21
5.2.4. Checking cooling air zone 22
5.2.5. Checking the water trap 22
Page
5.3. Maintenance every 250 hours
of operation 23
5.3.1. Oilbath air cleaner maintenance 23
5.3.2. Changing engine oil, renewing
oil filter 24
5.3.3. Checking and adjusting
valve clearances 25
5.3.4. Clean the cooling air system 26
5.3.5. Checking threaded connections 27
5.3.6. Cleaning mesh insert in exhaust
silencer 27
5.4. Maintenance every 500 hours
of operation 28
5.4.1. Renewing fuel filter 28
5.4.2. Dry-type air cleaner maintenance 29
6. Malfunctions – Causes – Remedies 31
7. Work on the electrical system 35
8. Protective treatment 35
9. Declaration for Incorporation 36
