Wacker Neuson 8003 Excavator Service Manual PDF

Description

Wacker Neuson 8003 Excavator Service Manual PDF (Factory Workshop Repair Guide) DOWNLOAD

Description

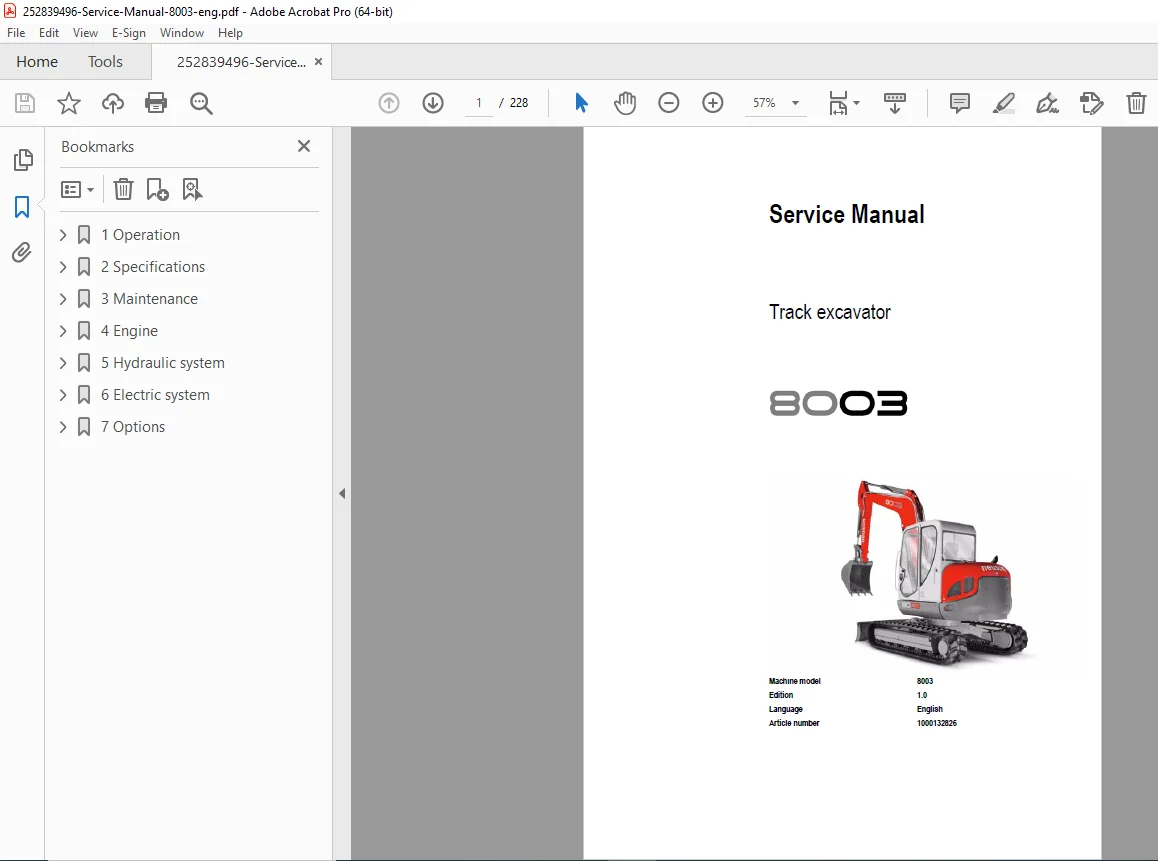

This is the official Wacker Neuson 8003 Excavator Service Manual (Edition 1.0), the complete OEM workshop reference used by dealer technicians for diagnosing, repairing, and maintaining the Wacker Neuson 8003 and 8003 Vario compact excavators.

The manual covers every system in the machine, including the Yanmar 4TNV98-VNS diesel engine, full hydraulic circuits, electrical distribution, lubrication points, operational checks, troubleshooting flows, lift charts, and wiring/hydraulic schematics.

This is the only guide you need for reliable, accurate, professional maintenance of the Wacker Neuson 8003.

Table of Contents

Below is the complete structured breakdown of the service manual:

1️⃣ Operation Section

• Important Safety Information

• Warning Labels, Safety Decals & Symbol Chart

• Designated Use of Machine

• Serial Number Locations (Chassis, Engine, Superstructure)

• Machine Overview: Boom, Arm, Cab, Chassis, Hydraulic Lines

• Cab Overview (Switches, Controls, Displays)

• Instrument Panel: Indicators, Lamps, Gauges

• Engine Compartment Layout

• Tilting the Cab (Step-by-step with diagrams)

• Seasonal Operation: Summer/Winter Modes

• Auxiliary Hydraulics Pedal Rotation

2️⃣ Specifications

Machine Specifications

• Weight, dimensions, boom geometry

• Undercarriage layout & track specs

• Swivel unit details

• Counterweight options

Engine Specifications — Yanmar 4TNV98-VNS

• Rated output: ~42.5 kW

• Bore & stroke

• Compression ratio

• Combustion system

• Injection pressure

• Valve clearance and timing

Hydraulic System

• Main pump: AP2D36LV3RS6-874-P

• Flow rates

• Pilot pressure

• Relief valve settings

• Cylinder dimensions (boom, arm, bucket)

Electrical System

• Alternator output

• Starter motor specs

• Fuse & relay layout

Noise Levels, Fluids & Torque Specs

• Hydraulic oil viscosity table

• Coolant compound specification chart

• Comprehensive tightening torque tables (Imperial + Metric)

Kinematics / Lift Charts

• Standard arm lift chart

• Extended arm lift chart

• Counterweight configurations

• Vario (adjustable width) lift capacities

3️⃣ Maintenance

Maintenance Schedule

Intervals include:

• Daily

• 50 hours

• 250 hours

• 500 hours

• 1000 hours

• 1500 hours

Maintenance Procedures

• Engine oil change

• Fuel filter replacement

• Hydraulic oil checks

• Air filter service

• Cooling system flush

• Greasing & lubrication points

• Electrical checks

• Track tension adjustment

4️⃣ Engine — Yanmar 4TNV98

• Valve clearance adjustment

• Injector inspection

• Compression testing

• Thermostat operation check

• Cooling circuit inspection

• Engine troubleshooting flowchart

5️⃣ Hydraulic System

• Hydraulic pump (AP2D36LV3RS6-874-P) servicing

• Valve block structure and port diagrams

• Counterbalance valves

• Summation hydraulic control

• Pilot valves

• Swivel joint service

• Pressure measurement points

• Hydraulic troubleshooting tables

• Full hydraulic schematics (A3/A4)

6️⃣ Electrical System

• Electrical basics (Ohm’s Law, safety, testing)

• Cable color coding

• Fuse/relay box layout

• Alternator, starter motor checks

• Instrument panel connectors

• Wiring harness diagrams

• Boom light wiring

• Battery testing

• Switch matrix for joysticks & cab controls

7️⃣ Options

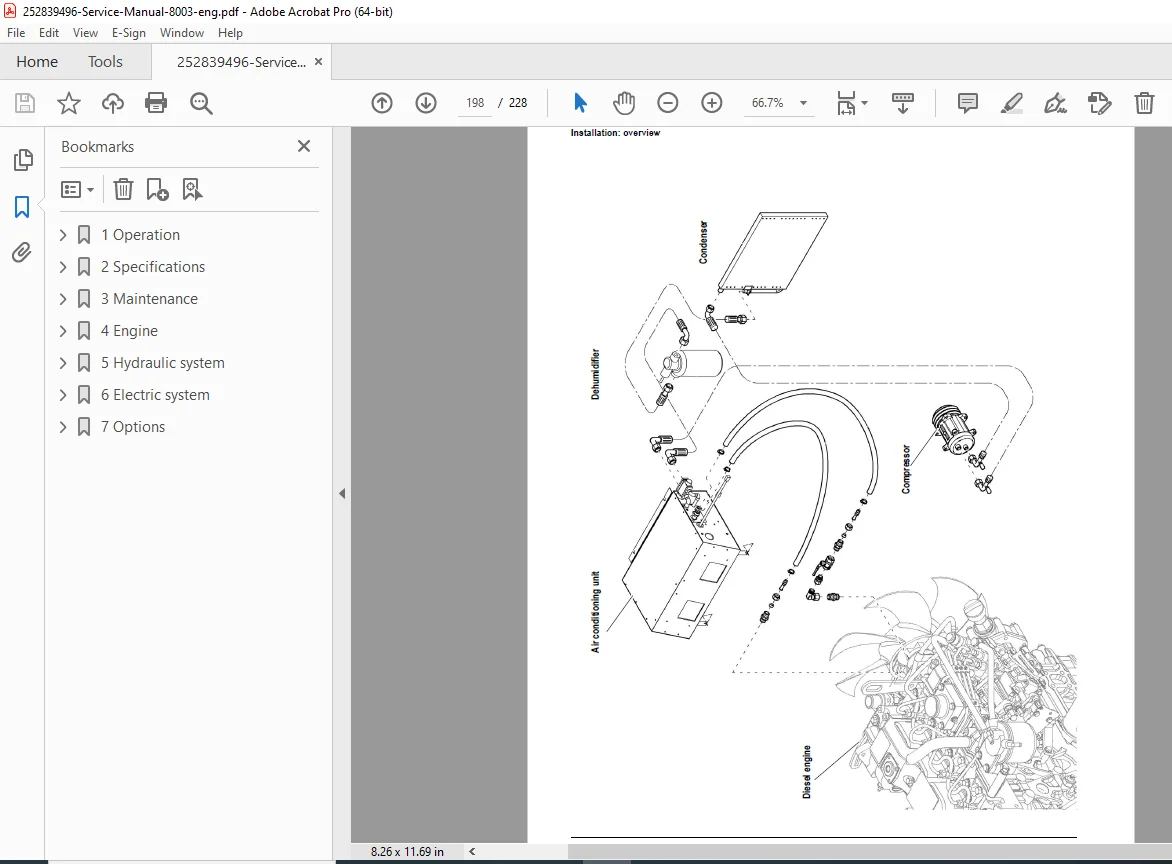

• Air conditioning unit

• Air-suspension seat

• Extended dipper arm

• Additional counterweight

• Auxiliary hydraulic functions

• Wacker Neuson VARIO system

• Central lubrication system

• Safe load indicator system

• Quick hitch (hydraulic/mechanical)

• Electric fuel filling pump
