Wacker Neuson BPU 3050A Reversible Plates Parts Book Manual – PDF DOWNLOAD

Description

Wacker Neuson BPU 3050A Reversible Plates Parts Book Manual – PDF DOWNLOAD

FILE DETAILS:

Wacker Neuson BPU 3050A Reversible Plates Parts Book Manual – PDF DOWNLOAD

Language : English
Pages : 68
Downloadable : Yes
File Type : PDF
Size: 4.09 MB

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

https://vimeo.com/772959574

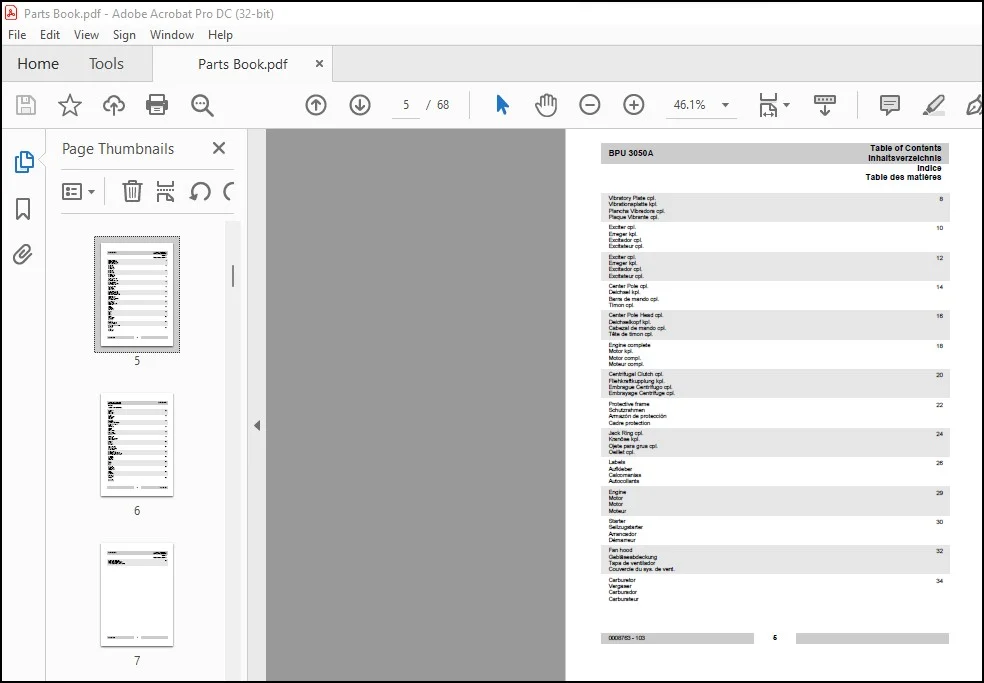

TABLE OF CONTENTS:

Wacker Neuson BPU 3050A Reversible Plates Parts Book Manual – PDF DOWNLOAD

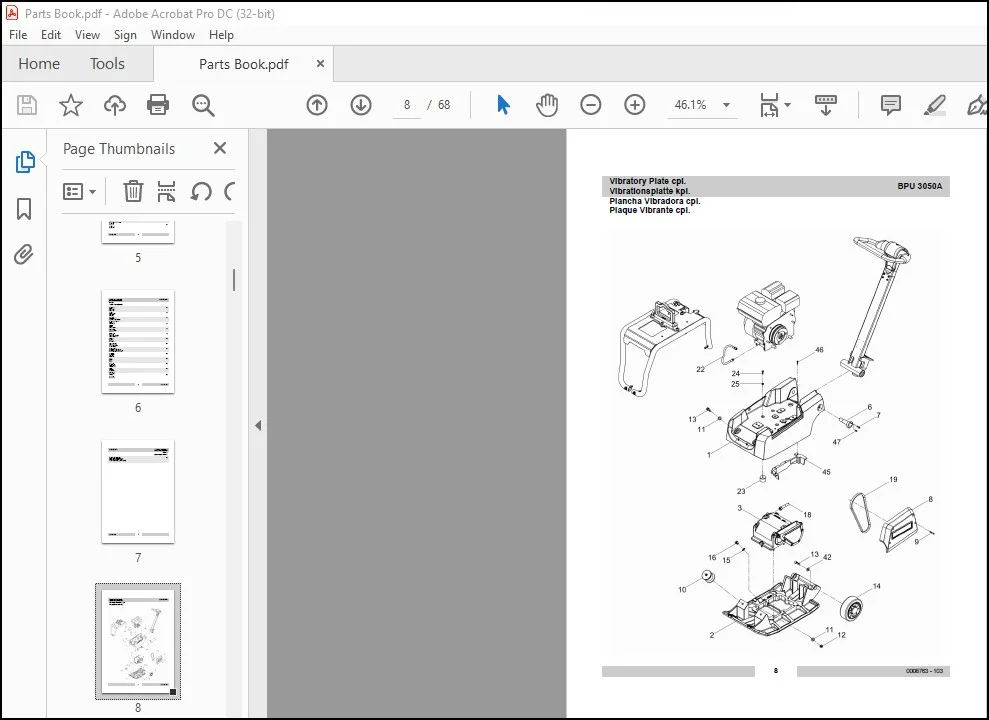

Vibratory Plate cpl.
Vibrationsplatte kpl.
Plancha Vibradora cpl.
Plaque Vibrante cpl.
8
Exciter cpl.
Erreger kpl.
Excitador cpl.
Excitateur cpl.
10
Exciter cpl.
Erreger kpl.
Excitador cpl.
Excitateur cpl.
12
Center Pole cpl.
Deichsel kpl.
Barra de mando cpl.
Timon cpl.
14
Center Pole Head cpl.
Deichselkopf kpl.
Cabezal de mando cpl.
Tête de timon cpl.
16
Engine complete
Motor kpl.
Motor compl.
Moteur compl.
18
Centrifugal Clutch cpl.
Fliehkraftkupplung kpl.
Embrague Centrífugo cpl.
Embrayage Centrifuge cpl.
20
Protective frame
Schutzrahmen
Armazón de protección
Cadre protection
22
Jack Ring cpl.
Kranöse kpl.
Ojete para grua cpl.
Oeillet cpl.
24
Labels
Aufkleber
Calcomanias
Autocollants
26
Engine
Motor
Motor
Moteur
29
Starter
Seilzugstarter
Arrancador
Démarreur
30
Fan hood
Gebläseabdeckung
Tapa de ventilador
Couvercle du sys. de vent.
32
Carburetor
Vergaser
Carburador
Carburateur
34
BPU 3050A Table of Contents
Inhaltsverzeichnis
Indice
Table des matières
0008763 – 103 5
Air Cleaner
Luftfilter
Filtro del Aire
Filtre à Air
38
Muffler
Schalldämpfer
Silenciador
Silencieux
40
Fuel Tank
Kraftstofftank
Depósito de Combustible
Réservoir à Essence
42
Flywheel
Schwungrad
Volante
Volant
44
Cylinder head
Zylinderkopf
Tapa del cilindro
Culasse
46
Ignition Coil
Zündspule
Bobina de Encendido
Bobine d’Allumage
48
Governor
Regler
Regulador
Régulateur
50
Cylinder housing
Zylindergehäuse
Carcasa de cilindro
Carter cylindre
52
Crankcase cover
Kurbelgehäuseabdeckung
Cubierta da la caja de manivela
Couvercle carter de manivelle
54
Crankshaft
Kurbelwelle
Cigueñal
Vilebrequin
56
Piston
Kolben
Pistón
Piston
58
Camshaft
Nockenwelle
Árbol de Levas
Arbre à Cames
60
Labels
Aufkleber
Calcomanias
Autocollants
62
Accessories
Zubehör
Accesorios
Accessoires
65
Table of Contents
Inhaltsverzeichnis BPU 3050A
Indice
Table des matières
6 0008763 – 103
Urethane Pad Kit PGV50
Pflastergleitvorrichtung PGV 50
Placa de Deslizamiento PGV50
Jeu de Tapis en Polyuréthane PGV50
66
