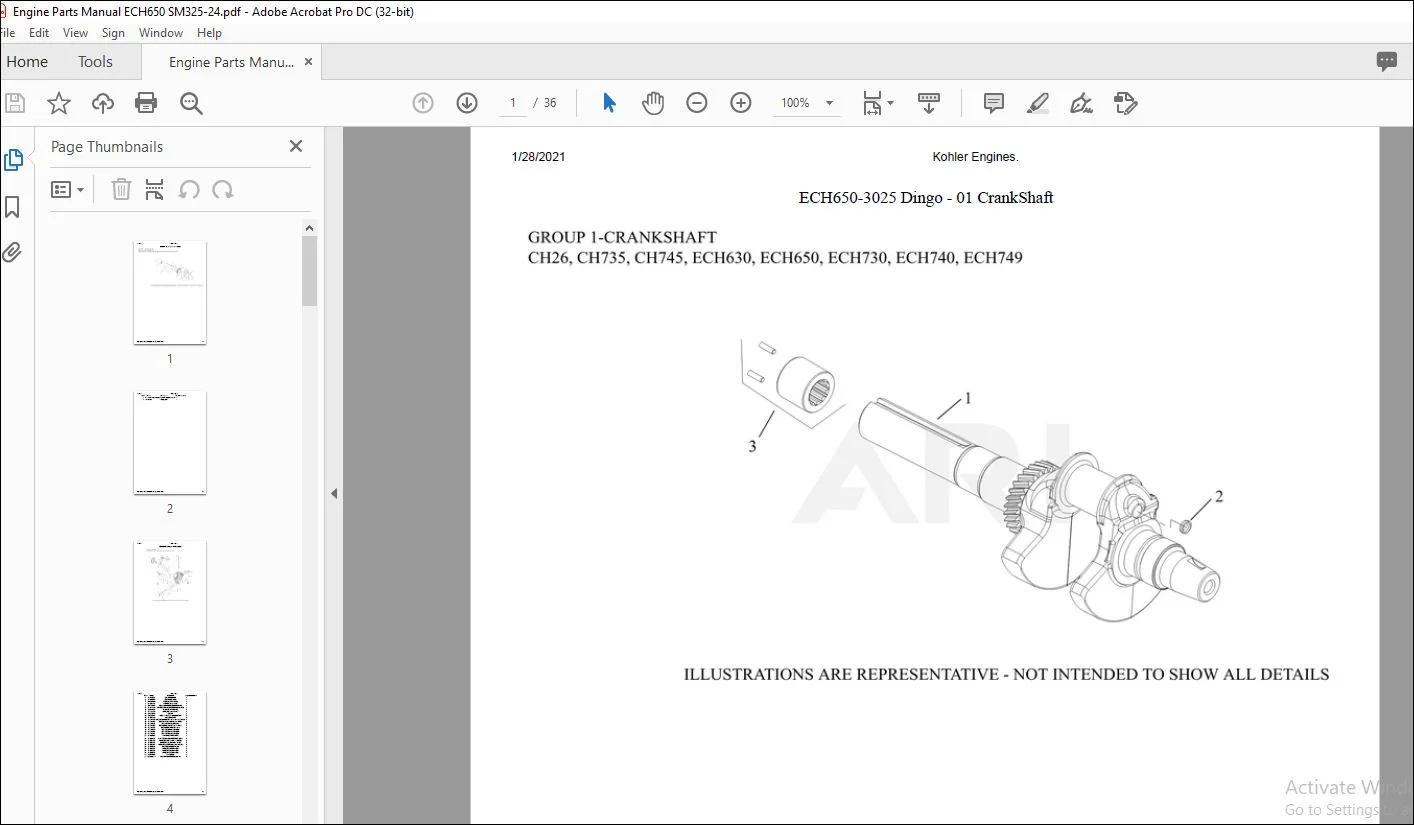

Wacker Neuson Dingo ECH650-3025 Engine Parts Manual – PDF DOWNLOAD

Description

Wacker Neuson Dingo ECH650-3025 Engine Parts Manual – PDF DOWNLOAD

1 24 012 29-S KIT, CAMSHAFT 1
2 24 018 09-S RETAINER, RING 1
3 M-931010-S WASHER, FLAT 9 MM 1
4 24 468 15-S WASHER, FLAT 11/32″ 1
5 28 032 09-S SEAL, GOVERNOR CROSS SHAFT 1
6 24 144 38-S SHAFT, GOVERNOR CROSS-(#2414439S) 1
8 25 139 57-S PLUG, SQ HD PIPE 3/8″ 2
9 24 032 19-S SEAL, OIL (HELIX LIP) 1
12 25 237 02-S CLAMP 1
16 25 067 04-S ROD, ASSEMBLY CONNECTING 2
18 24 380 16-S PIN, LOCATING 6
19 24 874 50-S KIT,PISTON(STD) STYLE A -USE 24 874 58-S 2
19 24 874 51-S KIT, PISTON (.08) STYLE A – DISC 2
19 24 874 52-S KIT, PISTON (.25) STYLE A 2
19 24 874 53-S KIT, PISTON (.50) STYLE A – DISC. 2
19 24 874 58-S KIT, PISTON (STD) STYLE B 2
19 24 874 59-S KIT, PISTON (.08) STYLE B 2
19 24 874 60-S KIT, PISTON (.25) STYLE B 2
19 24 874 61-S KIT, PISTON (.50) STYLE B 2
20 24 018 01-S RETAINER, PISTON PIN 4
21 24 108 18-S USE PISTON ASSY PER SPEC – DISC 2
21 24 108 19-S RING SET (.08) STYLE A – (#DSC) 2
21 24 108 20-S RING SET (.25) STYLE A – DISC 2
21 24 108 21-S RING SET (.50)STYLE A-(#2410829S) 2
21 24 108 26-S RING SET (STD) STYLE B 2
21 24 108 27-S RING SET (.08) STYLE B 2
21 24 108 28-S RING SET (.25) STYLE B 2
21 24 108 29-S RING SET (.50) STYLE B 2
22 52 139 09-S PLUG, CUP 1
24 25 086 452-S KIT, ROD BOLTS-(#25086677S) 2
