SAFETY
General Operation
Read, understand, and follow instructions before starting the Machine. Improper use may
result in injury.
Keep hands, feet and clothing away from all moving parts.
Wear appropriate clothing and PPE including but not limited to safety glasses, long pants,
safety shoes, and hearing protection.
Only allow use by those suitably competent and familiar with operation of the machine.
Always operate away from pedestrians and establish appropriate isolation measures.
Never carry passengers; keep pets and bystanders away from the machine and work site.
Do not refuel while the engine is running or with an ignition source in the area.
Do not operate any of the control levers unless you are standing with both feet firmly on the
platform and firmly holding the grip handles.
Do not exceed the rated operating capacity. Do not place feet under the platform.
Do not operate on or near embankments. Look out for ditches, holes, etc. Beware of traffic
when near roads.
Watch where you are driving, always look behind before and while reversing.
Warning: Engine exhaust contains Carbon Monoxide, an odourless deadly poison that
can kill. Do not run an engine indoors or in confined spaces.
Never allow the load frame to free fall without the engine running as this can create a
vacuum/air lock in the lift cylinders.
Always lower the load frame and/or place the attachment on the ground when parking or
leaving the machine unattended.
Always stop the engine before leaving the operators platform.
Do not carry a load or heavy attachment with the load frame in a raised position.
Do not step off the platform with a load raised.
Never jerk the control levers, instead use a steady motion. Slow down before turning, as
sharp turns may cause loss of control.
Stop the engine before making any adjustments to the attachments or the machine.
When carrying rocks or other bulky materials, maintain the bucket in a level position to
minimise potential hazard of the load rolling back toward the operator.
Operate only in daylight or good artificial lighting.
Do not operate equipment while under the influence of alcohol or drugs, or while otherwise
impaired.
Use extra care while loading or unloading the machine onto a trailer.
Page 4 of 19
Item – Rev(s): 9200000110 & 9200000120 – 101
Do not touch equipment or attachment parts that may be hot from operation. Allow to cool
before attempting to maintain, adjust, or service.
Never let children or untrained people operate or service the machine.
Do not allow any person or animal near the machine or its attachments whilst in operation.
Stop the machine if any person or animal approaches.
Immediately replace worn, damaged, or missing decals.
REMEMBER – SAFETY IS YOUR RESPONSIBILITY
Use extra caution on uneven ground requires. Do not operate on uneven ground exceeding
15 degrees. If a slope is greater than 5 degrees, only travel up or down, not across.
Always have the heavy end of the machine uphill. Weight distribution will change, an empty
bucket will make the rear of the machine heaviest, and a loaded bucket will make the front
of the machine heaviest. Various attachments will change which end is heaviest. These same
rules apply when loading and unloading the machine onto a trailer or truck.
Reduce speed over rough or uneven ground to reduce the likelihood of the machine tipping
over.
Avoid turning on uneven ground and when you must, turn slowly keeping the heavy end of
the machine uphill.
Do not operate near ditches or embankments, the machine could turn over if a wheel goes
over an edge, into a ditch or if an edge collapses.
Use caution on wet grass & slippery surfaces that may reduce traction & cause wheel slip.
Identify and remove obstacles such as rocks, tree limbs, etc. from the work area. Watch for
ruts or bumps as uneven terrain which could tip over the machine.
Operate in slow speed while on uneven ground to reduce changes in direction and speed.
If parking on uneven ground or hillsides always lower the load frame and attachment to the
ground and chock the wheels.
If the machine becomes unstable, step clear. Never try to stabilise the machine by putting
your foot on the ground.
Be aware of blind corners, shrubs, trees, or ends of fences that may obscure vision.
Keep children out of, and ensure they cannot enter the worksite. If a child enters the
worksite stop and shut down the machine immediately.
Never carry children (or anyone) on a machine or any of its attachments.
Do not allow children to play on or to operate the machine or within the work area or site.
TABLE OF CONTENTS:

Wacker Neuson Dingo SM275-19W SM275-19T Mini Loader OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD

Make Kohler Air Cooled Diesel
Power 23hp (17kw)
Performance
Hydraulic Pumps 2
Pump Sizes 9 & 3.5cc
Relief Pressure (AUX) 3000 psi (206 bar)
Hydraulic Output 38 L/min
Max Travel Speed 5 km/h
Rated Lift Capacity 275kg WLL
Wheel Motors – wheeled
Wheel Motors – Tracked
Auxiliary Hydraulic Circuits 1
Hydraulic Reservoir Capacity 76L
Machine Mass 847kg – SM275-19W
Dimensions
A Overall Width 850-1050mm
B Overall Length 1600mm
C Overall Height 1200mm
D Max Operating Height with 4 in 1 Bucket 2080mm
E Turning Radius with 4 in 1 Bucket 1300mm
F Angle of Departure 25°
G Wheel Base 800mm
H Ground Clearance 135mm
I Dump Height Standard Bucket 1450mm
J Dump Height with 4in1 Bucket 1835mm
K Reach Fully Raised 4 in 1 Bucket 800mm
L Height to Hinge Pin 1940mm
M Machine Width with 4in1 Bucket 1050-1200mm

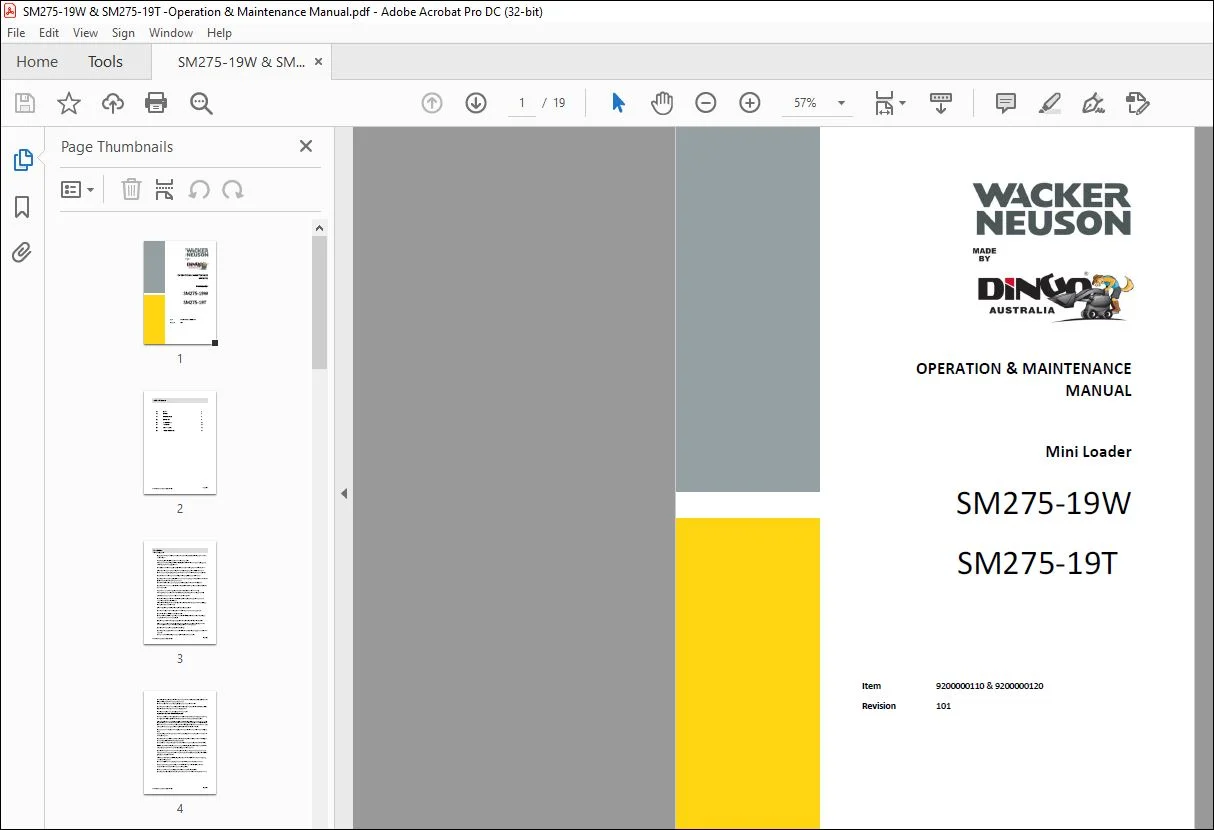

IMAGES PREVIEW OF THE MANUAL:
