Wacker Neuson DT08PL Track Dumper Spare Parts List Manual – PDF DOWNLOAD

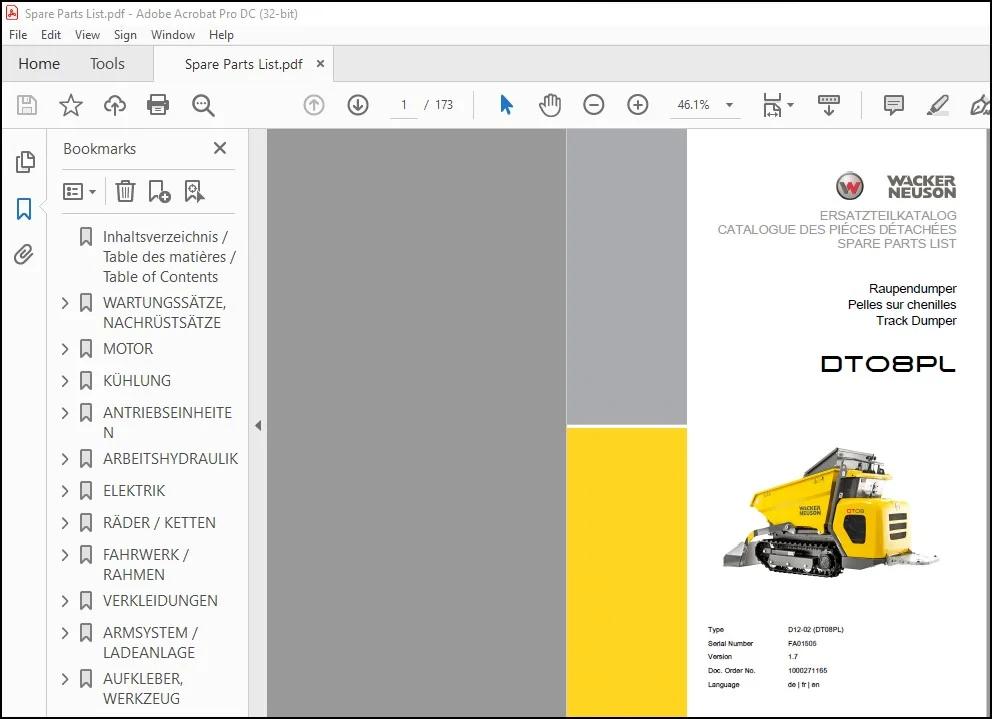

Type D12-02 (DT08PL)
Serial Number FA01505
Version 1.7
Doc. Order No. 1000271165
Language de | fr | en

General information about spare parts manual:
General:
When ordering spare parts, care must be taken to ensure that all information about
the machine is complete.
This includes the name of the model, the serial number and the year of construction.
In the event of orders for motor or axle parts, the type and serial number of the
components are also required.
The following details are also necessary: material number and position number.
The serial number is stamped on the machine chassis. It is also located on the type
label. The serial number must be given in full.
In the course of technical development, we work continuously to improve and
optimize our products. For this reason the pictures in the spare parts manual can
sometimes deviate from the actual model.
We reserve the right to make changes to the spare parts at any time. This applies to
the specified quantity of spare parts as well as to the technical model. In order to
provide the latest information about the machine, we ask you to contact the
appointed dealer.
Technical information, dimensions, weights and the given quantity of spare parts are
not binding. Responsibility for errors or omissions not accepted.
The cover features the machine with possible optional equipment. The
representation given is not binding for the actual model.

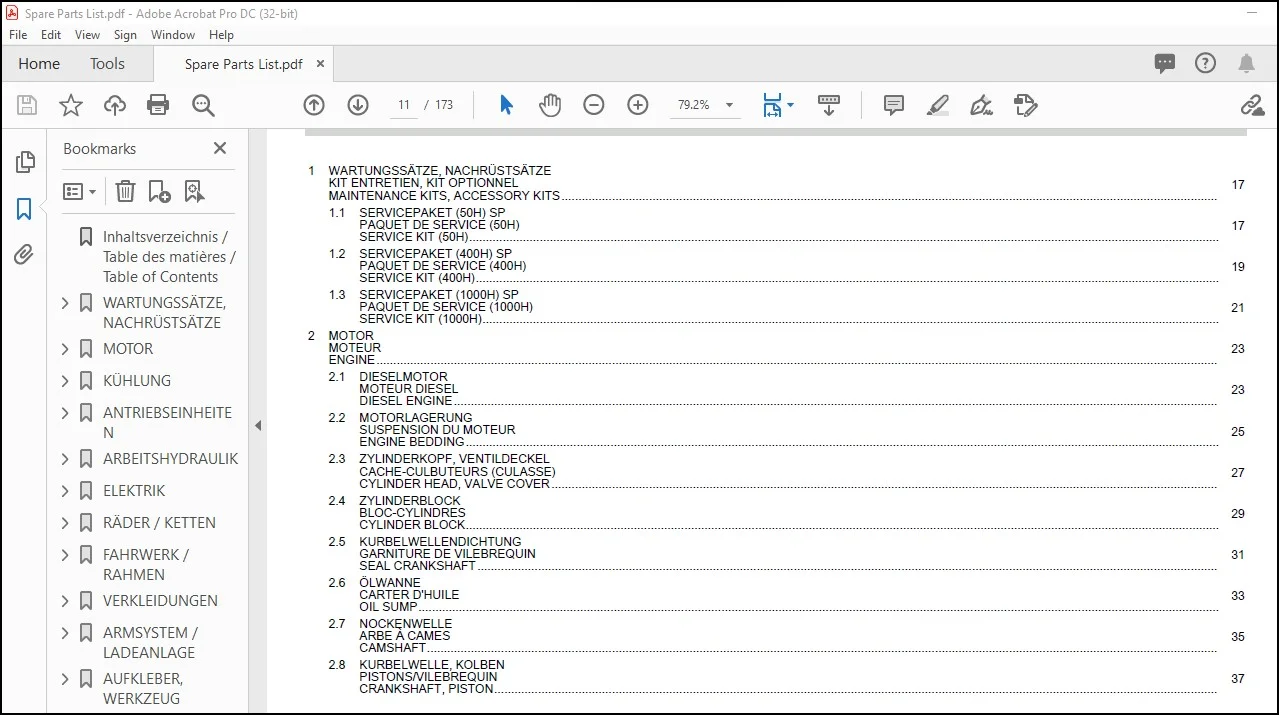

TABLE OF CONTENTS:

Wacker Neuson DT08PL Track Dumper Spare Parts List Manual – PDF DOWNLOAD

Inhaltsverzeichnis / Table des matières / Table of Contents 11
WARTUNGSSÄTZE, NACHRÜSTSÄTZE 18
SERVICEPAKET (50H) SP 18
SERVICEPAKET (400H) SP 20
SERVICEPAKET (1000H) SP 22
MOTOR 24
DIESELMOTOR 24
MOTORLAGERUNG 26
ZYLINDERKOPF, VENTILDECKEL 28
ZYLINDERBLOCK 30
KURBELWELLENDICHTUNG 32
ÖLWANNE 34
NOCKENWELLE 36
KURBELWELLE, KOLBEN 38
SCHMIERSYSTEM 40
KÜHLSYSTEM 42
LUFTFILTER 44
ANSAUGKRÜMMER 46
AUSPUFF 48
EINSPRITZANLAGE 50
KRAFTSTOFFPUMPE 52
KRAFTSTOFFTANK 54
KRAFTSTOFFVERSORGUNG 56
GASBETÄTIGUNG 58
KÜHLUNG 60
KOMBIKÜHLER INSTALLATION 60
KOMBIKÜHLER 62
ANTRIEBSEINHEITEN 64
FAHRANTRIEB INSTALLATION 64
FAHRANTRIEB 66
ARBEITSHYDRAULIK 68
HYDRAULIKTANK 68

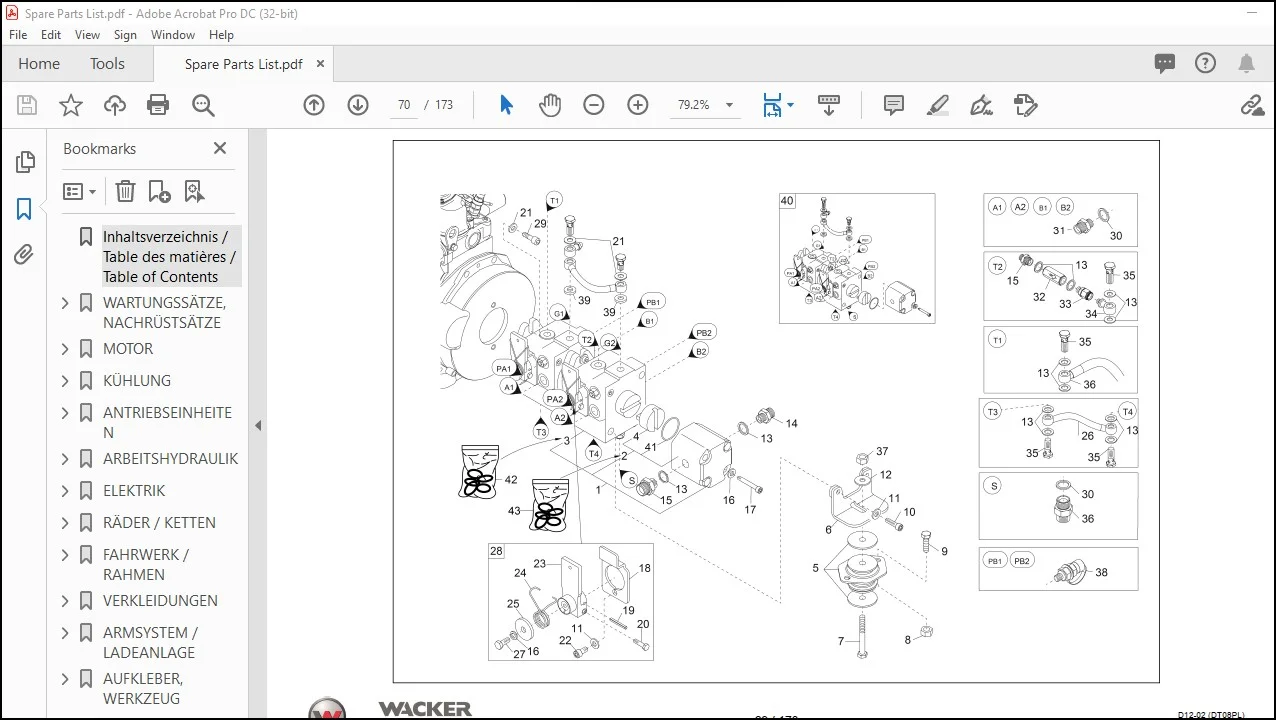

ZAHNRADPUMPE 1 SP 70
ZAHNRADPUMPE 2 (OPTION) SP 74
STEUERSCHIEBER 1 SP 76
STEUERSCHIEBER 2 (OPTION) SP 78
STEUERSCHIEBER 3 (OPTION) SP 80
STEUERSCHIEBER 4 (OPTION) SP 82
STEUERSCHIEBER 5 (OPTION) SP 84
ZAHNRADPUMPE INSTALLATION 86
MECHANISCHE VORSTEUERUNG SP 88
VENTILBLOCK (OPTION) SP 90
VENTIL FÜR ZUSATZHYDRAULIK (OPTION) SP 92
KIPPZYLINDERBETÄTIGUNG 1 SP 94
KIPPZYLINDER 1 SP 96
KIPPZYLINDERBETÄTIGUNG 2 (OPTION) SP 98
KIPPZYLINDER 2 (OPTION) SP 100
KIPPZYLINDERBETÄTIGUNG 3 (OPTION) SP 102
KIPPZYLINDER 3 (OPTION) SP 104
KIPPZYLINDERBETÄTIGUNG 4 (OPTION) SP 106
KIPPZYLINDER 4 (OPTION) SP 108
LADEZYLINDERBETÄTIGUNG 1 (OPTION) SP 110
LADEZYLINDER 1 (OPTION) SP 112
LADEZYLINDERBETÄTIGUNG 2 (OPTION) SP 114
LADEZYLINDER 2 (OPTION) SP 116
BETONMISCHER INSTALLATION (OPTION) SP 118
LADEZYL-BETONMISCHERBETÄTIGUNG OPTION SP 120
LADEZYLINDER BETONMISCHER (OPTION) SP 122
ZUSATZHYDRAULIKBETÄTIGUNG (OPTION) SP 124
ELEKTRIK 126
BATTERIE 126
ARMATURENBRETT 128
KABELBAUM MOTOR 130
KABELBAUM SCHALTER 132
RÄDER / KETTEN 134
GUMMIKETTE 134
FAHRWERK / RAHMEN 136
FAHRWERK 136
SPANNLAGER 140
CHASSIS 1 (OPTION) SP 142
CHASSIS 2 (OPTION) SP 144
VERKLEIDUNGEN 146
STEUERSTAND 146
TRITTBLECH 148
TRITTBLECH 150
ARMSYSTEM / LADEANLAGE 152
MULDE 1 SP 152
MULDE 2 (OPTION) SP 154
MULDE 3 (OPTION) SP 156
LADEANLAGE 1 (OPTION) SP 158
LADEANLAGE 2 (OPTION) SP 160
LADEANLAGE BETONMISCHER (OPTION) SP 162
HUBSCHERE (OPTION) SP 164
BETONMISCHER (OPTION) SP 166
AUFKLEBER, WERKZEUG 170
WERKZEUG 170
