Wacker Neuson DT10 Track Dumper Parts List Manual – PDF DOWNLOAD

Description

Wacker Neuson DT10 Track Dumper Parts List Manual – PDF DOWNLOAD

FILE DETAILS:

Wacker Neuson DT10 Track Dumper Parts List Manual – PDF DOWNLOAD

Language : English
Pages : 191
Downloadable : Yes
File Type : PDF
Size: 12.7 MB

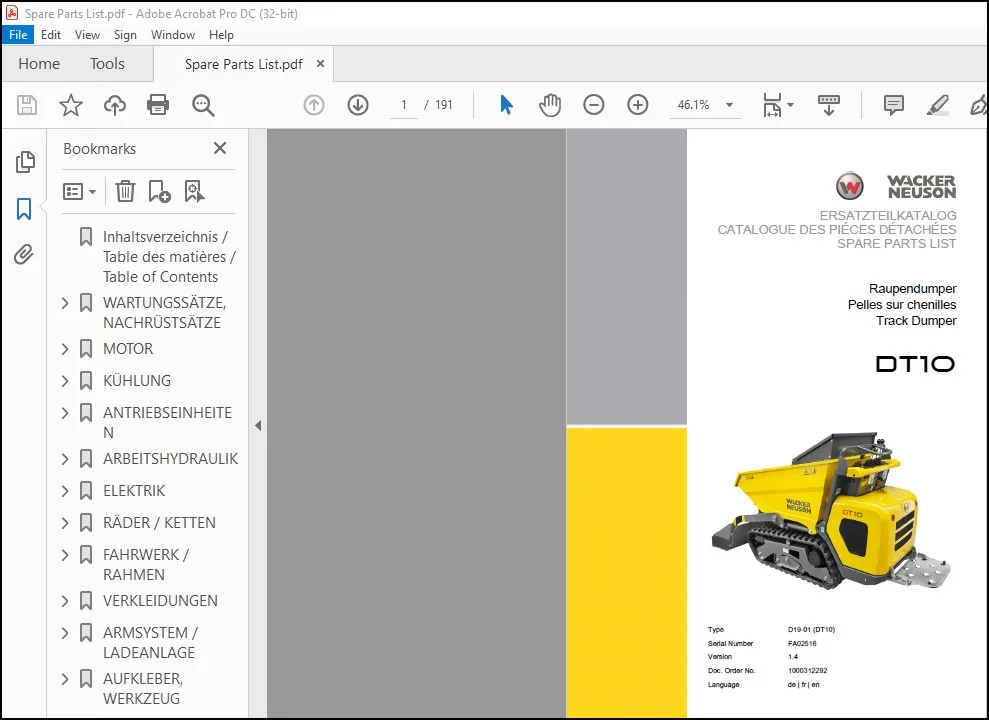

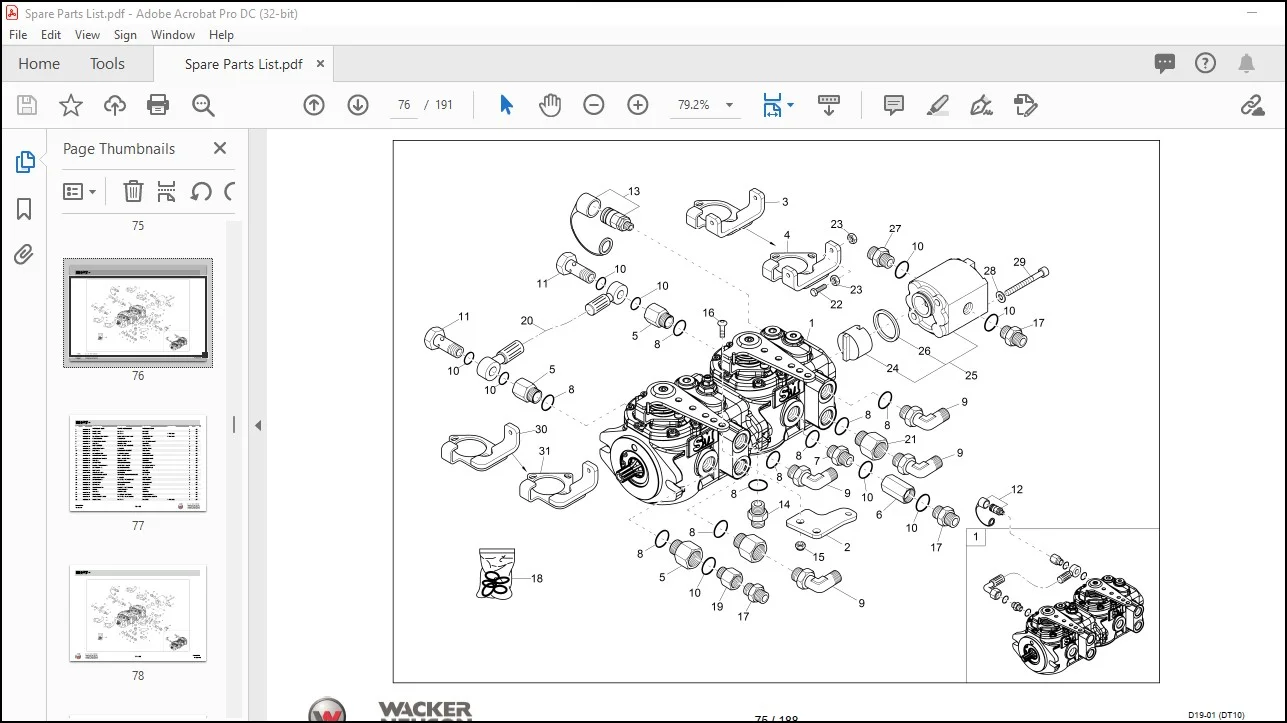

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/772926738

DESCRIPTION:

Wacker Neuson DT10 Track Dumper Parts List Manual – PDF DOWNLOAD

Type D19-01 (DT10)
Serial Number FA02516
Version 1.4
Doc. Order No. 1000312292
Language de | fr | en

General information about spare parts manual:
General:

• When ordering spare parts, care must be taken to ensure that all information about
  the machine is complete.
• This includes the name of the model, the serial number and the year of construction.
  In the event of orders for motor or axle parts, the type and serial number of the
  components are also required.
  The following details are also necessary: material number and position number.
• The serial number is stamped on the machine chassis. It is also located on the type
  label. The serial number must be given in full.
  In the course of technical development, we work continuously to improve and
  optimize our products. For this reason the pictures in the spare parts manual can
  sometimes deviate from the actual model.
• We reserve the right to make changes to the spare parts at any time. This applies to
  the specified quantity of spare parts as well as to the technical model. In order to
  provide the latest information about the machine, we ask you to contact the
  appointed dealer.
• Technical information, dimensions, weights and the given quantity of spare parts are
  not binding. Responsibility for errors or omissions not accepted.
• The cover features the machine with possible optional equipment. The
  representation given is not binding for the actual model.
  Wacker Neuson is authorized to publish copyright-protected material, for example
  that owned by Perkins Engines Company Ltd.
• The number of spare parts specified in the manual refers only to the quantity
  installed at this point.

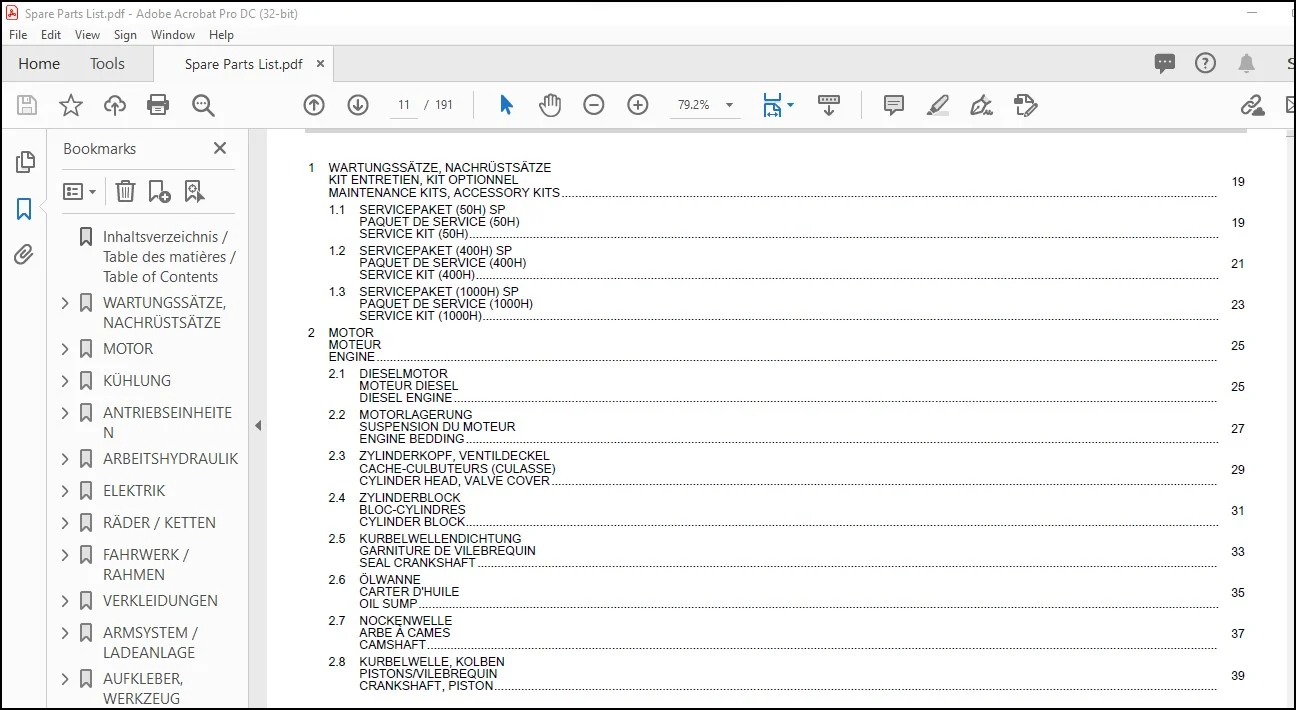

TABLE OF CONTENTS:

Wacker Neuson DT10 Track Dumper Parts List Manual – PDF DOWNLOAD

Inhaltsverzeichnis / Table des matières / Table of Contents 11
WARTUNGSSÄTZE, NACHRÜSTSÄTZE 20
SERVICEPAKET (50H) SP 20
SERVICEPAKET (400H) SP 22
SERVICEPAKET (1000H) SP 24
MOTOR 26
DIESELMOTOR 26
MOTORLAGERUNG 28
ZYLINDERKOPF, VENTILDECKEL 30
ZYLINDERBLOCK 32
KURBELWELLENDICHTUNG 34
ÖLWANNE 36
NOCKENWELLE 38
KURBELWELLE, KOLBEN 40
SCHMIERSYSTEM 42
KÜHLSYSTEM 44
LUFTFILTER 46
ANSAUGKRÜMMER 48
AUSPUFF 50
EINSPRITZANLAGE 52
KRAFTSTOFFTANK SP 54
KRAFTSTOFFPUMPE 56
KRAFTSTOFFVERSORGUNG 58
GASBETÄTIGUNG 60
PUMPENANTRIEB 62
KÜHLUNG 64
KOMBIKÜHLER 64
KÜHLER INSTALLATION 1 (OPTION) SP 66
KÜHLER INSTALLATION 2 (OPTION) SP 68
ANTRIEBSEINHEITEN 70
FAHRANTRIEB INSTALLATION 70
FAHRANTRIEB 72
ARBEITSHYDRAULIK 74
HYDRAULIKTANK 74
HYDRAULIKPUMPE 76
STEUERSCHIEBER 1 SP 80
STEUERSCHIEBER 2 (OPTION) SP 82
STEUERSCHIEBER 3 (OPTION) SP 84
STEUERSCHIEBER 4 (OPTION) SP 86
MECHANISCHE VORSTEUERUNG SP 88
HYDRAULIKPUMPE INSTALLATION 90
KIPPZYLINDER INSTALLATION 92
KIPPZYLINDER 1 SP 94
KIPPZYLINDER 1 (OPTION) SP 96
KIPPZYLINDER INSTALLATION 2 (OPTION) SP 98
KIPPZYLINDER 2 (OPTION) SP 100
KIPPZYLINDER INSTALLATION 3 (OPTION) SP 102
KIPPZYLINDER 3 (OPTION) SP 104
KIPPZYLINDER 3 (OPTION) SP 106
KIPPZYLINDERBETÄTIGUNG 4 (OPTION) SP 108
KIPPZYLINDER 4 (OPTION) SP 110
KIPPZYLINDER 5 (OPTION) SP 112
KIPPZYLINDERBETÄTIGUNG 5 (OPTION) SP 114
SCHWENKZYLINDER (OPTION) SP 116
SCHWENKZYLINDERBETÄTIGUNG (OPTION) SP 118
LADEZYLINDERBETÄTIGUNG 1 (OPTION) SP 120
LADEZYLINDER 1 (OPTION) SP 122
LADEZYLINDERBETÄTIGUNG 2 (OPTION) SP 124
LADEZYLINDER 2 (OPTION) SP 126
TANKLEITUNG INSTALLATION SP 128
ELEKTRIK 130
BATTERIE 130
ARMATURENBRETT 132
KABELBAUM MOTOR 134
KABELBAUM MOTOR 136
KABELBAUM SCHALTER 138
RÄDER / KETTEN 140
GUMMIKETTE 140
FAHRWERK / RAHMEN 142
FAHRWERK 142
SPANNLAGER 146
CHASSIS 1 (OPTION) SP 148
CHASSIS 2 (OPTION) SP 150
CHASSIS 2 (OPTION) SP 152
CHASSIS 3 (OPTION) SP 154
SCHWENKKONSOLE (OPTION) SP 158
VERKLEIDUNGEN 160
STEUERSTAND 160
TRITTBLECH 162
MOTORHAUBE 164
ARMSYSTEM / LADEANLAGE 166
MULDE 1 SP 166
MULDE 2 (OPTION) SP 170
MULDE 2 (OPTION) SP 172
MULDE 3 (OPTION) SP 174
MULDE 4 (OPTION) SP 176
LADEANLAGE 1 (OPTION) SP 178
LADEANLAGE 2 (OPTION) SP 180
LADEANLAGE 2 (OPTION) SP 182
HUBSCHERE (OPTION) SP 184
AUFKLEBER, WERKZEUG 186
AUFKLEBER 186
WERKZEUG 188
