Wacker Neuson DT12 Track Dumper Spare Parts list Manual – PDF DOWNLOAD

Description

Wacker Neuson DT12 Track Dumper Spare Parts list Manual – PDF DOWNLOAD

FILE DETAILS:

Wacker Neuson DT12 Track Dumper Spare Parts list Manual – PDF DOWNLOAD

Language : English
Pages : 235
Downloadable : Yes
File Type : PDF
Size: 12.5 MB

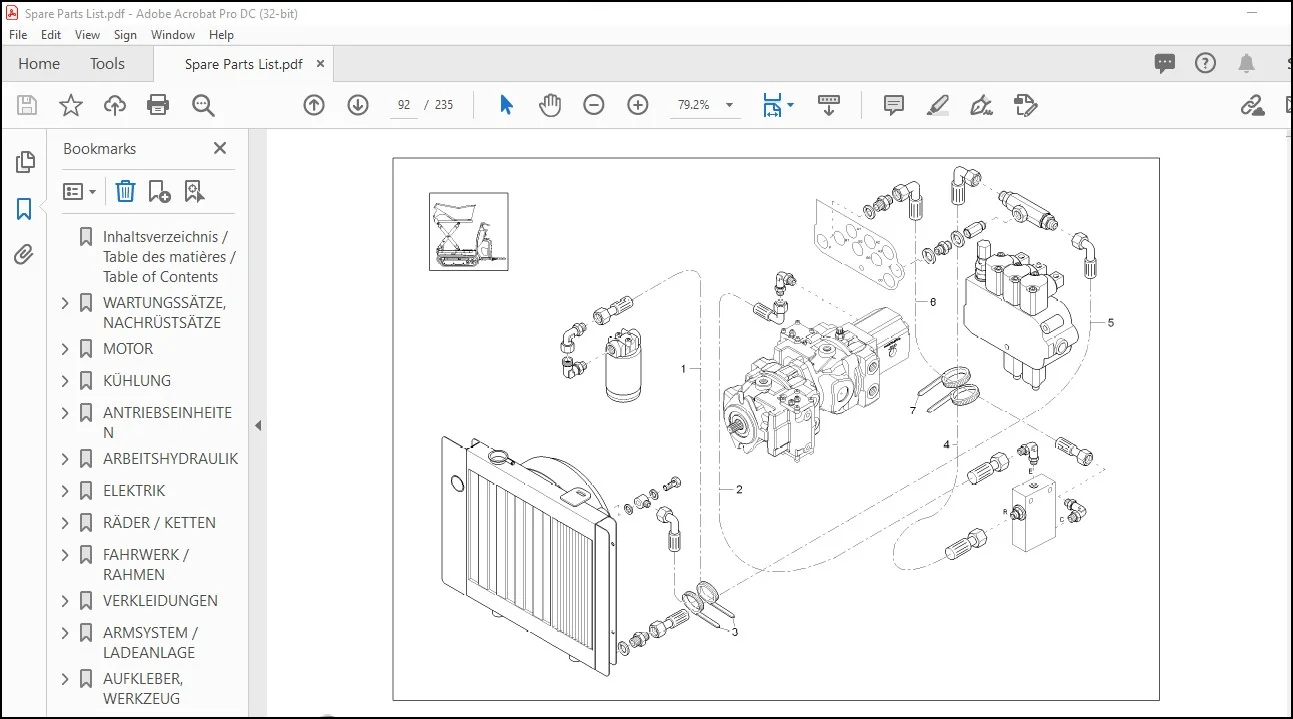

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/772929762

DESCRIPTION:

Wacker Neuson DT12 Track Dumper Spare Parts list Manual – PDF DOWNLOAD

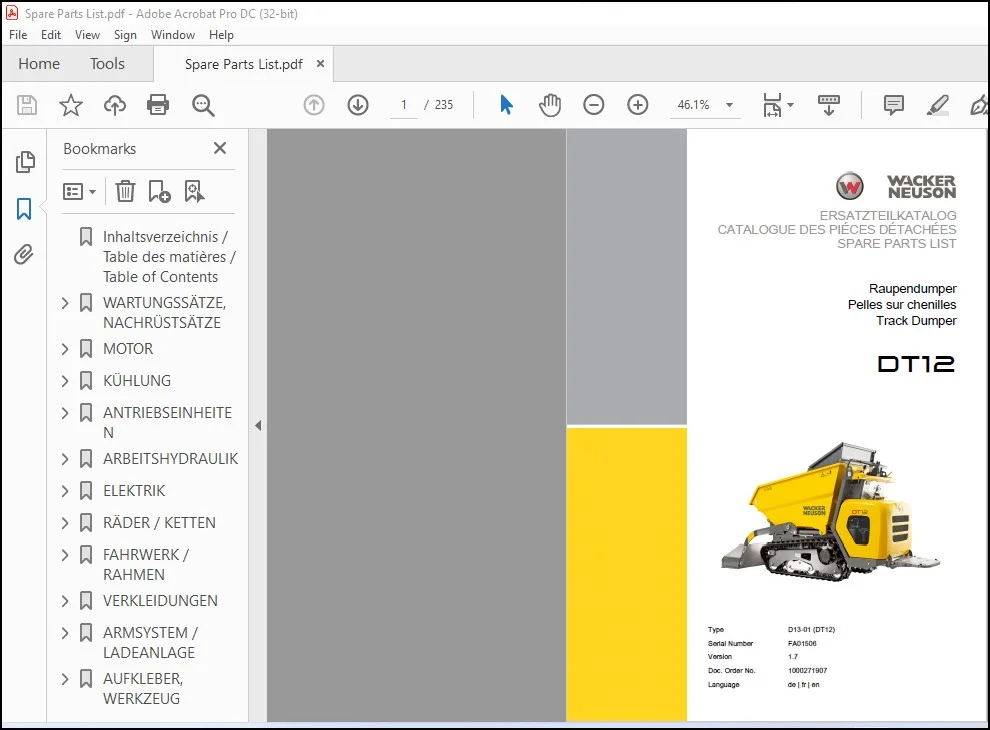

Type D13-01 (DT12)
Serial Number FA01506
Version 1.7
Doc. Order No. 1000271907
Language de | fr | en

General information about spare parts manual:
General:

• When ordering spare parts, care must be taken to ensure that all information about
  the machine is complete.
• This includes the name of the model, the serial number and the year of construction.
  In the event of orders for motor or axle parts, the type and serial number of the
  components are also required.
• The following details are also necessary: material number and position number.
  The serial number is stamped on the machine chassis. It is also located on the type
  label. The serial number must be given in full.
• In the course of technical development, we work continuously to improve and
  optimize our products. For this reason the pictures in the spare parts manual can
  sometimes deviate from the actual model.
• We reserve the right to make changes to the spare parts at any time. This applies to
  the specified quantity of spare parts as well as to the technical model. In order to
  provide the latest information about the machine, we ask you to contact the
  appointed dealer.
• Technical information, dimensions, weights and the given quantity of spare parts are
  not binding. Responsibility for errors or omissions not accepted.
  The cover features the machine with possible optional equipment. The
  representation given is not binding for the actual model.

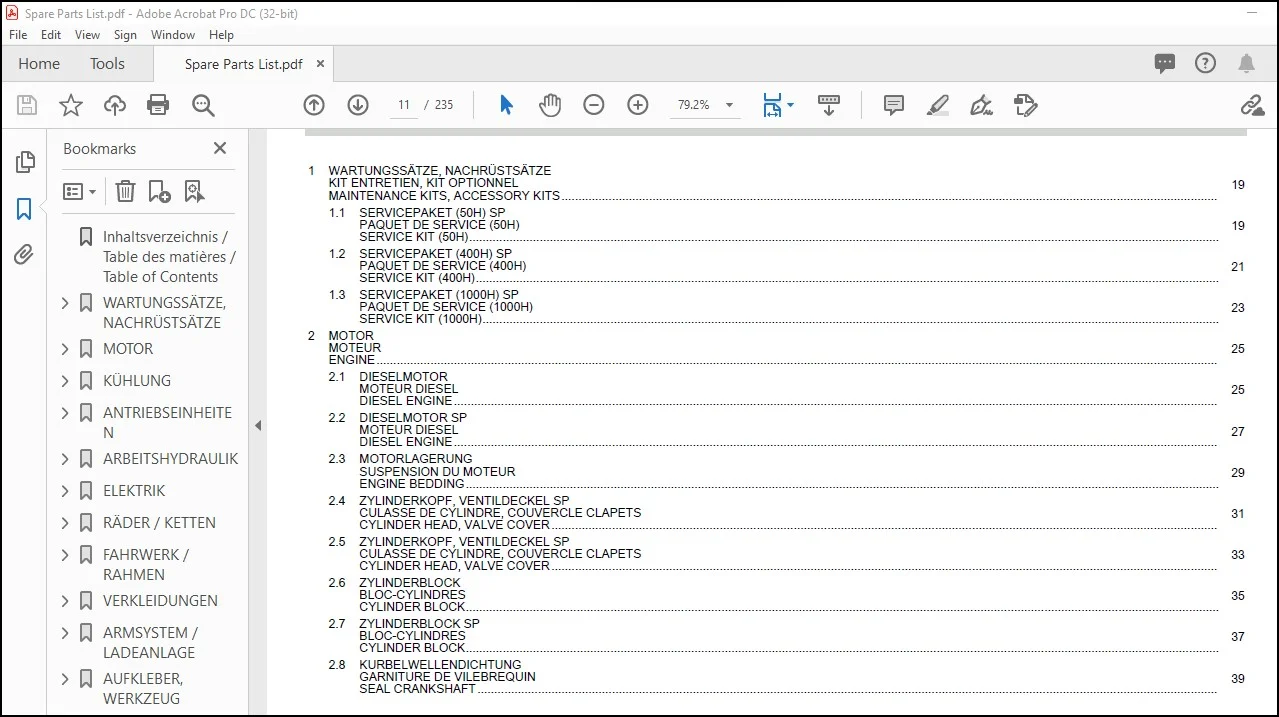

TABLE OF CONTENTS:

Wacker Neuson DT12 Track Dumper Spare Parts list Manual – PDF DOWNLOAD

Inhaltsverzeichnis / Table des matières / Table of Contents 11
WARTUNGSSÄTZE, NACHRÜSTSÄTZE 20
SERVICEPAKET (50H) SP 20
SERVICEPAKET (400H) SP 22
SERVICEPAKET (1000H) SP 24
MOTOR 26
DIESELMOTOR 26
DIESELMOTOR SP 28
MOTORLAGERUNG 30
ZYLINDERKOPF, VENTILDECKEL SP 32
ZYLINDERKOPF, VENTILDECKEL SP 34
ZYLINDERBLOCK 36
ZYLINDERBLOCK SP 38
KURBELWELLENDICHTUNG 40
ÖLWANNE 42
ÖLWANNE SP 44
NOCKENWELLE 46
NOCKENWELLE SP 48
KURBELWELLE, KOLBEN 50
KURBELWELLE, KOLBEN SP 52
SCHMIERSYSTEM 54
SCHMIERSYSTEM SP 56
KÜHLSYSTEM 58
KÜHLSYSTEM SP 60
LUFTFILTER 62
ANSAUGKRÜMMER 64
ANSAUGKRÜMMER SP 66
AUSPUFF 68
EINSPRITZANLAGE 70
EINSPRITZANLAGE_SP 72
REGLER 74
KRAFTSTOFFTANK 76
KRAFTSTOFFTANK_SP 78
KRAFTSTOFFVERSORGUNG 80
GASBETÄTIGUNG 82
PUMPENANTRIEB 84
KÜHLUNG 86
KÜHLER 86
KÜHLER INSTALLATION SP 88
KÜHLER INSTALLATION 1 (OPTION) SP 90
KÜHLER INSTALLATION 2 (OPTION) SP 92
ANTRIEBSEINHEITEN 94
FAHRANTRIEB INSTALLATION 94
FAHRANTRIEB 96
ARBEITSHYDRAULIK 98
HYDRAULIKTANK 98
PUMPENEINHEIT 102
STEUERSCHIEBER 1 SP 104
STEUERSCHIEBER 2 SP 106
STEUERSCHIEBER 2 (OPTION) SP 108
STEUERSCHIEBER 3 (OPTION) SP 110
STEUERSCHIEBER 4 (OPTION) SP 112
STEUERSCHIEBER 5 (OPTION) SP 114
KUGELHAHN 1 SP 116
KUGELHAHN 2 SP 118
MAGNETVENTIL 120
KIPPZYLINDER INSTALLATION 122
KIPPZYLINDER INSTALLATION 1 (OPTION) SP 124
KIPPZYLINDER 1 SP 126
KIPPZYLINDER 1 (OPTION) SP 128
KIPPZYLINDER INSTALLATION 2 (OPTION) SP 130
KIPPZYLINDER 2 (OPTION) SP 132
KIPPZYLINDER INSTALLATION 3 (OPTION) SP 134
KIPPZYLINDER 3 (OPTION) SP 136
KIPPZYLINDER 3 (OPTION) SP 138
KIPPZYLINDERBETÄTIGUNG 4 (OPTION) SP 140
KIPPZYLINDER 4 (OPTION) SP 142
KIPPZYLINDERBETÄTIGUNG 5 (OPTION) SP 144
KIPPZYLINDER 5 (OPTION) SP 146
SCHWENKZYLINDER (OPTION) SP 148
SCHWENKZYLINDERBETÄTIGUNG (OPTION) SP 150
LADEZYLINDERBETÄTIGUNG 1 (OPTION) SP 152
LADEZYLINDER 1 (OPTION) SP 154
LADEZYLINDERBETÄTIGUNG 2 (OPTION) SP 156
LADEZYLINDER 2 (OPTION) SP 158
ZUSATZHYDRAULIKBETÄTIGUNG (OPTION) SP 160
ZUSATZHYDRAULIKBETÄTIGUNG 1 (OPTION) SP 162
ZUSATZHYDRAULIKBETÄTIGUNG 2 (OPTION) SP 164
STEUERUNG INSTALLATION 166
TANKLEITUNG INSTALLATION SP 168
ELEKTRIK 170
BATTERIE 170
ARMATURENBRETT 172
KABELBAUM MOTOR 174
KABELBAUM SCHALTER 176
KABELBAUM SCHALTER SP 178
RÄDER / KETTEN 180
GUMMIKETTE 180
FAHRWERK / RAHMEN 182
FAHRWERK 182
SPANNLAGER 186
CHASSIS 1 (OPTION) SP 188
CHASSIS 2 (OPTION) SP 190
CHASSIS 2 (OPTION) SP 192
CHASSIS 3 (OPTION) SP 194
SCHWENKKONSOLE (OPTION) SP 198
VERKLEIDUNGEN 200
MOTORHAUBE 200
MOTORHAUBE SP 202
STEUERSTAND 204
TRITTBLECH 206
TRITTBLECH SP 208
ARMSYSTEM / LADEANLAGE 210
MULDE 1 SP 210
MULDE 2 (OPTION) SP 214
MULDE 2 (OPTION) SP 216
MULDE 3 (OPTION) SP 218
MULDE 4 (OPTION) SP 220
LADEANLAGE 1 (OPTION) SP 222
LADEANLAGE 2 (OPTION) SP 224
LADEANLAGE 2 (OPTION) SP 226
HUBSCHERE (OPTION) SP 228
AUFKLEBER, WERKZEUG 230
AUFKLEBER 230
WERKZEUG 232
