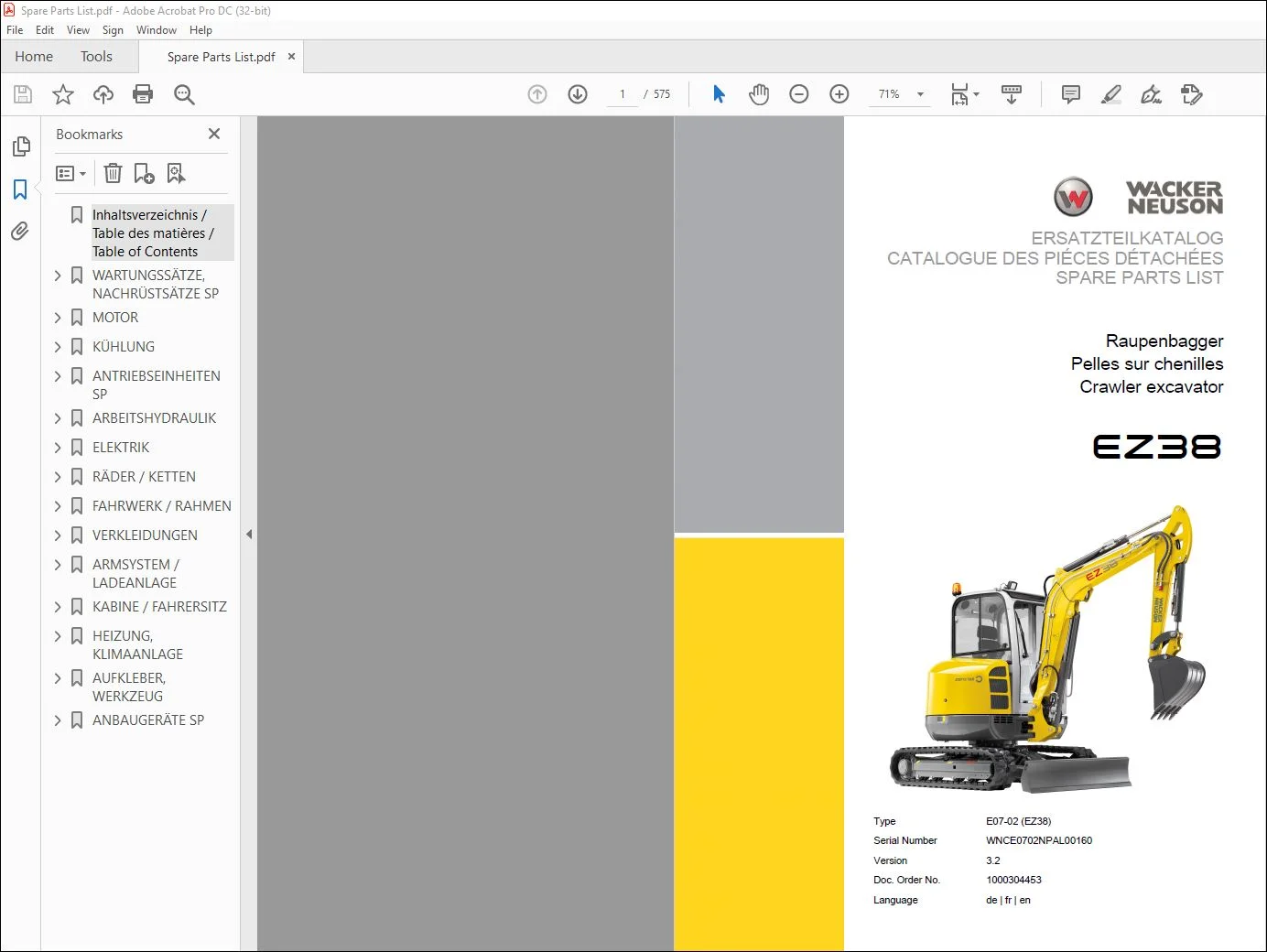

Wacker Neuson EZ38 Crawler excavator SPARE PARTS LIST Manual – PDF DOWNLOAD

Original price was: $89.00.Current price is: $30.95.

Wacker Neuson EZ38 Crawler excavator SPARE PARTS LIST Manual – PDF DOWNLOAD

Type E07-02 (EZ38)
Serial Number WNCE0702NPAL00160
Version 3.2
Doc. Order No. 1000304453
Language de | fr | en

Buy now
Category: Tags: Vendor: Operator Doc Hub
โšก
Instant PDF Download
Available immediately
๐Ÿ’พ
Save to Your Device
Download & keep forever
๐Ÿ›ก๏ธ
Antivirus Scanned
100% virus-free
๐ŸŒ
Trusted Worldwide
175,000+ customers

Description

Wacker Neuson EZ38 Crawler excavator SPARE PARTS LIST Manual – PDF DOWNLOAD

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Wacker Neuson EZ38 Crawler excavator SPARE PARTS LIST Manual – PDF DOWNLOAD

General information about spare parts manual
General

  • When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary:
  • material number and position number. The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full. In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model.
  • We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer. Technical information, dimensions, weights and the given quantity of spare parts are not binding.
  • Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model. Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point. This spare parts manual shows options that are available for the vehicle direct
  • from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other. In some cases, parts are shown that are not available as spare parts.
  • These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered. Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety. The operational safety is only ensured when
  • original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts. Mentions of โ€œrightโ€, and โ€œleftโ€ or โ€œfrontโ€ and โ€œrearโ€ are made from the position of the driver in a forwards direction.

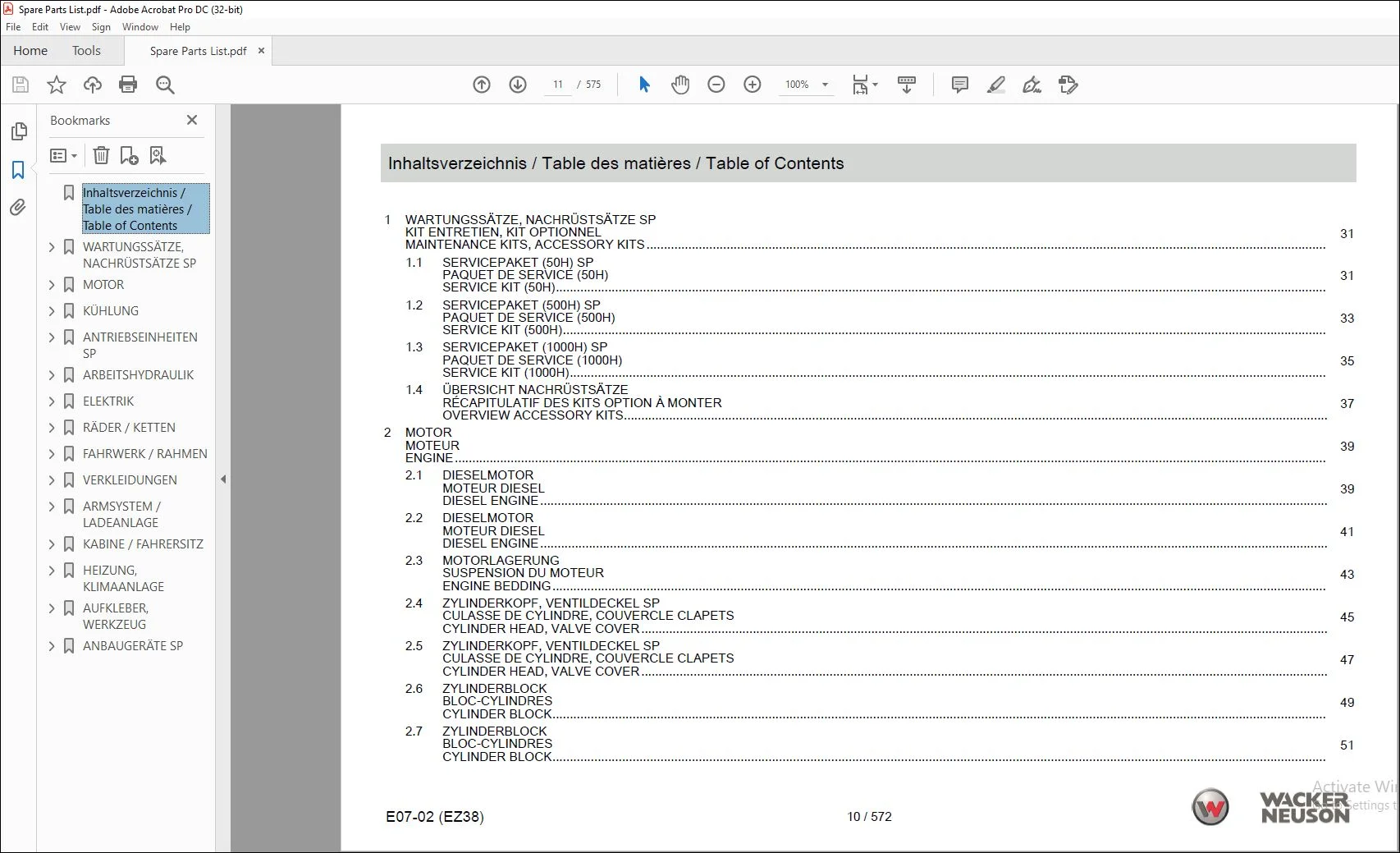

TABLE OF CONTENTS:

Wacker Neuson EZ38 Crawler excavator SPARE PARTS LIST Manual – PDF DOWNLOAD

Inhaltsverzeichnis / Table des matiรจres / Table of Contents 11
WARTUNGSSร„TZE, NACHRรœSTSร„TZE SP 32
SERVICEPAKET (50H) SP 32
SERVICEPAKET (500H) SP 34
SERVICEPAKET (1000H) SP 36
รœBERSICHT NACHRรœSTSร„TZE 38

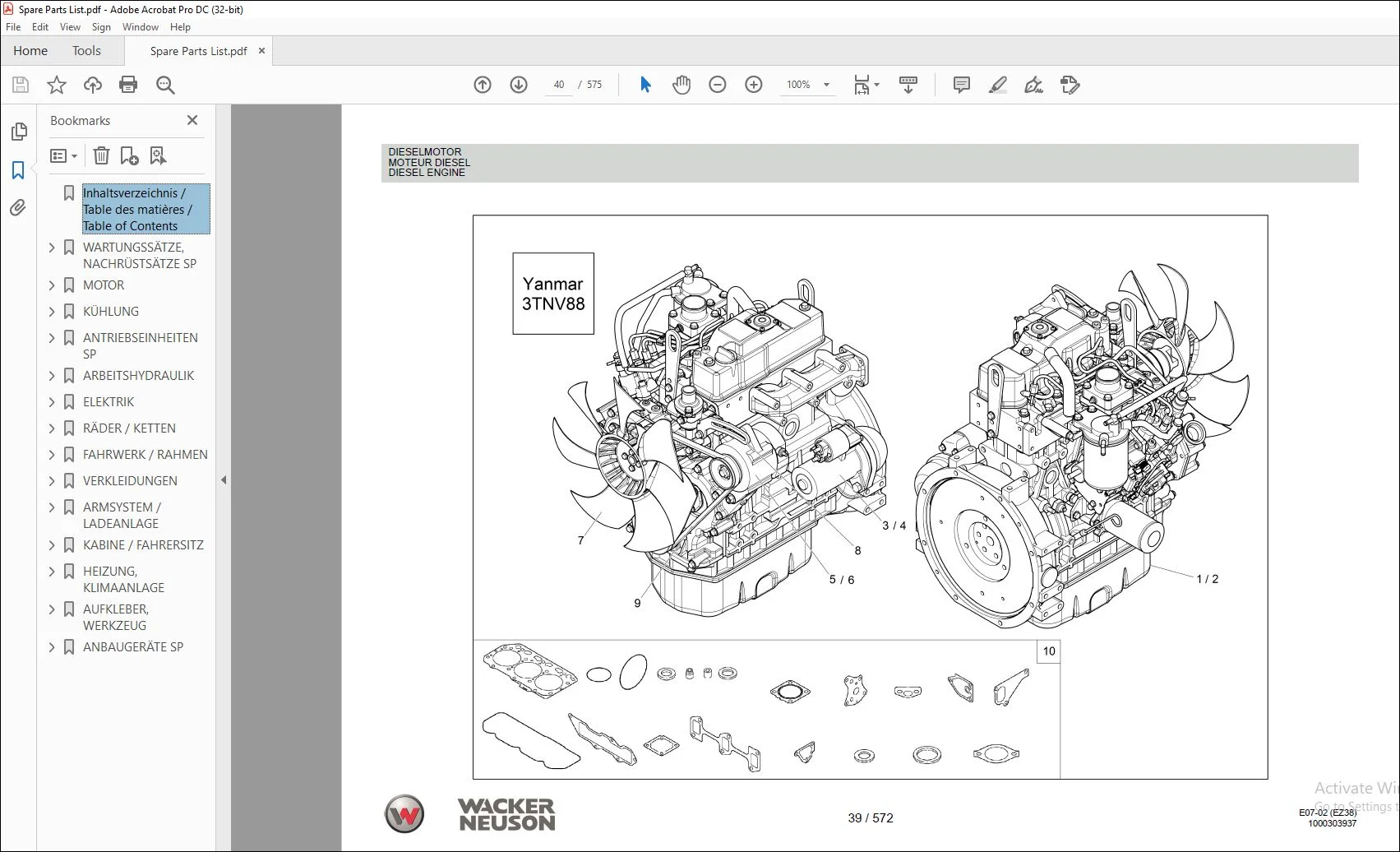

MOTOR 40
DIESELMOTOR 40
DIESELMOTOR 42
MOTORLAGERUNG 44
ZYLINDERKOPF, VENTILDECKEL SP 46
ZYLINDERKOPF, VENTILDECKEL SP 48
ZYLINDERBLOCK 50
ZYLINDERBLOCK 52
KURBELWELLENDICHTUNG 54
KURBELWELLENDICHTUNG 56
ร–LWANNE 58
ร–LWANNE 60
NOCKENWELLE 62
KURBELWELLE, KOLBEN 64
SCHMIERSYSTEM 66
SCHMIERSYSTEM 68
KรœHLSYSTEM 70
KรœHLSYSTEM 72
EINSPRITZANLAGE 74
EINSPRITZANLAGE 76
LUFTFILTER 78
LUFTFILTER 80
ANSAUGKRรœMMER 82
ANSAUGKRรœMMER SP 84
AUSPUFF 86
AUSPUFF 88
DIESELTANK KUNSTSTOFF SP 90
KRAFTSTOFFVERSORGUNG 92
DIESELBETANKUNGSPUMPE (OPTION) SP 96
GASBETร„TIGUNG 98
GASBETร„TIGUNG100
DREHZAHLREGELUNG (OPTION) SP102
DREHZAHLREGELUNG INSTALLATION (OPTION)SP104
PUMPENANTRIEB106
KรœHLUNG108
WASSERKรœHLER108
ร–LKรœHLER112
ANTRIEBSEINHEITEN SP114
DREHANTRIEB INSTALLATION114
DREHANTRIEB INSTALLATION (OPTION) SP116
DREHANTRIEB118
DREHANTRIEB (OPTION) SP120
FAHRANTRIEB INSTALLATION122
FAHRANTRIEB INSTALLATION (OPTION) SP124
FAHRANTRIEB126
ARBEITSHYDRAULIK128
HYDRAULIKTANK128
HYDRAULIKTANK132
HYDRAULIKPUMPE136
HYDRAULIKPUMPE138
HYDRAULIKPUMPE ZERLEGT SP140
HYDRAULIKPUMPE ZERLEGT SP142
MOBILSTEUERBLOCK 1 SP144
MOBILSTEUERBLOCK 1 SP146
MOBILSTEUERBLOCK 1 (OPTION) SP148
MOBILSTEUERBLOCK 1 (OPTION) SP150
MOBILSTEUERBLOCK 1 (OPTION) SP152
MOBILSTEUERBLOCK 1 (OPTION) SP154
MOBILSTEUERBLOCK 2 SP156
MOBILSTEUERBLOCK 2 SP158
MOBILSTEUERBLOCK 2 (OPTION) SP160
MOBILSTEUERBLOCK 2 (OPTION) SP162
MOBILSTEUERBLOCK 2 (OPTION) SP164
MOBILSTEUERBLOCK 2 (OPTION) SP166
DREHDURCHFรœHRUNG168
DREHDURCHFรœHRUNG (OPTION) SP170
HANDSTEUERVENTIL172
HANDSTEUERVENTIL174
HANDSTEUERVENTILE (OPTION) SP176
HANDSTEUERVENTILE (OPTION) SP178
HANDSTEUERVENTILE (OPTION) SP180
FAHRVENTIL182
UMSCHALTVENTIL184
UMSCHALTVENTIL (OPTION) SP186
PROPORTIONALVENTIL (OPTION) SP188
PROPORTIONALVENTIL (OPTION) SP190
PROPORTIONALVENTIL 4-FACH (OPTION) SP192
8/2 WEGEVENTIL (OPTION) SP194
3/2 WEGEVENTIL (OPTION) SP196
EASY LOCK VENTIL (OPTION) SP198
SENKBREMSVENTIL200
VERTEILERBLOCK202
VERTEILERBLOCK (OPTION) SP204
SAMMELROHR206
SPEICHER208
HYDRAULIKPUMPE INSTALLATION210
HYDRAULIKPUMPE INSTALLATION212
HUBARMBETร„TIGUNG214
HUBARMZYLINDER216
HUBARMZYLINDER218
Lร–FFELSTIELBETร„TIGUNG220
Lร–FFELSTIELZYLINDER222
Lร–FFELSTIELZYLINDER224
Lร–FFELBETร„TIGUNG226
Lร–FFELBETร„TIGUNG (OPTION) SP228
Lร–FFELBETร„TIGUNG (OPTION) SP230
Lร–FFELBETร„TIGUNG (OPTION) SP232
Lร–FFELZYLINDER234
Lร–FFELZYLINDER236
SCHWENKZYLINDERBETร„TIGUNG238
SCHWENKZYLINDER240
SCHWENKZYLINDER242
PLANIERSCHILDBETร„TIGUNG244
PLANIERSCHILDBETร„TIGUNG (OPTION) SP246
PLANIERSCHILDBETร„TIGUNG (OPTION) SP248
PLANIERSCHILDBETร„TIGUNG (OPTION) SP250
PLANIERSCHILDZYLINDER252
PLANIERSCHILDZYLINDER254
KIPPZYLINDER INSTALLATION (OPTION) SP256
KIPPZYLINDER258
ZUSATZHYDRAULIKBETร„TIGUNG260
PROPORTIONALSTEUERUNG FรœR ZH (OPTION) SP264
GREIFERANBAU (OPTION) SP266
8/2 WEGEVENTIL INST (OPTION) SP268
VORSTEUERDRUCKLEITUNGEN270
TANKLEITUNGEN272
3STRKPROPORTIONALSTEUERUNG (OPTION) SP274
VORBEREITUNG POWERTILT (OPTION) SP276
POWERTILT INSTALLATION (OPTION) SP278
VORBEREITUNG POWERTILT EASY LOCK(OPT)SP280
POWERTILT INST EASY LOCK (OPTION) SP282
EASY LOCK INSTALLATION (OPTION) SP284
รœBERLASTWARNEINRICHTUNG (OPTION) SP286
รœBERLASTWARNEINRICHTUNG (OPTION) SP290
ELEKTRIK294
BATTERIE294
ARMATURENBRETT296
RADIO (OPTION) SP298
VORBEREITUNG RADIO300
RELAISBOX302
RELAISBOX SP304
HUPE306
FAHRSIGNAL (OPTION) SP308
ARBEITSSCHEINWERFER310
KABINENSCHEINWERFER VORNE (OPTION) SP312
KABINENSCHEINWERFER HINTEN (OPTION) SP314
KABINENSCHEINWERFER VO+HI (OPTION) SP316
KABELBAUM CHASSIS, MOTOR318
KABELBAUM CHASSIS, MOTOR322
KABELBAUM ARMSCHEINWERFER328
KABELBAUM KABINE330
KABELBAUM KABINE332
KABELBAUM DACH334
KABELBAUM CANOPY SCHEINWERFER VORNE SP336
KABELBAUM DREHLEUCHTE SP338
KABELBAUM SITZKONSOLE340
KABELBAUM SITZKONSOLE344
KABELBAUM PROPSTEUERUNG (OPTION) SP348
KABELBAUM (OPTION) SP350
KABEL SCHEINWERFER VORNE (OPTION) SP352
WEGFAHRSPERRE (OPTION) SP354
SCHALTER EASY LOCK (OPTION) SP356
Rร„DER / KETTEN358
GUMMIKETTE358
STAHLKETTE360
FAHRWERK / RAHMEN362
FAHRWERK362
FAHRWERK (OPTION) SP364
FAHRWERK STAHLKETTE (OPTION) SP368
FAHRWERK STAHLKETTE (OPTION) SP372
SPANNLAGER374
SPANNLAGER STAHLKETTE (OPTION) SP376
PLANIERSCHILD378
CHASSIS380
SCHMIERUNG382
STOSSSTANGE384
ZUSATZGEWICHT (OPTION) SP386
VERKLEIDUNGEN388
MOTORHAUBE388
SITZKONSOLE390
SITZKONSOLE392
TANKABDECKUNG394
TRENNWAND396
Dร„MMMATTEN 1 SP398
Dร„MMMATTEN 2 SP400
SEITENVERKLEIDUNG402
ABDECKUNG CHASSIS404
ABDECKUNG FAHRWERK406
ABDECKUNGEN FAHRWERK (OPTION) SP408
ARMSYSTEM / LADEANLAGE410
HUBARM410
Lร–FFELSTIEL414
Lร–FFELSTIEL LANG (OPTION) SP418
Lร–FFELSTIEL (OPTION) SP422
Lร–FFELSTIEL (OPTION) SP426
KABINE / FAHRERSITZ430
KABINENLAGERUNG430
RAHMENANBAUTEILE (OPTION) SP434
RAHMENANBAUTEILE CANOPY SP438
TรœRE (OPTION) SP440
FRONTSCHEIBE (OPTION) SP442
FRONTSCHEIBE (OPTION) SP446
GLร„SER (OPTION) SP450
HECKSCHEIBE (OPTION) SP452
VERKLEIDUNGSTEILE (OPTION) SP454
SCHUTZGITTER FRONTSCHEIBE/FOPS OPTION SP456
FOPS-GITTER KLEIN (OPTION) SP458
SPLITTERSCHUTZ (OPTION) SP460
RUNDUMLEUCHTE (OPTION) SP462
RUNDUMLEUCHTE LED (OPTION) SP464
SPIEGEL (OPTION) SP466
STEUERHEBELTRร„GER LINKS SP468
STEUERHEBELTRร„GER LINKS SP472
STEUERHEBELTRร„GER RECHTS SP476
STEUERHEBELTRร„GER RECHTS SP478
FAHRERSITZ480
FAHRERSITZ LUFTGEFEDERT (OPTION) SP482
HEIZUNG, KLIMAANLAGE484
HEIZUNG (OPTION) SP484
HEIZUNG (OPTION) SP488
KLIMAANLAGE (OPTION) SP492
KLIMAANLAGE (OPTION) SP494
ANBAUTEILE (OPTION KLIMAANLAGE) SP498
ANBAUTEILE (OPTION)500
KLIMAANLAGE INSTALLATION (OPTION) SP502
AUFKLEBER, WERKZEUG506
AUFKLEBER506
AUFKLEBER (OPTION) SP510
AUFKLEBER HUBKRAFT514
AUFKLEBER HUBKRAFT (OPTION) SP516
WERKZEUG518
ANBAUGERร„TE SP520
SWS-GABEL520
EASY LOCK GABEL (OPTION) SP522
SCHNELLWECHSLER524
EASY L SCHNELLWECHSLEREINHEIT (OPT) SP526
POWERTILT (OPTION) SP528
POWERTILT LASTHAKEN (OPTION) SP530
TIEFLร–FFEL532
TIEFLร–FFEL SWS534
TIEFLร–FFEL SWS (OPTION) SP536
TIEFLร–FFEL EASY LOCK SP538
GRABENRร„UMLร–FFEL540
GRABRร„UMLร–FFEL SWS542
GRABENRร„UMLร–FFEL SWS (OPTION) SP544
GRABRร„UMLร–FFEL EASY LOCK SP546
SCHWENKLร–FFEL548
SCHWENKLร–FFEL SWS550
SCHWENKLร–FFEL SWS (OPTION) SP552
SCHWENKLร–FFEL EASY LOCK SP554
SCHWENKLร–FFEL EASY LOCK (OPTION) SP556
SCHWENKLร–FFELZYLINDER558
SCHWENKLร–FFELZYLINDER EASY LOCK SP560
SWS KONSOLEN562
EASY LOCK KONSOLEN SP564
KIT HYDRAULIKHAMMER NE16 SP566
KIT HYDRAULIKHAMMER NE16 SP568
KIT HYDRAULIKHAMMER NE22 SP570
KIT HYDRAULIKHAMMER NE22 SP572
