Wacker Neuson Parker Wheel Motor TC TB TE TJ TF TG TH and TL Series Low Speed High Torque Hydraulic TorqmotorsTM Service Procedure Manual
Description
Wacker Neuson Parker Wheel Motor TC, TB, TE, TJ, TF, TG, TH and TL Series Low Speed, High Torque Hydraulic TorqmotorsTM Service Procedure Manual – PDF DOWNLOAD

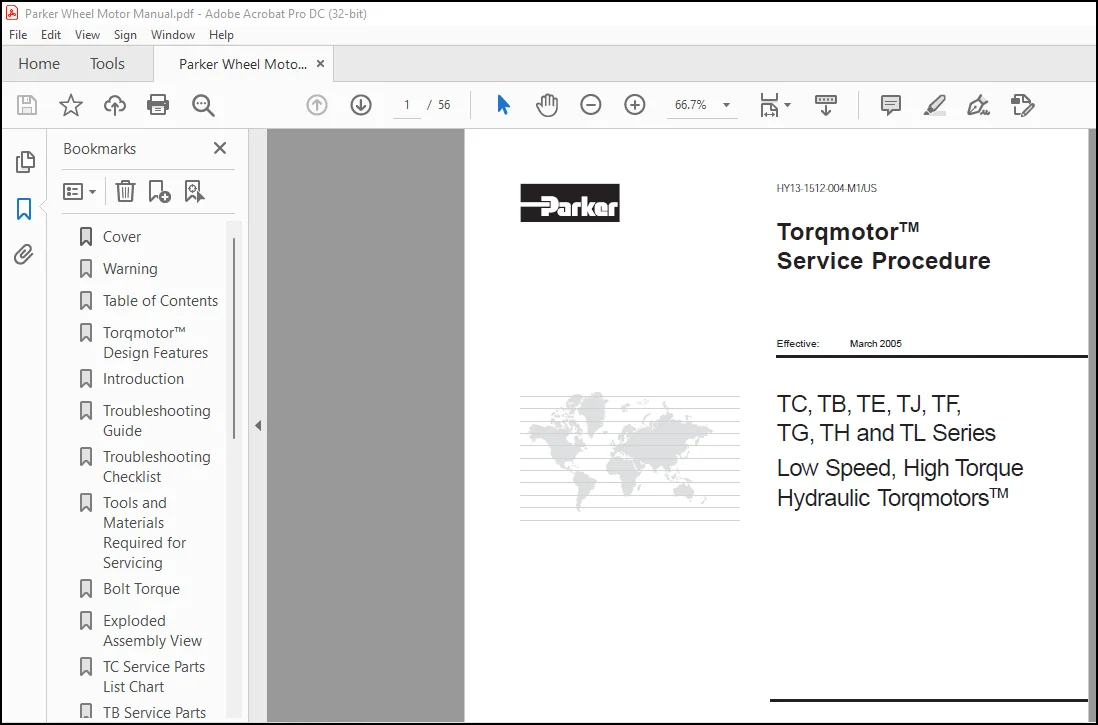

IMAGES OF MANUAL :
DESCRIPTION:
Wacker Neuson Parker Wheel Motor TC, TB, TE, TJ, TF, TG, TH and TL Series Low Speed, High Torque Hydraulic TorqmotorsTM Service Procedure Manual – PDF DOWNLOAD
Torqmotor™ TB/TC Series features
include:
• The roller vane rotor set design offers a
low-friction, wear compensation which
maximizes the useful performance life of the
motor.
• Zero leak commutation valve provides
greater, more consistent volumetric
efficiency.
• Design flexibility – TB offers the widest
selection of shaft options, displacements
and mounting flanges in the industry.
• Patented 60-40 spline member arrangement
transmits more torque with less weight.
• Full flow lubrication maximizes cooling
and may provide up to 50% longer life than
motors not having this feature.
• Higher pressure rating provide greater
torque than competitive brands.
• Full interchangeability with other motors
which are designed according to industry
standards.
• Compatible with most hydraulic systems
with regard to pressure, torque and speed.
• A unique high-pressure shaft seal that
eliminates the need for case drains.
• Up to 13 horsepower output.
TABLE OF CONTENTS:
Wacker Neuson Parker Wheel Motor TC, TB, TE, TJ, TF, TG, TH and TL Series Low Speed, High Torque Hydraulic TorqmotorsTM Service Procedure Manual – PDF DOWNLOAD
Cover………………………………….. 1
Warning………………………………… 2
Table of Contents……………………….. 3
Torqmotor™ Design Features……………….. 4
Introduction……………………………. 7
Troubleshooting Guide……………………. 8
Troubleshooting Checklist………………… 9
Tools and Materials Required for Servicing….10
Bolt Torque……………………………..11
Exploded Assembly View……………………12
TC Service Parts List Chart……………….14
TB Service Parts List Chart……………….16
TE Service Parts List Chart……………….18
TJ Service Parts List Chart……………….20
TF Service Parts List Chart……………….21
TG Service Parts List Chart……………….23
TH Service Parts List Chart……………….25
TL Service Parts List Chart……………….27
Disassembly and Inspection………………..28
Torqmotor™ Assembly………………………36
Rotor Set Component Assembly………………46
Final Checks…………………………….49
Hydraulic Fluid………………………….49
Filtration………………………………49
Oil Temperature………………………….49
Offer of Sale……………………………55
