Wacker Neuson PT Series Trash Pump Service Manual – PDF DOWNLOAD

Description

Wacker Neuson PT Series Trash Pump Service Manual – PDF DOWNLOAD

FILE DETAILS:

Wacker Neuson PT Series Trash Pump Service Manual – PDF DOWNLOAD

Language : English
Pages : 38
Downloadable : Yes
File Type : PDF
Size: 4.21 MB

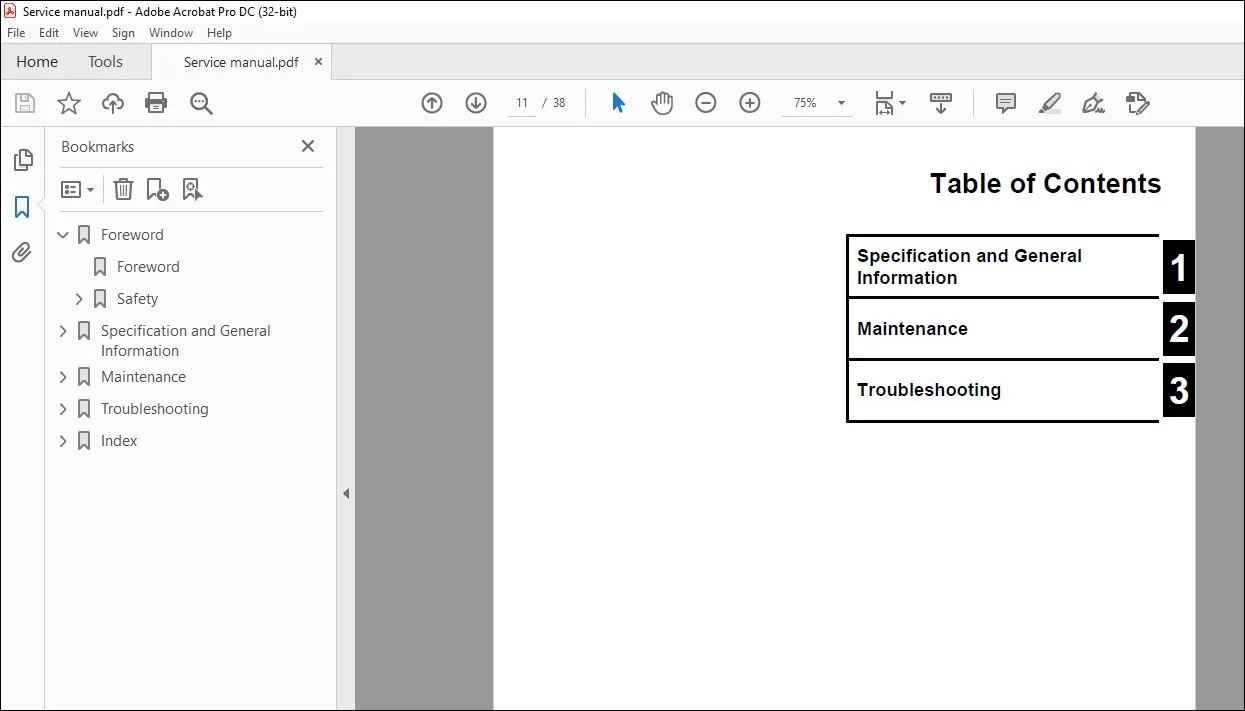

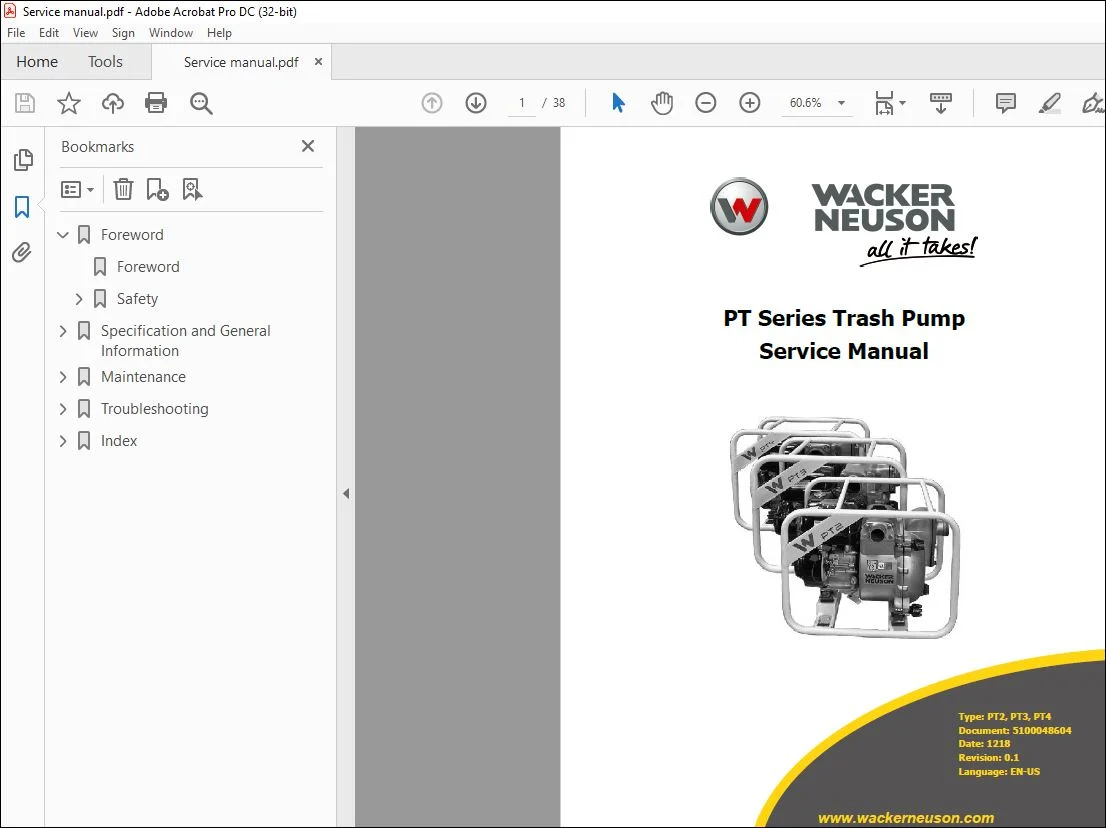

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Wacker Neuson PT Series Trash Pump Service Manual – PDF DOWNLOAD

Type: PT2, PT3, PT4
Document: 5100048604
Date: 1218
Revision: 0.1
Language: EN-US

Foreword:
General:

This manual provides detailed information and procedures to safely repair and maintain the following: Wacker Neuson PT Series Trash Pump. This manual is intended to introduce and guide the user through the latest factory-approved troubleshooting and repair techniques and practices.

• Before you attempt to troubleshoot or make repairs, you must be familiar with the operation of this machine. Refer to the operator’s manual for specific information on these topics.
• THE INFORMATION CONTAINED IN THIS MANUAL IS BASED ON MACHINES MANUFACTURED UP TO THE TIME OF PUBLICATION. WACKER NEUSON RESERVES THE RIGHT TO CHANGE ANY OF THIS INFORMATION WITHOUT NOTICE.

TABLE OF CONTENTS:

Wacker Neuson PT Series Trash Pump Service Manual – PDF DOWNLOAD

Foreword 3
Foreword 3
Safety 4
Introduction 4
Preparing for the Job 4
Service Training 4
Repair Person Qualifications 4
Personal Protective Equipment (PPE) 4
Personal Safety Measures 4
Precautions 4
Cleaning 4
Preparing Pump for Maintenance 4
General Maintenance Notes 4
Pump Modifications 5
Safety Symbols Found in This Manual 5
Safety Label Inspection 5
Keep Work Area Clean 5
Keep Work Area Well-Ventilated 5
Use Proper Eye and Face Protection 5
Support Pump Securely 7
Use Lifting Equipment Safely 7
Use Compressed Air and Air Tools Safely 7
Handle Fuel Safely 8
Store Volatile and Hazardous Materials Safely 8
Handle Chemical Products Safely 8
Service Electrical Components Safely 9
Dispose of Waste Materials Safely 9
Specification and General Information 13
Standard Torque Values 14
Torque Values 14
SAE Standard Fasteners Torque Limits 14
Metric Fasteners Torque Limits 16
Using a Torque Wrench Extension 17
General Specifications 18
General Specifications 18
Engine 18
Pump 18
Complete Pump Assembly 18
Maintenance 21
Maintinance and Testing 22
Engine Oil Drain/Fill Procedure 22
Drain/Fill 22
Pump Priming and Operation 23
Priming Pump 23
Pump Operation 24
After Use 24
Draining Pump 24
Front Cover 25
Removal and Installation 25
Suction Test 26
Suction and Discharge Flange 27
Removal and Installation 27
Spark Plug Inspection 27
Inspection 27
Mechanical Seal 28
Inspection 28
Removal and Installation 28
Troubleshooting 31
Troubleshooting 32
Starting Engine 32
Symptom: Can Not Pull or Hard to Pull Recoil Starter 32
Symptom: Engine Does Not Start 32
Pump Functions 33
Symptom: Pump Has Low Delivery Volume 33
Symptom: Pump Does Not Prime 33
Oil Leak 34
Symptom: Oil Leaks From Muffler or Air Cleaner 34
Index 35
Numerics 35
F 35
G 35
M 35
O 35
P 35
S 35
T 35
