Wacker Neuson PTS 4V PTK 4 Pump Repair Manual – PDF DOWNLOAD

Description

Wacker Neuson PTS 4V PTK 4 Pump Repair Manual – PDF DOWNLOAD

DESCRIPTION:

Wacker Neuson PTS 4V PTK 4 Pump Repair Manual – PDF DOWNLOAD

Operating / Parts Information:

You must be familiar with the operation of this machine before you
attempt to troubleshoot or repair it. Basic operating and maintenance
procedures are described in the Operator’s Manual supplied with the
machine. Keep a copy of the Operator’s Manual with the machine at all
times. Use the separate Parts Book supplied with the machine to order
replacement parts. If you are missing either of the documents, please
contact Wacker Corporation to order a replacement.
Damage caused by misuse or neglect of the unit should be brought to
the attention of the operator to prevent similar occurrences from
happening in the future.

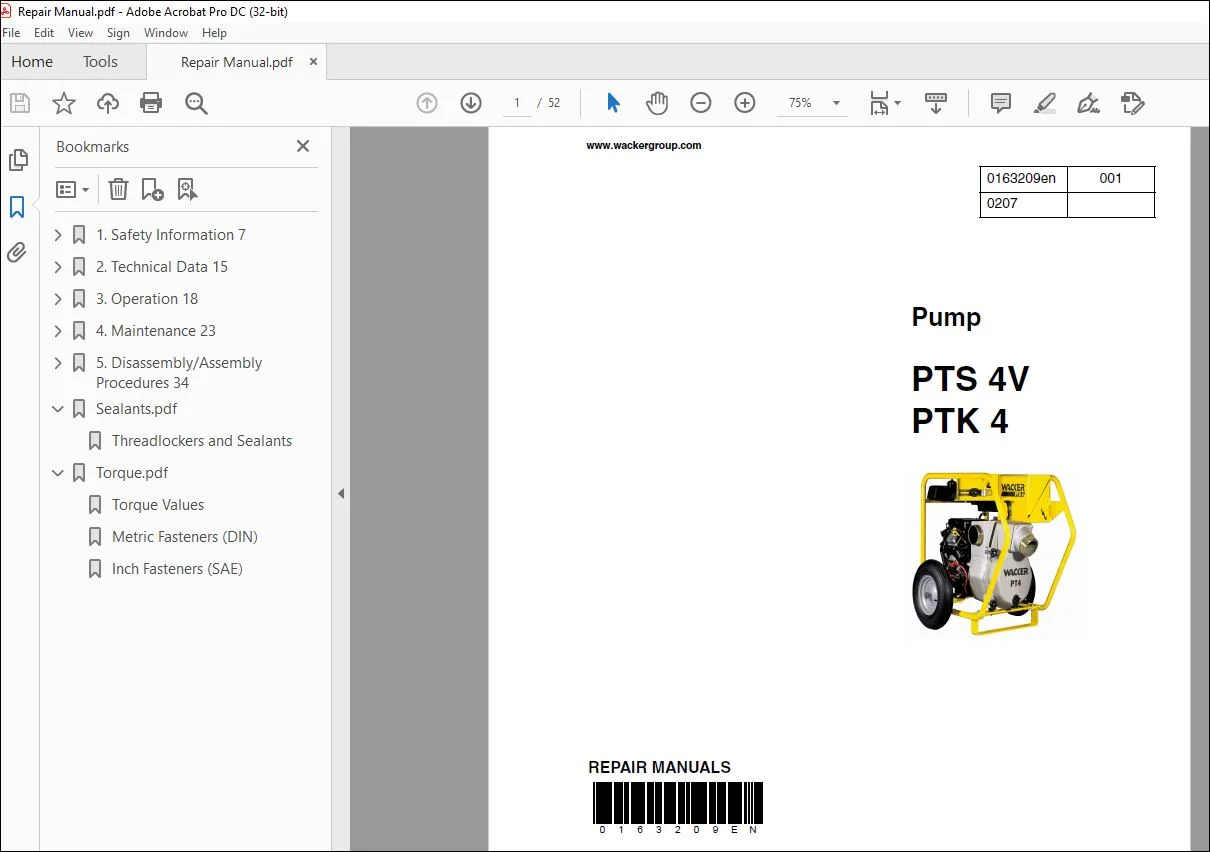

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Wacker Neuson PTS 4V PTK 4 Pump Repair Manual – PDF DOWNLOAD

1 Safety Information 7
1 1 Operating Safety 8
1 2 Operator Safety while using Internal Combustion Engines 9
1 3 Service Safety 10
1 4 Label Locations 11
1 5 Safety Labels 12
2 Technical Data 15
2 1 Engine 15
2 2 Pump 16
2 3 Sound Measurements 17
2 4 Dimensions 17
3 Operation 18
3 1 Application 18
3 2 Recommended Fuel 18
3 3 Before Starting 18
3 4 To Start 20
3 5 To Stop 21
3 6 Operation 21
3 7 Pump Wrench 21
3 8 Accessories 22
3 9 Hoses and Clamps 22
4 Maintenance 23
4 1 Periodic Maintenance Schedule 23
4 2 Engine Lubrication 24
4 3 Changing Oil Filter 25
4 4 Air Cleaner 26
4 5 Spark Plug 27
4 6 Fuel Filter 28
4 7 Carburetor Adjustment 28
4 8 Changing Mechanical Seal Coolant 29
4 9 Adjusting Impeller Clearance 30
Table of Contents PT 4
wc_br0163209en_001TOC fm 6
4 10 Cleaning Pump 31
4 11 Storage 32
4 12 Lifting 32
4 13 Troubleshooting 33
5 Disassembly/Assembly Procedures 34
5 1 PTS 4V Exploded View 34
5 2 PTS 4V Components 35
5 3 Replacing the Flapper Valve 36
5 4 Replacing the Impeller 37
5 5 Replacing the Mechanical Seal 38
5 6 Replacing the Pump Housing 40
5 7 Volute, Insert, and Shims 42
5 8 Replacing the Engine 44
5 9 Wiring Diagram 45
