Wacker Neuson RS 600A Walk-Behind Rollers Operator’s Manual – PDF DOWNLOAD

Description

Wacker Neuson RS 600A Walk-Behind Rollers Operator’s Manual – PDF DOWNLOAD

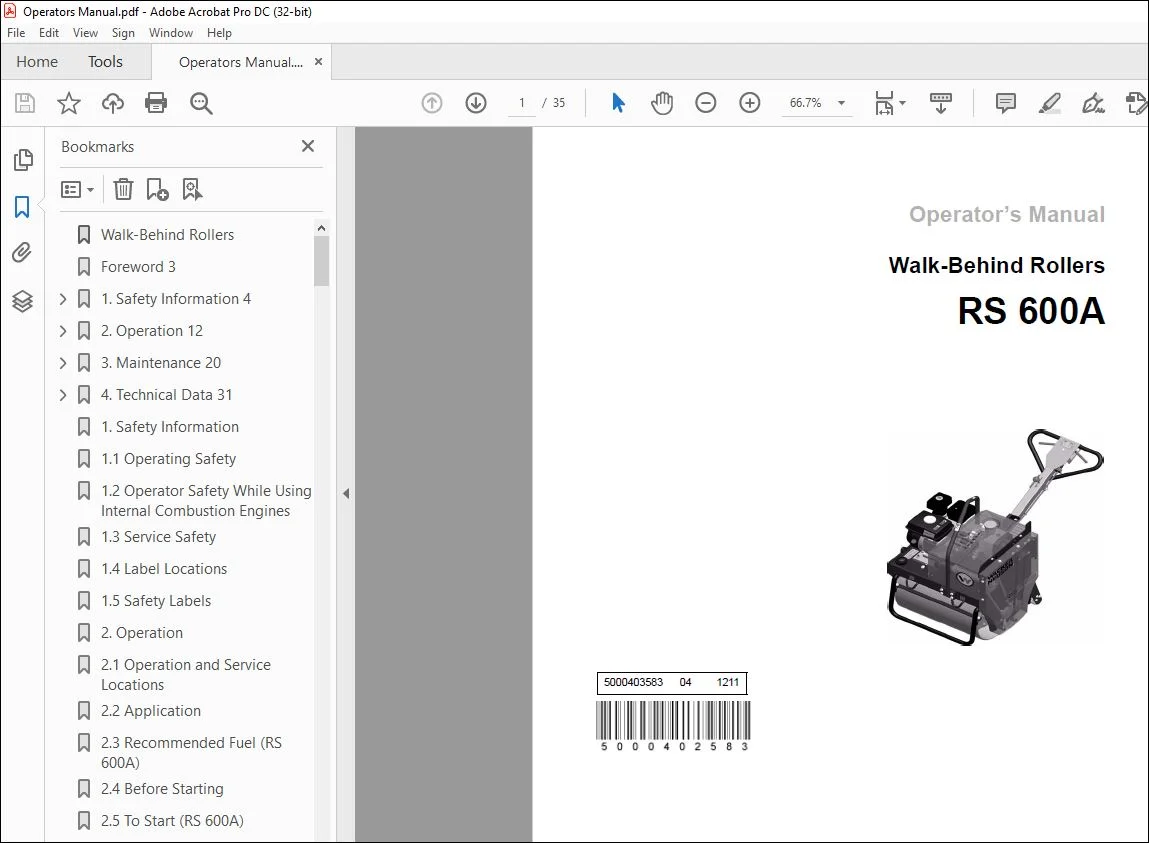

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Wacker Neuson RS 600A Walk-Behind Rollers Operator’s Manual – PDF DOWNLOAD

Operating Safety
Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be hazardous. Read the operating instructions contained in this
manual and the engine manual, and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.
1.1.1 Never operate this machine in applications for which it is not intended.
1.1.2 Do not touch the engine or muffler while the engine is on or
immediately after it has been turned off. These areas get hot and may
cause burns.
1.1.3 Do not use accessories or attachments that are not recommended by
Wacker Neuson. Damage to equipment and injury to the user may
result.
1.1.4 Always wear protective clothing appropriate to the job site when
operating the machine.
1.1.5 ALWAYS remain aware of moving parts and keep hands, feet, and
loose clothing away from the moving parts of the machine.
1.1.6 Read, understand, and follow procedures in the Operator’s Manual
before attempting to operate the machine.
1.1.7 ALWAYS check that all controls are functioning properly immediately
after start-up! DO NOT operate machine unless all controls operate
correctly.
1.1.8 ALWAYS remain aware of changing positions and movement of other
equipment and personnel on the job site.
1.1.9 ALWAYS remain aware of changing surface conditions and use extra
care when operating over uneven ground, on hills, or over soft or
coarse material. The machine could shift or slide unexpectedly.
1.1.10 ALWAYS use caution when operating near the edges of pits, trenches
or platforms. Check to be sure ground surface is stable enough to
support the weight of the machine and operator and there is no danger
of the machine sliding, falling or tipping.

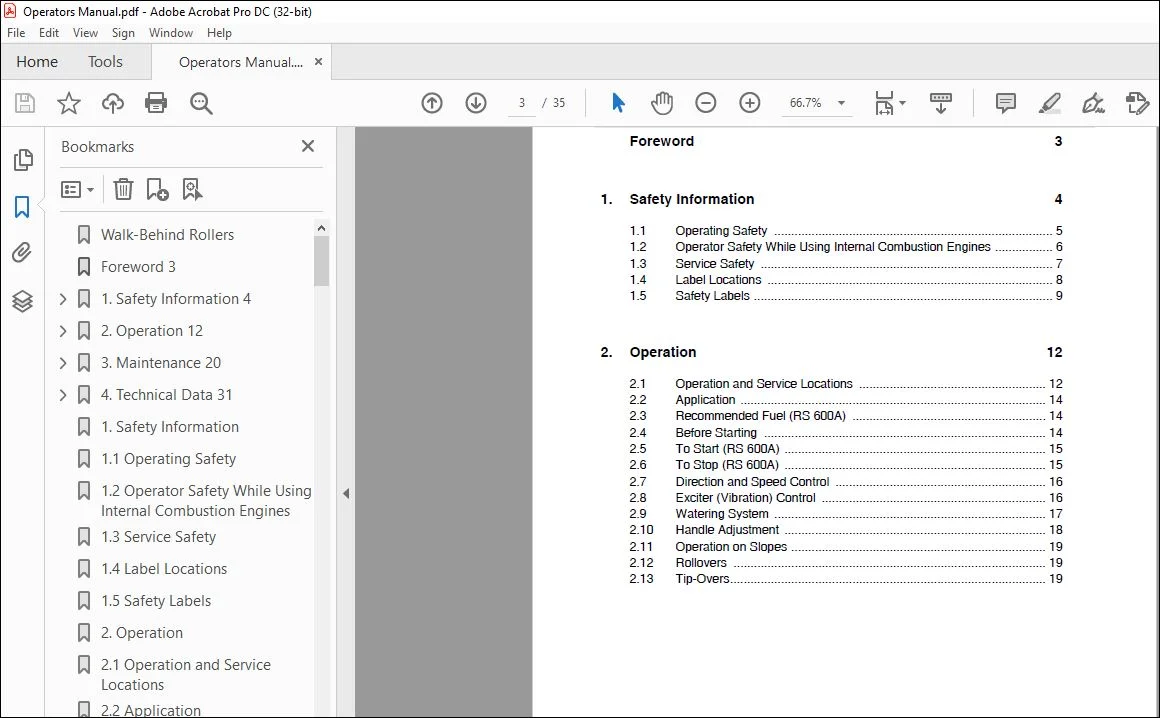

TABLE OF CONTENTS:

Wacker Neuson RS 600A Walk-Behind Rollers Operator’s Manual – PDF DOWNLOAD

1. Safety Information 4
1.1 Operating Safety ………………………………………………………………………. 5
1.2 Operator Safety While Using Internal Combustion Engines …………….. 6
1.3 Service Safety ………………………………………………………………………….. 7
1.4 Label Locations ………………………………………………………………………… 8
1.5 Safety Labels ……………………………………………………………………………. 9
2. Operation 12
2.1 Operation and Service Locations ………………………………………………. 12
2.2 Application ……………………………………………………………………………… 14
2.3 Recommended Fuel (RS 600A) ………………………………………………… 14
2.4 Before Starting ……………………………………………………………………….. 14
2.5 To Start (RS 600A) ………………………………………………………………….. 15
2.6 To Stop (RS 600A) ………………………………………………………………….. 15
2.7 Direction and Speed Control …………………………………………………….. 16
2.8 Exciter (Vibration) Control ………………………………………………………… 16
2.9 Watering System …………………………………………………………………….. 17
2.10 Handle Adjustment ………………………………………………………………….. 18
2.11 Operation on Slopes ………………………………………………………………… 19
2.12 Rollovers ……………………………………………………………………………….. 19
2.13 Tip-Overs………………………………………………………………………………… 19
Table of Contents RS 600A
wpm_bo5000402583_02TOC.fm 2
3. Maintenance 20
3.1 Periodic Maintenance Schedule ………………………………………………….20
3.2 Lubrication ……………………………………………………………………………….21
3.3 Storage ……………………………………………………………………………………22
3.4 Engine Oil ………………………………………………………………………………..22
3.5 Air Cleaner ………………………………………………………………………………23
3.6 Spark Plug ……………………………………………………………………………….24
3.7 Sediment Cup …………………………………………………………………………..24
3.8 Carburetor ……………………………………………………………………………….25
3.9 Scraper Bars ……………………………………………………………………………26
3.10 Cleaning the Machine ………………………………………………………………..26
3.11 Lifting the Machine ……………………………………………………………………27
3.12 Transporting the Machine …………………………………………………………..28
3.13 Troubleshooting ………………………………………………………………………..29
4. Technical Data 31
4.1 Engine …………………………………………………………………………………….31
4.2 Roller ………………………………………………………………………………………32
4.3 Lubrication ……………………………………………………………………………….32
4.4 Dimensions ………………………………………………………………………………33
