Wacker Neuson TH 522 Telehandler Operator’s manual – PDF DOWNLOAD

Description

Wacker Neuson TH 522 Telehandler Operator’s manual – PDF DOWNLOAD

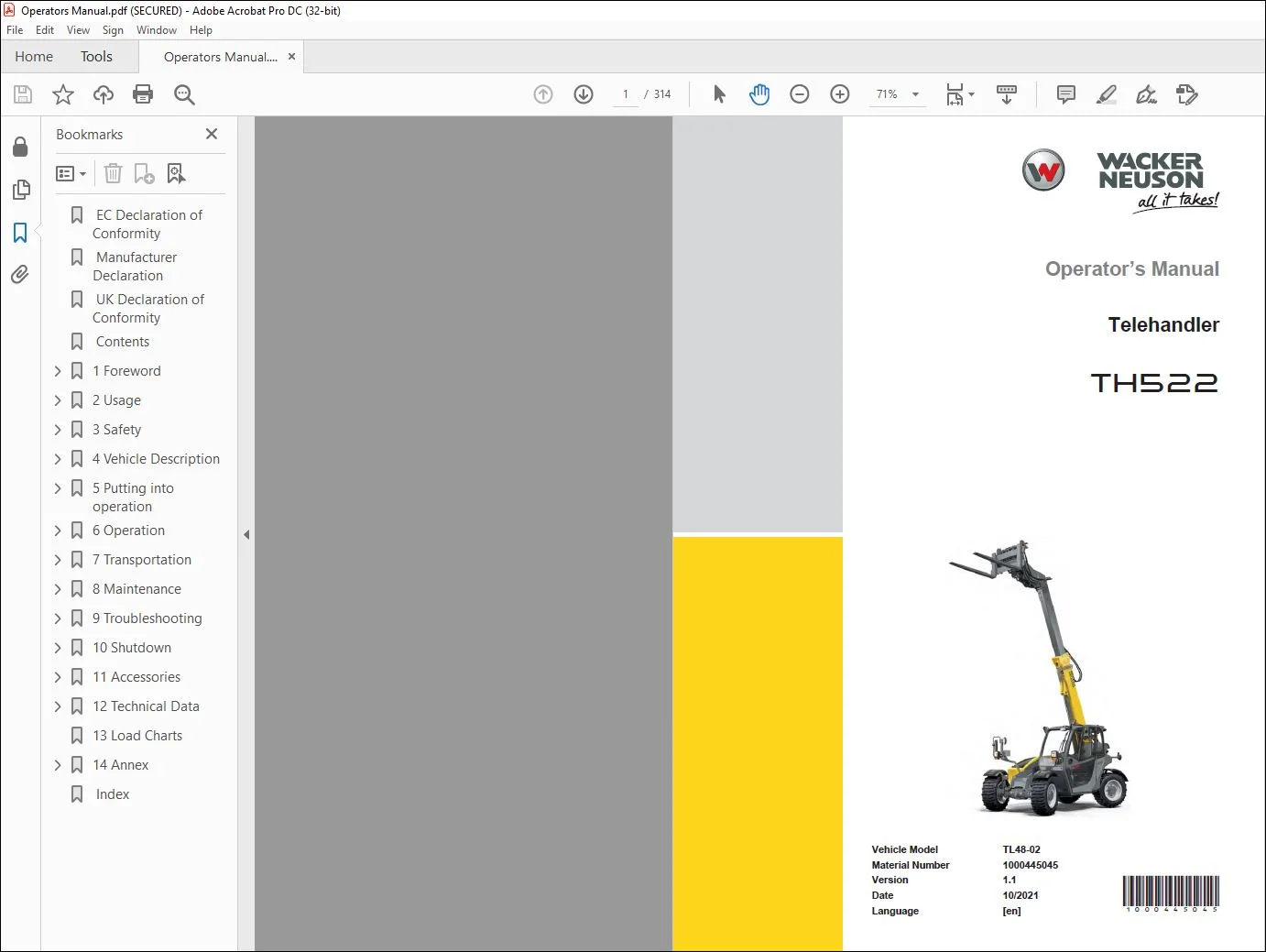

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Wacker Neuson TH 522 Telehandler Operator’s manual – PDF DOWNLOAD

1 Foreword
1.1 Operator’s manual
1.1.1 Information on this operator’s manual

• This operator’s manual is only valid for the vehicles listed on the title
page.
• The operator’s manual provides information on the use, settings, operation
and maintenance of the vehicle, including different attachments
approved for the vehicle. The operator’s manual is therefore intended
for the operator and the operating company.
• This operator’s manual also includes descriptions of additional equipment
and options. These sections are not marked separately . The
scope of description in the operator’s manual can therefore deviate
from the actual equipment present on your vehicle without a claim for
retrofitting being able to be derived from this.
• The operator’s manual and any amendments form part of the vehicle
and must always be available at the place of use of the vehicle .
• Store this operator’s manual in the place provided for this in or on the
vehicle.
• Immediately replace an incomplete or illegible operator’s manual with
a new one.
• In addition to the operator’s manual, observe statutory, generally applicable
and other binding regulations on accident prevention and environmental
protection.
• The manufacturer constantly keeps abreast of the latest technical developments
and constantly improve its products. For this reason, we
may from time to time need to make changes to figures and descriptions
in this documentation that do not reflect products that have
already been delivered and that will not be implemented on these
vehicles.
• Technical specifications, dimensions and weights are not binding and
correspond to the state at the time of printing. Responsibility for errors
or omissions not accepted.
• The specifications “left” and “right” in the descriptions always refer to
the vehicle in the travel direction.
• For further questions about the vehicle and the operator’s manual,
please contact your service partner at any time.

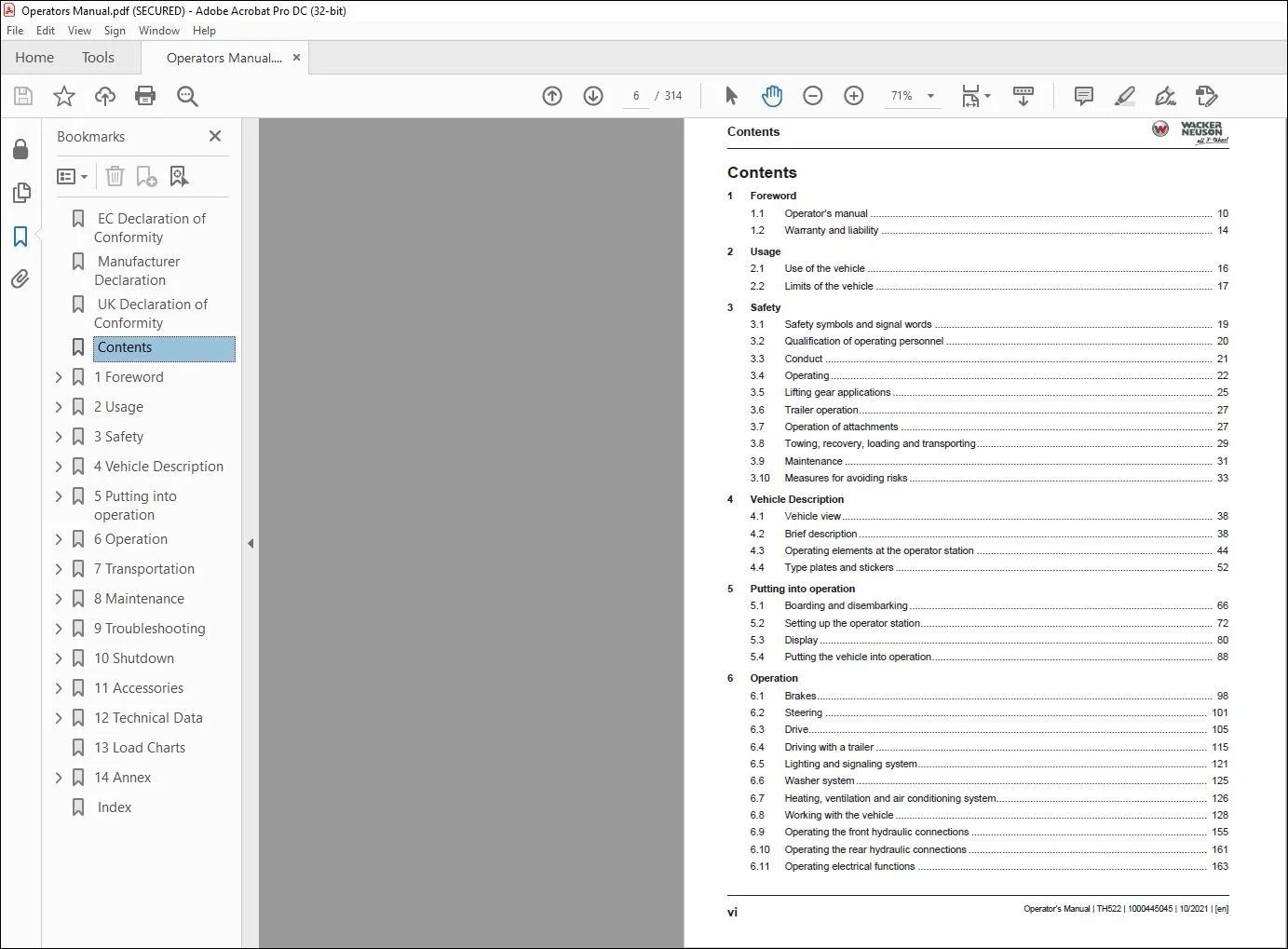

TABLE OF CONTENTS:

Wacker Neuson TH 522 Telehandler Operator’s manual – PDF DOWNLOAD

1 Foreword
11 Operator’s manual 10
12 Warranty and liability 14
2 Usage
21 Use of the vehicle 16
22 Limits of the vehicle 17
3 Safety
31 Safety symbols and signal words 19
32 Qualification of operating personnel 20
33 Conduct 21
34 Operating 22
35 Lifting gear applications 25
36 Trailer operation 27
37 Operation of attachments 27
38 Towing, recovery, loading and transporting 29
39 Maintenance 31
310 Measures for avoiding risks 33
4 Vehicle Description
41 Vehicle view 38
42 Brief description 38
43 Operating elements at the operator station 44
44 Type plates and stickers 52
5 Putting into operation
51 Boarding and disembarking 66
52 Setting up the operator station 72
53 Display 80
54 Putting the vehicle into operation 88
6 Operation
61 Brakes 98
62 Steering 101
63 Drive 105
64 Driving with a trailer 115
65 Lighting and signaling system 121
66 Washer system 125
67 Heating, ventilation and air conditioning system 126
68 Working with the vehicle 128
69 Operating the front hydraulic connections 155
610 Operating the rear hydraulic connections 161
611 Operating electrical functions 163
Contents
[en] | 10/2021 | 1000445045 | TH522 | Operator’s Manual vii
612 Working with attachments 164
7 Transportation
71 Towing 175
72 Loading 178
73 Transportation 182
8 Maintenance
81 Information on maintenance 184
82 Maintenance accesses 186
83 Visual check 188
84 Maintenance plan 190
85 Vehicle fluids 194
86 Levels 196
87 Lubricating the vehicle and attachment 208
88 Cleaning and care 214
89 Braking system 223
810 Steering system 223
811 Electrical system 225
812 Working hydraulics 228
813 Engine 230
814 Exhaust gas aftertreatment 231
815 Cab 238
816 Tires 240
9 Troubleshooting
91 Faults, causes, remedy 244
92 Fault indications 246
10 Shutdown
101 Temporary shutdown 250
102 Permanent shutdown 251
11 Accessories
111 Attachments 253
12 Technical Data
121 Dimensions 264
122 Engine 266
123 Electrical system 267
124 Drive system 271
125 Hydraulics 272
126 Emissions 273
127 Weights 274

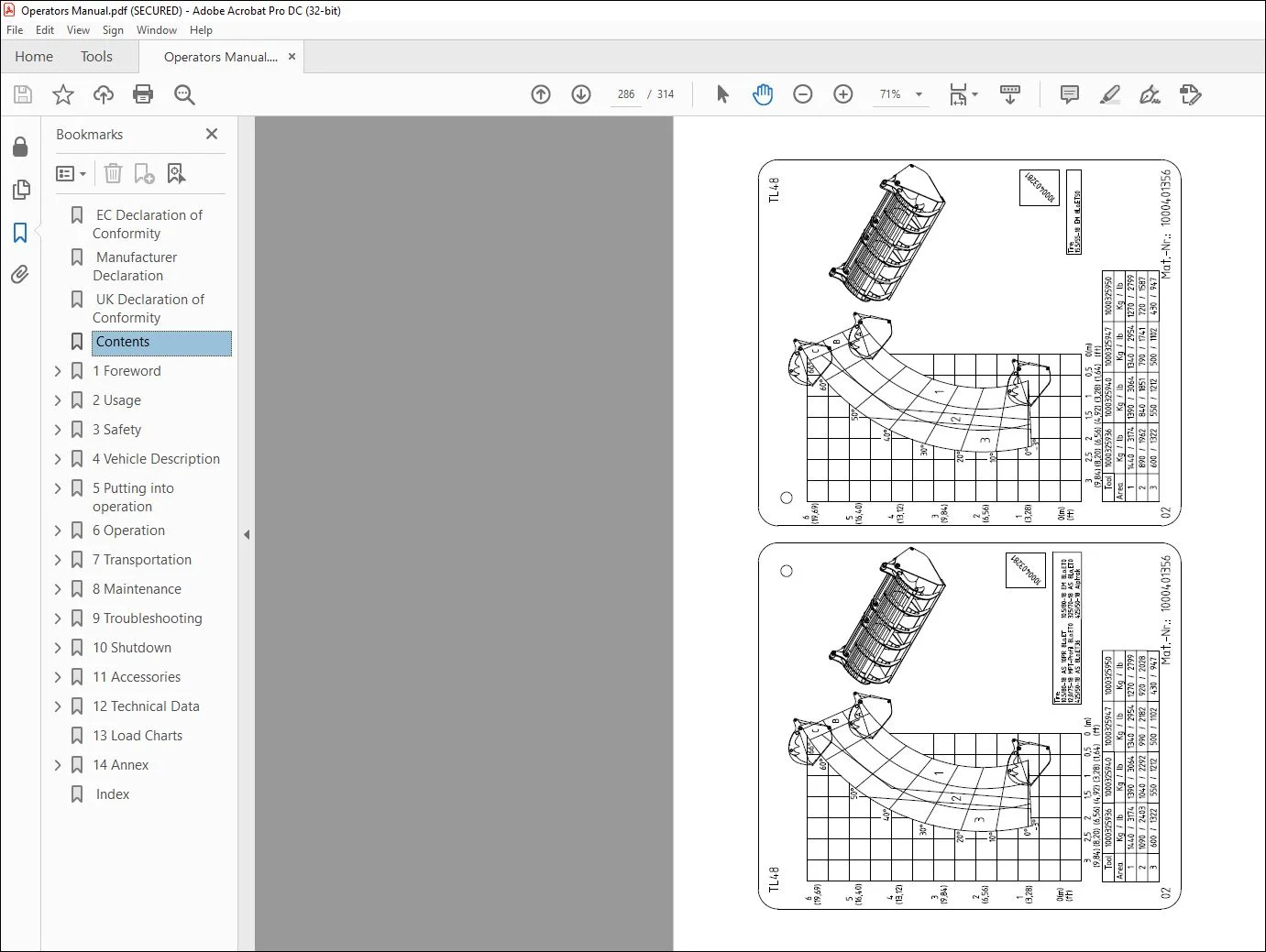

13 Load Charts
14 Annex
Contents
viii Operator’s Manual | TH522 | 1000445045 | 10/2021 | [en]
141 Introduction 298
142 Warranty 298
143 Vehicle information 300
144 Inspection certificates 301
Index
