Wacker Neuson UNITRAC RF 250 Paver Excavator Parts Manual 1000081318 PDF
$18.95
Wacker Neuson UNITRAC RF 250 Paver Excavator Parts Manual 1000081318 – PDF DOWNLOAD
Description
Wacker Neuson UNITRAC RF 250 Paver Excavator Parts Manual 1000081318 – PDF DOWNLOAD
FILE DETAILS:
Wacker Neuson UNITRAC RF 250 Paver Excavator Parts Manual 1000081318 – PDF DOWNLOADΒ
Language : English_German_French
Pages : 66
Downloadable : Yes
File Type : PDF

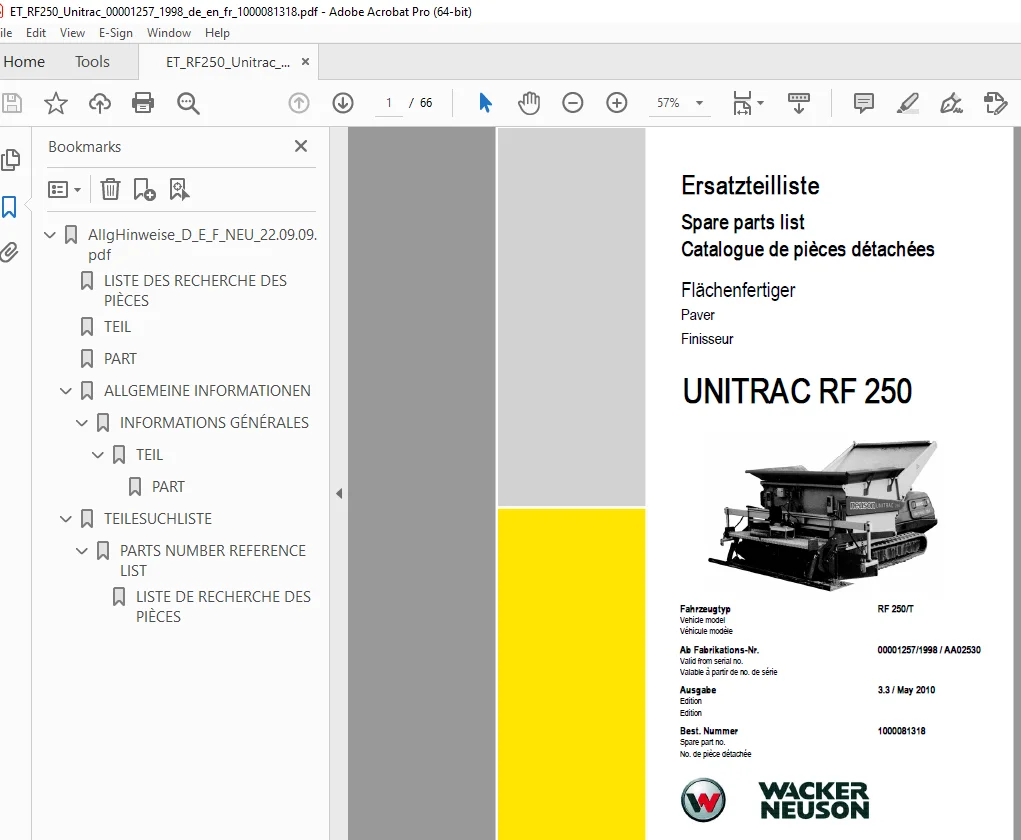

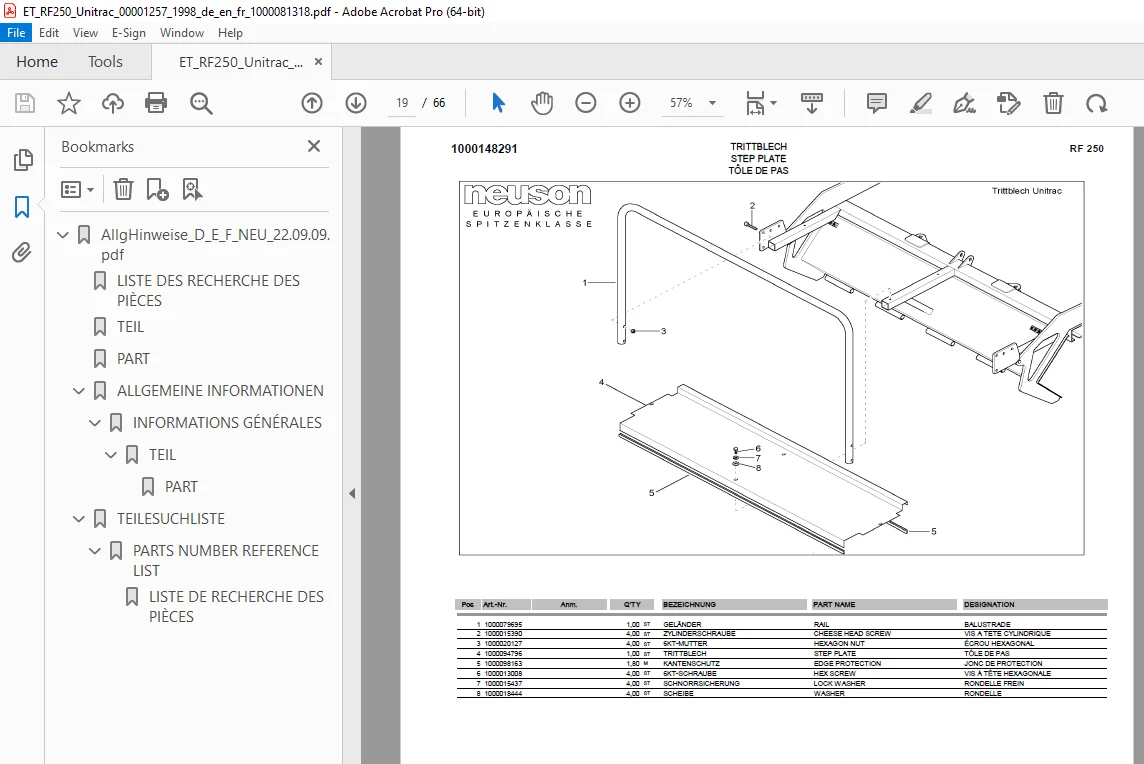

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Wacker Neuson UNITRAC RF 250 Paver Excavator Parts Manual 1000081318 – PDF DOWNLOADΒ
- RAUPENFAHRWERK / TRACKLAYING GEAR / CHENILLE DE ROULEMENT – 01/10
- FAHRANTRIEB / DRIVE UNIT / MOTO RΓDUCTUEUR TRANSLATION – 01/20
- SPANNLAGER / TRACK TENSIONER COMPLETE / PALIER DE SERRAGE – 01/30
- FΓHRUNGSROLLE / GUIDE ROLLER / ROULEAU DE GUIDAGE – 01/40
- MULDE / SKIP / AUGE – 02/10
- KIPPMULDE (OPTION) SP / TILT BUCKET (OPTION) / AUGE BASCULANTE (OPTION) – 02/20
- AUFSETZWΓNDE (OPTION) SP / PLATFORM GATE (OPTION) / PORTE DE PLATEFORME (OPTION) – 02/30
- KLAPPE / FLAP / CLAPET – 02/40
- PLANIERVORRICHTUNG / GRADE DEVICE / DISPOSITIF DE TERRASSEMENT – 02/50
- TRITTBLECH / STEP PLATE / TΓLE DE PAS – 02/60
- GLEITSOHLE / SLIDE BOTTOM / SOLE GLISSANT – 02/70
- SEITENKLAPPE / SIDE FLAP / CLAPET LATΓRAL – 02/80
- MOTORHAUBE / ENGINE HOOD / CAPOT – 03/10
- ABDECKUNG / COVER / COUVERCLE – 03/20
- PARALLELFAHREINRICHTUNG / PARALLEL DRIVING UNIT / SYSTEM DE DEPLACEMENT PARALLELE – 03/30
- STEINSCHUTZBLECH / PROTECTION SHIELD / PLAQUE DE PROTECTION – 03/40
- STEINSCHUTZ / STONE PROTECTION / PROTECTION Γ PIERRES – 03/50
- ULTRASCHALLEINHEIT / ULTRASONIC UNIT / UNITΓ ULTRASONIQUE – 03/60
- DIESELMOTOR ANBAUTEILE SP / MOUNTINGSET DIESEL ENGINE / ΓQUIPEMEMT MOTEUR DIESEL – 05/10
- MOTORLAGERUNG / ENGINE BEDDING / SUSPENSION DU MOTEUR – 05/20
- WASSERKΓHLER / WATER COOLER / RΓFRIGΓRANT D’EAU – 05/30
- LUFTFILTER / AIR CLEANER / FILTRE Γ AIR – 05/40
- AUSPUFF / EXHAUST / ΓCHAPPEMENT – 05/50
- KRAFTSTOFFVERSORGUNG / FUEL SYSTEM / RAVITAILLEMENT EN CARBURANT – 05/60
- GASBETΓTIGUNG / SPEED ACTUATING / COMMANDE D’ACCΓLΓRATEUR – 05/70
- KRAFTSTOFFTANK / FUEL TANK / RΓSERVOIR DE CARBURANT – 05/80
- PUMPENANTRIEB / HYDRAULIC PUMP DRIVE / EMBRAYAGE PAR POMPE HYDRAULIQUE – 05/90
- HYDRAULIKTANK / HYDRAULIC TANK / RΓSERVOIR HYDRAULIQUE – 06/10
- ΓLKΓHLER / OIL COOLER / RADIATEUR D’HUILE – 06/20
- PROPORTIONALVENTIL (OPTION) SP / PROPORTIONAL VALVE (OPTION) / VALVE D’PROPORTIONNEL (OPTION) – 06/30
- HYDRAULIKPUMPE / HYDRAULIC PUMP / POMPE HYDRAULIQUE – 06/40
- UMSCHALTVENTIL / CHANGE OVER VALVE / SOUPAPE DE COMMUTATION – 06/50
- UMSCHALTVENTIL (OPTION) SP / REVERSING VALVE (OPTION) / SOUPAPE D`INVERSION (OPTION) – 06/60
- VERTEILERBLOCK / DISTRIBUTOR BLOCK / BLOC DE DISTRIBUTION – 06/70
- 3/2 WEGEVENTIL SP / 3/2 VALVE / 3/2 CLAPET – 06/80
- HYDRAULIKZYLINDER / HYDRAULIC CYLINDER / VERINS HYDRAULIQUE
- ΓLKΓHLER INSTALLATION / OIL COOLER INSTALLATION / INSTALLATION RΓFRIGΓRANT Γ L’HUILE – 08/10
- HYDRAULIKPUMPE INSTALLATION / HYDRAULIC PUMP INSTALLATION / INST. POMPE HYDRAULIQUE – 08/20
- FAHRANTRIEB INSTALLATION / TRAVELLING GEAR INSTALLATION / MOTEUR DE TRANSLATION INST. – 08/30
- VERTEILERBLOCK INSTALLATION / MANIFOLD BLOCK INSTALLATION / INSTALLATION COLLECTEUR – 08/40
- ARMATURENBRETT / INSTRUMENT PANEL / TABLEAU DE BORD – 09/10
- BATTERIE / BATTERY / BATTERIE – 09/20
- FRONTBELEUCHTUNG / FRONTLIGHTS / PHARES AVANT – 09/30
- HUPE / HORN / AVERTISSEUR – 09/40
- AUFKLEBER / STICKER / AUTOCOLLANT – 10/10
- WERKZEUG / TOOLS / OUTIL – 10/20
DESCRIPTION:
Wacker Neuson UNITRAC RF 250 Paver Excavator Parts Manual 1000081318 – PDF DOWNLOADΒ
INFORMATION
1. TEXTURE OF SPARE PARTS MANUAL
1.1. EXAMPLE
Pos Art.-Nr. Anm. Q’TY BEZEICHNUNG PART NAME DESIGNATION
1 1408410 A: AA00733V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
1 1408309 E: AA00734V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
2 9901175 2,00 ST SCHRAUBE SCREW VIS
3 9910021 1,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
4 9910024 4,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
5 9910022 2,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
τ£ τ€ τ₯ τ¦ τ§
1.3. EXPLANATION
τ£Illustration reference number
τ€Part number
τ₯Remarks (see symbols and notes)
τ¦quantity required (see note below)
τ§Part name
1.3. NOTES
The quantity shown in column τ¦ is the quantity required for the particular application that is illustrated. If the parts are components of an
assembly, this refers to the quantity in one assembly or sub assembly.
1.4. REMARKS
The in column τ₯ listed information shows, from which serial number the new part is valid.
AτN: Old and new part are exchangeable
A=>N: Old part is exchangeable through the new one, but not in the opposite
A#N: Old and new part not exchangeable
XX: The part is only sold as assembly
KDN 17/00: KDN Service news No../ Year
A: Valid to serial number
E: Valid from serial number
: Part includes a surcharge, redeemable upon return of old unit
2. ORDERING INSTRUCTIONS
Please pass the order with the following information to your dealer:
Your dealer:
Dealer stamp
– type of vehicle
– serial number
– type and serial number of the motor (for motor
spare parts)
– page
– reference number
– item number
3. GENERAL INFORMATION
The descriptive pictures shown in the spare manual can differ from the actual versions.
Not all the shown options are available in every country
Parts without item numbers are not available as spare parts.
S.V 04/01/2025
