Description
Wacker Neuson WL32 USA Wheel loader SPARE PARTS LIST Manual – PDF DOWNLOAD

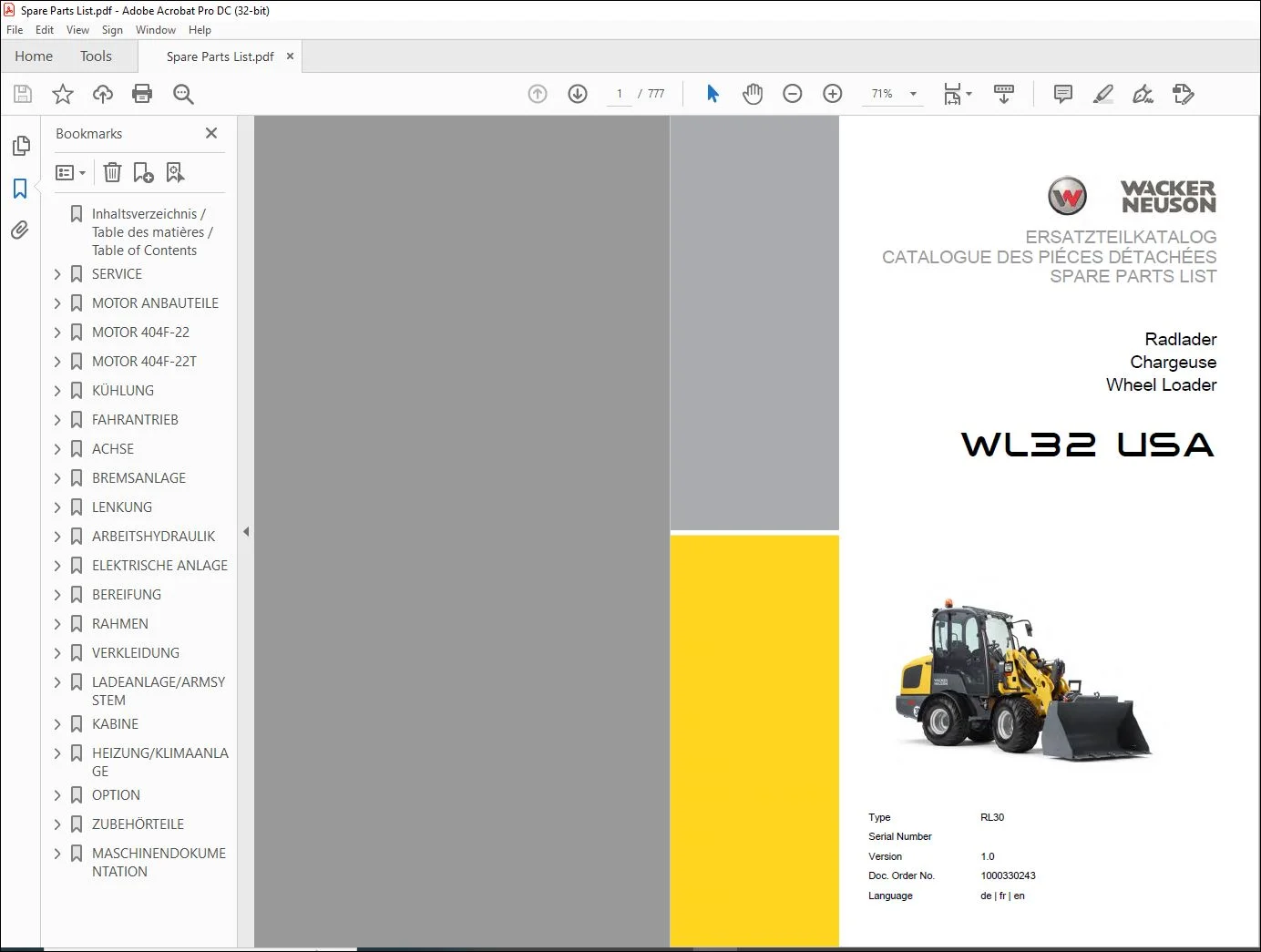

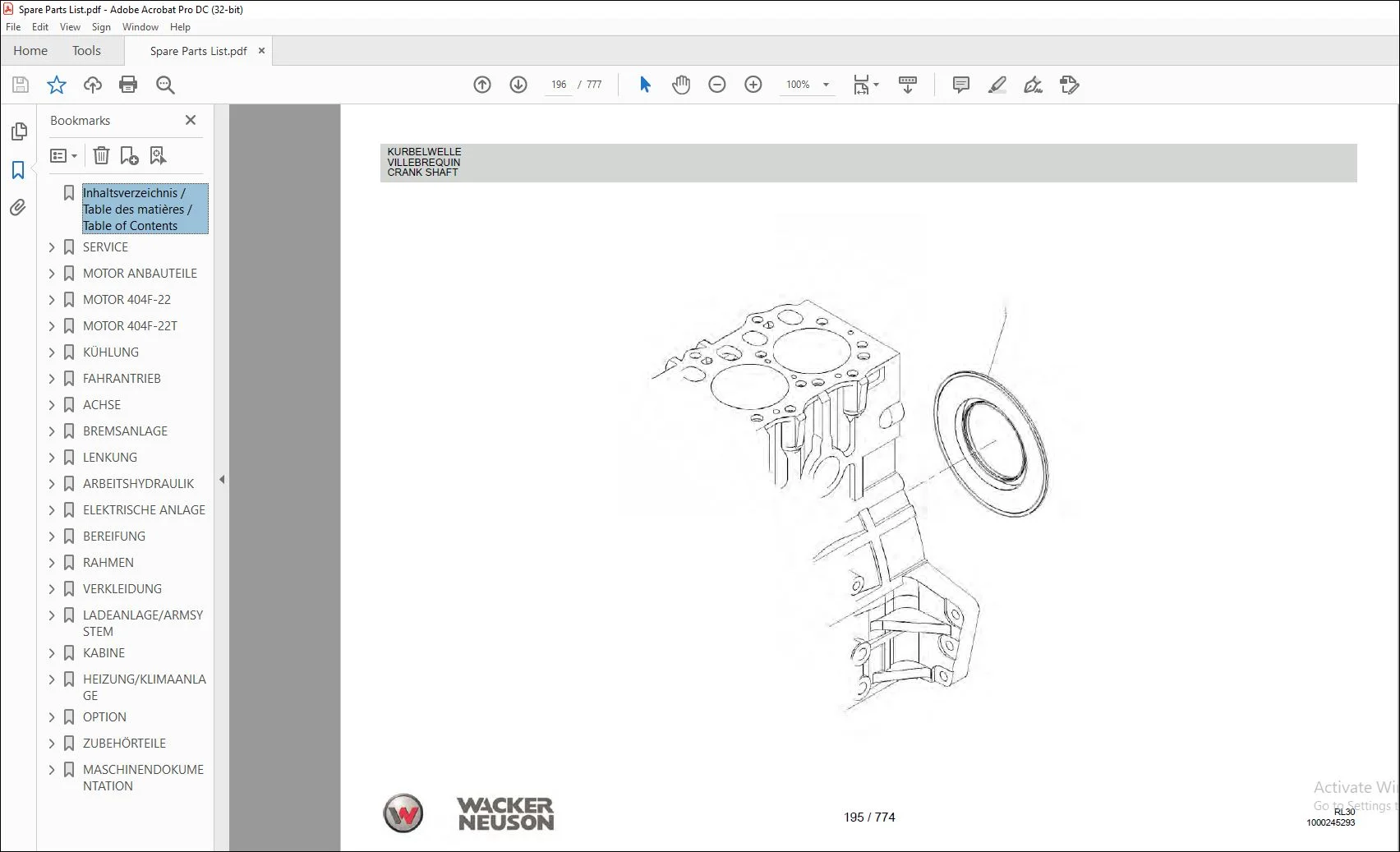

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:
Wacker Neuson WL32 USA Wheel loader SPARE PARTS LIST Manual – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary:
- material number and position number. The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full. In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model.
- We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer. Technical information, dimensions, weights and the given quantity of spare parts are not binding.
- Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model. Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point. This spare parts manual shows options that are available for the vehicle direct
- from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other. In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
- Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety. The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts. Mentions of โrightโ, and โleftโ or โfrontโ and โrearโ are made from the position of the driver in a forwards direction

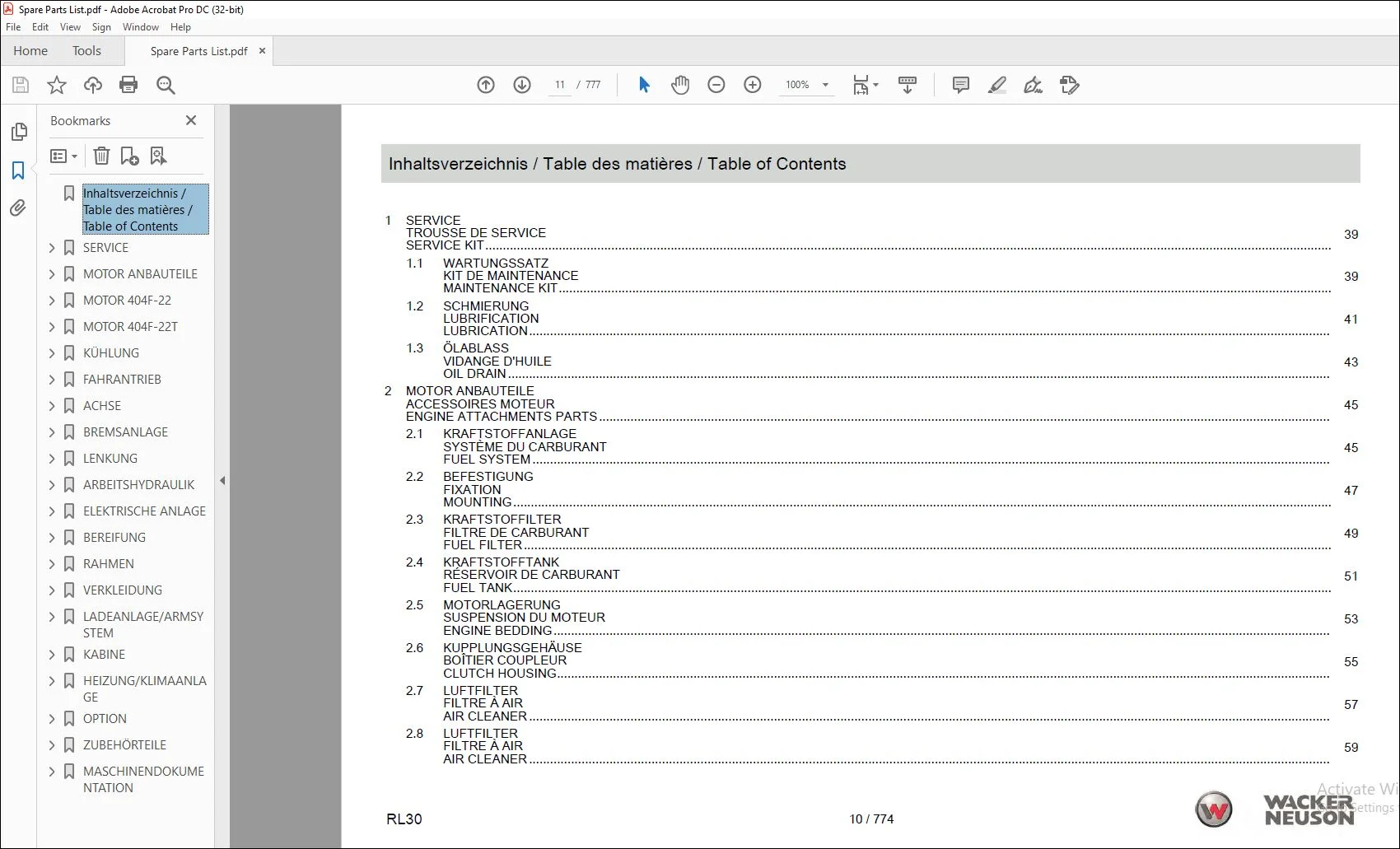

TABLE OF CONTENTS:
Wacker Neuson WL32 USA Wheel loader SPARE PARTS LIST Manual – PDF DOWNLOAD
Inhaltsverzeichnis / Table des matiรจres / Table of Contents 11
SERVICE 40
WARTUNGSSATZ 40
SCHMIERUNG 42
รLABLASS 44
MOTOR ANBAUTEILE 46
KRAFTSTOFFANLAGE 46
BEFESTIGUNG 48
KRAFTSTOFFILTER 50
KRAFTSTOFFTANK 52
MOTORLAGERUNG 54
KUPPLUNGSGEHรUSE 56
LUFTFILTER 58
LUFTFILTER 60
ABGASROHR 62
LรFTERFLรGEL 64
MOTOR 404F-22 66
MOTOR 404F-22 66
ZYLINDERBLOCK 68
KURBELWELLE 70
LEITUNG 72
DRUCKBEGRENZUNGSVENTIL 74
MOTORรLPUMPE 76
SCHLAUCHANSCHLUSS 78
KURBELWELLE 80
KOLBEN 82
PLEUELLAGERSATZ 84
ZYLINDERKOPF 86
ZYLINDERKOPFDICHTUNG 88
KIPPHEBEL 90
NOCKENWELLE 92
DREHZAHLREGLER 94
EINSPRITZPUMPE 96
EINSPRITZLEITUNG 98
EINSPRITZDรSE100
LECKรLLEITUNG102
STEUERGERรT104
DECKPLATTE106
ZAHNKRANZ108
ANLASSER110
RIEMENSCHEIBE112
รLWANNE114
รLMEรSTAB116
รLABLAรSCHRAUBE118
รLEINFรLLDECKEL120
RIEMENSCHEIBE122
WASSERPUMPE124
THERMOSTATGEHรUSE126
ADAPTER LรFTER128
EINFรLLSTUTZEN KรHLWASSER130
LรFTERFLรGEL132
LICHTMASCHINE134
KEILRIEMEN136
STEUERGEHรUSE138
DICHTUNG STEUERGEHรUSE140
DREHZAHLKONTROLLE142
ANBAUTEILE GEHรUSE144
SENSOR146
VENTILDECKEL148
AUSPUFFKRรMMER150
TEMPERATURSENSOR152
KONSOLE DPF154
RUรFILTER156
DPF158
LEITUNG DPF160
BRENNER DPF162
TEMPERATURSENSOR164
ADAPTER SENSOR166
GLรHKERZE DPF168
DRUCKPUMPE170
KEILRIEMEN172
LUFTVENTIL174
KRAFTSTOFFPUMPE176
GLรHKERZE178
HEBEรSE180
DREHZAHLSTEUERUNG182
รLDRUCKSCHALTER184
TEMPERATURGEBER186
WIDERSTAND188
KABELBAUM MOTOR190
MOTOR 404F-22T192
MOTOR 404F-22T192
ZYLINDERBLOCK194
KURBELWELLE196
LEITUNG198
DRUCKBEGRENZUNGSVENTIL200
MOTORรLPUMPE202
SCHLAUCHANSCHLUSS204
KURBELWELLE206
KOLBEN208
PLEUELLAGERSATZ210
ZYLINDERKOPF212
ZYLINDERKOPFDICHTUNG214
KIPPHEBEL216
NOCKENWELLE218
DREHZAHLREGLER220
EINSPRITZPUMPE222
EINSPRITZLEITUNG224
EINSPRITZDรSE226
LECKรLLEITUNG228
STEUERGERรT230
DECKPLATTE232
ZAHNKRANZ234
ANLASSER236
RIEMENSCHEIBE238
รLWANNE240
รLMEรSTAB242
รLABLAรSCHRAUBE244
RIEMENSCHEIBE246
WASSERPUMPE248
THERMOSTATGEHรUSE250
รLKรHLER252
EINFรLLSTUTZEN KรHLWASSER254
ADAPTER LรFTER256
LICHTMASCHINE258
KEILRIEMEN260
STEUERGEHรUSE262
DICHTUNGSGEHรUSE264
DREHZAHLKONTROLLE266
ANBAUTEILE GEHรUSE268
SENSOR270
TURBOLADER272
VERSCHLAUCHUNG TURBOLADER274
LEITUNG276
RรCKLAUFLEITUNG278
ANSAUGKRรMMER280
VENTILDECKEL282
AUSPUFFKRรMMER284
ABGASRรCKFรHRUNGSVENTIL286
ENTLรFTUNG288
ENTLรFTUNGSELEMENT290
ENTLรFTUNG292
TEMPERATURSENSOR294
AUSPUFFKRรMMER296
RUรFILTER298
TEMPERATURSENSOR300
LEITUNG DPF302
BRENNER DPF304
GLรHKERZE DPF306
TEMPERATURSENSOR308
DRUCKPUMPE310
KEILRIEMEN312
LUFTVENTIL314
SCHLAUCHANSCHLUSS316
KONSOLE318
GLรHKERZE320
LEITUNGSFILTER322
DREHZAHLSTEUERUNG324
รLDRUCKSCHALTER326
TEMPERATURGEBER328
KABELBAUM MOTOR330
KABELBAUM332
WIDERSTAND334
KรHLUNG336
KรHLER336
VERSCHLAUCHUNG KUEHLER338
รLKรHLER340
FAHRANTRIEB342
VERSCHRAUBUNG VERSTELLMOTOR342
VERSTELLMOTOR344
VERSCHRAUBUNG VERSTELLPUMPE346
VERSTELLPUMPE348
HYDRAULIKรLFILTER352
RรCKLAUF-SAUGFILTER354
VERSCHRAUBUNG VENTIL356
MAGNETVENTIL358
INCHEINRICHTUNG360
WEGEVENTIL362
ROHRLEITUNG – RรCKLAUF364
VERSCHLAUCHUNG FAHRANTRIEB366
INCHEINRICHTUNG368
DIFFERENTIALSPERRE370
HYDRAULIKTANK372
ACHSE374
ACHSE374
ACHSEN-BEFESTIGUNG376
GELENKWELLE378
ANTRIEB380
DIFFERENTIAL384
ACHSROHR386
ACHSROHR394
ACHSROHR396
PLANETENGEHรUSE398
BREMSE400
ANTRIEB402
DIFFERENTIAL406
ACHSROHR408
ACHSROHR416
ACHSROHR418
PLANETENGEHรUSE420
GETRIEBEGEHรUSE422
VERTEILERGETRIEBE424
BREMSANLAGE426
BREMSANLAGE426
BREMSPEDAL428
FESTSTELLBREMSE430
LENKUNG432
LENKUNG432
LENKZYLINDERBOLZEN434
LENKZYLINDER436
LENKUNG HYDROSTATISCH438
LENKUNG HYDROSTATISCH440
LENKRAD442
ARBEITSHYDRAULIK444
ANBAUTEILE PUMPE444
ZAHNRADPUMPE446
ZAHNRADPUMPE448
ZAHNRADPUMPE450
ANBAUTEILE PUMPE452
ZAHNRADPUMPE454
ANBAUTEILE PUMPE456
ZAHNRADPUMPE458
BEFESTIGUNG460
MECHANISCHE BETรTIGUNG462
VERSCHRAUBUNG VENTIL464
STEUERVENTIL466
VERSCHRAUBUNG VENTIL468
STEUERVENTIL470
BEFESTIGUNG472
VERSCHRAUBUNG VENTIL474
STEUERVENTIL476
VERSCHRAUBUNG VENTIL478
STEUERVENTIL480
3 STEUERKREIS482
3 STEUERKREIS484
DRUCKREDUZIERVENTIL486
VERSCHRAUBUNG DRUCKFILTER488
HOCHDRUCKFILTER490
VERSCHRAUBUNG VENTIL492
WEGEVENTIL494
รLKรHLER496
VERSCHRAUBUNG498
รLKรHLER500
VERSCHRAUBUNG VENTIL502
VENTIL ZUSATZHYDRAULIK504
SCHWINGUNGSDรMPFUNGSVENTIL506
SCHWINGUNGSDรMPFUNGSVENTIL508
SCHNELLVERSCHLUรKUPPLUNG510
ARBEITSHYDRAULIK512
ARBEITSHYDRAULIK514
ARBEITSHYDRAULIK516
ARBEITSHYDRAULIK518
ARBEITSHYDRAULIK522
SCHNELLVERSCHLUรKUPPLUNG524
ZUSATZSTEUERKREIS HI526
ZUSATZSTEUERKREIS HI528
รLKรHLER530
ZUSATZHYDRAULIK532
RรCKLAUFLEITUNG534
RรCKLAUFLEITUNG536
ARBEITSHYDRAULIK538
RรCKLAUFLEITUNG540
ARBEITSHYDRAULIK542
STEUERUNG544
ARBEITSHYDRAULIK546
HUBZYLINDER548
HUBZYLINDER550
KIPPZYLINDER552
KIPPZYLINDER554
ELEKTRISCHE ANLAGE556
ARMATURENBRETT556
ELEKTRISCHE ANLAGE558
LENKSรULE560
LENKSรULE564
FAHRZEUGBELEUCHTUNG568
ARBEITSBELEUCHTUNG570
GASPEDAL572
STECKDOSE574
MOTORVORWรRMUNG576
STECKDOSE 230V578
SICHERUNGSHALTER580
SICHERUNGSHALTER582
BATTERIETRENNSCHALTER584
BATTERIETRENNSCHALTER586
KABELBAUM MOTOR588
KABELBAUM ARMATUREN592
KABELBAUM SITZ594
ZUSATZKABELBAUM596
BATTERIEKABEL598
KABELBAUM BELEUCHTUNG600
ZUSATZKABELBAUM602
ZUSATZKABELBAUM604
KABELBAUM606
ZUSATZKABELBAUM608
KABELBAUM610
KABELBAUM612
ZUSATZKABELBAUM614
ZUSATZKABELBAUM616
ZUSATZKABELBAUM618
ZUSATZKABELBAUM620
ZUSATZKABELBAUM622
ZUSATZKABELBAUM624
ZUSATZKABELBAUM626
BEREIFUNG628
BEREIFUNG628
BEREIFUNG630
BEREIFUNG632
KOTFLรGEL634
RAHMEN636
VORDERTEIL RAHMEN636
HINTERTEIL RAHMEN640
BALLASTGEWICHT642
KNICKGELENK644
HALTER SCHLAUCH646
ANHรNGEKUPPLUNG648
ANHรNGEKUPPLUNG650
ANHรNGERKUPPLUNG652
ANHรNGEKUPPLUNG654
WERKZEUGKASTEN656
VERKLEIDUNG658
MOTORHAUBE658
SCHARNIER660
VERRIEGELUNG MOTORHAUBE662
GASFEDER664
SCHLIEรBLECH666
LADEANLAGE/ARMSYSTEM668
LADEANLAGE/ARMSYSTEM668
SCHNELLWECHSELPLATTE672
SCHNELLWECHSELPLATTE674
SCHNELLWECHSELPLATTE676
SCHNELLWECHSELPLATTE678
SCHNELLWECHSELPLATTE680
ADAPTER682
HALTER KUPPLUNG684
KABINE686
TRITTPLATTE686
TRITTPLATTE688
KIPPRAHMEN690
KABINEN BEFESTIGUNG692
KABINE694
KABINENRAHMEN696
SCHUTZGITTER698
ANBAUTEILE KABINE702
HECKSCHEIBE706
FRONTSCHEIBE708
KABINENTรR710
DรMMATTE KABINE714
SONDERAUSFรHRUNG716
SITZSCHIENE718
SITZ S721720
SITZ S721722
SITZ MSG 83/721724
ARMLEHNE726
ARMLEHNE728
AUFKLEBER730
ANBAUTEILE SCHUTZDACH732
HEIZUNG/KLIMAANLAGE734
HEIZUNG734
HEIZUNG736
KLIMAANLAGE738
VERDAMPFER740
KOMPRESSOR KLIMAANLAGE742
KOMPRESSOR KLIMAANLAGE744
KONDENSATOR KLIMAANLAGE746
KONDENSATOR KLIMAANLAGE748
LUFTTROCKNER750
LUFTTROCKNER752
OPTION754
KFZ-KOMBITASCHE754
FETTPRESSE756
WERKZEUGSATZ758
HALTER KENNZEICHEN760
FEUERLรSCHER762
ZUBEHรRTEILE764
ERDSCHAUFEL764
KROKODILGEBIร766
PALETTENGABEL768
MASCHINENDOKUMENTATION770
AUFKLEBER770
MASCHINENDOKUMENTATION774
