WELGER RP 150 OPERATING & PARTS MANUAL – PDF DOWNLOAD
$15.95
WELGER RP 150 OPERATING & PARTS MANUAL – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
WELGER RP 150 OPERATING & PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
WELGER RP 150 OPERATING & PARTS MANUAL – PDF DOWNLOAD
Language : English
Pages : 46
Downloadable : Yes
File Type : PDF

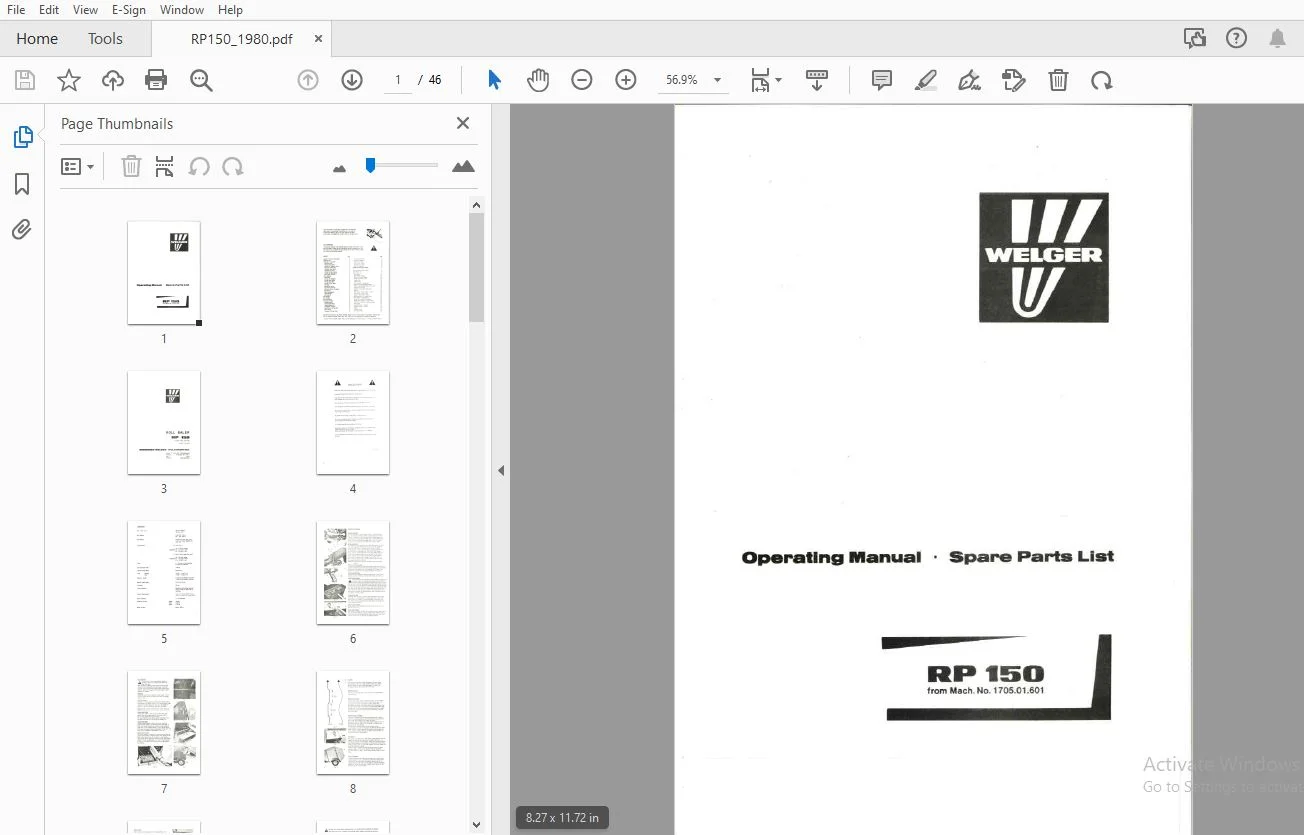

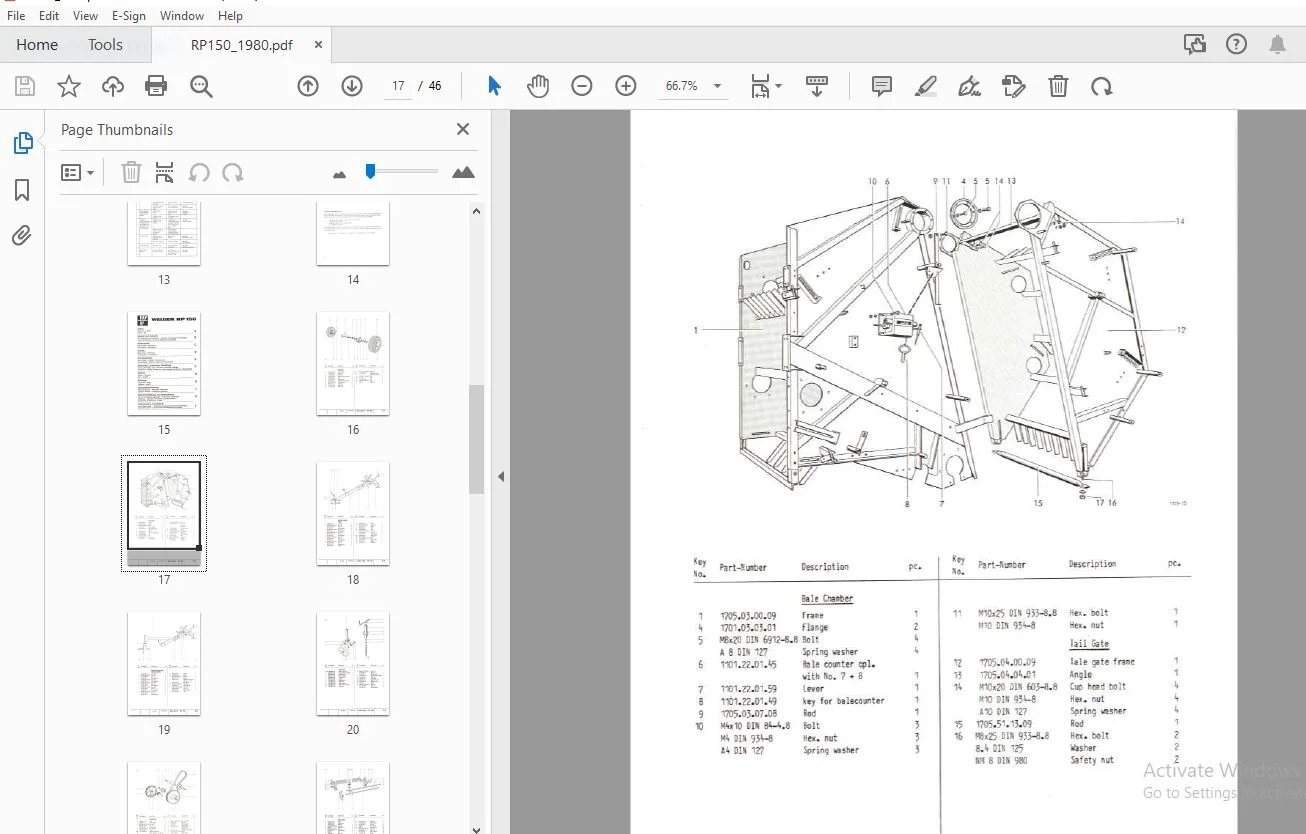

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
WELGER RP 150 OPERATING & PARTS MANUAL – PDF DOWNLOAD
1. Accident Protective Indications & Technical Data
- Safety guidelines and essential data for operating and maintaining the baler.
2. Preparing for Operation
- Attaching the baler
- Fitting the drive shaft
- Coupling hydraulic lines
- Electrical connections
- Inserting twine spools
- Threading the twine
- Setting the bale counter
3. Road Transport
- Preparations before transport
- Good driving practices
4. Field Operation
- Windrowing techniques
- Setting the windguard
- Adjusting pick-up cover shield
- Setting pick-up guide wheel height
- PTO speed
- Negotiating curves
5. Hydraulic Control (Tailgate)
- Operating and adjusting hydraulic tailgate systems
6. Bale Operations
- Bale density settings
- Safety arrangements
- Tying the bale
- Hand tying
- Automatic tying mechanism
- Bale ejection
- Bale haulage, storage, and distribution
7. Servicing the Baler
- Tightening bolts
- Checking road wheels
- Changing gearbox oil
- Lubricating chains and drive shaft
- Adjusting chain tension
- Tensioning pick-up V-belt and flat belts
- Re-setting scrapers
- Fitting flat belts and belt joiners
- Maintenance of belts
- Safety arrangements
8. Troubleshooting
- Quick remedies for operating faults
9. Ordering Spare Parts
- Hints and recommendations for efficient spare parts ordering
10. Spare Parts List
- Road Wheels
- Bale Chamber – Tailgate
- Drawbars
- Swinging drawbar
- Clevis hitch
- Jack assembly
- Pick-Up Drive and Frame
- Pick-up reel
- Segments and side shields
- Wing shield cover
- Pick-up guide wheel
- Drive Components
- Universal drive shaft
- Wide-angle drive shaft
- Gearbox
- Cross drive and straight drive
- Chains and Belts
- Chain guide and tension system
- Scrapers
- Flat belts and tools
- Rollers
- Main drive roller
- Tension roller
- Hinged roller
- End rollers
- Bottom drive and tension rollers
- Tying Unit
- Twine box
- Twine tensioners
- Cutting unit
- Hydraulic System
- Tailgate cylinder
- Pick-up cylinder
- Safety Guards & Lighting System
11. Part Number Index
- Comprehensive index for quick part identification and ordering.
S.S 11/24
