White MA30H 40 50 & 60 Forklift Trucks Parts Manual – PDF DOWNLOAD
FILE DETAILS:
White MA30H 40 50 & 60 Forklift Trucks Parts Manual – PDF DOWNLOAD
Format: PDF
Language: English
Brand: White Forklift
DESCRIPTION:
White MA30H 40 50 & 60 Forklift Trucks Parts Manual – PDF DOWNLOAD
SERIAL- NUMBERS
GAS OL INE AND L’P-GAS
MA30-28 00038 5
MA35-736400001 MA4G–261 01 393
MA45-36500001
MA50-26200415
MA55-36600001
MA60-33200121
MA30H-60
5300101 AND AFTER
- FOREWORD:
- This catalog contains a complete list of parts for the lift truck. To assist in determining the part numbers and descriptions, the parts in this catalog are grouped according to their location on the lift truck. Reference numbers only are shown in each illustration. These numbers correspond to those in the reference number col-umn in the list of parts which follows each “exploded view”. TYPICAL PARTS ARE SHOWN, AND MAY NOT ALWAYS BE IDENTICAL WITH CURRENT PARTS. RE-FER TO THE TEXT.
- “RIGHT OR LEFT” IS DETERMINED BY FACING TOWARD THE UPRIGHT FROM THE LIFT TRUCK SEAT. To further assist in locating repair parts, the part numbers are arranged in numerical sequence and indexed at the rear of this catalog. Component parts of assemblies are listed following the assembly itself and are identified as being part of the assembly by this notation following the description: Consists of the following .
- parts or Includes the following … parts: Part numbers only make up an assembly. Hardware items are not to be included. Parts such as standard bolts, nuts, screws, washers, etc., are listed under the respective individual parts with, which they are used. The quantity for many of the shims,listed is shown as A.R. (as required). The correct amount of shims should be determined in order to get the proper clearance. Bolts and nuts listed are standard Grade 5, special grades will be shown in text.Order hardware thru Standard Fastner Program or purchase locally. Occasionally new part numbers replace old numbers in the Part No. column. In those cases where the new number substitutes for the old number, the old number will be enclosed in parenthesis and it will appear at the end of the text in the description column. When in need of repair parts, order from your local dealer. All parts orders should plainly specify your name, post office address, and whether shipment is to go by parcel post, express, or freight.Claims of shortage or breakage should be made to the transportation company on receipt of goods. Before returning repair parts to the factory or parts depot, it is necessary to secure written permission from the Company authorizing the return of such parts. In the returning of repair parts be sure the package is tagged with your name and address.
- Prepay transportation charges. It is the policy of the Company to improve its products whenever it is possible and practical to do so. We reserve the right to make changes or add improvements in the design or construction of parts at any time without incurring the obligation to install such changes on products previously delivered.
TABLE OF CONTENTS:
PARTS GROUP INDEX
Page
accumulator D-4
Llternator-Standard & UL F-2
kir Cleaner E-2 thru E-4
kuxiliary Valves D-13,D-14
axle Supports C-3
Battery C-14
Battery Box C-14
Brakes A-21 thru A-24
Brake Linkage A- 21
lables for Battery C-14
3amshaft F-13
3arburetor, Gasoline Engine E-6,E-7
h3arburetor,LP-Gas Engine….E-11,E-12,E-13
Maoke Control C-10,C-11
:loll, Ignition F-2
3onnecting Rod F-12
7.ontrol Valve,Lift and Tilt D-12,D-14
:ontrol Valve,Transmission..A-14 thru A-16
converter A-11
3ooling System F-7
7,ounterweight C-4
3rankcase F-8
:3rankshaft F-11
3ylinder Head F-8
Dead. ,Mann Seat C-9
G-2
Differential and Cage A-7,A7-8
Distributor F-2
Drive Axle and Wheels A-9
Drag Link, Steering, 30-50 B-12
Engine Oil G-3
Fan F-7
Fire Extinguisher C-4
Flywheel and Housing F-10,F-11
Foot Accelerator C-12,C-13
Frame C-2
Fuel Filler E-5
Fuel Pump a°^Jr-1)-6
Gas Manifold F-10
Gasket Sets A-6
Gauges . .C-10, C-11
Generator, UL GS Equipped F-4
Governor F-15 thru F-18
Hood C-5
Horn C-10,C-11
Horn Button B-2
Hydralizer and Wheels B-13 thru B-15
–rdrallic Oil Lines D-2,D-3
ratLi6Pumps D-5 thru D-11
Hydraulic Quick Disconnect Coupling….D-4
Page
Ignition Lock Vacuum Switch C-10,C-11
Ignition System F-2
Instrument Panel C-6,C-10,C-11
Lamps C-15 thru C-17
Load Alert for Uprights C-18,C-19
LP-Gas Equipment E-8 thru E-14
Master Cylinder A-22
Muffler F-5
Motor Mounts C-2
Oil-Transmission and Hydraulic G-3
Oil Filter, Engine F-14
Oil Filter, Transmission….A-17,A-19,A-20
Oil Pump, Engine F-14
Overhead Guard C-4
Paint G-2
Pistons and Rings F-12
Positive Crankcase Breather E-3,F-3
Power Steering Booster Cylinder,55-60.B-11 PTX Muffler F-5
Quick Disconnect Coupling, Hyd. D-4
Quick Disconnect Coupling, LP-Gas E-10
Radiator F-7
Rings F-12
Seats C-7
Silent Drive Ilansmission . . …… …..A-13 Sprak Plug
Starting Motor F-2
Steering Cylinder, 55-60 B-11
Steering Gear, 30-50 B-3 thru B-6
Steering Linkage B-12
Steering Motor, 55-60 B-7 thru B-10
Steering Wheel B-2
Tilt Cylinder D-15 thru D-18
Thermostat F-7
Transmission A-12
Transmission Case A-10
Transmission Controls A-17 thru A-20
Transmission Oil G-3
Transmission Control Valve..A-f4 thru A-16
Valves, Intake and Exhaust F-12
Voltage Regulator F-2,F-4
Water Pump F-6
Wheels, Drive A-9
Wheels, Steering B-15
Wiring Harness C -10,C -11,C -14,F -4
NUMERICAL INDEX G-4 thru G-20
VIDEO PREVIEW OF THE MANUAL:

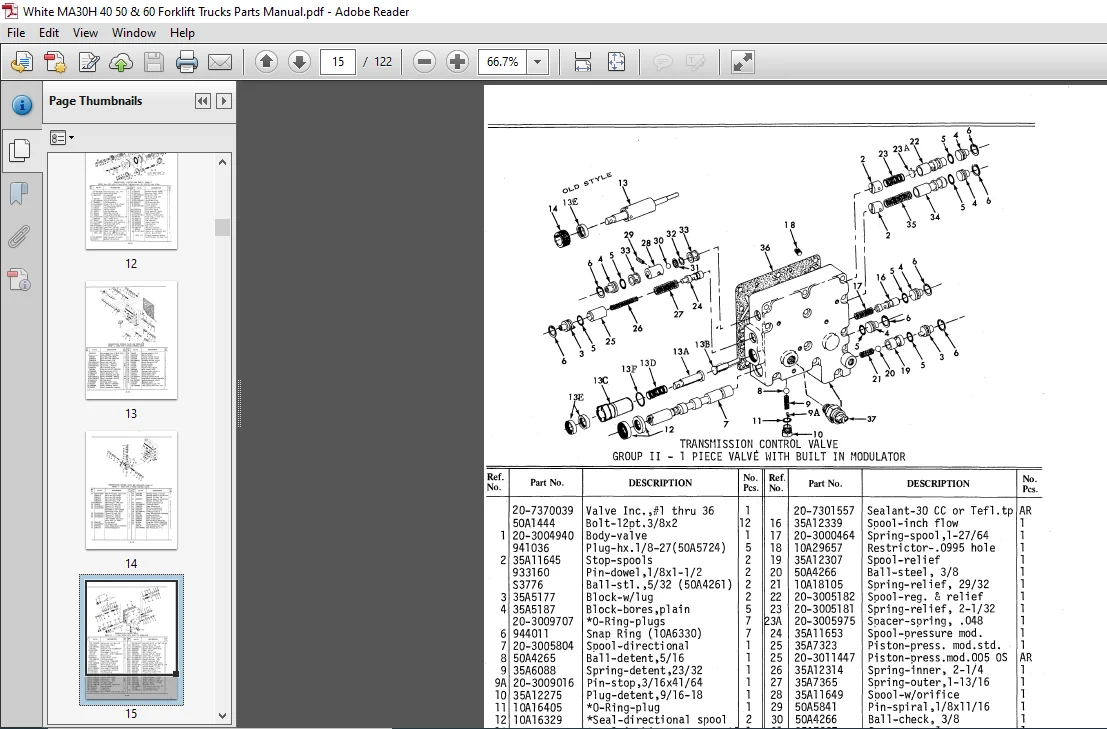

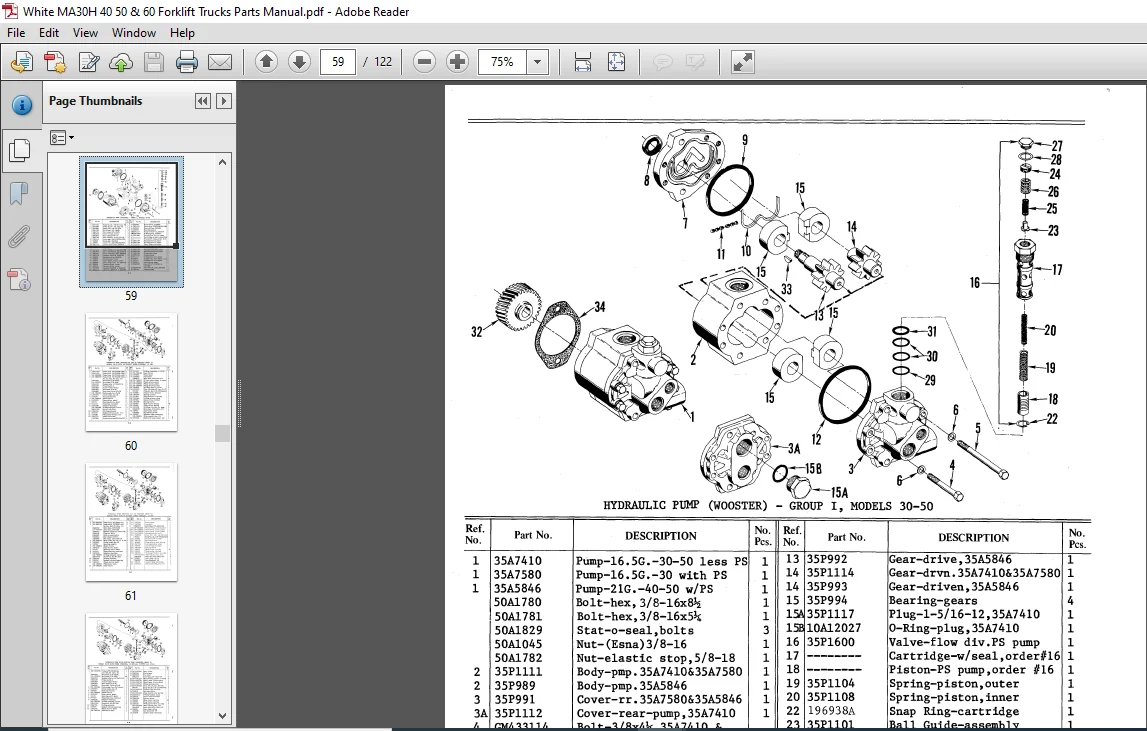

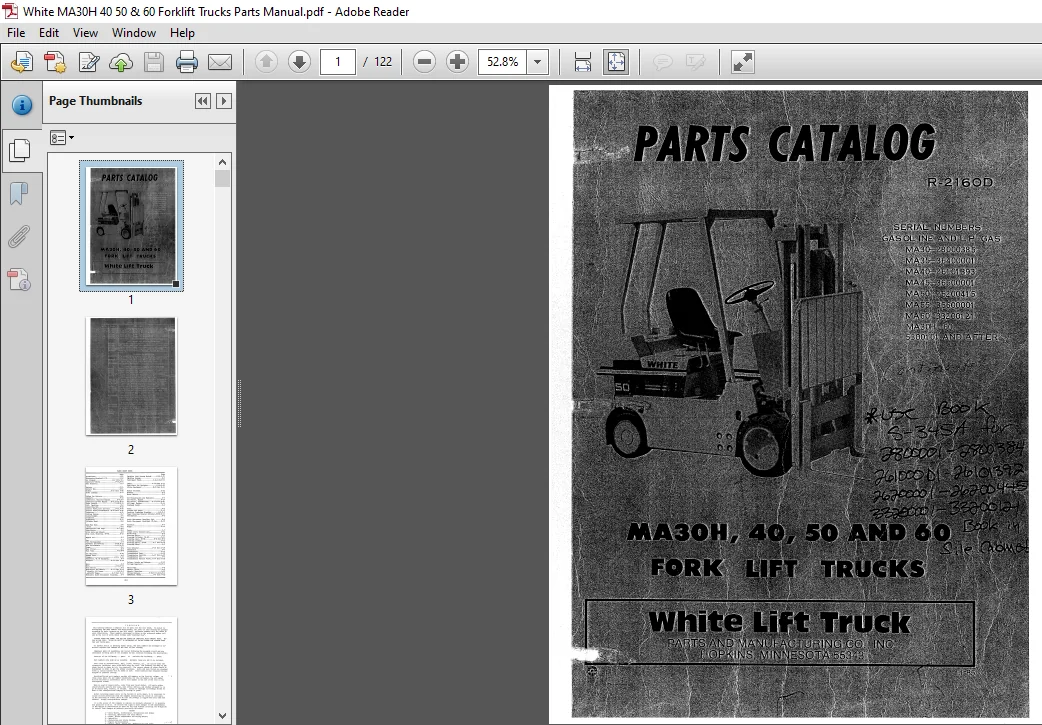

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
