WT450B WT460B WT470B WT480B WT490B Challenger Repair Time Schedule Manual

Description

WT450B WT460B WT470B WT480B WT490B Challenger Repair Time Schedule Manual – PDF DOWNLOAD

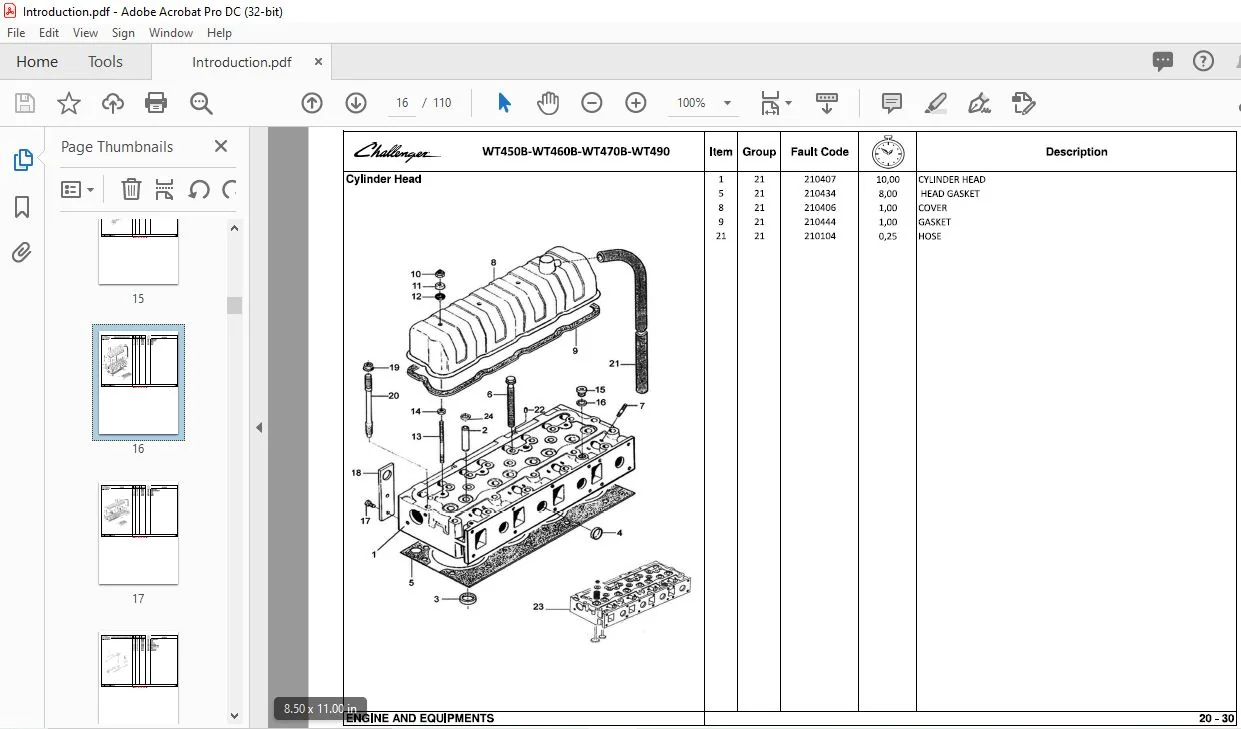

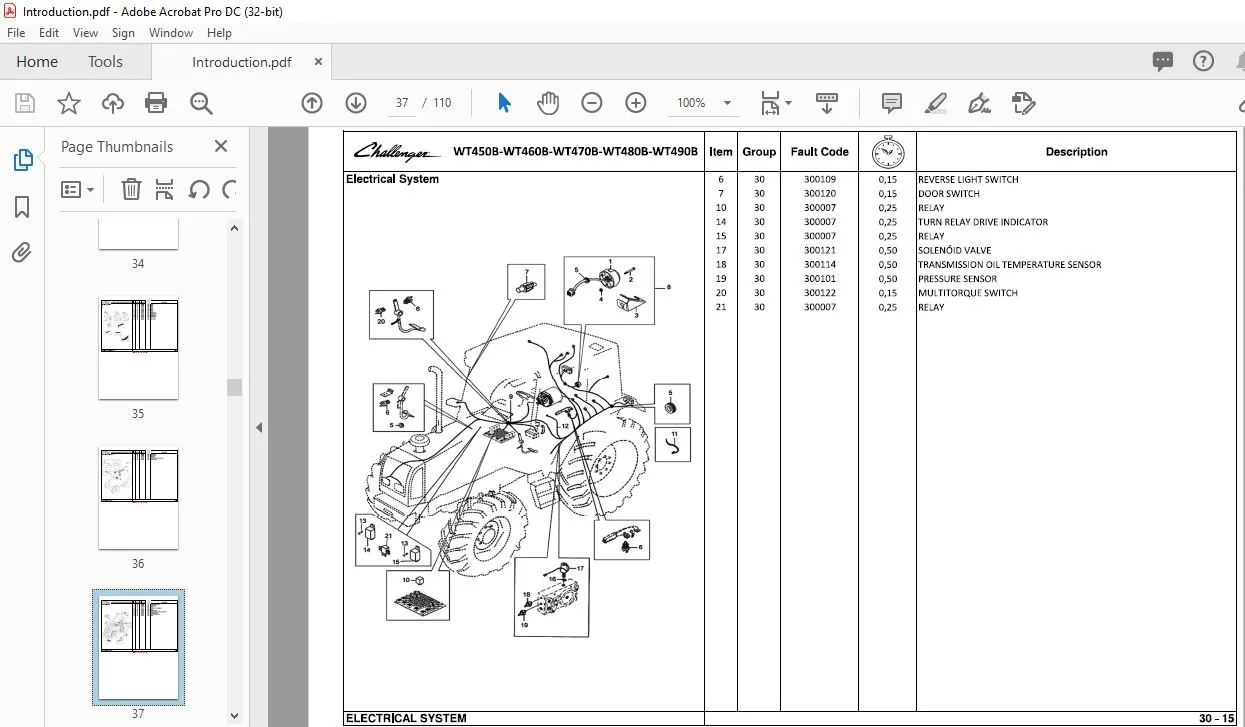

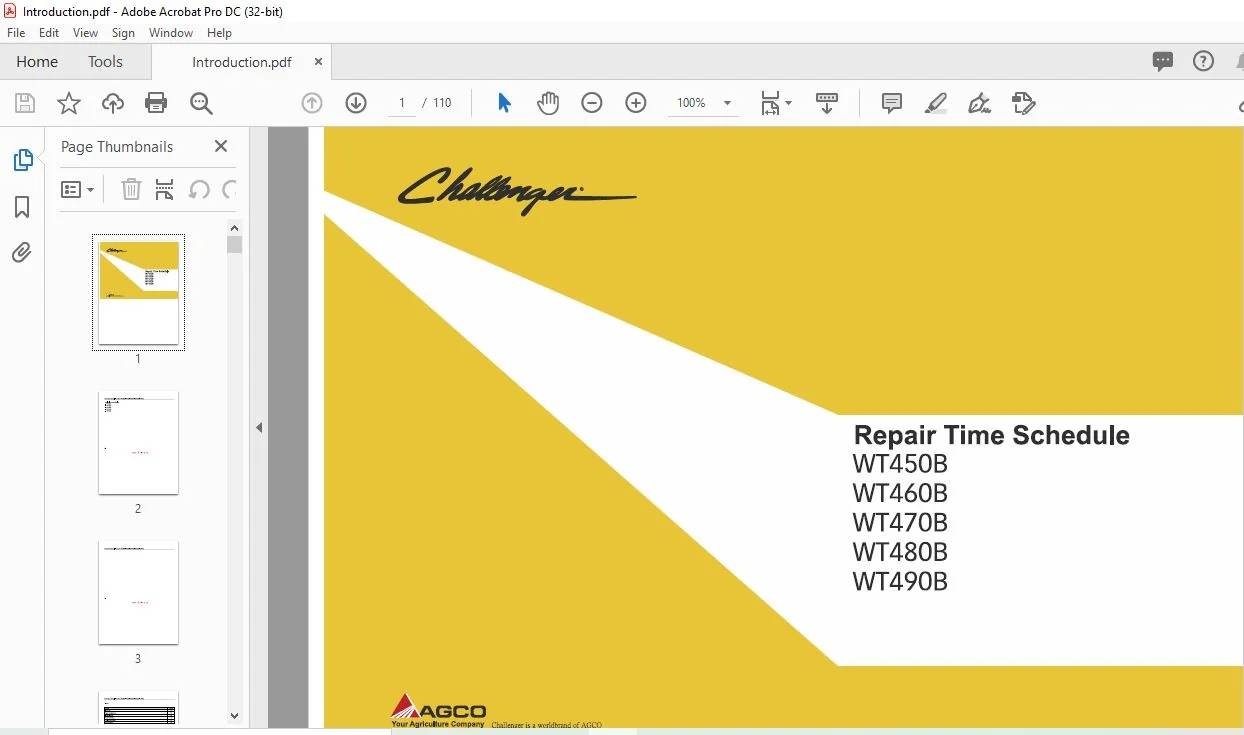

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

WT450B WT460B WT470B WT480B WT490B Challenger Repair Time Schedule Manual – PDF DOWNLOAD

INTRODUCТION AND UTILIZATION :

This REPAIR TIME SCHEDULE has Ьееп developed aiming at facilitating understanding of in-warranty paid labor times, as well as clearly identify through codes the malfunctions that caused component faults, analyze the effectiveness of the shop technical personnel, and provide guidelines in order to charge the customer. The Repair time schedule is divided into chapters that represent component groups, such as for instance: Front Axle, Rear Axle, Transmission, etc.

TIME:

The times listed in this puЫication are the result of а careful study of each operation. These represent the time spent Ьу а trained technician with average aЬility to perform the task, using standard and special tools.

These do not incluid displacements and expenses up to the equipment site. The times also include the difficulties encountered in used machines and are based оп methods and recommendations оп the use of special tools, which are described in the Service Manuals. The following activities are included in the times оп this repair time schedule:

1. AII operations such removal of covers, use of jacks, separation, breaks, draining, and oil change, and parts cleaning.
2. Drive the machine in and out the service shop or to better locate it in the farm.
3. Receive instructions, read service bulletins and manuals.
4. Perform routine diagnostics.
5. Receive and deliver special tools to the tools storehouse.
6. Removal of appropriated parts from the parts storehouse.
7. Take information to the office personnel.
8. Final checking.
9. Needs of the mechanic and fatigue effects.
1 О. Machine wash.

TABLE OF CONTENTS:

WT450B WT460B WT470B WT480B WT490B Challenger Repair Time Schedule Manual – PDF DOWNLOAD

Introduction 01
Engine and Equipments 20
Electrical System 30
Power Transmission 40
Final Drive and Brakes 50
Steering System 60
Wheels and Fuel Tank 70
Shields and СаЬ 80
Hydraulics System 90

WT450B WT460B WT470B WT480B WT490B CHALLENGER REPAIR TIME SCHEDULE MANUAL:
