Xerox WorkCentre 3119 Service Manual (WC3119)- PDF DOWNLOAD
Original price was: $85.00.$15.95Current price is: $15.95.
Get the official Xerox WorkCentre 3119 service manual PDF. This complete technical guide provides in-depth WorkCentre 3119 troubleshooting procedures, full error code analysis, and illustrated Xerox 3119 fuser replacement instructions. Includes the complete parts list, exploded diagrams, disassembly guides, and full wiring diagrams for certified service technicians.
Description
Xerox WorkCentre 3119 Service Manual (WC3119)- PDF DOWNLOAD
Description

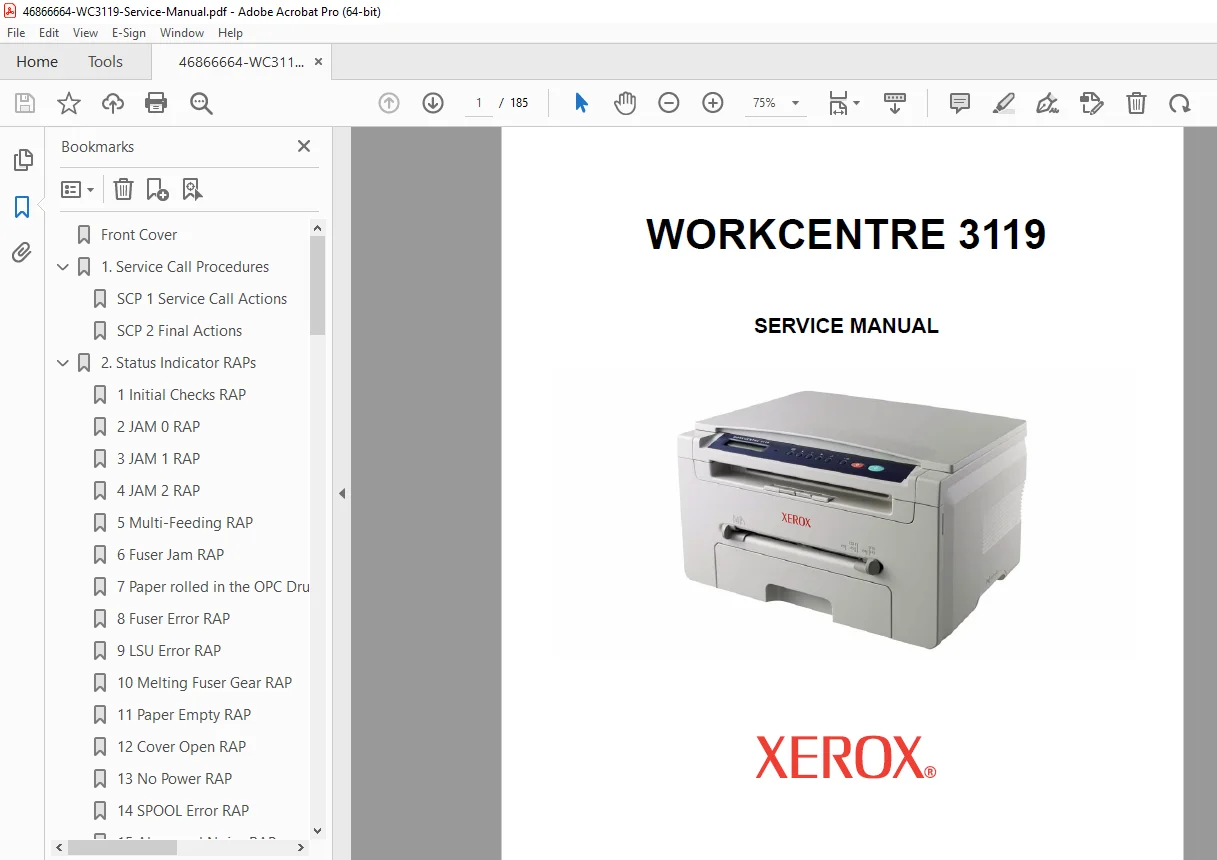

This is the complete, factory-issued Xerox WorkCentre 3119 Service Manual PDF, identical to what certified Xerox service engineers use. It contains comprehensive procedures for diagnosing, repairing, maintaining, and rebuilding the WorkCentre 3119 multifunction printer.
The manual includes step-by-step disassembly and reassembly instructions for every major component, detailed error code and troubleshooting analysis, and a full set of electrical schematics, wiring diagrams, and exploded parts views. Whether you are addressing print quality issues, replacing the fuser, or repairing the power supply board, this manual provides the exact procedures required.
Key Information Included
Troubleshooting – Complete WorkCentre 3119 troubleshooting with RAPs (Repair Analysis Procedures), image quality fault analysis, and full error code descriptions.
Disassembly & Repairs – Fully illustrated instructions for removing and replacing all assemblies, including the LSU, Fuser, SMPS/HVPS, Drive Assembly, Rollers, and Scan Unit.

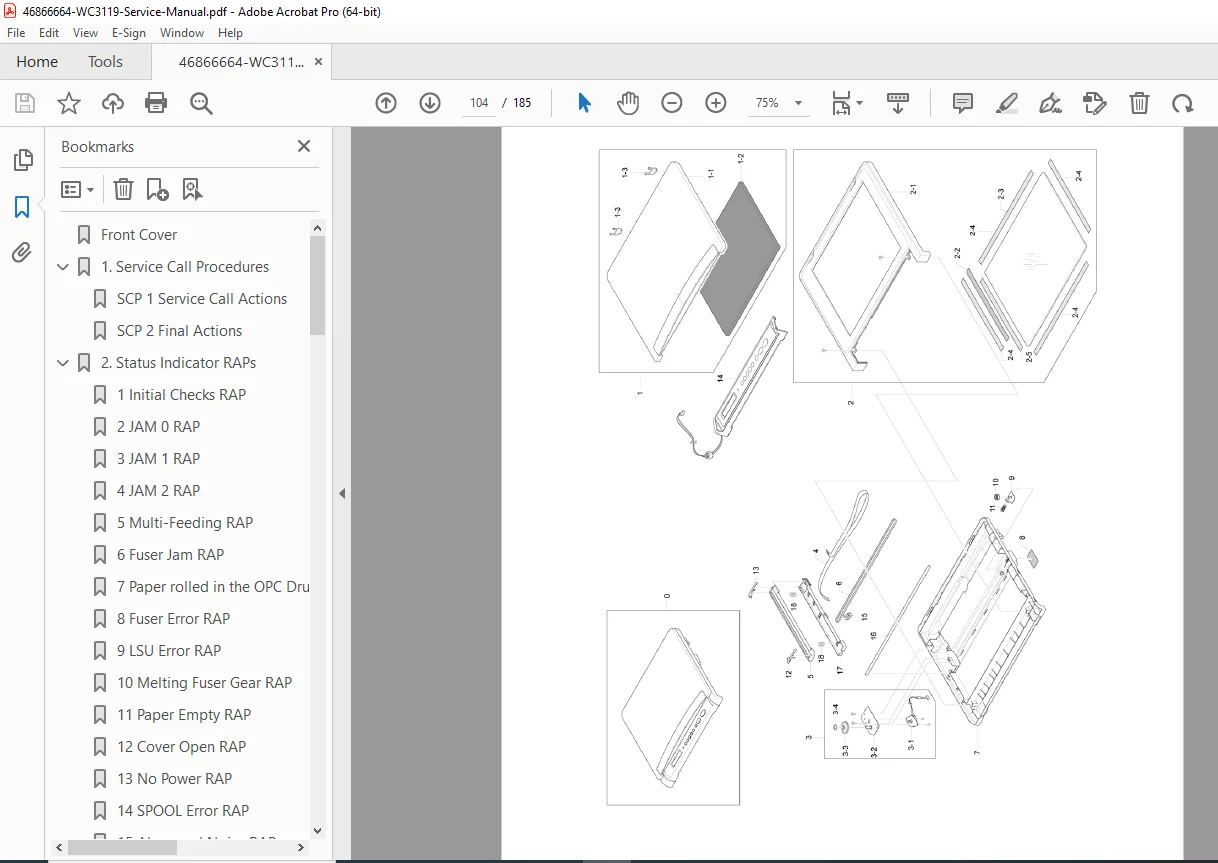

Parts & Schematics – Full parts catalog with exploded diagrams, BOM lists, and detailed wiring diagrams for all subsystems.
This is the most complete and accurate technical resource available for servicing the Xerox WorkCentre 3119.
📑 Table of Contents
Chapter 1: Service Call Procedures
SCP 1: Service Call Actions
SCP 2: Final Actions
Chapter 2: Repair Analysis Procedures (Troubleshooting)
Diagnostic flowcharts
Error code analysis
RAP (Repair Analysis Procedures)
Chapter 3: Image Quality (IQ)
Troubleshooting for all print/image quality defects
Chapter 4: Repairs / Adjustments (Disassembly)
REP 1: Front Cover
REP 2: Rear Cover
REP 3: Fuser Fan
REP 6: Scan Assembly
REP 9: Fuser Replacement Procedure
REP 10: LSU (Laser Scanning Unit)
REP 13: Main PBA (Main Printed Board Assembly)
REP 14: SMPS / HVPS (Power Supply)
REP 16: Transfer Roller
REP 17: Feed Roller
REP 18: Pickup Roller
REP 20: Drive Assembly
Chapter 5: Parts List
Full exploded diagrams
All assemblies and sub-assemblies
Chapter 6: General Procedures / Information
Safety
Maintenance
Adjustments
Chapter 7: Wiring Data
Full electrical schematics
Wiring diagrams
Connector layouts
📁 File Details
| Field | Details |
|---|---|
| Manual Name | WorkCentre 3119 Service Manual |
| Models Covered | Xerox WorkCentre 3119 |
| Year | 2006 |
| PDF Quality | High-quality, searchable digital PDF |
| No. of Pages | 185 pages |
