Xinyang 500UE 500UEL UTV Service Manual XY500 4×4 Utility Vehicle Repair Guide – PDF DOWNLOAD

DESCRIPTION

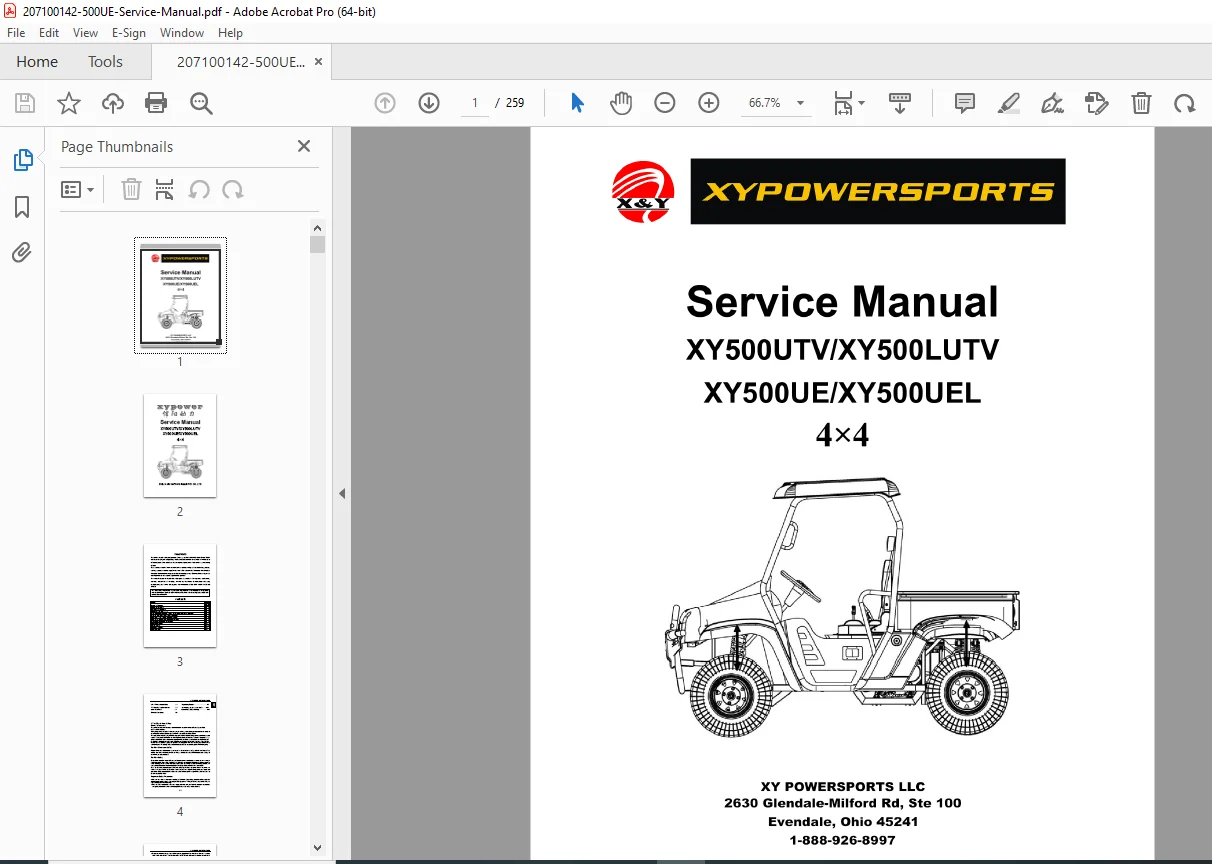

This is the official Xinyang 500UE/500UEL Service Manual (January 2013 edition) providing complete service, maintenance, and repair procedures for Xinyang 4×4 utility terrain vehicles. This 259-page comprehensive technical manual covers all aspects of these side-by-side UTVs manufactured by Zhejiang Xinyang Industry Co., Ltd.

Models Covered

• XY500UTV (2-passenger, carburetor) – VIN: LCXRSTS1~
• XY500LUTV (4-passenger long wheelbase, carburetor) – VIN: LCXLSTS1~
• XY500UE (2-passenger, EFI) – VIN: LCXRSTS3~
• XY500UEL (4-passenger long wheelbase, EFI) – VIN: LCXLSTS3~

Complete Manual Structure (259 Pages)

Section 1 – Service Information (Pages 1-1 to 1-13):

Safety Procedures:

• Service and repair safety warnings
• Technician qualifications requirements
• Personal protective equipment (PPE) specifications
• Hot parts and coolant hazards
• Carbon monoxide poisoning prevention
• Gasoline vapor and battery hydrogen gas safety
• Proper lift and support procedures
• Eye protection requirements

Vehicle Identification:

• VIN number locations and formats
• Engine number recording (CF188 carburetor / CF188-B EFI)
• Serial number documentation

Main Data Table:

• Dimensions:
  • 500UTV/500UE: 2600mm L × 1280mm W × 1960mm H
  • 500LUTV/500UEL: 3200mm L × 1300mm W × 1880mm H
  • Wheelbase: 1760mm (2-seat) / 2440mm (4-seat)
• Engine Specifications:
  • Type: Single cylinder, 4-stroke, liquid cooling, 4-valve, OHC
  • Displacement: 493ml
  • Bore × Stroke: 87.5 × 82.0mm
  • Compression Ratio: 10.2:1
  • Idle Speed: 1300±100 RPM (carb) / 1400±100 RPM (EFI)
• Weights and Capacities:
  • Vehicle Mass: 580kg (2-seat) / 720kg (4-seat)
  • Max Load: 300kg
  • Passengers: 2 or 4 including driver
• Tires:
  • Front: 25×8-12
  • Rear: 25×10-12

Overhaul Datasheet:

• Lubrication specifications and capacities
• Air intake system data
• Cooling system specifications
• Wheel and tire specifications
• Brake system measurements
• Battery and charging system data
• Ignition system specifications

Tightening Torque Tables:

• Engine Components: 41 critical fasteners with torque specs
  • Spark plug: 18 N·m
  • Cylinder head nuts: 38 N·m
  • Crankcase bolts: 10 N·m
  • Clutch nuts: 70-150 N·m
  • CVT components: 100-115 N·m
• Suspension Components: 39 critical fasteners
  • Steering joint bolts: 45-50 N·m
  • Brake caliper bolts: 45-60 N·m
  • Front/rear axle nuts: 180-200 N·m
  • Wheel lug nuts: 55-62 N·m
  • Shock absorber bolts: 45-50 N·m

Lubricants and Fluids:

• Engine Oil: SAE 15W-40/SF (1900ml change, 2200ml full)
• Fuel: RQ-93 or higher unleaded gasoline (22L tank)
• Coolant: -35°C antifreeze (2620ml capacity)
• Brake Fluid: GB1083 JG3 specification
• Front Axle Oil: SAE 15W-40/SF or SAE 80W-90/GL-4 (0.33L)
• Rear Axle Oil: SAE 80W-90/GL-4 (0.30L)

Cable and Pipe Routing Diagrams

Section 2 – Vehicle Body and Muffler:

• Body panel removal and installation
• Seat assembly service
• Storage compartment access
• Roll cage inspection
• Windshield installation
• Muffler removal and replacement
• Exhaust system service
• Body mounting points
• Frame inspection procedures

Section 3 – Inspection & Adjustment:

• Pre-operation inspection checklists
• Periodic maintenance schedules
• Valve clearance adjustment (4-valve SOHC)
• Throttle cable adjustment
• Clutch engagement settings
• Brake adjustment procedures
• Tire pressure verification
• Steering alignment
• Belt tension adjustment

Section 4 – Cooling & Lubricating System:

• Cooling System:
  • Radiator removal and cleaning
  • Thermostat testing (opens 72±2°C, fully open 88°C)
  • Coolant pump service
  • Fan motor operation
  • Hose replacement
  • Pressure cap testing (108kPa)
  • Temperature sensor diagnostics
• Lubrication System:
  • Oil pump service (rotor-type)
  • Oil filter replacement
  • Oil pressure testing (130-170 KPa @ 3000 RPM)
  • Crankcase ventilation
  • Oil passage cleaning

Section 5 – Engine, Transmission & Gearshift Removal/Installation:

• Complete engine removal procedures
• Engine/transmission separation
• CVT (Continuously Variable Transmission) removal
• Gearshift mechanism access
• Engine mounting procedures
• Transmission installation
• Drive shaft alignment
• Output shaft positioning

Section 6 – Engine Removal, Inspection & Assembly:

• Complete Engine Overhaul:
  • Cylinder head removal and valve service
  • Piston and ring replacement
  • Crankshaft inspection and bearing service
  • Camshaft timing chain service
  • Valve timing procedures
  • Compression testing
  • Cylinder bore measurement
  • Connecting rod service
  • Oil pump rebuild
  • Starter motor service
  • Stator and charging coil testing
  • CDI ignition system (carb models)
  • ECU system (EFI models)

Section 7 – Carburetor, Fuel System, Air Intake:

• Carburetor Models (CF188):
  • 36mm carburetor disassembly
  • Jet sizing and adjustments
  • Float level settings
  • Idle mixture adjustment
  • Choke operation
  • Carburetor cleaning procedures
• EFI Models (CF188-B):
  • Fuel injection system overview
  • Inlet pressure sensor (CF188-B-173000)
  • Inlet temperature sensor (CF188-B-175000)
  • Air bypass valve (CF188-B-177000)
  • Throttle position sensor (CF188-B-172000)
  • Fuel injector service (CF188-B-171000)
  • ECU diagnostics
• Fuel System:
  • Fuel tank removal (22L capacity)
  • Fuel pump testing
  • Fuel line routing
  • Fuel filter replacement
• Air Intake System:
  • Air filter service (sponge element type)
  • Intake manifold inspection
  • Air box cleaning

Section 8 – Front Wheel, Front Brake, Suspension, Steering:

• Front Wheels:
  • Wheel bearing service
  • Hub inspection
  • Rim runout measurement (vertical/horizontal: 1.0mm standard, 2.0mm limit)
  • Tire tread depth (3.0mm minimum)
  • Tire pressure (21±1 PSI / 145±6.9 KPa)
• Front Brakes:
  • Hydraulic disc brake service
  • Caliper removal and rebuild
  • Brake pad replacement
  • Disc thickness measurement (17mm standard, 16mm limit)
  • Master cylinder service
  • Brake line bleeding
• Front Suspension:
  • Independent swing arm system
  • Shock absorber service
  • A-arm bushing replacement
  • Ball joint inspection
  • Spring replacement
• Steering System:
  • Rack and pinion steering
  • Tie rod end replacement
  • Steering angle specs (35° left/right)
  • Steering column service
  • Power steering (if equipped)

Section 9 – Rear Wheel, Rear Brake, Suspension:

• Rear Wheels:
  • Wheel bearing service
  • Hub inspection
  • Rim runout measurement
  • Tire specifications (28±1 PSI / 193±6.9 KPa)
• Rear Brakes:
  • Hydraulic disc brake service
  • Caliper rebuild procedures
  • Parking brake adjustment
  • Disc thickness measurement
• Rear Suspension:
  • Swing arm suspension system
  • Shock absorber replacement
  • Bushing service
  • Differential mounting

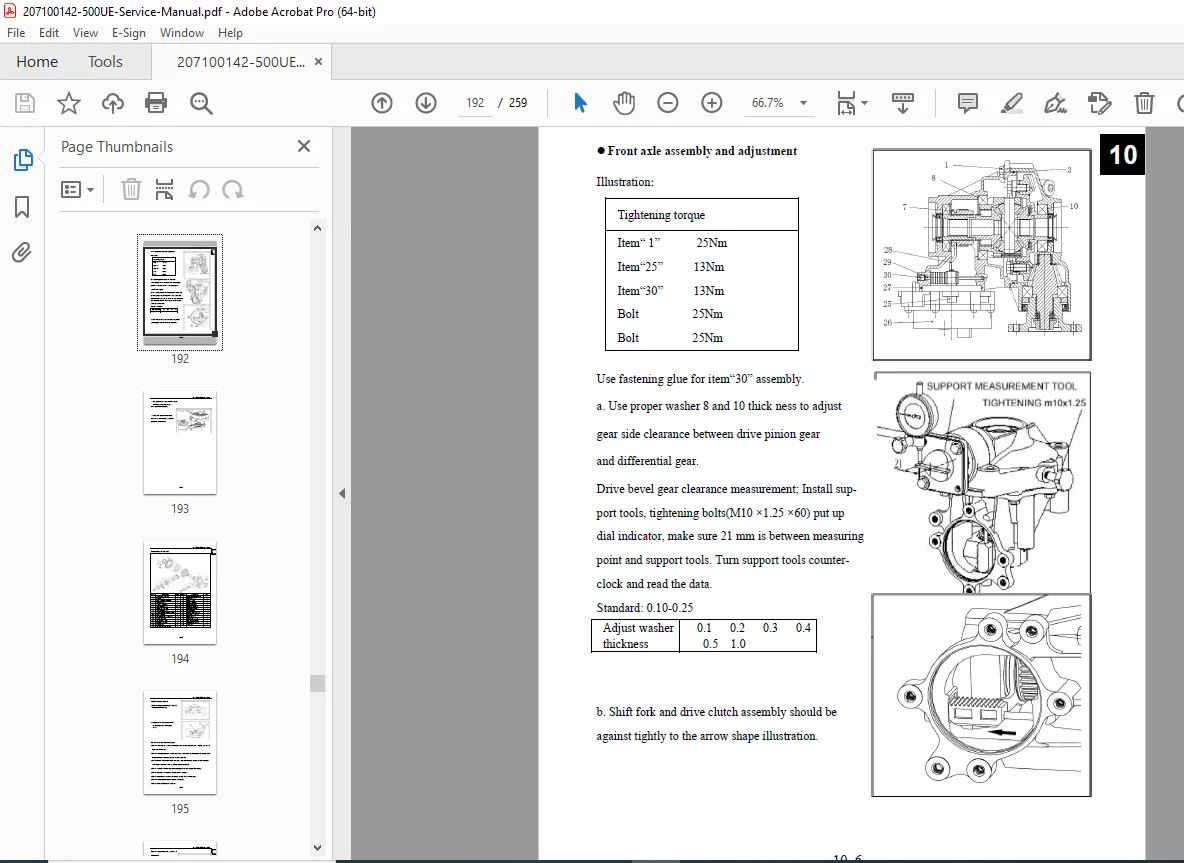

Section 10 – Front and Rear Axle:

• Front Axle (4WD System):
  • Axle ratio: 1.333 (24/18 bevel gear)
  • Differential service
  • CV joint replacement
  • Axle seal replacement
  • Oil capacity: 0.33L (first fill) / 0.28L (change)
  • Drive shaft service
  • Locking hub operation (if equipped)
• Rear Axle:
  • Axle ratio: 1.952 (41/21)
  • Differential overhaul
  • Ring and pinion gear inspection
  • Bearing preload adjustment
  • Oil seal replacement
  • Oil capacity: 0.30L (first fill) / 0.25L (change)
  • Drive flange service

Section 11 – Electrical System:

• Charging System:
  • 3-phase AC permanent magnet alternator
  • Charging coil resistance: 0.2-0.3Ω @ 20°C
  • Silicon-controlled rectifier/regulator
  • Output testing procedures
• Battery:
  • 12V 36Ah specifications
  • Charging procedures (0.9A/5-10H standard, 4A/1H quick)
  • Terminal voltage testing
  • Load testing
• Starting System:
  • Electric starter motor service
  • Starter relay testing
  • Relay coil resistance: 3-5Ω
  • Secondary relay: 90-100Ω
  • Solenoid operation
• Ignition System:
  • Carburetor Models: CDI ignition
    • Ignition timing: BTDC 10°CA @ 1500 RPM
    • Peak voltage: Above 200V
    • Pulse generator: 2V
  • EFI Models: ECU ignition
    • Electronic timing control
    • Max advance: 32°CA
  • Spark plug: DPR7EA-9 (NGK) or DR8EA, D7RTC
  • Spark plug gap: 0.8-0.9mm
• Wiring Harness:
  • Complete wiring diagrams
  • Connector locations
  • Wire color codes
  • Fuse specifications
  • Circuit protection

Section 12 – Lighting & Switches:

• Headlight system
• Taillight and brake lights
• Turn signals (if equipped)
• Instrument panel lights
• Dash indicators
• Switch testing procedures
• Bulb replacement
• Light aiming adjustment

Section 13 – Troubleshooting:

• Engine won’t start diagnostics
• Engine runs rough/lacks power
• Overheating issues
• Charging system failures
• CVT belt slipping
• Gear shifting problems
• Brake issues
• Steering problems
• Electrical failures
• Fuel system diagnostics
• Symptom-based troubleshooting charts

Transmission System Details

CVT (Continuously Variable Transmission):

• V-belt with teeth, automatic stepless gear change
• Primary speed change ratio: 0.703-2.88
• Plus gear change cam with transmission

Gear Ratios:

• High Gear: 3.514
• Low Gear: 5.857
• Reverse Gear: 3.828
• Final Ratio: 3.667 (33/9)

Total Speed Reduction:

• Low Gear: 2.47-10.12 (front), 4.12-16.87 (rear), 2.69-11.02 (total)

Clutch:

• Wet, centrifugal automatic type
• Manual gear selector (L-H-N-R)
• Parking brake integration

Technical Specifications Summary

Who Should Use This Manual

• Xinyang Certified Master Service Technicians – authorized dealer service
• UTV/ATV Mechanics – side-by-side vehicle repair shops
• Powersports Technicians – multi-brand service facilities
• Off-Road Vehicle Specialists – utility vehicle maintenance
• Farm and Ranch Mechanics – agricultural equipment service
• Municipal Fleet Maintenance – government vehicle service
• DIY Owners – experienced vehicle owners performing own service
• Vocational Training Programs – small engine and UTV repair courses

Applications

Xinyang 500 UTVs are used for:

• Farm and ranch work
• Hunting and outdoor recreation
• Property maintenance
• Trail riding
• Municipal utility work
• Golf course maintenance
• Industrial facilities transportation
• Off-road recreation

File Details

This comprehensive service manual is essential for anyone responsible for maintaining, repairing, or troubleshooting Xinyang 500 series utility terrain vehicles. With detailed engine overhaul procedures, complete transmission service, comprehensive electrical diagnostics, and thorough chassis component coverage, this manual provides everything needed to keep these 4×4 side-by-side vehicles operating reliably.
