Xtreme XR5919 Telehandler Parts Manual 24928-100 – PDF DOWNLOAD

Description

Xtreme XR5919 Telehandler Parts Manual 24928-100 – PDF DOWNLOAD

The Xtreme XR5919 Telehandler Parts Manual (24928-100) is a PDF guide for the XR5919 model, offering detailed diagrams, part numbers, and instructions for effective maintenance and repairs. Easily downloadable for quick access to essential information.

FILE DETAILS:

Xtreme XR5919 Telehandler Parts Manual 24928-100 – PDF DOWNLOAD

Language : English
Pages : 347
Downloadable : Yes
File Type : PDF

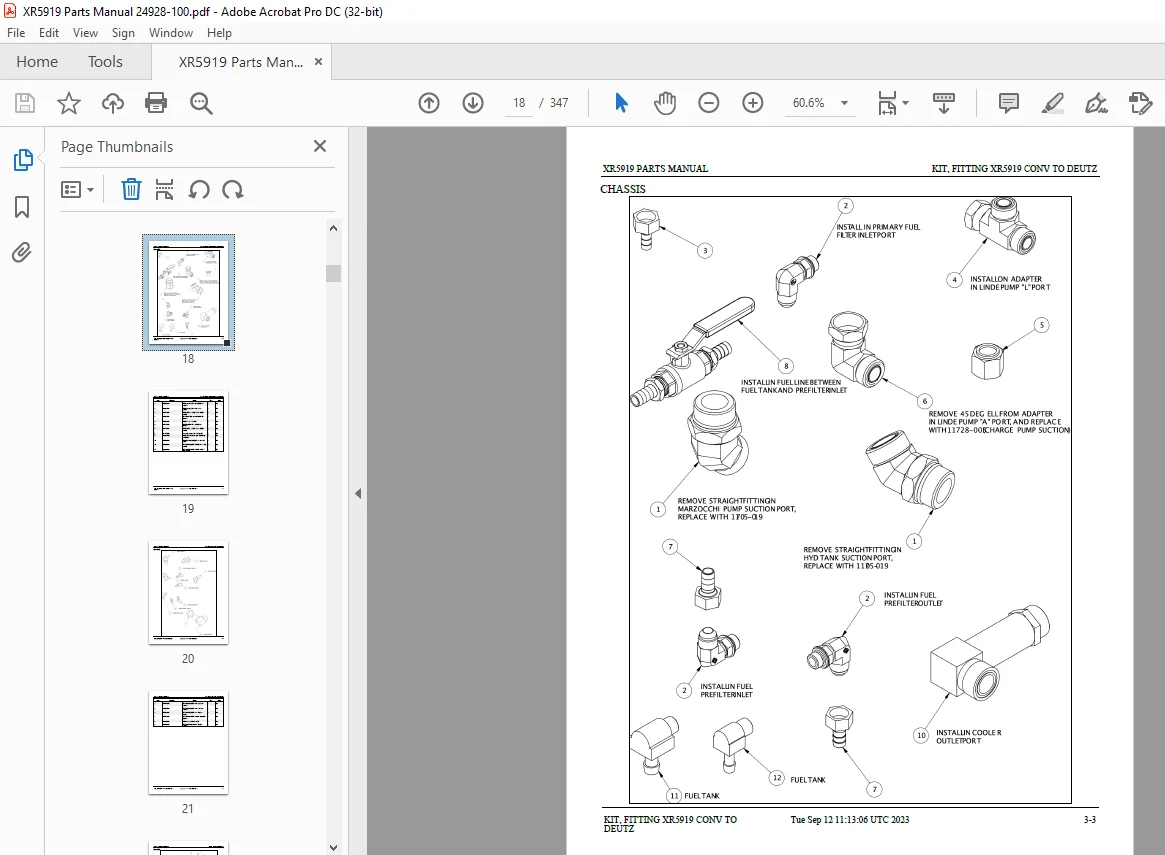

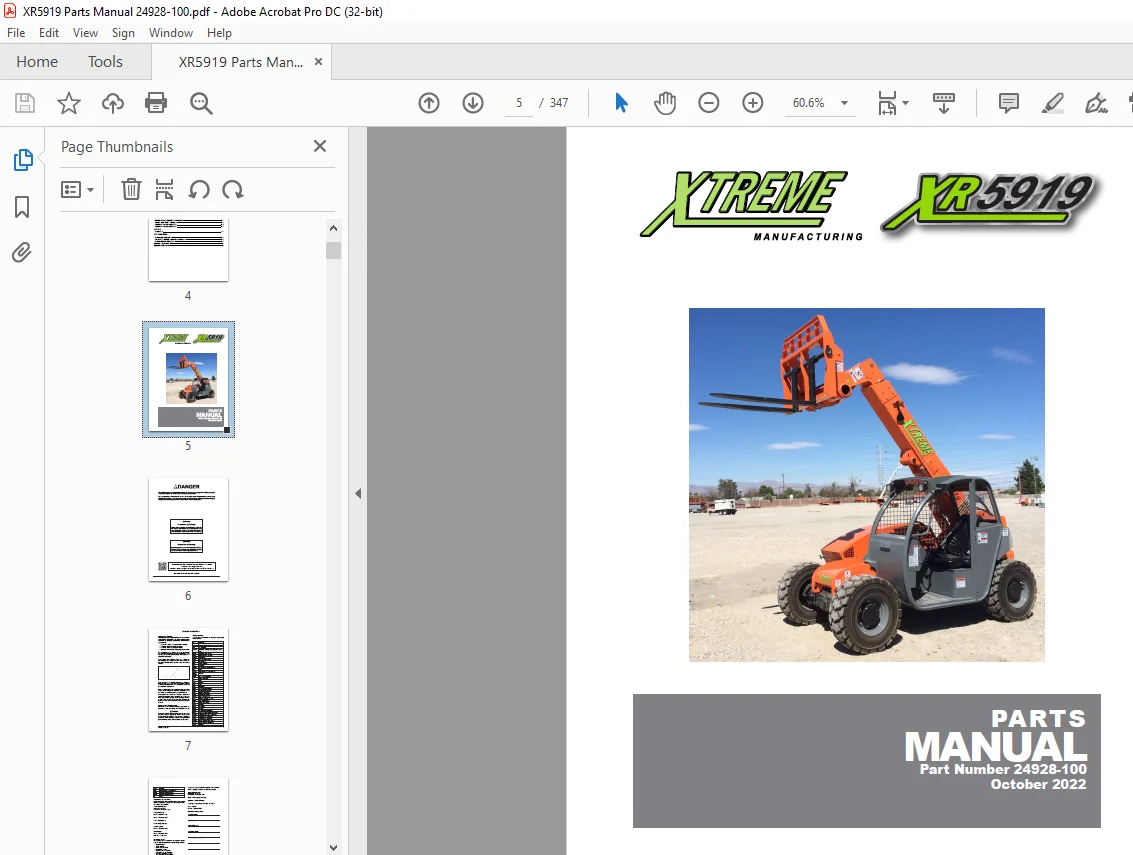

IMAGES PREVIEW OF THE MANUAL:

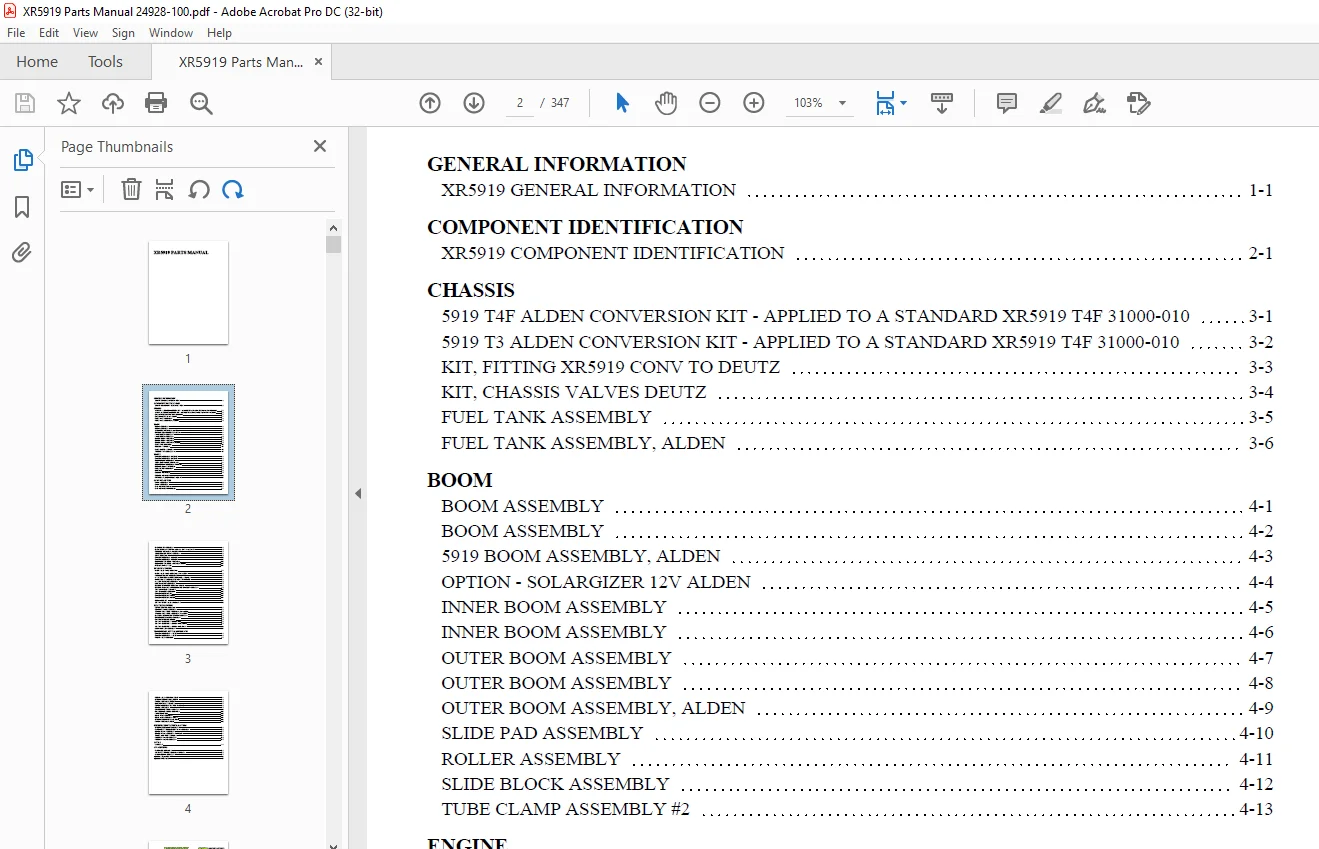

TABLE OF CONTENTS:

Xtreme XR5919 Telehandler Parts Manual 24928-100 – PDF DOWNLOAD

GENERAL INFORMATION
XR5919 GENERAL INFORMATION 1-1
COMPONENT IDENTIFICATION
XR5919 COMPONENT IDENTIFICATION 2-1
CHASSIS
5919 T4F ALDEN CONVERSION KIT – APPLIED TO A STANDARD XR5919 T4F 31000-010 3-1
5919 T3 ALDEN CONVERSION KIT – APPLIED TO A STANDARD XR5919 T4F 31000-010 3-2
KIT, FITTING XR5919 CONV TO DEUTZ 3-3
KIT, CHASSIS VALVES DEUTZ 3-4
FUEL TANK ASSEMBLY 3-5
FUEL TANK ASSEMBLY, ALDEN 3-6
BOOM
BOOM ASSEMBLY 4-1
BOOM ASSEMBLY 4-2
5919 BOOM ASSEMBLY, ALDEN 4-3
OPTION – SOLARGIZER 12V ALDEN 4-4
INNER BOOM ASSEMBLY 4-5
INNER BOOM ASSEMBLY 4-6
OUTER BOOM ASSEMBLY 4-7
OUTER BOOM ASSEMBLY 4-8
OUTER BOOM ASSEMBLY, ALDEN 4-9
SLIDE PAD ASSEMBLY 4-10
ROLLER ASSEMBLY 4-11
SLIDE BLOCK ASSEMBLY 4-12
TUBE CLAMP ASSEMBLY #2 4-13
ENGINE
CHASSIS ASSEMBLY – ENGINE 5-1
CHASSIS ASSEMBLY – ENGINE 5-2
ENGINE/PUMP ASSEMBLY 5-3
ASSY, ENG / P0UMP, XR5919 DTZ 5-4
ENGINE/PUMP ASSEMBLY WITH A/C 5-5
ENGINE, Deutz 74 HP DIESEL 5-6
FUEL FILTER ASSEMBLY 5-7
DIPSTICK 5-8
COOLER ASSEMBLY 5-9
COOLER ASSEMBLY 5-10
FITTING KIT, ENGINE/PUMP NON-AC 5-11
CABIN AND COVERS
FINAL ASSEMBLY 6-1
FINAL ASSEMBLY 6-2
CAB ASSEMBLY-OPEN 6-3
CAB ASSEMBLY-ENCLOSED 6-4
DASHBOARD ASSEMBLY 6-5
DASH OVERLAY / SWITCH INSTALL XR5919 ALDEN T3 6-6
CONSOLE ASSEMBLY, ALDEN T4 6-7
ACCELERATOR PEDAL ASSEMBLY 6-8
SEAT ASSEMBLY 6-9
CHASSIS ASSEMBLY – COVERS 6-10
CHASSIS ASSEMBLY – COVERS 6-11
ENGINE COVER DOOR ASSEMBLY 6-12
ENGINE COVER DOOR ASSEMBLY, DEUTZ 6-13
FTG KIT, 404F HEATER 6-14
HYDRAULIC SYSTEM
HYDRAULIC TANK ASSEMBLY 7-1
HYDRAULIC TANK ASSEMBLY, 5919 ALDEN 7-2
PRESSURE FILTER ASSEMBLY 7-3
MAIN CONTROL MANIFOLD/FITTING ASSEMBLY 7-4
HAWE VALVE ASSEMBLY OPTION 1 STANDARD 7-5
MASTER CYLINDER ASSEMBLY 7-6
LIFT CYLINDER ASSEMBLY 7-7
EXTEND CYLINDER ASSEMBLY XR5919 7-8
EXTEND CYLINDER ANTI-BUCKLING BRACKET ASSEMBLY 7-9
TILT MANIFOLD ASSEMBLY 7-10
TILT CYLINDER ASSEMBLY 7-11
CHASSIS HOSE KIT, PK 7-12
CHASSIS HOSE KIT, DEUTZ 7-13
CHASSIS HOSE KIT, ALDEN 7-14
BOOM HOSE KIT 7-15
XR 5919 – HYDRAULIC SCHEMATIC 7-16
ELECTRICAL SYSTEM
POWER CENTER ASSEMBLY 8-1
CONTROL PANEL ASSEMBLY 8-2
TWIN BATTERY BOX ASSEMBLY, T4F ALDEN 8-3
TWIN BATTERY BOX ASSEMBLY, T3 ALDEN 8-4
BATTERY DISCONNECT SWITCH ASSEMBLY 8-5
OPTION BOOM LIGHTS ASSEMBLY 8-6
KIT, FRONT/BRAKE SIGNAL 8-7
XR 5919 – ELECTRICAL SCHEMATIC 8-8
XR 5919 – ELECTRICAL SCHEMATIC, DEUTZ 8-9
XR 5919 – ELECTRICAL SCHEMATIC, 12/24V 8-10
LIGHT-RED LED ASSEMBLY 8-11
TRANSMISSION, AXLES & DRIVESHAFTS
CHASSIS ASSEMBLY – AXLES 9-1
CHASSIS ASSEMBLY – AXLES 9-2
FRONT AXLE ASSEMBLY 9-3
FRONT AXLE ASSEMBLY XR619 9-4
STEERING DRIVE AXLE, FRONT 9-5
PINION ASSEMBLY, FRONT 9-6
DIFFERENTIAL ASSEMBLY 9-7
PISTON ASSEMBLY-SERVICE /PARKING 9-8
BRAKE ASSEMBLY 9-9
LH STEERING WHEEL ASSEMBLY 9-10
RH STEERING WHEEL ASSEMBLY 9-11
INPUT GEAR BOX 9-12
REAR AXLE ASSEMBLY 9-13
REAR AXLE ASSEMBLY XR619 9-14
STEERING DRIVING AXLE, REAR 9-15
PINION ASSEMBLY, REAR 9-16
STEERING, BRAKES, WHEELS, & TIRES
STEERING COLUMN ASSEMBLY 10-1
PARKING BRAKE RELEASE VALVE ASSEMBLY 10-2
BRAKE PEDAL ASSEMBLY 10-3
BRAKE PEDAL ASSEMBLY W/FTG 630 10-4
WHEEL AND TIRE ASSEMBLY 10-5
PRIORITY VALVE ASSEMBLY 10-6
PRIORITY VALVE ASSEMBLY 10-7
LABELS
LABEL KIT 11-1
ATTACHMENTS
CARRIAGE ASSEMBLY 12-1
48″ TILT CARRIAGE ASSEMBLY GROUP A 12-2
CARRIAGE PIN ASSEMBLY 12-3
Appendix A:Pages Index A
Appendix B:Parts Index B

Customer Support: [email protected]

https://vimeo.com/914681913?share=copy

S.V 02/2024
