Assemblies Available For A943 (MO20F)

• Every effort has been made to accurately reflect the correct parts listing. Links to associated aftermarket databases have been annotated.
• It is, however, incumbent upon you to properly interpret the information provided for your specific needs.

TABLE OF CONTENTS:

Yale A943 MO20F Part Manual – PDF DOWNLOAD

1. FRAME
1. COVERS 2. LABELS AND DECALS
3. FRAME (VERTICAL BATTERY REMOVAL)
4. FRAME (LATERAL BATTERY REMOVAL)
5. TIE RODS (S/N A943X01500C <=> S/N A943X01541D)
6. TIE RODS (S/N A943X01542D =>)
7. TIE RODS (L>1400MM) (S/N A943X01500C <=> S/N A943X01541D)
8. TIE RODS (L=2350MM) (S/N A943X01542D =>)
9. SUPPORTS AND CASTER WHEELS 10. CASTER WHEEL
11. CASTER WHEEL 12. LEAD-IN ROLLERS
2. ELECTRICAL SYSTEM 1. ELECTRONIC SYSTEM
2. POWER CABLES DIAGRAM
3. WIRE HARNESS DIAGRAM
3. DRIVE UNIT
1. DRIVE UNIT 2. ELECTROMAGNETIC BRAKE
3. STEERING CONTROL UNIT (S/N A943X01500C <=> S/N A943X01539D)
4. STEERING CONTROL UNIT (S/N C943X01540D =>)
5. TRACTION MOTOR (4.0 KW VERSION)
4. STEERING SYSTEM
1. STEERING (ELECTRIC)
2. ARTICULATED SHAFT (S/N A943X01500C <=> S/N A943X01540D)
3. ARTICULATED SHAFT (S/N A943X01541D =>)
4. CONTROL BOX (ON OFF VERSION)
5. LOAD WHEEL 1. LOAD WHEELS (TANDEM)
2. LOAD WHEELS (TWIN TANDEM)
3. LOAD WHEELS (SINGLE)
4. LOAD WHEELS (TWIN SINGLE)
5. LOAD WHEELS (VEGETABLE MARKET APP)
6. HYDRAULIC SYSTEM 1. DISTRIBUTOR
2. HYDRAULIC SYSTEM
7. OPERATOR COMPARTMENT
8. OPTIONS 1. BACKING
2. PAPER HOLDER
3. BATTERY ROLLER TRUCK

YALE A943 MO20F PART MANUAL – PDF DOWNLOAD:

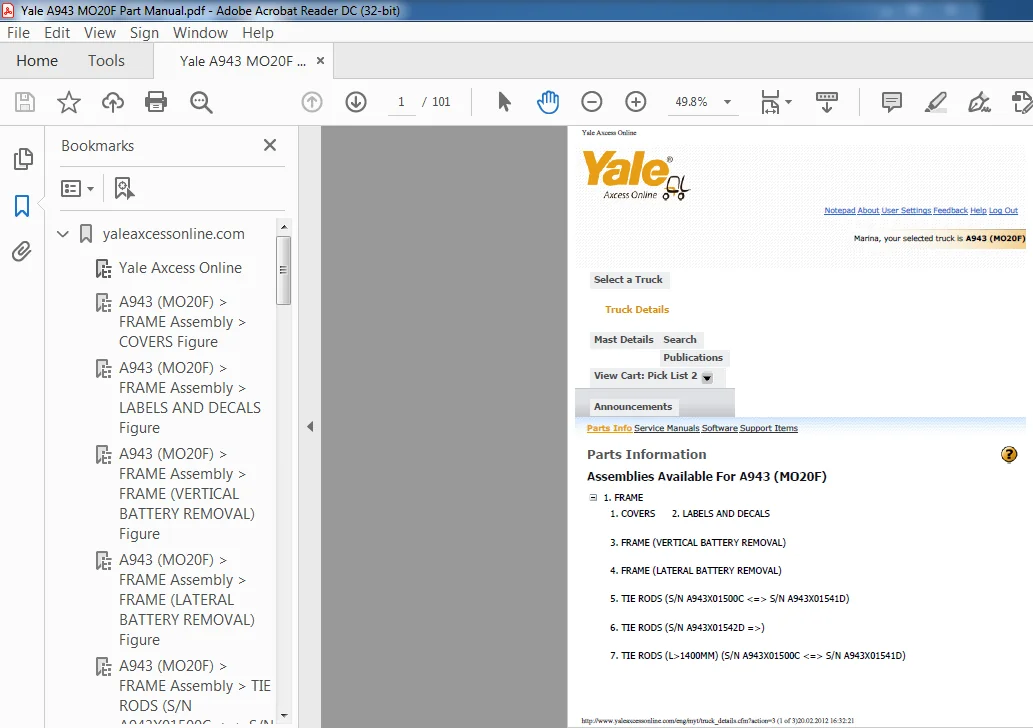

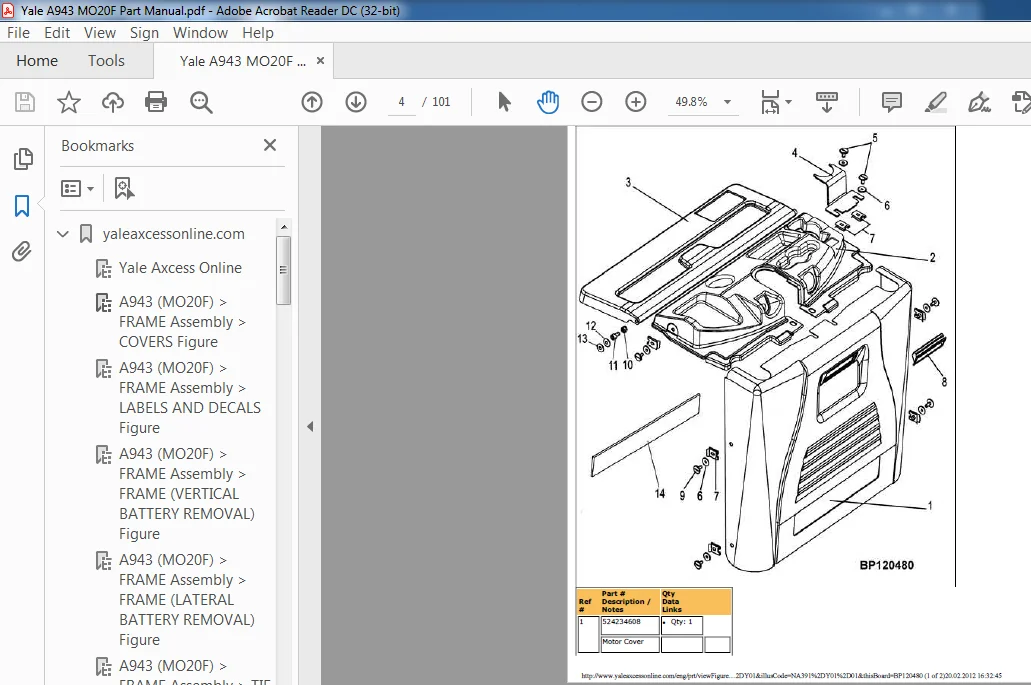

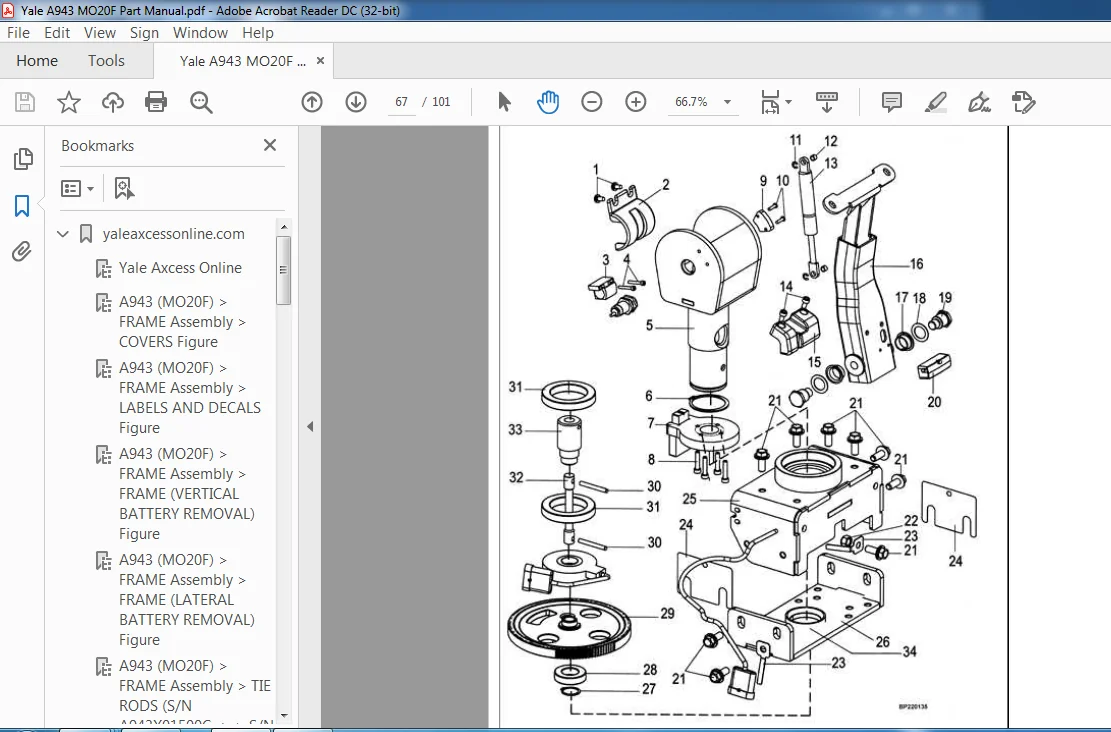

IMAGES PREVIEW OF THE MANUAL:
