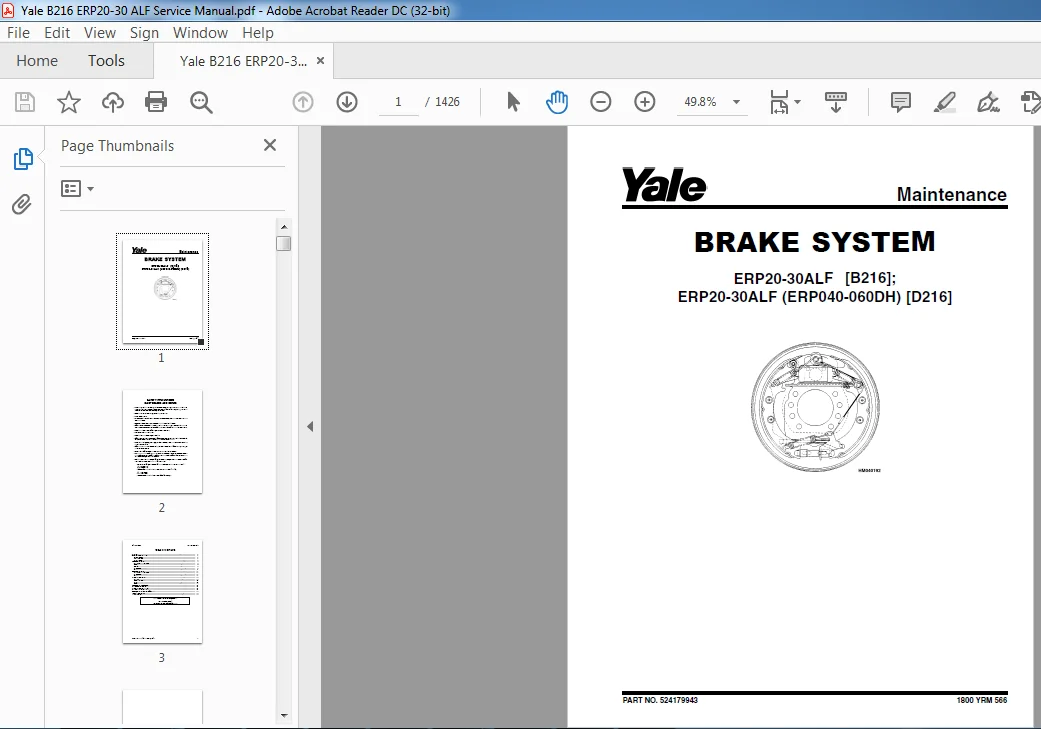

BRAKE SYSTEM
ERP20-30ALF [B216];
ERP20-30ALF (ERP040-060DH) [D216]

• When lifting parts or assemblies, make sure all slings, chains, or cables are correctly fastened, and that the load being lifted is balanced. Make sure the crane, cables, and chains have the capacity to support the weight of the load. Do not lift heavy parts by hand, use a lifting mechanism. Wear safety glasses.
• DISCONNECT THE BATTERY CONNECTOR before doing any maintenance or repair on electric lift trucks. Disconnect the battery ground cable on internal combustion lift trucks. Always use correct blocks to prevent the unit from rolling or falling. See HOW TO PUT THE LIFT TRUCK ON BLOCKS in the Operating Manual or the Periodic Maintenance section. Keep the unit clean and the working area clean and orderly. Use the correct tools for the job. Keep the tools clean and in good condition.
• Always use YALE APPROVED parts when making repairs. Replacement parts must meet or exceed the specifications of the original equipment manufacturer. Make sure all nuts, bolts, snap rings, and other fastening devices are removed before using force to remove parts. Always fasten a DO NOT OPERATE tag to the controls of the unit when making repairs, or if the unit needs repairs.
• Be sure to follow the WARNING and CAUTION notes in the instructions. Gasoline, Liquid Petroleum Gas (LPG), Compressed Natural Gas (CNG), and Diesel fuel are flammable. Be sure to follow the necessary safety precautions when handling these fuels and when working on these fuel systems. Batteries generate flammable gas when they are being charged. Keep fire and sparks away from the area. Make sure the area is well ventilated. NOTE: The following symbols and words indicate safety information in this manual:

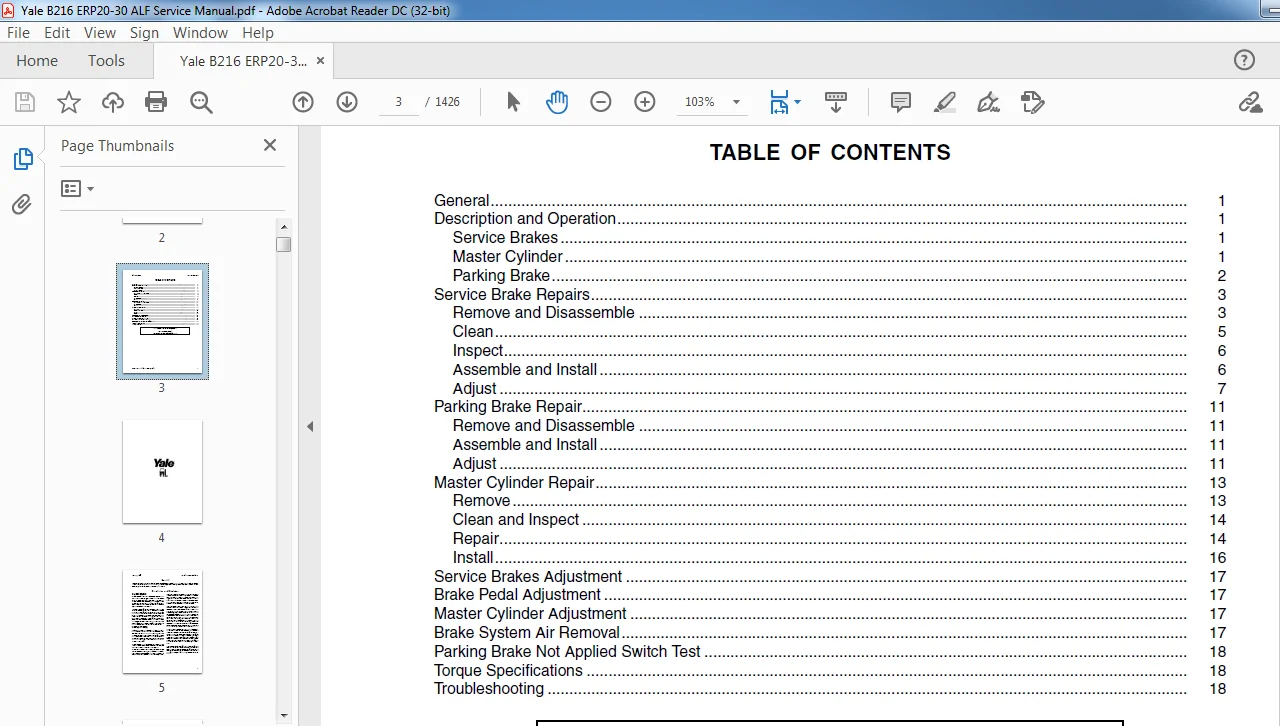

TABLE OF CONTENTS:

Yale B216 ERP20-30 ALF Service Manual – PDF DOWNLOAD

General 1
Description and Operation 1
Service Brakes 1
Master Cylinder 1
Parking Brake 2
Service Brake Repairs 3
Remove and Disassemble 3
Clean 5
Inspect 6
Assemble and Install 6
Adjust 7
Parking Brake Repair 11
Remove and Disassemble 11
Assemble and Install 11
Adjust 11
Master Cylinder Repair 13
Remove 13
Clean and Inspect 14
Repair 14
Install 16
Service Brakes Adjustment 17
Brake Pedal Adjustment 17
Master Cylinder Adjustment 17
Brake System Air Removal 17
Parking Brake Not Applied Switch Test 18
Torque Specifications 18
