Yale Forklift D861 (NDR035EB, NR045EB) Service Manual – PDF DOWNLOAD

Description

Yale Forklift D861 (NDR035EB, NR045EB) Service Manual – PDF DOWNLOAD

FILE DETAILS:

Yale Forklift D861 (NDR035EB, NR045EB) Service Manual – PDF DOWNLOAD

Language : English
Pages : 1086
Downloadable : Yes
File Type : PDF

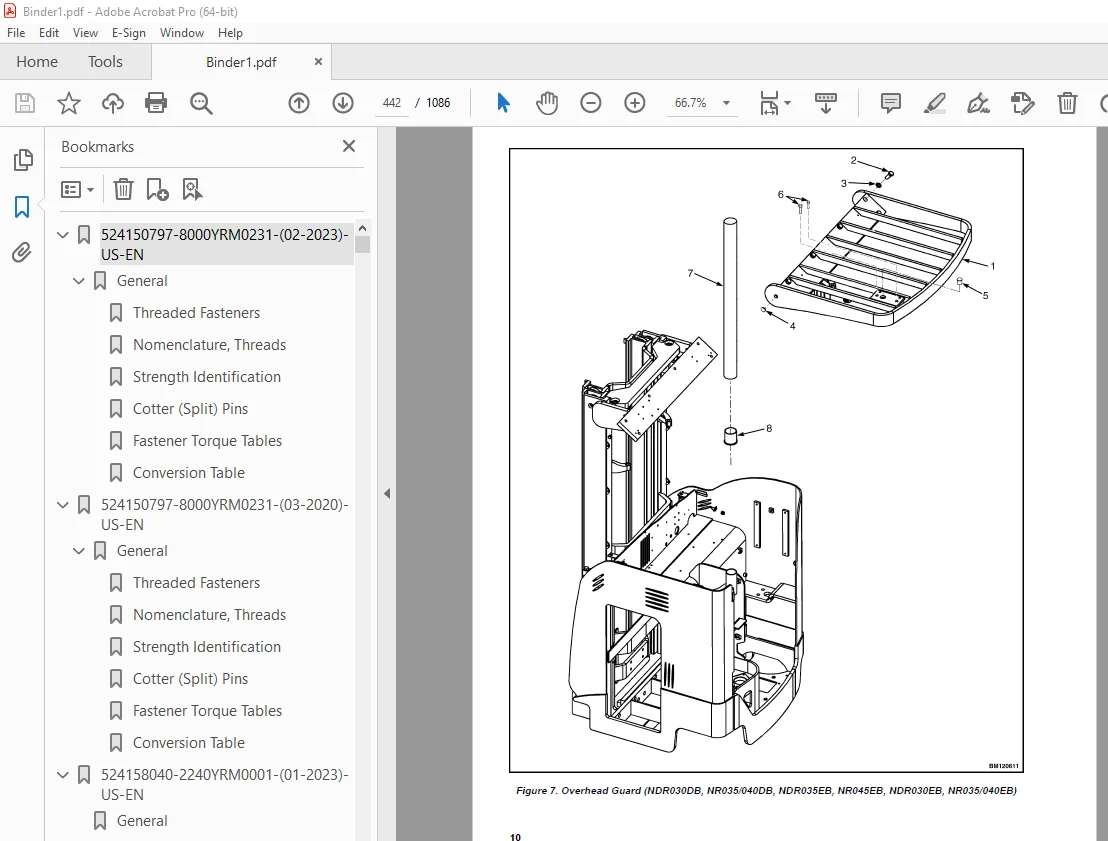

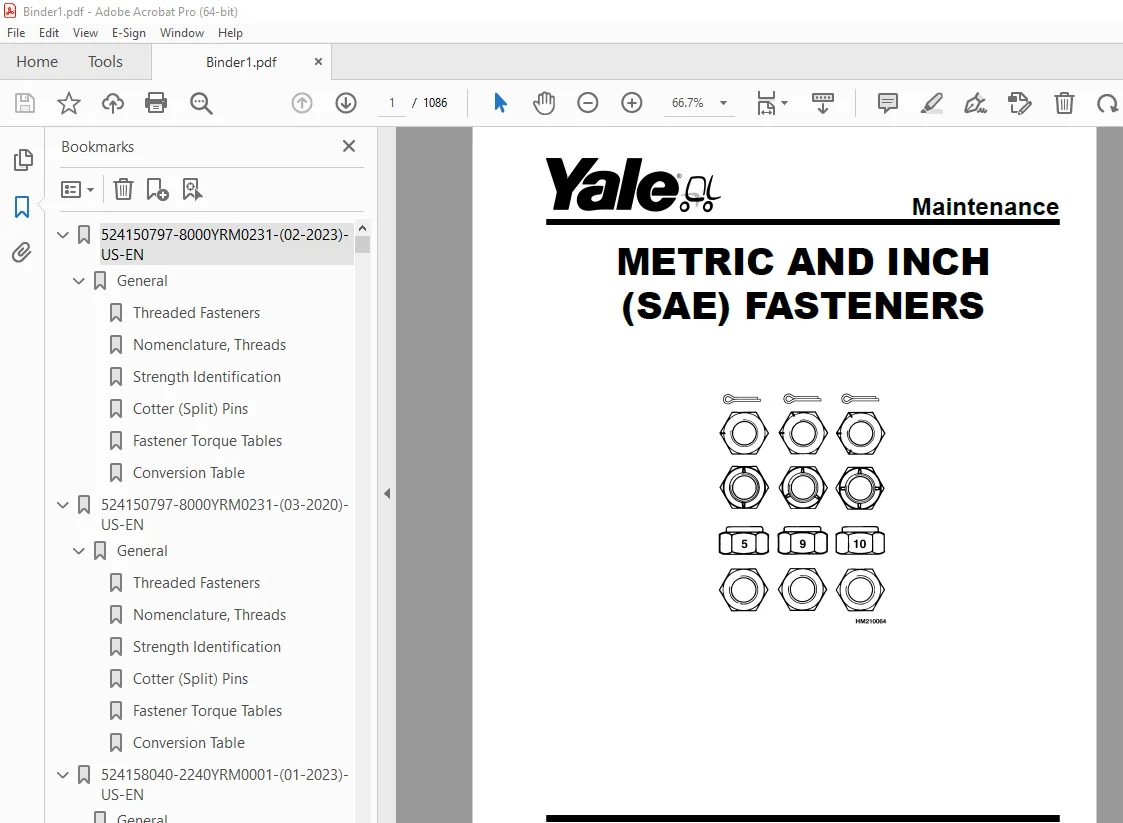

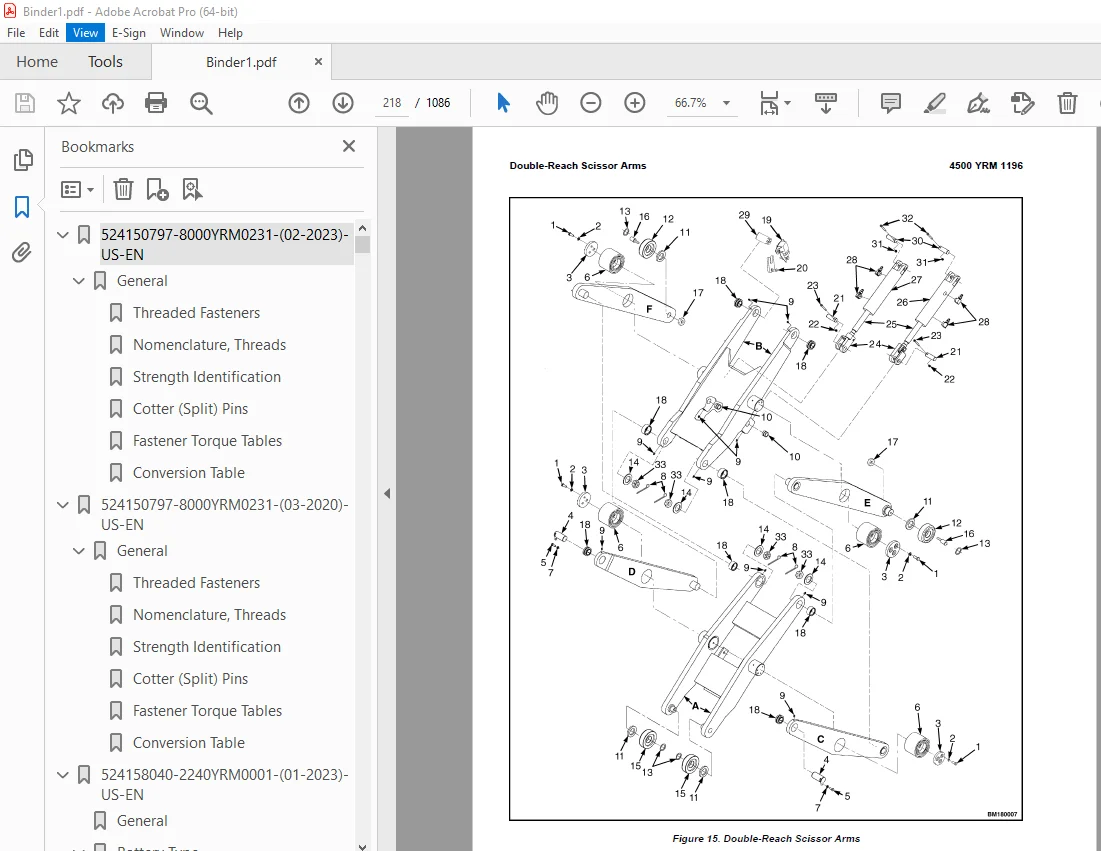

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Yale Forklift D861 (NDR035EB, NR045EB) Service Manual – PDF DOWNLOAD

524150797-8000YRM0231-(02-2023)-US-EN 1
General 7
Threaded Fasteners 7
Nomenclature, Threads 7
Strength Identification 8
Cotter (Split) Pins 9
Fastener Torque Tables 14
Conversion Table 16
524150797-8000YRM0231-(03-2020)-US-EN 23
General 27
Threaded Fasteners 27
Nomenclature, Threads 27
Strength Identification 28
Cotter (Split) Pins 29
Fastener Torque Tables 34
Conversion Table 36
524158040-2240YRM0001-(01-2023)-US-EN 43
General 49
Battery Type 49
Lead-Acid Batteries 49
Lithium-Ion Batteries 50
Specific Gravity 50
Chemical Reaction in a Cell 50
Electrical Terms 52
Battery Selection 53
Battery Voltage 54
Battery as a Counterweight 54
Battery Ratings 54
Kilowatt-Hours 54
Battery Maintenance 55
Safety Procedures 55
Maintenance Records 55
New Battery 55
Cleaning Battery 56
Adding Water to Battery 58
Hydrometer 58
Battery Temperature 59
Charging Battery 60
Types of Battery Charges 61
Methods of Charging 62
Troubleshooting Charger 63
Knowing When Battery Is Fully Charged 63
Where to Charge Batteries 63
Equipment Needed 63
Battery Connectors 64
Battery Care 64
Troubleshooting 66
524158040-2240YRM0001-(03-2020)-US-EN 71
General 75
Battery Type 75
Lead-Acid Batteries 75
Lithium-Ion Batteries 76
Specific Gravity 76
Chemical Reaction in a Cell 76
Electrical Terms 78
Battery Selection 78
Battery Voltage 79
Battery as a Counterweight 80
Battery Ratings 80
Kilowatt-Hours 80
Battery Maintenance 80
Safety Procedures 80
Maintenance Records 81
New Battery 81
Cleaning Battery 81
Adding Water to Battery 83
Hydrometer 84
Battery Temperature 85
Charging Battery 86
Types of Battery Charges 86
Methods of Charging 88
Troubleshooting Charger 88
Knowing When Battery Is Fully Charged 89
Where to Charge Batteries 89
Equipment Needed 89
Battery Connectors 90
Battery Care 90
Troubleshooting 92
524164473-4000YRM0481-(08-2016)-US-EN 97
General 101
Description 101
Lowering Control Valve 102
Main Cylinder Repair 103
Disassemble 104
Assemble 105
Free-Lift Cylinder Repair 106
Disassemble 106
Assemble 106
Troubleshooting 108
524233335-1800YRM1188-(01-2016)-US-EN 111
Introduction 115
General 115
Discharging the Capacitors 115
Electric Brake 116
Air Gap 117
Remove 118
Install 119
Troubleshooting 120
524233341-4000YRM1194-(01-2016)-US-EN 125
General 129
Safety Procedures When Working Near Mast 130
Mast Weldments 132
Reach Carriage Assembly 132
Three-Stage Mast 134
Description 134
Operation 135
524233342-4000YRM1195-(07-2019)-US-EN 139
General 143
Safety Procedures When Working Near Mast 143
Load Backrest 144
Remove 144
Install 144
Forks 144
Remove 145
Install 145
Checks, Lift Truck Models NR045EA, NDR035EA (C861); NR035EA, NR040EA, NDR030EA (D815); NR035DA, NR040DA, NDR030DA (A295) 145
Checks, Lift Truck Models NR045EB, NDR035EB (D861); NR035EB, NR040EB, NDR030EB (E815); NR035DB, NR040DB, NDR030DB (B295) 146
Sheaves 148
Hydraulic System 151
Hydraulic Oil 153
Drain 153
Cylinder Identification 155
Fill 156
Main Lift Cylinders 157
Free-Lift Cylinders 157
Reach Carriage Assembly 158
Remove 158
Install 160
Load Rollers 161
Mast 161
Reach Assembly 163
Load Rollers 163
Side Rollers 163
Mast 164
Remove 164
Disassemble 165
Clean and Inspect 166
Assemble 167
Install 169
Lift Cylinders 170
Main Lift Cylinders 170
Remove 170
Install 173
Free-Lift Cylinder 174
Remove 174
Install 175
Lift Chains 176
Clean and Inspect 176
Mast Adjustments 177
General 177
Mast Back Angle Adjustment 177
Load Rollers Adjustment 178
Reach Carriage Assembly 178
Adjust Wear Plugs – Mast 179
Adjust Main-Lift Chains 181
Adjust Free-Lift Chain 181
Adjust Wear Strips 183
Mast Racking 184
Proximity Switches 185
Replace 186
Free-Lift Proximity Switch 186
Load Lowering Proximity Switch (Optional) 187
Adjust 187
Mast Operation Check 187
Lift System Leak Check 188
Lift Cylinder Leak Check 188
Tilt Cylinder Leak Check 188
524233343-4500YRM1196-(01-2016)-US-EN 191
General 195
Safety Procedures When Working Near Mast 195
Description 196
Repair – General 198
Load Backrest 198
Remove 198
Install 198
Forks 199
Replacement 199
Remove 199
Install 199
Reach Carriage Assembly 200
Remove 200
Inspect 201
Install 202
Reach Carriage Assembly Repair 202
Load Rollers Repair 203
Side Rollers Repair (6 9 Mast Only) (NDR030DA and NR035/040DA) 204
Reach Assembly Front Frame 205
Remove 205
Disassemble (With Sideshift) 206
Disassemble (Without Sideshift) 208
Clean and Inspect 209
Assemble (With Sideshift) 209
Assemble (Without Sideshift) 209
Install 210
Single-Reach Scissor Arms 210
Remove and Disassemble 210
Clean and Inspect 214
Assemble and Install 214
Double-Reach Scissor Arms 216
Disassemble 216
Clean and Inspect 220
Assemble 220

Rear Frame Assembly 223
Remove 223
Disassemble 225
Clean and Inspect 226
Assemble 226
Install 226
Reach Cylinders 228
Remove 228
Disassemble 229
Clean and Inspect 230
Assemble 230
Install 231
Tilt Cylinder 231
Remove 231
Clean, Inspect, and Repair 232
Install 233
Sideshift Cylinder 233
Repair 233
Front Selector Valve 234
Rear Selector Valve 235
Reach Assembly Adjustments 235
Check Adjustment 236
Adjust Side Rollers and Load Rollers 237
Adjust Reach Cylinders 238
Lift Chains 239
Inspect 239
Clean and Lubricate 240
Adjust Main-Lift Chains 240
Adjust Free-Lift Chains 240
Specifications 241
Troubleshooting 244
550072990-8000YRM1619-(09-2019)-US-EN 249
Schematics 253
550072991-8000YRM1617-(02-2018)-US-EN 283
General 287
Removing Covers 288
Front Frame Panel (Left and Right) 288
Operator Compartment Cover 288
Drive Unit Compartment Door 289
Caster Wheel Cover 289
Discharging the Capacitors 289
How to Move Disabled Truck 290
How to Tow Lift Truck 290
How to Put Lift Truck on Blocks 291
How to Raise Load Wheels 291
How to Raise the Drive Tire End 291
How to Raise the Entire Lift Truck 292
Manual Lowering Valve 293
NDR030/035EB and NR030/040/045EB 293
NDR030DB and NR035/040DB 293
Transporting 294
Loading 294
Unloading 295
Preparation for Use 295
Preparation After Shipment 295
Preparation After Storage 295
Safety Procedures When Working Near Mast 295
Maintenance Schedule 297
Maintenance Procedures Every 8 Hours or Daily 303
Checks With Key Switch Turned OFF 304
Battery 304
Tires and Wheels 305
Frame and Load Wheels 305
Safety Labels 305
Overhead Guard 305
Forks Check 306
Lift Chain Check 307
Mast Check 308
Reach, Tilt, and Sideshift 308
Checks With Key Switch Turned ON 308
Operation 308
Hydraulic System 309
Dash Display 309
Lift System Operation 310
Multifunction Control Handle 311
Brake 312
Steering System 312
Maintenance Procedures Every500 Hours or 3 Months 312
Master Drive Unit 312
Hydraulic System 312
Hydraulic Filter Element Change 314
Caster Adjustment 314
Elastomer Spring Adjustment 315
Spring Pack Replacement 316
Remove Spring Assembly 316
Replace Spring Pack 316
Install Spring Assembly 317
Drive Tire Check 317
Lift System Operation 318
Forks Check 318
Mast 318
Lift Chains 319
Other Lubrication 320
Maintenance Procedures Every 2000 Hours or Yearly 320
Brakes 320
Check 320
Electric System 320
Main Contactor 320
Inspect 320
Forks, Check 321
Hydraulic System 321
Drain 321
Cylinder Identification 323
Fill 324
Main Lift Cylinders 325
Free-Lift Cylinders 325
Hydraulic Filter Change 326
Check Hydraulic Strainer 327
Lift and Tilt System Leaks Check 327
Lift System 327
Tilt System 328
Battery Maintenance 328
How to Charge Battery 328
How to Change Battery 330
Tires and Wheels 332
Drive Tire 332
How to Change Drive Tire 333
Tandem Load Wheels 334
Caster Wheels 334
Remove 334
Install 335
Preparation for Storage 336
Short-Term Storage (1 to 6 months) 336
Long-Term Storage (6 months or longer) 336
550073166-0620YRM1621-(12-2018)-US-EN 339
General 343
Special Precautions 343
Discharging the Capacitors 343
Traction Motor Repair 343
Remove 344
Disassemble 346
Clean/Inspect 350
Assemble 351
Install 352
Hydraulic Motor Repair 353
Disassemble 353
Inspect 355
Assemble 356
Special Tools 357
Tool Chart 357
Troubleshooting 358
550073167-0630YRM1609-(03-2021)-US-EN 363
Master Drive Unit 367
General 367
Description 367
Maintenance 368
Changing the Oil 368
Remove 368
Clean and Inspect 373
Install 376
Troubleshooting 377
550073168-1600YRM1610-(04-2014)-US-EN 381
550073169-0100YRM1615-(01-2016)-US-EN 429
General 433
Description 434
Repairs – General 434
Covers, Panels, and Plates 434
Front Frame Panel (Left and Right) 434
Operator Compartment Cover 435
Drive Unit Compartment Door 435
Door Pad 435
Operator Back Pad 436
Side-Stance Models 436
Forward-Stance Models 436
Operator Front Pad 436
Caster Wheel Cover 436
Load Wheels 437
Remove 437
Install 438
Overhead Guard Replacement 439
Remove 444
Install 444
Front Lights 444
Bulb Replacement 444
Assembly Replacement 445
Rear Work and Caution Light 446
Caution Light 446
Painting Instructions 446
Safety Labels Replacement 448
550073170-1900YRM1616-(12-2018)-US-EN 455
General 459
Discharging the Capacitors 460
Description 460
Control Handle 461
Sidestance Control Handle 461
Fore/Aft Stance 462
Maintenance 462
Oil Level and Leaks 463
Operation 463
Oil Change 463
Drain 463
Cylinder Identification 465
Fill 466
Main Lift Cylinders 467
Free-Lift Cylinders 467
Breather Cap 468
Inspect 468
Oil Filter 469
Change 469
Oil Strainer 469
Check 469
Hydraulic System 469
General 470
Cleaning 470
Noise Levels 470
Hoses 470
Fittings 472
Lift Pump and Motor 472
Complete Unit 473
Remove 473
Install 474
Lift Pump 475
Components 476
Pressure Flange Fitting 476
Supply and Return Fittings 477
Manual Lowering Valve 477
Pressure Test Ports 477
Pressure Transducer 478
Relief Valve 480
Lowering Control Valve 480
Remove Pump 480
Install Pump 481
Auxiliary Hydraulics 481
Auxiliary Pump and Motor 482
Remove 482
Disassemble 483
Assemble 483
Install 484
Front Selector Valve 485
Rear Selector Valve 485
Hydraulic Tank 486
Remove 487
Disassemble 488
Breather Assembly 488
Filter Assembly 489
Tank Fittings 490
Clean and Inspect 490
Assemble 490
Breather Assembly 490
Filter Assembly 491
Tank Fittings 491
Install 492
Specifications 492
Troubleshooting 492
550073171-9000YRM1622-(01-2022)-US-EN 497
SECTION 9030 Electrical System 503
Group 03 – General Maintenance and Diagnostic Data 507
Group 20 – Diagnostic Trouble Codes 521
550073171-9000YRM1622-(10-2019)-US-EN 695
SECTION 9030 Electrical System 701
Group 03 – General Maintenance and Diagnostic Data 705
Group 20 – Diagnostic Trouble Codes 717
550073172-2200YRM1612-(07-2018)-US-EN 891
General 897
Discharging the Internal Capacitors 898
Static Strap 898
Inspect 899
Replace 899
Battery Connection 899
Inspect 899
Replacing Cables 899
Key Switch 900
Replace 901
Major Electrical System Features 902
Integrated System 903
CANbus Advantages 903
CANbus Communications 903
Electric Steering / Steer Caster (Optional) 903
Centering Proximity Sensor 903
Traction 904
CAN I/O 904
Input Devices 904
Output Devices 904
Encoder Integrity 904
Test Encoders 904
Proximity Switches 904
Key Switch 905
Multifunction Displays 905
BDI 905
Speed 905
Steer Angle 905
Truck Hours 905
Operational Mode 906
Setup 906
Setup Instructions 906
ACE2 / ACE3 Traction and Hydraulic Controllers 906
Normal Operation 906
Display 906
Password Access 906
Startup Checklist 906
Truck Operation Mode 907
Diagnostics 907
Calibrations 907
AC Motor Controllers 908
Controller Removal 909
Install 909
Low-Voltage Protection Function 909
CDF File Installation Procedure 910
Contactor and Electrical Panel Checks 910
Fuses 911
Contactors 911
General 911
Test 912
Tips 912
Disassemble and Assemble 913
Instrument Panel Removal and Installation 914
Key Switch Removal and Installation 914
Remove 914
Install 914
Integrated Fuse Board (IFB) 914
Replace 915
Diodes 916
Power Disconnect Switch 917
Replace 917
Side-Stance Controls 919
Multifunction Control Handle 919
Horn 920
Inspection 920
Remove 921
Install 923
Forward-Stance Controls 923
Control Handle Functions 923
Repair 924
Aft Travel Control Handle Option 925
Repair 926
Aft Handle Sensor Adjustment 927
Control Handle Disassembly and Repair 927
Thumb Grip Pad Replacement 928
Handle Grip and Switch Repairs 929
Handle Grip Support Mounting 929
Handle Disassembly 930
Steering Handle 932
Steering Unit Repair 932
Foot Switches 935
Brake Switch 936
Operator Sensing 936
Repair 936
Freezer Floor Plate Repair 937
General 937
Heater Harness 939
Dash Display Assembly 939
Description 939
Remove 940
Test 941
Install 941
Horn 941
Audible Alarm 942
Light Assemblies 943
Front Lights 943
Bulb Replacement 943
Assembly Replacement 943
Rear Work and Caution Light 944
Rear Work Light 944
Caution Light 944
Light Switches 945
Cooling Fans 946
Electrical Compartment Fans 946
Replace 948
Operator Fan 948
Repair 948
Impact Sensor 951
Remove 951
Install 952
Height Proximity Switch 952
Test 953
Remove 953
Install 953
Adjust 954
Load Transport Proximity Switch 955
Fork Height Sensor Option 956
Remove 956
Encoder Assembly 956
Timing Belt 957
Install 958
Encoder Assembly 958
Timing Belt 959
Reach Position Sensor 959
Remove 959
Install 962
Retract Sensor 962
Remove 963
Install 964
Tilt Leveling 965
Remove 965
Install 966
Laser Option 966
Remove 967
Adjustment 967
Horizontal Adjustment 967
Vertical Adjustment 969
Install 969
Camera Option 969
Description 969
Remove 972
Install 972
550073173-2200YRM1613-(02-2014)-US-EN 975
550073174-2200YRM1614-(01-2019)-US-EN 999
General 1009
Introduction 1009
Description 1009
Button Keypad 1009
LED Indicator Lights 1009
LCD Screen 1009
Dash Display Menu Access 1010
Menu Navigation 1010
Dash Display Menu Operation 1010
Nodes 1010
Menu Structure 1010
Service-Level Menu 1011
Hour Meters 1011
H1 Truck Hours 1013
H2 Traction Hours 1013
H3 Pump Hours 1013
H4 Steer Hours 1013
H5 Odometer Hours 1013
H10 Display Hours 1013
H30 Traction Node Hours 1013
H40 Steer Node Hours 1013
H41 Steer Caster Node Hours 1013
H50 Pump Node Hours 1013
H90 CAN I/O Hours 1013
Performance 1014
Performance Level 1 1014
P1 1 Forward 1015
P1 2 Reverse 1015
P1 3 Acceleration 1015
P1 4 Plug 1016
P1 5 Coast 1016
P1 6 Lift Speed 1016
P1 7 Lower Speed 1016
P1 8 Lift Accel 1016
P1 9 Lift Decel 1016
P1 10 Lower Accel 1016
P1 11 Lower Decel 1016
P1 16 Sideshift Speed 1016
P1 19 Aft FW Spd 1016
P1 20 Aft Rev Spd 1016
P1 21 Aft Decel 1017
P1 22 Aft Plug 1017
P1 32 Steer Effort 1017
P1 33 Steer Ratio 1017
P1 34 Ext Speed 1017
P1 36 Ret Speed 1017
P1 38 Tilt Up Speed 1017
P1 39 Tilt Down Speed 1017
Passwords 1018
Add Password 1018
Delete Password 1018
Edit Password 1018
Operator Password 1019
Clear Log 1019
Operator Logs 1019
Operator 1-150 1019
Information 1020
I1 Series 1020
I3 Serial Number 1020
I5 Truck Voltage 1020
Settings 1021
S1 Metric 1024
S2 User Performance 1024
S3 Timeout 1024
S4 Battery Type 1024
S5 BDI Startup Full 1024
S6 BDI Full 1024
S7 BDI Empty 1024
S8 BDI Reset 1024
S9 Lift Interrupt 1025
S10 Audible Warning 1025
S11 Visual Warning 1025
S12 Checklist 1025
S13 Maint Reminder 1025
S14 Restore Default 1026
S15 Truck Lockout 1026
S18 Lift Lim Overrid 1026
S42 Steer Mode 1026
S43 Simultaneity 1026
S44 Carry Position 1026
S45 Load Weight Mon 1026
S46 Fork Laser Line 1026
S47 Aft Handle 1026
S48 Camera 1026
S49 Trac Slow Extend 1026
S50 Auto Tilt 1026
S51 Free Lft Spd Red 1026
S52 Shelf Height Sel 1026
S53 Load Wt Spd Red 1027
S54 Free Lift Height 1027
S55 Impact Action 1027
S56 Impact Sound Len 1027
S57 Hard Duration 1027
S58 Hard Accel 1027
S59 Soft Duration 1027
S60 Soft Accel 1027
Software Version 1027
Error Log 1027
(E1) Error Log 1 1028
Error 1 1 (E1 1) 1028
Error 1 2 (E1 2) 1028
Error 1 3 (E1 3) 1028
Error 1 4 (E1 4) 1028
Impact Log 1029
Impact Log 1 (T1) 1029
Diagnostics 1029
Diagnostics 1029
D1 Status 1030
D2 Input 1030
D3 Output 1030
D1 Status 1030
D1 1 CAN 1031
D1 2 Contactor 1031
D1 3 Full Traction 1031
D1 4 Limp Traction 1031
D1 5 Steering 1031
D1 6 Lift 1031
D1 7 Lower 1031
D1 8 Tilt 1031
D1 9 Side Shift 1031
D1 10 EXT/RET 1031
D2 Inputs 1032
D2 10 Display 1033
D2 10 1 Bus Error 1034
D2 10 2 Bus Max Error 1034
D2 10 30 Traction 1034
D2 10 40 Steer 1034
D2 10 41 Steer Cast 1034
D2 10 50 Pump 1034
D2 10 51 Aux Pump 1034
D2 10 60 CTRL Hand 1034
D2 10 80 Impact Module 1034
D2 10 90 CAN I/O 1034
D2 10 91 Remote Module 1034
D2 30 Traction 1034
D2 30 1 Target Speed 1036
D2 30 2 Motor Speed 1036
D2 30 3 Motor ENC 1036
D2 30 5 Cont Temp 1036
D2 30 6 Motor Temp 1036
D2 30 7 Motor Curr 1036
D2 30 8 Cap V 1036
D2 30 9 Cap Max V 1036
D2 30 10 Cap Min V 1037
D2 30 11 Key V 1037
D2 30 12 Key Max V 1037
D2 30 13 Key Min V 1037
D2 30 14 Brake Connect 1037
D2 30 16 MC Connect 1037
D2 30 19 Brake SW 1037
D2 30 20 OP Sen SW 1037
D2 30 27 Load Hold Current 1037
D2 30 28 Lift/Lower Valve Current 1037
D2 30 31 Bank Out Current 1037
D2 30 32 SOC 1037
D2 40 Steer 1037
D2 40 1 Target Speed 1039
D2 40 2 Motor Speed 1039
D2 40 3 Motor ENC 1039
D2 40 5 Cont Temp 1039
D2 40 7 Motor Curr 1039
D2 40 8 Cap V 1039
D2 40 9 Cap Max V 1039
D2 40 10 Cap Min V 1039
D2 40 11 Key V 1039
D2 40 12 Key Max V 1039
D2 40 13 Key Min V 1039
D2 40 17 Center Prox SW 1039
D2 40 19 Steer Angle 1040
D2 41 Steer Caster 1040
D2 41 1 Target Speed 1041
D2 41 2 Motor Speed 1041
D2 41 3 Motor ENC 1041
D2 41 5 Cont Temp 1041
D2 41 6 Motor Temp 1041
D2 41 7 Motor Curr 1041
D2 41 8 Cap V 1042
D2 41 9 Cap Max V 1042
D2 41 10 Cap Min V 1042
D2 41 11 Key V 1042
D2 41 12 Key Max V 1042
D2 41 13 Key Min V 1042
D2 41 14 Center Prox SW 1042
D2 41 16 Steer Angle 1042
D2 50 Pump 1042
D2 50 1 Target Speed 1043
D2 50 2 Motor Speed 1043
D2 50 3 Motor ENC 1044
D2 50 5 Cont Temp 1044
D2 50 6 Motor Temp 1044
D2 50 7 Motor Curr 1044
D2 50 8 Cap V 1044
D2 50 9 Cap Max V 1044
D2 50 10 Cap Min V 1044
D2 50 11 Key V 1044
D2 50 12 Key Max V 1044
D2 50 13 Key Min V 1044
D2 50 14 Mast Prox SW 1044
D2 51 Aux Pump 1044
D2 51 1 Target Speed 1045
D2 51 2 Motor Speed 1045
D2 51 6 Motor Temp 1045
D2 51 7 Motor Curr 1045
D2 51 14 Motor Lock 1045
D2 51 15 Motor Lock 1 1045
D2 60 Control Handle 1045
D2 60 1 Horn SW 1046
D2 60 10 Tilt Up SW 1046
D2 60 11 Tilt Down SW 1046
D2 60 12 Shift Right SW 1046
D2 60 13 Shift Left SW 1047
D2 50 18 Function SW 1047
D2 60 19 Trac Input 1047
D2 60 20 Lift/Lower Input 1047
D2 60 21 SS/ER Input 1047
D2 60 22 ER Input 1047
D2 60 23 Tilt Input 1047
D2 80 Impact Sensor 1047
D2 80 1 Soft Impact 1047
D2 80 10 Hard Impact 1047
D2 90 CAN I/O 1048
D2 90 1 Height ENC 1050
D2 90 2 Height ENC 1050
D2 90 4 Ret Pos Prox Sen 1050
D2 90 11 Key V 1050
D2 90 12 Key Max V 1050
D2 90 13 Key Min V 1050
D2 90 23 Steer Stat 1050
D2 90 24 Cast Steer Stat 1050
D2 90 25 Pressure Sen 1050
D2 90 26 Horn Connect 1050
D2 90 28 Cont Fan Connect 1050
D2 90 30 Comp Fan Connect 1050
D2 90 32 TFD Coil Connect 1051
D2 90 34 ER Coil Connect 1051
D2 90 36 SS Coil Connect 1051
D2 90 38 Aux Rev Connect 1051
D2 90 40 Aux FWD Connect 1051
D2 90 42 Lower Connect 1051
D2 90 44 Backup Connect 1051
D2 90 46 Tilt Connect 1051
D2 90 52 Hld/Lft Connect 1051
D2 90 54 Strobe Connect 1051
D2 91 Remote Module 1051
D2 91 1 Height Prox Sen 1052
D2 91 2 Ret Pos Sen 1052
D2 91 3 Tilt Sen 1052
D2 91 4 Tilt Connect 1052
D2 91 5 SS Connect 1052
D2 91 6 ER Connect 1052
D2 91 7 Aux FWD Connect 1052
D2 91 8 Aux Rev Connect 1053
D3 Output 1053
D3 10 Display 1053
D3 10 10 Display Com 1054
D3 10 30 Trac Comm 1054
D3 10 40 Steer Com 1054
D3 10 41 Caster Steer Com 1054
D3 10 50 Pump Com 1054
D3 10 51 Aux Pump Com 1054
D3 10 60 Cont Handle Com 1054
D3 10 80 Impact Sensor 1054
D3 10 90 CAN I/O Com 1054
D3 10 91 Remote Module 1054
D3 30 Traction 1054
D3 30 1 U-V Line DC Curr 1055
D3 30 2 U-W Line DC Curr 1055
D3 30 3 V-W Line DC Curr 1055
D3 30 4 Motor Open 1055
D3 30 5 Motor Circuit 1055
D3 30 6 Brake 1055
D3 30 7 MC 1055
D3 40 Steer 1055
D3 40 1 U-V Line DC Curr 1056
D3 40 2 U-W Line DC Curr 1056
D3 40 3 V-W Line DC Curr 1056
D3 40 4 Motor Open 1056
D3 40 5 Motor Circuit 1056
D3 40 6 Status Line 1056
D3 41 Steer Caster 1056
D3 41 1 U-V Line DC Curr 1057
D3 41 2 U-W Line DC Curr 1057
D3 41 3 V-W Line DC Curr 1057
D3 41 6 Status Line 1057
D3 50 Pump 1057
D3 50 1 U-V Line DC Curr 1058
D3 50 2 U-W Line DC Curr 1058
D3 50 3 V-W Line DC Curr 1058
D3 50 4 Motor Open 1058
D3 50 5 Motor Circuit 1058
D3 90 CAN I/O 1058
D3 90 1 ER Coil 1060
D3 90 2 SS Coil 1060
D3 90 3 Aux Rev 1060
D3 90 4 Aux FWD 1060
D3 90 5 TFD Coil 1060
D3 90 6 Strobe 1060
D3 90 7 Comp Fan 1060
D3 90 8 Cont Fan 1060
D3 90 9 Lower Coil 1060
D3 90 10 Backup Alarm 1060
D3 90 11 Tilt Coil 1060
D3 90 12 Load Hold 1060
D3 90 13 Lift 1060
D3 90 14 Horn 1060
D3 91 Remote 1061
D3 91 1 ER Coil 1061
D3 91 2 SS Coil 1061
D3 91 3 Aux Rev 1061
D3 91 4 Aux FWD 1061
D3 91 5 Tilt Coil 1061
D3 91 6 Camera 1061
D3 91 7 Laser 1062
Calibration 1062
550073175-8000YRM1618-(01-2016)-US-EN 1069
Lubrication Specifications 1073
Oil Capacities 1073
Hydraulic System 1073
Lift Specifications 1074
Tire Sizes 1078
Torque Specifications 1079
Master Drive Unit 1079
Reach Carriage 1079
Mast 1079
Hydraulic System (NDR030/035EB and NR030/040/045EB) 1080
Hydraulic System (NDR030DB and NR035/040DB) 1080
Steering System 1080
Load Wheels (Lift trucks built before October 2015) 1080
Load Wheels (Lift trucks built after October 2015) 1080
Fuses 1081
Coil Resistance Values 1081
Battery Specifications 1083

S.V 05/24
